KingCornWallis

macrumors member
Original poster
Nov 7, 2018
91
19
United States
Lately my MacBook has been shutting down at night when I close it. When I turn it back on I get this error message:

Sleep Wake failure in EFI

Failure code:: 0x01710875 0x0000001f

Please IGNORE the below stackshot

================================================================
Date/Time: 2022-12-25 19:32:34 -0600
OS Version: ??? ??? (Build ???)
Architecture: x86_64
Report Version: 29

Data Source: Stackshots
Shared Cache: 0x669b000 43A24B28-4A18-3BA0-BD9F-5C290C9CF6D5

Event: Sleep Wake Failure
Duration: 0.00s
Steps: 1

Time Awake Since Boot: 10s



Process: swd [367]
Architecture: x86_64
Footprint: 388 KB
Start time: 2022-12-25 19:32:34 -0600
End time: 2022-12-25 19:32:34 -0600
Num samples: 1 (1)

Thread 0x81e 1 sample (1) priority 4 (base 4)
<thread QoS background (requested background), thread darwinbg, process darwinbg, IO tier 2>
1 start + 1 (libdyld.dylib + 109769) [0x7fff6c93ccc9] 1
1 ??? [0x10f603454] 1
1 ??? [0x10f6031dd] 1
1 __stack_snapshot_with_config + 10 (libsystem_kernel.dylib + 135846) [0x7fff6ca9e2a6] 1
*1 ??? [0xffffff80002c2206] 1
*1 ??? [0xffffff8000983517] 1
*1 ??? [0xffffff800089bf91] 1
*1 ??? [0xffffff80002e59b7] (running) 1

Binary Images:
0x7fff6c922000 - 0x7fff6c958fff libdyld.dylib (750.7) <AB99C9EE-7127-3451-89AB-339F8F2CEE61> /usr/lib/system/libdyld.dylib
0x7fff6ca7d000 - 0x7fff6caa9fff libsystem_kernel.dylib (6153.141.66) <FF081F3A-F653-3F8F-9E64-9F34792EEDB3> /usr/lib/system/libsystem_kernel.dylib
Model: MacBookPro9,2, BootROM 429.0.0.0.0, 2 processors, Dual-Core Intel Core i7, 2.9 GHz, 16 GB, SMC 2.2f44
Graphics: kHW_IntelHD4000Item, Intel HD Graphics 4000, spdisplays_builtin
Memory Module: BANK 0/DIMM0, 8 GB, DDR3, 1600 MHz, 0x0D9B, -
Memory Module: BANK 1/DIMM0, 8 GB, DDR3, 1600 MHz, 0x859B, 0x43543130323436344246313630422E4D3136
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x133), Broadcom BCM43xx 1.0 (7.77.111.1 AirPortDriverBrcmNIC-1615.7)
Bluetooth: Version 7.0.6f8, 3 services, 27 devices, 1 incoming serial ports
Serial ATA Device: CT1000MX500SSD1, 1 TB
Serial ATA Device: MATSHITADVD-R UJ-8A8
USB Device: USB 3.0 Bus
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: FaceTime HD Camera (Built-in)
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: Hub
USB Device: Apple Internal Keyboard / Trackpad
USB Device: IR Receiver
USB Device: Bluetooth USB Host Controller
Thunderbolt Bus: MacBook Pro, Apple Inc., 25.1


Currently running the latest version of Catalina.

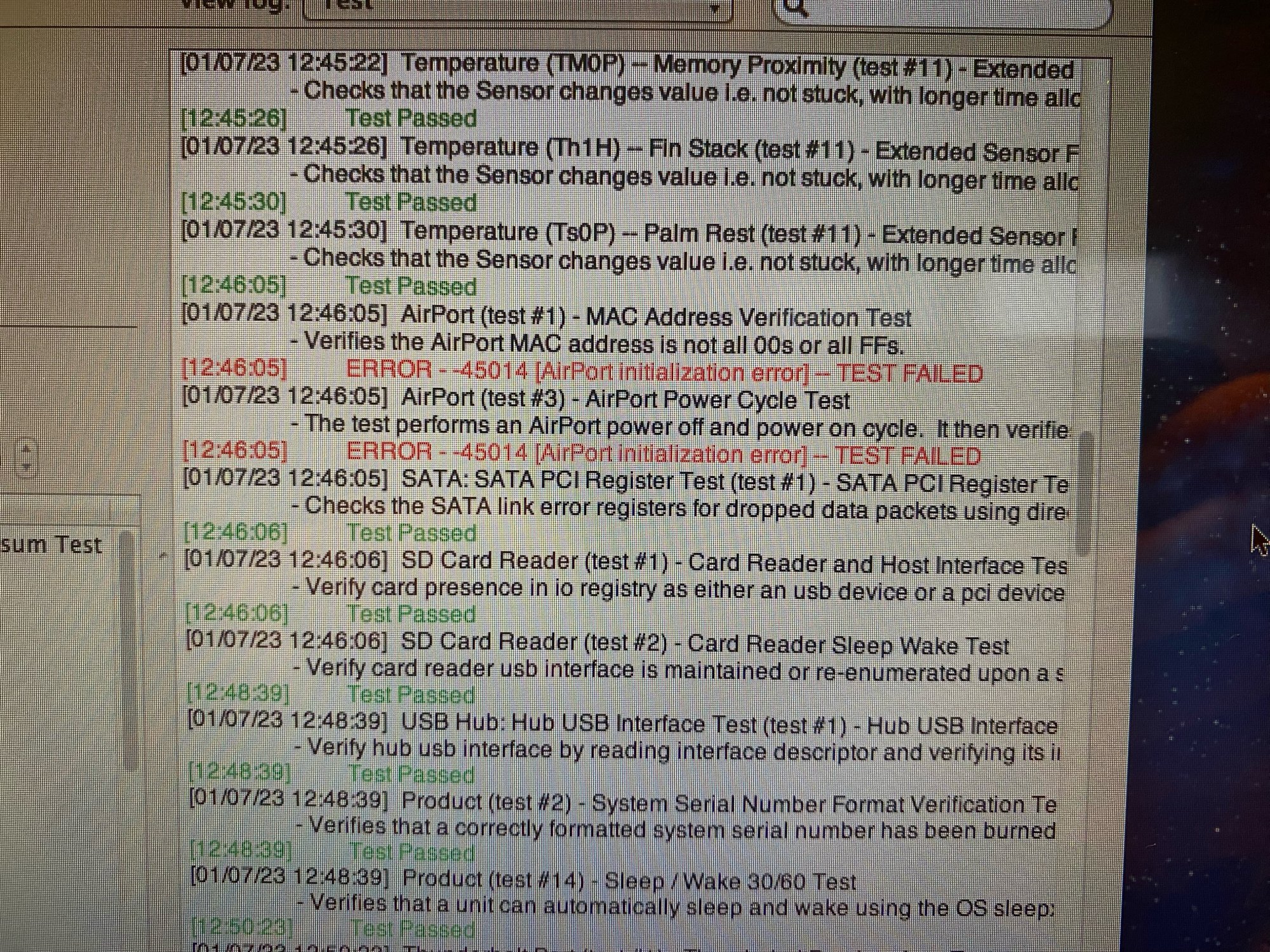

I ran ASD on it and it found two errors relating to the Airport Card:



Is this card bad? Is the cable bad? What further tests can I do?
