tornado99

macrumors 6502
Original poster
Jul 28, 2013
454
445
So I've just watched 10 different reviews of the new iMac, and at least half them didn't even show a webpage or page of text on the screen!

Out of the very few webpages shown I compared them to my 1080p 24" and my 4K 24". It seems, at least on the settings they had, you couldn't fit any more content on screen than a normal monitor.

Is this plausible? It would seem with the sharper text you might be able to decrease font size and then be able to have a larger workspace.

As a coder, this is kinda an important question, but not one single review has been from someone who uses a computer like I do! I always feel a bit tight on space with my current setup, and 27 inch screens feel a bit too large for me, but perhaps the new iMac isn't the solution either.


ApfelKuchen

macrumors 601
Aug 28, 2012
4,335
3,012
Between the coasts
The likely answer is, they're showing/using Default Resolution. Default Resolution does not take advantage of the full resolution/pixel density of the display.

The 24" is rated as a 4.5K display, with a higher resolution than comparable 24" 4K displays. Therefore, you should have a slightly larger desktop on the iMac than you would on a 4K 24" display.

Here's how Apple handles display resolution options in System Preferences > Display on the 27" 5K iMac:

"Larger Text - Looks like 1600 x 900"
(no description) - "Looks like 2048 x 1152"
"Default - Looks like 2560 x 1440"
(no description) - "Looks like 2880 x 1620"
"More Space - Looks like 3200 x 1800"

Native resolution 5120 x 2880
Pixel density - 218 ppi

According to the 24" iMac's spec sheet:

Native resolution 4480 x 2520
Pixel density - 219 ppi

One can assume that Default is therefore half of native resolution - 2240 x 1260

Compare that to the LG Ultrafine 4k 24" display - 3840 x 2160, or a presumed Apple default of 1920 x 1080

In other words, yes, the iMac should have a somewhat larger desktop/smaller text than that LG, all other things being equal.

  • Like
Reactions: Ruftzooi and coso

tornado99

macrumors 6502
Original poster
Jul 28, 2013
454
445
But in that case 1260 lines of effective vertical resolution is actually more than a 1920x1200 16:10 display, so you would think that it would be a significant improvement on standard 1080p. Certainly for me, I always feel normal 16:10 displays are less cramped.

I guess I should wait until hopefully some more technical folk gets their hands on these. I have zero interest in Final Cut Pro or Lightroom.


thingstoponder

macrumors 6502a
Oct 23, 2014
916
1,100
Of course there’s more real estate, just not THAT much. It’s not going to be like using a 27”iMac.

But in that case 1260 lines of effective vertical resolution is actually more than a 1920x1200 16:10 display, so you would think that it would be a significant improvement on standard 1080p. Certainly for me, I always feel normal 16:10 displays are less cramped.

I guess I should wait until hopefully some more technical folk gets their hands on these. I have zero interest in Final Cut Pro or Lightroom.
The 4K iMac wasn’t 1080p. It was 4096x2304, so 2048x1152 of real estate.

  • Like
Reactions: coso

4sallypat

macrumors 601
Sep 16, 2016
4,035
3,785
So Calif
.....
The 24" is rated as a 4.5K display, with a higher resolution than comparable 24" 4K displays. Therefore, you should have a slightly larger desktop on the iMac than you would on a 4K 24" display.

Here's how Apple handles display resolution options in System Preferences > Display on the 27" 5K iMac:

"Larger Text - Looks like 1600 x 900"
(no description) - "Looks like 2048 x 1152"
"Default - Looks like 2560 x 1440"
(no description) - "Looks like 2880 x 1620"
"More Space - Looks like 3200 x 1800"

Native resolution 5120 x 2880
Pixel density - 218 ppi

According to the 24" iMac's spec sheet:

Native resolution 4480 x 2520
Pixel density - 219 ppi

One can assume that Default is therefore half of native resolution - 2240 x 1260

Compare that to the LG Ultrafine 4k 24" display - 3840 x 2160, or a presumed Apple default of 1920 x 1080

In other words, yes, the iMac should have a somewhat larger desktop/smaller text than that LG, all other things being equal.

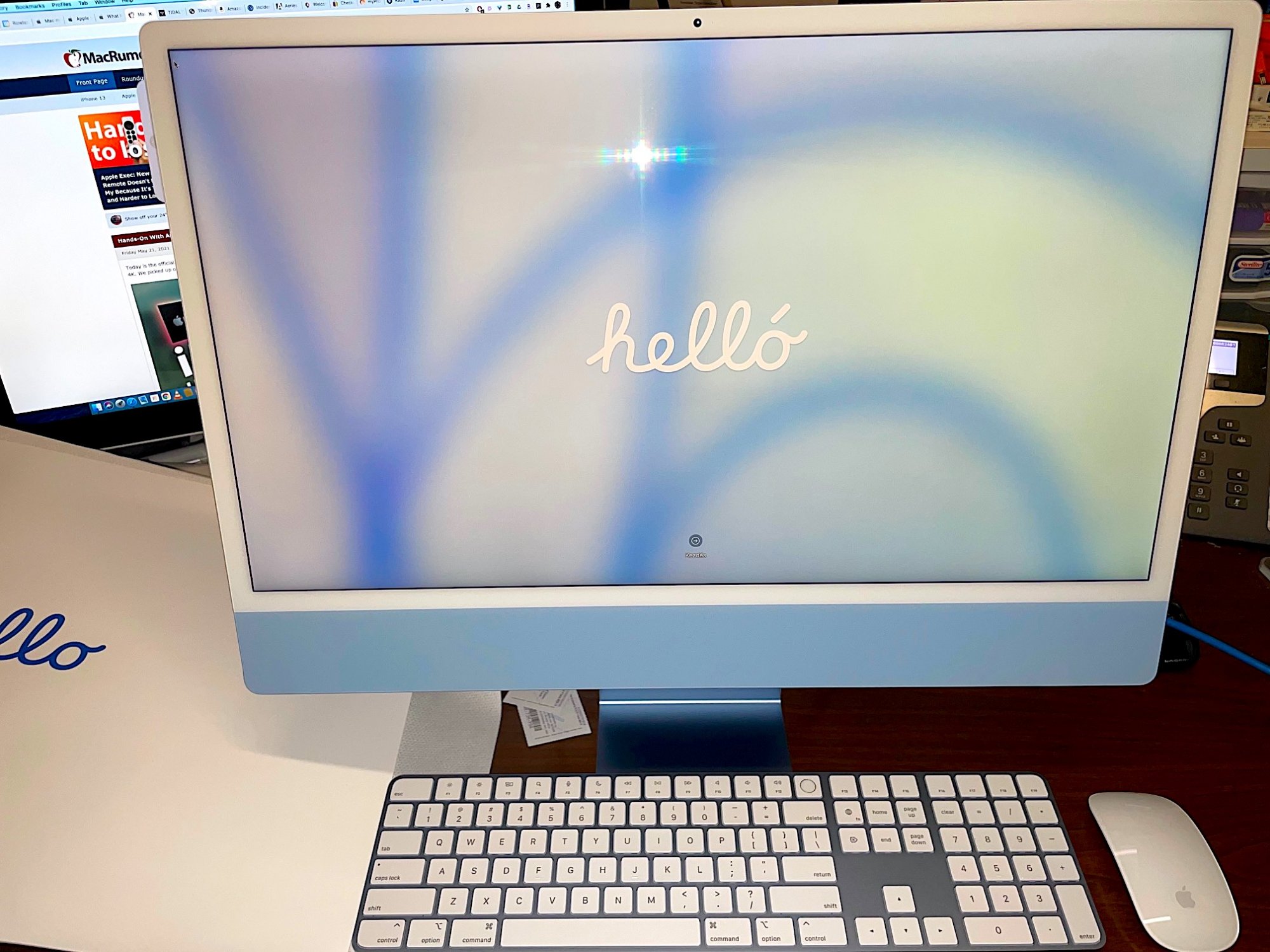

This is correct - having used the new M1 iMac for less than a day, the 4.5K Retina display just overtakes my 24" Cinema & 27" Thunderbolt display from 10 years ago!

The 24" Retina display makes the fonts sharp, crisp, and smoother in transition compared to my old display. It's even more colorful than my 4K 21.5" iMac.

My 24" Cinema display behind the new M1 iMac is connected to my M1 Mini....


  • Like
Reactions: randywsandberg

tornado99

macrumors 6502
Original poster
Jul 28, 2013
454
445
The 24" Retina display makes the fonts sharp, crisp, and smoother in transition compared to my old display. It's even more colorful than my 4K 21.5" iMac.

But when you view a website can you actually fit more of it on the screen (at a comfortable font size) than the 21.5" iMac?

  • Like
Reactions: 4sallypat

4sallypat

macrumors 601
Sep 16, 2016
4,035
3,785
So Calif
But when you view a website can you actually fit more of it on the screen (at a comfortable font size) than the 21.5" iMac?
Yes, the 4.5K Retina does show more "real estate" compared to the 21.5" making it "feel" like I am viewing my 27" Thunderbolt display (I don't have a 5K to compare)....

The fonts are naturally Apple on the M1 iMac which is the reason I choose Apple displays even 10 years old because they look like the Macbook font/type.

I'll have the new M1 iMac connected to the 24" Cinema display as well as the 27" Thunderbolt display and report back...


jungleghost

macrumors member
Apr 5, 2021
63
31
Yes, the 4.5K Retina does show more "real estate" compared to the 21.5" making it "feel" like I am viewing my 27" Thunderbolt display (I don't have a 5K to compare)....

The fonts are naturally Apple on the M1 iMac which is the reason I choose Apple displays even 10 years old because they look like the Macbook font/type.

I'll have the new M1 iMac connected to the 24" Cinema display as well as the 27" Thunderbolt display and report back...
The 27" Thunderbolt Display really looks too bad next the retina 4.5K display? Or it's just worse but decent enough to not bother you?


4sallypat

macrumors 601
Sep 16, 2016
4,035
3,785
So Calif
The 27" Thunderbolt Display really looks too bad next the retina 4.5K display? Or it's just worse but decent enough to not bother you?
I use the 27" Thunderbolt display perfectly with the 24" iMac just fine- the 27" is my text / document / web content display; while the 24" is my video & photo apps.


jungleghost

macrumors member
Apr 5, 2021
63
31
I use the 27" Thunderbolt display perfectly with the 24" iMac just fine- the 27" is my text / document / web content display; while the 24" is my video & photo apps.
WoW, seriously? The text it's not way better on the 24" iMac? I'm thinking buy a 27" TB display. But after retina screens, I'm guessing that I won't take it or get used to it.


4sallypat

macrumors 601
Sep 16, 2016
4,035
3,785
So Calif
WoW, seriously? The text it's not way better on the 24" iMac? I'm thinking buy a 27" TB display. But after retina screens, I'm guessing that I won't take it or get used to it.
It's the fonts that displays on the Thunderbolt that makes me continue to use it - like I have for the past 10 year on this display.

We have 3 of these displays in use and love them - large screen for text, web html, etc...

The 24" is acceptable but I prefer to use it more for video, photos, editing, etc...


Amethyst1

macrumors G3
Oct 28, 2015
9,827
12,245
It's the fonts that displays on the Thunderbolt
So you like fonts that look awful? ;)

Joking aside...

The 27” Thunderbolt Display has 109 ppi, which results in awful (blurry/fuzzy) text rendering on macOS. The 24” iMac’s display has about 220 ppi which is perfect for the vastly improved text rendering that the HiDPI (“Retina” in layman’s terms) modes provide.

I had a 27” Thunderbolt Display and fonts looked like crap on it on recent macOS. Unbearable.

In other words: users looking for a monitor that has sharp font rendering should stay the hell away from the Thunderbolt Display, because it doesn’t provide that anymore.

Last edited:
  • Like
Reactions: opeter

jungleghost

macrumors member
Apr 5, 2021
63
31
So you like fonts that look awful? ;)

Joking aside...

The 27” Thunderbolt Display has 109 ppi, which results in awful (blurry/fuzzy) text rendering on macOS. The 24” iMac’s display has about 220 ppi which is perfect for the vastly improved text rendering that the HiDPI (“Retina” in layman’s terms) modes provide.

I had a 27” Thunderbolt Display and fonts looked like crap on it on recent macOS. Unbearable.

In other words: users looking for a monitor that has sharp font rendering should stay the hell away from the Thunderbolt Display, because it doesn’t provide that anymore.
Thank you, I'll be far away from the old TB 27".


jungleghost

macrumors member
Apr 5, 2021
63
31
It's a bit of a shame really because it's still a decent monitor, but macOS' font rendering ruins it.
I'm thinking buy the LG 24UD58, it's 23.8 4K (around 185ppi) do you think it's enough to get a sharp image? For me, 32" 4K it's no way sharp, but 27" 4K it's mid level sharp, maybe the 24 4K will be "good sharp" (not perfect like the iMac, but still very very good). Both LG Ultrafine are overpriced to me.


tornado99

macrumors 6502
Original poster
Jul 28, 2013
454
445
I'm thinking buy the LG 24UD58, it's 23.8 4K (around 185ppi) do you think it's enough to get a sharp image? For me, 32" 4K it's no way sharp, but 27" 4K it's mid level sharp, maybe the 24 4K will be "good sharp" (not perfect like the iMac, but still very very good). Both LG Ultrafine are overpriced to me.

I find 185ppi perfectly sharp for everything I use it for. But try and get this if you can. It's a brighter panel


  • Like
Reactions: Amethyst1

Sheepish-Lord

macrumors 68030
Oct 13, 2021
2,532
5,149
I still don't get how Apple advertises the iMac 24" being a 4.5K display yet the max scaled resolution called 'More Space' is only 2560x1440...am I missing something here?


jungleghost

macrumors member
Apr 5, 2021
63
31
I still don't get how Apple advertises the iMac 24" being a 4.5K display yet the max scaled resolution called 'More Space' is only 2560x1440...am I missing something here?
You are getting full 4.5K, but the UI is at the size of 2560x1440. You can get the native size, pressing option on display settings, but everything will be super small.

  • Like
Reactions: Amethyst1

Amethyst1

macrumors G3
Oct 28, 2015
9,827
12,245
I still don't get how Apple advertises the iMac 24" being a 4.5K display yet the max scaled resolution called 'More Space' is only 2560x1440...am I missing something here?
The 24" iMac has a 4480×2520 display, which Apple call "4.5K". If you select the "More Space" option that "looks like 2560×1440", what actually happens is that macOS creates a framebuffer that is twice as wide and twice as tall as that resolution (i.e. 5120×2880), draws the UI elements and text etc. on that framebuffer at 200% their normal size ("HiDPI") and then downscales that to the 4480×2520 screen. This gives you screen estate equivalent to a 2560x1440 monitor yet noticeably sharper, because all the pixels of the iMac's display are still being utilised. However, this downscaling still introduces a slight blurriness that you don't get if (and only if) you use the default "looks like 2260×1240" setting. At that setting, the framebuffer is the same size as the display's native resolution so no downscaling is required and everything is pin-sharp.

  • Like
Reactions: Sheepish-Lord

cyberstudio

macrumors member
Jan 10, 2020
62
40
Over the years the iMacs have been remarkably consistent - text is the same size regardless of screen size so for more screen real estate you get a bigger screen.
