Resolved NVMe not showing up

[Pecator]

I told you I would ask a lot of questions! I promise to slow down once this machine is complete!

I put in a NVMe card with an SSD. It is read in the system analysis, but no where else. (Neither Disk Utility nor Desktop)

What am I missing here?
How do I format and install a system? (No it did not show up in the system installer either)



[h9826790]

I told you I would ask a lot of questions! I promise to slow down once this machine is complete!

I put in a NVMe card with an SSD. It is read in the system analysis, but no where else. (Neither Disk Utility nor Desktop)

What am I missing here?
How do I format and install a system? (No it did not show up in the system installer either)

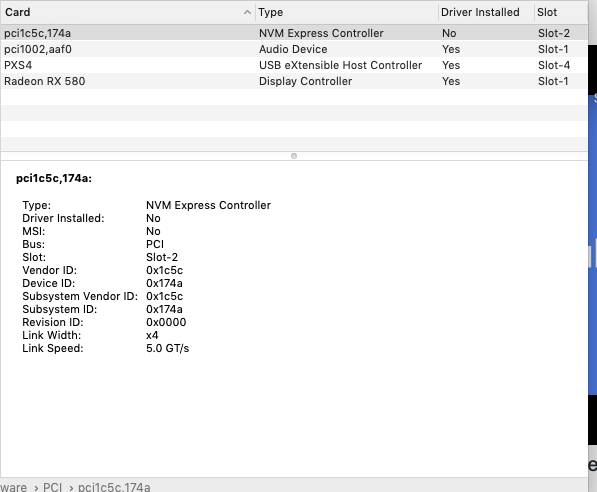

View attachment 1658876

Which NVNe? Which OS?



[Pecator]

Sorry I always forget to do that

The SSD: SK hynix Gold P31 1TB PCIe NVMe Gen3 M.2 2280
The Card: Inateck M.2 PCIe SSD Adapter,M.2 to PCIe 3.0 x4 Adapter

I'm running Mojave



[h9826790]

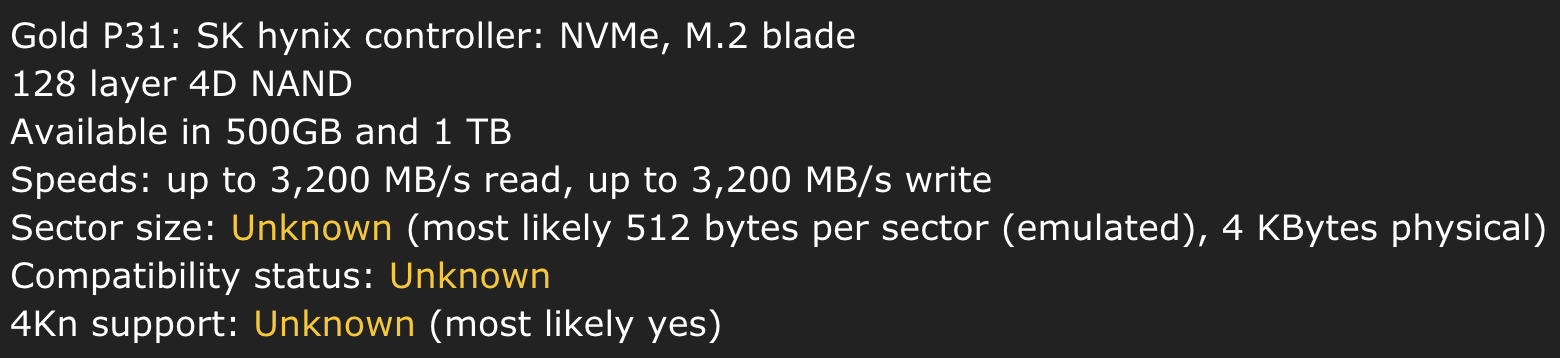

PCIe SSDs - NVMe & AHCI

This is a general info thread for blade SSDs that can be used in the Mac Pro. This is a WikiPost so anyone with the proper credentials may edit it. NVMe SSDs can be used as a boot drive in the MP5,1 and MP6,1 with the latest firmware installed (beginning with version 140.0.0.0.0 for MP5,1 and...

forums.macrumors.com



[Earl Urley]

Did you tell Disk Utility to Show All Devices under the View button?

A search of the forums turns up one report of the Hynix P31 refusing to boot on Macs.

There's also two reviews on Amazon that mention that Hynix P31 Gold won't mount or boot on Macs.
