PCIE expansion to Highpoint 7101A

[startergo]

Is this going to work?
http://www.hwtools.net/Adapter/PE4C V4.1.html#Web-Shop
with the M.2 Key M adapter connected to one of the slots of the Highpoint 7101A?



[tsialex]

Is this going to work?
http://www.hwtools.net/Adapter/PE4C V4.1.html#Web-Shop
with the M.2 Key M adapter connected to one of the slots of the Highpoint 7101A?

Probably. The problem is how you make this install reliable.

Someone here use a SSD7101-A with two M.2 blades and two capture cards, maybe you should ask about any potential problems.



[startergo]

What I was thinking is use a card with a boot screen if needed in the external slot. This way we are saving a pcie slot.



[handheldgames]

What I was thinking is use a card with a boot screen if needed in the external slot. This way we are saving a pcie slot.

This configuration should work...

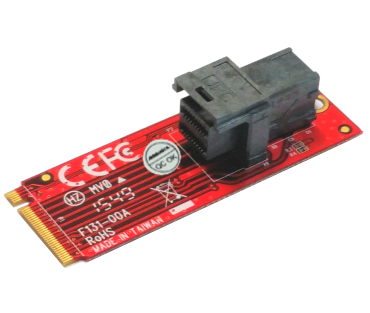

A SFF-8639 to M.2 adapter- with SFF-8639 to SFF-8643 cable.(about $40)

and a SFF-8643($40 on newegg) to PCIe 3.0 slot.
