Bloodklot

macrumors newbie
Original poster
Oct 4, 2011
18
2
Hello all, as the title says, I’m trying to install a Powercolor RX 6600 XT Red Devil in my Mac Pro 5.1. I do plan on installing Opencore and updating my OS. Also I plan on updating the gpu bios to work with the Mac. My question is, the gpu has a 6 pin and 8 pin connections. I’m currently using a RX 580 which has just a single 8 pin connection. I have a dual mini 6 pin to 8 pin adapter for that RX 580 card. How do I power the extra 6 pin for the RX 6600 XT? Should I get a 8 pin to 8 pin + 6(2) pin adapter?

So it would be:

Mac -> dual mini 6 pin to 8 pin adapter -> 8 pin to 8 pin + 6(2) pin adapter -> 6600 XT. Would this work and be safe enough to power the card and not burn out the connections on the motherboard? I chose this card because it’s the maximum you can go before you need a pixlas mod.

Thanks in advance!


Attachments

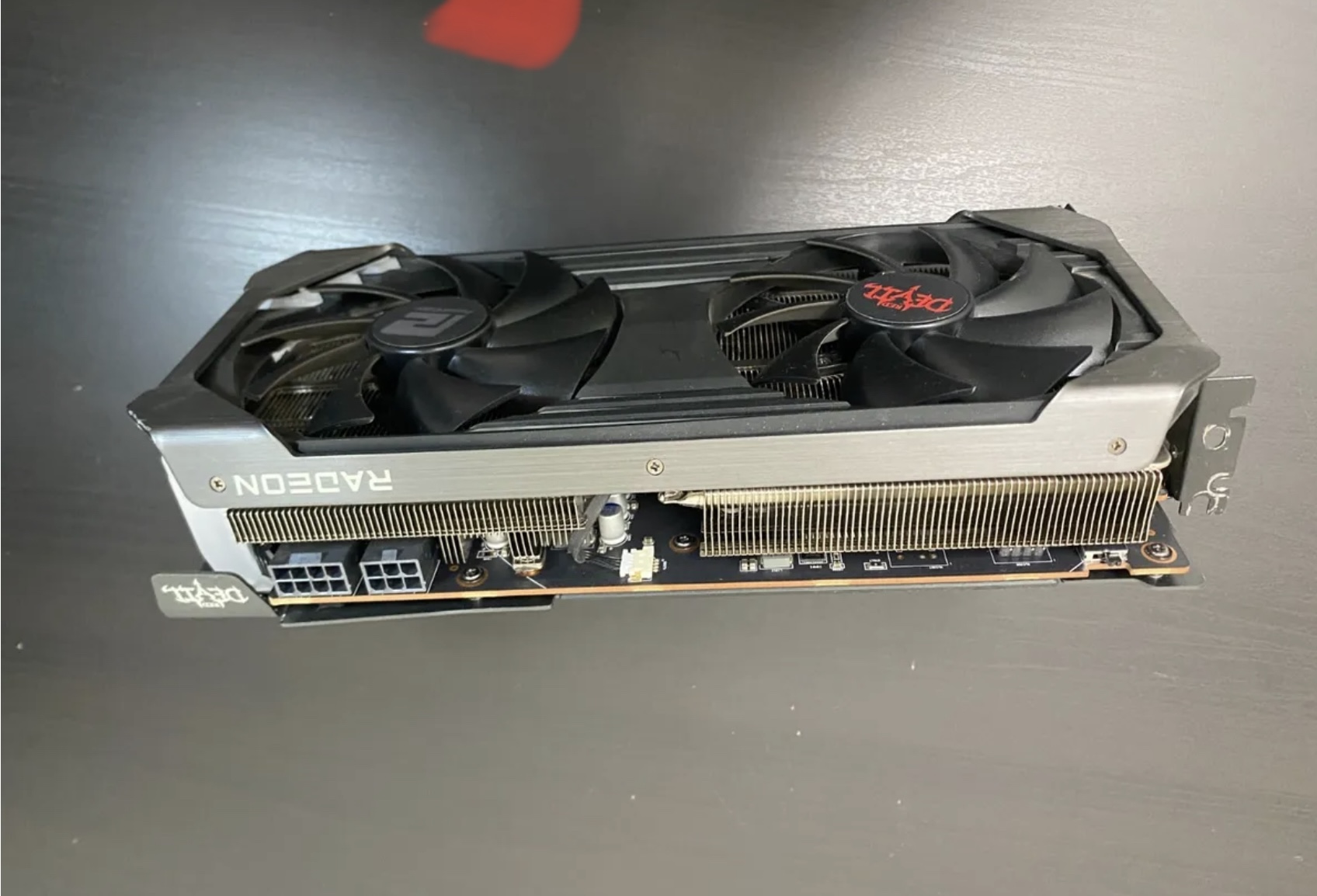

  • IMG_1103.jpeg
    323.4 KB · Views: 292
Last edited:

Matty_TypeR

macrumors 6502a
Oct 1, 2016
641
555
UK
To power the card properly you need to do the Pixlas Mod on your PSU. if you draw to much power from the 2 mini 6 pin connections on the logic board you have a chance of killing the board.

Do a search for the Pixlas Mod and follow it carefully.


h9826790

macrumors P6
Apr 3, 2014
16,656
8,587
Hong Kong
The Typical power draw of the Red Devil 6600XT is just ~170W

Dual mini 6pin -> single 8pin + 8pin Female -> dual 6+2pin is good enough to power this card.


Bloodklot

macrumors newbie
Original poster
Oct 4, 2011
18
2
The Typical power draw of the Red Devil 6600XT is just ~170W

Dual mini 6pin -> single 8pin + 8pin Female -> dual 6+2pin is good enough to power this card.
Thank you! I thought I’d ask before I buy and try.
