SATA Card for Powermac G4 MDD
- Thread starter flatjuba
- Start date
- Sort by reaction score
You can get a generic PC one, and in fact have to now that stock of the Power Mac specific SATA cards are pretty much evaporated, but you'll have to flash them. I'd consider getting a PCI-X card because the Power Mac PCI bus is 64 bits wide, and most SATA cards that are pre-flashed for Power Macs are 32-bit, halving your transfer speed from 266MB/s to 133MB/s. PCI-X is backwards compatible with PCI and natively 64-bit, so that's not an issue.
Look for the "SiI3112" (sometimes mislabeled "SiL3112") chip. That's generally considered the easiest to get working in a Power Mac.
Look for the "SiI3112" (sometimes mislabeled "SiL3112") chip. That's generally considered the easiest to get working in a Power Mac.
Last edited:
You'll definitely have to flash a PC card. (Update: @lepidotós beat me to it).
You can also flash a 2-port SiI3512. That you can do in a Mac, the SiI3112 requires flashing on a PC. Unless you want to delve deeper into it, these cards will only support OSX. OS9 will neither see them nor any disks hosted on them.
Do you know where I can get the firmware to flash software? As well as the instruction....Thanks before.
Guide to flashing PC SIL3112 SATA cards for Mac
To begin with, hello - I'm new to this board, although I've been a member of the 68kMLA forums for a while. I'm also a long time user of PowerPC Macs. I recently flashed a PC SATA card to use in my PMG4, which I am currently in the process of fully upgrading. I put this guide together for...
forums.macrumors.com
WiebeTech Micro Storage Solutions -
WiebeTech provides FireWire bridges and storage solutions utilizing FireWire 400, FireWire 800, Serial ATA and USB2 interfaces. WiebeTech also provides forensic and encrypting solutions for law enforcement, government and military applications. WiebeTech's series of DriveDock products allow...
2nd file down for the SiI3512 cards. Whatever card you go for, make sure it is a 2 port card only. There are also four port cards and some with 2 SATA and 2 eSATA ports. Avoid those.
C'mon, it's actually SiL3112. Look at this datasheet.

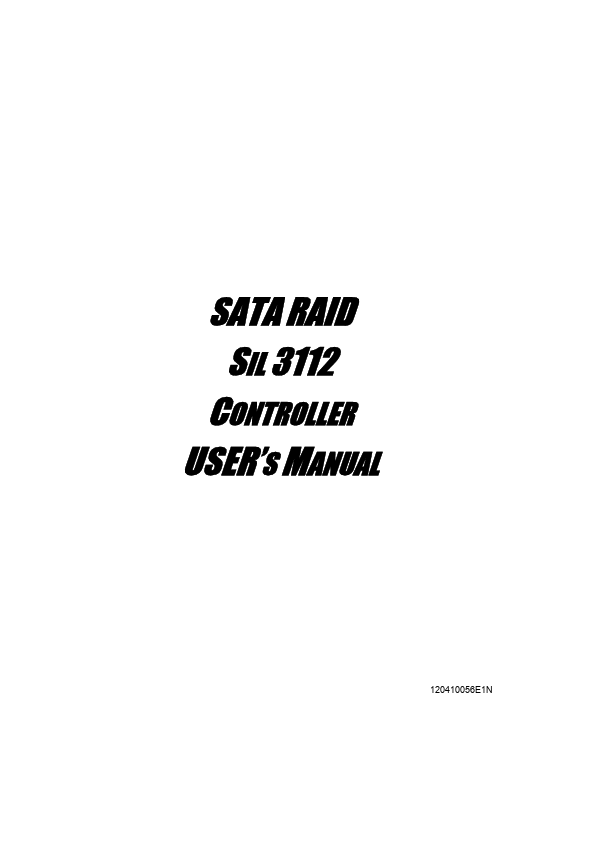

SIL3112 datasheet, manual equivalent, Silicon Image
SIL3112 datasheet, SIL3112 manual equivalent, Silicon Image, Features and benefits, Stock and price
Silicon ImageC'mon, it's actually SiL3112. Look at this datasheet.
SIL3112 datasheet, manual equivalent, Silicon Image
SIL3112 datasheet, SIL3112 manual equivalent, Silicon Image, Features and benefits, Stock and pricewww.datasheet4u.com
It's SiI. As for that datasheet ?♂️
I dare say they would have preferred SI but someone got to that first...
I glanced at that datasheet. All the SiL labelling seems to be from that 3rd party distributing it on its own coverpage to the datasheet and its website. On the actual datasheet created by Silicon Image, SiI is sticking to SiI.
I glanced at that datasheet. All the SiL labelling seems to be from that 3rd party distributing it on its own coverpage to the datasheet and its website. On the actual datasheet created by Silicon Image, SiI is sticking to SiI.
