Logic Board Faulty?

  • Yes

    Votes: 0 0.0%
  • GPU

    Votes: 2 66.7%
  • CPU

    Votes: 0 0.0%
  • Video Card (Logic Board as it is all one)

    Votes: 1 33.3%

  • Total voters
    3

JonCosman

macrumors newbie
Original poster
Jun 5, 2016
5
0
Saint John, NB

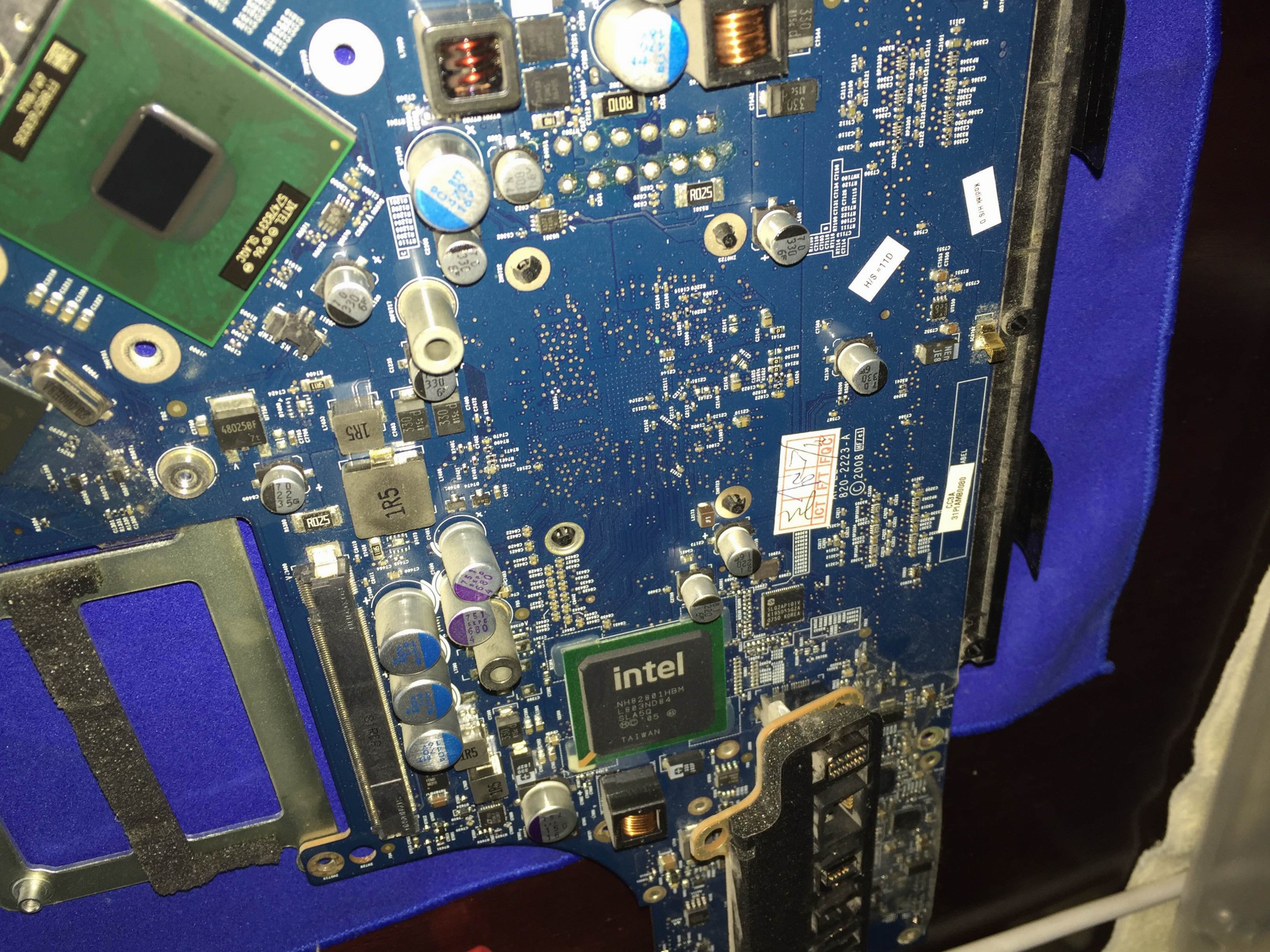

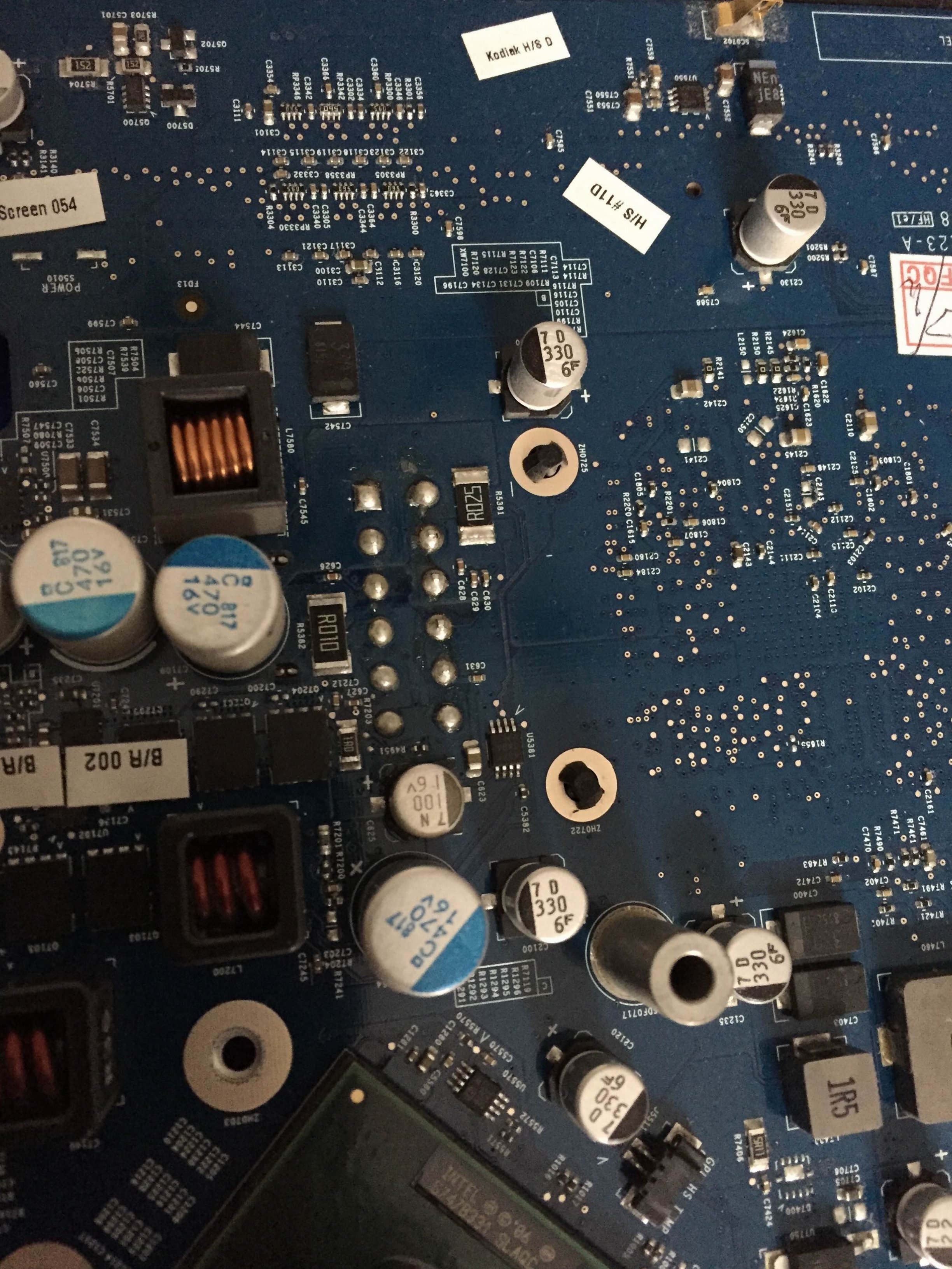

Hi everyone, I just took out the logic board in my 2008 iMac 20" EMC 2210. I thought i had a problem with the GPU so I removed it and cleaned and put thermal paste back on. Everything went well putting back together. Start it up and hear the chime... then black screen with 2 LED's showing on the front panel. Any thoughts or could I have forgotten a cable? Please see picture as I think it may be a corroded / faulty logic board... or it could be just the GPU.

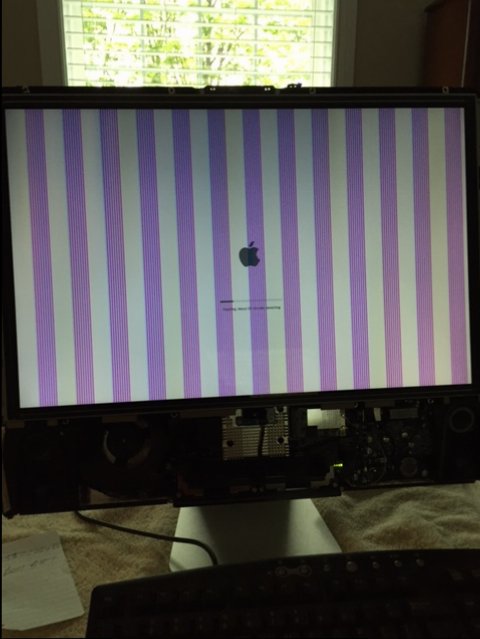

What I had before this was Pink lines on screen and could only get into Safe Boot. I was running el capitan.


Attachments

  • IMG_1314.JPG
    1.1 MB · Views: 157
  • IMG_1315.JPG
    1.3 MB · Views: 143
  • IMG_1273.JPG
    45.3 KB · Views: 142
