Skeptical.me

macrumors 6502a
Original poster
Jun 10, 2017
649
632
Australia

"This Disk is Locked" Reinstalling macOS​

I have a 2017 iMac 27" 5K with a 1TB Fusion Drive.

I have always used an external SSD for the boot drive.

Now I am selling it, I am trying to install macOS on the Fusion Drive.

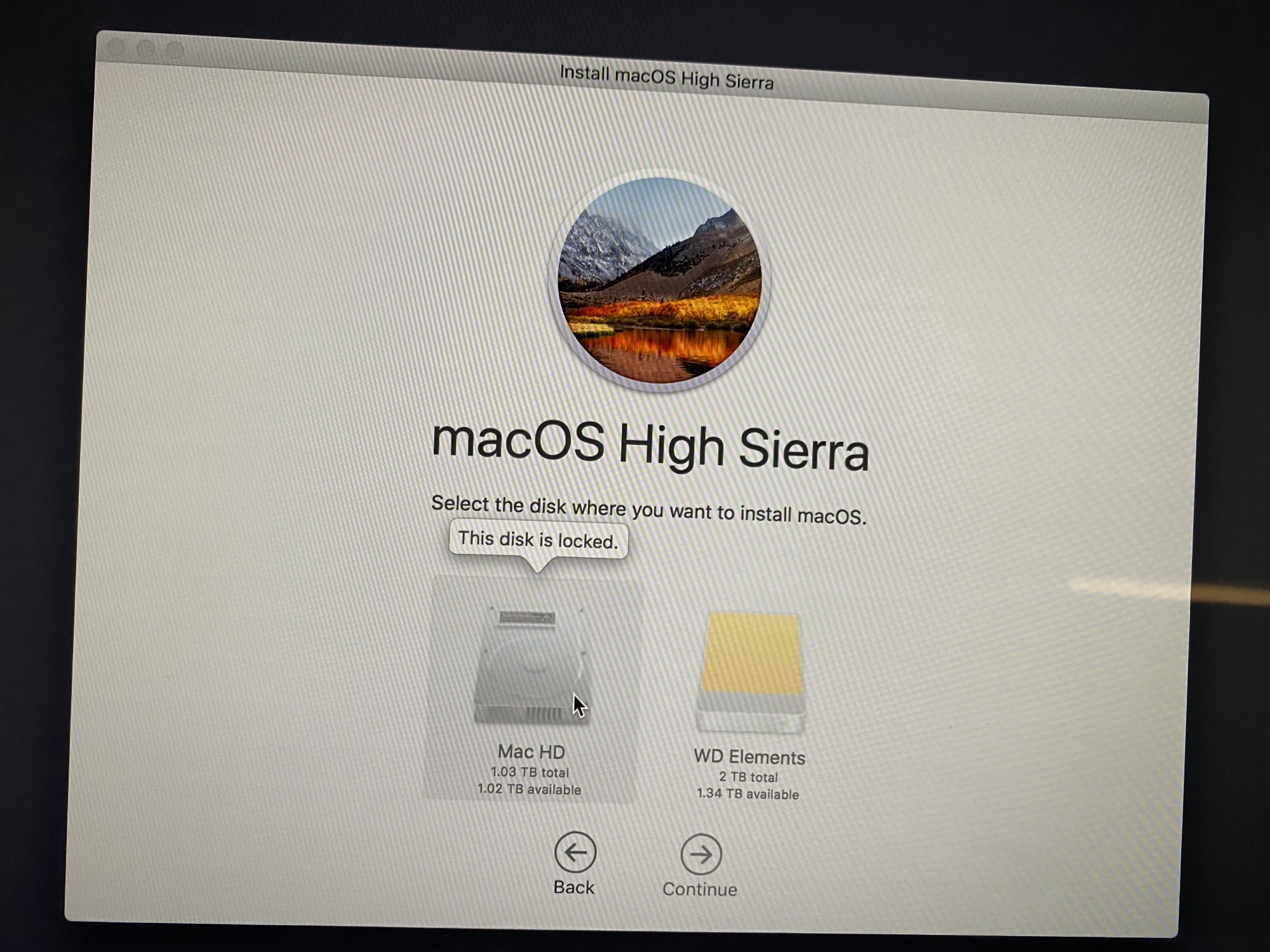

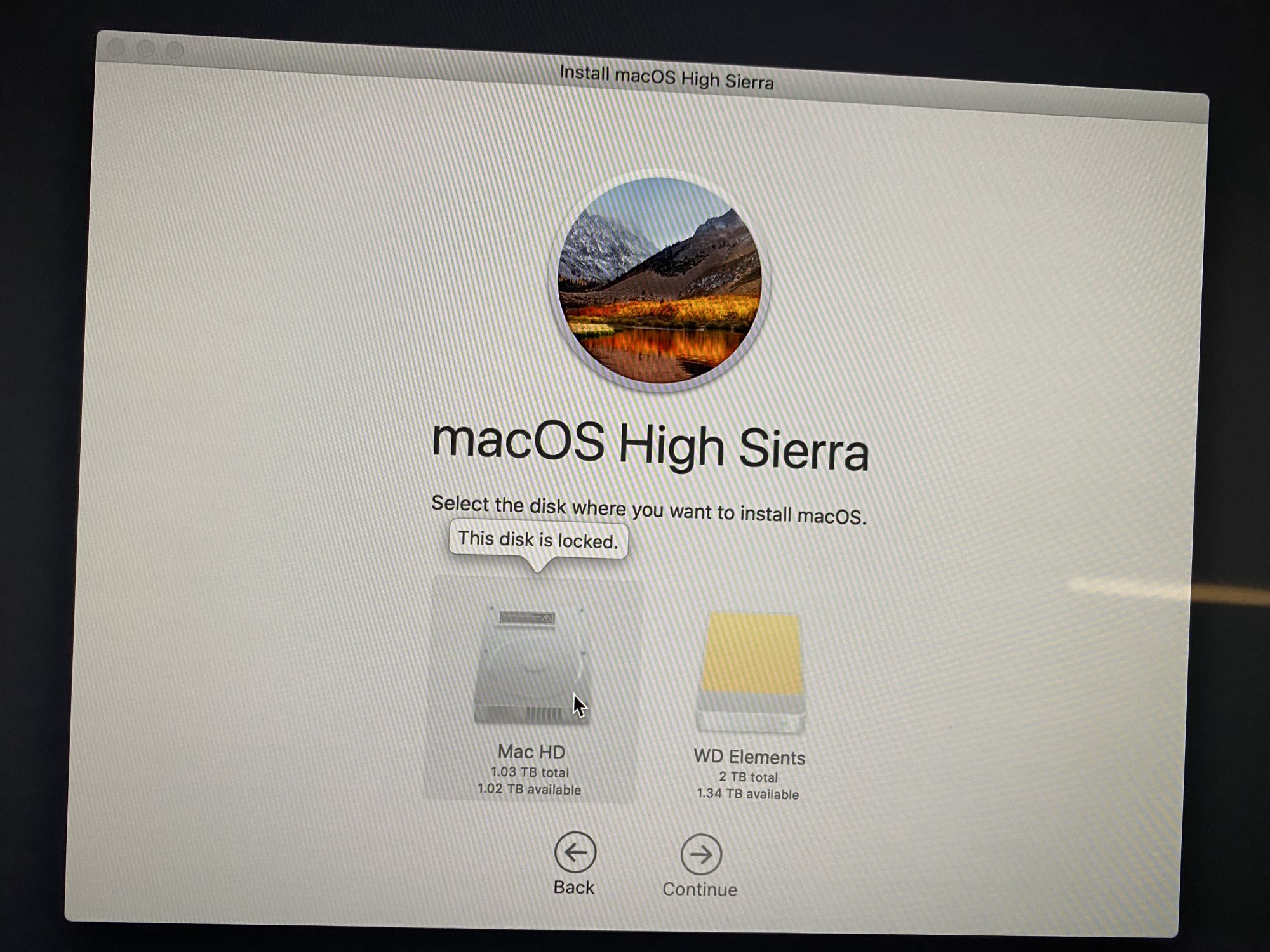

When I boot into Recovery and try to install macOS I'm asked what drive I want to install macOS on. But the "Mac HD" has the message "The Disk is Locked".

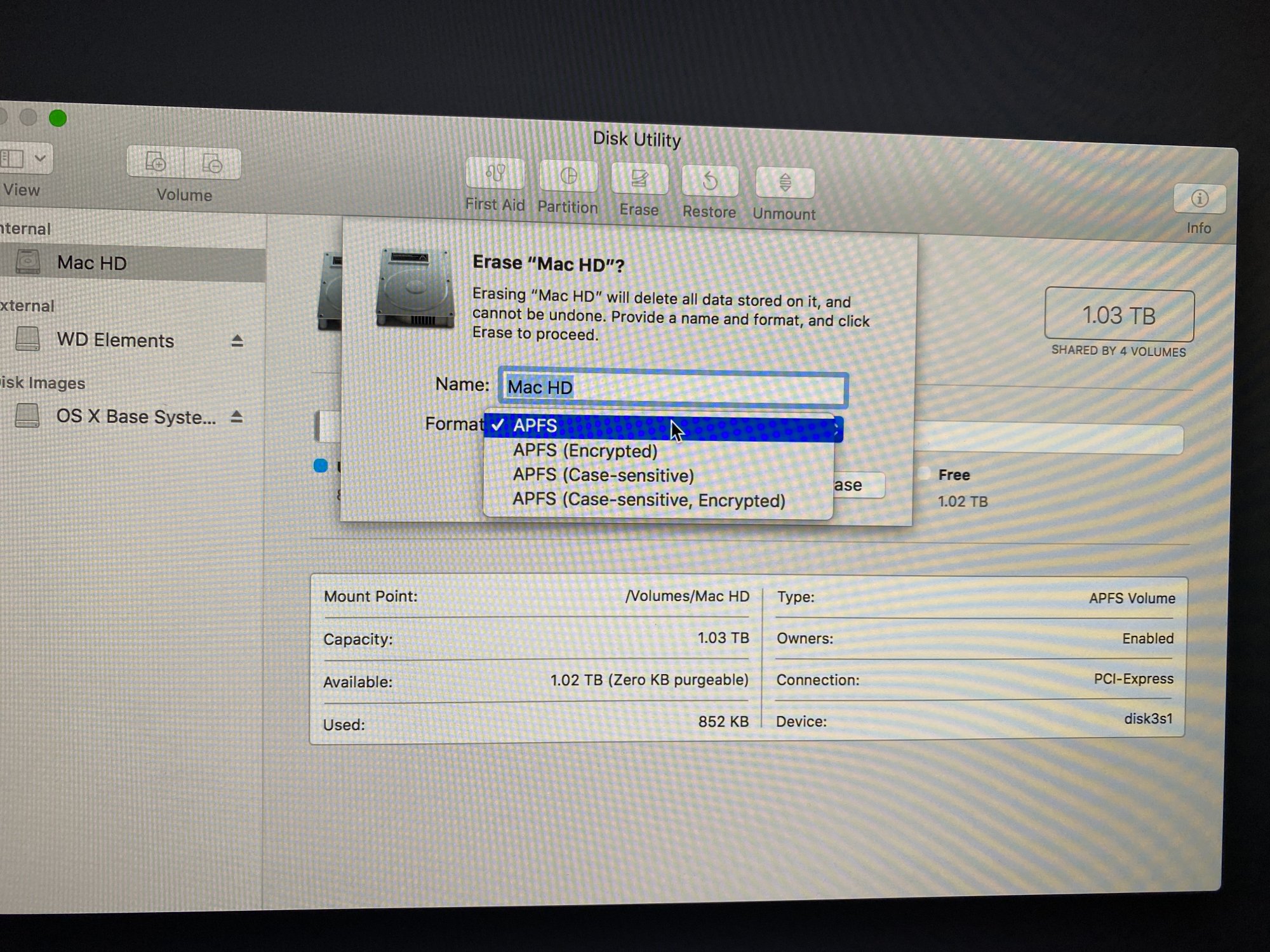

So then I exit out of this and select "Disk Utility", I select "Mac HD" then "Erase" but the only options for format are "APFS" and not "Mac OS Extended".

And if I select "APFS" and try to reformat the drive nothing happens.

I really have no idea what to do at this point.

See images.


Attachments

  • AE5426F0-E5EB-4C63-ACE2-7AD3EED717D3.jpeg
    466.7 KB · Views: 138
  • 97E7836D-D721-430B-8FDF-D64017D25E23.jpeg
    535.5 KB · Views: 96
  • AE210F14-5DAF-4D40-9F49-1394596DD6F6.jpeg
    413.5 KB · Views: 90

Skeptical.me

macrumors 6502a
Original poster
Jun 10, 2017
649
632
Australia
What I did to resolve this:

Booted into macOS using external SSD Drive.

Opened Disk Utility.

Selected (Fusion Drive) Mac HD in the side bar.

Selected "Edit"

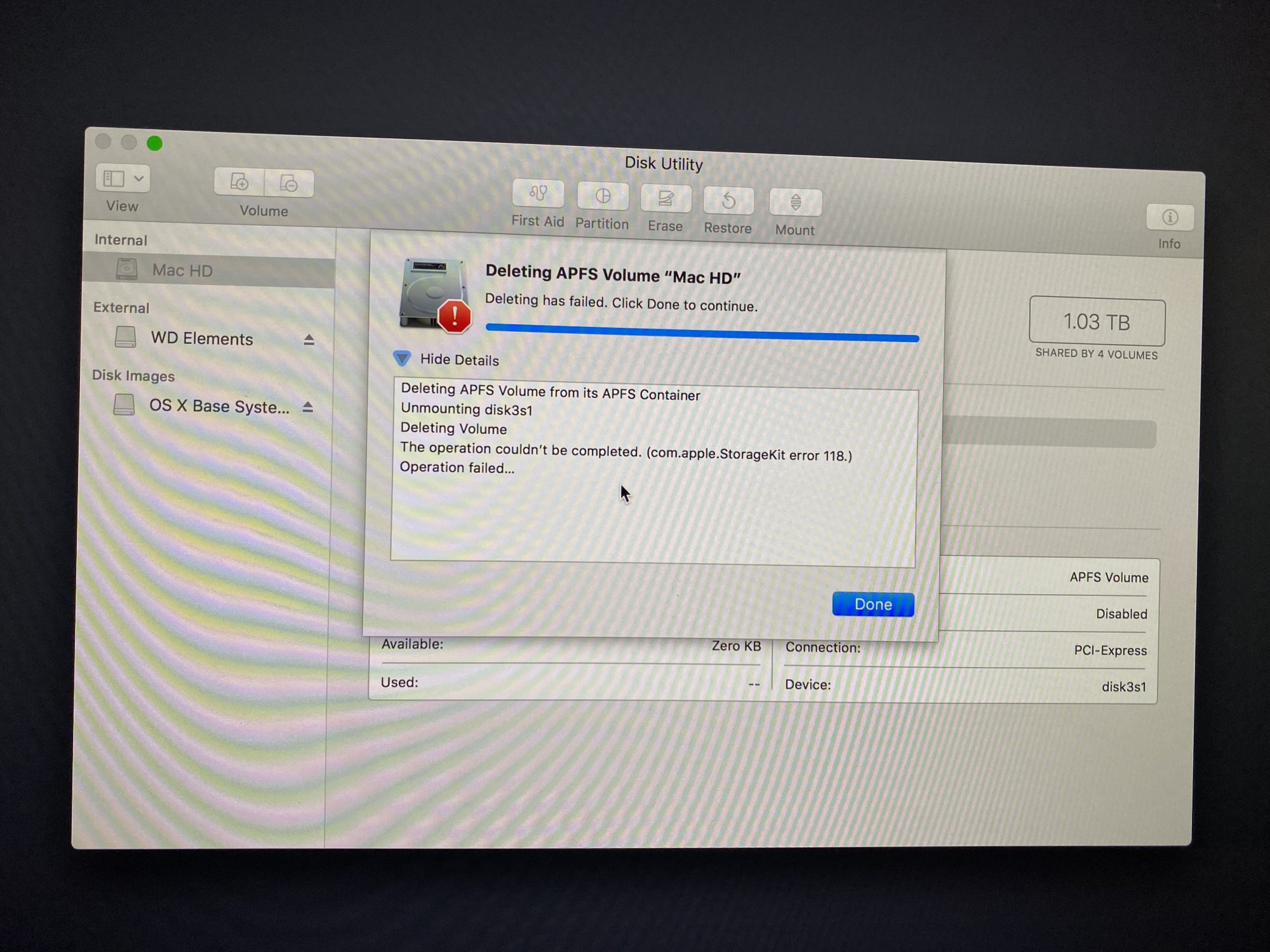

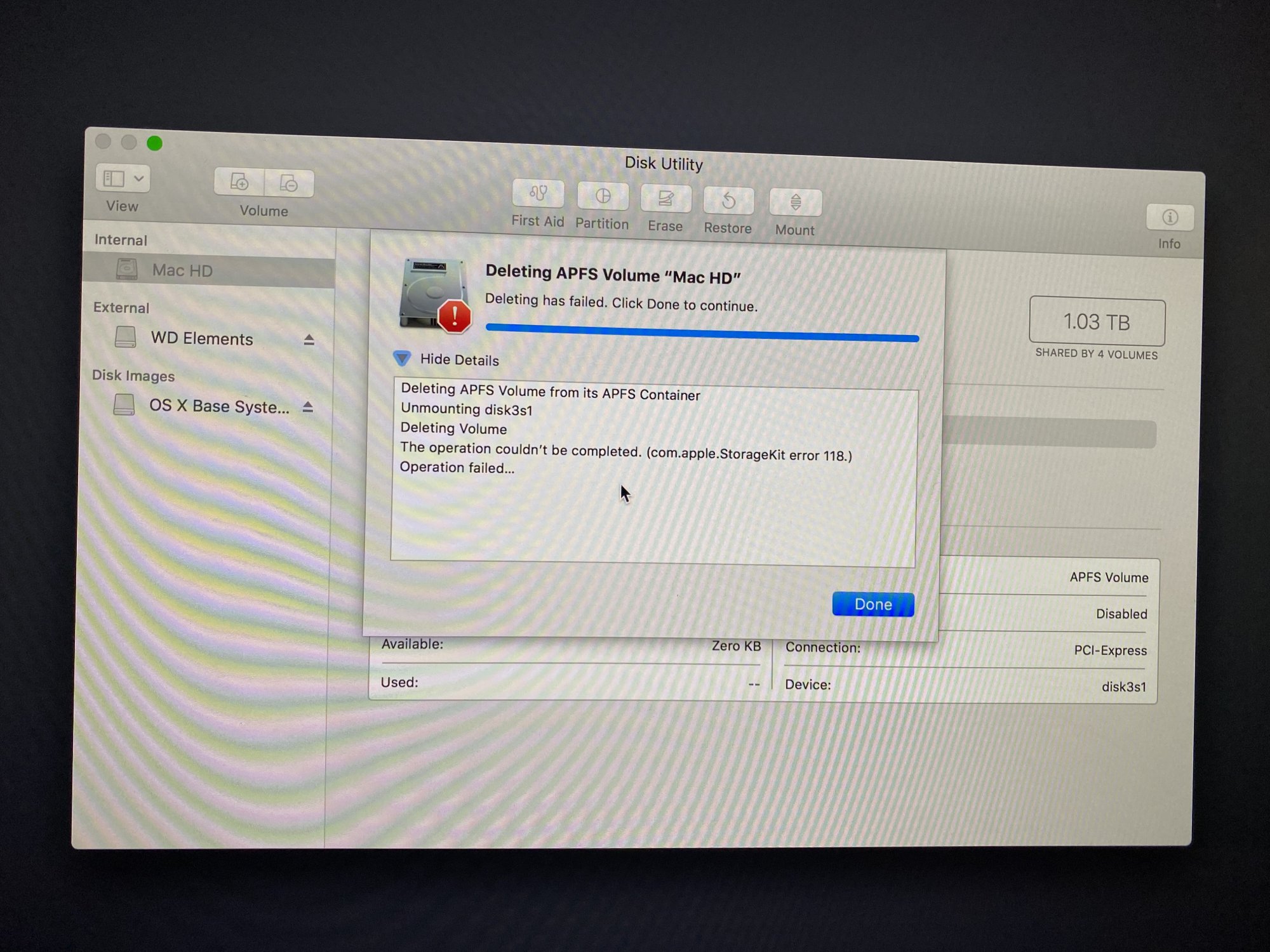

Then selected "Delete APFS Volume..."

Then once that was completed I selected "Erase".

Then selected "Mac OS Extended (Journaled)" to reformat the drive.

Then I proceeded to Download the macOS High Sierra Installer.

I then created a macOS High Sierra Bootable Drive on a USB Drive.

Finally I pressed "Option" key at boot and booted up using the installer and proceeded with installation via Recovery.


I followed the instructions found here (see link) to create the bootable USB Drive.
