MP 1,1-5,1 Totally stuck with NVME and OCLP

[Lyndon92]

Hi everyone,

I bought a Mac Pro 4.1, flashed it 5.1.
I added a PCI Express LyCOM DT-120 with a Sabrent SSD NVME.

Now i'm using OCLP to have boot screen, everything's fine but when i want to install Big Sur with OCLP, the install process will start normally.
Then arrived at 12 mins remaining, it suddendly reboot (maybe normal) , then i can't pick my NVME ssd to boot. Only Sata are displayed.
However, if i boot on sata MOJAVE, i can see my SSD NVME show on desktop.
Does anyone has a fix ? i'm kinda desperate i can't find anything

PS : i'm Using MartinLO package



[Macschrauber]

Mac Firmware is 144.0.0.0?

tested native boot picker with Bootscreen GPU as told in https://forums.macrumors.com/threads/opencore-on-the-mac-pro.2207814/post-30973770

what exact model is the Sabrent Nvme, did you formatted it in GUID?



[Lyndon92]

Thank for your reply.

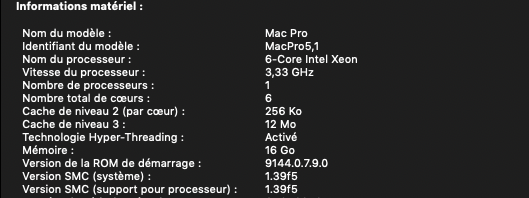

Here's my system report :

Capture-d-e-cran-2022-03-27-a-08-25-23 hosted at ImgBB

Image Capture-d-e-cran-2022-03-27-a-08-25-23 hosted in ImgBB

ibb.co

I used MartinLo Package for OC, so the bootrom is spoofed.

Problem is i don't have old GPU, only my RX560 :/

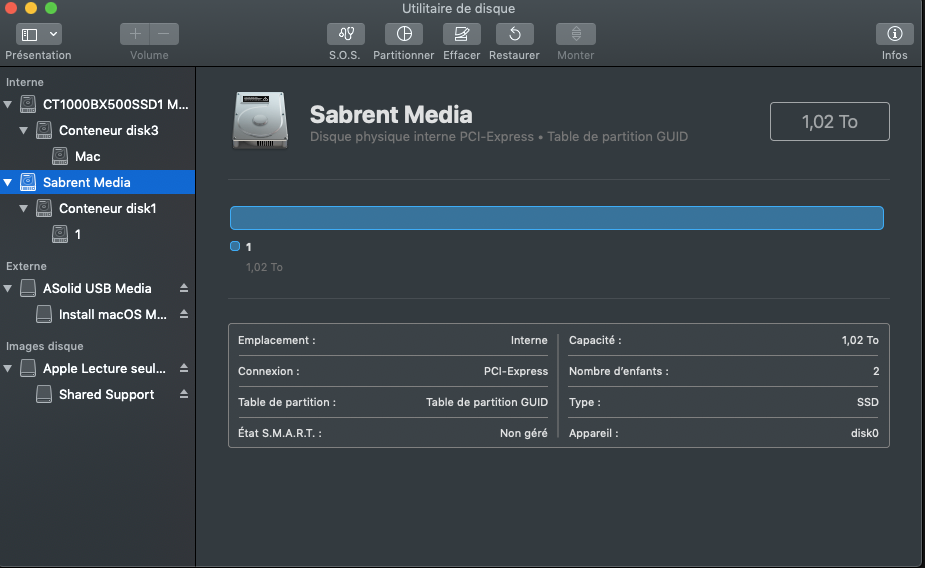

Yes formatted in GUID , here's a screenshot of what i can see in Mac OS (on SATA)

Capture-d-e-cran-2022-03-27-a-10-37-13 hosted at ImgBB

Image Capture-d-e-cran-2022-03-27-a-10-37-13 hosted in ImgBB

ibb.co

https://www.sabrent.com/product/SB-...ernal-ssd-high-performance-solid-state-drive/

Here's my SSD NVME.



[Lyndon92]

FIXED : I just rebuild Opencore Legacy Patcher, enabling NVME in options. I didn't use MartinLO package.
Now i have Monterey but no bluetooth and no 144hz support xD



[Macschrauber]

FIXED : I just rebuild Opencore Legacy Patcher, enabling NVME in options. I didn't use MartinLO package.
Now i have Monterey but no bluetooth and no 144hz support xD

So it seems you are not at 144 Firmware. Nice when hints are ignored…



[Lyndon92]

I am 144 firmware.
Check MartinLo package and you will understand the difference



[Macschrauber]

MartinLo Package is working on most NVMes, so your nvme Type seems to need extra support.

But you dont even give the exact model of it.
