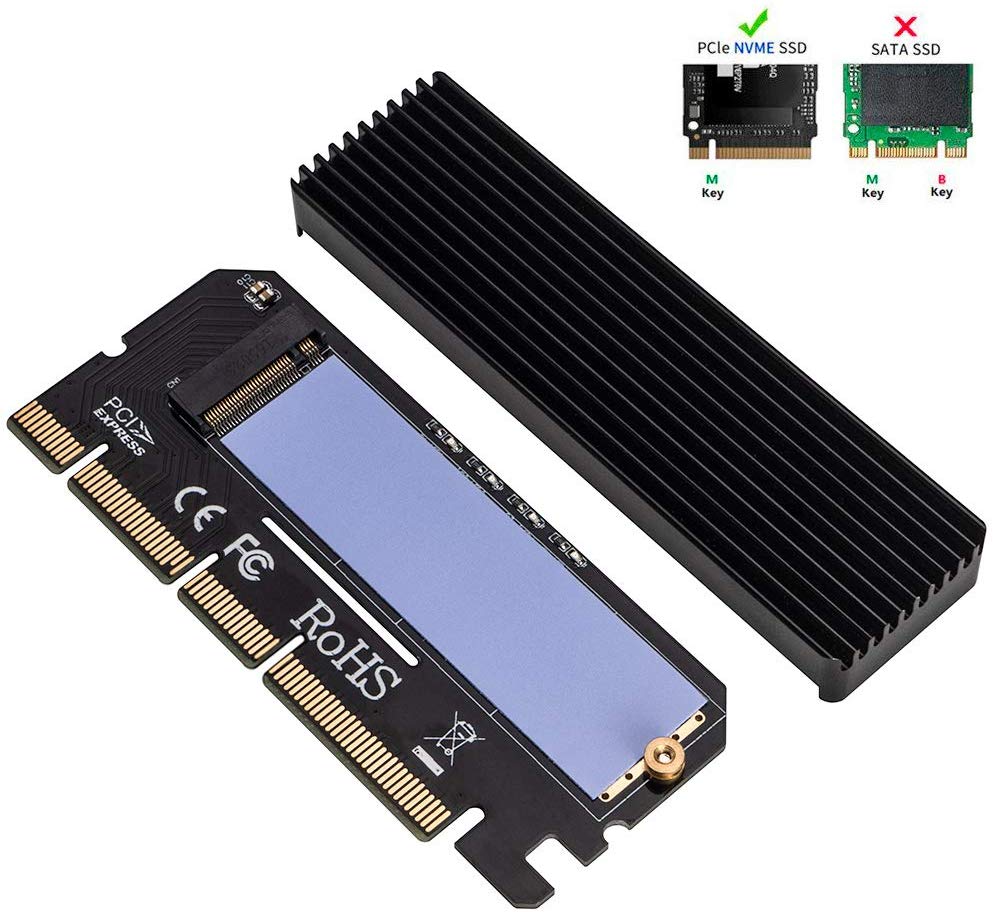

I just bought a used Sapphire Radeon RX 580 for my cMP as well I havea NVMe drive in a PCIe adapter. I am going to put the GPU in slot one, would it make sense to put the NVMe in slot 2 if it will fit, or should it go in 3 or 4? Right now I have a traditional SSD on a PCIe card I that I am booting off of, eventually I want to boot off the NVMe.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP 1,1-5,1 Upgrade questions NVMe+GPU
- Thread starter ashman70
- Start date
- Sort by reaction score
Unless you are using a switched PCIe adapter for multiple M.2s, don't matter the slot you are using since all M.2 devices are x4 or less.
Keep in mind, the RX 580 is a dual slot card. It also will require an additional power source, unlike the RX 560.
No, it was not.
[automerge]1578751366[/automerge]
[automerge]1578751599[/automerge]
[automerge]1578751366[/automerge]
Thank you, yes I am aware of the power requirements and the size of the card.
[automerge]1578751599[/automerge]
Thank you, yes I am aware of the power requirements and the size of the card.
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
So did I screw up? I bought a Sapphire Nitro+ 580, and just reread a thread where tsialex recommended against buying this card? Will a dual pin to sing 8pin adapter not be enough to power this card?
[automerge]1578755261[/automerge]
[automerge]1578755261[/automerge]
I thin I misread your post, can I not power the card from the dual 6 pin connectors in the system with a dual 6 pin to single 8 pin adapter?
Last edited:
It's a really bad choice for a MP5,1. It's a 2.3 slots wide card and when running Furmark or something really stressful, this card can use up to 262,5W (175W x 1,5 PowerTune), with typical load use around 237W. So, it's a card that usually triggers the backplane overcurrent limit when in load.
Some people here got it working, you don't run Furmark all the time, but if you ask, a lot of people will tell you to don't use this card.
No.
I wouldn't use it at all, it's a PC overclockers card. Like I said, some people got it working, others don't.
[automerge]1578756360[/automerge]
It's the card that Apple recommends, even so it's a 2.2 slots wide card and will block slot-2 for a lot of cards. No modern GPU is perfect, all have flaws when you think of a MP5,1.
There are workstation GPUs with performance similar of a RX-580 and will fit perfectly size and power wise - like the WX5100, but it's a card that costs more than the double of a RX 580.
