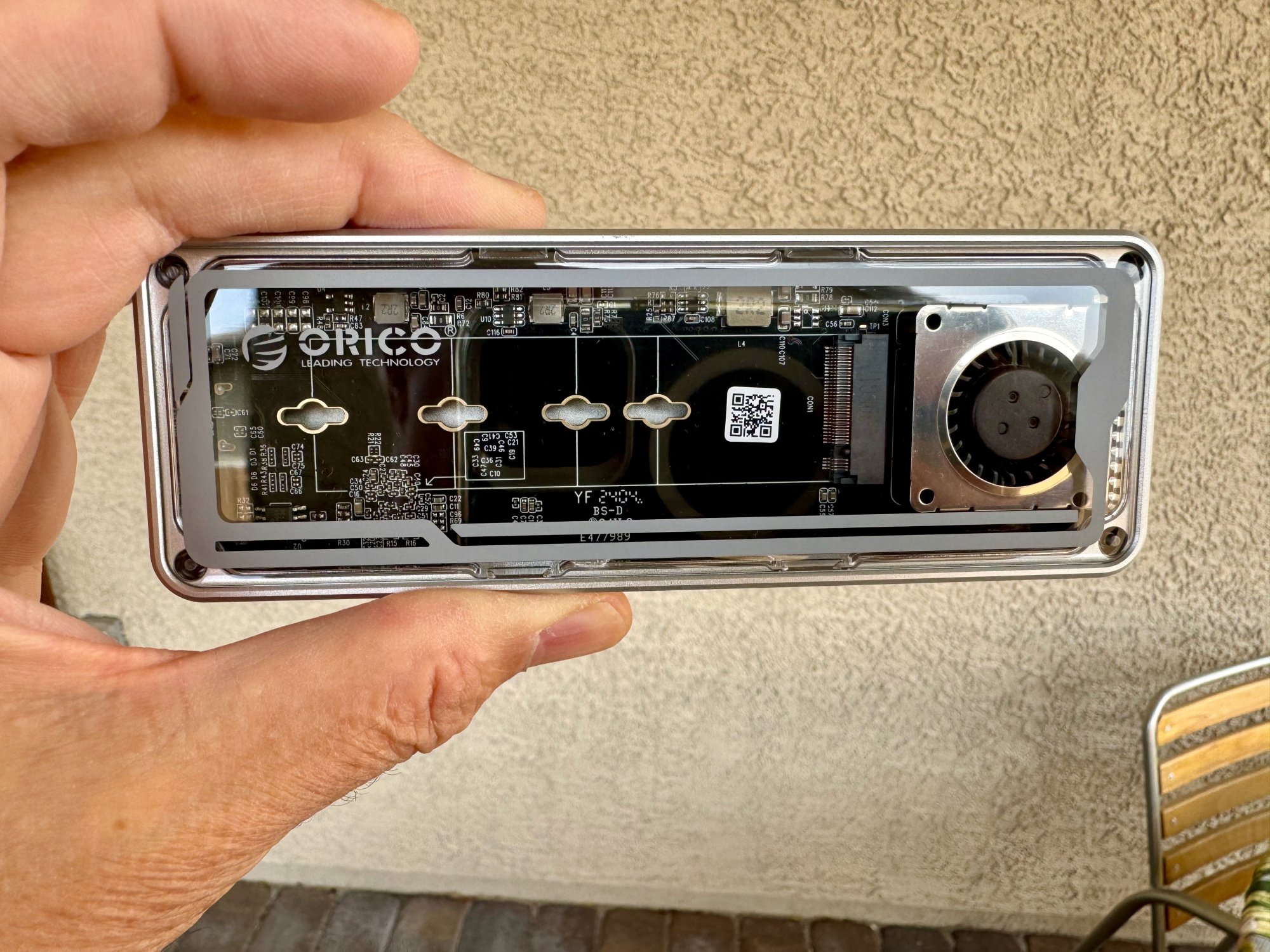

I have been posting frequently on the USB on M1 Macs isn’t actually 10Gb/s? thread since owning a 2020 M1 MacBook Pro, but now that I use that Mac only for testing and also own a 2023 M3 Max MacBook Pro with 64GB memory, I thought I would put my new Orico enclosure, which I purchased via Kickstarter, through its paces.

1 IMG_1499.jpeg


For comparison purposes, I also include Black Magic benchmarks between 2020 M1 (16GB) and its 2TB SSD, and 2023 M3 Max (64GB) and its 4TB SSD. Those tests reveal a more than doubling of internal SSD access speed, a remarkable improvement.

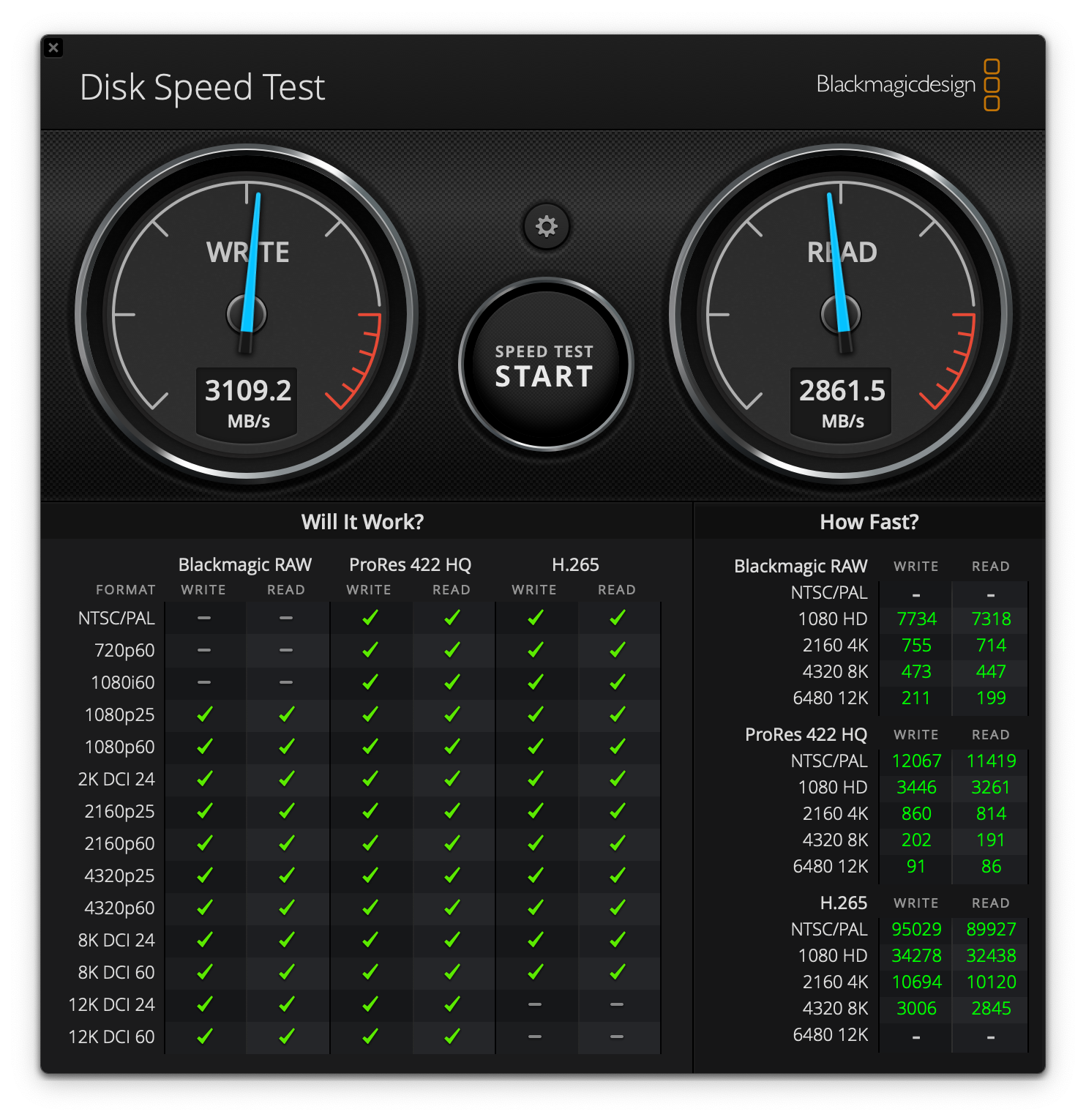

MBP 2020 M1:
2 Blackmagic MBP M1 2020 2TB.png

MBP 2023 M3 Max:
3 Blackmagic MBP M3 Max 2023 4TB SSD.png

The Black Magic tests of the Orico Crystal M.2 SSD Enclosure equipped with a Samsung 990 PRO 4TB, shows a negligible improvement between the 2020 M1 MBP and the 2023 M3 Max and the Orico enclosure, with minor differences in their 3,000+ MB/s write and read speeds.

MBP 2020 M1:
4 Blackmagic MBP M1 2020 Samsung 990 Pro 4TB.png

MBP 2023 M3 Max:
5 Blackmagic MBP M3 Max 2023 Samsung 990 Pro 4TB.png


I was able to copy 797GB of data to the Orico/Samsung external in about 17 minutes using an ice pack to keep the drive cool. While the Orico has an internal fan that runs pretty quiet, I use ice packs to maximize throughput. 🥶

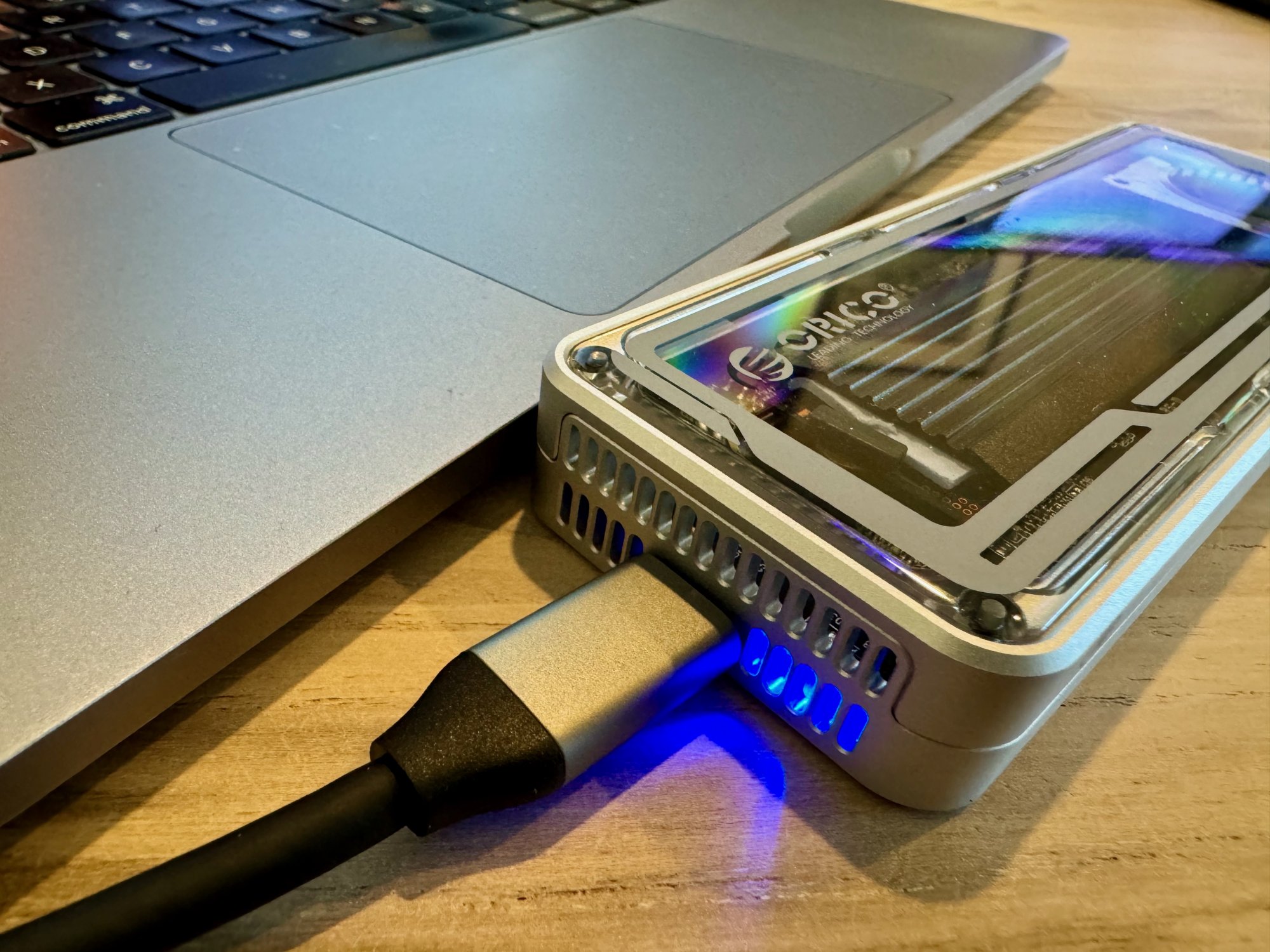

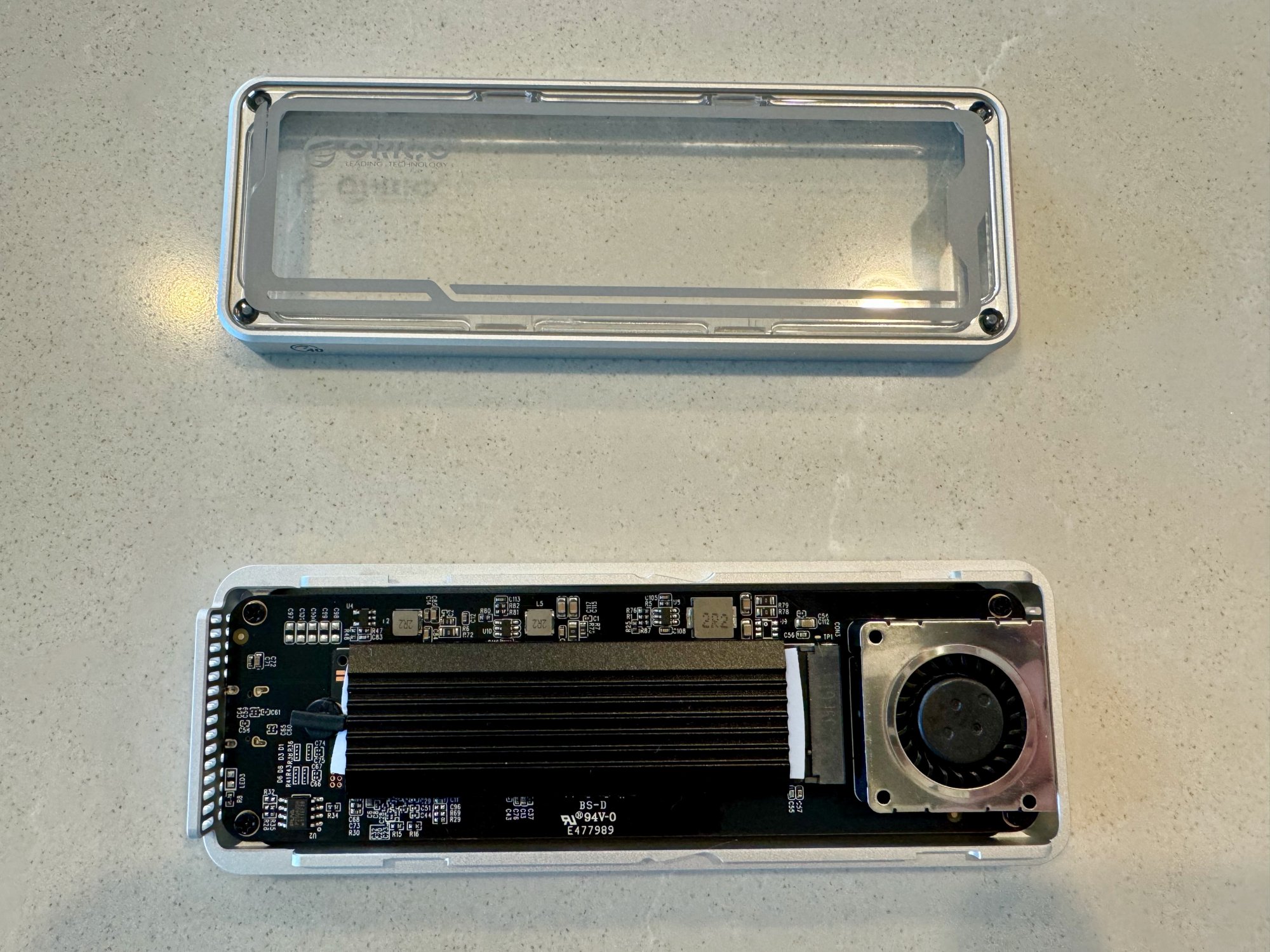

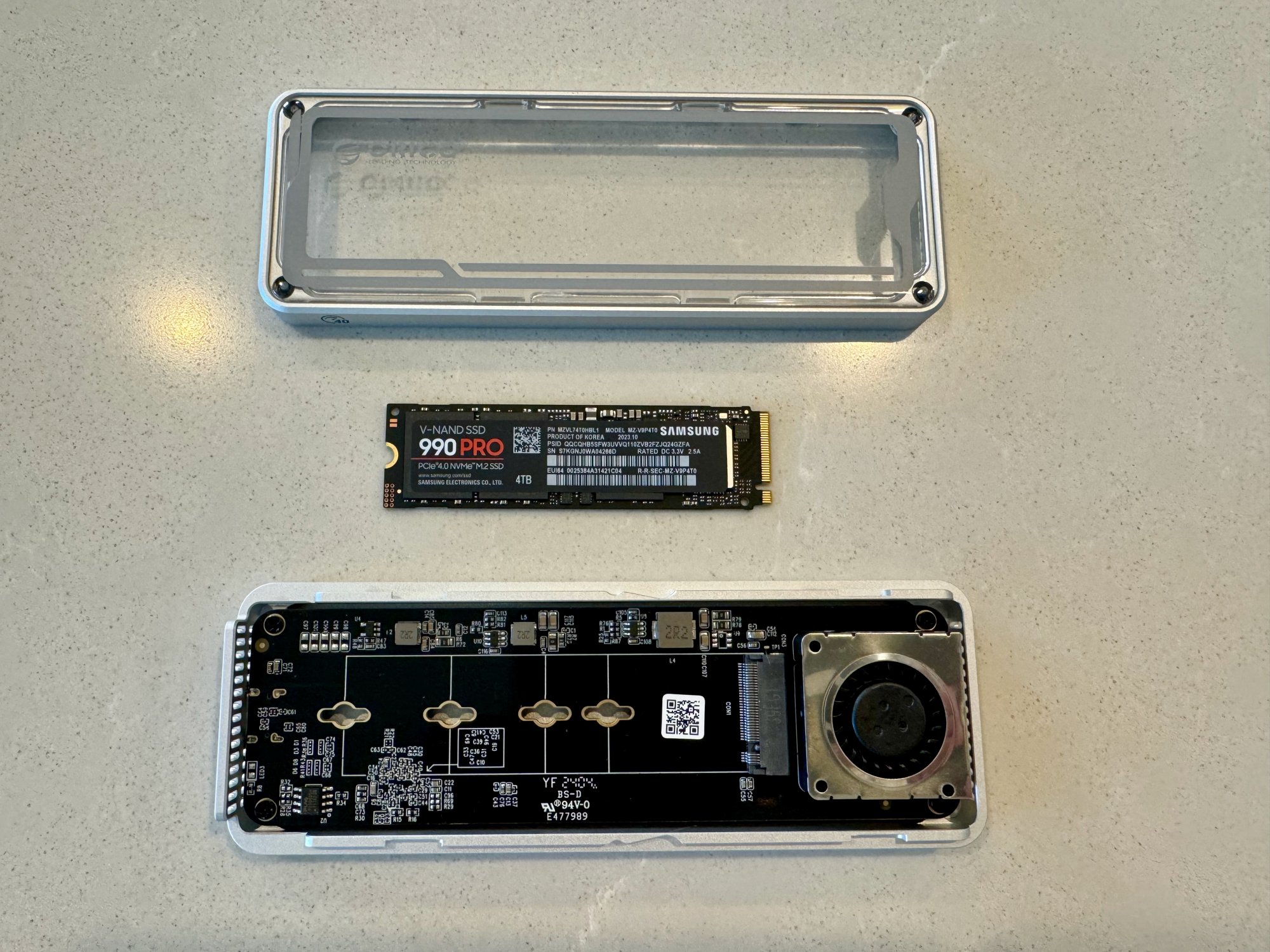

Pics below show the Orico drive with its see-through enclosure and the bare, and heat-sinked and installed Samsung PRO 990 SSD. Let me know if I missed something. 😊

6 IMG_1500.jpeg


7 IMG_1502.jpeg


8 IMG_1504.jpeg


ubercool

macrumors 65816
Original poster
Jan 31, 2008
1,068
72
Las Vegas

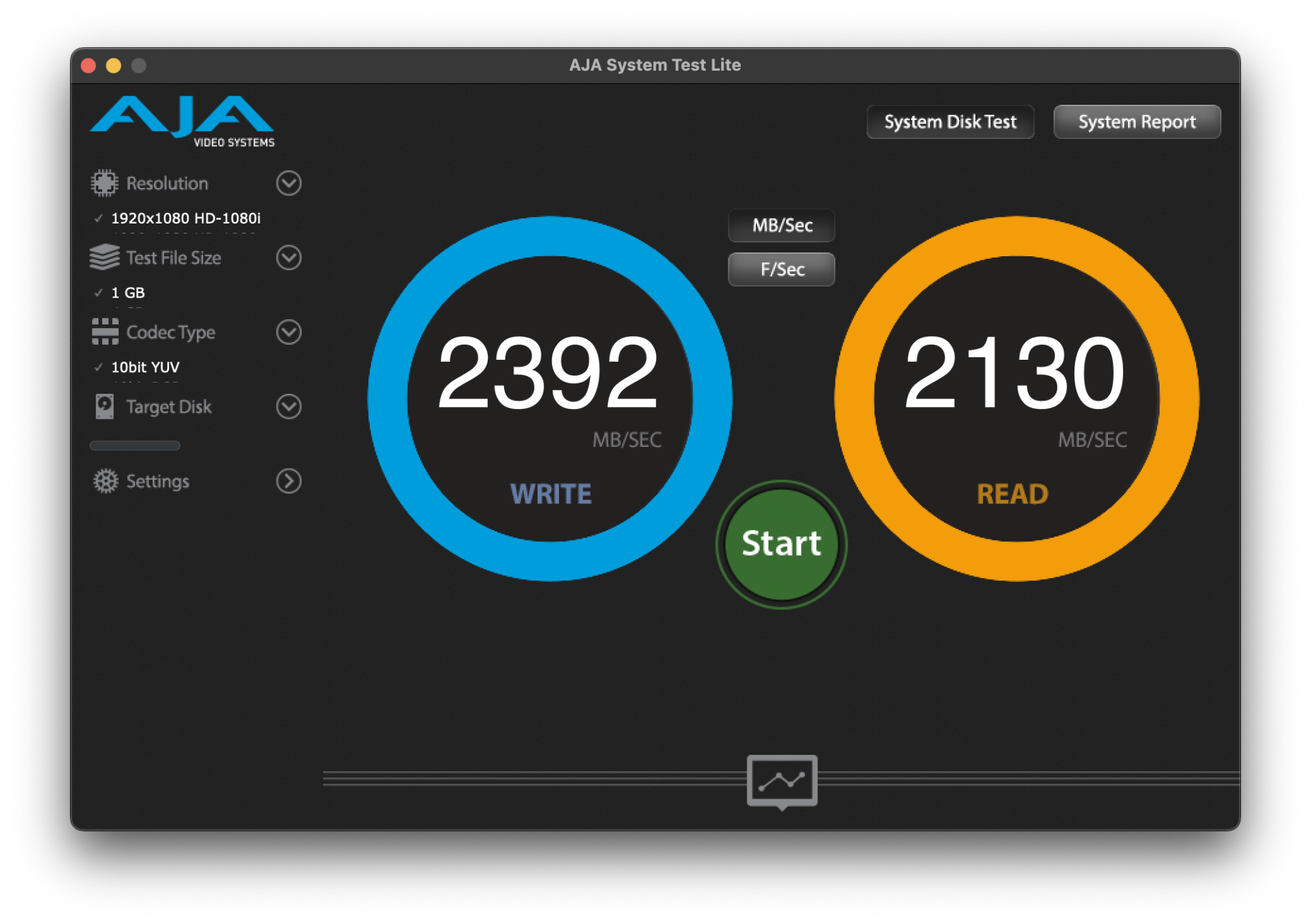

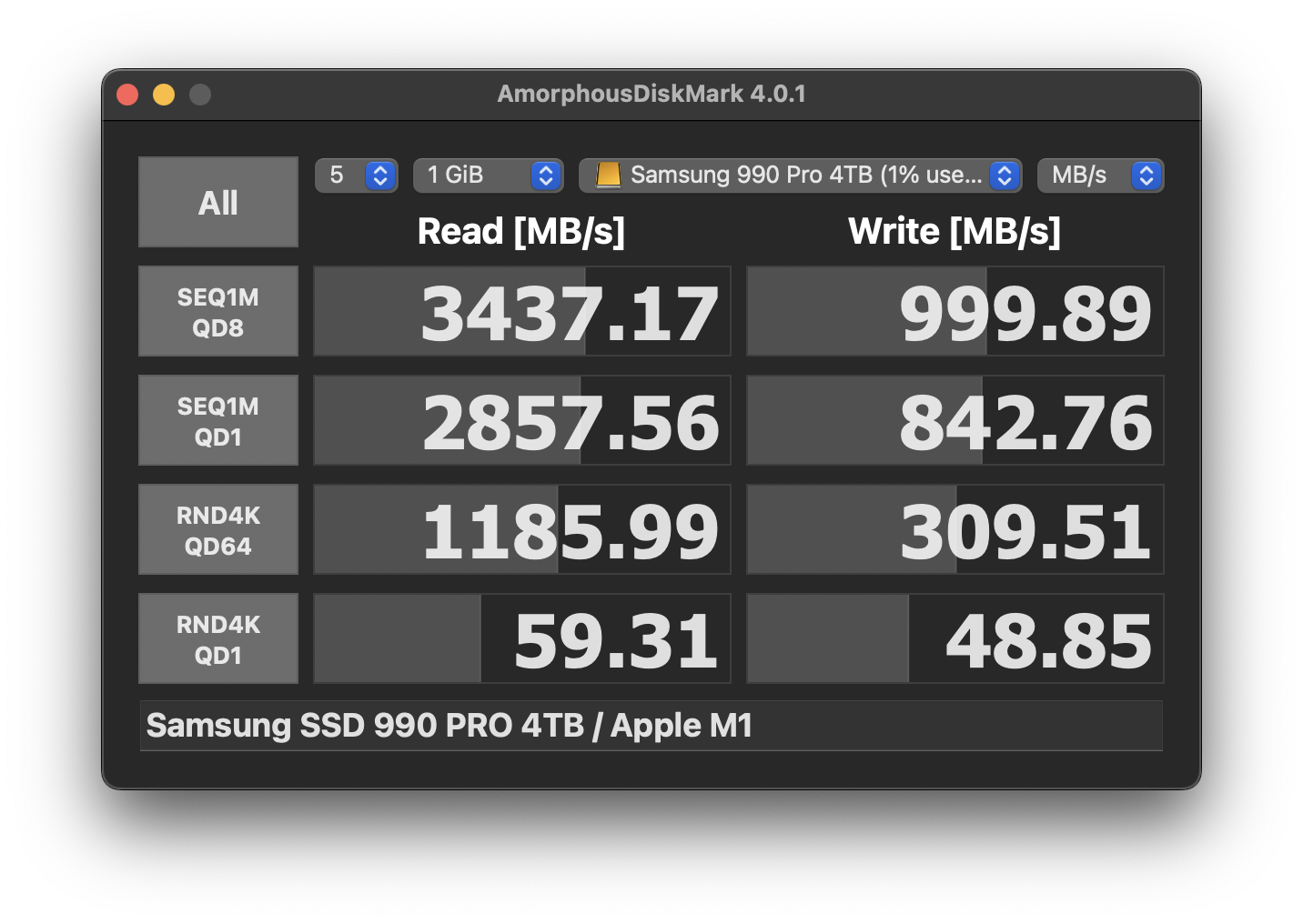

I also conducted AJA and AmorphousDiskMark tests of the 2020 MBP M1 and the Orico/Samsung enclosure, which produced entirely different results due to methodology used.

AJA MBP M1 2020 2TB.png

Amorphous MBP M1 2020 Samsung 990 Pro 4TB.png

  • Like
Reactions: MacCheetah3

MacCheetah3

macrumors 68020
Nov 14, 2003
2,287
1,233
Central MN
Nice work.

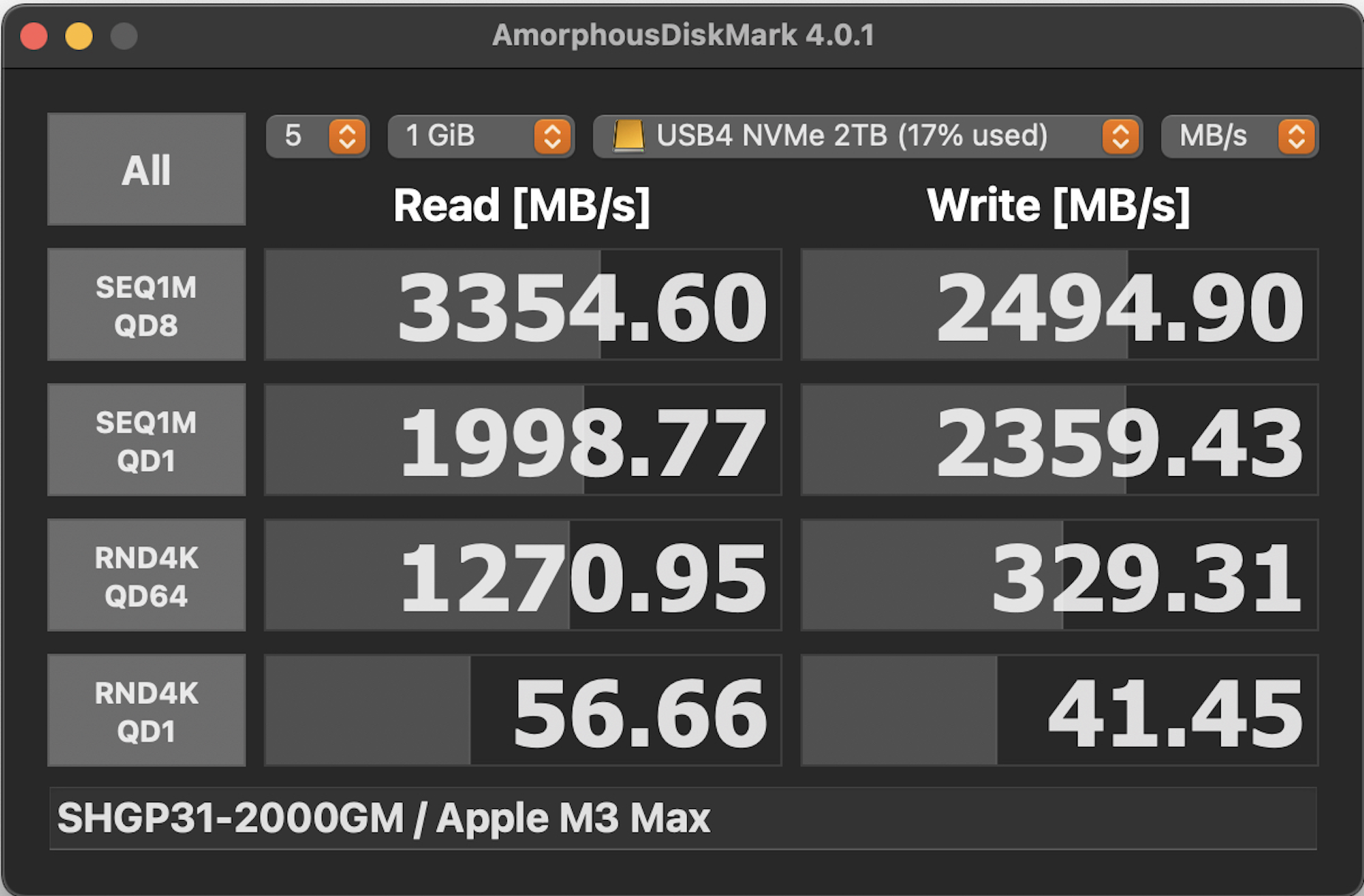

Your results match up with my tests on OWC’s USB4 enclosure, which is marketed as “up to 3151MB/s real-world performance":

amorphousdiskmark_m1_owc1m2-wdsn850x2tb-png.2350914


About 3 to 3.5 GBps seems fair considering protocol overhead, possible interference, general drive and transmission error corrections, etc.
