MP 1,1-5,1 Using a RTX 2080 Super in classic Mac Pro

[matthewpomar]

Hi,

I'm considering upgrading my VR/Gaming machine, build on a classic Mac Pro. It currently has a GTX 1070, but I'm thinking about upgrading that to a RTX 2080 Super:

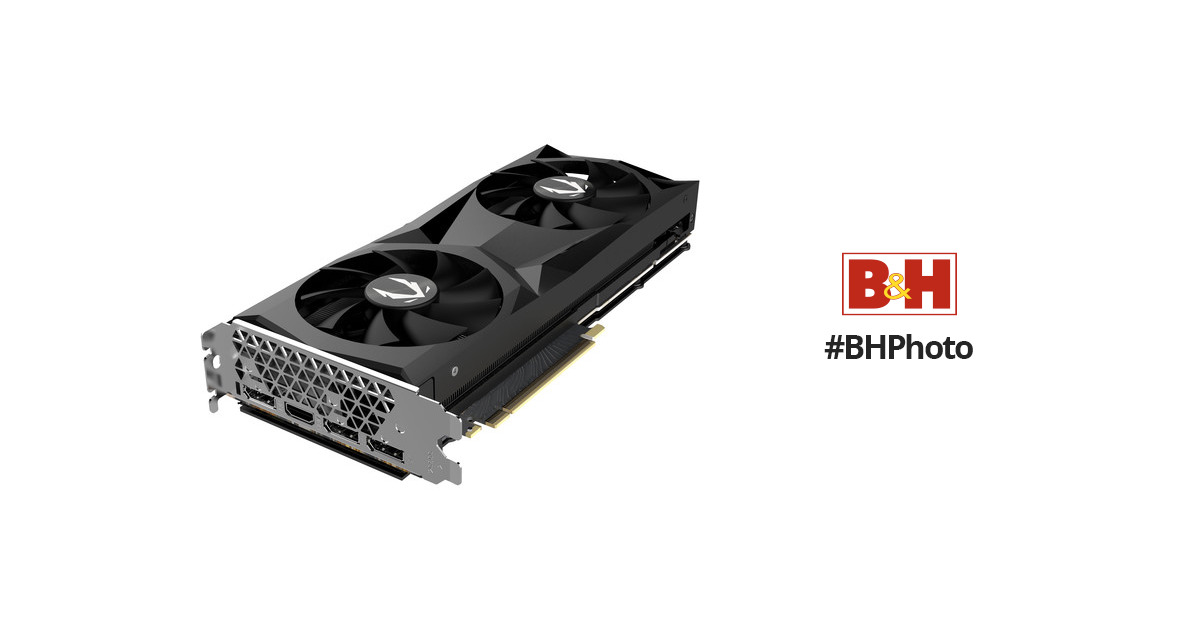

ZOTAC GAMING GeForce RTX 2080 SUPER Twin Fan Graphics Card

Buy ZOTAC GAMING GeForce RTX 2080 SUPER Twin Fan Graphics Card featuring Boostable to 1815 MHz, 3072 CUDA Cores, Turing Architecture, 8GB of GDDR6 VRAM, 15.5 Gb/s Memory Speed, 256-Bit Memory Interface, DisplayPort | HDMI 2.0, 7680 x 4320 Max Digital Resolution, Dual-Fan Cooler. Review ZOTAC...

www.bhphotovideo.com

If this works and performs better, I may just replace my Zotac 1080EN with this setup.

However, I have questions/concerns:

1. Will this card fit (it looks thicker than others) and will the Mac Pro have enough power to power it?
2. Should I get better gaming performance from a RTX 2080 Super even if on PCIe 2.0 spec than a normal GTX 1080 in my Zotac 1080EN? I primarily play FPS and VR.

Thanks for your help.



[flowrider]

The card has an 8 pin and a 6 pin power connector. Therefore with a cMP 5,1 you would need an external power supply.

Lou



[matthewpomar]

The card has an 8 pin and a 65 pin power connector.

I've never seen a video card with a 8 pin + a 65 pin power connector. Are you sure you aren't confusing the SLI connector for a power connector?

If this 2080 won't work, do you know of any that would without an external power supply?



[joot]

8 pin + 6 pin, no such thing as 65 pin



[flowrider]

Ya, Ya I know. My finger must have slipped

Lou



[Le_Cactus]

tsialex said important things in this thread:

Mac Pro 2010 Nvidia RTX via bootcamp

All RTX 2xxx have UGA pre-boot configuration support, aka BootScreens, but don't have any macOS support. RTX cards needs Windows installed via UEFI mode, this could be a problematic. Power comsumption of a RTX 2070 fits a Mac Pro if you use a eVGA PowerLink.

forums.macrumors.com

"All RTX 2xxx have UGA pre-boot configuration support, aka BootScreens, but don't have any macOS support.

RTX cards needs Windows installed via UEFI mode, this could be problematic."



[handheldgames]

tsialex said important things in this thread:

Mac Pro 2010 Nvidia RTX via bootcamp

All RTX 2xxx have UGA pre-boot configuration support, aka BootScreens, but don't have any macOS support. RTX cards needs Windows installed via UEFI mode, this could be a problematic. Power comsumption of a RTX 2070 fits a Mac Pro if you use a eVGA PowerLink.

forums.macrumors.com

"All RTX 2xxx have UGA pre-boot configuration support, aka BootScreens, but don't have any macOS support.

RTX cards needs Windows installed via UEFI mode, this could be problematic."

Booting Windows in EFI mode is no longer problematic using Open Core and the latest configurations from the community.
