Hello forum,
first of all, I would like to apologize if I do not express myself clearly or explain my problem clearly, English is not my mother tongue. I hope to find a solution here.
Initial situation: iMac Pro - macOS Mojave (latest version) > Wake an Lan Fritzbox7490 (os latest version)
Regarding the problem:

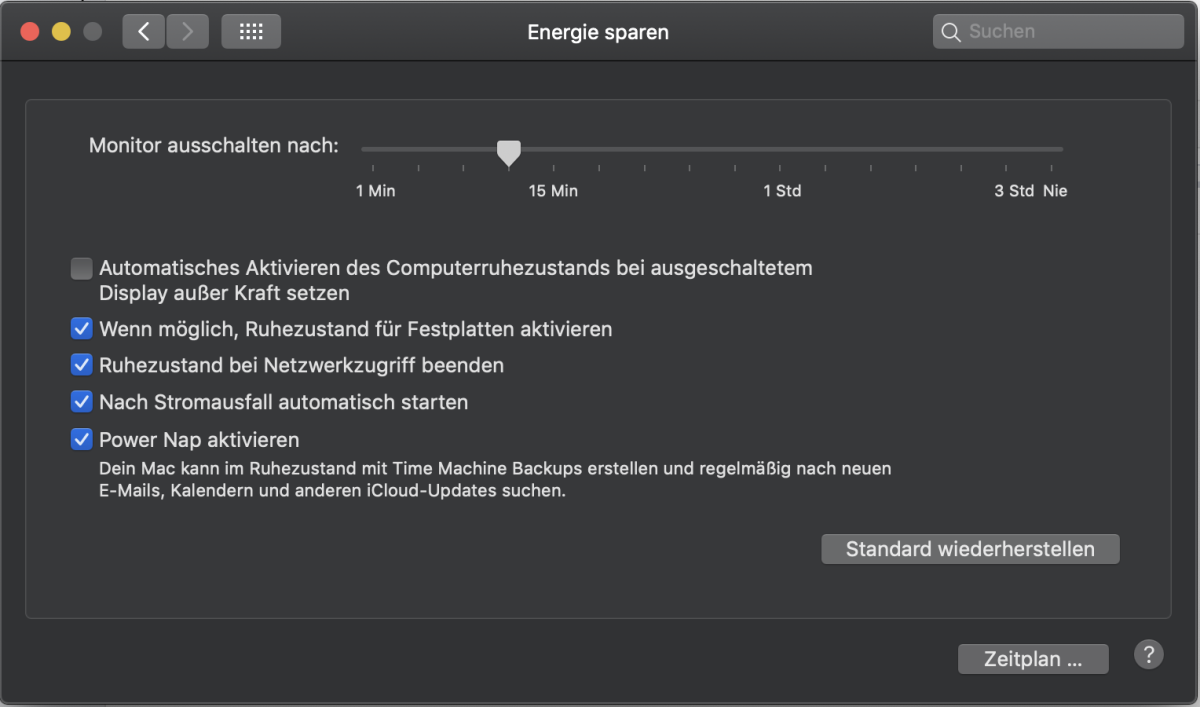

The iMac (firewall is deactivated) should be woken up from hibernation (in German "Ruhezustand" -> sleepmode?!) using Wake on Lan via Fritzbox. After that, Steam (iMac) should be accessed via SteamLink (iPad) (which works perfect with a Windows laptop). The required settings in the "Energy saving" menu have been made, see Image_1
I access the Fritzbox via the iPad (home network) using the "My Fitzbox" app.
If the iMac is connected to the Fritzbox via Ethernet cable, the Fritzbox's Wake on Lan function can be managed relatively easily via the Fritzbox user interface > "Start computer".
However, after the start command is given, the screen does not turn on and the SteamLink app cannot reach the iMac either (iMac offline).
At first I thought Wake on Lan wasn't working. But We can rule out input errors for IP, MAC and broadcast addresses, the Fitzbox automatically reads out all the required addresses for Wake on Lan and saves them in a profile.
You only need to give the command > "Start computer" in this profile. Actually pretty cool.
Troubleshooting:
#1 Tried some Wake on Lan apps from the app store with no success.

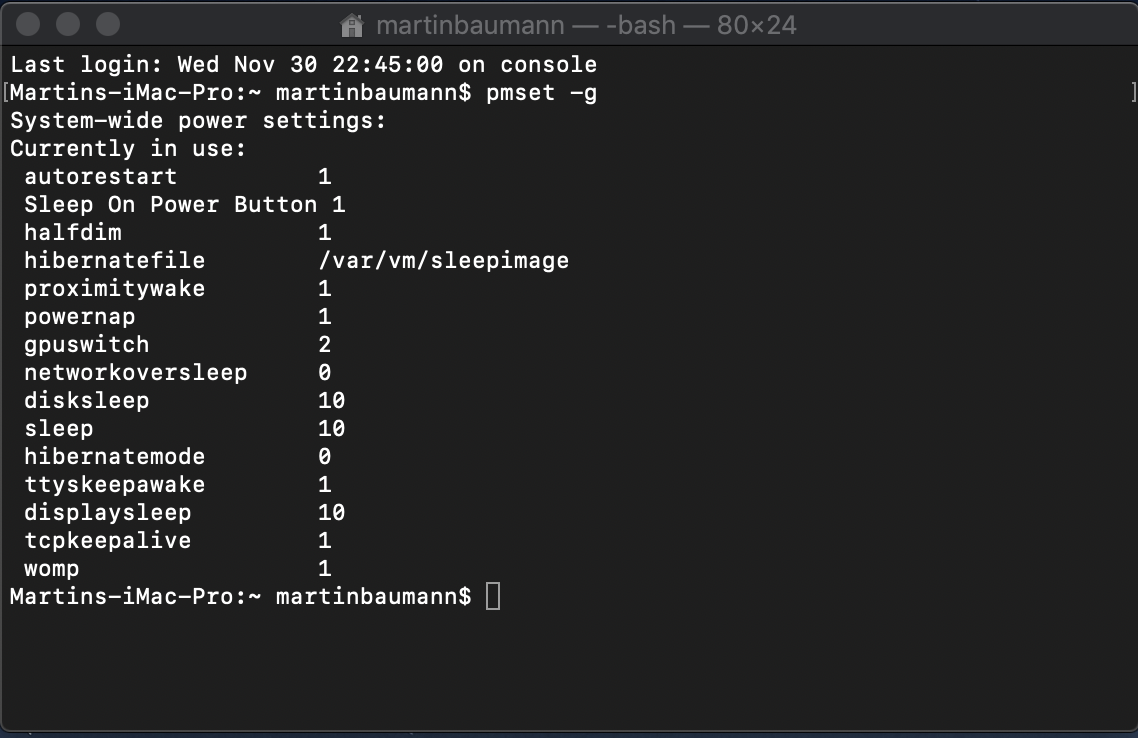

#2 pmset -g showing me the "hibernation mode", see Image_2. The Mac is not in a deep sleep, should actually work.
#3 pmset -g log shows me what happens during hibernation. The magic package was sent at 12:30 (+ a few seconds):
2022-12-03 12:05:58 +0100 PM Client Acks Delays to Sleep notifications: [com.apple.apsd is slow(1973 ms)] [mDNSResponder is slow(5005 ms)]
2022-12-03 12:30:47 +0100 Kernel Client Acks Delays to Sleep notifications: [powerd is slow(5008 ms)] [AppleDeviceManagementHIDEventService driver is slow(msg: WillChangeState to 2)(321 ms)] [AppleDeviceManagementHIDEventService driver is slow(msg: WillChangeState to 2)(372 ms)] [UPSB driver is slow(msg: SetState to 2)(950 ms)] [UPSB driver is slow(msg: SetState to 2)(950 ms)] [AppleHPMIECS driver is slow(msg: WillChangeState to 2)(1095 ms)] [AppleHPMIECS driver is slow(msg: WillChangeState to 2)(1095 ms)] [AppleUSBVHCIBCE driver is slow(msg: SetState to 1)(325 ms)] [IOBluetoothHostControllerUARTTransport driver is slow(msg: SetState to 0)(487 ms)] [RP17 driver is slow(msg: SetState to 0)(1005 ms)]
2022-12-03 12:30:47 +0100 Assertions PID 170(mDNSResponder) Created MaintenanceWake "mDNSResponder:maintenance" 00:00:00 id:0x0xd000081c1 [System: SRPrevSleep kCPU]
2022-12-03 12:30:47 +0100 Assertions PID 170(mDNSResponder) Released MaintenanceWake "mDNSResponder:maintenance" 00:00:00 id:0x0xd000081c1 [System: No Assertions]
2022-12-03 12:30:49 +0100 Assertions PID 55(powerd) Created InternalPreventSleep "Network wake delay proxy assertion" 00:00:00 id:0x0xd000081c3 [System: PrevIdle SRPrevSleep kCPU]
2022-12-03 12:30:49 +0100 com.apple.sleepservices.sessionStarted SleepService: window begins with cap time=86400 secs
2022-12-03 12:30:49 +0100 DarkWake DarkWake from Normal Sleep [CDNPB] due to EC.WoL XGBE/Network: Using AC (Charge:0%) 38 secs
2022-12-03 12:30:49 +0100 WakeDetails DriverReason:XGBE - DriverDetails:
2022-12-03 12:30:49 +0100 HibernateStats hibmode=0 standbydelay=0 136
2022-12-03 12:30:49 +0100 WakeTime WakeTime: 4.934 sec
2022-12-03 12:30:49 +0100 Kernel Client Acks Delays to Wake notifications: [AppleEthernetAquantiaAqtion driver is slow(msg: SetState to 2)(339 ms)] [UPSB driver is slow(msg: SetState to 2)(547 ms)] [UPSB driver is slow(msg: SetState to 2)(546 ms)] [ADIO driver is slow(msg: SetState to 2)(549 ms)] [IOUSBMassStorageInterfaceNub driver is slow(msg: SetState to 1)(1167 ms)] [IOUSBMassStorageDriverNub driver is slow(msg: SetState to 1)(1283 ms)]
2022-12-03 12:30:49 +0100 Assertions PID 55(powerd) Created InternalPreventSleep "com.apple.powermanagement.acwakelinger" 00:00:00 id:0x0xd000081c5 [System: PrevIdle PushSrvc SRPrevSleep kCPU]
2022-12-03 12:30:59 +0100 Assertions PID 55(powerd) TimedOut ApplePushServiceTask "Powerd - Wait for client pushService assertions" 00:00:09 id:0x0xa000081c4 [System: PushSrvc SRPrevSleep kCPU]
2022-12-03 12:30:59 +0100 com.apple.sleepservices.sessionTerminated SleepService: window has terminated.
2022-12-03 12:30:59 +0100 Assertions Summary- [System: SRPrevSleep kCPU] Using AC
2022-12-03 12:31:19 +0100 Assertions PID 55(powerd) TimedOut InternalPreventSleep "Network wake delay proxy assertion" 00:00:29 id:0x0xd000081c3 [System: SRPrevSleep kCPU]
2022-12-03 12:31:27 +0100 Assertions PID 95(hidd) Created UserIsActive "com.apple.iohideventsystem.queue.tickle.4294969206.3" 00:00:00 id:0x0x9000081e9 [System: DeclUser SRPrevSleep kCPU kDisp]
2022-12-03 12:31:27 +0100 Assertions Kernel Idle sleep preventers: IODisplayWrangler
2022-12-03 12:31:27 +0100 Notification Display is turned on
2022-12-03 12:31:27 +0100 Wake DarkWake to FullWake from Normal Sleep [CDNVA] due to UserActivity Assertion: Using AC (Charge:0%)
2022-12-03 12:31:27 +0100 WakeDetails DriverReason:XGBE - DriverDetails:
2022-12-03 12:31:27 +0100 HibernateStats hibmode=0 standbydelay=0 136
2022-12-03 12:31:27 +0100 WakeTime WakeTime: 0.391 sec
2022-12-03 12:31:34 +0100 Assertions PID 55(powerd) TimedOut InternalPreventSleep "com.apple.powermanagement.acwakelinger" 00:00:44 id:0x0xd000081c5 [System: PrevIdle DeclUser SRPrevSleep kCPU kDisp]
2022-12-03 12:31:34 +0100 Assertions Summary- [System: PrevIdle DeclUser kDisp] Using AC
Total Sleep/Wakes since boot at 2022-12-03 10:36:35 +0100 :3
2022-12-03 12:31:43 +0100 : Showing all currently held IOKit power assertions
Assertion status system-wide:
BackgroundTask 0
ApplePushServiceTask 0
UserIsActive 1
PreventUserIdleDisplaySleep 0
PreventSystemSleep 0
ExternalMedia 1
PreventUserIdleSystemSleep 1
NetworkClientActive 0
Listed by owning process:
pid 256(UserEventAgent): [0x00000128000b81f9] 00:00:16 BackgroundTask named: "com.apple.AddressBook.ScheduledSync"
Created for PID: 557.
pid 95(hidd): [0x00000127000981e9] 00:00:00 UserIsActive named: "com.apple.iohideventsystem.queue.tickle.4294969206.3"
Timeout will fire in 60 secs Action=TimeoutActionRelease
pid 55(powerd): [0x0000000300088004] 01:55:06 ExternalMedia named: "com.apple.powermanagement.externalmediamounted"
pid 557(AddressBookSourceSync): [0x00000128000181f8] 00:00:16 PreventUserIdleSystemSleep named: "Address Book Source Sync"
Timeout will fire in 1784 secs Action=TimeoutActionTurnOff
Kernel Assertions: 0x10c=USB,BT-HID,MAGICWAKE
id=504 level=255 0x4=USB mod=01.01.70, 01:00 description=com.apple.usb.externaldevice.14800000 owner=Intenso Alu Line
id=505 level=255 0x100=MAGICWAKE mod=01.01.70, 01:00 description=en1 owner=en1
id=506 level=255 0x8=BT-HID mod=01.01.70, 01:00 description=com.apple.driver.IOBluetoothHIDDriver owner=AppleHSBluetoothDevice
id=507 level=255 0x100=MAGICWAKE mod=03.12.22, 12:37 description=en0 owner=en0
id=508 level=255 0x8=BT-HID mod=01.01.70, 01:00 description=com.apple.driver.IOBluetoothHIDDriver owner=AppleHSBluetoothDevice
Idle sleep preventers: IODisplayWrangler
Martins-iPro:~ martinbaumann$
With my layman's understanding, I would say that the iMac received the package and wakes up, but is probably not awake enough...
DarkWake DarkWake from Normal Sleep [CDNPB] due to EC.WoL XGBE/Network: Using AC (Charge:0%) 38 secs
What this is...
Idle sleep preventers: IODisplayWrangler
I don't know either...
In this "dark wake" state, the iMac does NOT appear to start the display, and the use of the SteamLink app does not seem to have any effect on waking up the iMac properly. Does anyone have an idea what I could do?
first of all, I would like to apologize if I do not express myself clearly or explain my problem clearly, English is not my mother tongue. I hope to find a solution here.
Initial situation: iMac Pro - macOS Mojave (latest version) > Wake an Lan Fritzbox7490 (os latest version)
Regarding the problem:
The iMac (firewall is deactivated) should be woken up from hibernation (in German "Ruhezustand" -> sleepmode?!) using Wake on Lan via Fritzbox. After that, Steam (iMac) should be accessed via SteamLink (iPad) (which works perfect with a Windows laptop). The required settings in the "Energy saving" menu have been made, see Image_1
I access the Fritzbox via the iPad (home network) using the "My Fitzbox" app.
If the iMac is connected to the Fritzbox via Ethernet cable, the Fritzbox's Wake on Lan function can be managed relatively easily via the Fritzbox user interface > "Start computer".
However, after the start command is given, the screen does not turn on and the SteamLink app cannot reach the iMac either (iMac offline).
At first I thought Wake on Lan wasn't working. But We can rule out input errors for IP, MAC and broadcast addresses, the Fitzbox automatically reads out all the required addresses for Wake on Lan and saves them in a profile.
You only need to give the command > "Start computer" in this profile. Actually pretty cool.
Troubleshooting:
#1 Tried some Wake on Lan apps from the app store with no success.
#2 pmset -g showing me the "hibernation mode", see Image_2. The Mac is not in a deep sleep, should actually work.
#3 pmset -g log shows me what happens during hibernation. The magic package was sent at 12:30 (+ a few seconds):
2022-12-03 12:05:58 +0100 PM Client Acks Delays to Sleep notifications: [com.apple.apsd is slow(1973 ms)] [mDNSResponder is slow(5005 ms)]
2022-12-03 12:30:47 +0100 Kernel Client Acks Delays to Sleep notifications: [powerd is slow(5008 ms)] [AppleDeviceManagementHIDEventService driver is slow(msg: WillChangeState to 2)(321 ms)] [AppleDeviceManagementHIDEventService driver is slow(msg: WillChangeState to 2)(372 ms)] [UPSB driver is slow(msg: SetState to 2)(950 ms)] [UPSB driver is slow(msg: SetState to 2)(950 ms)] [AppleHPMIECS driver is slow(msg: WillChangeState to 2)(1095 ms)] [AppleHPMIECS driver is slow(msg: WillChangeState to 2)(1095 ms)] [AppleUSBVHCIBCE driver is slow(msg: SetState to 1)(325 ms)] [IOBluetoothHostControllerUARTTransport driver is slow(msg: SetState to 0)(487 ms)] [RP17 driver is slow(msg: SetState to 0)(1005 ms)]
2022-12-03 12:30:47 +0100 Assertions PID 170(mDNSResponder) Created MaintenanceWake "mDNSResponder:maintenance" 00:00:00 id:0x0xd000081c1 [System: SRPrevSleep kCPU]
2022-12-03 12:30:47 +0100 Assertions PID 170(mDNSResponder) Released MaintenanceWake "mDNSResponder:maintenance" 00:00:00 id:0x0xd000081c1 [System: No Assertions]
2022-12-03 12:30:49 +0100 Assertions PID 55(powerd) Created InternalPreventSleep "Network wake delay proxy assertion" 00:00:00 id:0x0xd000081c3 [System: PrevIdle SRPrevSleep kCPU]
2022-12-03 12:30:49 +0100 com.apple.sleepservices.sessionStarted SleepService: window begins with cap time=86400 secs
2022-12-03 12:30:49 +0100 DarkWake DarkWake from Normal Sleep [CDNPB] due to EC.WoL XGBE/Network: Using AC (Charge:0%) 38 secs
2022-12-03 12:30:49 +0100 WakeDetails DriverReason:XGBE - DriverDetails:
2022-12-03 12:30:49 +0100 HibernateStats hibmode=0 standbydelay=0 136
2022-12-03 12:30:49 +0100 WakeTime WakeTime: 4.934 sec
2022-12-03 12:30:49 +0100 Kernel Client Acks Delays to Wake notifications: [AppleEthernetAquantiaAqtion driver is slow(msg: SetState to 2)(339 ms)] [UPSB driver is slow(msg: SetState to 2)(547 ms)] [UPSB driver is slow(msg: SetState to 2)(546 ms)] [ADIO driver is slow(msg: SetState to 2)(549 ms)] [IOUSBMassStorageInterfaceNub driver is slow(msg: SetState to 1)(1167 ms)] [IOUSBMassStorageDriverNub driver is slow(msg: SetState to 1)(1283 ms)]
2022-12-03 12:30:49 +0100 Assertions PID 55(powerd) Created InternalPreventSleep "com.apple.powermanagement.acwakelinger" 00:00:00 id:0x0xd000081c5 [System: PrevIdle PushSrvc SRPrevSleep kCPU]
2022-12-03 12:30:59 +0100 Assertions PID 55(powerd) TimedOut ApplePushServiceTask "Powerd - Wait for client pushService assertions" 00:00:09 id:0x0xa000081c4 [System: PushSrvc SRPrevSleep kCPU]
2022-12-03 12:30:59 +0100 com.apple.sleepservices.sessionTerminated SleepService: window has terminated.
2022-12-03 12:30:59 +0100 Assertions Summary- [System: SRPrevSleep kCPU] Using AC
2022-12-03 12:31:19 +0100 Assertions PID 55(powerd) TimedOut InternalPreventSleep "Network wake delay proxy assertion" 00:00:29 id:0x0xd000081c3 [System: SRPrevSleep kCPU]
2022-12-03 12:31:27 +0100 Assertions PID 95(hidd) Created UserIsActive "com.apple.iohideventsystem.queue.tickle.4294969206.3" 00:00:00 id:0x0x9000081e9 [System: DeclUser SRPrevSleep kCPU kDisp]
2022-12-03 12:31:27 +0100 Assertions Kernel Idle sleep preventers: IODisplayWrangler
2022-12-03 12:31:27 +0100 Notification Display is turned on
2022-12-03 12:31:27 +0100 Wake DarkWake to FullWake from Normal Sleep [CDNVA] due to UserActivity Assertion: Using AC (Charge:0%)
2022-12-03 12:31:27 +0100 WakeDetails DriverReason:XGBE - DriverDetails:
2022-12-03 12:31:27 +0100 HibernateStats hibmode=0 standbydelay=0 136
2022-12-03 12:31:27 +0100 WakeTime WakeTime: 0.391 sec
2022-12-03 12:31:34 +0100 Assertions PID 55(powerd) TimedOut InternalPreventSleep "com.apple.powermanagement.acwakelinger" 00:00:44 id:0x0xd000081c5 [System: PrevIdle DeclUser SRPrevSleep kCPU kDisp]
2022-12-03 12:31:34 +0100 Assertions Summary- [System: PrevIdle DeclUser kDisp] Using AC
Total Sleep/Wakes since boot at 2022-12-03 10:36:35 +0100 :3
2022-12-03 12:31:43 +0100 : Showing all currently held IOKit power assertions
Assertion status system-wide:
BackgroundTask 0
ApplePushServiceTask 0
UserIsActive 1
PreventUserIdleDisplaySleep 0
PreventSystemSleep 0
ExternalMedia 1
PreventUserIdleSystemSleep 1
NetworkClientActive 0
Listed by owning process:
pid 256(UserEventAgent): [0x00000128000b81f9] 00:00:16 BackgroundTask named: "com.apple.AddressBook.ScheduledSync"
Created for PID: 557.
pid 95(hidd): [0x00000127000981e9] 00:00:00 UserIsActive named: "com.apple.iohideventsystem.queue.tickle.4294969206.3"
Timeout will fire in 60 secs Action=TimeoutActionRelease
pid 55(powerd): [0x0000000300088004] 01:55:06 ExternalMedia named: "com.apple.powermanagement.externalmediamounted"
pid 557(AddressBookSourceSync): [0x00000128000181f8] 00:00:16 PreventUserIdleSystemSleep named: "Address Book Source Sync"
Timeout will fire in 1784 secs Action=TimeoutActionTurnOff
Kernel Assertions: 0x10c=USB,BT-HID,MAGICWAKE
id=504 level=255 0x4=USB mod=01.01.70, 01:00 description=com.apple.usb.externaldevice.14800000 owner=Intenso Alu Line
id=505 level=255 0x100=MAGICWAKE mod=01.01.70, 01:00 description=en1 owner=en1
id=506 level=255 0x8=BT-HID mod=01.01.70, 01:00 description=com.apple.driver.IOBluetoothHIDDriver owner=AppleHSBluetoothDevice
id=507 level=255 0x100=MAGICWAKE mod=03.12.22, 12:37 description=en0 owner=en0
id=508 level=255 0x8=BT-HID mod=01.01.70, 01:00 description=com.apple.driver.IOBluetoothHIDDriver owner=AppleHSBluetoothDevice
Idle sleep preventers: IODisplayWrangler
Martins-iPro:~ martinbaumann$
With my layman's understanding, I would say that the iMac received the package and wakes up, but is probably not awake enough...
DarkWake DarkWake from Normal Sleep [CDNPB] due to EC.WoL XGBE/Network: Using AC (Charge:0%) 38 secs
What this is...
Idle sleep preventers: IODisplayWrangler
I don't know either...
In this "dark wake" state, the iMac does NOT appear to start the display, and the use of the SteamLink app does not seem to have any effect on waking up the iMac properly. Does anyone have an idea what I could do?
