Shiunbird

macrumors newbie
Original poster
Nov 20, 2020
22
12
Hello everyone,

I will start with the classic "long time reader, first time poster" here.

I own a 4,1->5,1 Mac Pro (dual socket), with a Radeon Pulse RX580 with dual BIOS, with the Orinoco framebuffer and flashed by MacVidCards, running fully patched Mojave. I also have a flashed Titan Bridged TB card. I boot from a nvm volume.
I am extremely happy with the machine.

However, one of the greatest sources of frustration for me is the fact that, even though I have the Orinoco framebuffer, I get no hardware acceleration. So, in the beginning of the month, I decided to give OpenCore a shot following the instructions here and it worked perfectly for two weeks. And WOW - I was so happy! Much better performance for watching and editing videos, hardware encoding for quicktime screen capture, lower power consumption.

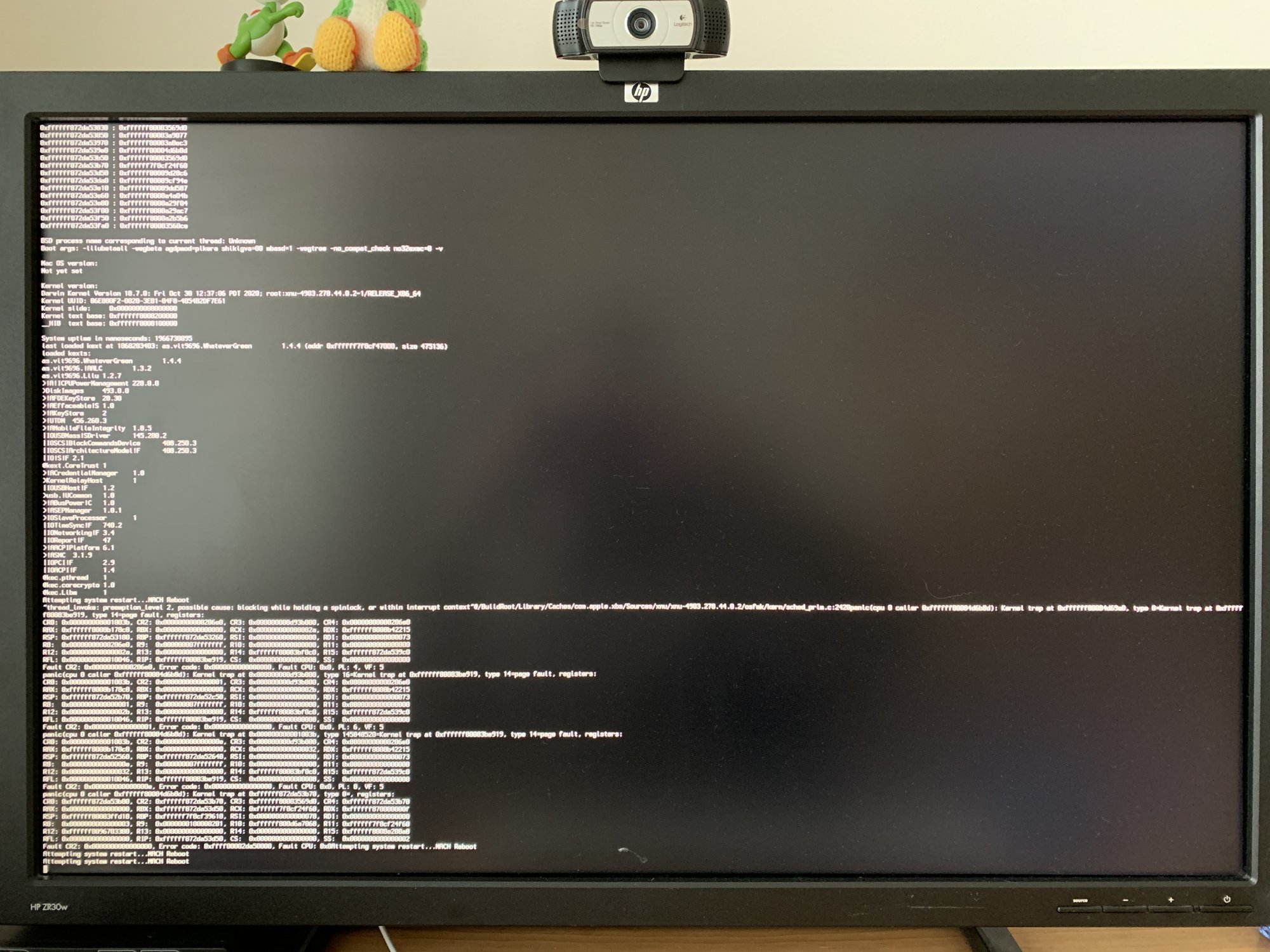

Suddenly, I started getting kernel panics (see attached image) every 20 boots or so. Initially, reinstalling OpenCore helped but now it doesn't. I started troubleshooting, trying different versions of OpenCore, always using the template from the post and nada.

So I decided to try things part by part. To my surprise, if I pick the recovery partition during boot, it boots fine. So I tried installing vanilla OpenCore and... it works! Whenever I add WhateverGreen and Lilu to the mix I start having problems (using the versions pointed in the post or newer). But nothing else has changed. I'm using the same versions of WhateverGreen and Lilu as before so I don't understand why it doesn't work.

Any suggestions? I have a bootable mirror of my installation so playing around is fine. My boot arguments for when I tried the whole package are in the screenshot. When I tried only OpenCore, I didn't load a config.plist at all so I just got a screen asking me to choose the boot disk (no icons, only the name of the volume on the top right of the screen).

The only change from when I installed OpenCore that I can remember of was the installation of the Supplemental update.

Thank you!

PS: I don't like getting help without giving anything in return, so please point me to the most pressing issues and I'll be happy to try to help. My Mac Pro is available for experimentation (I own a 1,1 that can get the job done in any case).

edit: I’ve just connected my unflashed RX560 and I get a boot screen and can see the kernel dump. I’m suspecting the new macOS update. Anyone can confirm?


Attachments

  • IMG_8163.jpg
    410.5 KB · Views: 556
Last edited:

Shiunbird

macrumors newbie
Original poster
Nov 20, 2020
22
12
what is the result of:
kextstat | grep -v com.apple
Thank you!

I don't get to a point where I could run this with OpenCore enabled (unless I boot in recovery mode).
With OpenCore disabled, I get this (no idea why Lilu still shows up):

Code:
legendary-pro:~ saulo$ kextstat | grep -v com.apple
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
   37    1 0xffffff7f83721000 0x22000    0x22000    as.vit9696.Lilu (1.2.7) 4EA74271-18D4-38CC-AAD2-03F2875BCF14 <8 6 5 3 2 1>
   38    0 0xffffff7f83743000 0xd3000    0xd3000    as.vit9696.AppleALC (1.3.2) 42E1908A-664A-3B2C-903A-070129B0F27A <37 13 8 6 5 3 2 1>
  106    0 0xffffff7f81b73000 0x7000     0x7000     com.joshuawise.kexts.HoRNDIS (6) A6C4F82E-000D-3C2A-B45C-B4A01BC33C30 <58 17 6 5 3 1>
  120    1 0xffffff7f8118a000 0x47000    0x47000    com.Logitech.ControlCenter.HIDDriver (3.9.12) FEE674A7-82F4-3D96-A448-ADD5C084B172 <119 110 47 23 6 5 3>
  123    0 0xffffff7f811e1000 0x17000    0x17000    com.Logitech.Unifying.HIDDriver (3.9.9) 9DD96EF2-3F19-3DB2-9260-AFF735659C21 <122 120 58 47 6 5 3>
  124    0 0xffffff7f8140a000 0x22000    0x22000    tc.tctechnologies.driver.Saffire (4.3.0 41017) 3563D1B5-FFE0-380D-B232-6D2D6CF819F7 <109 76 6 5 3 1>
  128    0 0xffffff7f815b0000 0x60000    0x60000    com.Creative.driver.TruStudioPCUSBAudioPlugin (2.3.36) DAC8F659-C2E1-35F5-8B15-5FE5654F9DBF <111 6 5 3>
  147    0 0xffffff7f81447000 0x6000     0x6000     com.valvesoftware.SteamInput (3083.39.62) DED4413E-CD8E-3E56-B0AB-7B3B20ECE4BF <47 6 5 3>
  159    0 0xffffff7f80e38000 0x7000     0x7000     com.AmbrosiaSW.AudioSupport (4.1.4) no UUID <109 6 5 3 1>
  169    3 0xffffff7f84f3e000 0xf2000    0xf2000    org.virtualbox.kext.VBoxDrv (6.1.14) 66D76320-0587-357B-A765-7F23556169B6 <8 6 5 3 1>
  171    0 0xffffff7f85030000 0x8000     0x8000     org.virtualbox.kext.VBoxUSB (6.1.14) C57E35FF-8F45-3CAF-801A-3A65B4BF367D <170 169 58 8 6 5 3 1>
  174    0 0xffffff7f85038000 0x5000     0x5000     org.virtualbox.kext.VBoxNetFlt (6.1.14) D7389BD6-6A3D-3956-A1A7-85463D0DC8B0 <169 8 6 5 3 1>
  176    0 0xffffff7f8503d000 0x6000     0x6000     org.virtualbox.kext.VBoxNetAdp (6.1.14) 71E63654-374F-38B3-BA55-22231400D3D3 <169 6 5 1>

I'm very puzzled why this started being a headache without a change in my environment.
My EFI partition is empty and PRAM reset was done after clearing my EFI partition.

edit: I did a small cleanup - there were drivers for things that I haven't connected to my computer in 6-7 years, like the creative USB audio card or ambrosia software audio support (this one I think was for marble blast gold)

Last edited:

Shiunbird

macrumors newbie
Original poster
Nov 20, 2020
22
12
More investigation:
After removing Lilu, AppleALC, HorNDIS and the creative and ambrosia drivers, rebooting clean and reinstalling everything, I managed to boot after a crash.

The system started booting, then crashed, but after getting to the point where I'd get a report, so it restarted on its on and booted. Here is the crash:

Code:
Anonymous UUID:       128A45AA-5997-15A8-9981-F9B6F83B7BF2

Fri Nov 20 18:14:28 2020

*** Panic Report ***
panic(cpu 14 caller 0xffffff8010ed6b8d): Kernel trap at 0xffffff7f92a99eca, type 14=page fault, registers:
CR0: 0x000000008001003b, CR2: 0x00000000000000d0, CR3: 0x00000000161a6000, CR4: 0x00000000000226e0
RAX: 0x00000000000000d0, RBX: 0x0000000000000000, RCX: 0x0000000000000000, RDX: 0xffffff809f60cd73
RSP: 0xffffff8752cabcc0, RBP: 0xffffff8752cabcd0, RSI: 0xffffff7f92a50760, RDI: 0x0000000000000000
R8:  0xffffff809f97e900, R9:  0x0000000000000000, R10: 0xffffff80116a3b48, R11: 0xffffff809f97f440
R12: 0x0000000000000000, R13: 0xffffff809f97e900, R14: 0xffffff809f98a000, R15: 0xffffff809fc0074e
RFL: 0x0000000000010246, RIP: 0xffffff7f92a99eca, CS:  0x0000000000000008, SS:  0x0000000000000000
Fault CR2: 0x00000000000000d0, Error code: 0x0000000000000000, Fault CPU: 0xe, PL: 0, VF: 1

Backtrace (CPU 14), Frame : Return Address
0xffffff8752cab790 : 0xffffff8010da965d
0xffffff8752cab7e0 : 0xffffff8010ee5235
0xffffff8752cab820 : 0xffffff8010ed696a
0xffffff8752cab890 : 0xffffff8010d569d0
0xffffff8752cab8b0 : 0xffffff8010da9077
0xffffff8752cab9d0 : 0xffffff8010da8ec3
0xffffff8752caba40 : 0xffffff8010ed6b8d
0xffffff8752cabbb0 : 0xffffff8010d569d0
0xffffff8752cabbd0 : 0xffffff7f92a99eca
0xffffff8752cabcd0 : 0xffffff7f92ac3f98
0xffffff8752cabd10 : 0xffffff7f92ae02d8
0xffffff8752cabd70 : 0xffffff7f92ac1b37
0xffffff8752cabdb0 : 0xffffff7f92acfc92
0xffffff8752cabe00 : 0xffffff7f92ab9efd
0xffffff8752cabe20 : 0xffffff8011459c97
0xffffff8752cabe90 : 0xffffff8011459bb9
0xffffff8752cabec0 : 0xffffff8010de8895
0xffffff8752cabf40 : 0xffffff8010de8435
0xffffff8752cabfa0 : 0xffffff8010d560ce
      Kernel Extensions in backtrace:
         com.apple.driver.AirPort.Brcm4331(800.21.31)[67933064-6611-3634-8FD7-504272611FA6]@0xffffff7f92a93000->0xffffff7f92c7afff
            dependency: com.apple.iokit.IOPCIFamily(2.9)[7EB82E74-3BB1-396E-A271-DFB01FC647A2]@0xffffff7f91695000
            dependency: com.apple.iokit.IO80211Family(1200.12.2)[D2184A55-4826-33B2-8935-ECB46C81E632]@0xffffff7f9298c000
            dependency: com.apple.iokit.IONetworkingFamily(3.4)[33701A98-C86E-3B42-955C-138EBCA92D65]@0xffffff7f91f3e000

BSD process name corresponding to current thread: kernel_task
Boot args: -lilubetaall -wegbeta agdpmod=pikera shikigva=80 mbasd=1 -wegtree no32exec=0 -v

Mac OS version:
Not yet set

Kernel version:
Darwin Kernel Version 18.7.0: Fri Oct 30 12:37:06 PDT 2020; root:xnu-4903.278.44.0.2~1/RELEASE_X86_64
Kernel UUID: 86E800F2-0020-3EB1-84F8-4054B2DF7E61
Kernel slide:     0x0000000010a00000
Kernel text base: 0xffffff8010c00000
__HIB  text base: 0xffffff8010b00000
System model name: MacPro5,1 (Mac-7BA5B2D9E42DDD94)

System uptime in nanoseconds: 5684077311
last loaded kext at 4028998912: com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport    6.0.14d11 (addr 0xffffff7f94192000, size 49152)
loaded kexts:
as.vit9696.WhateverGreen    1.4.4
as.vit9696.Lilu    1.4.9
com.apple.iokit.IOBluetoothUSBDFU    6.0.14d11
com.apple.driver.AppleFileSystemDriver    3.0.1
com.apple.driver.AppleVirtIO    2.1.3
com.apple.filesystems.hfs.kext    407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless    1.0.0d1
com.apple.BootCache    40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib    1.0.0
com.apple.AppleSystemPolicy    1.0
com.apple.iokit.SCSITaskUserClient    408.250.3
com.apple.filesystems.apfs    945.275.9
com.apple.driver.AppleFWOHCI    5.6.0
com.apple.driver.AirPort.Brcm4331    800.21.31
com.apple.driver.Intel82574LEthernet    2.7.2
com.apple.driver.AppleAHCIPort    329.260.5
com.apple.driver.AppleRAIDCard    403
com.apple.private.KextAudit    1.0
com.apple.driver.AppleRTC    2.0
com.apple.driver.AppleHPET    1.8
com.apple.driver.AppleACPIButtons    6.1
com.apple.driver.AppleSMBIOS    2.1
com.apple.driver.AppleACPIEC    6.1
com.apple.driver.AppleAPIC    1.7
com.apple.driver.AppleIntelCPUPowerManagementClient    220.0.0
com.apple.nke.applicationfirewall    202
com.apple.security.TMSafetyNet    8
com.apple.driver.AppleIntelCPUPowerManagement    220.0.0
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport    6.0.14d11
com.apple.iokit.IOBluetoothHostControllerUSBTransport    6.0.14d11
com.apple.iokit.IOBluetoothHostControllerTransport    6.0.14d11
com.apple.iokit.IOBluetoothFamily    6.0.14d11
com.apple.driver.usb.AppleUSBHub    1.2
com.apple.driver.AppleThunderboltDPOutAdapter    5.6.9
com.apple.driver.AppleThunderboltPCIDownAdapter    2.1.5
com.apple.driver.AppleThunderboltDPInAdapter    5.6.9
com.apple.driver.AppleThunderboltDPAdapterFamily    5.6.9
com.apple.driver.AppleHPM    3.4.1
com.apple.driver.AppleIntelLpssI2CController    3.0.60
com.apple.driver.AppleIntelLpssDmac    3.0.60
com.apple.driver.AppleIntelLpssI2C    3.0.60
com.apple.driver.AppleUSBAudio    315.6
com.apple.driver.usb.IOUSBHostHIDDevice    1.2
com.apple.iokit.IOAudioFamily    206.5
com.apple.vecLib.kext    1.2.0
com.apple.driver.usb.cdc    5.0.0
com.apple.driver.usb.networking    5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice    1.2
com.apple.iokit.IOSerialFamily    11
com.apple.filesystems.hfs.encodings.kext    1
com.apple.iokit.IOSCSIMultimediaCommandsDevice    408.250.3
com.apple.iokit.IOBDStorageFamily    1.8
com.apple.iokit.IODVDStorageFamily    1.8
com.apple.iokit.IOCDStorageFamily    1.8
com.apple.driver.AppleXsanScheme    3
com.apple.iokit.IOAHCISerialATAPI    267.50.1
com.apple.driver.usb.AppleUSBXHCIPCI    1.2
com.apple.driver.usb.AppleUSBXHCI    1.2
com.apple.driver.AppleThunderboltNHI    4.7.9
com.apple.iokit.IOThunderboltFamily    6.8.7
com.apple.iokit.IOFireWireFamily    4.7.3
com.apple.iokit.IO80211Family    1200.12.2
com.apple.driver.corecapture    1.0.4
com.apple.driver.AppleUSBMergeNub    900.4.2
com.apple.iokit.IOAHCIFamily    288
com.apple.iokit.IOSCSIParallelFamily    3.0.0
com.apple.driver.usb.AppleUSBEHCIPCI    1.2
com.apple.driver.usb.AppleUSBUHCIPCI    1.2
com.apple.driver.usb.AppleUSBUHCI    1.2
com.apple.driver.usb.AppleUSBEHCI    1.2
com.apple.iokit.IONVMeFamily    2.1.0
com.apple.driver.usb.AppleUSBHostPacketFilter    1.0
com.apple.iokit.IOUSBFamily    900.4.2
com.apple.driver.AppleUSBHostMergeProperties    1.2
com.apple.driver.AppleEFINVRAM    2.1
com.apple.driver.AppleEFIRuntime    2.1
com.apple.iokit.IOSMBusFamily    1.1
com.apple.iokit.IOHIDFamily    2.0.0
com.apple.security.quarantine    3
com.apple.security.sandbox    300.0
com.apple.kext.AppleMatch    1.0.0d1
com.apple.driver.DiskImages    493.0.0
com.apple.driver.AppleFDEKeyStore    28.30
com.apple.driver.AppleEffaceableStorage    1.0
com.apple.driver.AppleKeyStore    2
com.apple.driver.AppleUSBTDM    456.260.3
com.apple.driver.AppleMobileFileIntegrity    1.0.5
com.apple.iokit.IOUSBMassStorageDriver    145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice    408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily    408.250.3
com.apple.iokit.IOStorageFamily    2.1
com.apple.kext.CoreTrust    1
com.apple.driver.AppleCredentialManager    1.0
com.apple.driver.KernelRelayHost    1
com.apple.iokit.IOUSBHostFamily    1.2
com.apple.driver.usb.AppleUSBCommon    1.0
com.apple.driver.AppleBusPowerController    1.0
com.apple.driver.AppleSEPManager    1.0.1
com.apple.driver.IOSlaveProcessor    1
com.apple.iokit.IOTimeSyncFamily    740.2
com.apple.iokit.IONetworkingFamily    3.4
com.apple.iokit.IOReportFamily    47
com.apple.driver.AppleACPIPlatform    6.1
com.apple.driver.AppleSMC    3.1.9
com.apple.iokit.IOPCIFamily    2.9
com.apple.iokit.IOACPIFamily    1.4
com.apple.kec.pthread    1
com.apple.kec.corecrypto    1.0
com.apple.kec.Libm    1

EOF
Model: MacPro5,1, BootROM 144.0.0.0.0, 12 processors, 6-Core Intel Xeon, 3,1 GHz, 64 GB, SMC 1.39f5
Graphics: Radeon RX 580, Radeon RX 580, spdisplays_pcie_device, 8 GB
Memory Module: DIMM 1, 16 GB, DDR3, 1333 MHz, 0x80CE, 0x4D33393342324737304248302D5948392020
Memory Module: DIMM 2, 8 GB, DDR3, 1333 MHz, 0x802C, 0x33364B534631473732505A2D3147344D3120
Memory Module: DIMM 3, 8 GB, DDR3, 1333 MHz, 0x802C, 0x33364B534631473732505A2D3147344D3120
Memory Module: DIMM 5, 16 GB, DDR3, 1333 MHz, 0x80CE, 0x4D33393342324737304248302D5948392020
Memory Module: DIMM 6, 8 GB, DDR3, 1333 MHz, 0x802C, 0x33364B534631473732505A2D3147344D3120
Memory Module: DIMM 7, 8 GB, DDR3, 1333 MHz, 0x802C, 0x33364B534631473732505A2D3147344D3120
AirPort: Third-Party Wireless Card
Bluetooth: Version 6.0.14d11, 3 services, 18 devices, 1 incoming serial ports
Network Service: Ethernet 1, Ethernet, en0
Network Service: RNDIS/Ethernet Gadget, Ethernet, en10
PCI Card: pci144d,a808, NVM Express Controller, Slot-2
PCI Card: Radeon RX 580, Display Controller, Slot-1
PCI Card: pci1002,aaf0, Audio Device, Slot-1
PCI Card: Apple RAID Card, RAID Controller, Slot-4
PCI Card: pci8086,15eb, Unknown, Slot-3@5,0,0
PCI Card: pci8086,15ec, USB eXtensible Host Controller, Slot-3@7,0,0
Serial ATA Device: HL-DT-ST DVD-RW GH41N
USB Device: USB 2.0 Bus
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: Keyboard Hub
USB Device: USB Receiver
USB Device: Apple Keyboard
USB Device: Logitech Webcam C930e
USB Device: Multi-Reader
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB 3.1 Bus
FireWire Device: built-in_hub, Up to 800 Mb/sec
FireWire Device: SAFFIRE_PRO_24, Focusrite, Up to 400 Mb/sec
Thunderbolt Bus: Mac Pro, GIGABYTE, 23.0

It seems to have crashed after loading this: com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport
I have no idea why.

Here is the output of kextstat:

Code:
legendary-pro:~ saulo$ kextstat | grep -v com.apple
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
   38    1 0xffffff7f84dad000 0x2a000    0x2a000    as.vit9696.Lilu (1.4.9) 6E38576B-9675-3D9E-9763-5B0F9DA1B098 <8 6 5 3 2 1>
   39    0 0xffffff7f84dd7000 0x74000    0x74000    as.vit9696.WhateverGreen (1.4.4) 16865DE9-453C-3F11-BE9F-FDC2795B7536 <38 13 8 6 5 3 2 1>
  119    1 0xffffff7f81042000 0x47000    0x47000    com.Logitech.ControlCenter.HIDDriver (3.9.12) FEE674A7-82F4-3D96-A448-ADD5C084B172 <118 110 47 23 6 5 3>
  122    0 0xffffff7f81099000 0x17000    0x17000    com.Logitech.Unifying.HIDDriver (3.9.9) 9DD96EF2-3F19-3DB2-9260-AFF735659C21 <121 119 57 47 6 5 3>
  124    0 0xffffff7f813e9000 0x22000    0x22000    tc.tctechnologies.driver.Saffire (4.3.0 41017) 3563D1B5-FFE0-380D-B232-6D2D6CF819F7 <109 76 6 5 3 1>
  165    3 0xffffff7f84e51000 0xf2000    0xf2000    org.virtualbox.kext.VBoxDrv (6.1.16) DAF044F0-5043-3B8E-8758-5A462567BDAA <8 6 5 3 1>
  169    0 0xffffff7f84f43000 0x8000     0x8000     org.virtualbox.kext.VBoxUSB (6.1.16) CA33FA52-5933-3F0E-9B40-8B1ECF4D6A36 <168 165 57 8 6 5 3 1>
  170    0 0xffffff7f84f4b000 0x5000     0x5000     org.virtualbox.kext.VBoxNetFlt (6.1.16) C93EAF6A-676F-3370-BAE2-BDFD2BF16582 <165 8 6 5 3 1>
  171    0 0xffffff7f84f50000 0x6000     0x6000     org.virtualbox.kext.VBoxNetAdp (6.1.16) 76200407-D2F0-3D84-BCCF-7EEA18F16654 <165 6 5 1>

I think going back to the previous version caused a mess with the versions. However, this doesn't explain why I started having the crashes to begin with. I will reboot now and see what happens.


startergo

macrumors 603
Sep 20, 2018
5,022
2,283
37 1 0xffffff7f83721000 0x22000 0x22000 as.vit9696.Lilu (1.2.7) 4EA74271-18D4-38CC-AAD2-03F2875BCF14 <8 6 5 3 2 1>
This is really old.
WEG is at 1.4.4
and LILU at 1.4.9
You need to update both.
You have Lilu somewhere in the /S/L/E
You need to remove it and rebuild caches


Attachments

  • rebuildcache.zip
    1,003 bytes · Views: 102

Shiunbird

macrumors newbie
Original poster
Nov 20, 2020
22
12
I installed the older version just to be sure there were no issues with the newest.
I had never installed OpenCore before. I started having issues out of the blue after it had been working for days on 0.6.3.

The machine rebooted fine. Thanks for the script!

I configured rsyslogd on my server and started pushing *.* there. If I start having crashes in a few days, I will dig deeper.

Thank you for your help! I didn't know this kextstat command - it's super useful! I did a good cleanup here.

Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
