Woodlandjustin

macrumors member
Original poster
Jan 21, 2007
38
1
Hi!

I have a 2017 iMac 27 inch. I have been told (by the seller) that my drive is a 1TB fusion drive. I've tried to find out from clicking on things but I feel like I'm getting conflicting information.

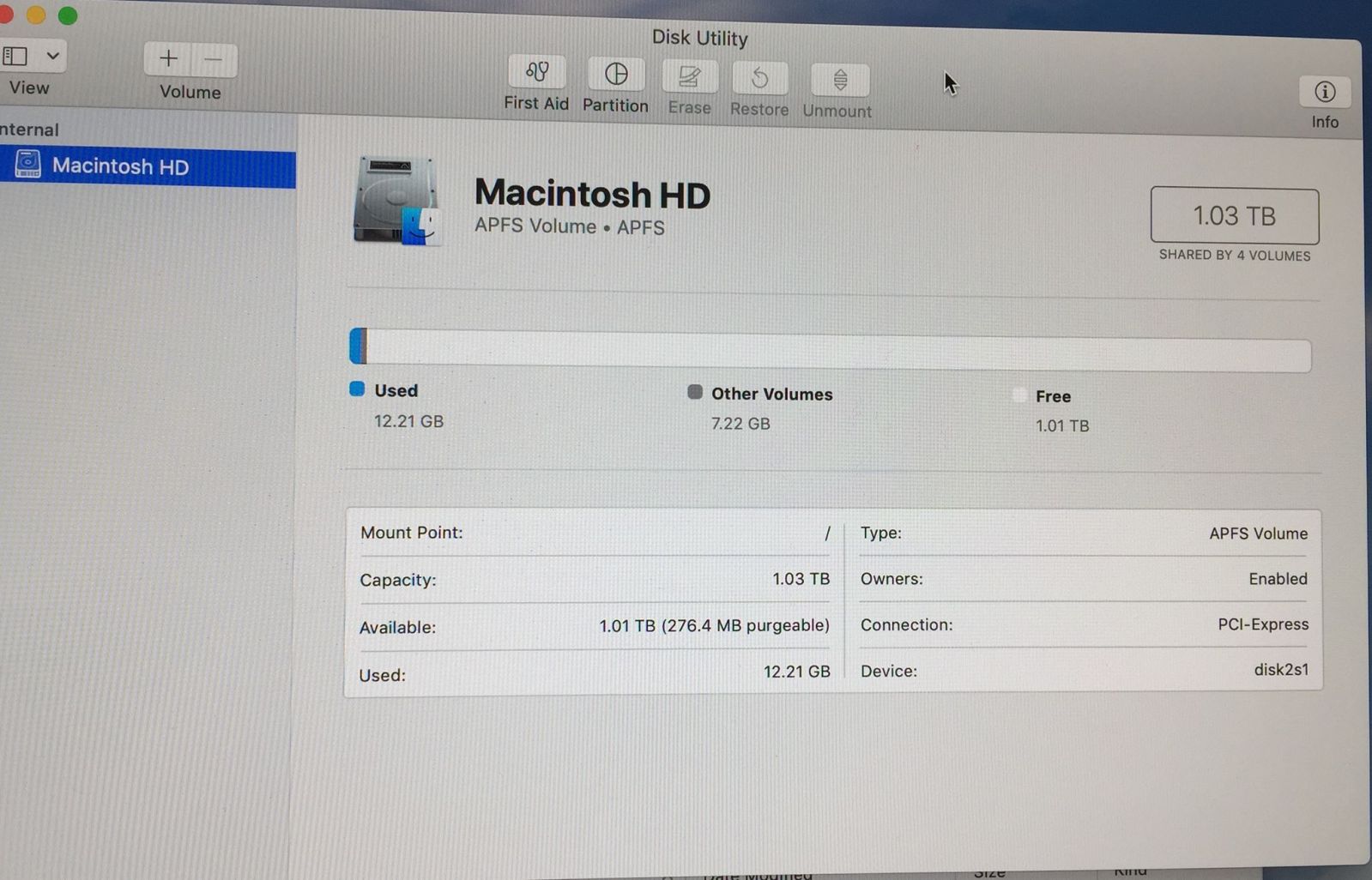

Here's what Disc Utility says:

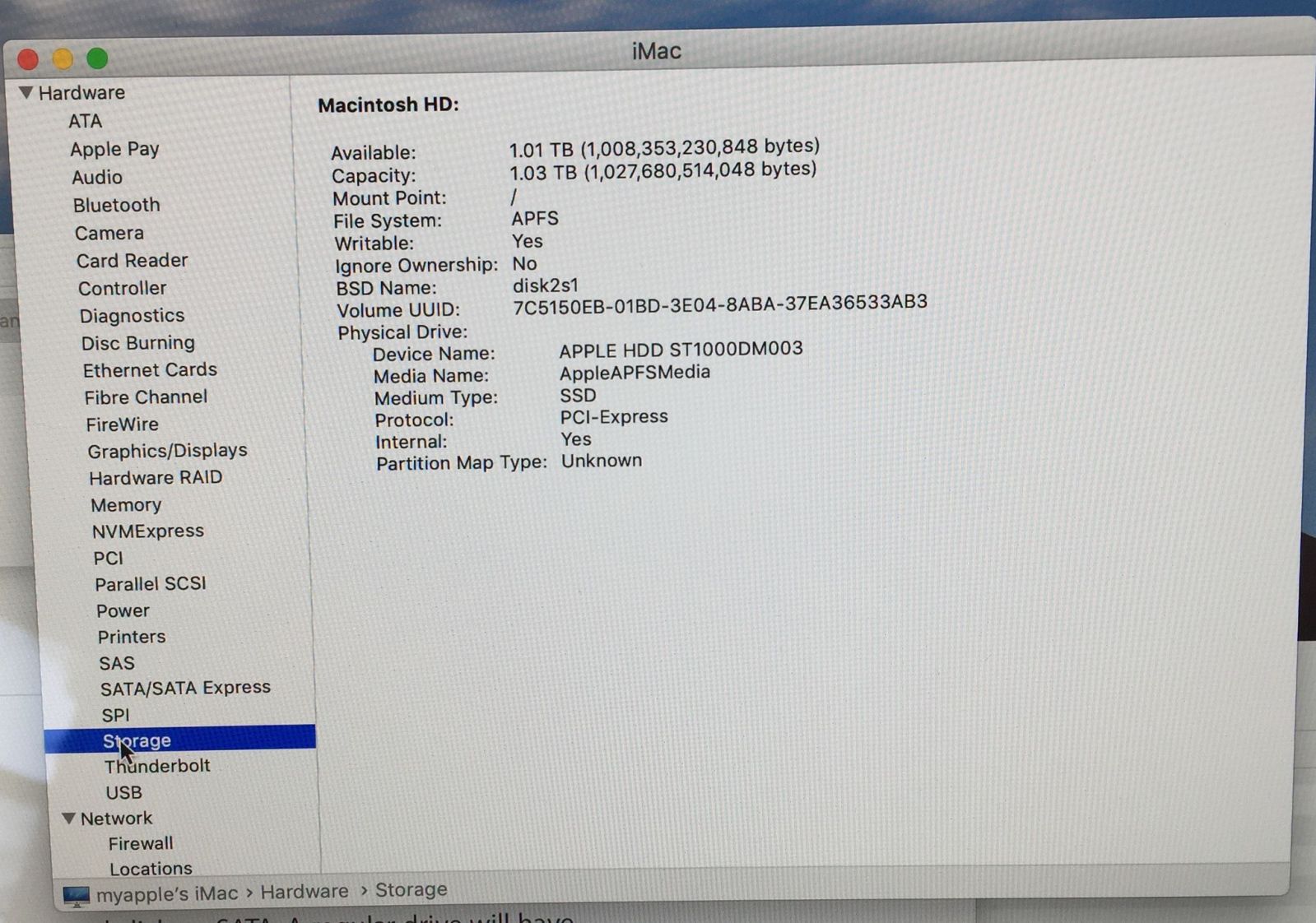

Here's what 'storage' says:




That seems weird because under 'device name' is says HHD, but under 'Medium Type' it says SSD, which seem to be implying that it's a 1TB SSD drive.

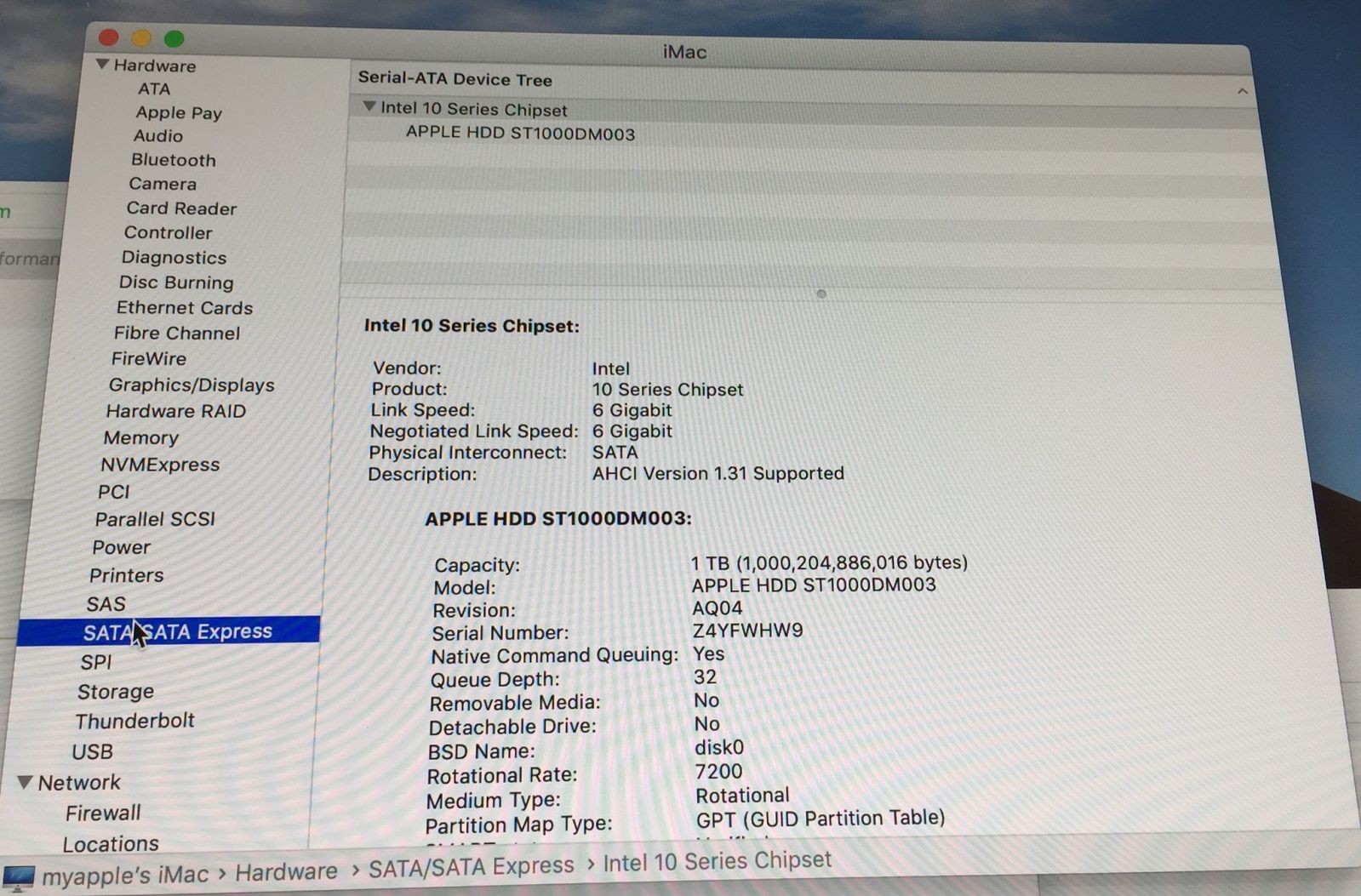

Then under 'SATA' it says this:




I heard under 'device tree' it's meant to show two different drives there for a fusion drive. But here it only has HDD there. And seems to imply that it's a 1TB HDD! Have I misunderstood something? It did mention SSD in the one above, so I'm quite confused. Does anyone know what drive I have?

Thanks!

Last edited:

Zdigital2015

macrumors 601
Jul 14, 2015
4,144
5,624
East Coast, United States
Hi!

I have a 2017 iMac 27 inch. I have been told (by the seller) that my drive is a 1TB fusion drive. I've tried to find out from clicking on things but I feel like I'm getting conflicting information.

Here's what Disc Utility says:




Here's what 'storage' says:




That seems weird because under 'device name' is says HHD, but under 'Medium Type' it says SSD, which seem to be implying that it's a 1TB SSD drive.

Then under 'SATA' it says this:




I heard under 'device tree' it's meant to show two different drives there for a fusion drive. But here it only has HDD there. And seems to imply that it's a 1TB HDD! Have I misunderstood something? It did mention SSD in the one above, so I'm quite confused. Does anyone know what drive I have?

Thanks!

You also need to click on the NVMExpress label to see the SSD portion of the 1TB Fusion Drive in your iMac.

  • Like
Reactions: Woodlandjustin
