Xdr pro display windows 11

[Alexivai]

Hello. I bought an Apple XDR pro display for my windows computer on windows 11. By installing drivers from MacPro 7.1 I was able to connect it with full resolution and 12 bits. But I have several problems that I don't know how to fix. 1. I adjust the brightness using the Nvidia panel and I am sure that this is not the best solution. For some reason, BootCamp is in the tray, but when you click on open the BootCamp panel, it does not open. 2. There are no color profiles accordingly. 3. The screen sometimes flickers either just or in red for a millisecond. I will be glad if you help me solve this



[etc]

You need an updated version of BootCamp, it works correctly and allows you to control the brightness.
I'll try to find the version number.

How did you connect it? I mean USB-C with DP Alt Mode or Thunderbolt?



[Alexivai]

You need an updated version of BootCamp, it works correctly and allows you to control the brightness.
I'll try to find the version number.

How did you connect it? I mean USB-C with DP Alt Mode or Thunderbolt?

I have a Belkin cable.
What’s version i needed? You can give me link?
Thank you



[etc]

I have a Belkin cable.
What’s version i needed? You can give me link?
Thank you

My BootCamp version is 6.1.8082, seems it's the latest at this moment.

I used this tool to install it:

GitHub - timsutton/brigadier: Fetch and install Boot Camp ESDs with ease.

Fetch and install Boot Camp ESDs with ease. Contribute to timsutton/brigadier development by creating an account on GitHub.

github.com



[Alexivai]

My BootCamp version is 6.1.8082, seems it's the latest at this moment.

I used this tool to install it:

GitHub - timsutton/brigadier: Fetch and install Boot Camp ESDs with ease.

Fetch and install Boot Camp ESDs with ease. Contribute to timsutton/brigadier development by creating an account on GitHub.

github.com

I also used this, but from release I did not build it. Do you recommend doing the assembly or does it not matter? Perhaps there are instructions?



[Alexivai]

My BootCamp version is 6.1.8082, seems it's the latest at this moment.

I used this tool to install it:

GitHub - timsutton/brigadier: Fetch and install Boot Camp ESDs with ease.

Fetch and install Boot Camp ESDs with ease. Contribute to timsutton/brigadier development by creating an account on GitHub.

github.com

i have 6.1.7688



[etc]

I also used this, but from release I did not build it. Do you recommend doing the assembly or does it not matter? Perhaps there are instructions?

I didn't build the app, I just downloaded the prebuilt release and run it.

Release Brigadier 0.2.6 · timsutton/brigadier

November 9, 2022 use certifi package to provide a certificates bundle, fixing issues with accessing 7-zip website (LetsEncrypt) from old Windows versions

github.com

Try to update your current Boot Camp via Apple Software Update (it should be installed or install it from Apple's website).

I remember, that BootCamp couldn't open because of improperly configured logical disks, but I didn't fix it by myself, I just updated BC.



[Alexivai]

I didn't build the app, I just downloaded the prebuilt release and run it.

Release Brigadier 0.2.6 · timsutton/brigadier

November 9, 2022 use certifi package to provide a certificates bundle, fixing issues with accessing 7-zip website (LetsEncrypt) from old Windows versions

github.com

Try to update your current Boot Camp via Apple Software Update (it should be installed or install it from Apple's website).

I remember, that BootCamp couldn't open because of improperly configured logical disks, but I didn't fix it by myself, I just updated BC.

yes, I ran the update tool that was installed with BootCamp, but it says that I supposedly have the latest version



[Alexivai]

I didn't build the app, I just downloaded the prebuilt release and run it.

Release Brigadier 0.2.6 · timsutton/brigadier

November 9, 2022 use certifi package to provide a certificates bundle, fixing issues with accessing 7-zip website (LetsEncrypt) from old Windows versions

github.com

Try to update your current Boot Camp via Apple Software Update (it should be installed or install it from Apple's website).

I remember, that BootCamp couldn't open because of improperly configured logical disks, but I didn't fix it by myself, I just updated BC.

I have a macBook pro, maybe it can help me with something?



[etc]

I have a macBook pro, maybe it can help me with something?

You've installed Windows on it?

I suppose you've used wrong Mac machine model to download BootCamp. Try iMac Intel with the similar hardware as your PC has.



[Alexivai]

You've installed Windows on it?

I suppose you've used wrong Mac machine model to download BootCamp. Try iMac Intel with the similar hardware as your PC has.

I just don’t know how to choose the right one, I looked at what needed to be downloaded from MacPro 7.1 and downloaded it for it. What do you recommend? I have AMD R9. RTX 2080



[Alexivai]

You've installed Windows on it?

I suppose you've used wrong Mac machine model to download BootCamp. Try iMac Intel with the similar hardware as your PC has.

Now I have tried different variations of Imac, MacBook pro and so on. Anyway, when I click on BootCamp Control Panel, it just asks to run as administrator, I confirm and then nothing happens. But BootCamp still works in the tray



[etc]

Now I have tried different variations of Imac, MacBook pro and so on. Anyway, when I click on BootCamp Control Panel, it just asks to run as administrator, I confirm and then nothing happens. But BootCamp still works in the tray

Ok, maybe this will help you:

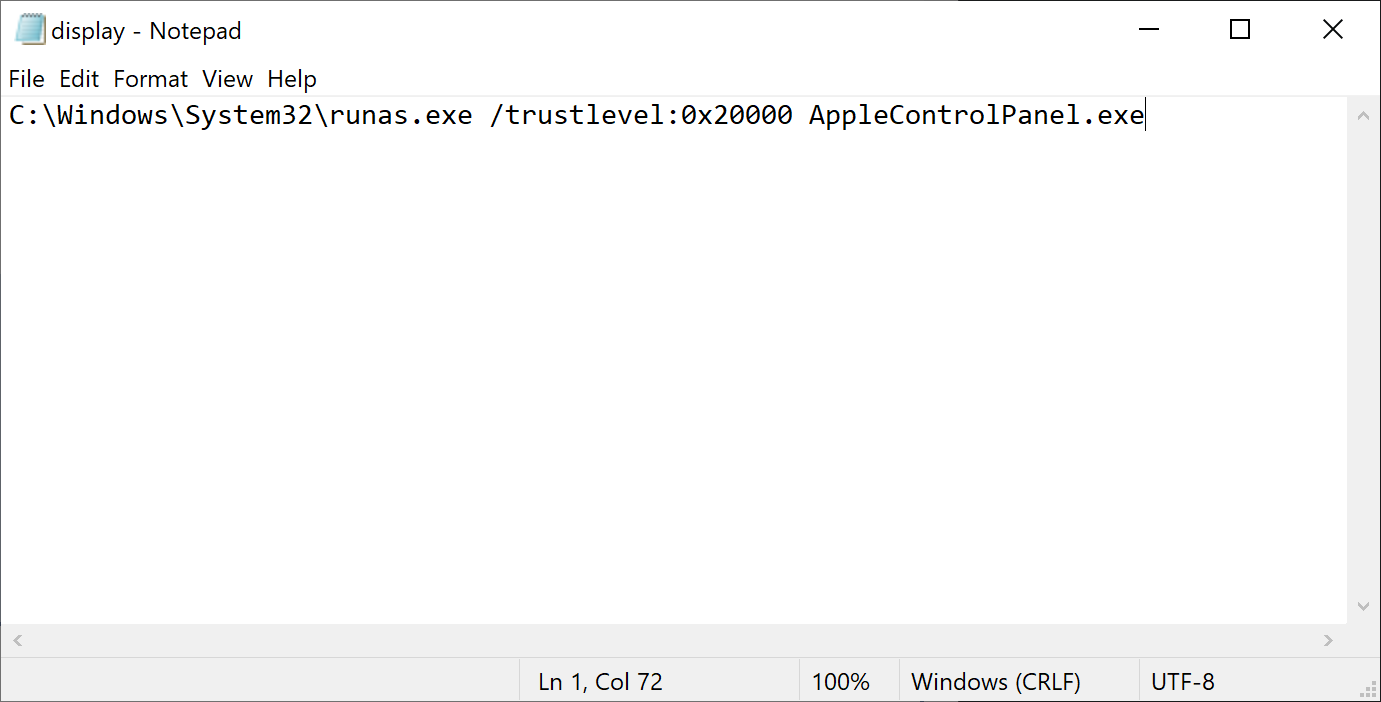

- Create an empty text file
- Add the following line to it:

C:\Windows\System32\runas.exe /trustlevel:0x20000 AppleControlPanel.exe

- Save it with name "display.bat" on Desktop

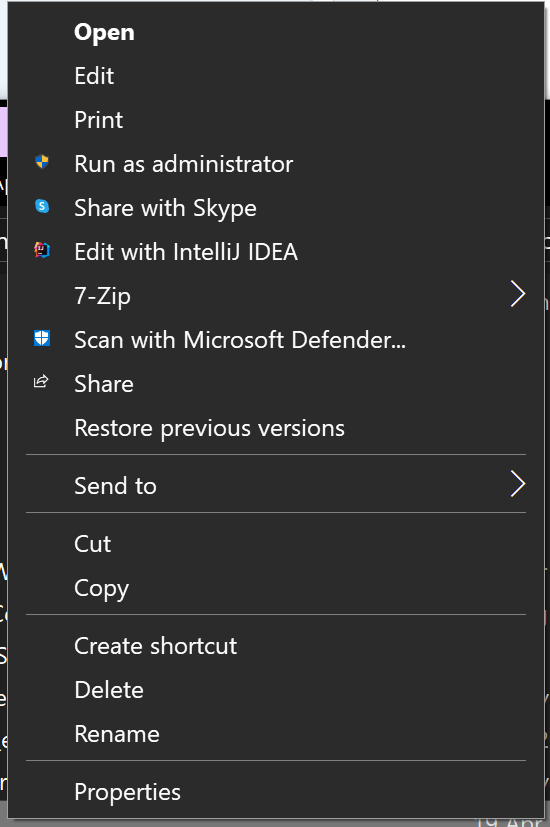

- Right click on it and "Run as Administrator"

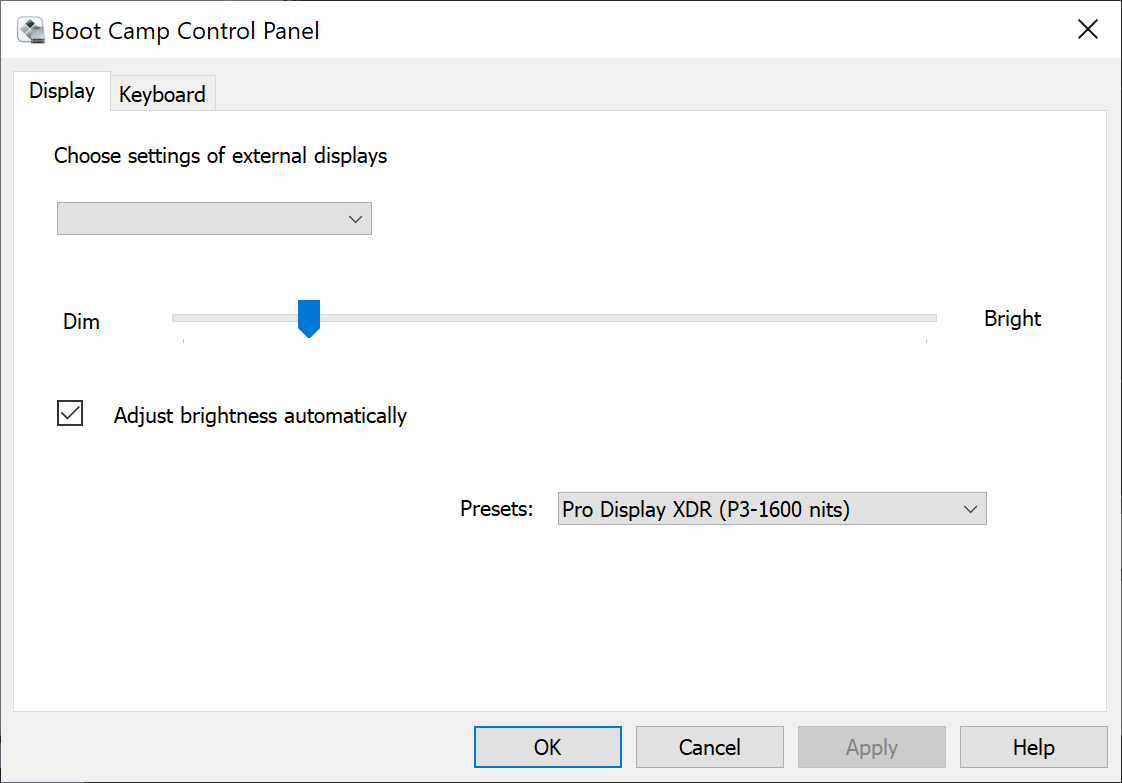

It should open BootCamp Control Panel with display and keyboard controls.

Hope it would work for you.



[Alexivai]

Ok, maybe this will help you:
- Create an empty text file
- Add the following line to it:

C:\Windows\System32\runas.exe /trustlevel:0x20000 AppleControlPanel.exe

- Save it with name "display.bat" on Desktop

View attachment 2336055


- Right click on it and "Run as Administrator"

View attachment 2336056

It should open BootCamp Control Panel with display and keyboard controls.

View attachment 2336057

Hope it would work for you.

Thanks for the instructions, but unfortunately it didn't help.(



[Alexivai]

Ok, maybe this will help you:

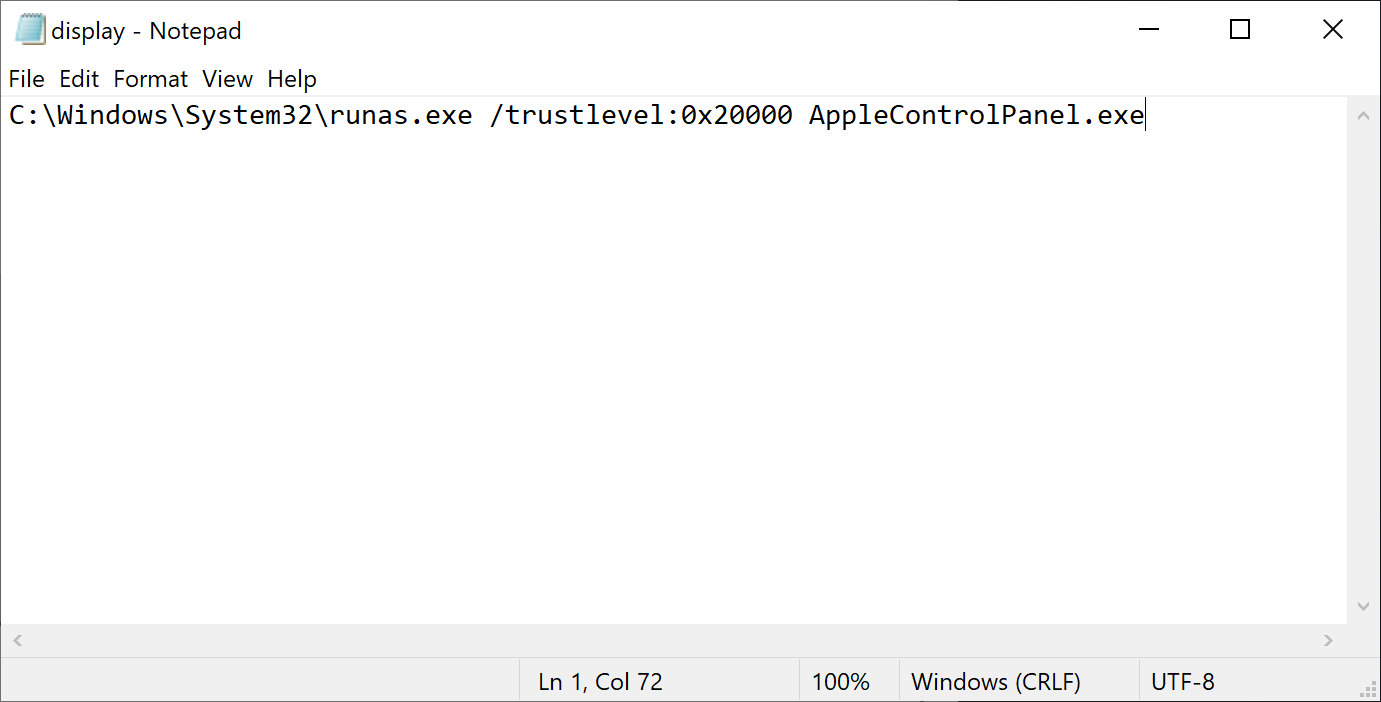

- Create an empty text file
- Add the following line to it:

C:\Windows\System32\runas.exe /trustlevel:0x20000 AppleControlPanel.exe

- Save it with name "display.bat" on Desktop

View attachment 2336055

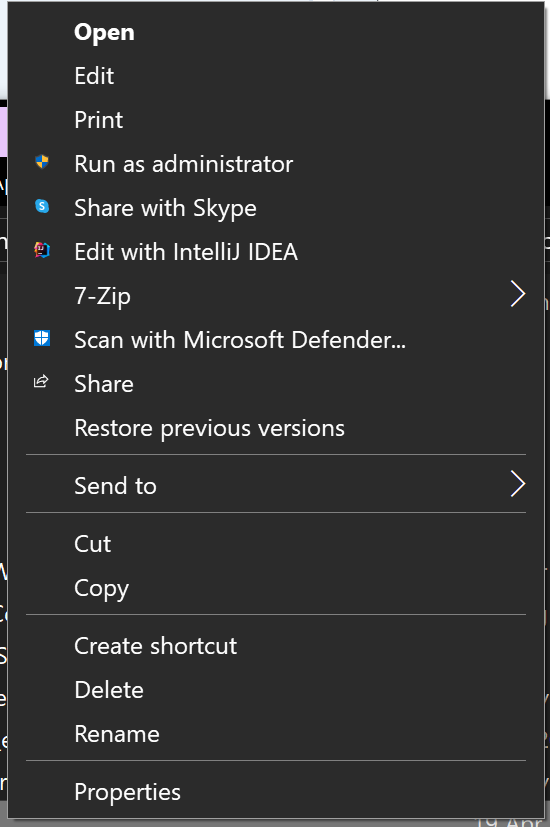

- Right click on it and "Run as Administrator"

View attachment 2336056

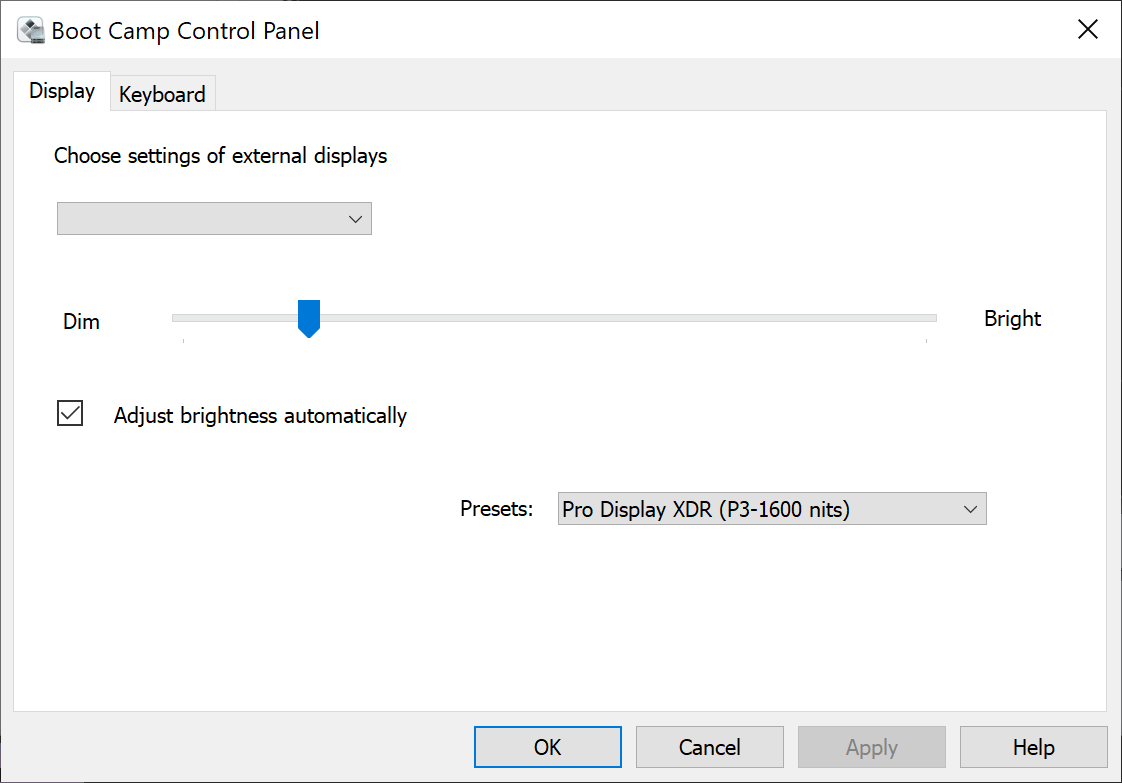

It should open BootCamp Control Panel with display and keyboard controls.

View attachment 2336057

Hope it would work for you.

I found a way to enable BootCamp, but there are no monitor settings there, all it says is "No supported external monitors are connected"



[etc]

I found a way to enable BootCamp, but there are no monitor settings there, all it says is "No supported external monitors are connected"

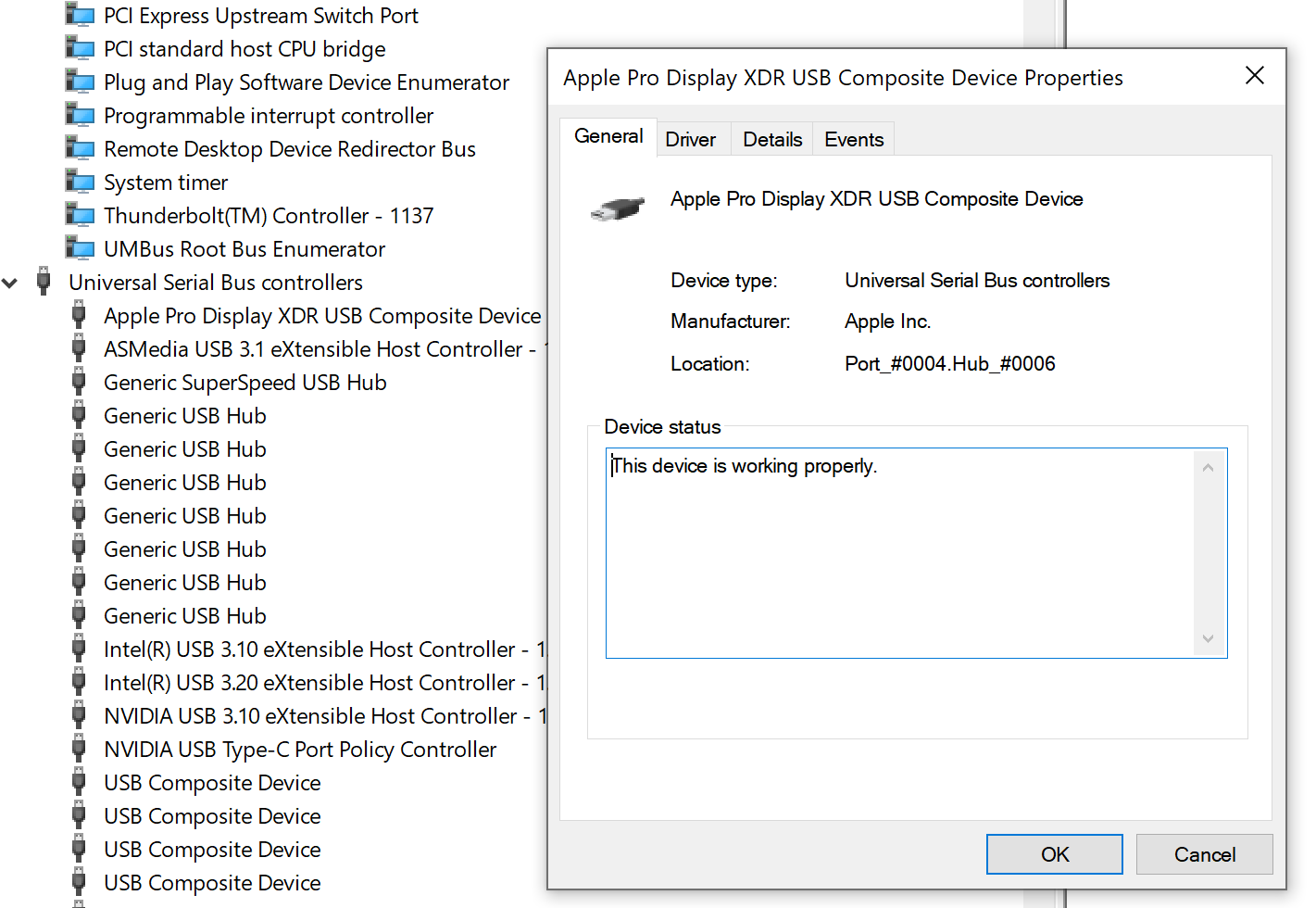

It seems your Belkin cable does not work properly. Check device manager, you should see there Apple Pro Display XDR USB Composite Device under USB Controllers:

If it's not present, then try to use other USB ports with Belkin cable.
If there's an unknown device, try to install drivers manually and use bootcamp distribution folder for searching.

---

Also, I checked the distribution file I used to install BootCamp: this is BootCamp-061-97204, it seems the supported mac model here is iMacPro1,1, iMac19,1, iMac19,2, iMac18,2, iMac18,3
Try to uninstall BootCamp completely and use one of these model numbers to download the right distribution file. Also, there's Apple Software Update installation package, install it too, update it and then update BootCamp. 6.1.7866 version is really outdated, maybe that's the reason you can't use it.



[Alexivai]

You need an updated version of BootCamp, it works correctly and allows you to control the brightness.
I'll try to find the version number.

How did you connect it? I mean USB-C with DP Alt Mode or Thunderbolt?

could it be that I insert it anywhere, but not into Usb 3.2 gen 2? is this necessary?



[Alexivai]



[Alexivai]

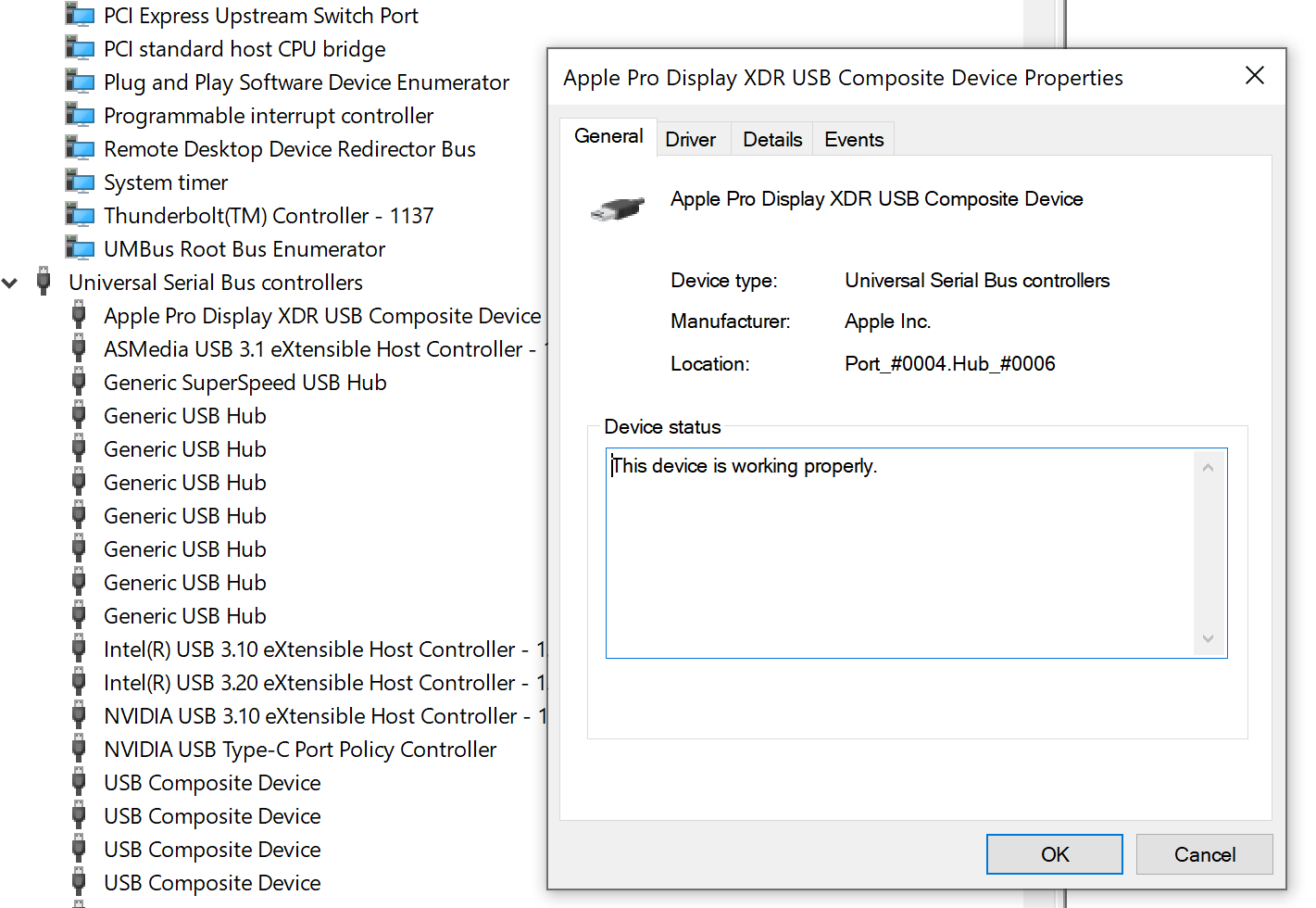

It seems your Belkin cable does not work properly. Check device manager, you should see there Apple Pro Display XDR USB Composite Device under USB Controllers:

View attachment 2336549


If it's not present, then try to use other USB ports with Belkin cable.
If there's an unknown device, try to install drivers manually and use bootcamp distribution folder for searching.

---

Also, I checked the distribution file I used to install BootCamp: this is BootCamp-061-97204, it seems the supported mac model here is iMacPro1,1, iMac19,1, iMac19,2, iMac18,2, iMac18,3
Try to uninstall BootCamp completely and use one of these model numbers to download the right distribution file. Also, there's Apple Software Update installation package, install it too, update it and then update BootCamp. 6.1.7866 version is really outdated, maybe that's the reason you can't use it.

I don’t know what to do anymore.. Starting this device is impossible. (Code 10)

The USB device descriptor request failed.



[etc]

I don’t know what to do anymore.. Starting this device is impossible. (Code 10)

The USB device descriptor request failed.

It seems your belkin cable is damaged or computer's USB port, or is even worse the problem is with TB3 port of XDR. You should check all the connectors using a microscope - all contacts must be intact, not bended or blackened. Maybe it's just a common problem with USB devices on your computer.

Also try to install the driver from BootCamp distribution folder as I mentioned before. Try a different cable / different computer (your mbp maybe?) if possible.



[Alexivai]

It seems your belkin cable is damaged or computer's USB port, or is even worse the problem is with TB3 port of XDR. You should check all the connectors using a microscope - all contacts must be intact, not bended or blackened. Maybe it's just a common problem with USB devices on your computer.

Also try to install the driver from BootCamp distribution folder as I mentioned before. Try a different cable / different computer (your mbp maybe?) if possible.

The fact is that my XDR shows the image, as I said, in full resolution, 12 bits and so on. I installed the drivers manually, but this did not give any results; the problem still appears when connecting USB (one of the cables). I tried inserting it into different ports, it didn't help. All ports and cable look absolutely intact. I don't know what else I can think of.



[etc]

The fact is that my XDR shows the image, as I said, in full resolution, 12 bits and so on. I installed the drivers manually, but this did not give any results; the problem still appears when connecting USB (one of the cables). I tried inserting it into different ports, it didn't help. All ports and cable look absolutely intact. I don't know what else I can think of.

Well, try to find another cable or other ways to connect, any of these:

Add USB-C with DisplayPort-alt-mode to your PC

[Updated 2024/05/21 with Lenovo and Sunix boards] IntroductionExternal multiplexers: Video + USB data -> USB-CBoxesCablesGPU PCIe add-in-boards (Desktop)DP ALT mode PCIe add-in-boards (Desktop)N…

dancharblog.wordpress.com

Also find another computer with USB-C ports and use a standard 10gbps USB-C cable to eliminate XDR as a suspect.
