fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3

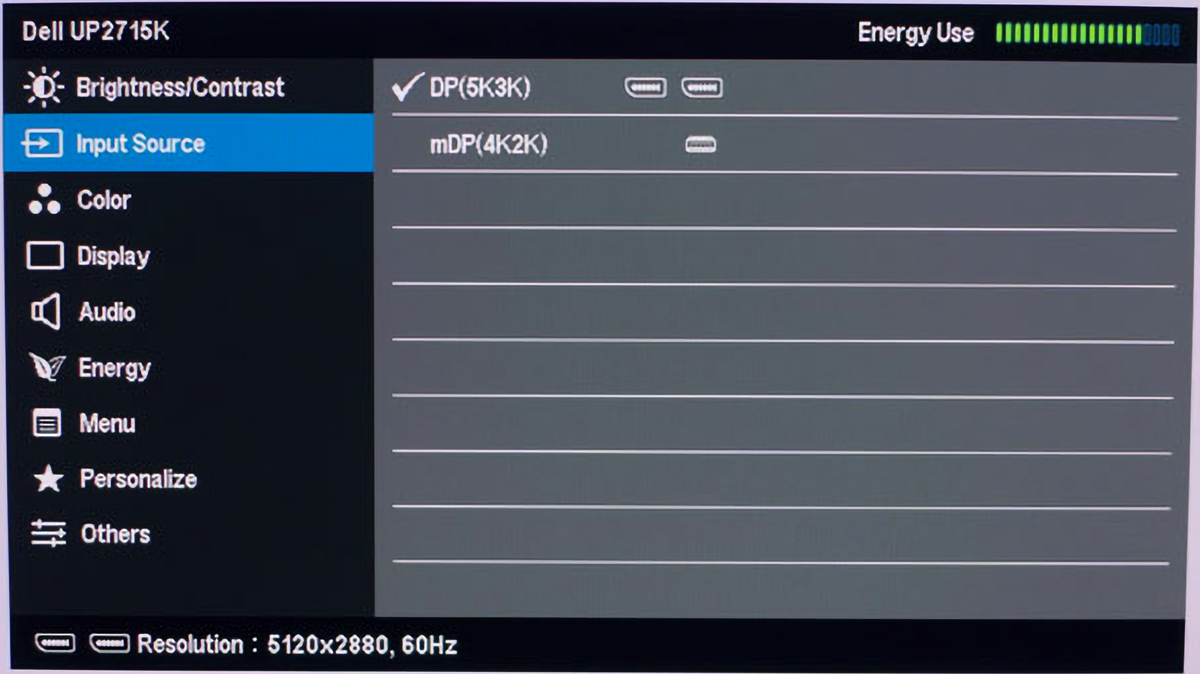

I'm using two DisplayPort cables but i cant get past 3840x2160.

The Mac Pro specs are the following:
  • 4.1 flashed to 5.1
  • latest bootROM
  • Dual Xeons E5520
  • 128gb RAM ECC
  • XFX AMD Radeon RX5700XT 8gb Triple Ventilation
  • OWC Accelsior M2 with a Crucial P3 1Tb
I'm running Catalina with all the updates, using Martin Lo package of OpenCore 0.8.8 with the following boot-args:
  • enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -no_compat_check no32exec=0
Faking the SMBios to a MacPro 6,1 because i read somewhere that MST had somehting to do with the board ID

I already tried disabling WEG, lilu and RadeonBoost but it didnt make any difference.

Heres a copy of AGDC diagnose:
### Start: GPUWrangler #######################################################


Stats: GPUCAdded:1 GpuAdded:1 Eject:0/f0/fd0/c0 Remove:0/t0 Un:0





gpu 0xdb91 flags 0xbe000020 (DG,published,driversStarted,hasGPUC,quiet,pubSched,pubArmed) vid.did=1002.731f b:d:f=7:0:0


gpu 0xdb91 pci 0x100000205 IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0


gpu 0xdb91 agdc 0x10000050d /AMDRadeonX6000_AmdAgdcServices


gpu 0xdb91 gpuc 0x100000465 /AMDRadeonX6000_AmdGpuWrangler


gpu 0xdb91 agdpclient 0x10000050f /AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl


gpu 0xdb91 accel 0x10000048e /AMDRadeonX6000_AMDNavi10GraphicsAccelerator


gpu 0xdb91 fb0:0 0x1000004a6 /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@0


gpu 0xdb91 fb1:1 0x1000004a8 /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@1


gpu 0xdb91 fb2:2 0x1000004aa /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@2


gpu 0xdb91 fb3:3 0x1000004ac /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@3





### End: GPUWrangler (took 0.110 sec) ########################################





### Start: EFIDisplayInfo ####################################################


Not present


Dumping EFI data for GPU Path IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0


### End: EFIDisplayInfo (took 0.108 sec) #####################################





### Start: Mux ###############################################################


### End: Mux (took 0.001 sec) ################################################





### Start: Ports #############################################################


### Start: AGDC[1] 0x10000046c ###############################################


IOService:/IOResources/AppleGPUWrangler


Vendor: Apple [0000106b]: AppleGPUWrangler [8 10000] (0)


### End: AGDC[1] 0x10000046c (took 0.002 sec) ################################





### Start: AGDC[2] 0x100000465 ###############################################


IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdGpuWrangler


Vendor: AMD [00001002]: GPURoot [7 30000] (0)


### End: AGDC[2] 0x100000465 (took 0.002 sec) ################################





### Start: AGDC[3] 0x10000050d ###############################################


IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices


See 0x10000050f


### End: AGDC[3] 0x10000050d (took 0.001 sec) ################################





### Start: AGDC[4] 0x10000050f ###############################################


IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl


Vendor: AMD [00001002]: DiscreteGPU [2 30000] (0)


FBs: 4, Ports: 0x1e mst:0xe ddc:0x1e aux:0xe, Streams: dp:6 dvi:4 mst:6 max:6


Framebuffers:


* 0: Address: 1.0 Stream: Enabled Group: -1 Online Assoc'd MayGroup


1: Address: 0.0 Stream: Not Associated Group: -1 MayGroup


2: Address: 0.0 Stream: Not Associated Group: -1 MayGroup


3: Address: 0.0 Stream: Not Associated Group: -1 MayGroup


Port Capabilities:


* 1: AUX, DDC, MST


2: AUX, DDC, MST


3: AUX, DDC, MST


4: DDC


Connections:


* 1: [DP 1.2 4 x HBR2] Status: [4 x HBR2 7777] caps [features 0x101141b, p_encoding 0xd] Sink OUI:000-000-000 ?????? [000-000-000-000-000-000] HW Version: 0 FW Version: 0.0


2:


3:


4:


## Register Dump Port 1 - Start ##


000000: 0x12 0x14 0xc4 0x01 0x01 0x00 0x01 0x83 0x02 0x02 0x06 0x00 0x00 0x00 0x00 0x00


Reg: 000000: 12 : DPCD_REV: 1.2


Reg: 000001: 14 : MAX_LINK_RATE: HBR2


Reg: 000002: c4 : MAX_LANE_COUNT: 4, TPS3_SUPPORTED: 1, ENHANCED_FRAME_CAP: 1


Reg: 000003: 01 : MAX_DOWNSPREAD: 0.5% down, NO_AUX_HANDSHAKE_LINK_TRAINING: 0


Reg: 000004: 01 : NORP: 1


Reg: 000005: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0


Reg: 000006: 01 : MAIN_LINK_CHANNEL_CODING: ANSI 8B/10B


Reg: 000007: 83 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 3, MSA_TIMING_PAR_IGNORED: 0, OUI: 1


Reg: 000008: 02 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 1, ASSOCIATED_TO_PRECEDING_PORT: 0


Reg: 000009: 02 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 96


Reg: 00000a: 06 : RECEIVE_PORT1_CAP_0:


Reg: 00000b: 00 : RECEIVE_PORT1_CAP_1:


Reg: 00000c: 00 : I2C Speed:


Reg: 00000d: 00 : eDP_CONFIGURATION_CAP: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0


Reg: 00000e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO


Reg: 00000f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0


000020: 0x00 0x00 0x00


Reg: 000020: 00 : FAUX_CAP: FAUX_CAP: 0


Reg: 000021: 00 : MSTM_CAP: MST_CAP: 0


Reg: 000022: 00 : NUMBER_OF_AUDIO_ENDPOINTS: 0


000060: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00


Reg: 000060: 00 : DSC Support: 0


Reg: 000061: 00 : DSC Algorithm revision: 0


Reg: 000062: 00 : DSC RC Buffer Block size: 0


Reg: 000063: 00 : DSC RC Buffer size: 0


Reg: 000064: 00 : DSC slice Capabilities 1 : 0


Reg: 000065: 00 : DSC Line buffer bit depth: 0


Reg: 000066: 00 : DSC Block prediction support: 0


Reg: 000067: 00 : DSC Maximum bit per pixel: 0


Reg: 000068: 00 : DSC Maximum bit per pixel: 0


Reg: 000069: 00 : DSC Decoder color format capabilities: 0


Reg: 00006a: 00 : DSC decoder color depth capabilities: 0


Reg: 00006b: 00 : DSC Peak Throughput: 0


Reg: 00006c: 00 : DSC Maximum Slice width: 0


Reg: 00006d: 00 : DSC Slice capabilities 2: 0


Reg: 00006e: 00 : Reserved: 0


Reg: 00006f: 00 : DSC Bits per pixel increment: 0


000090: 0x00


Reg: 000090: 00 : FEC Capability: 0x0


000080: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00


Reg: 000080: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000081: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000082: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000083: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000084: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000085: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000086: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000087: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000088: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 000089: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 00008a: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 00008b: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 00008c: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 00008d: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 00008e: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


Reg: 00008f: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0


000100: 0x14 0x84


Reg: 000100: 14 : LINK_BW_SET: HBR2


Reg: 000101: 84 : LANE_COUNT_SET: LANE_COUNT_SET 4, ENHANCED_FRAME_EN: 1


000107: 0x10


Reg: 000107: 10 : DOWNSPREAD_CTRL: SPREAD_AMP: 1, MSA_TIMING_PAR_IGNORE_EN: 0


00010a: 0x00


Reg: 00010a: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0


000111: 0x00


Reg: 000111: 00 : MSTM_CTRL: UPSTREAM_IS_SRC:0 UP_REQ_EN:0 MST_EN:0


000120: 0x08


Reg: 000120: 08 : FEC Configuration: 0x8


000160: 0x00


Reg: 000160: 00 : DSC Enable: 0x0


000200: 0x41 0x04 0x77 0x77 0x01 0x03 0x66 0x66


Reg: 000200: 41 : SINK_COUNT: SINK_COUNT 1, CP_READY: 1


Reg: 000202: 77 : LANE0: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1


Reg: 000202: 77 : LANE1: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1


Reg: 000203: 77 : LANE2: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1


Reg: 000203: 77 : LANE3: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1


Reg: 000205: 03 : SINK_STATUS: RECEIVE_PORT_0_STATUS: 1, RECEIVE_PORT_1_STATUS: 1


Reg: 000206: 66 : LANE0: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1


Reg: 000206: 66 : LANE1: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1


Reg: 000207: 66 : LANE2: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1


Reg: 000207: 66 : LANE3: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1


00020f: 0x00


Reg: 00020f: 00 : DSC Status: 0


000280: 0x00


Reg: 000280: 00 : FEC Status: 0


00042f: 0x00


Reg: 00042f: 00 : DISPLAY_ROTATION: 0x0


002200: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00


Reg: 002200: 00 : DPCD_REV: 0.0


Reg: 002201: 00 : MAX_LINK_RATE: ???


Reg: 002202: 00 : MAX_LANE_COUNT: 0, TPS3_SUPPORTED: 0, ENHANCED_FRAME_CAP: 0


Reg: 002203: 00 : MAX_DOWNSPREAD: None, NO_AUX_HANDSHAKE_LINK_TRAINING: 0


Reg: 002204: 00 : NORP: 0


Reg: 002205: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0


Reg: 002206: 00 : MAIN_LINK_CHANNEL_CODING_SET: ??


Reg: 002207: 00 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 0, MSA_TIMING_PAR_IGNORED: 0, OUI: 0


Reg: 002208: 00 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 0, ASSOCIATED_TO_PRECEDING_PORT: 0


Reg: 002209: 00 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 32


Reg: 00220a: 00 : RECEIVE_PORT1_CAP_0:


Reg: 00220b: 00 : RECEIVE_PORT1_CAP_1:


Reg: 00220c: 00 : I2C Speed:


Reg: 00220d: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0


Reg: 00220e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO


Reg: 00220f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0


068028: 0x01


Reg: 068028: 01 : HDCP_CAPABLE: 1, REPEATER: 0


06921d: 0x00 0x00 0x00


Reg: 06921d: 00 : VERSION: 0


Reg: 06921f: 00 : HDCP_CAPABLE: 0, REPEATER: 0


069330: 0x00 0x00


Reg: 069330: 00 : HDCP_Depth: 0


Reg: 069331: 00 : HDCP_count: 0 HDCP2_0 Downstream: 0 HDCP1 Downstream: 0


069493: 0x00


Reg: 069493: 00 : Ready: 0 , H' Available: 0, Pairing_available: 0 , Reauth_req: 0, Link Integrity: 0


## Register Dump Port 1 - End ##


## EDID Dump Port 1 - Start ##


// EDID Dump: device, 384 bytes, OK


uint8_t EDID_DEL_10ac_40b6[] = {


/* 000: */ 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00,


/* 008: */ 0x10, 0xac, 0xb6, 0x40, 0x53, 0x30, 0x35, 0x30,


/* 010: */ 0x20, 0x1a, 0x01, 0x04, 0xb5, 0x3c, 0x22, 0x78,


/* 018: */ 0x3a, 0x72, 0x25, 0xac, 0x50, 0x33, 0xb7, 0x26,


/* 020: */ 0x0b, 0x50, 0x54, 0x21, 0x08, 0x00, 0x81, 0x00,


/* 028: */ 0xb3, 0x00, 0xd1, 0x00, 0xa9, 0x40, 0x81, 0x80,


/* 030: */ 0xd1, 0xc0, 0x01, 0x01, 0x01, 0x01, 0x56, 0x5e,


/* 038: */ 0x00, 0xa0, 0xa0, 0xa0, 0x29, 0x50, 0x30, 0x20,


/* 040: */ 0x35, 0x00, 0x55, 0x50, 0x21, 0x00, 0x00, 0x1a,


/* 048: */ 0x00, 0x00, 0x00, 0xff, 0x00, 0x33, 0x44, 0x38,


/* 050: */ 0x46, 0x38, 0x36, 0x38, 0x41, 0x30, 0x35, 0x30,


/* 058: */ 0x53, 0x0a, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x44,


/* 060: */ 0x45, 0x4c, 0x4c, 0x20, 0x55, 0x50, 0x32, 0x37,


/* 068: */ 0x31, 0x35, 0x4b, 0x0a, 0x00, 0x00, 0x00, 0xfd,


/* 070: */ 0x00, 0x1d, 0x4b, 0x1f, 0xb4, 0x36, 0x01, 0x0a,


/* 078: */ 0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x02, 0xe9,


/* 080: */ 0x02, 0x03, 0x0c, 0xf1, 0x23, 0x09, 0x07, 0x07,


/* 088: */ 0x83, 0x01, 0x00, 0x00, 0x4d, 0xd0, 0x00, 0xa0,


/* 090: */ 0xf0, 0x70, 0x3e, 0x80, 0x50, 0x20, 0x65, 0x0c,


/* 098: */ 0x55, 0x50, 0x21, 0x00, 0x00, 0x18, 0x56, 0x5e,


/* 0a0: */ 0x00, 0xa0, 0xa0, 0xa0, 0x29, 0x50, 0x30, 0x20,


/* 0a8: */ 0x35, 0x00, 0x55, 0x50, 0x21, 0x00, 0x00, 0x1a,


/* 0b0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0b8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0c0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0c8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0d0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0d8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0e0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0e8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0f0: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 0f8: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x34,


/* 100: */ 0x70, 0x12, 0x79, 0x00, 0x00, 0x12, 0x00, 0x16,


/* 108: */ 0x82, 0x10, 0x10, 0x00, 0xff, 0x09, 0x3f, 0x0b,


/* 110: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x44, 0x45, 0x4c,


/* 118: */ 0xb6, 0x40, 0x53, 0x30, 0x35, 0x30, 0x03, 0x00,


/* 120: */ 0x3c, 0x4c, 0xd0, 0x00, 0x84, 0xff, 0x0e, 0x9f,


/* 128: */ 0x00, 0x2f, 0x80, 0x1f, 0x00, 0x6f, 0x08, 0x3d,


/* 130: */ 0x00, 0x02, 0x00, 0x04, 0x00, 0x10, 0x5d, 0x00,


/* 138: */ 0x04, 0xff, 0x09, 0x9f, 0x00, 0x2f, 0x80, 0x1f,


/* 140: */ 0x00, 0x3f, 0x0b, 0x28, 0x00, 0x02, 0x00, 0x09,


/* 148: */ 0x00, 0xc4, 0xbc, 0x00, 0x04, 0xff, 0x09, 0x9f,


/* 150: */ 0x00, 0x2f, 0x80, 0x1f, 0x00, 0x3f, 0x0b, 0x51,


/* 158: */ 0x00, 0x02, 0x00, 0x09, 0x00, 0x07, 0x00, 0x0a,


/* 160: */ 0x08, 0x81, 0x00, 0x08, 0x04, 0x00, 0x04, 0x02,


/* 168: */ 0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 170: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,


/* 178: */ 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xd5, 0x90


};


## EDID Dump Port 1 - End ##


## Display Connection Stats Dump Port 1 - End ##


Display mfgName: DEL, productID: 0x40b6


Time to EDID read: 961


Time to link train: 2560192


Link training duration: 18677


Link training status: 1


Link training count: 3


HDCP status: 0


HDCP retry count: 1


EFI w/a data: 0x0


## Display Connection Stats Dump Port 1 - End ##


### End: AGDC[4] 0x10000050f (took 0.307 sec) ################################





### End: Ports (took 0.309 sec) ##############################################





### Start: Metrics ###########################################################


Display Metric Tool Version: 1.2


Display Metric Plugin Version: 1.2 AGDC Version: 5.2.6


Dumping Metric Logs: currentlog(30) logsize(32768) numberlogs(819)


Total lines: 31


2023-02-25 12:57:34.203186-0800: kAGDCPluginMetricsPowerOff(411e) GPU:0xdb91 Port: 0 Will


2023-02-25 12:57:34.207431-0800: kAGDCPluginMetricsPowerOn(411f) GPU:0xdb91 Port: 0 Did


2023-02-25 12:57:34.951434-0800: kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 1 dpcd_rev:0x12 max_link_rate:0x14 max_lane_count:0xc4 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0


2023-02-25 12:57:34.952396-0800: kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 1 mfgName:DEL mfgID:0x10ac productID:0x40b6


2023-02-25 12:57:34.966986-0800: kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 1 dpcd_rev:0x12 max_link_rate:0x14 max_lane_count:0xc4 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0


2023-02-25 12:57:34.967963-0800: kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 1 mfgName:DEL mfgID:0x10ac productID:0x40b6


2023-02-25 12:57:37.511626-0800: kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 1


2023-02-25 12:57:37.530303-0800: kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 1 link_rate:0x14 lane_count:0x84 LT Status:0x1 (OK)


2023-02-25 12:57:37.533297-0800: kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 1


2023-02-25 12:57:47.537141-0800: kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 1 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2


2023-02-25 12:57:48.618447-0800: kAGDCPluginMetricsSPIData(4120) GPU:0xdb91 Port: 1 200h-205h: 0x41 0x4 0x77 0x77 0x1 0x3


2023-02-25 12:57:48.619335-0800: kAGDCPluginMetricsSPI(4103) GPU:0xdb91 Port: 1 Latency(in microsecond) 1155


2023-02-25 12:57:48.633983-0800: kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 1 Enabled


2023-02-25 12:57:48.634000-0800: kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 1 Status:0 (OK) Stored Km:0x1


2023-02-25 12:58:26.466231-0800: kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 1


2023-02-25 12:58:26.481130-0800: kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 1 link_rate:0x14 lane_count:0x84 LT Status:0x1 (OK)


2023-02-25 12:58:26.481386-0800: kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 1


2023-02-25 12:58:36.485128-0800: kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 1 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2


2023-02-25 12:58:37.583757-0800: kAGDCPluginMetricsSPIData(4120) GPU:0xdb91 Port: 1 200h-205h: 0x41 0x4 0x77 0x77 0x1 0x3


2023-02-25 12:58:37.584650-0800: kAGDCPluginMetricsSPI(4103) GPU:0xdb91 Port: 1 Latency(in microsecond) 1273


2023-02-25 12:58:37.601778-0800: kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 1 Enabled


2023-02-25 12:58:37.601794-0800: kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 1 Status:0 (OK) Stored Km:0x1


2023-02-25 12:58:42.519414-0800: kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 1


2023-02-25 12:58:42.534387-0800: kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 1 link_rate:0x14 lane_count:0x84 LT Status:0x1 (OK)


2023-02-25 12:58:42.534894-0800: kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 1


2023-02-25 12:58:52.539582-0800: kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 1 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2


2023-02-25 12:58:53.615744-0800: kAGDCPluginMetricsSPIData(4120) GPU:0xdb91 Port: 1 200h-205h: 0x41 0x4 0x77 0x77 0x1 0x3


2023-02-25 12:58:53.616648-0800: kAGDCPluginMetricsSPI(4103) GPU:0xdb91 Port: 1 Latency(in microsecond) 1205


2023-02-25 12:58:53.640711-0800: kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 1 Enabled


2023-02-25 12:58:53.640727-0800: kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 1 Status:0 (OK) Stored Km:0x1


### End: Metrics (took 0.003 sec) ############################################





### Start: displaypolicyd ####################################################


running 205 sec (started Sat Feb 25 12:57:30 2023, now Sat Feb 25 13:00:55 2023)


boardID: Mac-F60DEB81FF30ACF6


featureMask: 0x100204


platformFlags: 0


extraSupportFlags: 0


wranglerFlags: 0x44


launcher[0]: name '7:0:0', state 1, managerState 1, vendor class/id/version 0x5 0x106b 0x10000


gpu[0]: index=0 state=0x5 (Published) events=() dispPolicyState=0x1 (Managed) dispPolicyLaunchIndex=0


gpu 0xdb91 flags 0x9e000020 (DG,published,driversStarted,hasGPUC,pubSched,pubArmed)


gpu 0xdb91 pci 0x100000205 IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0


gpu 0xdb91 agdc 0x10000050d /AMDRadeonX6000_AmdAgdcServices


gpu 0xdb91 gpuc 0x100000465 /AMDRadeonX6000_AmdGpuWrangler


gpu 0xdb91 agdpclient 0x10000050f /AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl


gpu 0xdb91 accel 0x10000048e /AMDRadeonX6000_AMDNavi10GraphicsAccelerator


gpu 0xdb91 fb0:0 0x1000004a6 /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@0


gpu 0xdb91 fb1:1 0x1000004a8 /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@1


gpu 0xdb91 fb2:2 0x1000004aa /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@2


gpu 0xdb91 fb3:3 0x1000004ac /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@3


Version: 5.2.6, Max: 512, counter: 176, calendar sync: 0x5f58c7e7fa4cc/0x97cdfe


GTRACEDATASTREAM traceData = {


{ 0x67547261, 0x63654461, 0x74614475, 0x6d700000, 0x102, 512, 176, 5, 2, 6, 6, 56, 1677358650074316, 9948670 },


{


{ 9945885294, 0x0, 391, 38, 0, 0, 0x0, 0x0, 0x0 },


{ 10677887215, 0x0, 743, 88, 56, 0, 0x0, 0x4, 0x0 },


{ 11108543952, 0x0, 521, 72, 73, 0, 0x1, 0xdb91, 0x0 },


{ 11109000132, 0x0, 70, 71, 73, 0, 0x20001, 0xdb91, 0x0 },


{ 11109078875, 0x0, 70, 71, 73, 0, 0x90002, 0xdb91, 0x0 },


{ 11109099034, 0x0, 70, 71, 73, 0, 0x40009, 0xdb91, 0x0 },


{ 11109117537, 0x0, 70, 71, 73, 0, 0x50004, 0xdb91, 0x0 },


{ 11109136610, 0x0, 81, 77, 73, 0, 0x60000, 0xdb91, 0x0 },


{ 13787586648, 0x0, 521, 72, 73, 0, 0x10000002, 0xdb91, 0x0 },


{ 13787690017, 0x0, 81, 77, 73, 0, 0x70006, 0xdb91, 0x0 },


{ 13788006481, 0x0, 273, 78, 79, 0, 0x10000050f, 0x1, 0x0 },


{ 13788097338, 0x0, 293, 78, 62, 0, 0x10000050f, 0x0, 0x0 },


{ 13788320892, 0x0, 316, 78, 79, 0, 0x10000050f, 0x3, 0x0 },


{ 13788321037, 0x0, 151, 80, 61, 0, 0x10000050f, 0x1, 0x0 },


{ 13788321263, 0x0, 81, 77, 73, 0, 0x10007, 0xdb91, 0x0 },


{ 13789615122, 0x10000050f, 762, 31, 0, 0, 0x0, 0x0, 0x0 },


{ 13830574514, 0x10000050f, 988, 26, 0, 0, 0x0, 0x0, 0x0 },


{ 13830590416, 0x10000050f, 997, 33, 0, 0, 0x0, 0x0, 0x0 },


{ 14101115380, 0x10000050f, 1003, 34, 0, 0, 0x0, 0x0, 0x0 },


{ 14224830033, 0x10000050f, 6251, 13, 52, 46, 0x0, 0x2, 0x0 },


{ 14224842712, 0x10000050f, 6251, 13, 52, 46, 0x1, 0x2, 0x0 },


{ 14224854268, 0x10000050f, 6251, 13, 52, 46, 0x2, 0x2, 0x0 },


{ 14224865662, 0x10000050f, 6251, 13, 52, 46, 0x3, 0x2, 0x0 },


{ 14229267242, 0x10000050f, 237, 11, 48, 65, 0x0, 0x100000000, 0x0 },


{ 14229270783, 0x10000050f, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },


{ 14229271956, 0x10000050f, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },


{ 14229272928, 0x10000050f, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },


{ 14229274058, 0x10000050f, 187, 9, 47, 64, 0x0, 0xf, 0x0 },


{ 14229275359, 0x10000050f, 199, 10, 0, 0, 0x0, 0x0, 0x0 },


{ 14229278637, 0x10000050f, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },


{ 14229280815, 0x10000050f, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },


{ 14229282813, 0x10000050f, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },


{ 14229391121, 0x10000050f, 155, 42, 53, 0, 0x1, 0x5, 0x0 },


{ 14229391785, 0x10000050f, 190, 41, 61, 61, 0x1, 0x1, 0x0 },


{ 14229391938, 0x10000050f, 1642, 25, 58, 0, 0x1, 0x0, 0x0 },


{ 14229465467, 0x10000050f, 155, 42, 53, 0, 0x0, 0x5, 0x0 },


{ 14229465740, 0x10000050f, 190, 41, 61, 61, 0x0, 0x0, 0x1 },


{ 14229465943, 0x10000050f, 1642, 25, 58, 0, 0x0, 0x1, 0x0 },


{ 14229509201, 0x0, 228, 1, 43, 0, 0x2, 0xa, 0x0 },


{ 14229542327, 0x0, 228, 1, 43, 0, 0x1, 0xfa, 0x0 },


{ 14230258868, 0x10000050f, 5210, 76, 46, 0, 0x1000001, 0x100000000, 0x0 },


{ 14230259310, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x0 },


{ 14230320415, 0x10000050f, 412, 37, 60, 49, 0x1, 0x1, 0x0 },


{ 14231262693, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },


{ 14231262971, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },


{ 14234878891, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },


{ 14235747882, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },


{ 14235748087, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },


{ 14236695604, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },


{ 14236695874, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },


{ 14237607899, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x600000000, 0x0 },


{ 14238463020, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x10000000e, 0x0 },


{ 14239353521, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x400000020, 0x0 },


{ 14240371308, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x1000000060, 0x0 },


{ 14241219992, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000090, 0x0 },


{ 14242047930, 0x0, 46, 39, 0, 0, 0x1, 0x0, 0x0 },


{ 14242049238, 0x10000050f, 155, 42, 53, 0, 0x0, 0x6, 0x0 },


{ 14242261800, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x1000002200, 0x0 },


{ 14243228657, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0xc00000400, 0x0 },


{ 14529359335, 0x0, 247, 4, 45, 0, 0x1, 0x1, 0x0 },


{ 14530349162, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0xc000e0000, 0x0 },


{ 14531428401, 0x10000050f, 5447, 6, 46, 0, 0x1, 0x100000000, 0x0 },


{ 14531439681, 0x10000050f, 544, 36, 59, 70, 0x1, 0x0, 0x0 },


{ 14531441455, 0x10000050f, 582, 36, 51, 0, 0x1, 0x1, 0x0 },


{ 14531480393, 0x0, 228, 1, 43, 0, 0x3, 0x1f4, 0x0 },


{ 14531566919, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x200000000, 0x0 },


{ 14531567636, 0x10000050f, 544, 36, 59, 70, 0x2, 0x0, 0x0 },


{ 14531643589, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x300000000, 0x0 },


{ 14531644089, 0x10000050f, 544, 36, 59, 70, 0x3, 0x0, 0x0 },


{ 14531717959, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x400000000, 0x0 },


{ 14531718425, 0x10000050f, 544, 36, 59, 70, 0x4, 0x0, 0x0 },


{ 14531737295, 0x10000050f, 1312, 32, 0, 0, 0x0, 0x0, 0x0 },


{ 14531894546, 0x10000050f, 5210, 76, 46, 0, 0x1000001, 0x100000000, 0x0 },


{ 14531895007, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },


{ 14532768498, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },


{ 14532768897, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },


{ 14536356135, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },


{ 14537213900, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },


{ 14537214150, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },


{ 14538121932, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },


{ 14538122203, 0x10000050f, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },


{ 14539037840, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x600000000, 0x0 },


{ 14539904464, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x10000000e, 0x0 },


{ 14540803960, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x400000020, 0x0 },


{ 14541804464, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x1000000060, 0x0 },


{ 14542673978, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000090, 0x0 },


{ 14543693665, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x1000002200, 0x0 },


{ 14544674372, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0xc00000400, 0x0 },


{ 14544936893, 0x0, 247, 4, 45, 0, 0x1, 0x1, 0x0 },


{ 14545921478, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0xc000e0000, 0x0 },


{ 14546987254, 0x10000050f, 5368, 5, 46, 0, 0x1, 0x100000000, 0x0 },


{ 14547054347, 0x10000050f, 544, 36, 59, 70, 0x1, 0x0, 0x0 },


{ 14547132448, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x200000000, 0x0 },


{ 14547132976, 0x10000050f, 544, 36, 59, 70, 0x2, 0x0, 0x0 },


{ 14547208064, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x300000000, 0x0 },


{ 14547208563, 0x10000050f, 544, 36, 59, 70, 0x3, 0x0, 0x0 },


{ 14547286224, 0x10000050f, 5210, 76, 46, 0, 0x1000000, 0x400000000, 0x0 },


{ 14547286696, 0x10000050f, 544, 36, 59, 70, 0x4, 0x0, 0x0 },


{ 14547307084, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 14547347954, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 14786026170, 0x10000050f, 1325, 28, 0, 0, 0x0, 0x0, 0x0 },


{ 14786104576, 0x0, 228, 1, 43, 0, 0x1, 0xfa, 0x0 },


{ 14786107114, 0x0, 270, 17, 55, 0, 0x0, 0x10000050f, 0x0 },


{ 14786107909, 0x0, 282, 17, 55, 67, 0x0, 0x10000050f, 0x1 },


{ 14786108270, 0x0, 328, 16, 0, 0, 0x1, 0x0, 0x0 },


{ 15031236467, 0x0, 46, 39, 0, 0, 0x2, 0x0, 0x0 },


{ 15031238231, 0x10000050f, 155, 42, 53, 0, 0x0, 0xa, 0x0 },


{ 15031265572, 0x10000050f, 113, 8, 46, 63, 0x100, 0x100000000, 0x0 },


{ 15031277444, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 15036786921, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },


{ 15036787871, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },


{ 15036802875, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },


{ 15041416244, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000600, 0x0 },


{ 15041703846, 0x10000050f, 237, 11, 48, 65, 0x0, 0x100000001, 0x200020000000000 },


{ 15041711032, 0x10000050f, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },


{ 15041712451, 0x10000050f, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },


{ 15041713563, 0x10000050f, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },


{ 15041714944, 0x10000050f, 187, 9, 47, 64, 0x0, 0xf, 0x0 },


{ 15041716109, 0x10000050f, 199, 10, 0, 0, 0x0, 0x0, 0x0 },


{ 15041719488, 0x10000050f, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },


{ 15041721718, 0x10000050f, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },


{ 15041723778, 0x10000050f, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },


{ 15041730590, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 15287312574, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },


{ 15287325572, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },


{ 15287397371, 0x10000050f, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },


{ 15292065347, 0x10000050f, 2012, 2, 44, 62, 0x100000000, 0x100000600, 0x0 },


{ 15296598335, 0x10000050f, 3517, 81, 83, 0, 0x1, 0x0, 0x0 },


{ 15296701570, 0x10000050f, 3541, 82, 83, 0, 0x0, 0x0, 0x0 },


{ 15296776455, 0x10000050f, 237, 11, 48, 65, 0x0, 0x100000001, 0x201020000000414 },


{ 15296783435, 0x10000050f, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },


{ 15296784661, 0x10000050f, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },


{ 15296785711, 0x10000050f, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },


{ 15296787021, 0x10000050f, 187, 9, 47, 64, 0x0, 0xf, 0x0 },


{ 15296788172, 0x10000050f, 199, 10, 0, 0, 0x3000100000001, 0x0, 0x0 },


{ 15296794879, 0x10000050f, 113, 8, 46, 63, 0x100, 0x100000000, 0x0 },


{ 15296800869, 0x10000050f, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },


{ 15296803345, 0x10000050f, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },


{ 15296805403, 0x10000050f, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },


{ 15296811162, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 15459659298, 0x10000050f, 1610, 14, 53, 0, 0x0, 0x2, 0x0 },


{ 15459686779, 0x10000050f, 155, 42, 53, 0, 0x0, 0x2, 0x0 },


{ 15459852624, 0x10000050f, 237, 11, 48, 65, 0x0, 0x100000001, 0x201020000000414 },


{ 15459859782, 0x10000050f, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },


{ 15459861048, 0x10000050f, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },


{ 15459862063, 0x10000050f, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },


{ 15459863181, 0x10000050f, 187, 9, 47, 64, 0x1, 0xe, 0x0 },


{ 15459864266, 0x10000050f, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },


{ 15459871895, 0x10000050f, 113, 8, 46, 63, 0x100, 0x100000000, 0x0 },


{ 15459878168, 0x10000050f, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },


{ 15459880799, 0x10000050f, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },


{ 15459882982, 0x10000050f, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },


{ 15459909760, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 15538267386, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },


{ 15538268706, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },


{ 15538310932, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 15788856924, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },


{ 15788858496, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },


{ 15788884746, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 16038656339, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },


{ 16038658169, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },


{ 16038685633, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 16290321387, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },


{ 16290323093, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },


{ 16290360567, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 16551526603, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },


{ 16551528535, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },


{ 16551578565, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


{ 16801300649, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },


{ 16801302236, 0x10000050f, 155, 42, 53, 0, 0x0, 0x7, 0x0 },


{ 16801316976, 0x10000050f, 155, 42, 53, 0, 0x0, 0x8, 0x0 },


{ 16801333625, 0x10000050f, 435, 40, 60, 49, 0x1, 0x0, 0x10001 },


{ 16801333925, 0x10000050f, 435, 40, 60, 49, 0x2, 0x0, 0x0 },


{ 16801334264, 0x10000050f, 435, 40, 60, 49, 0x3, 0x0, 0x0 },


{ 16801334435, 0x10000050f, 435, 40, 60, 49, 0x4, 0x0, 0x0 },


{ 16801335730, 0x10000050f, 336, 15, 54, 0, 0x0, 0x0, 0x0 },


}


};


### End: displaypolicyd (took 0.005 sec) #####################################





### Start: Devices ###########################################################


### Start: AGDC[1] 0x10000046c ###############################################


IOService:/IOResources/AppleGPUWrangler


Vendor: Apple [0000106b]: AppleGPUWrangler [8 10000] (0)


### End: AGDC[1] 0x10000046c (took 0.001 sec) ################################





### Start: AGDC[2] 0x100000465 ###############################################


IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdGpuWrangler


Vendor: AMD [00001002]: GPURoot [7 30000] (0)


### End: AGDC[2] 0x100000465 (took 0.001 sec) ################################





### Start: AGDC[3] 0x10000050d ###############################################


IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices


See 0x10000050f


### End: AGDC[3] 0x10000050d (took 0.001 sec) ################################





### Start: AGDC[4] 0x10000050f ###############################################


IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl


Vendor: AMD [00001002]: DiscreteGPU [2 30000] (0)


--BEGIN Device Dump--


Link Count 4


Initialized YES


Enabled YES


Hw Ready YES


Hw Attached YES


Framebuffers Enabled 4 of 4


Mapped Framebuffers 0





Asic Info DICT 22


ID: Family Id 143


ID: Device Id 0x731f


ID: HW Revision 0x2


ID: PCI Revision Id 0xc1


ID: Emulated Revision 3


IS eGPU NO


PCI Address 7:0:0


FB Loc Base 0x8000000000


FB Loc Top 0x81FFFFFFFF


FB Offset 0


MEM SIZE: FB Size 8176 MB


MEM SIZE: FB Aperture 256 MB


MEM SIZE: Reg Aperture 512 KB


MEM CONFIG: VRAM Type GDDR6


MEM CONFIG: VRAM Width 256


BRANDING: Family Name Radeon RX


BRANDING: Device Name 5700 XT


BRANDING: Model Name Radeon RX 5700 XT





DAL Caps DICT 10


MAX Links 4


MAX Streams 6


MAX Audios 6


MAX Downscale Ratio 2.0


MAX Cursor Size 256


I2C Speed 100 KHz


linear pitch align 64


dcc_const_color NO


dual_link_dvi NO


dsc_support YES





Power Play DICT 13


Is Supported YES


Is Initialized YES


Is Enabled YES


Current Level (SW) 0


Current Level (HW) 0


HW TDP Limit 180


TDP Table Count 16


Vram Reserved Size 1048576


Vram Reserved Used 69632


Vram Reserved Offset 0x8000300000


Version SMU 0x2a3400


Version PPLIB 2.775





Atom Bios DICT 5


Crystal Freq 100000 KHz


Boot Display Clock 625000 KHz


BIOS Image Size 65536


Part Number 113-180W2NAVI10XT8GD


FW Reserved Size 0 KB





Link@0 DICT 23


Link Index 0


Status: Initialized YES


Status: Enabled YES


Status: Training NO


Status: Ignored NO


Status: Ignored Panel Timing NO


Feature: Internal NO


Feature: Built-In NO


Feature: Fixed NO


Last Event None


Stream State ENABLED


Active Signal Type DP SST


Engine ID DIG_E


Transmitter ID UNIPHY_E


HPD ID HPD_6


DDC Channel DDC_6


Connector ID 19:1:3


Connector Type Display Port





Connected Status Link0 DICT 6


Link Index 0


Connected YES


Signal Type DP SST


Reported Lane Count 4


Reported Link Rate 54000


Reported Link Spread 16





Active Status Link0 DICT 6


Link Index 0


Connected YES


Signal Type DP SST


Reported Lane Count 4


Reported Link Rate 54000


Reported Link Spread 16





Connected DP Config Link0 DICT 13


DPCD Revision 0x12


Link Rate 54000 (max:54000)


Lane Count 4 (max:4)


CR Time 100 uSec


EQ Time 400 uSec


EQ Pattern TPS:3


Voltage Level:0


Pre-Emphasis Level:0


Downspread Disabled


Scrambler Disabled


Enhanced Framing Enabled


MST Enabled NO


Sleep Value 0





Active DP Config Link0 DICT 13


DPCD Revision 0x12


Link Rate 54000 (max:54000)


Lane Count 4 (max:4)


CR Time 0 uSec


EQ Time 0 uSec


EQ Pattern TPS:0


Voltage Level:2


Pre-Emphasis Level:1


Downspread Enabled


Scrambler Disabled


Enhanced Framing Enabled


MST Enabled NO


Sleep Value 0





Link@1 DICT 23


Link Index 1


Status: Initialized YES


Status: Enabled YES


Status: Training NO


Status: Ignored NO


Status: Ignored Panel Timing NO


Feature: Internal NO


Feature: Built-In NO


Feature: Fixed NO


Last Event None


Stream State DISABLED


Active Signal Type NONE


Engine ID DIG_C


Transmitter ID UNIPHY_C


HPD ID HPD_2


DDC Channel DDC_2


Connector ID 19:2:3


Connector Type Display Port





Connected Status Link1 DICT 6


Link Index 1


Connected NO


Signal Type NONE


Reported Lane Count 0


Reported Link Rate 0


Reported Link Spread 0





Active Status Link1 DICT 6


Link Index 0


Connected NO


Signal Type NONE


Reported Lane Count 0


Reported Link Rate 0


Reported Link Spread 0





Connected DP Config Link1 DICT 13


DPCD Revision 0


Link Rate 0 (max:0)


Lane Count 0 (max:0)


CR Time 0 uSec


EQ Time 0 uSec


EQ Pattern TPS:0


Voltage Level:0


Pre-Emphasis Level:0


Downspread Disabled


Scrambler Disabled


Enhanced Framing Disabled


MST Enabled NO


Sleep Value 0





Active DP Config Link1 DICT 13


DPCD Revision 0


Link Rate 0 (max:0)


Lane Count 0 (max:0)


CR Time 0 uSec


EQ Time 0 uSec


EQ Pattern TPS:0


Voltage Level:0


Pre-Emphasis Level:0


Downspread Disabled


Scrambler Disabled


Enhanced Framing Disabled


MST Enabled NO


Sleep Value 0





Link@2 DICT 23


Link Index 2


Status: Initialized YES


Status: Enabled YES


Status: Training NO


Status: Ignored NO


Status: Ignored Panel Timing NO


Feature: Internal NO


Feature: Built-In NO


Feature: Fixed NO


Last Event None


Stream State DISABLED


Active Signal Type NONE


Engine ID DIG_D


Transmitter ID UNIPHY_D


HPD ID HPD_1


DDC Channel DDC_1


Connector ID 19:3:3


Connector Type Display Port





Connected Status Link2 DICT 6


Link Index 2


Connected NO


Signal Type NONE


Reported Lane Count 0


Reported Link Rate 0


Reported Link Spread 0





Active Status Link2 DICT 6


Link Index 0


Connected NO


Signal Type NONE


Reported Lane Count 0


Reported Link Rate 0


Reported Link Spread 0





Connected DP Config Link2 DICT 13


DPCD Revision 0


Link Rate 0 (max:0)


Lane Count 0 (max:0)


CR Time 0 uSec


EQ Time 0 uSec


EQ Pattern TPS:0


Voltage Level:0


Pre-Emphasis Level:0


Downspread Disabled


Scrambler Disabled


Enhanced Framing Disabled


MST Enabled NO


Sleep Value 0





Active DP Config Link2 DICT 13


DPCD Revision 0


Link Rate 0 (max:0)


Lane Count 0 (max:0)


CR Time 0 uSec


EQ Time 0 uSec


EQ Pattern TPS:0


Voltage Level:0


Pre-Emphasis Level:0


Downspread Disabled


Scrambler Disabled


Enhanced Framing Disabled


MST Enabled NO


Sleep Value 0





Link@3 DICT 23


Link Index 3


Status: Initialized YES


Status: Enabled YES


Status: Training NO


Status: Ignored NO


Status: Ignored Panel Timing NO


Feature: Internal NO


Feature: Built-In NO


Feature: Fixed NO


Last Event None


Stream State DISABLED


Active Signal Type NONE


Engine ID DIG_A


Transmitter ID UNIPHY_A


HPD ID HPD_4


DDC Channel DDC_4


Connector ID 12:1:3


Connector Type HDMI





Connected Status Link3 DICT 6


Link Index 3


Connected NO


Signal Type NONE


Reported Lane Count 0


Reported Link Rate 0


Reported Link Spread 0





Active Status Link3 DICT 6


Link Index 0


Connected NO


Signal Type NONE


Reported Lane Count 0


Reported Link Rate 0


Reported Link Spread 0





Connected DP Config Link3 DICT 13


DPCD Revision 0


Link Rate 0 (max:0)


Lane Count 0 (max:0)


CR Time 0 uSec


EQ Time 0 uSec


EQ Pattern TPS:0


Voltage Level:0


Pre-Emphasis Level:0


Downspread Disabled


Scrambler Disabled


Enhanced Framing Disabled


MST Enabled NO


Sleep Value 0





Active DP Config Link3 DICT 13


DPCD Revision 0


Link Rate 0 (max:0)


Lane Count 0 (max:0)


CR Time 0 uSec


EQ Time 0 uSec


EQ Pattern TPS:0


Voltage Level:0


Pre-Emphasis Level:0


Downspread Disabled


Scrambler Disabled


Enhanced Framing Disabled


MST Enabled NO


Sleep Value 0





Framebuffer@0 DICT 19


FB Index 0


FB Online YES


Status: Started Yes


Status: Opened No


Status: Enabled Yes


Status: PageFlipEnabled Yes


Status: ConsoleDisplay No


Status: FixedDisplay No


Status: Mapped No


WSAA State "Accelerated"


Power State Wake


IOP Supported YES





Current Config FB0 DICT 8


FB ID 0


Sleep State 0x2


Flags: SingleLinkValid SET


Flags: DPLinkConfigValid SET


Flags: ScanoutResourceConfig SET


Sink 1.0


Scanout Count 1





Display Path (Active) FB0 DICT 21


surface_address 0x600000


surface_bytes 15728640


bytes_per_row 10240


bits_per_pixel 32


bits_per_component 10


Is Connected YES


Is Online YES


Is SW Scaled NO


WSAA State "Accelerated"


SW Src Viewport 2560x1440 @ {0,0}


SW Dst Viewport 2560x1440 @ {0,0}


Stream Count 1


FB Index 0


Group Index 0


Mode Id 0x80003000


Depth Index 2


HW Src Viewport 2560x1440 @ {0,0}


HW Dst Viewport 2560x1440 @ {0,0}


Underscan 100 % - {75:100}





Stream@0 FB0 DICT 11


Stream ID 0


Is Enabled YES


Is DPMS Off NO


Change Flags 0


Option Flags 0


Sink Address 0.0


HW Src Viewport 2560x1440 @ {0,0}


HW Dst Viewport 2560x1440 @ {0,0}





Timing FB0 DICT 24


Display Mode 80003000


Refresh Rate (Calculated) 60 Hz


Refresh Rate (Stored) 0.0 Hz


Window (Active) 2560 x 1440


Window (Scaled) 0 x 0


Scaled Inset 0 x 0


Pixel Clock 241500000 Hz


Scaler Flags 0


Signal Config 0x2


Blanking 160 x 41


Border {left,right} {0, 0}


Border {top,bottom} {0, 0}


Sync Offset (h, v) 48 x 3


Sync Pulse Width (h, v) 32, 5


Sync Config (h, v) + x -


Num Links 2


VB Extension 0


OUTPUT: Pixel Encoding 1 (RGB444)


OUTPUT: Bits Per Color Component 4 (10 bpc)


OUTPUT: Colorimetry 1 (RGB)


OUTPUT: Dynamic Range 1 (SDR)


DSC: Num Slices 0 x 0


DSC: Slice Dimensions 0 x 0


DSC: Compressed BPP 0 bits, (0 bits*16) )





IOPresenter FB0 DICT 11


FB Index 0


Waiting On VBlank 0


Waiting on VUpdate 0


Outstanding 0


Am I Busy NO


Enabled YES


Expected V.Blank 1


Expected V.Update 0





Metric Data FB0 DICT 5


Last Transaction Type 0x5


Last Transaction Timestamp 214406404477


Transaction Counter 1554


Last V.Blank Timestamp 215251895891


Last V.Update Timestamp 215252357603





Framebuffer@1 DICT 17


FB Index 1


FB Online NO


Status: Started Yes


Status: Opened No


Status: Enabled Yes


Status: PageFlipEnabled Yes


Status: ConsoleDisplay No


Status: FixedDisplay No


Status: Mapped No


WSAA State "Accelerated"


Power State Wake


IOP Supported YES





Display Path (Active) FB1 DICT 20


surface_address 0x600100


surface_bytes 0


bytes_per_row 0


bits_per_pixel 32


bits_per_component 8


Is Connected NO


Is Online NO


Is SW Scaled NO


WSAA State "Accelerated"


SW Src Viewport 1x1 @ {0,0}


SW Dst Viewport 1x1 @ {0,0}


Stream Count 0


FB Index 1


Group Index 0


Mode Id 0x3000


Depth Index 1


HW Src Viewport 1x1 @ {0,0}


HW Dst Viewport 1x1 @ {0,0}


Underscan 100 % - {100:100}





Timing FB1 DICT 24


Display Mode 3000


Refresh Rate (Calculated) 0 Hz


Refresh Rate (Stored) 0.0 Hz


Window (Active) 1 x 1


Window (Scaled) 0 x 0


Scaled Inset 0 x 0


Pixel Clock 0 Hz


Scaler Flags 0


Signal Config 0


Blanking 0 x 0


Border {left,right} {0, 0}


Border {top,bottom} {0, 0}


Sync Offset (h, v) 0 x 0


Sync Pulse Width (h, v) 0, 0


Sync Config (h, v) - x -


Num Links 0


VB Extension 0


OUTPUT: Pixel Encoding 0 (n/a)


OUTPUT: Bits Per Color Component 0 (n/a)


OUTPUT: Colorimetry 0 (n/a)


OUTPUT: Dynamic Range 0 (n/a)


DSC: Num Slices 0 x 0


DSC: Slice Dimensions 0 x 0


DSC: Compressed BPP 0 bits, (0 bits*16) )





IOPresenter FB1 DICT 10


FB Index 1


Waiting On VBlank 0


Waiting on VUpdate 0


Outstanding 0


Am I Busy NO


Enabled YES


Expected V.Blank 0


Expected V.Update 0





Metric Data FB1 DICT 5


Last Transaction Type 0


Last Transaction Timestamp 0


Transaction Counter 0


Last V.Blank Timestamp 0


Last V.Update Timestamp 0





Framebuffer@2 DICT 17


FB Index 2


FB Online NO


Status: Started Yes


Status: Opened No


Status: Enabled Yes


Status: PageFlipEnabled Yes


Status: ConsoleDisplay No


Status: FixedDisplay No


Status: Mapped No


WSAA State "Accelerated"


Power State Wake


IOP Supported YES





Display Path (Active) FB2 DICT 20


surface_address 0x600200


surface_bytes 0


bytes_per_row 0


bits_per_pixel 32


bits_per_component 8


Is Connected NO


Is Online NO


Is SW Scaled NO


WSAA State "Accelerated"


SW Src Viewport 1x1 @ {0,0}


SW Dst Viewport 1x1 @ {0,0}


Stream Count 0


FB Index 2


Group Index 0


Mode Id 0x3000


Depth Index 1


HW Src Viewport 1x1 @ {0,0}


HW Dst Viewport 1x1 @ {0,0}


Underscan 100 % - {100:100}





Timing FB2 DICT 24


Display Mode 3000


Refresh Rate (Calculated) 0 Hz


Refresh Rate (Stored) 0.0 Hz


Window (Active) 1 x 1


Window (Scaled) 0 x 0


Scaled Inset 0 x 0


Pixel Clock 0 Hz


Scaler Flags 0


Signal Config 0


Blanking 0 x 0


Border {left,right} {0, 0}


Border {top,bottom} {0, 0}


Sync Offset (h, v) 0 x 0


Sync Pulse Width (h, v) 0, 0


Sync Config (h, v) - x -


Num Links 0


VB Extension 0


OUTPUT: Pixel Encoding 0 (n/a)


OUTPUT: Bits Per Color Component 0 (n/a)


OUTPUT: Colorimetry 0 (n/a)


OUTPUT: Dynamic Range 0 (n/a)


DSC: Num Slices 0 x 0


DSC: Slice Dimensions 0 x 0


DSC: Compressed BPP 0 bits, (0 bits*16) )





IOPresenter FB2 DICT 10


FB Index 2


Waiting On VBlank 0


Waiting on VUpdate 0


Outstanding 0


Am I Busy NO


Enabled YES


Expected V.Blank 0


Expected V.Update 0





Metric Data FB2 DICT 5


Last Transaction Type 0


Last Transaction Timestamp 0


Transaction Counter 0


Last V.Blank Timestamp 0


Last V.Update Timestamp 0





Framebuffer@3 DICT 17


FB Index 3


FB Online NO


Status: Started Yes


Status: Opened No


Status: Enabled Yes


Status: PageFlipEnabled Yes


Status: ConsoleDisplay No


Status: FixedDisplay No


Status: Mapped No


WSAA State "Accelerated"


Power State Wake


IOP Supported YES





Display Path (Active) FB3 DICT 20


surface_address 0x600300


surface_bytes 0


bytes_per_row 0


bits_per_pixel 32


bits_per_component 8


Is Connected NO


Is Online NO


Is SW Scaled NO


WSAA State "Accelerated"


SW Src Viewport 1x1 @ {0,0}


SW Dst Viewport 1x1 @ {0,0}


Stream Count 0


FB Index 3


Group Index 0


Mode Id 0x3000


Depth Index 1


HW Src Viewport 1x1 @ {0,0}


HW Dst Viewport 1x1 @ {0,0}


Underscan 100 % - {100:100}





Timing FB3 DICT 24


Display Mode 3000


Refresh Rate (Calculated) 0 Hz


Refresh Rate (Stored) 0.0 Hz


Window (Active) 1 x 1


Window (Scaled) 0 x 0


Scaled Inset 0 x 0


Pixel Clock 0 Hz


Scaler Flags 0


Signal Config 0


Blanking 0 x 0


Border {left,right} {0, 0}


Border {top,bottom} {0, 0}


Sync Offset (h, v) 0 x 0


Sync Pulse Width (h, v) 0, 0


Sync Config (h, v) - x -


Num Links 0


VB Extension 0


OUTPUT: Pixel Encoding 0 (n/a)


OUTPUT: Bits Per Color Component 0 (n/a)


OUTPUT: Colorimetry 0 (n/a)


OUTPUT: Dynamic Range 0 (n/a)


DSC: Num Slices 0 x 0


DSC: Slice Dimensions 0 x 0


DSC: Compressed BPP 0 bits, (0 bits*16) )





IOPresenter FB3 DICT 10


FB Index 3


Waiting On VBlank 0


Waiting on VUpdate 0


Outstanding 0


Am I Busy NO


Enabled YES


Expected V.Blank 0


Expected V.Update 0





Metric Data FB3 DICT 5


Last Transaction Type 0


Last Transaction Timestamp 0


Transaction Counter 0


Last V.Blank Timestamp 0


Last V.Update Timestamp 0





--END Device Dump--


### End: AGDC[4] 0x10000050f (took 0.012 sec) ################################





### End: Devices (took 0.013 sec) ############################################





### Start: mpxdiagnose #######################################################


### End: mpxdiagnose (took 0.020 sec) ########################################





AGDCDiagnose completed in 0.317860 seconds

Last edited:

joevt

macrumors 604
Jun 21, 2012
6,969
4,262
I'm using two DisplayPort cables but i cant get past 3840x2160.

The Mac Pro specs are the following:
  • 4.1 flashed to 5.1
  • latest bootROM
  • Dual Xeons E5520
  • 128gb RAM ECC
  • XFX AMD Radeon RX5700XT 8gb Triple Ventilation
  • OWC Accelsior M2 with a Crucial P3 1Tb
I'm running Catalina with all the updates, using Martin Lo package of OpenCore 0.8.8 with the following boot-args:
  • enable-gva-support shikigva=80 unfairgva=1 mbasd=1 -no_compat_check no32exec=0
Faking the SMBios to a MacPro 6,1 because i read somewhere that MST had somehting to do with the board ID

I already tried disabling WEG, lilu and RadeonBoost but it didnt make any difference.

Heres a copy of AGDC diagnose:
Please edit your post to make it more readable:
Use [code] ... [/code] instead of [quote] ... [/quote], and paste the AGDC diagnose text into a text editor first to make sure you don't get triple line spaced text from Terminal.app. In the text editor, you can replace triple line feed with single line feed if necessary.


The AGDC diagnose only shows one DisplayPort connection:
Code:
Connections:
* 1: [DP 1.2 4 x HBR2] Status: [4 x HBR2 7777] caps [features 0x101141b, p_encoding 0xd] Sink OUI:000-000-000 ?????? [000-000-000-000-000-000] HW Version: 0 FW Version: 0.0
2:
3:
4:

5K requires both DisplayPort connections to work. Make sure you're using the full sized DisplayPort connectors on the UP2715K. The Mini DisplayPort connector is only for 4K. Make sure the onscreen menu of the UP2715K is set to dual DisplayPort input instead of single Mini DisplayPort input.

First, try testing two separate displays to make sure both DisplayPort outputs work.

Switch cables to see if both cables are ok.
Switch ports on the 5700XT to make sure both ports are working.


fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3
Please edit your post to make it more readable:
Use [code] ... [/code] instead of [quote] ... [/quote], and paste the AGDC diagnose text into a text editor first to make sure you don't get triple line spaced text from Terminal.app. In the text editor, you can replace triple line feed with single line feed if necessary.
I'm sorry, i'll edit it.

The AGDC diagnose only shows one DisplayPort connection:
Code:
Connections:
* 1: [DP 1.2 4 x HBR2] Status: [4 x HBR2 7777] caps [features 0x101141b, p_encoding 0xd] Sink OUI:000-000-000 ?????? [000-000-000-000-000-000] HW Version: 0 FW Version: 0.0
2:
3:
4:

5K requires both DisplayPort connections to work. Make sure you're using the full sized DisplayPort connectors on the UP2715K. The Mini DisplayPort connector is only for 4K. Make sure the onscreen menu of the UP2715K is set to dual DisplayPort input instead of single Mini DisplayPort input.

First, try testing two separate displays to make sure both DisplayPort outputs work.

Switch cables to see if both cables are ok.
Switch ports on the 5700XT to make sure both ports are working.
I know it requires two DP connections, i'm using two cables :)
I'll try to get another monitor to test the DP ports :)

Thank you!


arw

macrumors 65816
Aug 31, 2010
1,239
983
Ok, too bad. Good luck then with your other testing.


Attachments

  • OSD.jpg
    265.9 KB · Views: 117

fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3
Ok, too bad. Good luck then. Btw, this is how it should look like (see bottom left).
yeah i know, mine shows the 2DP and 3840x2160@60Hz and then Maximum: 5120×2880@60hz

I already asked a friend if he can borrow me another monitor in order to see if it is something with the gpu/displayport cables

  • Like
Reactions: arw

joevt

macrumors 604
Jun 21, 2012
6,969
4,262
You see in the AGDCDiagnose output where it shows that DP was connected to connection 1. You should test if you can make it appear for connection 2,3, or 4 by switching the cables on the 5700XT.


joevt

macrumors 604
Jun 21, 2012
6,969
4,262
Also, it may be helpful to pull the power cable from the UP2715K and reconnect it.


fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3
You see in the AGDCDiagnose output where it shows that DP was connected to connection 1. You should test if you can make it appear for connection 2,3, or 4 by switching the cables on the 5700XT.
yeah it shows the different ports and work at 4K, tried that with both cables and every port posible

Also, it may be helpful to pull the power cable from the UP2715K and reconnect it.
Also did that but it remais at 4K


fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3
I've just tested it with two monitors connected via DisplayPort and its working fine. So its no the 5700xt neither the cables.
I guess its something on Catalina that i have to configure.


fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3
Here's AGDC Diagnose with both displays connected
Code:
AGDCDiagnose Version: 5.2.6.6
### Start: GPUWrangler #######################################################
Stats: GPUCAdded:1 GpuAdded:1 Eject:0/f0/fd0/c0 Remove:0/t0 Un:0

gpu 0xdb91 flags 0xbe000020 (DG,published,driversStarted,hasGPUC,quiet,pubSched,pubArmed) vid.did=1002.731f b:d:f=7:0:0
gpu 0xdb91        pci 0x100000202 IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0
gpu 0xdb91       agdc 0x100000463     /AMDRadeonX6000_AmdAgdcServices
gpu 0xdb91       gpuc 0x1000003cf     /AMDRadeonX6000_AmdGpuWrangler
gpu 0xdb91 agdpclient 0x100000465     /AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl
gpu 0xdb91      accel 0x1000003fb     /AMDRadeonX6000_AMDNavi10GraphicsAccelerator
gpu 0xdb91      fb0:0 0x10000040f     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@0
gpu 0xdb91      fb1:1 0x100000411     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@1
gpu 0xdb91      fb2:2 0x100000413     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@2
gpu 0xdb91      fb3:3 0x100000415     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@3

### End: GPUWrangler (took 0.109 sec) ########################################

### Start: EFIDisplayInfo ####################################################
Not present
Dumping EFI data for GPU Path IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0
### End: EFIDisplayInfo (took 0.107 sec) #####################################

### Start: Mux ###############################################################
### End: Mux (took 0.001 sec) ################################################

### Start: Ports #############################################################
### Start: AGDC[1] 0x1000003d7 ###############################################
IOService:/IOResources/AppleGPUWrangler
Vendor: Apple [0000106b]: AppleGPUWrangler [8 10000] (0)
### End: AGDC[1] 0x1000003d7 (took 0.002 sec) ################################

### Start: AGDC[2] 0x1000003cf ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdGpuWrangler
Vendor: AMD [00001002]: GPURoot [7 30000] (0)
### End: AGDC[2] 0x1000003cf (took 0.001 sec) ################################

### Start: AGDC[3] 0x100000463 ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices
See 0x100000465
### End: AGDC[3] 0x100000463 (took 0.001 sec) ################################

### Start: AGDC[4] 0x100000465 ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl
Vendor: AMD [00001002]: DiscreteGPU [2 30000] (0)
FBs: 4, Ports: 0x1e mst:0xe ddc:0x1e aux:0xe, Streams: dp:6 dvi:4 mst:6 max:6
Framebuffers:
* 0: Address:  1.0 Stream: Enabled  Group: -1  Online   Assoc'd  MayGroup
* 1: Address:  2.0 Stream: Enabled  Group: -1  Online   Assoc'd  MayGroup
  2: Address:  0.0 Stream: Not Associated Group: -1                    MayGroup
  3: Address:  0.0 Stream: Not Associated Group: -1                    MayGroup
Port Capabilities:
* 1: AUX, DDC, MST
* 2: AUX, DDC, MST
  3: AUX, DDC, MST
  4: DDC
Connections:
* 1: [DP 1.2 4 x HBR ]      Status: [4 x HBR  7777]      caps [features 0x101141b, p_encoding 0xd]             Sink   OUI:018-052-086 ABCDEF [065-066-067-068-069-070] HW Version: 0    FW Version: 0.0
* 2: [DP 1.2 4 x HBR2]      Status: [4 x HBR2 7777]      caps [features 0x101141b, p_encoding 0xd]             Sink   OUI:000-000-000 ?????? [000-000-000-000-000-000] HW Version: 0    FW Version: 0.0
  3:
  4:
## Register Dump Port 1 - Start ##
000000: 0x12 0x0a 0x84 0x01 0x01 0x00 0x01 0x40 0x02 0x02 0x06 0x00 0x00 0x00 0x00 0x00
  Reg: 000000: 12 : DPCD_REV: 1.2
  Reg: 000001: 0a : MAX_LINK_RATE: HBR
  Reg: 000002: 84 : MAX_LANE_COUNT: 4, TPS3_SUPPORTED: 0, ENHANCED_FRAME_CAP: 1
  Reg: 000003: 01 : MAX_DOWNSPREAD: 0.5% down, NO_AUX_HANDSHAKE_LINK_TRAINING: 0
  Reg: 000004: 01 : NORP: 1
  Reg: 000005: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0
  Reg: 000006: 01 : MAIN_LINK_CHANNEL_CODING: ANSI 8B/10B
  Reg: 000007: 40 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 0, MSA_TIMING_PAR_IGNORED: 1, OUI: 0
  Reg: 000008: 02 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 1, ASSOCIATED_TO_PRECEDING_PORT: 0
  Reg: 000009: 02 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 96
  Reg: 00000a: 06 : RECEIVE_PORT1_CAP_0:
  Reg: 00000b: 00 : RECEIVE_PORT1_CAP_1:
  Reg: 00000c: 00 : I2C Speed:
  Reg: 00000d: 00 : eDP_CONFIGURATION_CAP: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
  Reg: 00000e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO
  Reg: 00000f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0
000020: 0x00 0x00 0x00
  Reg: 000020: 00 : FAUX_CAP: FAUX_CAP: 0
  Reg: 000021: 00 : MSTM_CAP: MST_CAP: 0
  Reg: 000022: 00 : NUMBER_OF_AUDIO_ENDPOINTS: 0
000060: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 000060: 00 : DSC Support: 0
  Reg: 000061: 00 : DSC Algorithm revision: 0
  Reg: 000062: 00 : DSC RC Buffer Block size: 0
  Reg: 000063: 00 : DSC RC Buffer size: 0
  Reg: 000064: 00 : DSC slice Capabilities 1 : 0
  Reg: 000065: 00 : DSC Line buffer bit depth: 0
  Reg: 000066: 00 : DSC Block prediction support: 0
  Reg: 000067: 00 : DSC Maximum bit per pixel: 0
  Reg: 000068: 00 : DSC Maximum bit per pixel: 0
  Reg: 000069: 00 : DSC Decoder color format capabilities: 0
  Reg: 00006a: 00 : DSC decoder color depth capabilities: 0
  Reg: 00006b: 00 : DSC Peak Throughput: 0
  Reg: 00006c: 00 : DSC Maximum Slice width: 0
  Reg: 00006d: 00 : DSC Slice capabilities 2: 0
  Reg: 00006e: 00 : Reserved: 0
  Reg: 00006f: 00 : DSC Bits per pixel increment: 0
000090: 0x00
  Reg: 000090: 00 : FEC Capability: 0x0
000080: 0x00 0x11 0x22 0x33 0x44 0x55 0x66 0x77 0x88 0x99 0xaa 0xbb 0xcc 0xdd 0xee 0xff
  Reg: 000080: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000081: 11 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [1] Analogue VGA, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 1 720x480 interlaced, 60Hz
  Reg: 000082: 22 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [2] DVI, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 2 720x480 interlaced 50Hz
  Reg: 000083: 33 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [3] HDMI, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 3 1920x1080 interlaced, 60Hz
  Reg: 000084: 44 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [4] Other, No EDID, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 4 1920x1080 interlaced, 50Hz
  Reg: 000085: 55 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [5] Reserved, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 5 1280x720 progressive, 60Hz
  Reg: 000086: 66 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [6] Reserved, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 6 1280x720 progressive, 50Hz
  Reg: 000087: 77 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [7] Reserved, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 7 Reserved
  Reg: 000088: 88 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000089: 99 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [1] Analogue VGA, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 1 720x480 interlaced, 60Hz
  Reg: 00008a: aa : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [2] DVI, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 2 720x480 interlaced 50Hz
  Reg: 00008b: bb : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [3] HDMI, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 3 1920x1080 interlaced, 60Hz
  Reg: 00008c: cc : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [4] Other, No EDID, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 4 1920x1080 interlaced, 50Hz
  Reg: 00008d: dd : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [5] Reserved, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 5 1280x720 progressive, 60Hz
  Reg: 00008e: ee : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [6] Reserved, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 6 1280x720 progressive, 50Hz
  Reg: 00008f: ff : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [7] Reserved, DWN_STRM_PORTX_HPD: 1, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 7 Reserved
000100: 0x0a 0x84
  Reg: 000100: 0a : LINK_BW_SET: HBR
  Reg: 000101: 84 : LANE_COUNT_SET: LANE_COUNT_SET 4, ENHANCED_FRAME_EN: 1
000107: 0x10
  Reg: 000107: 10 : DOWNSPREAD_CTRL: SPREAD_AMP: 1, MSA_TIMING_PAR_IGNORE_EN: 0
00010a: 0x00
  Reg: 00010a: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
000111: 0x00
  Reg: 000111: 00 : MSTM_CTRL: UPSTREAM_IS_SRC:0 UP_REQ_EN:0 MST_EN:0
000120: 0x00
  Reg: 000120: 00 : FEC Configuration: 0x0
000160: 0x00
  Reg: 000160: 00 : DSC Enable: 0x0
000200: 0x01 0x00 0x77 0x77 0x81 0x03 0x11 0x11
  Reg: 000200: 01 : SINK_COUNT: SINK_COUNT 1, CP_READY: 0
  Reg: 000202: 77 : LANE0: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000202: 77 : LANE1: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000203: 77 : LANE2: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000203: 77 : LANE3: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000205: 03 : SINK_STATUS: RECEIVE_PORT_0_STATUS: 1, RECEIVE_PORT_1_STATUS: 1
  Reg: 000206: 11 : LANE0: VOLTAGE_SWING: 1, PRE-EMPHASIS: 0
  Reg: 000206: 11 : LANE1: VOLTAGE_SWING: 1, PRE-EMPHASIS: 0
  Reg: 000207: 11 : LANE2: VOLTAGE_SWING: 1, PRE-EMPHASIS: 0
  Reg: 000207: 11 : LANE3: VOLTAGE_SWING: 1, PRE-EMPHASIS: 0
00020f: 0x00
  Reg: 00020f: 00 : DSC Status: 0
000280: 0x00
  Reg: 000280: 00 : FEC Status: 0
00042f: 0x00
  Reg: 00042f: 00 : DISPLAY_ROTATION: 0x0
002200: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 002200: 00 : DPCD_REV: 0.0
  Reg: 002201: 00 : MAX_LINK_RATE: ???
  Reg: 002202: 00 : MAX_LANE_COUNT: 0, TPS3_SUPPORTED: 0, ENHANCED_FRAME_CAP: 0
  Reg: 002203: 00 : MAX_DOWNSPREAD: None, NO_AUX_HANDSHAKE_LINK_TRAINING: 0
  Reg: 002204: 00 : NORP: 0
  Reg: 002205: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0
  Reg: 002206: 00 : MAIN_LINK_CHANNEL_CODING_SET: ??
  Reg: 002207: 00 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 0, MSA_TIMING_PAR_IGNORED: 0, OUI: 0
  Reg: 002208: 00 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 0, ASSOCIATED_TO_PRECEDING_PORT: 0
  Reg: 002209: 00 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 32
  Reg: 00220a: 00 : RECEIVE_PORT1_CAP_0:
  Reg: 00220b: 00 : RECEIVE_PORT1_CAP_1:
  Reg: 00220c: 00 : I2C Speed:
  Reg: 00220d: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
  Reg: 00220e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO
  Reg: 00220f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0
068028: 0x01
  Reg: 068028: 01 : HDCP_CAPABLE: 1, REPEATER: 0
06921d: 0x00 0x00 0x00
  Reg: 06921d: 00 : VERSION: 0
  Reg: 06921f: 00 : HDCP_CAPABLE: 0, REPEATER: 0
069330: 0x00 0x00
  Reg: 069330: 00 : HDCP_Depth: 0
  Reg: 069331: 00 : HDCP_count: 0  HDCP2_0 Downstream: 0 HDCP1 Downstream: 0
069493: 0x00
  Reg: 069493: 00 : Ready: 0 , H' Available: 0, Pairing_available: 0 , Reauth_req: 0, Link Integrity: 0
## Register Dump Port 1 - End ##
## EDID Dump Port 1 - Start ##
// EDID Dump: device, 256 bytes, OK
uint8_t EDID_AOC_5e3_2402[] = {
  /* 000: */  0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00,
  /* 008: */  0x05, 0xe3, 0x02, 0x24, 0x1c, 0x33, 0x00, 0x00,
  /* 010: */  0x16, 0x1e, 0x01, 0x04, 0xa5, 0x35, 0x1e, 0x78,
  /* 018: */  0x3b, 0xfb, 0x55, 0xa3, 0x55, 0x50, 0x9d, 0x26,
  /* 020: */  0x0e, 0x50, 0x54, 0xbf, 0xef, 0x00, 0xd1, 0xc0,
  /* 028: */  0xb3, 0x00, 0x95, 0x00, 0x81, 0x80, 0x81, 0x40,
  /* 030: */  0x81, 0xc0, 0x01, 0x01, 0x01, 0x01, 0x02, 0x3a,
  /* 038: */  0x80, 0x18, 0x71, 0x38, 0x2d, 0x40, 0x58, 0x2c,
  /* 040: */  0x45, 0x00, 0x0f, 0x28, 0x21, 0x00, 0x00, 0x1e,
  /* 048: */  0x2a, 0x44, 0x80, 0xa0, 0x70, 0x38, 0x27, 0x40,
  /* 050: */  0x30, 0x20, 0x35, 0x00, 0x0f, 0x28, 0x21, 0x00,
  /* 058: */  0x00, 0x1a, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x32,
  /* 060: */  0x34, 0x47, 0x32, 0x57, 0x31, 0x47, 0x35, 0x0a,
  /* 068: */  0x20, 0x20, 0x20, 0x20, 0x00, 0x00, 0x00, 0xfd,
  /* 070: */  0x00, 0x30, 0x4b, 0x55, 0x55, 0x12, 0x01, 0x0a,
  /* 078: */  0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x01, 0x04,
  /* 080: */  0x02, 0x03, 0x1e, 0xf1, 0x4b, 0x90, 0x1f, 0x05,
  /* 088: */  0x14, 0x04, 0x13, 0x03, 0x12, 0x02, 0x11, 0x01,
  /* 090: */  0x23, 0x09, 0x07, 0x07, 0x83, 0x01, 0x00, 0x00,
  /* 098: */  0x65, 0x03, 0x0c, 0x00, 0x10, 0x00, 0x8c, 0x0a,
  /* 0a0: */  0xd0, 0x8a, 0x20, 0xe0, 0x2d, 0x10, 0x10, 0x3e,
  /* 0a8: */  0x96, 0x00, 0x0f, 0x28, 0x21, 0x00, 0x00, 0x18,
  /* 0b0: */  0x01, 0x1d, 0x00, 0x72, 0x51, 0xd0, 0x1e, 0x20,
  /* 0b8: */  0x6e, 0x28, 0x55, 0x00, 0x0f, 0x28, 0x21, 0x00,
  /* 0c0: */  0x00, 0x1e, 0x8c, 0x0a, 0xd0, 0x8a, 0x20, 0xe0,
  /* 0c8: */  0x2d, 0x10, 0x10, 0x3e, 0x96, 0x00, 0x0f, 0x28,
  /* 0d0: */  0x21, 0x00, 0x00, 0x18, 0x8c, 0x0a, 0xd0, 0x90,
  /* 0d8: */  0x20, 0x40, 0x31, 0x20, 0x0c, 0x40, 0x55, 0x00,
  /* 0e0: */  0x0f, 0x28, 0x21, 0x00, 0x00, 0x18, 0x00, 0x00,
  /* 0e8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0f0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0f8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x4d
};
## EDID Dump Port 1 - End ##
## Display Connection Stats Dump Port 1 - End ##
  Display mfgName: AOC, productID: 0x2402
  Time to EDID read: 1002
  Time to link train: 2527968
  Link training duration: 24358
  Link training status: 1
  Link training count: 1
  HDCP status: 0
  HDCP retry count: 1
  EFI w/a data: 0x0
## Display Connection Stats Dump Port 1 - End ##
## Register Dump Port 2 - Start ##
000000: 0x12 0x14 0xc4 0x01 0x01 0x00 0x01 0x83 0x02 0x02 0x06 0x00 0x00 0x00 0x00 0x00
  Reg: 000000: 12 : DPCD_REV: 1.2
  Reg: 000001: 14 : MAX_LINK_RATE: HBR2
  Reg: 000002: c4 : MAX_LANE_COUNT: 4, TPS3_SUPPORTED: 1, ENHANCED_FRAME_CAP: 1
  Reg: 000003: 01 : MAX_DOWNSPREAD: 0.5% down, NO_AUX_HANDSHAKE_LINK_TRAINING: 0
  Reg: 000004: 01 : NORP: 1
  Reg: 000005: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0
  Reg: 000006: 01 : MAIN_LINK_CHANNEL_CODING: ANSI 8B/10B
  Reg: 000007: 83 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 3, MSA_TIMING_PAR_IGNORED: 0, OUI: 1
  Reg: 000008: 02 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 1, ASSOCIATED_TO_PRECEDING_PORT: 0
  Reg: 000009: 02 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 96
  Reg: 00000a: 06 : RECEIVE_PORT1_CAP_0:
  Reg: 00000b: 00 : RECEIVE_PORT1_CAP_1:
  Reg: 00000c: 00 : I2C Speed:
  Reg: 00000d: 00 : eDP_CONFIGURATION_CAP: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
  Reg: 00000e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO
  Reg: 00000f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0
000020: 0x00 0x00 0x00
  Reg: 000020: 00 : FAUX_CAP: FAUX_CAP: 0
  Reg: 000021: 00 : MSTM_CAP: MST_CAP: 0
  Reg: 000022: 00 : NUMBER_OF_AUDIO_ENDPOINTS: 0
000060: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 000060: 00 : DSC Support: 0
  Reg: 000061: 00 : DSC Algorithm revision: 0
  Reg: 000062: 00 : DSC RC Buffer Block size: 0
  Reg: 000063: 00 : DSC RC Buffer size: 0
  Reg: 000064: 00 : DSC slice Capabilities 1 : 0
  Reg: 000065: 00 : DSC Line buffer bit depth: 0
  Reg: 000066: 00 : DSC Block prediction support: 0
  Reg: 000067: 00 : DSC Maximum bit per pixel: 0
  Reg: 000068: 00 : DSC Maximum bit per pixel: 0
  Reg: 000069: 00 : DSC Decoder color format capabilities: 0
  Reg: 00006a: 00 : DSC decoder color depth capabilities: 0
  Reg: 00006b: 00 : DSC Peak Throughput: 0
  Reg: 00006c: 00 : DSC Maximum Slice width: 0
  Reg: 00006d: 00 : DSC Slice capabilities 2: 0
  Reg: 00006e: 00 : Reserved: 0
  Reg: 00006f: 00 : DSC Bits per pixel increment: 0
000090: 0x00
  Reg: 000090: 00 : FEC Capability: 0x0
000080: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 000080: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000081: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000082: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000083: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000084: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000085: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000086: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000087: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000088: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 000089: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008a: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008b: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008c: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008d: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008e: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
  Reg: 00008f: 00 : DETAILED_CAP_INFO_AVAILABLE: DWN_STRM_PORTX_CAP: [0] DisplayPort, DWN_STRM_PORTX_HPD: 0, NON_EDID_DWN_STRM_PORTX_ATTRIBUTE: 0
000100: 0x14 0x84
  Reg: 000100: 14 : LINK_BW_SET: HBR2
  Reg: 000101: 84 : LANE_COUNT_SET: LANE_COUNT_SET 4, ENHANCED_FRAME_EN: 1
000107: 0x10
  Reg: 000107: 10 : DOWNSPREAD_CTRL: SPREAD_AMP: 1, MSA_TIMING_PAR_IGNORE_EN: 0
00010a: 0x00
  Reg: 00010a: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
000111: 0x00
  Reg: 000111: 00 : MSTM_CTRL: UPSTREAM_IS_SRC:0 UP_REQ_EN:0 MST_EN:0
000120: 0x08
  Reg: 000120: 08 : FEC Configuration: 0x8
000160: 0x00
  Reg: 000160: 00 : DSC Enable: 0x0
000200: 0x41 0x04 0x77 0x77 0x01 0x03 0x66 0x66
  Reg: 000200: 41 : SINK_COUNT: SINK_COUNT 1, CP_READY: 1
  Reg: 000202: 77 : LANE0: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000202: 77 : LANE1: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000203: 77 : LANE2: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000203: 77 : LANE3: CR_DONE: 1, CHANNEL_EQ_DONE: 1, SYMBOL_LOCKED: 1
  Reg: 000205: 03 : SINK_STATUS: RECEIVE_PORT_0_STATUS: 1, RECEIVE_PORT_1_STATUS: 1
  Reg: 000206: 66 : LANE0: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1
  Reg: 000206: 66 : LANE1: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1
  Reg: 000207: 66 : LANE2: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1
  Reg: 000207: 66 : LANE3: VOLTAGE_SWING: 2, PRE-EMPHASIS: 1
00020f: 0x00
  Reg: 00020f: 00 : DSC Status: 0
000280: 0x00
  Reg: 000280: 00 : FEC Status: 0
00042f: 0x00
  Reg: 00042f: 00 : DISPLAY_ROTATION: 0x0
002200: 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00
  Reg: 002200: 00 : DPCD_REV: 0.0
  Reg: 002201: 00 : MAX_LINK_RATE: ???
  Reg: 002202: 00 : MAX_LANE_COUNT: 0, TPS3_SUPPORTED: 0, ENHANCED_FRAME_CAP: 0
  Reg: 002203: 00 : MAX_DOWNSPREAD: None, NO_AUX_HANDSHAKE_LINK_TRAINING: 0
  Reg: 002204: 00 : NORP: 0
  Reg: 002205: 00 : DOWNSTREAMPORT_PRESENT: DWN_STRM_PORT_PRESENT: 0, DWN_STRM_PORT_TYPE: [0] DisplayPort, FORMAT_CONVERSION: 0, DETAILED_CAP_INFO_AVAILABLE: 0
  Reg: 002206: 00 : MAIN_LINK_CHANNEL_CODING_SET: ??
  Reg: 002207: 00 : DOWN_STREAM_PORT_COUNT: DWN_STRM_PORT_COUNT: 0, MSA_TIMING_PAR_IGNORED: 0, OUI: 0
  Reg: 002208: 00 : RECEIVE_PORT0_CAP_0: LOCAL_EDID_PRESENT: 0, ASSOCIATED_TO_PRECEDING_PORT: 0
  Reg: 002209: 00 : RECEIVE_PORT0_CAP_1: BUFFER_SIZE: 32
  Reg: 00220a: 00 : RECEIVE_PORT1_CAP_0:
  Reg: 00220b: 00 : RECEIVE_PORT1_CAP_1:
  Reg: 00220c: 00 : I2C Speed:
  Reg: 00220d: 00 : eDP_CONFIGURATION_CAP_SET: ALTERNATE_SCRAMBLER_RESET_CAPABLE: 0, FRAMING_CHANGE_CAPABLE: 0
  Reg: 00220e: 00 : TRAINING_AUX_RD_INTERVAL: 100 us, EXTENDED_RECEIVER_CAPABILITY_FIELD_PRESENT: NO
  Reg: 00220f: 00 : ADAPTER_CAP: FORCE_LOAD_SENSE_CAP: 0, ALTERNATE_I2C_PATTERN_CAP: 0
068028: 0x01
  Reg: 068028: 01 : HDCP_CAPABLE: 1, REPEATER: 0
06921d: 0x00 0x00 0x00
  Reg: 06921d: 00 : VERSION: 0
  Reg: 06921f: 00 : HDCP_CAPABLE: 0, REPEATER: 0
069330: 0x00 0x00
  Reg: 069330: 00 : HDCP_Depth: 0
  Reg: 069331: 00 : HDCP_count: 0  HDCP2_0 Downstream: 0 HDCP1 Downstream: 0
069493: 0x00
  Reg: 069493: 00 : Ready: 0 , H' Available: 0, Pairing_available: 0 , Reauth_req: 0, Link Integrity: 0
## Register Dump Port 2 - End ##
## EDID Dump Port 2 - Start ##
// EDID Dump: device, 384 bytes, OK
uint8_t EDID_DEL_10ac_40b6[] = {
  /* 000: */  0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00,
  /* 008: */  0x10, 0xac, 0xb6, 0x40, 0x53, 0x30, 0x35, 0x30,
  /* 010: */  0x20, 0x1a, 0x01, 0x04, 0xb5, 0x3c, 0x22, 0x78,
  /* 018: */  0x3a, 0x72, 0x25, 0xac, 0x50, 0x33, 0xb7, 0x26,
  /* 020: */  0x0b, 0x50, 0x54, 0x21, 0x08, 0x00, 0x81, 0x00,
  /* 028: */  0xb3, 0x00, 0xd1, 0x00, 0xa9, 0x40, 0x81, 0x80,
  /* 030: */  0xd1, 0xc0, 0x01, 0x01, 0x01, 0x01, 0x56, 0x5e,
  /* 038: */  0x00, 0xa0, 0xa0, 0xa0, 0x29, 0x50, 0x30, 0x20,
  /* 040: */  0x35, 0x00, 0x55, 0x50, 0x21, 0x00, 0x00, 0x1a,
  /* 048: */  0x00, 0x00, 0x00, 0xff, 0x00, 0x33, 0x44, 0x38,
  /* 050: */  0x46, 0x38, 0x36, 0x38, 0x41, 0x30, 0x35, 0x30,
  /* 058: */  0x53, 0x0a, 0x00, 0x00, 0x00, 0xfc, 0x00, 0x44,
  /* 060: */  0x45, 0x4c, 0x4c, 0x20, 0x55, 0x50, 0x32, 0x37,
  /* 068: */  0x31, 0x35, 0x4b, 0x0a, 0x00, 0x00, 0x00, 0xfd,
  /* 070: */  0x00, 0x1d, 0x4b, 0x1f, 0xb4, 0x36, 0x01, 0x0a,
  /* 078: */  0x20, 0x20, 0x20, 0x20, 0x20, 0x20, 0x02, 0xe9,
  /* 080: */  0x02, 0x03, 0x0c, 0xf1, 0x23, 0x09, 0x07, 0x07,
  /* 088: */  0x83, 0x01, 0x00, 0x00, 0x4d, 0xd0, 0x00, 0xa0,
  /* 090: */  0xf0, 0x70, 0x3e, 0x80, 0x50, 0x20, 0x65, 0x0c,
  /* 098: */  0x55, 0x50, 0x21, 0x00, 0x00, 0x18, 0x56, 0x5e,
  /* 0a0: */  0x00, 0xa0, 0xa0, 0xa0, 0x29, 0x50, 0x30, 0x20,
  /* 0a8: */  0x35, 0x00, 0x55, 0x50, 0x21, 0x00, 0x00, 0x1a,
  /* 0b0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0b8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0c0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0c8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0d0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0d8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0e0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0e8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0f0: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 0f8: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x34,
  /* 100: */  0x70, 0x12, 0x79, 0x00, 0x00, 0x12, 0x00, 0x16,
  /* 108: */  0x82, 0x10, 0x10, 0x00, 0xff, 0x09, 0x3f, 0x0b,
  /* 110: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x44, 0x45, 0x4c,
  /* 118: */  0xb6, 0x40, 0x53, 0x30, 0x35, 0x30, 0x03, 0x00,
  /* 120: */  0x3c, 0x4c, 0xd0, 0x00, 0x84, 0xff, 0x0e, 0x9f,
  /* 128: */  0x00, 0x2f, 0x80, 0x1f, 0x00, 0x6f, 0x08, 0x3d,
  /* 130: */  0x00, 0x02, 0x00, 0x04, 0x00, 0x10, 0x5d, 0x00,
  /* 138: */  0x04, 0xff, 0x09, 0x9f, 0x00, 0x2f, 0x80, 0x1f,
  /* 140: */  0x00, 0x3f, 0x0b, 0x28, 0x00, 0x02, 0x00, 0x09,
  /* 148: */  0x00, 0xc4, 0xbc, 0x00, 0x04, 0xff, 0x09, 0x9f,
  /* 150: */  0x00, 0x2f, 0x80, 0x1f, 0x00, 0x3f, 0x0b, 0x51,
  /* 158: */  0x00, 0x02, 0x00, 0x09, 0x00, 0x07, 0x00, 0x0a,
  /* 160: */  0x08, 0x81, 0x00, 0x08, 0x04, 0x00, 0x04, 0x02,
  /* 168: */  0x10, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 170: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
  /* 178: */  0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xd5, 0x90
};
## EDID Dump Port 2 - End ##
## Display Connection Stats Dump Port 2 - End ##
  Display mfgName: DEL, productID: 0x40b6
  Time to EDID read: 1002
  Time to link train: 2501117
  Link training duration: 15343
  Link training status: 1
  Link training count: 1
  HDCP status: 0
  HDCP retry count: 1
  EFI w/a data: 0x0
## Display Connection Stats Dump Port 2 - End ##
### End: AGDC[4] 0x100000465 (took 0.271 sec) ################################

### End: Ports (took 0.273 sec) ##############################################

### Start: Metrics ###########################################################
Display Metric Tool Version: 1.2
Display Metric Plugin Version: 1.2 AGDC Version: 5.2.6
Dumping Metric Logs: currentlog(24) logsize(32768) numberlogs(819)
Total lines: 25
2023-02-27 15:16:11.652979-0800:               kAGDCPluginMetricsPowerOff(411e) GPU:0xdb91 Port: 0 Will
2023-02-27 15:16:11.657131-0800:                kAGDCPluginMetricsPowerOn(411f) GPU:0xdb91 Port: 0 Did
2023-02-27 15:16:12.414291-0800:            kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 1 dpcd_rev:0x12 max_link_rate:0xa max_lane_count:0x84 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0
2023-02-27 15:16:12.415292-0800:            kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 1 mfgName:AOC mfgID:0x5e3 productID:0x2402
2023-02-27 15:16:12.553219-0800:            kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 2 dpcd_rev:0x12 max_link_rate:0x14 max_lane_count:0xc4 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0
2023-02-27 15:16:12.554222-0800:            kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 2 mfgName:DEL mfgID:0x10ac productID:0x40b6
2023-02-27 15:16:12.576475-0800:            kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 1 dpcd_rev:0x12 max_link_rate:0xa max_lane_count:0x84 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0
2023-02-27 15:16:12.577451-0800:            kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 1 mfgName:AOC mfgID:0x5e3 productID:0x2402
2023-02-27 15:16:12.591565-0800:            kAGDCPluginMetricsDisplayInfo(4108) GPU:0xdb91 Port: 2 dpcd_rev:0x12 max_link_rate:0x14 max_lane_count:0xc4 max_downspread:0x1 downstreamport_present:0 mstm_cap:0 number_of_audio_endpoints:0
2023-02-27 15:16:12.592536-0800:            kAGDCPluginMetricsMonitorInfo(4109) GPU:0xdb91 Port: 2 mfgName:DEL mfgID:0x10ac productID:0x40b6
2023-02-27 15:16:14.942258-0800:                kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 1
2023-02-27 15:16:14.966616-0800:                  kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 1 link_rate:0xa lane_count:0x84 LT Status:0x1 (OK)
2023-02-27 15:16:14.966907-0800:              kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 1
2023-02-27 15:16:15.054336-0800:                kAGDCPluginMetricsLTBegin(4106) GPU:0xdb91 Port: 2
2023-02-27 15:16:15.069679-0800:                  kAGDCPluginMetricsLTEnd(4107) GPU:0xdb91 Port: 2 link_rate:0x14 lane_count:0x84 LT Status:0x1 (OK)
2023-02-27 15:16:15.070318-0800:              kAGDCPluginMetricsLightUpDp(410a) GPU:0xdb91 Port: 2
2023-02-27 15:16:24.971535-0800:              kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 1 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2
2023-02-27 15:16:25.074618-0800:              kAGDCPluginMetricsHDCPStart(410b) GPU:0xdb91 Port: 2 HDCP version:0x1.0x4 Authenticated Version:0x1 Bcaps:0x2
2023-02-27 15:16:26.061090-0800:         kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 1 Enabled
2023-02-27 15:16:26.061106-0800:     kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 1 Status:0 (OK) Stored Km:0x1
2023-02-27 15:16:26.160310-0800:                kAGDCPluginMetricsSPIData(4120) GPU:0xdb91 Port: 2 200h-205h: 0x41 0x4 0x77 0x77 0x1 0x3
2023-02-27 15:16:26.161205-0800:                    kAGDCPluginMetricsSPI(4103) GPU:0xdb91 Port: 2 Latency(in microsecond) 518
2023-02-27 15:16:26.176786-0800:         kAGDCPluginMetricsHDCPEncryption(410f) GPU:0xdb91 Port: 2 Enabled
2023-02-27 15:16:26.176795-0800:     kAGDCPluginMetricsFirstPhaseComplete(410c) GPU:0xdb91 Port: 2 Status:0 (OK) Stored Km:0x1
### End: Metrics (took 0.003 sec) ############################################

### Start: displaypolicyd ####################################################
running 131 sec (started Mon Feb 27 15:16:07 2023, now Mon Feb 27 15:18:18 2023)
boardID: Mac-F60DEB81FF30ACF6
featureMask: 0x100204
platformFlags: 0
extraSupportFlags: 0
wranglerFlags: 0x44
launcher[0]: name '7:0:0', state 1, managerState 1, vendor class/id/version 0x5 0x106b 0x10000
gpu[0]: index=0 state=0x5 (Published) events=() dispPolicyState=0x1 (Managed) dispPolicyLaunchIndex=0
gpu 0xdb91 flags 0x9e000020 (DG,published,driversStarted,hasGPUC,pubSched,pubArmed)
gpu 0xdb91        pci 0x100000202 IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0
gpu 0xdb91       agdc 0x100000463     /AMDRadeonX6000_AmdAgdcServices
gpu 0xdb91       gpuc 0x1000003cf     /AMDRadeonX6000_AmdGpuWrangler
gpu 0xdb91 agdpclient 0x100000465     /AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl
gpu 0xdb91      accel 0x1000003fb     /AMDRadeonX6000_AMDNavi10GraphicsAccelerator
gpu 0xdb91      fb0:0 0x10000040f     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@0
gpu 0xdb91      fb1:1 0x100000411     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@1
gpu 0xdb91      fb2:2 0x100000413     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@2
gpu 0xdb91      fb3:3 0x100000415     /AMDRadeonX6000_AmdRadeonControllerNavi10/ATY,RadeonFramebuffer@3
Version: 5.2.6, Max: 512, counter: 242, calendar sync: 0x5f5b6a9ef96fc/0x6ff4ab
GTRACEDATASTREAM traceData = {
    { 0x67547261, 0x63654461, 0x74614475, 0x6d700000, 0x102, 512, 242, 5, 2, 6, 6, 56, 1677539767457532, 7337131 },
    {
        { 6969422534, 0x0, 391, 38, 0, 0, 0x0, 0x0, 0x0 },
        { 7698731724, 0x0, 743, 88, 56, 0, 0x0, 0x4, 0x0 },
        { 8129991331, 0x0, 521, 72, 73, 0, 0x1, 0xdb91, 0x0 },
        { 8130550579, 0x0, 70, 71, 73, 0, 0x20001, 0xdb91, 0x0 },
        { 8130640922, 0x0, 70, 71, 73, 0, 0x90002, 0xdb91, 0x0 },
        { 8130664227, 0x0, 70, 71, 73, 0, 0x40009, 0xdb91, 0x0 },
        { 8130685734, 0x0, 70, 71, 73, 0, 0x50004, 0xdb91, 0x0 },
        { 8130707266, 0x0, 81, 77, 73, 0, 0x60000, 0xdb91, 0x0 },
        { 10808523044, 0x0, 521, 72, 73, 0, 0x10000002, 0xdb91, 0x0 },
        { 10808638788, 0x0, 81, 77, 73, 0, 0x70006, 0xdb91, 0x0 },
        { 10808945164, 0x0, 273, 78, 79, 0, 0x100000465, 0x1, 0x0 },
        { 10809036074, 0x0, 293, 78, 62, 0, 0x100000465, 0x0, 0x0 },
        { 10809215596, 0x0, 316, 78, 79, 0, 0x100000465, 0x3, 0x0 },
        { 10809215796, 0x0, 151, 80, 61, 0, 0x100000465, 0x1, 0x0 },
        { 10809216039, 0x0, 81, 77, 73, 0, 0x10007, 0xdb91, 0x0 },
        { 10810574799, 0x100000465, 762, 31, 0, 0, 0x0, 0x0, 0x0 },
        { 10851425345, 0x100000465, 988, 26, 0, 0, 0x0, 0x0, 0x0 },
        { 10851441009, 0x100000465, 997, 33, 0, 0, 0x0, 0x0, 0x0 },
        { 11190020694, 0x100000465, 1003, 34, 0, 0, 0x0, 0x0, 0x0 },
        { 11340991024, 0x100000465, 6251, 13, 52, 46, 0x0, 0x2, 0x0 },
        { 11341003829, 0x100000465, 6251, 13, 52, 46, 0x1, 0x2, 0x0 },
        { 11341037250, 0x100000465, 6251, 13, 52, 46, 0x2, 0x2, 0x0 },
        { 11341056904, 0x100000465, 6251, 13, 52, 46, 0x3, 0x2, 0x0 },
        { 11346184533, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000000, 0x0 },
        { 11346188584, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000000, 0x0 },
        { 11346189714, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 11346190712, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 11346191764, 0x100000465, 187, 9, 47, 64, 0x0, 0xf, 0x0 },
        { 11346193127, 0x100000465, 199, 10, 0, 0, 0x0, 0x0, 0x0 },
        { 11346196172, 0x100000465, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },
        { 11346198343, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 11346200341, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 11346327682, 0x100000465, 155, 42, 53, 0, 0x1, 0x5, 0x0 },
        { 11346328373, 0x100000465, 190, 41, 61, 61, 0x1, 0x1, 0x0 },
        { 11346328649, 0x100000465, 1642, 25, 58, 0, 0x1, 0x0, 0x0 },
        { 11346417345, 0x100000465, 155, 42, 53, 0, 0x0, 0x5, 0x0 },
        { 11346417567, 0x100000465, 190, 41, 61, 61, 0x0, 0x0, 0x1 },
        { 11346417709, 0x100000465, 1642, 25, 58, 0, 0x0, 0x1, 0x0 },
        { 11346459749, 0x0, 228, 1, 43, 0, 0x2, 0xa, 0x0 },
        { 11346491178, 0x0, 228, 1, 43, 0, 0x1, 0xfa, 0x0 },
        { 11347242073, 0x100000465, 5210, 76, 46, 0, 0x1000001, 0x100000000, 0x0 },
        { 11347242518, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x0 },
        { 11347301661, 0x100000465, 412, 37, 60, 49, 0x1, 0x1, 0x0 },
        { 11348254967, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11348255552, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11351890053, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },
        { 11352765820, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11352766184, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11353735512, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11353735803, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11354650577, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x600000000, 0x0 },
        { 11355514515, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x10000000e, 0x0 },
        { 11356082848, 0x0, 46, 39, 0, 0, 0x1, 0x0, 0x0 },
        { 11356083936, 0x100000465, 155, 42, 53, 0, 0x0, 0x6, 0x0 },
        { 11356435247, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x400000020, 0x0 },
        { 11357464372, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x1000000060, 0x0 },
        { 11358328305, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000090, 0x0 },
        { 11359350884, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x1000002200, 0x0 },
        { 11360316383, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0xc00000400, 0x0 },
        { 11565558140, 0x100000465, 5447, 6, 46, 0, 0x1, 0x100000000, 0x0 },
        { 11565559103, 0x100000465, 544, 36, 59, 70, 0x1, 0x0, 0x0 },
        { 11565652001, 0x100000465, 5210, 76, 46, 0, 0x1000001, 0x200000000, 0x0 },
        { 11565663918, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x0 },
        { 11565677855, 0x100000465, 412, 37, 60, 49, 0x2, 0x1, 0x0 },
        { 11566571845, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11566572531, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11570064287, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 11570936299, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11570936585, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11571830983, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11571831229, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11572743021, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x600000000, 0x0 },
        { 11573607462, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x10000000e, 0x0 },
        { 11574506645, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x400000020, 0x0 },
        { 11575522996, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x1000000060, 0x0 },
        { 11576396874, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000090, 0x0 },
        { 11577414194, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x1000002200, 0x0 },
        { 11578400540, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0xc00000400, 0x0 },
        { 11702388607, 0x0, 247, 4, 45, 0, 0x1, 0x1, 0x0 },
        { 11703376203, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0xc000e0000, 0x0 },
        { 11704481244, 0x100000465, 5447, 6, 46, 0, 0x1, 0x200000000, 0x0 },
        { 11704482193, 0x100000465, 544, 36, 59, 70, 0x2, 0x0, 0x0 },
        { 11704484376, 0x100000465, 582, 36, 51, 0, 0x2, 0x1, 0x0 },
        { 11704522695, 0x0, 228, 1, 43, 0, 0x3, 0x1f4, 0x0 },
        { 11704613770, 0x100000465, 5210, 76, 46, 0, 0x1000000, 0x300000000, 0x0 },
        { 11704614321, 0x100000465, 544, 36, 59, 70, 0x3, 0x0, 0x0 },
        { 11704689750, 0x100000465, 5210, 76, 46, 0, 0x1000000, 0x400000000, 0x0 },
        { 11704690199, 0x100000465, 544, 36, 59, 70, 0x4, 0x0, 0x0 },
        { 11704709118, 0x100000465, 1312, 32, 0, 0, 0x0, 0x0, 0x0 },
        { 11704840426, 0x100000465, 5210, 76, 46, 0, 0x1000001, 0x100000000, 0x0 },
        { 11704841000, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },
        { 11705705083, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11705705271, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11709187367, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },
        { 11710066164, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11710066427, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11710971711, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000000, 0x0 },
        { 11710971924, 0x100000465, 1975, 35, 50, 69, 0x1, 0x200000002, 0x1 },
        { 11711897688, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x600000000, 0x0 },
        { 11712767591, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x10000000e, 0x0 },
        { 11713683751, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x400000020, 0x0 },
        { 11714749651, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x1000000060, 0x0 },
        { 11715620629, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000090, 0x0 },
        { 11716632107, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x1000002200, 0x0 },
        { 11717598799, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0xc00000400, 0x0 },
        { 11727694559, 0x100000465, 5368, 5, 46, 0, 0x1, 0x100000000, 0x0 },
        { 11727756913, 0x100000465, 544, 36, 59, 70, 0x1, 0x0, 0x0 },
        { 11727831157, 0x100000465, 5210, 76, 46, 0, 0x1000001, 0x200000000, 0x0 },
        { 11727831457, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 11728690051, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11728690279, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11732184300, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 11733045846, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11733046109, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11733943605, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000000, 0x0 },
        { 11733943869, 0x100000465, 1975, 35, 50, 69, 0x2, 0x200000002, 0x1 },
        { 11734858300, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x600000000, 0x0 },
        { 11735724846, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x10000000e, 0x0 },
        { 11736609049, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x400000020, 0x0 },
        { 11737617213, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x1000000060, 0x0 },
        { 11738487508, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000090, 0x0 },
        { 11739505511, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x1000002200, 0x0 },
        { 11740490589, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0xc00000400, 0x0 },
        { 11740729654, 0x0, 247, 4, 45, 0, 0x1, 0x1, 0x0 },
        { 11741726792, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0xc000e0000, 0x0 },
        { 11742781862, 0x100000465, 5368, 5, 46, 0, 0x1, 0x200000000, 0x0 },
        { 11742843855, 0x100000465, 544, 36, 59, 70, 0x2, 0x0, 0x0 },
        { 11742924810, 0x100000465, 5210, 76, 46, 0, 0x1000000, 0x300000000, 0x0 },
        { 11742925316, 0x100000465, 544, 36, 59, 70, 0x3, 0x0, 0x0 },
        { 11743002394, 0x100000465, 5210, 76, 46, 0, 0x1000000, 0x400000000, 0x0 },
        { 11743002840, 0x100000465, 544, 36, 59, 70, 0x4, 0x0, 0x0 },
        { 11743023567, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 11743065509, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 11990863786, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 11990865724, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 11990889551, 0x100000465, 431, 40, 60, 49, 0x1, 0x1, 0x100000000 },
        { 11995381518, 0x100000465, 2012, 2, 44, 62, 0x100000000, 0x100000600, 0x0 },
        { 12000481402, 0x100000465, 3517, 81, 83, 0, 0x1, 0x0, 0x0 },
        { 12000598564, 0x100000465, 3541, 82, 83, 0, 0x0, 0x0, 0x0 },
        { 12000679289, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12000686507, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x200020000000000 },
        { 12000691481, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12000692695, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12000694124, 0x100000465, 187, 9, 47, 64, 0x0, 0xf, 0x0 },
        { 12000695191, 0x100000465, 199, 10, 0, 0, 0x3000100000001, 0x0, 0x0 },
        { 12000701948, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12000708003, 0x100000465, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },
        { 12000710567, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12000712554, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12000719141, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12009786035, 0x100000465, 1325, 28, 0, 0, 0x0, 0x0, 0x0 },
        { 12009867879, 0x0, 228, 1, 43, 0, 0x1, 0xfa, 0x0 },
        { 12009870659, 0x0, 270, 17, 55, 0, 0x0, 0x100000465, 0x0 },
        { 12009871200, 0x0, 282, 17, 55, 67, 0x0, 0x100000465, 0x1 },
        { 12009871721, 0x0, 328, 16, 0, 0, 0x1, 0x0, 0x0 },
        { 12121900793, 0x100000465, 1610, 14, 53, 0, 0x0, 0x2, 0x0 },
        { 12121986873, 0x100000465, 155, 42, 53, 0, 0x0, 0x2, 0x0 },
        { 12122167999, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12122175690, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x200020000000000 },
        { 12122180891, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12122182147, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12122183508, 0x100000465, 187, 9, 47, 64, 0x1, 0xe, 0x0 },
        { 12122184630, 0x100000465, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },
        { 12122192753, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12122199166, 0x100000465, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },
        { 12122201916, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12122204119, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12122225535, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12219035071, 0x0, 46, 39, 0, 0, 0x2, 0x0, 0x0 },
        { 12219036490, 0x100000465, 155, 42, 53, 0, 0x0, 0xa, 0x0 },
        { 12219070633, 0x100000465, 113, 8, 46, 63, 0x100, 0x200000000, 0x0 },
        { 12219082046, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12259237499, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 12259238480, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 12259265189, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 12263683914, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000600, 0x0 },
        { 12264687806, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12264695009, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x200020000000000 },
        { 12264700024, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12264701227, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12264702536, 0x100000465, 187, 9, 47, 64, 0x1, 0xe, 0x0 },
        { 12264703518, 0x100000465, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },
        { 12264711445, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12264717353, 0x100000465, 199, 10, 0, 0, 0x100000000000000, 0x0, 0x0 },
        { 12264719806, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12264721776, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12264738827, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12510806614, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 12510808381, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 12510844193, 0x100000465, 431, 40, 60, 49, 0x2, 0x1, 0x100000000 },
        { 12515288713, 0x100000465, 2012, 2, 44, 62, 0x200000000, 0x100000600, 0x0 },
        { 12517401192, 0x100000465, 3517, 81, 83, 0, 0x1, 0x1, 0x0 },
        { 12517515305, 0x100000465, 3541, 82, 83, 0, 0x0, 0x1, 0x0 },
        { 12517675713, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12517683733, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x201020000000414 },
        { 12517688718, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12517689926, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12517691344, 0x100000465, 187, 9, 47, 64, 0x1, 0xe, 0x0 },
        { 12517692415, 0x100000465, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },
        { 12517699169, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12517705275, 0x100000465, 199, 10, 0, 0, 0x103000100000001, 0x0, 0x0 },
        { 12517711079, 0x100000465, 113, 8, 46, 63, 0x100, 0x200000000, 0x0 },
        { 12517716711, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12517719107, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12517724536, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12730675836, 0x100000465, 1610, 14, 53, 0, 0x0, 0x2, 0x0 },
        { 12730701811, 0x100000465, 155, 42, 53, 0, 0x0, 0x2, 0x0 },
        { 12730833796, 0x100000465, 237, 11, 48, 65, 0x0, 0x100000001, 0x20102000000040a },
        { 12730841407, 0x100000465, 237, 11, 48, 65, 0x1, 0x200000001, 0x201020000000414 },
        { 12730846642, 0x100000465, 237, 11, 48, 65, 0x2, 0x300000000, 0x0 },
        { 12730847939, 0x100000465, 237, 11, 48, 65, 0x3, 0x400000000, 0x0 },
        { 12730849292, 0x100000465, 187, 9, 47, 64, 0x3, 0xc, 0x0 },
        { 12730850507, 0x100000465, 199, 10, 0, 0, 0x3000200000001, 0x0, 0x0 },
        { 12730858903, 0x100000465, 113, 8, 46, 63, 0x0, 0x100000000, 0x0 },
        { 12730864883, 0x100000465, 199, 10, 0, 0, 0x103000200000001, 0x0, 0x0 },
        { 12730877264, 0x100000465, 113, 8, 46, 63, 0x100, 0x200000000, 0x0 },
        { 12730883187, 0x100000465, 199, 10, 0, 0, 0x200000000000000, 0x0, 0x0 },
        { 12730885853, 0x100000465, 199, 10, 0, 0, 0x300000000000000, 0x0, 0x0 },
        { 12730906420, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 12762146597, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 12762147902, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 12762178373, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 13013883516, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 13013885776, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 13013924596, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 13264086725, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 13264088583, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 13264117247, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 13514073118, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 13514074808, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 13514096189, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 13764133752, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 13764135476, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 13764164909, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
        { 14017267122, 0x0, 46, 39, 0, 0, 0x0, 0x0, 0x0 },
        { 14017269022, 0x100000465, 155, 42, 53, 0, 0x0, 0x7, 0x0 },
        { 14017289032, 0x100000465, 155, 42, 53, 0, 0x0, 0x8, 0x0 },
        { 14017344915, 0x100000465, 435, 40, 60, 49, 0x1, 0x0, 0x10001 },
        { 14017345265, 0x100000465, 435, 40, 60, 49, 0x2, 0x0, 0x10001 },
        { 14017345601, 0x100000465, 435, 40, 60, 49, 0x3, 0x0, 0x0 },
        { 14017345837, 0x100000465, 435, 40, 60, 49, 0x4, 0x0, 0x0 },
        { 14017347080, 0x100000465, 336, 15, 54, 0, 0x0, 0x0, 0x0 },
    }
};
### End: displaypolicyd (took 0.005 sec) #####################################

### Start: Devices ###########################################################
### Start: AGDC[1] 0x1000003d7 ###############################################
IOService:/IOResources/AppleGPUWrangler
Vendor: Apple [0000106b]: AppleGPUWrangler [8 10000] (0)
### End: AGDC[1] 0x1000003d7 (took 0.002 sec) ################################

### Start: AGDC[2] 0x1000003cf ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdGpuWrangler
Vendor: AMD [00001002]: GPURoot [7 30000] (0)
### End: AGDC[2] 0x1000003cf (took 0.001 sec) ################################

### Start: AGDC[3] 0x100000463 ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices
See 0x100000465
### End: AGDC[3] 0x100000463 (took 0.001 sec) ################################

### Start: AGDC[4] 0x100000465 ###############################################
IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/display@0/AMDRadeonX6000_AmdAgdcServices/AppleGraphicsDevicePolicy/AGDPClientControl
Vendor: AMD [00001002]: DiscreteGPU [2 30000] (0)
--BEGIN Device Dump--
Link Count    4
Initialized    YES
Enabled    YES
Hw Ready    YES
Hw Attached    YES
Framebuffers Enabled    4 of 4
Mapped Framebuffers    0

Asic Info    DICT    22
ID: Family Id    143
ID: Device Id    0x731f
ID: HW Revision    0x2
ID: PCI Revision Id    0xc1
ID: Emulated Revision    3
IS eGPU    NO
PCI Address    7:0:0
FB Loc Base    0x8000000000
FB Loc Top    0x81FFFFFFFF
FB Offset    0
MEM SIZE: FB Size    8176 MB
MEM SIZE: FB Aperture    256 MB
MEM SIZE: Reg Aperture    512 KB
MEM CONFIG: VRAM Type    GDDR6
MEM CONFIG: VRAM Width    256
BRANDING: Family Name    Radeon RX
BRANDING: Device Name    5700 XT
BRANDING: Model Name    Radeon RX 5700 XT

DAL Caps    DICT    10
MAX Links    4
MAX Streams    6
MAX Audios    6
MAX Downscale Ratio    2.0
MAX Cursor Size    256
I2C Speed    100 KHz
linear pitch align    64
dcc_const_color    NO
dual_link_dvi    NO
dsc_support    YES

Power Play    DICT    13
Is Supported    YES
Is Initialized    YES
Is Enabled    YES
Current Level (SW)    0
Current Level (HW)    0
HW TDP Limit    180
TDP Table Count    16
Vram Reserved Size    1048576
Vram Reserved Used    69632
Vram Reserved Offset    0x8000300000
Version SMU    0x2a3400
Version PPLIB    2.775

Atom Bios    DICT    5
Crystal Freq    100000 KHz
Boot Display Clock    625000 KHz
BIOS Image Size    65536
Part Number    113-180W2NAVI10XT8GD
FW Reserved Size    0 KB

Link@0    DICT    23
Link Index    0
Status: Initialized    YES
Status: Enabled    YES
Status: Training    NO
Status: Ignored    NO
Status: Ignored Panel Timing    NO
Feature: Internal    NO
Feature: Built-In    NO
Feature: Fixed    NO
Last Event    None
Stream State    ENABLED
Active Signal Type    DP SST
Engine ID    DIG_E
Transmitter ID    UNIPHY_E
HPD ID    HPD_6
DDC Channel    DDC_6
Connector ID    19:1:3
Connector Type    Display Port

Connected Status Link0    DICT    6
Link Index    0
Connected    YES
Signal Type    DP SST
Reported Lane Count    4
Reported Link Rate    27000
Reported Link Spread    16

Active Status Link0    DICT    6
Link Index    0
Connected    YES
Signal Type    DP SST
Reported Lane Count    4
Reported Link Rate    27000
Reported Link Spread    16

Connected DP Config Link0    DICT    13
DPCD Revision    0x12
Link Rate    27000 (max:27000)
Lane Count    4 (max:4)
CR Time    100 uSec
EQ Time    400 uSec
EQ Pattern    TPS:2
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Enabled
MST Enabled    NO
Sleep Value    0

Active DP Config Link0    DICT    13
DPCD Revision    0x12
Link Rate    27000 (max:27000)
Lane Count    4 (max:4)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Enabled
MST Enabled    NO
Sleep Value    0

Link@1    DICT    23
Link Index    1
Status: Initialized    YES
Status: Enabled    YES
Status: Training    NO
Status: Ignored    NO
Status: Ignored Panel Timing    NO
Feature: Internal    NO
Feature: Built-In    NO
Feature: Fixed    NO
Last Event    None
Stream State    ENABLED
Active Signal Type    DP SST
Engine ID    DIG_C
Transmitter ID    UNIPHY_C
HPD ID    HPD_2
DDC Channel    DDC_2
Connector ID    19:2:3
Connector Type    Display Port

Connected Status Link1    DICT    6
Link Index    1
Connected    YES
Signal Type    DP SST
Reported Lane Count    4
Reported Link Rate    54000
Reported Link Spread    16

Active Status Link1    DICT    6
Link Index    1
Connected    YES
Signal Type    DP SST
Reported Lane Count    4
Reported Link Rate    54000
Reported Link Spread    16

Connected DP Config Link1    DICT    13
DPCD Revision    0x12
Link Rate    54000 (max:54000)
Lane Count    4 (max:4)
CR Time    100 uSec
EQ Time    400 uSec
EQ Pattern    TPS:3
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Enabled
MST Enabled    NO
Sleep Value    0

Active DP Config Link1    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Link@2    DICT    23
Link Index    2
Status: Initialized    YES
Status: Enabled    YES
Status: Training    NO
Status: Ignored    NO
Status: Ignored Panel Timing    NO
Feature: Internal    NO
Feature: Built-In    NO
Feature: Fixed    NO
Last Event    None
Stream State    DISABLED
Active Signal Type    NONE
Engine ID    DIG_D
Transmitter ID    UNIPHY_D
HPD ID    HPD_1
DDC Channel    DDC_1
Connector ID    19:3:3
Connector Type    Display Port

Connected Status Link2    DICT    6
Link Index    2
Connected    NO
Signal Type    NONE
Reported Lane Count    0
Reported Link Rate    0
Reported Link Spread    0

Active Status Link2    DICT    6
Link Index    0
Connected    NO
Signal Type    NONE
Reported Lane Count    0
Reported Link Rate    0
Reported Link Spread    0

Connected DP Config Link2    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Active DP Config Link2    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Link@3    DICT    23
Link Index    3
Status: Initialized    YES
Status: Enabled    YES
Status: Training    NO
Status: Ignored    NO
Status: Ignored Panel Timing    NO
Feature: Internal    NO
Feature: Built-In    NO
Feature: Fixed    NO
Last Event    None
Stream State    DISABLED
Active Signal Type    NONE
Engine ID    DIG_A
Transmitter ID    UNIPHY_A
HPD ID    HPD_4
DDC Channel    DDC_4
Connector ID    12:1:3
Connector Type    HDMI

Connected Status Link3    DICT    6
Link Index    3
Connected    NO
Signal Type    NONE
Reported Lane Count    0
Reported Link Rate    0
Reported Link Spread    0

Active Status Link3    DICT    6
Link Index    0
Connected    NO
Signal Type    NONE
Reported Lane Count    0
Reported Link Rate    0
Reported Link Spread    0

Connected DP Config Link3    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Active DP Config Link3    DICT    13
DPCD Revision    0
Link Rate    0 (max:0)
Lane Count    0 (max:0)
CR Time    0 uSec
EQ Time    0 uSec
EQ Pattern    TPS:0
Voltage    Level:0
Pre-Emphasis    Level:0
Downspread    Disabled
Scrambler    Disabled
Enhanced Framing    Disabled
MST Enabled    NO
Sleep Value    0

Framebuffer@0    DICT    19
FB Index    0
FB Online    YES
Status: Started    Yes
Status: Opened    No
Status: Enabled    Yes
Status: PageFlipEnabled    Yes
Status: ConsoleDisplay    No
Status: FixedDisplay    No
Status: Mapped    No
WSAA State    "Accelerated"
Power State    Wake
IOP Supported    YES

Current Config FB0    DICT    8
FB ID    0
Sleep State    0x2
Flags: SingleLinkValid    SET
Flags: DPLinkConfigValid    SET
Flags: ScanoutResourceConfig    SET
Sink    1.0
Scanout Count    1

Display Path (Active) FB0    DICT    21
surface_address    0x600000
surface_bytes    8294400
bytes_per_row    7680
bits_per_pixel    32
bits_per_component    10
Is Connected    YES
Is Online    YES
Is SW Scaled    NO
WSAA State    "Accelerated"
SW Src Viewport    1920x1080 @ {0,0}
SW Dst Viewport    1920x1080 @ {0,0}
Stream Count    1
FB Index    0
Group Index    0
Mode Id    0x80005000
Depth Index    2
HW Src Viewport    1920x1080 @ {0,0}
HW Dst Viewport    1920x1080 @ {0,0}
Underscan    100 % - {75:100}

Stream@0 FB0    DICT    11
Stream ID    0
Is Enabled    YES
Is DPMS Off    NO
Change Flags    0
Option Flags    0
Sink Address    0.0
HW Src Viewport    1920x1080 @ {0,0}
HW Dst Viewport    1920x1080 @ {0,0}

Timing FB0    DICT    24
Display Mode    80005000
Refresh Rate (Calculated)    60 Hz
Refresh Rate (Stored)    0.0 Hz
Window (Active)    1920 x 1080
Window (Scaled)    0 x 0
Scaled Inset    0 x 0
Pixel Clock    148500000 Hz
Scaler Flags    0
Signal Config    0
Blanking    280 x 45
Border {left,right}    {0, 0}
Border {top,bottom}    {0, 0}
Sync Offset (h, v)    88 x 4
Sync Pulse Width (h, v)    44, 5
Sync Config (h, v)    + x +
Num Links    1
VB Extension    0
OUTPUT: Pixel Encoding    2 (YCbCr444)
OUTPUT: Bits Per Color Component    2 (8 bpc)
OUTPUT: Colorimetry    128 (BT.709)
OUTPUT: Dynamic Range    1 (SDR)
DSC: Num Slices    0 x 0
DSC: Slice Dimensions    0 x 0
DSC: Compressed BPP    0 bits, (0 bits*16) )

IOPresenter FB0    DICT    11
FB Index    0
Waiting On VBlank    0
Waiting on VUpdate    0
Outstanding    0
Am I Busy    NO
Enabled    YES
Expected V.Blank    1
Expected V.Update    0

Metric Data FB0    DICT    5
Last Transaction Type    0x5
Last Transaction Timestamp    137606680036
Transaction Counter    1939
Last V.Blank Timestamp    137619288057
Last V.Update Timestamp    137620005581

Framebuffer@1    DICT    19
FB Index    1
FB Online    YES
Status: Started    Yes
Status: Opened    No
Status: Enabled    Yes
Status: PageFlipEnabled    Yes
Status: ConsoleDisplay    No
Status: FixedDisplay    No
Status: Mapped    No
WSAA State    "Accelerated"
Power State    Wake
IOP Supported    YES

Current Config FB1    DICT    8
FB ID    1
Sleep State    0x2
Flags: SingleLinkValid    SET
Flags: DPLinkConfigValid    SET
Flags: ScanoutResourceConfig    SET
Sink    2.0
Scanout Count    1

Display Path (Active) FB1    DICT    21
surface_address    0x600100
surface_bytes    14745600
bytes_per_row    10240
bits_per_pixel    32
bits_per_component    10
Is Connected    YES
Is Online    YES
Is SW Scaled    NO
WSAA State    "Accelerated"
SW Src Viewport    2560x1440 @ {0,0}
SW Dst Viewport    2560x1440 @ {0,0}
Stream Count    1
FB Index    1
Group Index    0
Mode Id    0x80005000
Depth Index    2
HW Src Viewport    2560x1440 @ {0,0}
HW Dst Viewport    2560x1440 @ {0,0}
Underscan    100 % - {75:100}

Stream@0 FB1    DICT    11
Stream ID    0
Is Enabled    YES
Is DPMS Off    NO
Change Flags    0
Option Flags    0
Sink Address    1.0
HW Src Viewport    2560x1440 @ {0,0}
HW Dst Viewport    2560x1440 @ {0,0}

Timing FB1    DICT    24
Display Mode    80005000
Refresh Rate (Calculated)    60 Hz
Refresh Rate (Stored)    0.0 Hz
Window (Active)    2560 x 1440
Window (Scaled)    0 x 0
Scaled Inset    0 x 0
Pixel Clock    241500000 Hz
Scaler Flags    0
Signal Config    0x2
Blanking    160 x 41
Border {left,right}    {0, 0}
Border {top,bottom}    {0, 0}
Sync Offset (h, v)    48 x 3
Sync Pulse Width (h, v)    32, 5
Sync Config (h, v)    + x -
Num Links    2
VB Extension    0
OUTPUT: Pixel Encoding    1 (RGB444)
OUTPUT: Bits Per Color Component    4 (10 bpc)
OUTPUT: Colorimetry    1 (RGB)
OUTPUT: Dynamic Range    1 (SDR)
DSC: Num Slices    0 x 0
DSC: Slice Dimensions    0 x 0
DSC: Compressed BPP    0 bits, (0 bits*16) )

IOPresenter FB1    DICT    11
FB Index    1
Waiting On VBlank    0
Waiting on VUpdate    0
Outstanding    0
Am I Busy    NO
Enabled    YES
Expected V.Blank    1
Expected V.Update    0

Metric Data FB1    DICT    5
Last Transaction Type    0x5
Last Transaction Timestamp    132686072914
Transaction Counter    160
Last V.Blank Timestamp    137620712561
Last V.Update Timestamp    137621135739

Framebuffer@2    DICT    17
FB Index    2
FB Online    NO
Status: Started    Yes
Status: Opened    No
Status: Enabled    Yes
Status: PageFlipEnabled    Yes
Status: ConsoleDisplay    No
Status: FixedDisplay    No
Status: Mapped    No
WSAA State    "Accelerated"
Power State    Wake
IOP Supported    YES

Display Path (Active) FB2    DICT    20
surface_address    0x600200
surface_bytes    0
bytes_per_row    0
bits_per_pixel    32
bits_per_component    8
Is Connected    NO
Is Online    NO
Is SW Scaled    NO
WSAA State    "Accelerated"
SW Src Viewport    1x1 @ {0,0}
SW Dst Viewport    1x1 @ {0,0}
Stream Count    0
FB Index    2
Group Index    0
Mode Id    0x3000
Depth Index    1
HW Src Viewport    1x1 @ {0,0}
HW Dst Viewport    1x1 @ {0,0}
Underscan    100 % - {100:100}

Timing FB2    DICT    24
Display Mode    3000
Refresh Rate (Calculated)    0 Hz
Refresh Rate (Stored)    0.0 Hz
Window (Active)    1 x 1
Window (Scaled)    0 x 0
Scaled Inset    0 x 0
Pixel Clock    0 Hz
Scaler Flags    0
Signal Config    0
Blanking    0 x 0
Border {left,right}    {0, 0}
Border {top,bottom}    {0, 0}
Sync Offset (h, v)    0 x 0
Sync Pulse Width (h, v)    0, 0
Sync Config (h, v)    - x -
Num Links    0
VB Extension    0
OUTPUT: Pixel Encoding    0 (n/a)
OUTPUT: Bits Per Color Component    0 (n/a)
OUTPUT: Colorimetry    0 (n/a)
OUTPUT: Dynamic Range    0 (n/a)
DSC: Num Slices    0 x 0
DSC: Slice Dimensions    0 x 0
DSC: Compressed BPP    0 bits, (0 bits*16) )

IOPresenter FB2    DICT    10
FB Index    2
Waiting On VBlank    0
Waiting on VUpdate    0
Outstanding    0
Am I Busy    NO
Enabled    YES
Expected V.Blank    0
Expected V.Update    0

Metric Data FB2    DICT    5
Last Transaction Type    0
Last Transaction Timestamp    0
Transaction Counter    0
Last V.Blank Timestamp    0
Last V.Update Timestamp    0

Framebuffer@3    DICT    17
FB Index    3
FB Online    NO
Status: Started    Yes
Status: Opened    No
Status: Enabled    Yes
Status: PageFlipEnabled    Yes
Status: ConsoleDisplay    No
Status: FixedDisplay    No
Status: Mapped    No
WSAA State    "Accelerated"
Power State    Wake
IOP Supported    YES

Display Path (Active) FB3    DICT    20
surface_address    0x600300
surface_bytes    0
bytes_per_row    0
bits_per_pixel    32
bits_per_component    8
Is Connected    NO
Is Online    NO
Is SW Scaled    NO
WSAA State    "Accelerated"
SW Src Viewport    1x1 @ {0,0}
SW Dst Viewport    1x1 @ {0,0}
Stream Count    0
FB Index    3
Group Index    0
Mode Id    0x3000
Depth Index    1
HW Src Viewport    1x1 @ {0,0}
HW Dst Viewport    1x1 @ {0,0}
Underscan    100 % - {100:100}

Timing FB3    DICT    24
Display Mode    3000
Refresh Rate (Calculated)    0 Hz
Refresh Rate (Stored)    0.0 Hz
Window (Active)    1 x 1
Window (Scaled)    0 x 0
Scaled Inset    0 x 0
Pixel Clock    0 Hz
Scaler Flags    0
Signal Config    0
Blanking    0 x 0
Border {left,right}    {0, 0}
Border {top,bottom}    {0, 0}
Sync Offset (h, v)    0 x 0
Sync Pulse Width (h, v)    0, 0
Sync Config (h, v)    - x -
Num Links    0
VB Extension    0
OUTPUT: Pixel Encoding    0 (n/a)
OUTPUT: Bits Per Color Component    0 (n/a)
OUTPUT: Colorimetry    0 (n/a)
OUTPUT: Dynamic Range    0 (n/a)
DSC: Num Slices    0 x 0
DSC: Slice Dimensions    0 x 0
DSC: Compressed BPP    0 bits, (0 bits*16) )

IOPresenter FB3    DICT    10
FB Index    3
Waiting On VBlank    0
Waiting on VUpdate    0
Outstanding    0
Am I Busy    NO
Enabled    YES
Expected V.Blank    0
Expected V.Update    0

Metric Data FB3    DICT    5
Last Transaction Type    0
Last Transaction Timestamp    0
Transaction Counter    0
Last V.Blank Timestamp    0
Last V.Update Timestamp    0

--END Device Dump--
### End: AGDC[4] 0x100000465 (took 0.016 sec) ################################

### End: Devices (took 0.017 sec) ############################################

### Start: mpxdiagnose #######################################################
### End: mpxdiagnose (took 0.018 sec) ########################################

AGDCDiagnose completed in 0.283609 seconds


joevt

macrumors 604
Jun 21, 2012
6,969
4,262
The issue so far is that only one DisplayPort connection is appearing on the Mac.

Do you have a different computer with two DisplayPort 1.2 outputs to test the UP2715K with? Or a PC? A PC can do 5K60 from a single DisplayPort 1.4 port using a DisplayPort 1.4 MST hub.

  • Like
Reactions: Amethyst1

fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3
The issue so far is that only one DisplayPort connection is appearing on the Mac.

Do you have a different computer with two DisplayPort 1.2 outputs to test the UP2715K with? Or a PC? A PC can do 5K60 from a single DisplayPort 1.4 port using a DisplayPort 1.4 MST hub.
i installed windows on the Mac Pro yesterday and again i only got 4K.
i guess it has something to do with the GPU, i bought it secondhand and while in windows i noticed it has a modified bios optimized for mining purposes.
i'll try to flash the stock bios today and i'll let you know how it goes.

Last edited:

fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3
I tried connecting the 2715k to my 16" macbook pro with two USB-C adapters and no 5k :(
I guess that it's something with the monitor. Is there any way to hard reset it or to see if it recognizes the 2nd DP port?


Attachments

  • AGDC_up2715k_rmbp16.txt
    180.2 KB · Views: 91

joevt

macrumors 604
Jun 21, 2012
6,969
4,262
I tried connecting the 2715k to my 16" macbook pro with two USB-C adapters and no 5k :(
It appears from the AGDCDiagnose output that one of the DisplayPort connections is not being detected. Only port 1 and port 4 of the AMD GPU show activity.

Looking at the EDID in the AGDCDiagnose output, it appears that the first DisplayPort of the display is working (which is why you can get at least 4K). The 2nd DisplayPort port of the display is not detected. For the UP2715K, the first DisplayPort connection represents the right half of the display when doing 5K60.

Since you have an Intel Mac, you can try AllRez to see what DisplayPort info can be retrieved from all the GPU ports. It will probably show DisplayPort info from the same ports as AGDCDiagnose.

I guess that it's something with the monitor. Is there any way to hard reset it or to see if it recognizes the 2nd DP port?
You can try pulling the power cord from the display, wait a few seconds, then reconnect it.

Try switching the DisplayPort cables at the display. See if that changes the port of the AMD GPU (in which case the display's 2nd DisplayPort port is probably broken) or if that changes the EDID (in which case the Thunderbolt port of the MBP is broken and you can try other Thunderbolt ports) or both (in which case the display should work).

  • Like
Reactions: Amethyst1

fuinhu

macrumors newbie
Original poster
Sep 13, 2021
19
3
So i tested the monitor with a PC and the problem remains, it's something on the monitor pcb

Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
