Behold:You just need one of those super neat Sonnet cards with USB 2, FireWire, and IDE all on the same card
USB2.0+FireWire 400+IDE+SATA
Yes, that SIL3112 is flashable. The IDE port is actually a bridged SATA port.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Do you use LeopardAssist?
- Thread starter Jordan XP
- Start date
-
- Tags
- @mac.com
- Sort by reaction score

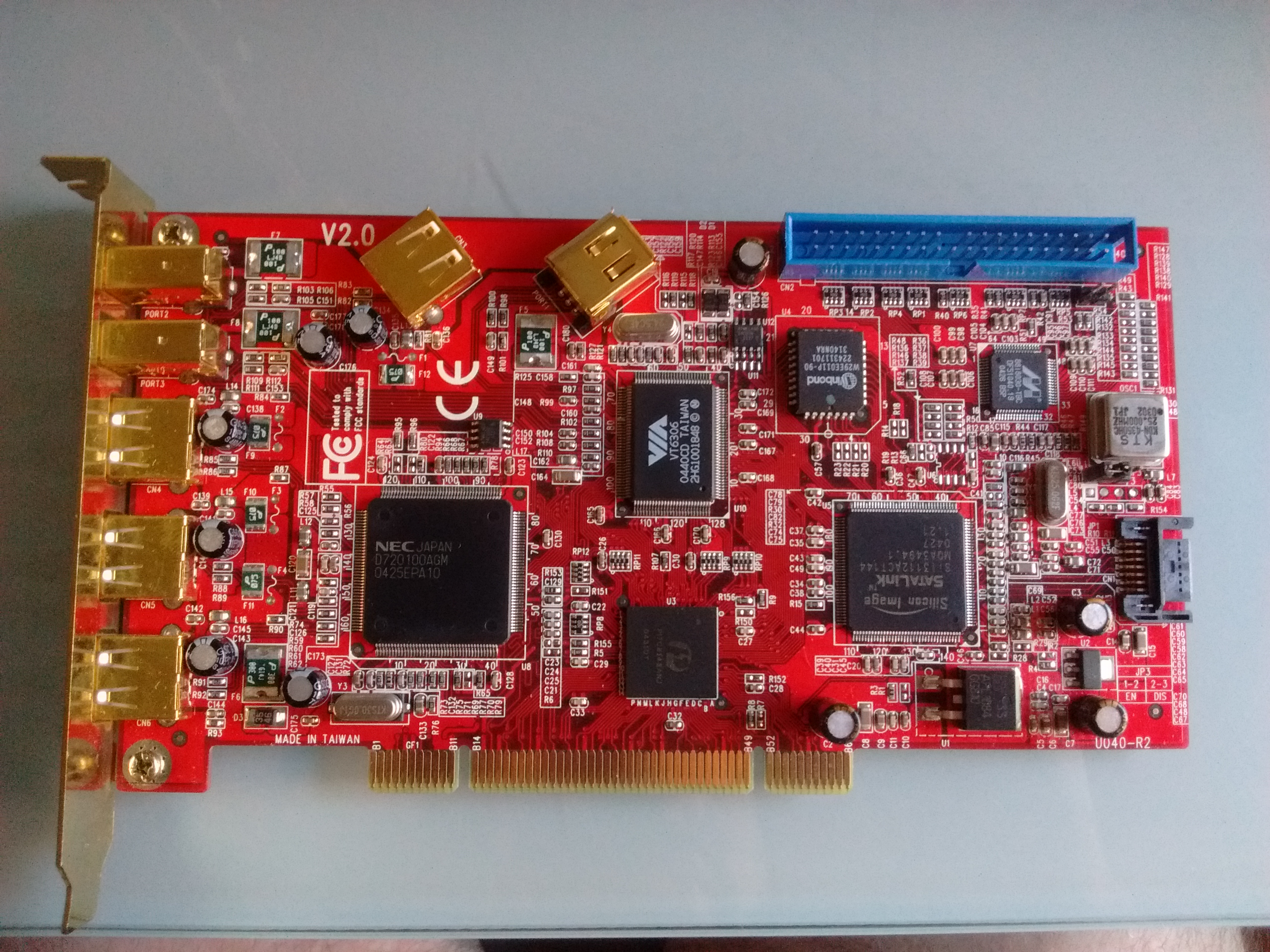

USB2.0+FireWire 400+IDE+SATA
Yes, that SIL3112 is flashable. The IDE port is actually a bridged SATA port.
Like I said, if anyone wants to part with theirs, I'm up for one...dozen..or so.
Mine lives in a (also G4 /ZIF 1GHz upgraded) beige G3, and I think it's feeling quite comfortable in there. Wouldn't want to rip it out.
hah thats cool
I have seen those in Dual SATA form, but not one with one of the ports bridged to PATA
I saw one where the guy replaced the EEPROM so he could flash the Firmtek Firmware onto the card, its pretty much the holy grail of Macintosh PCI expansion cards
(the Firmtek firmware meant the SATA ports worked in OS 9 etc
)
finding the EEPROMs is pretty easy its soldering them on that's out of most people's league sadly
(there's also a resistor you have to change on the board IIRC which sets the supply voltage to the EEPROM)
(there's also a resistor you have to change on the board IIRC which sets the supply voltage to the EEPROM)
This is the issue I'm facing with this card, I'm not really confident enough on my SMD rework skills to change the EEPROM.
Plus I don't know where the voltage selection resistor is, if there's one at all. Though if it's just a question of feeding the proper VCC to the chip, I guess I could run a bodge wire and steal it from some regulator.
It would be interesting to run Leopard on a 350mhz Powermac G4 if even possible.
[doublepost=1566394842][/doublepost]
Next challenge, run Leopard on a stock 350mhz PMG4 (or any stock G4 from the last century) with ram maxed out.I have this machine as prepared as I can be in terms of hardware. It already runs Tiger. I have a PCI IDE card attached to two large IDE drives, one SSD and one HDD. And there is a 20 GB partition sitting empty, just in case I can get it done! The RAM is maxed out -- 8x128MB, all matched.
One of the PCI slots has a Radeon 9200. The third PCI slot has a combination FW/USB 2.0 card.
Tiger runs, well... it runs, not horribly. I have slot envy for a 9600.
I don't expect Leopard to run *well* on this machine, but the challenge is to do it at all.
Not exactly a challenge-it has been done.
The 350mhz Sawtooth is better since the Leo is straight forward and it can take more RAM(2gb vs. 1gb). A Yikes! is a bit more difficult since you need the platform support kexts from the WWDC 2006 preview and also can only max it at 1gb of RAM.
somewhere I have a picture of my Sawtooth with 2GB of RAM running Leopard with a Radeon 9800 Pro but its stock 450mhz CPU still
somewhere I have a picture of my Sawtooth with 2GB of RAM running Leopard with a Radeon 9800 Pro but its stock 450mhz CPU still
That would be the equivalent of running on the Cube I suppose. I also have the same Sawtooth but they’re both on 10.4.
somewhere I have a picture of my Sawtooth with 2GB of RAM running Leopard with a Radeon 9800 Pro but its stock 450mhz CPU still
That 9800 deserves to run Leopard again. You’d probably cry knowing that it’s current installation is Jaguar.
Between the 1.2 giga and the 9800, it should make a great Leo box.
Since the conversation seems to have drifted to "Running Leopard on Macs from the last century":
This might be a bit far fetched, but is there a way to get Quartz Extreme working on a PCI card under Leopard? I have a flashed Radeon 9250 in a beige G3, and I just can't get Leopard to use it properly at all. VLC won't play videos, for example. PCI Extreme worked great for Tiger, but not so much for Leopard.
This might be a bit far fetched, but is there a way to get Quartz Extreme working on a PCI card under Leopard? I have a flashed Radeon 9250 in a beige G3, and I just can't get Leopard to use it properly at all. VLC won't play videos, for example. PCI Extreme worked great for Tiger, but not so much for Leopard.
I think @LightBulbFun would be the one to ask there.
I stuck a PCI Geforce FX 5200 into my B&W G4 and Leopard uses it just fine.

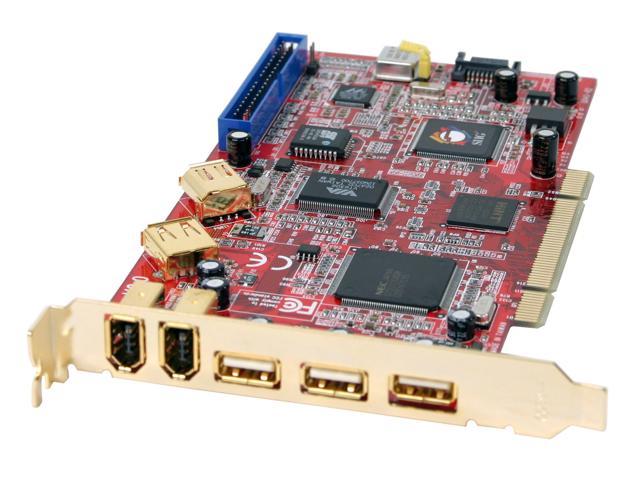

Aha, found it, SIIG CN2508
SIIG CN2508 PCI SATA USB 2.0 +1394 +SATA +Ultra ATA combo card - Newegg.com
Buy SIIG CN2508 PCI SATA USB 2.0 +1394 +SATA +Ultra ATA combo card with fast shipping and top-rated customer service. Once you know, you Newegg!
