bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany
I've used os9vnc I think it was called but switched to Timbuktu a few months ago
I tried to run Timbuktu to check if it's more advanced than VNCthing, but no chance for running it in trial mode :(
Development stopped years ago, sales too. So no chance to get hands on it.
BTW which version do you run? Is v5 compatible with OS9?


abundantmussel

macrumors regular
Mar 31, 2014
107
46
Cork, Ireland
I just checked my sawtooth and its running version 6.0.3 from macintosh garden and I have the Windows version running on Windows 10 to allow me to connect, the windows version is 8.0.3.125


bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany
Thanks folks for all support!

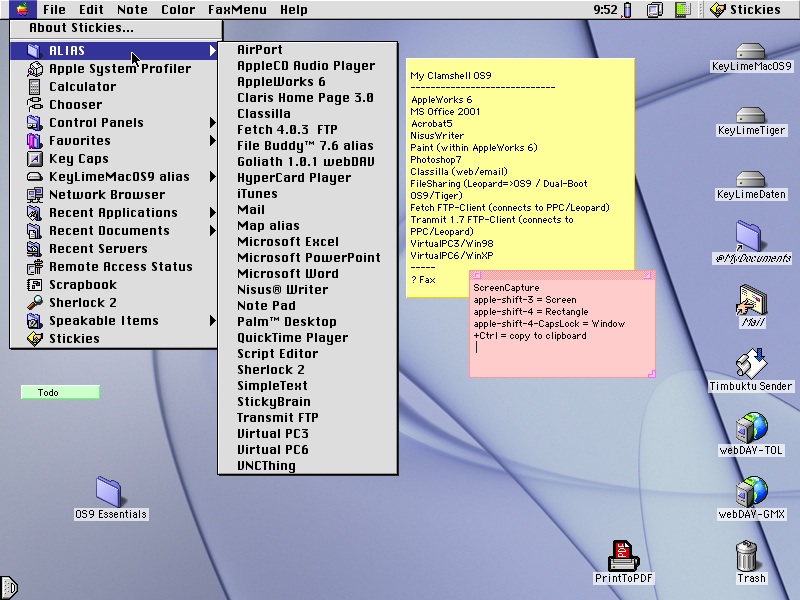

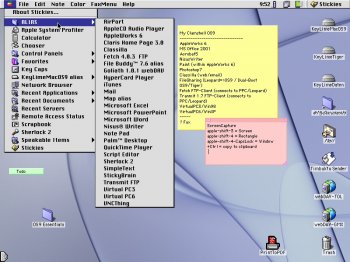

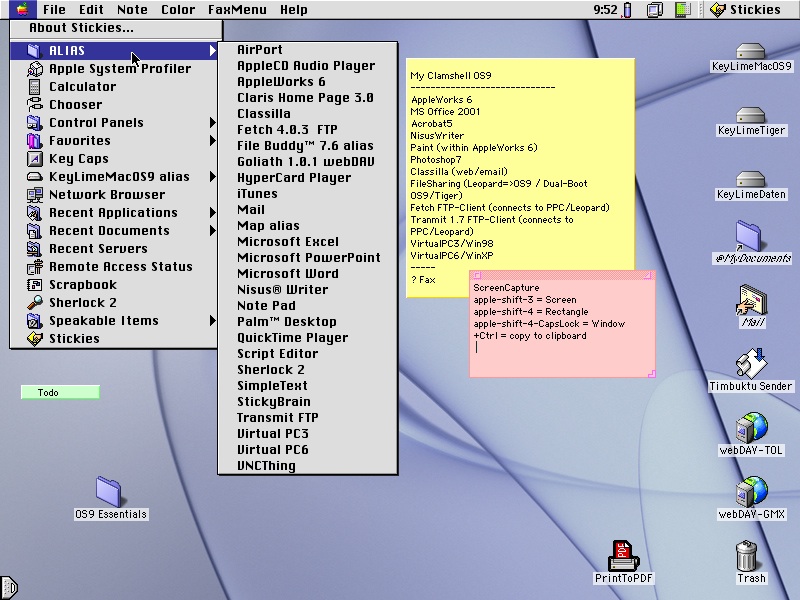

Here's a little picture show, how my KeyLime-MacOS9-project is progressing.
Many thanks also to Macintosh Garden as a keeper of invaluable precious of abandoned software.
The USB-Port of the Clamshell sports enough power to run the "ASUS 3G MOBILE Wireless Router (WL-330N3G)" which hooks up to the ethernet-port for higher encrypted WLAN-access. (Someone here at the forum mentioned that clever way to get MacOS9 connected to WLAN without the need of any drivers and I was lucky, that I had this nice multipurpose ASUS-thing sitting in my drawer)
Using FileSharing with my iBookG4/Leopard it's possible to share it's Dropbox-Account.
Now the MacOS9-Clamshell is really "up-to-date" :)


Attachments

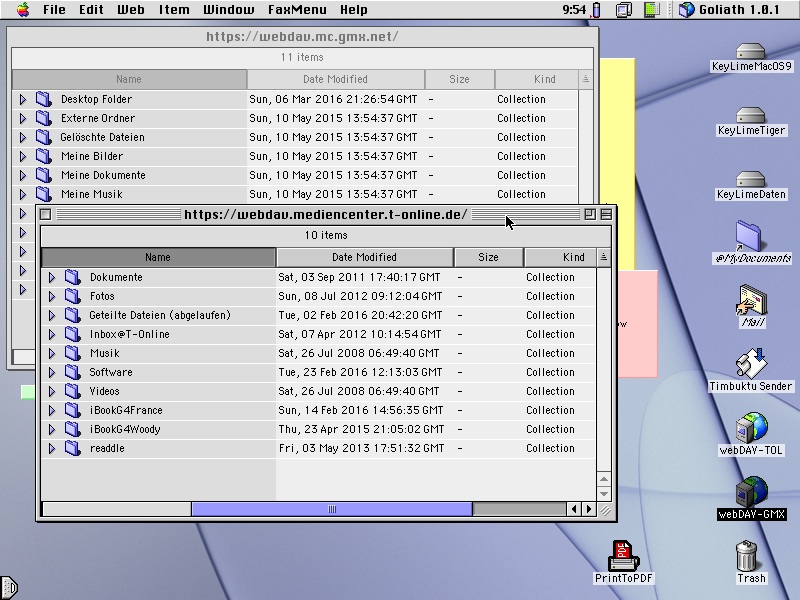

  • 2-webDAV.jpg
    176.3 KB · Views: 696

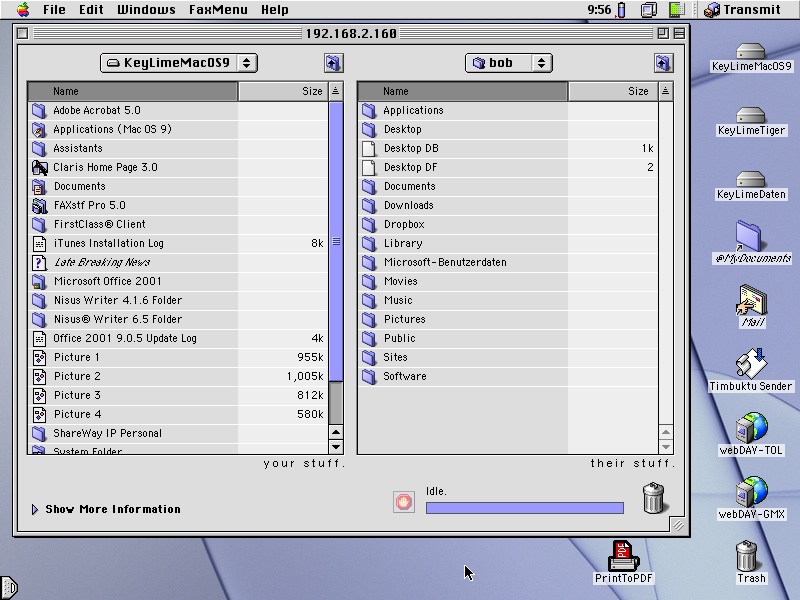

  • 3-FTP2Leopard.jpg
    149.8 KB · Views: 849

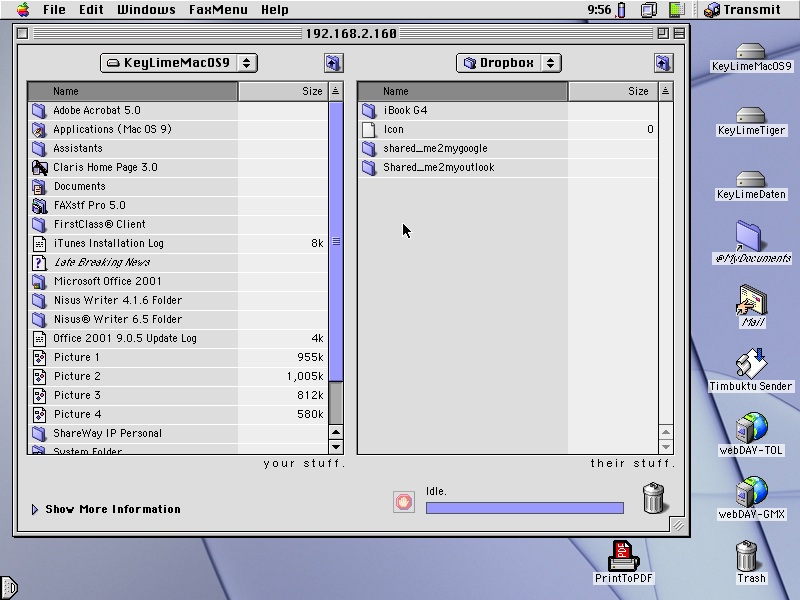

  • 4-FTP2Dropbox.jpg
    135 KB · Views: 580

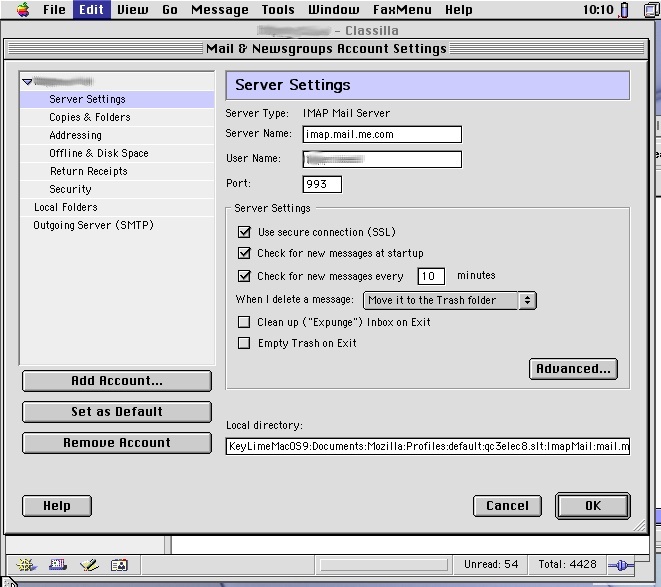

  • 5-Classilla IMAP-Settings.jpg
    5-Classilla IMAP-Settings.jpg
    87.8 KB · Views: 652

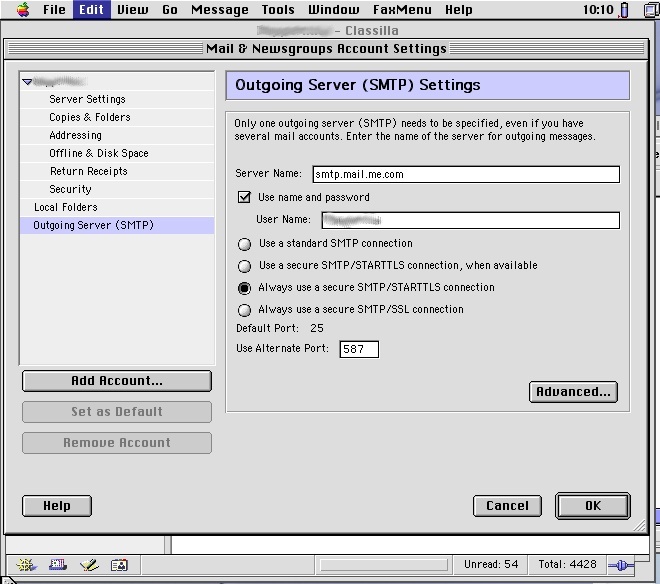

  • 6-Classilla SMTP-Settings.jpg
    6-Classilla SMTP-Settings.jpg
    92 KB · Views: 653

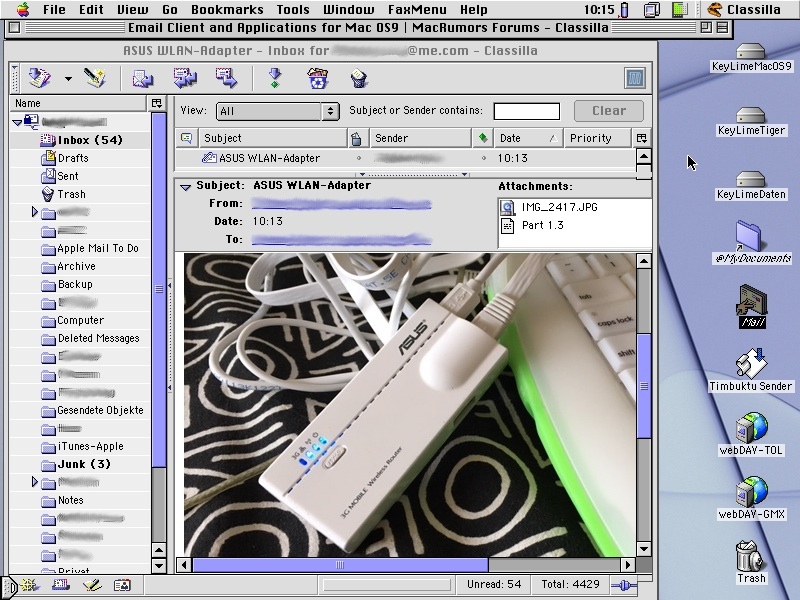

  • 7-Classilla Email-Client IMAP iCloud.jpg
    7-Classilla Email-Client IMAP iCloud.jpg
    182.5 KB · Views: 887

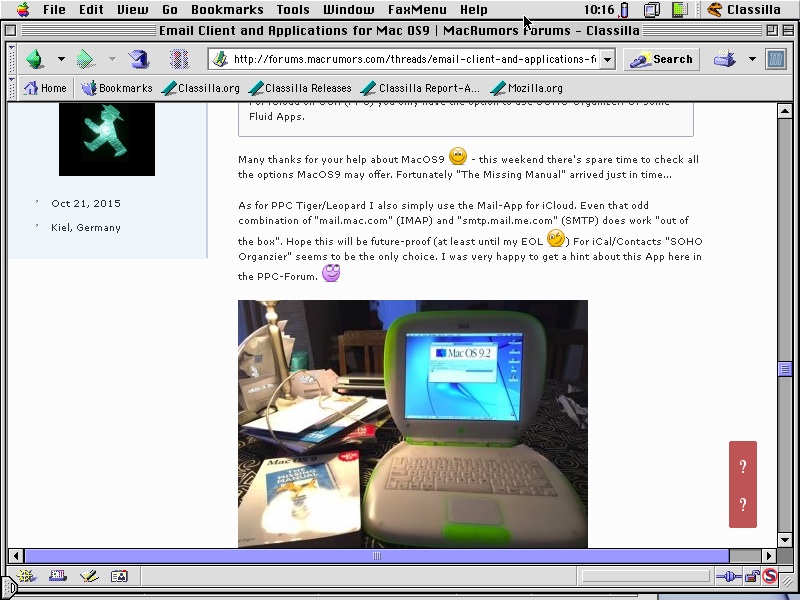

  • 8-Classilla Web-Client.jpg
    8-Classilla Web-Client.jpg
    152.9 KB · Views: 967

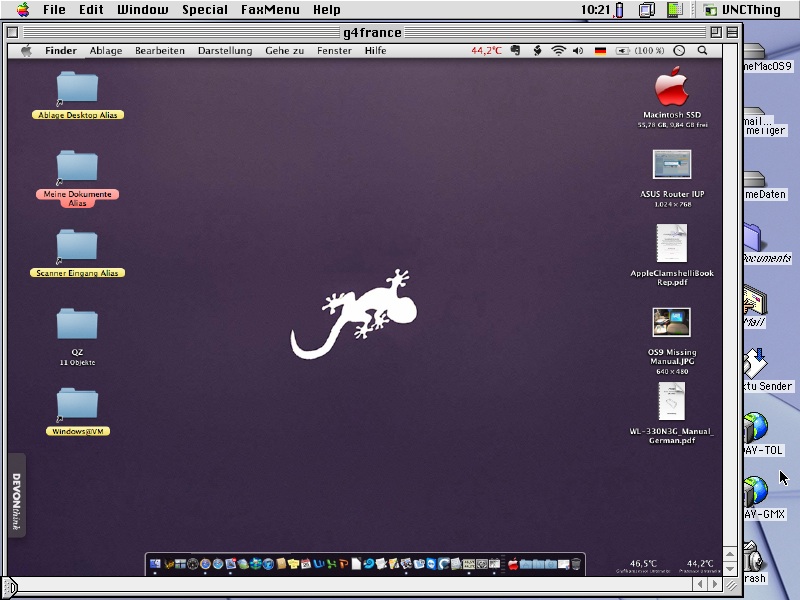

  • 9-VNCthink2Leopard.jpg
    133.3 KB · Views: 621
Last edited:

bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany

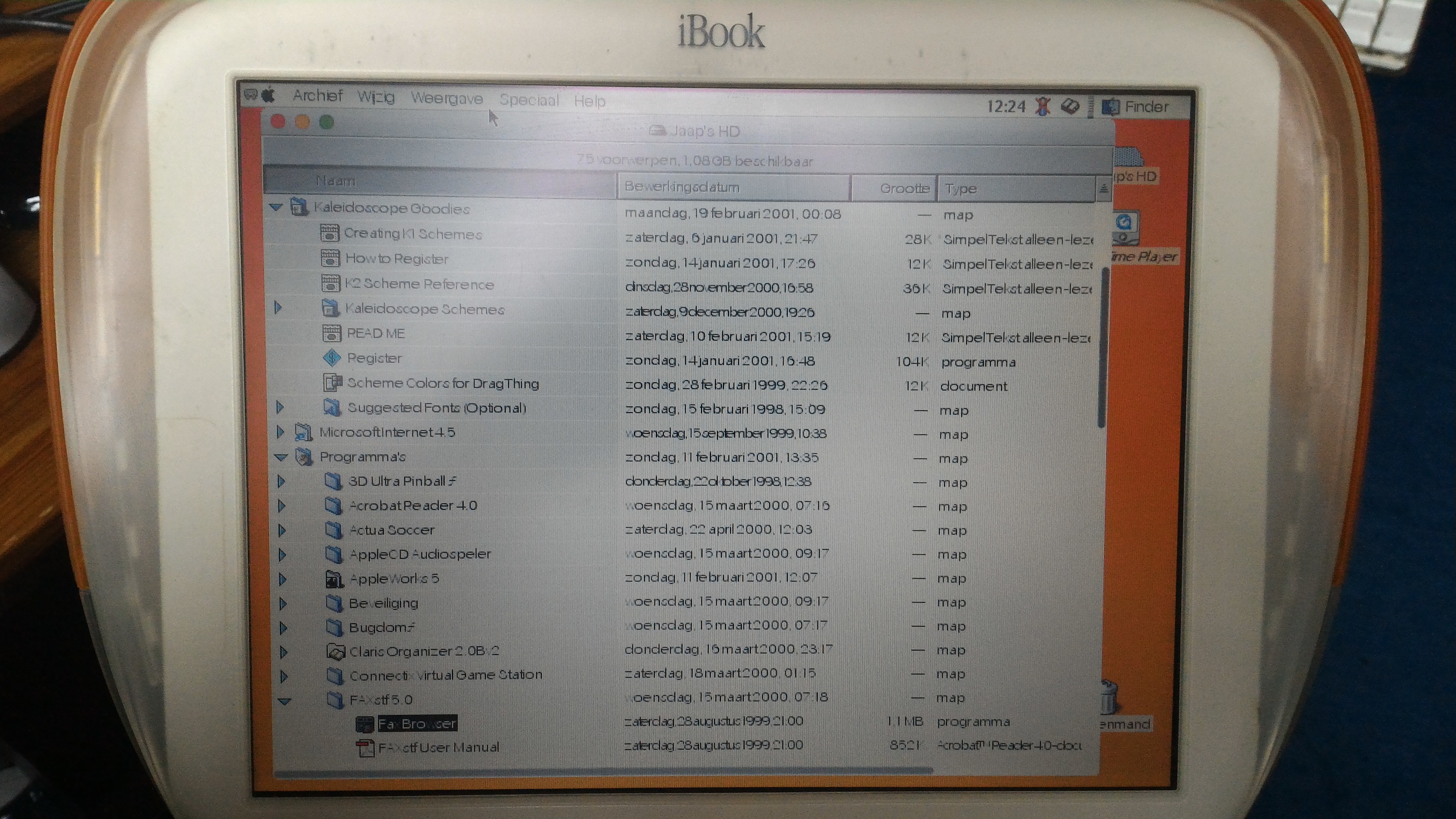

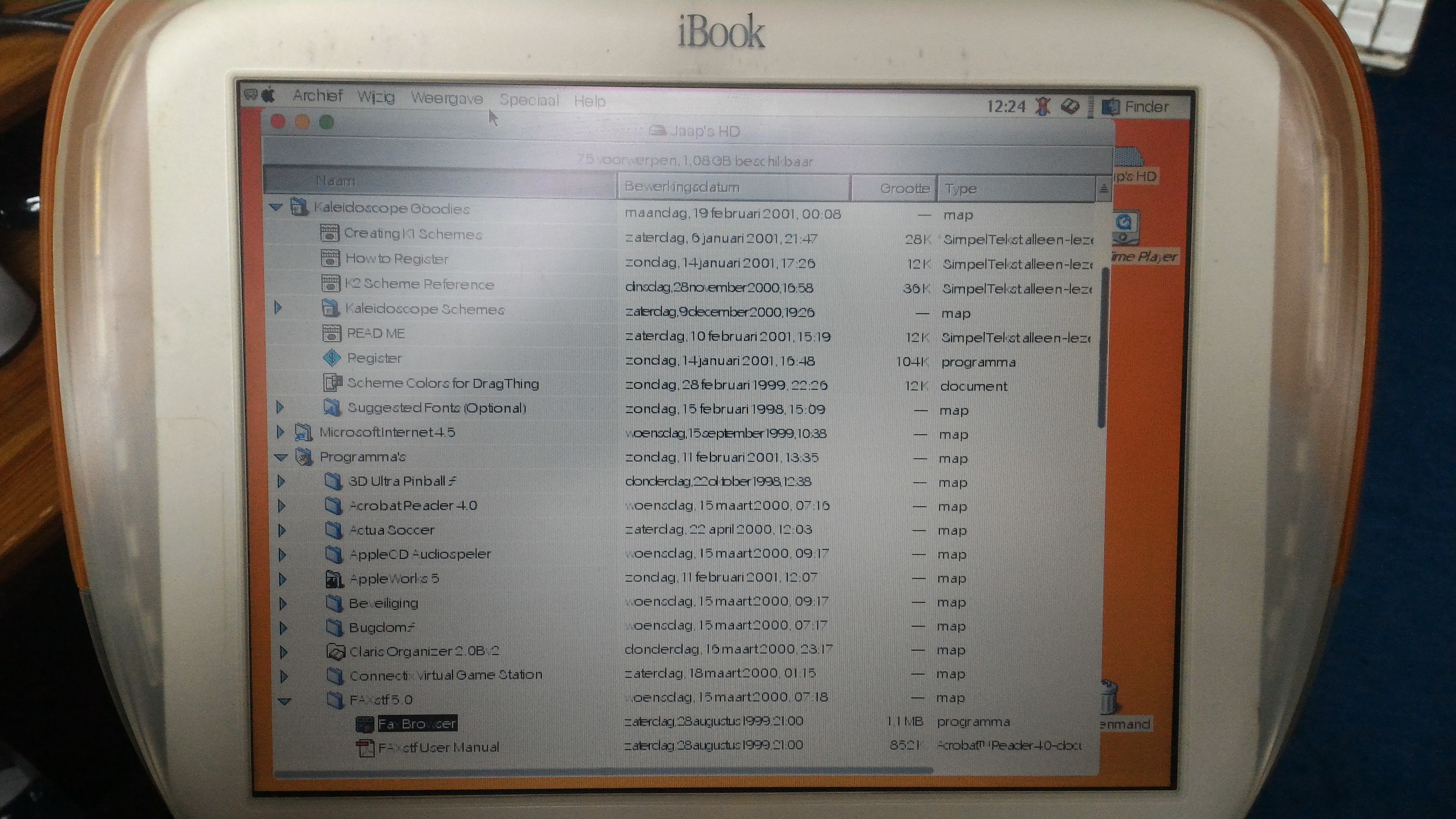

You could install Kaleidoscope and use an OS X theme for further modernization. I'm still tweaking it on my iBook, but here's how it looks right now:
View attachment 623032
Oh - I do like the original old fashioned style of MacOS9 :rolleyes:.
Modding the appearance might let me forget on which lightning fast machine I'm actually working ...
Are the red/orange/green OS X controls do the same things like on OS X?
[doublepost=1458908239][/doublepost]
Speaking of cloud storage services: Box.com can be accessed via WebDAV on Mac OS 9. I use it all the time for file sharing with my rMBP.

Server: https://dav.box.com/dav
Login: Your Box login email address and password.

That's good news. And 10GB for free! :)
(250MB limit for file-size is something one can cope with)


TSE

macrumors 601
Jun 25, 2007
4,037
3,559
St. Paul, Minnesota
That's freaking awesome. OS 9 with your setup is legitimately useful for someone if they wanted it. E-Mail, very basic web browsing, maybe music. Cool.

OS 9 is very memorable for me, my favorite mac of all time, the Graphite and Snow White iMac G3s, were the first product I got emotionally attached to and was the first sign of my career as an industrial designer. OS 9 was a huge part of that. :)

  • Like
Reactions: bobesch

bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany

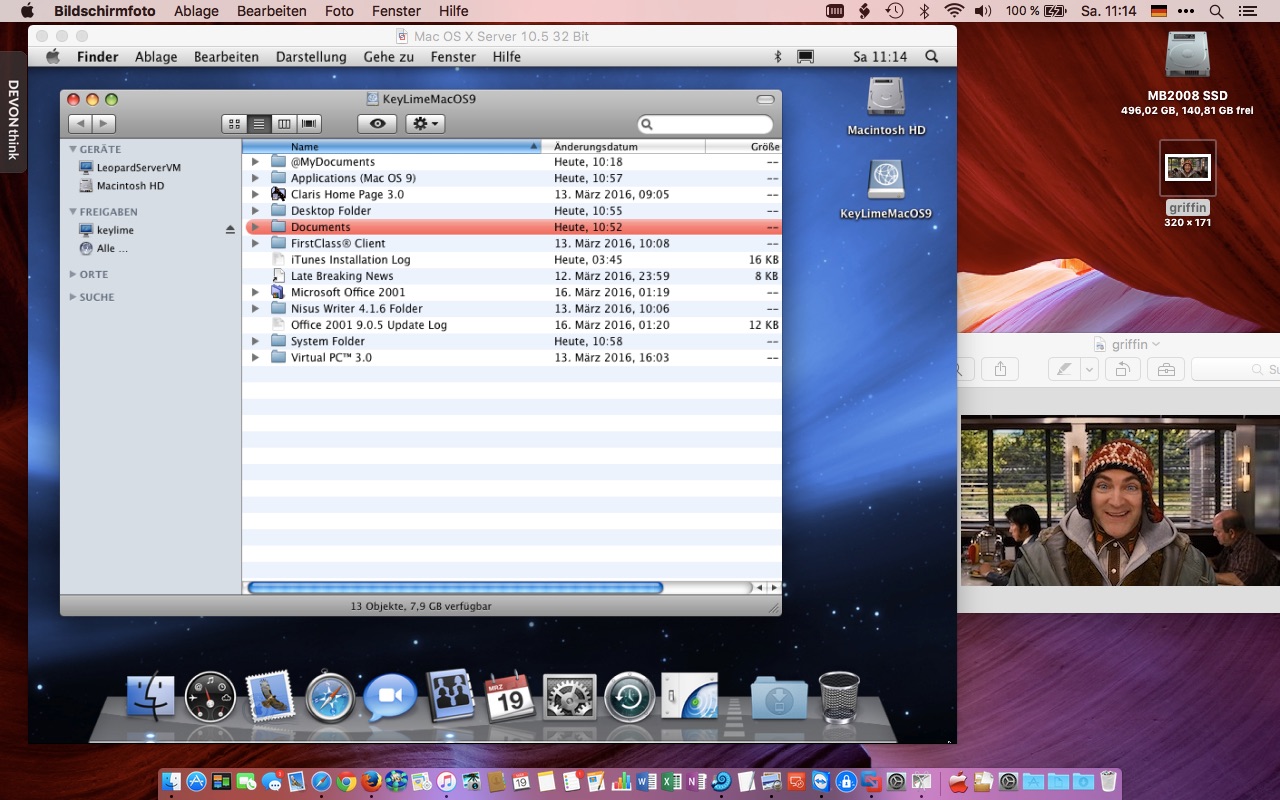

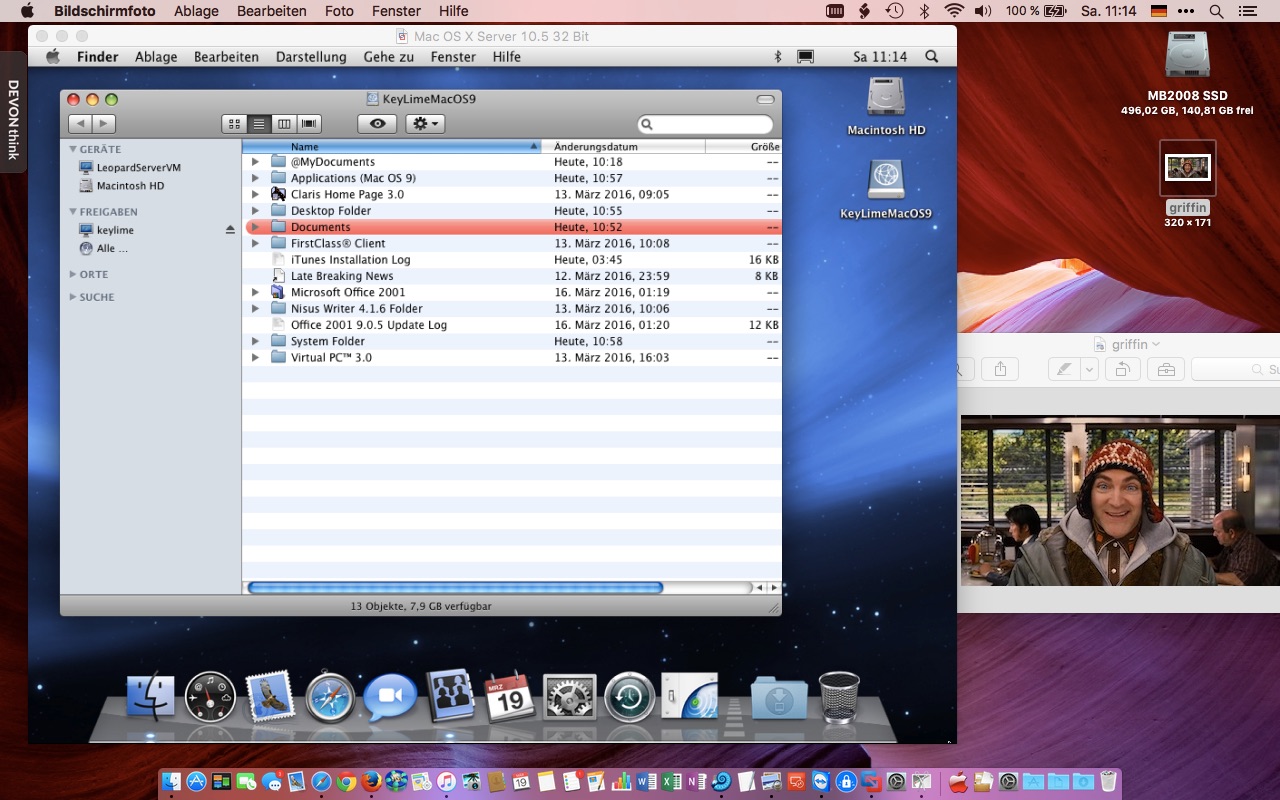

So this is the future, where 'El Capitan' is able to connect to OS9 via FileSharing
using VMwareFusion with Leopard-Server (Finder/GoTo/ConnectWithServer: afp://.../)
View attachment 621874

Solution for webDAV: Goliath 1.01 http://www.webdav.org/goliath/#desc

Solution for FTP: Fetch 4.0.3 http://fetchsoftworks.com/fetch/download/
I could get FTP access from OS9 to PPC/Leopard, but yet haven't been able to connect to the VirtualMachine running Leopard-Server. No connection to OSX10.11.

Getting access to Windows-networks with DAVE
Here's file-sharing the other direction:
Get access to any OS X Mac running a virtual Windows (VMware Fusion) using DAVE.
Move files between
[shared OSX- folders from within virtual Win]<>[virtual Win-Public folder]<>[MacOS9 running DAVE]

Now there are 2 solutions:
1.) with virtual OS X 10.5 on the intel Mac (access the virtual 10.5 from MacOS9 with FTP using Fetch 4.0.3 or Transmit 1.7)
or
2.) with virtual Win on the intel Mac (or even Linux) (access the virtual Win from MacOS9 with SMB using DAVE)
Not too bad... :)
-------------------------------------------
[doublepost=1462705933][/doublepost]
Another gimmick for MacOS9 productivity:
Adding custom stamps to PDF-files using Acrobat5:
http://support.iyogi.com/software-i...eate-a-custom-stamp-in-adobe-acrobat-5-0.html
This enables MacOS9 to receive PDF email-attachments and edit them, add signature and office-stamp or any other icon/picture by using the "stamp-tool" of Acrobat.
The modified PDF may be resent again with email or fax. Great stuff.

Last edited:

bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany

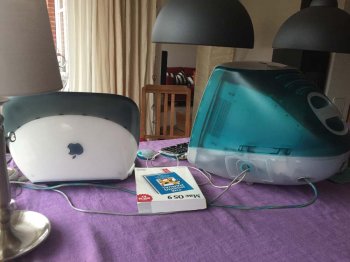

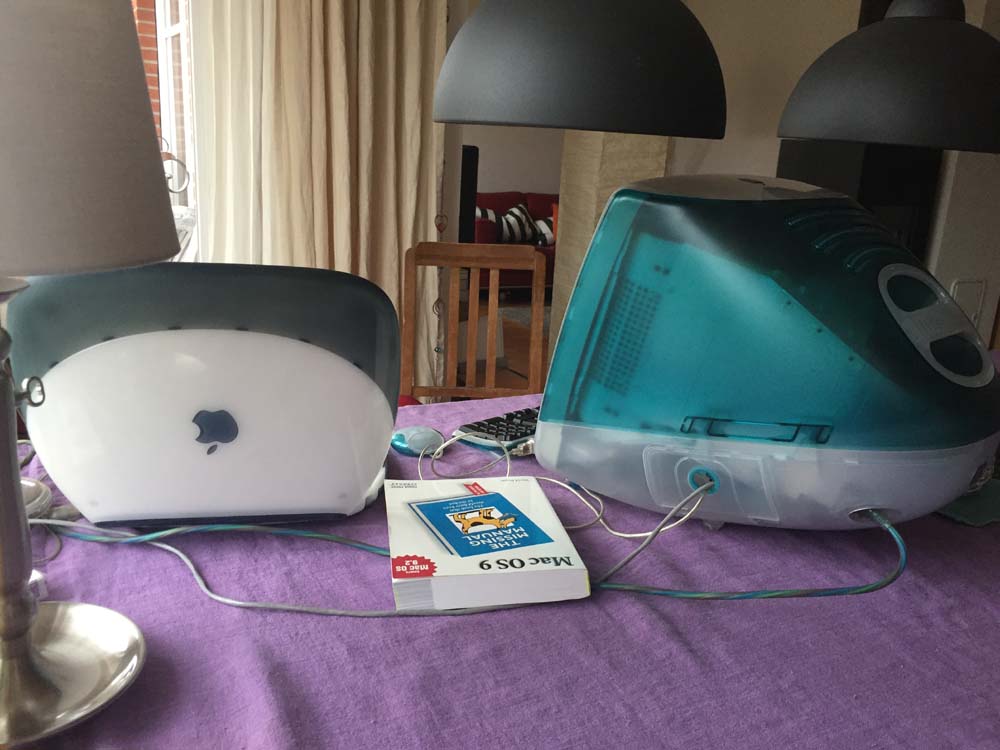

Hooray! Got a 1998 Bondi iMac G3 with matching hockey-puck mouse and keyboard last weekend.
And it's in a great shape - such an eye-candy.
Now everything digital, umm, everything os9 ...
My installation routine:
Classilla, Claris HomePage 3
Office 2001, Photoshop Elements, Print To PDF, Acrobat 5 and Reader, AppleWorks6, FAXstf5
Goliath (webDAV), Transmit/Fetch (FTP), VNCthing
iTunes2 (streaming radio)
Some Games from MacintoshGarden.

Unfortunately connection between iOS and iMac via AFP (using iFiles-App on iOS) didn't work.
So I "simply" used webDAV for file exchange and to get photos from my iPhone6 to the iMac/os9.
It's great to see, that this 20y old machine still may connect to the latest mobile devices...
Using Classilla really feels like beeing on a 56k-Modem-connection in 1996 - but considering, that today's internet is messed-up/blown-up to the max everything is fairly speedy ...

Any suggestions for more useful software?

Yeah, here comes the picture: uploaded to the iMac via webDAV, editing with Photoshop Elements, uploadet to MacRumors with Classilla ...


Last edited:

swamprock

macrumors 65816
Aug 2, 2015
1,266
1,839
Michigan
Hooray! Got a 1998 Bondi iMac G3 with matching hockey-puck mouse and keyboard last weekend.
And it's in a great shape - such an eye-candy.
Now everything digital, umm, everything os9 ...
My installation routine:
Classilla, Claris HomePage 3
Office 2001, Photoshop Elements, Print To PDF, Acrobat 5 and Reader, AppleWorks6, FAXstf5
Goliath (webDAV), Transmit/Fetch (FTP), VNCthing
iTunes2 (streaming radio)
Some Games from MacintoshGarden.

Unfortunately connection between iOS and iMac via AFP (using iFiles-App on iOS) didn't work.
So I "simply" used webDAV for file exchange and to get photos from my iPhone6 to the iMac/os9.
It's great to see, that this 20y old machine still may connect to the latest mobile devices...
Using Classilla really feels like beeing on a 56k-Modem-connection in 1996 - but considering, that today's internet is messed-up/blown-up to the max everything is fairly speedy ...

Any suggestions for more useful software?

Yeah, here comes the picture: uploaded to the iMac via webDAV, editing with Photoshop Elements, uploadet to MacRumors with Classilla ...


(work in progress)

Bondis are fun machines. You can boost that Bondi with a Rev D 333mhz card and 512mb of RAM, as well as a 7200rpm hard drive or even an SSD with an mSATA to IDE adapter. I still need to do the later to mine, which is running Tiger (via XPostFacto) and OS 9.2.2.


bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany
Bondis are fun machines. You can boost that Bondi with a Rev D 333mhz card and 512mb of RAM, as well as a 7200rpm hard drive or even an SSD with an mSATA to IDE adapter. I still need to do the later to mine, which is running Tiger (via XPostFacto) and OS 9.2.2.
I guess I might upgrade RAM and drive too, but switching the board is way beyond my skills - especially 'cause I don't like to fuss around with high-voltage CRT-devices ...
Do you have any advise about a constantly running fan?
Cheers, Bob


swamprock

macrumors 65816
Aug 2, 2015
1,266
1,839
Michigan
I guess I might upgrade RAM and drive too, but switching the board is way beyond my skills - especially 'cause I don't like to fuss around with high-voltage CRT-devices ...
Do you have any advise about a constantly running fan?
Cheers, Bob

Switching the processor card is easy. There's no need to change the entire motherboard. If you're going to be removing the electronics tray to change the RAM, you'll be accessing the processor card anyway, as the RAM slots are on the card itself. If you decide to do this upgrade, just search eBay for a 333mhz iMac processor/cpu card.

I don't think there are any thermal controls for the fan on the Bondi. It just runs constantly, IIRC.


bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany
Switching the processor card is easy. There's no need to change the entire motherboard. If you're going to be removing the electronics tray to change the RAM, you'll be accessing the processor card anyway, as the RAM slots are on the card itself. If you decide to do this upgrade, just search eBay for a 333mhz iMac processor/cpu card.

I don't think there are any thermal controls for the fan on the Bondi. It just runs constantly, IIRC.

Ah, maybe I'll give it a try despite of the CRT ... (check the obituaries how it went on ... :D)
If the fan just runs without control, your comment "IIRC" brings it to the point (I had to lookup the meaning of IIRC: one of it is "Isn't It Really Cool?" That's it ... :)


swamprock

macrumors 65816
Aug 2, 2015
1,266
1,839
Michigan
Ah, maybe I'll give it a try despite of the CRT ... (check the obituaries how it went on ... :D)
If the fan just runs without control, your comment "IIRC" brings it to the point (I had to lookup the meaning of IIRC: one of it is "Isn't It Really Cool?" That's it ... :)

Hah!

You won't actually get anywhere near the CRT. It's completely separated and shielded from the electronics tray. Refer to the ifixit repair guide- https://www.ifixit.com/Device/iMac_G3_Model_M4984


bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany
Hah!

You won't actually get anywhere near the CRT. It's completely separated and shielded from the electronics tray. Refer to the ifixit repair guide- https://www.ifixit.com/Device/iMac_G3_Model_M4984

Got it! - It's really sophisticated to get hands on the computing-part of the iMac without getting close to the CRT.
Some time ago a friend of mine gave me an old indigo iMac G3 and after the equalizer of an improper VLC-version blew up the speakers I dismantled the whole thing to make it a bar or cat's home (shame on me! the case is still sitting unused at the attic.)
The way I did the dismantling was really blundering (but carefully when it comes to the CRT-hazards) and I ripped off the whole CRT plus logic-board/drive-thing and dumped the whole stuff.
Well, I then thought: "what a mess" and "bad design", but it only had been my stupid access to the iMac!
(A few weeks later I met a chap selling iMac-speakers for nearly nothing.)

Well, I'm looking forward to pimp up the Bondi iMac, but unfortunately the 330MHz-CPU-cards seem to become super-rare (even other iMac G3 seems to become rare now).

Anyway - many thanks for your help and advise!


swamprock

macrumors 65816
Aug 2, 2015
1,266
1,839
Michigan
Got it! - It's really sophisticated to get hands on the computing-part of the iMac without getting close to the CRT.
Some time ago a friend of mine gave me an old indigo iMac G3 and after the equalizer of an improper VLC-version blew up the speakers I dismantled the whole thing to make it a bar or cat's home (shame on me! the case is still sitting unused at the attic.)
The way I did the dismantling was really blundering (but carefully when it comes to the CRT-hazards) and I ripped off the whole CRT plus logic-board/drive-thing and dumped the whole stuff.
Well, I then thought: "what a mess" and "bad design", but it only had been my stupid access to the iMac!
(A few weeks later I met a chap selling iMac-speakers for nearly nothing.)

Well, I'm looking forward to pimp up the Bondi iMac, but unfortunately the 330MHz-CPU-cards seem to become super-rare (even other iMac G3 seems to become rare now).

Anyway - many thanks for your help and advise!

Keep your eyes open, as they do pop up from time to time. I waited a good month or so until one seller posted multiple 333mhz cards for sale. I bought two, and hosed one trying to overclock it :)


bobesch

macrumors 68020
Original poster
Oct 21, 2015
2,143
2,222
Kiel, Germany
Keep your eyes open, as they do pop up from time to time. I waited a good month or so until one seller posted multiple 333mhz cards for sale. I bought two, and hosed one trying to overclock it :)

Yahoo, I was lucky to get the 333mhc-card ...

(Wrapped into another Bondi-iMac :) and together with another original KB and Mouse.
I'm really fond of that Bondi-color! Can't hardly wait for it to arrive - hopefully shipping won't mess anything up!)

Last edited:

Macbookprodude

Suspended
Jan 1, 2018
3,306
898
Don’t mean to revive this thread - in addition to classila, has anyone gotten outlook express or the other ones do work with email ?


Macbookprodude

Suspended
Jan 1, 2018
3,306
898
Thanks folks for all support!

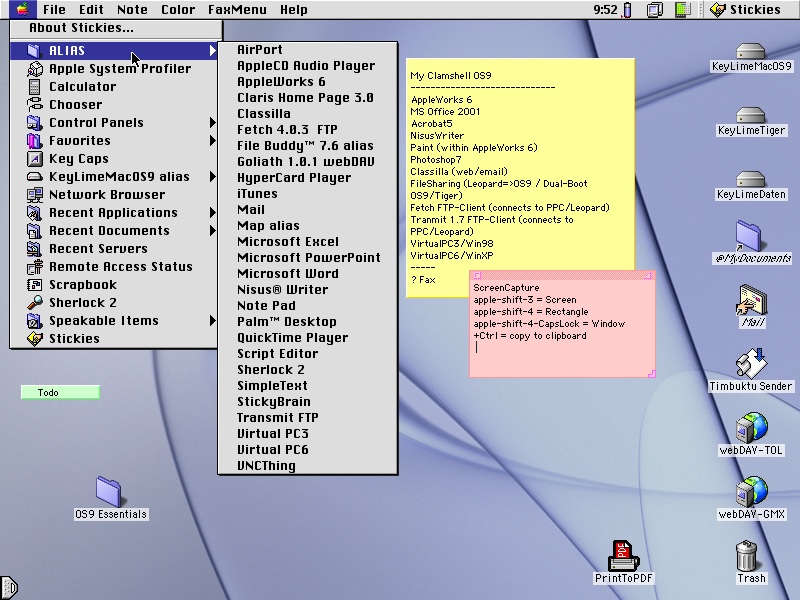

Here's a little picture show, how my KeyLime-MacOS9-project is progressing.
Many thanks also to Macintosh Garden as a keeper of invaluable precious of abandoned software.
The USB-Port of the Clamshell sports enough power to run the "ASUS 3G MOBILE Wireless Router (WL-330N3G)" which hooks up to the ethernet-port for higher encrypted WLAN-access. (Someone here at the forum mentioned that clever way to get MacOS9 connected to WLAN without the need of any drivers and I was lucky, that I had this nice multipurpose ASUS-thing sitting in my drawer)
Using FileSharing with my iBookG4/Leopard it's possible to share it's Dropbox-Account.
Now the MacOS9-Clamshell is really "up-to-date" :)
View attachment 623010
Does Classila still work like this in 2022 ? It looks like MacRumors can be used in classila. How did you get it to work ?
