MP 1,1-5,1 Experience with MacVidCards Europe RX 6600 XT - no bootscreen

jsts · Aug 2, 2022

Hi, guys!

I have a MacPro 4.1->5.1 (2009) + EVGA GTX680 (flashed) + Apple LED Cinema Display 24" DisplayPort + OCLP + Monterey 12.4.

In this configuration, the boot screen displays fine, I can control the boot process.

I bought (on Ebay) an AMD Radeon RX 6600 XT 8GB from MacVidCards Europe.

I turned the Mac off, took the GTX680 out, put the RX6600XT in, and turned the computer back on. However, the monitor screen remained black when booting up until the Monterey was fully loaded.

The system info says RX6600 installed, Macvidcards firmware.

Rebooted the computer as it did the first time - no boot screen visible, monitor starts showing after the operating system is fully loaded.

I wrote about the issue to Marek from MacVidCards, and here is our conversation.

macvidcards-europe:

Hello,

Try resetting NVRAM. We recommend Monerey 12.2.1 which can be used natively without OpenCore: https://www.macvidcards.eu/installing-macos-monterey-12-on-unsupported-mac-pro

Boot screen will always work even with no HDD/SSD installed.

Regards,
Marek Zakrzewski
MacVidCards Europe

My response:

I did a deep NVRAM reset - OPTION+COMMAND+P+R until hearing the 5th chime. No results.

I also disconnected all hard drives and solid state drives from the motherboard - no boot (white) screen.

I have pressed and held OPTION to display boot options - no boot screen.

This is not about OCLP or Monterey 12.4/12.2.1. The issue is that there is no boot screen displayed.

What else should I be looking at? I can provide videos/screenshots if needed.

macvidcards-europe:

What is your display and how it's connected? You can try setting DisplayPort to 1.2 mode and HDMI to 1.4 mode in your displays OSD.

Boot screen must be working as we test each card prior shipping and we have to choose Monterey manually from the boot screen just to be sure.

Make sure the keyboard is connected directly to USB hub inside Mac Pro.

OpenCore makes boot screen black sometimes. It will take several restarts to clear this up to normal grey screen. Just wait patiently.

My response:

I have Apple LED Cinema Display 24 (clarification - mini DisplayPort 1.1 connector) without OSD. https://tim.id.au/laptops/apple/displays/led_cinema_display_24.pdf

So the DisplayPort 1.1 standard is used.

Connected like this:

Apple Cinema Display with built-in mini-DP1.1 cable -> mini-DP to DP adapter -> DP video card input.

The keyboard is connected to the monitor's USB hub, the USB cord from the monitor is connected to the motherboard's USB port. The keyboard works fine either way.

Ok, thanks, I will try some restarts. I will let you know.

macvidcards-europe

This setup (your adapter) could be the problem. Try holding ALT or Option key even on black screen.

There might be boot screen with black background just like on new Macs.

My response:

I tried everything on your advice. I've tried 30 reboots, tried removing all the expansion cards and drives, but no luck.

The mDP-DP adapter cannot affect the bootscreen display, because in all other cases it successfully performs its function. I have recorded a short video for you

With MVC card - https://mega.nz/file/kmJySJoY#Zchj5PiA2GxVfsVXN3JnALTZq4cE3tmgKTB1VqjoIbo
With original card - https://mega.nz/file/57oiDA7R#sBRze376yKesiD9J73EVXNS1Sz2-u9759LCWt5Hn7kY

What else should I look out for? I was just expecting the video card to work "out of the box"...

macvidcards-europe

We've tested with Apple Cinema HD Display 23' with HDMI do DVI adapter, DP to DVI adapter (both active and passive) and native 4K display running HDMI 1.4/2.0 and DisplayPort 1.2 all showed boot screen properly.

What the model of this adapter?

My response:

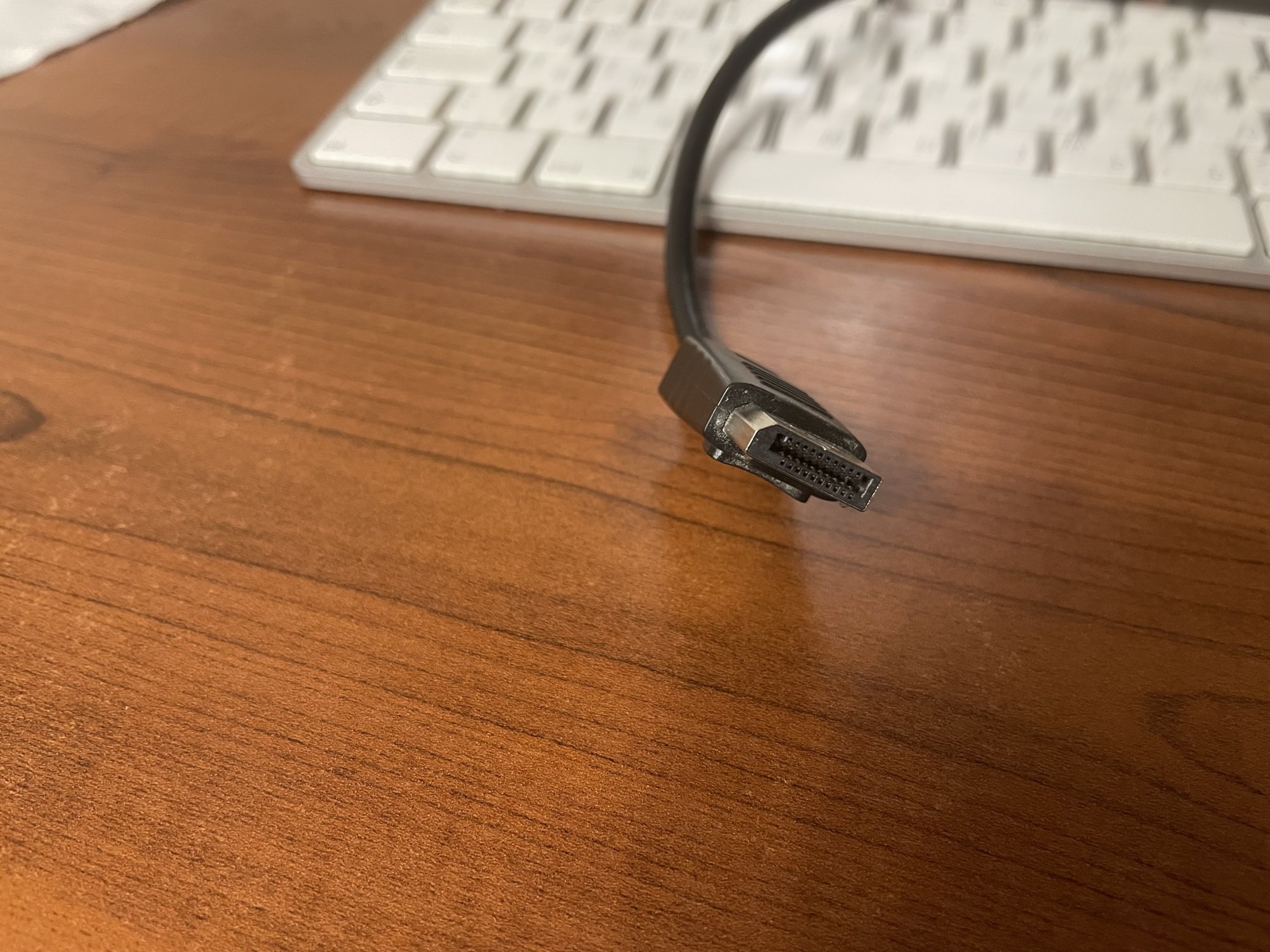

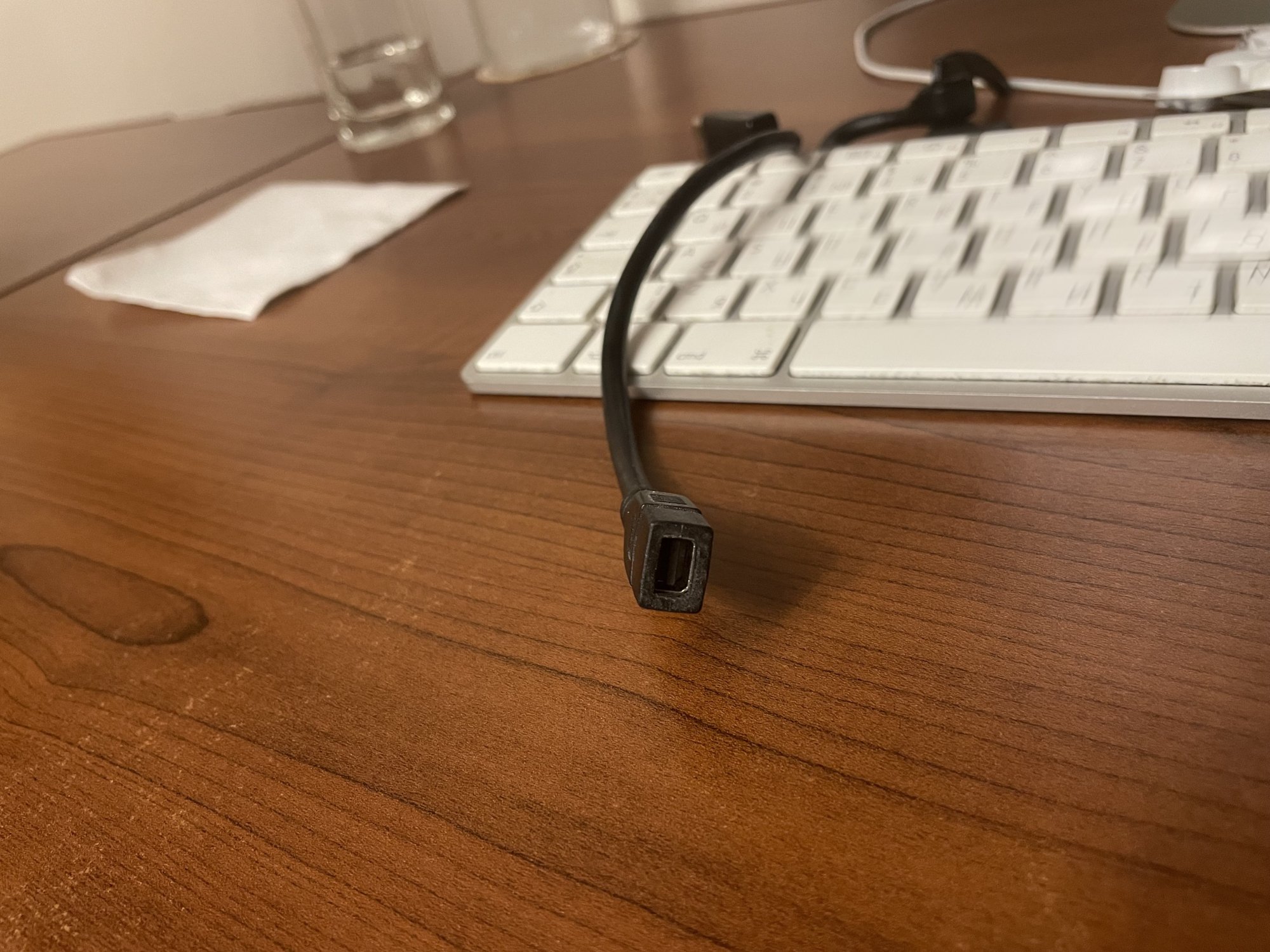

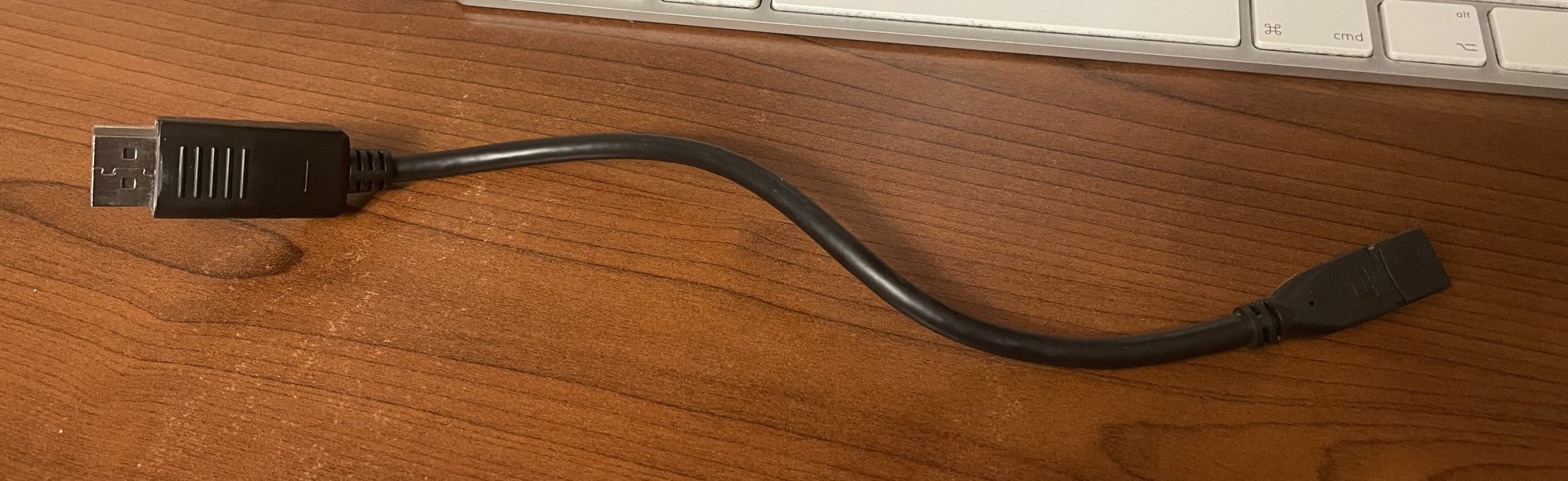

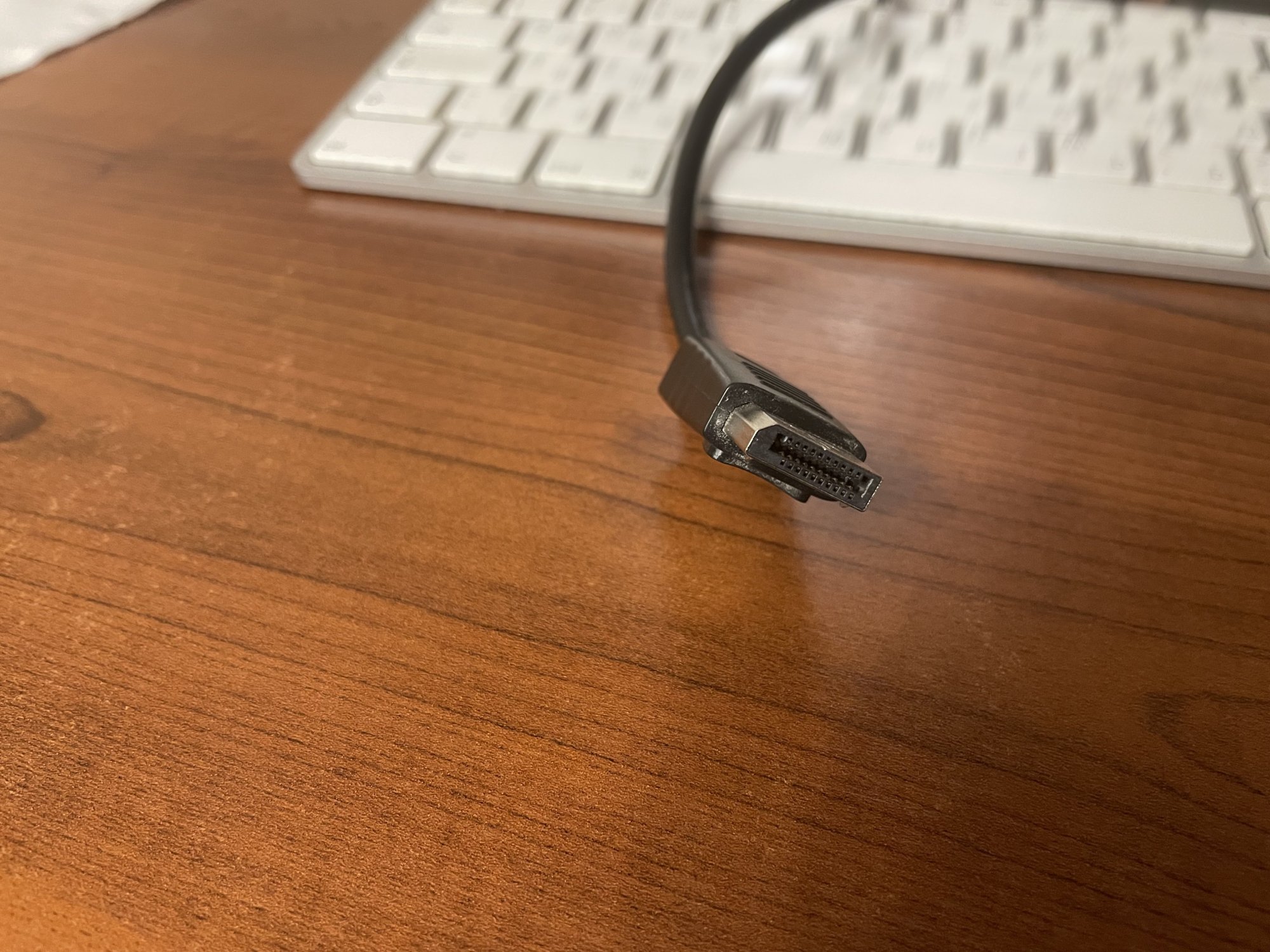

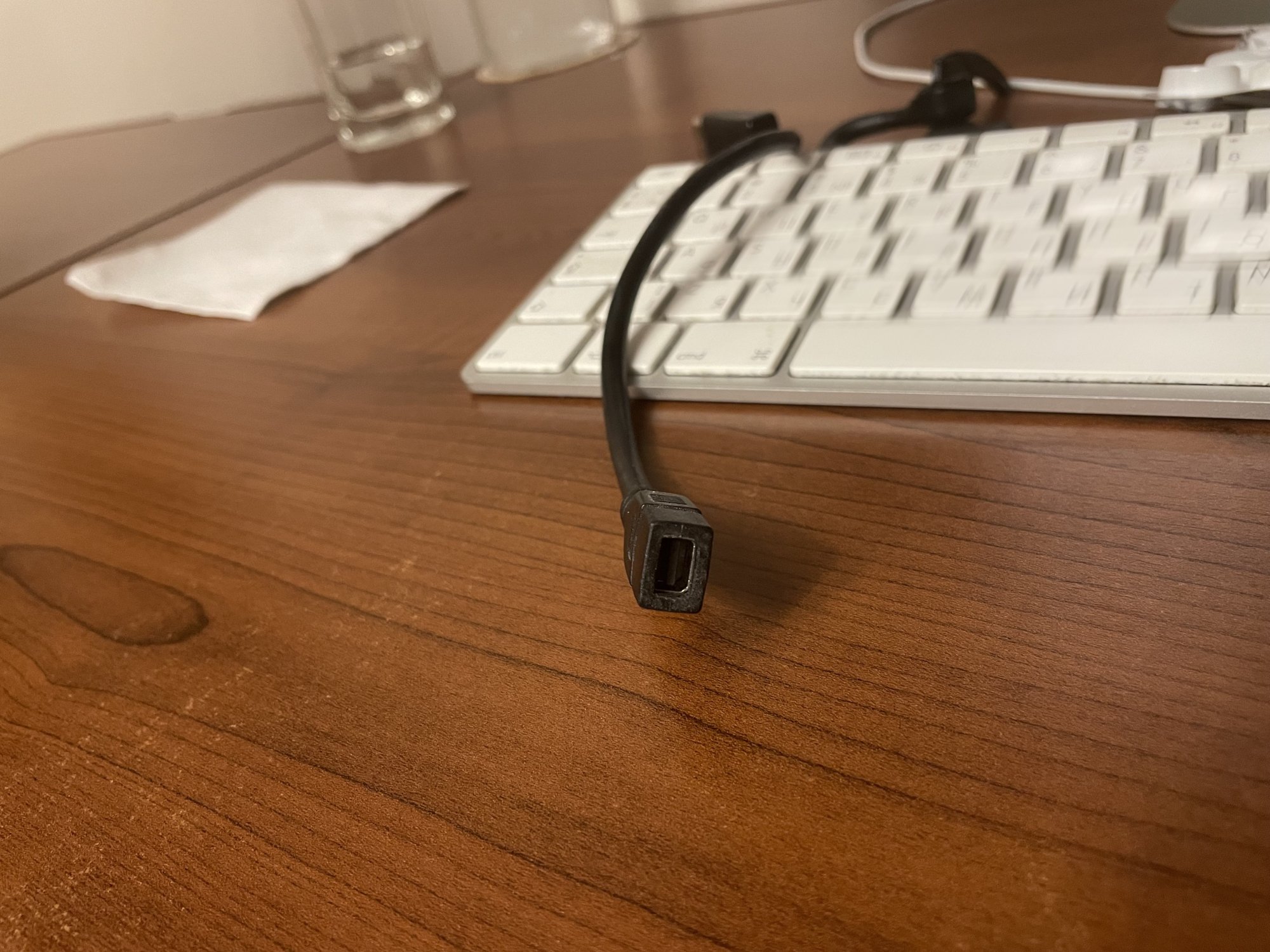

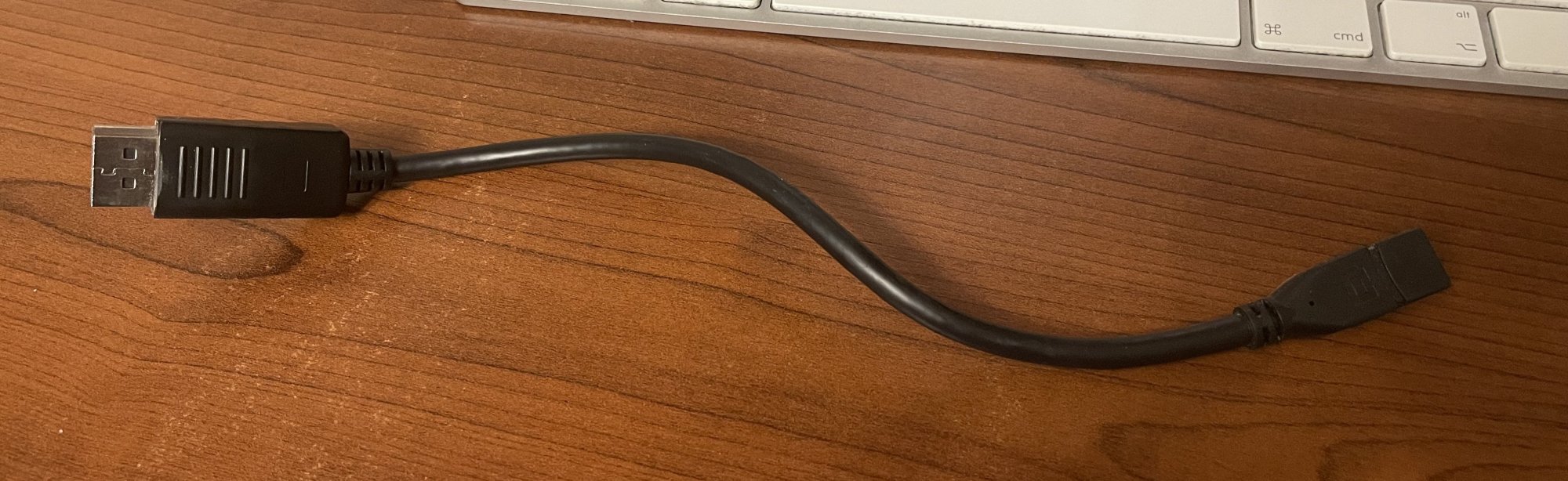

The adapter is noname (or I don't remember the manufacturer name), I've been using it for 9 years. Here's a pictures (attached).

Questions arise:
- Why does the adapter work fine with the gtx680 ?
- Why does the adapter work fine with rx6600 after loading the OS video card drivers?
- How does the adapter can influence not displaying the bootscreen if it works fine after loading the OS video card drivers?

It's very strange... Is there anything I can do to help you get a debug file to investigate?

macvidcards-europe

To display EFI boot screen all components must be ready on boot (it should have some chip inside, then you would see firmware version of such adapter inside macOS). Probably it works inside macOS as soon driver is loaded.

I think GTX680 only supports old DisplayPort 1.1, while this card has DisplayPort 1.2/1.4 mode so adapter should also supports at least DisplayPort 1.2 on boot.

Startech DP2MDPMF3 oraz Club3D CAC-1120 would be best probably. Nobody reported such issues so far.

Regards,
Marek Zakrzewski
MacVidCards Europe

My response:

Marek, with all due respect, but according to the standard, all DisplayPort-to-DisplayPort cables and adapters do not have chips and are 20-pin, regardless of the connector version. The v.1.0 cable is exactly the same as the v.1.4 cable. That is, they are completely identical.

DisplayPort - Wikipedia

en.wikipedia.org

Do you insist on replacing the adapter? If yes, then after its replacement and with further incomplete performance of the video card, what will be our actions?

In general, this is the situation. According to Marek, I'm the first one to come in with this kind of issue, which makes it even weirder.

It seems to me that the behavior of the video card is very similar to the fact that it is stock (not flashed) - there is no bootscreen, but it works when loading Monterey 12.4. I note that the card does not work at all in Mojave 10.14.6, even at the base (low) resolution and without acceleration - just a black screen, although the OS loads normally (I hear it from the rustling of the HDD).

Has anyone encountered anything like this? Is the mDP-DP adapter really the source of the problem? I just couldn't google any similar cases of DisplayPort-DisplayPort cable incompatibility. I'm at a loss.

h9826790 · Aug 2, 2022

jsts said:
Is the mDP-DP adapter really the source of the problem?

Very unlikely. mDP to DP cable is really just an adaptor (of form factor), no chip inside, but just some wires.

TBH, if the card doesn't work as advertised. You should ask for full refund.

jsts · Aug 2, 2022

h9826790 said:
Very unlikely. mDP to DP cable is really just an adaptor (of form factor), no chip inside, but just some wires.

TBH, if the card doesn't work as advertised. You should ask for full refund.

Thank you for your participation. At the same time, I need a card, not money... I'm just trying to understand where the problem lurks.

Borowski · Aug 2, 2022

If the system-profiler lists the card under Graphics/Displays -> Version as "MacVidCards", the EFI seem to work. Example screenshot from MVC: http://www.macvidcards.com/uploads/2/7/6/8/27683275/screen-shot-2019-06-16-at-6-42-47-pm_1_orig.png

Try a different monitor, if the problem is caused by combination videocard and ACD. If other displays work, MVC should work for solution.
ACDs are known for some problems with third-party videocards. I can't find the topic or answer at netkas-forum yet, but i remember it is a hardware-related problem, Apple didn't (again!) take care of some specs. Probably the problem will stay if the card is unflashed.

tsialex · Aug 2, 2022

The card is correctly flashed, without flashing it to make it compatible with Mac Pro your Mac Pro wouldn't even boot since the factory firmware for NAVI2x GPUs is incompatible with Mac Pros.

Did you tested with a modern display to see if it's an incompatibility with your Cinema Display?

Several displays don't work with the pre-boot configuration of Mac Pros, even with late-2013 Mac Pro or 2018 and M1 Mac minis, sometimes is an EDID issue, sometimes it's an incorrect/incompatible resolution selected by the EFI pre-boot configuration and the display.

This is a lot more complicated than people usually think, for example, my ultra-wide LG display works with pre-boot configuration support with a MacPro6,1 with the display warning that is not the correct resolution, but nothing with a MacPro5,1 + flashed AMD HD 7870.

startergo · Aug 2, 2022

Are you using agdpmod=pikera?

jsts · Aug 2, 2022

tsialex said:
This is a lot more complicated than people usually think...

Yes, that's why I don't deal with unsubstantiated accusations of Marek. I see that the card doesn't work the way I expect it to, but I also feel that the card is fine. And I'm trying to get to the bottom of the issue.

Thanks for giving food for thought. So far, unfortunately, I have not been able to try with other monitors...

startergo said:
Are you using agdpmod=pikera?

No, I did not make this setting. Now let's see what it is. Thank.

startergo · Aug 2, 2022

jsts said:
Yes, that's why I don't deal with unsubstantiated accusations of Marek. I see that the card doesn't work the way I expect it to, but I also feel that the card is fine. And I'm trying to get to the bottom of the issue.

Thanks for giving food for thought. So far, unfortunately, I have not been able to try with other monitors...

No, I did not make this setting. Now let's see what it is. Thank.

agdpmod=pikera

Renames board-id to board-ix effectively disabling boardID checks, this is based off of Pike.R.A's work here(opens new window)

This is also required for all Navi GPUs due to the difference in framework with the x6000 drivers

jsts · Aug 2, 2022

As far as I understand, agdpmod=pikera argument is used to prevent the screen from going black on the desktop. That is, to work with the OS. I have no complaints about RX6600XT operability in the OS. In my case, the discussion is about how the card works when the boot screen is displayed - that is, even before OpenCore starts. Or please correct me.

h9826790 · Aug 2, 2022

tsialex said:
The card is correctly flashed

I think at this stage, we can only safely conclude that the card's factory EFI was removed / modded. So that it can boot the cMP.

However, for OP, in this situation, "correctly flashed" should means the Mac EFI UGA works as expected. At this moment, we don't know yet.

Therefore, we better go one step backward. Only assume the card was flashed (this is also confirm by system info shows MVC firmware version), but not the card is correctly flashed.

jsts said:
Thank you for your participation. At the same time, I need a card, not money... I'm just trying to understand where the problem lurks.

Sure.

In this case, we may first figure out if

1) Boot screen isn't there at all

2) Boot screen is there, but not be displayed correctly

IMO, one of the easiest way to check is by holding "option" key to boot. We know that nothing will be displayed. However, if boot screen (or a functioning Mac EFI) isn't there at all. The cMP will hang.

In order to know if the cMP hangs, or the boot manager is there, but just the monitor stay black. You can wait for 3min after hold option to boot (should't take that long for the boot manager to work, but just play safe, give it 3min), then press Enter.

If the cMP hangs, then of course nothing will happen no matter how long you wait.

But if the boot manager is actually there, just you can't see. Then once you press Entre, the cMP should continue to boot to desktop. And your 6600XT will display once the GPU driver is loaded.

jsts said:
As far as I understand, agdpmod=pikera argument is used to prevent the screen from going black on the desktop. That is, to work with the OS.

That parameter won't affect the boot screen ability.

startergo · Aug 2, 2022

h9826790 said:
That parameter won't affect the boot screen ability.

I remember having some issues with W6600 and black screen. What was funny was that even device property injection of that parameter did not help, so I set it up in an SSDT for early injection. But I agree he should test the boot screen by pressing option key at boot. That is independent of the OS.

jsts · Aug 3, 2022

h9826790 said:
In this case, we may first figure out if

1) Boot screen isn't there at all

2) Boot screen is there, but not be displayed correctly

I rechecked this circumstance several times. I turned on my Mac (black screen), held OPTION (black screen), heard chime (black screen), kept holding OPTION for 3 minutes (black screen), released OPTION (black screen), waited another 3 minutes (black screen), then pressed Enter (black screen) and after a while macOS Mavericks loaded and the screen started to display a picture. This can be seen in one of those videos that I recorded for Marek (links are above).

Therefore:

1) Boot screen is there.

2) Boot screen is there, but not be displayed correctly.

Thanks to tsialex's comment about EDID and continuing to look into the problem, I found an article Daniel Eran Dilger | Jul 21, 2010 AppleInsider https://appleinsider.com/articles/1...orts_native_or_720p_video_input_no_1080p.html

EDID limitation

<...> A similar problem affects Apple's 24" LED Cinema Display, which has a native 1920x1200 resolution but only supports that resolution via its DisplayPort input; it won't accept a 1080p signal (1920x1080), the common format of higher end HD equipment such as HDMI set top boxes and the PS3, even though it appears it should be able to.

The problem is that Apple's EDID (Extended Display Identification Data) on the LED Cinema Display doesn't advertise 1080p as an option. EDID is a simple data structure a display sends to output devices that outlines what video formats and settings it knows how to support. Device appear capable of 1080p but simply don't advertise that capability in a way that external devices like the AV360 and Kanex HD can take advantage of.

However, some devices are hardwired to only support 1080p, and can't scale their output to support the Cinema Display's slightly higher resolution nor the 27" iMacs much higher resolution, forcing them to downscale to 720p or not work at all (as is the case with the LED Cinema Display, which is really only indended to work with Apple's Mini DisplayPort-equipped MacBooks and modern desktop Macs).

I also found the EDID decoding for the "big brother" of my monitor, Apple's 27" LED Cinema Display:

https://www.ixbt.com/monitor/apple/led-cinema-display/moninfo-dp.txt

Monitor
  Model name............... LED Cinema
  Manufacturer............. Apple
  Plug and Play ID......... APP9226
  Serial number............ 2A0406AC6JL
  Manufacture date......... 2010, ISO week 40
  -------------------------
  EDID revision............ 1.4
  Input signal type........ Digital (DisplayPort)
  Color bit depth.......... 10 bits per primary color
  Color encoding formats... RGB 4:4:4
  Screen size.............. 600 x 340 mm (27.2 in)
  Power management......... Active off/sleep
  Extension blocs.......... 1 (CEA-EXT)
  -------------------------
  DDC/CI................... Supported
  MCCS revison............. 2.2
  Display technology....... TFT
  Controller............... Not supported
  Firmware revision........ 2.147
  Firmware flags........... 0x00FFFFFF
  Active power on time..... 14544 hours
  Power consumption........ 6.55 kWh
  Current frequency........ 16777.22kHz, 655.35Hz

Color characteristics
  Default color space...... Non-sRGB
  Display gamma............ 2.20
  Red chromaticity......... Rx 0.653 - Ry 0.334
  Green chromaticity....... Gx 0.300 - Gy 0.620
  Blue chromaticity........ Bx 0.146 - By 0.050
  White point (default).... Wx 0.313 - Wy 0.329
  Additional descriptors... None

Timing characteristics
  Range limits............. Not available
  GTF standard............. Not supported
  Additional descriptors... None
  Preferred timing......... Yes
  Native/preferred timing.. 2560x1440p at 60Hz (16:9)
    Modeline............... "2560x1440" 241.500 2560 2608 2640 2720 1440 1443 1448 1481 +hsync -vsync
  Detailed timing #1....... 1280x720p at 60Hz (16:9)
    Modeline............... "1280x720" 74.500 1280 1344 1472 1664 720 723 728 748 -hsync +vsync

Standard timings supported

EIA/CEA-861 Information
  Revision number.......... 3
  IT underscan............. Supported
  Basic audio.............. Supported
  YCbCr 4:4:4.............. Not supported
  YCbCr 4:2:2.............. Not supported
  Native formats........... 1
  Detailed timing #1....... 2560x1440p at 60Hz (16:9)
    Modeline............... "2560x1440" 241.500 2560 2608 2640 2720 1440 1443 1448 1481 +hsync -vsync
  Detailed timing #2....... 1280x720p at 60Hz (16:9)
    Modeline............... "1280x720" 74.500 1280 1344 1472 1664 720 723 728 748 -hsync +vsync

CE audio data (formats supported)
  LPCM    2-channel, 16/20/24 bit depths at 32/44/48 kHz

CE speaker allocation data
  Channel configuration.... 2.0
  Front left/right......... Yes
  Front LFE................ No
  Front center............. No
  Rear left/right.......... No
  Rear center.............. No
  Front left/right center.. No
  Rear left/right center... No
  Rear LFE................. No

Report information
  Date generated........... 19.03.2011
  Software revision........ 2.59.0.934
  Data source.............. Real-time 0x0100
  Operating system......... 5.1.2600.2.Service Pack 3

Raw data
  00,FF,FF,FF,FF,FF,FF,00,06,10,26,92,27,80,30,02,28,14,01,04,B5,3C,22,78,22,6F,B1,A7,55,4C,9E,25,
  0C,50,54,00,00,00,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,56,5E,00,A0,A0,A0,29,50,30,20,
  35,00,55,50,21,00,00,1A,1A,1D,00,80,51,D0,1C,20,40,80,35,00,55,50,21,00,00,1C,00,00,00,FF,00,32,
  41,30,34,30,36,41,43,36,4A,4C,0A,20,00,00,00,FC,00,4C,45,44,20,43,69,6E,65,6D,61,0A,20,20,01,EA,
  02,03,0C,C1,23,09,07,07,83,01,00,00,56,5E,00,A0,A0,A0,29,50,30,20,35,00,55,50,21,00,00,1A,1A,1D,
  00,80,51,D0,1C,20,40,80,35,00,55,50,21,00,00,1C,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,
  00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,13

Apparently, my Apple 24" LED Cinema Display has similar EDID's, that is, it announces only two resolutions:

1) 1280x720p at 60Hz
2) 1920x1200p at 60Hz

That said, 1920x1200p is not the standard 1080p resolution, and the aspect ratio is generally 16:10.

It is noticeable that the MacPro5,1 Boot Screen is output at a "grainy" resolution. It looks very much like some kind of low resolution, and probably NOT 1280x720p, but probably 1280x800 (16:10). And maybe the video card simply doesn't understand what resolution to form because it doesn't get instructions from the monitor. And the monitor can output 1280x800, but it is silent and just waits for this signal from the video card, but the video card perceives the monitor's silence differently.

Is there any information on what resolution the 6600xt generates by default? Is it possible to change this resolution (by editing the firmware)?

startergo · Aug 3, 2022

jsts said:
I rechecked this circumstance several times. I turned on my Mac (black screen), held OPTION (black screen), heard chime (black screen), kept holding OPTION for 3 minutes (black screen), released OPTION (black screen), waited another 3 minutes (black screen), then pressed Enter (black screen) and after a while macOS Mavericks loaded and the screen started to display a picture. This can be seen in one of those videos that I recorded for Marek (links are above).

Therefore:

1) Boot screen is there.

2) Boot screen is there, but not be displayed correctly.

Thanks to tsialex's comment about EDID and continuing to look into the problem, I found an article Daniel Eran Dilger | Jul 21, 2010 AppleInsider https://appleinsider.com/articles/1...orts_native_or_720p_video_input_no_1080p.html

I also found the EDID decoding for the "big brother" of my monitor, Apple's 27" LED Cinema Display:

https://www.ixbt.com/monitor/apple/led-cinema-display/moninfo-dp.txt

Monitor Model name............... LED Cinema Manufacturer............. Apple Plug and Play ID......... APP9226 Serial number............ 2A0406AC6JL Manufacture date......... 2010, ISO week 40 ------------------------- EDID revision............ 1.4 Input signal type........ Digital (DisplayPort) Color bit depth.......... 10 bits per primary color Color encoding formats... RGB 4:4:4 Screen size.............. 600 x 340 mm (27.2 in) Power management......... Active off/sleep Extension blocs.......... 1 (CEA-EXT) ------------------------- DDC/CI................... Supported MCCS revison............. 2.2 Display technology....... TFT Controller............... Not supported Firmware revision........ 2.147 Firmware flags........... 0x00FFFFFF Active power on time..... 14544 hours Power consumption........ 6.55 kWh Current frequency........ 16777.22kHz, 655.35Hz Color characteristics Default color space...... Non-sRGB Display gamma............ 2.20 Red chromaticity......... Rx 0.653 - Ry 0.334 Green chromaticity....... Gx 0.300 - Gy 0.620 Blue chromaticity........ Bx 0.146 - By 0.050 White point (default).... Wx 0.313 - Wy 0.329 Additional descriptors... None Timing characteristics Range limits............. Not available GTF standard............. Not supported Additional descriptors... None Preferred timing......... Yes Native/preferred timing.. 2560x1440p at 60Hz (16:9) Modeline............... "2560x1440" 241.500 2560 2608 2640 2720 1440 1443 1448 1481 +hsync -vsync Detailed timing #1....... 1280x720p at 60Hz (16:9) Modeline............... "1280x720" 74.500 1280 1344 1472 1664 720 723 728 748 -hsync +vsync Standard timings supported EIA/CEA-861 Information Revision number.......... 3 IT underscan............. Supported Basic audio.............. Supported YCbCr 4:4:4.............. Not supported YCbCr 4:2:2.............. Not supported Native formats........... 1 Detailed timing #1....... 2560x1440p at 60Hz (16:9) Modeline............... "2560x1440" 241.500 2560 2608 2640 2720 1440 1443 1448 1481 +hsync -vsync Detailed timing #2....... 1280x720p at 60Hz (16:9) Modeline............... "1280x720" 74.500 1280 1344 1472 1664 720 723 728 748 -hsync +vsync CE audio data (formats supported) LPCM 2-channel, 16/20/24 bit depths at 32/44/48 kHz CE speaker allocation data Channel configuration.... 2.0 Front left/right......... Yes Front LFE................ No Front center............. No Rear left/right.......... No Rear center.............. No Front left/right center.. No Rear left/right center... No Rear LFE................. No Report information Date generated........... 19.03.2011 Software revision........ 2.59.0.934 Data source.............. Real-time 0x0100 Operating system......... 5.1.2600.2.Service Pack 3 Raw data 00,FF,FF,FF,FF,FF,FF,00,06,10,26,92,27,80,30,02,28,14,01,04,B5,3C,22,78,22,6F,B1,A7,55,4C,9E,25, 0C,50,54,00,00,00,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,56,5E,00,A0,A0,A0,29,50,30,20, 35,00,55,50,21,00,00,1A,1A,1D,00,80,51,D0,1C,20,40,80,35,00,55,50,21,00,00,1C,00,00,00,FF,00,32, 41,30,34,30,36,41,43,36,4A,4C,0A,20,00,00,00,FC,00,4C,45,44,20,43,69,6E,65,6D,61,0A,20,20,01,EA, 02,03,0C,C1,23,09,07,07,83,01,00,00,56,5E,00,A0,A0,A0,29,50,30,20,35,00,55,50,21,00,00,1A,1A,1D, 00,80,51,D0,1C,20,40,80,35,00,55,50,21,00,00,1C,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00, 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00, 00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,00,13

Apparently, my Apple 24" LED Cinema Display has similar EDID's, that is, it announces only two resolutions:

1) 1280x720p at 60Hz
2) 1920x1200p at 60Hz

That said, 1920x1200p is not the standard 1080p resolution, and the aspect ratio is generally 16:10.

It is noticeable that the MacPro5,1 Boot Screen is output at a "grainy" resolution. It looks very much like some kind of low resolution, and probably NOT 1280x720p, but probably 1280x800 (16:10). And maybe the video card simply doesn't understand what resolution to form because it doesn't get directions from the monitor. And the monitor can output 1280x800, but it is silent and just waits for this signal from the video card, but the video card perceives the monitor's silence differently.

Is there any information on what resolution the 6600xt generates by default? Is it possible to change this resolution (by editing the firmware)?

If you use the Debug OC version and enable debugging it will tell you a lot in the Debug log. At least how OC handles your display and what is missing. I am surprised that Marek did not test it with Cinema display. Once you create the debug log @joevt may hint a solution.

joevt · Aug 4, 2022

startergo said:
If you use the Debug OC version and enable debugging it will tell you a lot in the Debug log. At least how OC handles your display and what is missing. I am surprised that Marek did not test it with Cinema display. Once you create the debug log @joevt may hint a solution.

OC Log should show if it's trying to use the display and what resolution it's trying.

In case OC is trying to use the wrong resolution, I would try a 4K display that can accept any resolution.

startergo · Aug 4, 2022

joevt said:
In case OC is trying to use the wrong resolution, I would try a 4K display that can accept any resolution.

But why Apple boot screen is black too? it has nothing to do with OC. It is a Cinema display (with odd resolution)

joevt · Aug 5, 2022

startergo said:
But why Apple boot screen is black too? it has nothing to do with OC. It is a Cinema display (with odd resolution)

OC or Apple doesn't matter. Only OC is going to give you a log with info to look at.

jsts · Aug 6, 2022

Let me remind, I have OpenCore 0.8.0 via OpenCore Legacy Patcher (OCLP 0.4.10), Monterey 12.4, Apple LED Cinema Display 24".

1. Nvidia GTX680 (flashed mac FW). I enabled the opencore debug log:

Code:

00:000 00:000 OC: Starting OpenCore...
<...>
04:796 00:012 OCC: GOP exists on ConsoleOutHandle and has 1 modes
04:808 00:011 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
04:818 00:010 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
04:830 00:011 OCC: Current FB at 0x80020000 (0x960000), format 1, res 1920x1200 scan 2048
04:839 00:008 OCC: Mode 0 - 1920x1200:1
04:848 00:008 OCC: Current mode matches desired mode 0
04:856 00:008 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started
04:865 00:008 OCC: Using builtin text renderer with 1 scale
04:877 00:012 OCC: Install console control (74A3A9C0/0/0), current - Success
04:887 00:009 OCC: Setup ASCII Output - Success
04:896 00:008 OC: Requested console mode is 0x0 (max: 0) from
04:904 00:008 OC: Requested not to use audio
04:913 00:008 OC: OcMiscLoadSystemReport...
04:925 00:011 OC: OcLoadAcpiSupport...
<...>

2. I placed an RX 6600 XT. Until macOS started, the screen remained black (that is, there was no opencore bootscreen/bootpicker either) and the log was this:

Code:

00:000 00:000 OC: Starting OpenCore...
<...>
05:164 00:012 OCC: GOP exists on ConsoleOutHandle and has 1 modes
05:177 00:012 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
05:189 00:012 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
05:203 00:013 OCC: Current FB at 0x80000000 (0x300000), format 1, res 1024x768 scan 1024
05:216 00:013 OCC: Mode 0 - 1024x768:1
05:229 00:012 OCC: Current mode matches desired mode 0
05:241 00:012 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started
05:255 00:013 OCC: Using builtin text renderer with 1 scale
05:267 00:012 OCC: Install console control (753AE9C0/0/0), current - Success
05:280 00:012 OCC: Setup ASCII Output - Success
05:293 00:013 OC: Requested console mode is 0x0 (max: 0) from
05:306 00:013 OC: Requested not to use audio
05:319 00:012 OC: OcMiscLoadSystemReport...
05:332 00:012 OC: OcLoadAcpiSupport...
<...>

3. Then I plugged the computer with the RX 6600 XT into the LG OLED55CX (4K) panel via HDMI. Apple bootscreen appeared (!), OpenCore bootscreen also appeared and in the log was this:

Code:

00:000 00:000 OC: Starting OpenCore...
<...>
05:773 00:042 OCC: GOP exists on ConsoleOutHandle and has 1 modes
05:815 00:042 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
05:858 00:042 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
05:900 00:042 OCC: Current FB at 0x80000000 (0x500000), format 1, res 1280x1024 scan 1280
05:943 00:042 OCC: Mode 0 - 1280x1024:1
05:985 00:042 OCC: Current mode matches desired mode 0
06:027 00:042 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started
06:069 00:042 OCC: Using builtin text renderer with 1 scale
06:112 00:043 OCC: Install console control (728209C0/0/0), current - Success
06:154 00:041 OCC: Setup ASCII Output - Success
06:196 00:042 OC: Requested console mode is 0x0 (max: 0) from
06:239 00:042 OC: Requested not to use audio
06:281 00:042 OC: OcMiscLoadSystemReport...
06:324 00:042 OC: OcLoadAcpiSupport...
<...>

4. Then I decided to rebuild OpenCore due to the replacement of the video card and got the following log:

Code:

Building Configuration on model: MacPro5,1
Created build folder

- Adding OpenCore v0.8.0 DEBUG
- Adding config.plist for OpenCore
- Adding Lilu.kext 1.6.0
- Adding WhateverGreen.kext 1.5.8
- Adding RestrictEvents.kext 1.0.6
- Adding SMC-Spoof.kext 1.0.0
- Adding AppleMCEReporterDisabler.kext 1.0.0
- Adding CPUFriend.kext 1.2.5
- Adding AppleALC.kext 1.6.3
- Enabling SMC exemption patch
- Adding FeatureUnlock.kext 1.0.8
- Overriding ACPI SMC matching
- Adding ASPP-Override.kext 1.0.1
- Adding SurPlus Patch for Race Condition
- Adding NoAVXFSCompressionTypeZlib.kext 12.3.1
- Fixing PCIe Storage Controller (1) reporting
- Fixing PCIe Storage Controller (2) reporting
- Fixing PCIe Storage Controller (3) reporting
- Fixing PCIe Storage Controller (4) reporting
- Fixing PCIe Storage Controller (5) reporting
- No 3rd Party NVMe drives found
- Found Wireless Device 14E4:43BA
- Adding AirportBrcmFixup.kext 2.1.3
- Setting Wireless Card's Country Code: X0
- Found ARPT device at PciRoot(0x0)/Pci(0x1c,0x5)/Pci(0x0,0x0)
- Adding AppleGraphicsPowerManagement Override
- Adding AppleALC.kext 1.6.3
- Found dGPU (1): 1002:73FF
- Failed to find Device path for dGPU 1
- Adding Mac Pro, Xserve DRM patches
- Falling back to boot-args
- Adding OpenCanopy GUI
- Adding ExFatDxeLegacy.efi
- Adding USB 3.0 Controller Patch
- Adding XhciDxe.efi and UsbBusDxe.efi
- Enabling Verbose boot
- Enable Beta Lilu support
- Enabling DEBUG OpenCore
- Enabling ShowPicker
- Adding bootmgfw.efi BlessOverride
- Setting macOS Monterey Supported SMBIOS
- Using Model ID: MacPro7,1
- Using Board ID: Mac-27AD2F918AE68F61
- Using Minimal SMBIOS patching
- Setting Firmware Feature: 8c01c1403
- Cleaning up files


Your OpenCore EFI for MacPro5,1 has been built at:
    /var/folders/5p/f5brlw7x3rqb5shx9638wz4r0000gn/T/tmp5hmwx3sx/Build-Folder/OpenCore-Build

As you can see the rx6600xt is found, but

- Found dGPU (1): 1002:73FF
- Failed to find Device path for dGPU 1

It looks like OpenCore doesn't like something. At the same time, the card in macOS (after loading the drivers) works.

Basically, there is an issue with the resolutions on the MacVidCards firmware. The card probably receives 1024x768:1 from the monitor, forms 1024x768:1 and gives it to the monitor, but the monitor can't display it because the EFI/monitor/monitor firmware wants 1024x800:1 (I think so).

Further conversation with Marek is like this.

I write:

Marek, I reached out to the MacRumors community for help in the thread https://forums.macrumors.com/thread...ards-europe-rx-6600-xt-no-bootscreen.2353396/ .

Apparently, for some reason, the card can't work properly with 2008-2011 Apple LED Cinema Display (DisplayPort) monitors.

Given the considerations in the thread, can you tell me if this problem is solvable (by tweaking the firmware) or not?

macvidcards-europe:

I will ask our developer. Maybe RX 5700 XT would work better for you. We've got 3 in stock.

Regards,
Marek Zakrzewski
MacVidCards Europe

macvidcards-europe:

Hello,

Developer says "It says macvidcards in info, means protection is fine, efi loaded and executed. Likely display incompatibility."

The only miniDisplayPort card we do from the high end's is Radeon Pro W5700 or WX9100. I would test RX 5700 XT first.

We haven't done W6800 yet, but it's possible.

Regards,
Marek Zakrzewski
MacVidCards Europe

I write:

I get it. Thank you. I'll keep the 6600xt and consider replacing the monitor. Good luck!

macvidcards-europe:

Ok, thanks. Sorry for the issues, but we can't test every display on the planet.

Regards,
Marek Zakrzewski
MacVidCards Europe

Something like this.

Now I'm looking for how to rigidly set the resolution through OCLP to 1920x1200:1 so that the OC BootPicker is visible. And, apparently, I will have to consider replacing the monitor.

startergo · Aug 6, 2022

jsts said:

Let me remind, I have OpenCore 0.8.0 via OpenCore Legacy Patcher (OCLP 0.4.10), Monterey 12.4, Apple LED Cinema Display 24".

1. Nvidia GTX680 (flashed mac FW). I enabled the opencore debug log:

Code:

00:000 00:000 OC: Starting OpenCore...
<...>
04:796 00:012 OCC: GOP exists on ConsoleOutHandle and has 1 modes
04:808 00:011 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
04:818 00:010 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
04:830 00:011 OCC: Current FB at 0x80020000 (0x960000), format 1, res 1920x1200 scan 2048
04:839 00:008 OCC: Mode 0 - 1920x1200:1
04:848 00:008 OCC: Current mode matches desired mode 0
04:856 00:008 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started
04:865 00:008 OCC: Using builtin text renderer with 1 scale
04:877 00:012 OCC: Install console control (74A3A9C0/0/0), current - Success
04:887 00:009 OCC: Setup ASCII Output - Success
04:896 00:008 OC: Requested console mode is 0x0 (max: 0) from
04:904 00:008 OC: Requested not to use audio
04:913 00:008 OC: OcMiscLoadSystemReport...
04:925 00:011 OC: OcLoadAcpiSupport...
<...>

2. I placed an RX 6600 XT. Until macOS started, the screen remained black (that is, there was no opencore bootscreen/bootpicker either) and the log was this:

Code:

00:000 00:000 OC: Starting OpenCore...
<...>
05:164 00:012 OCC: GOP exists on ConsoleOutHandle and has 1 modes
05:177 00:012 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
05:189 00:012 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
05:203 00:013 OCC: Current FB at 0x80000000 (0x300000), format 1, res 1024x768 scan 1024
05:216 00:013 OCC: Mode 0 - 1024x768:1
05:229 00:012 OCC: Current mode matches desired mode 0
05:241 00:012 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started
05:255 00:013 OCC: Using builtin text renderer with 1 scale
05:267 00:012 OCC: Install console control (753AE9C0/0/0), current - Success
05:280 00:012 OCC: Setup ASCII Output - Success
05:293 00:013 OC: Requested console mode is 0x0 (max: 0) from
05:306 00:013 OC: Requested not to use audio
05:319 00:012 OC: OcMiscLoadSystemReport...
05:332 00:012 OC: OcLoadAcpiSupport...
<...>

3. Then I plugged the computer with the RX 6600 XT into the LG OLED55CX (4K) panel via HDMI. Apple bootscreen appeared (!), OpenCore bootscreen also appeared and in the log was this:

Code:

00:000 00:000 OC: Starting OpenCore...
<...>
05:773 00:042 OCC: GOP exists on ConsoleOutHandle and has 1 modes
05:815 00:042 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
05:858 00:042 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
05:900 00:042 OCC: Current FB at 0x80000000 (0x500000), format 1, res 1280x1024 scan 1280
05:943 00:042 OCC: Mode 0 - 1280x1024:1
05:985 00:042 OCC: Current mode matches desired mode 0
06:027 00:042 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started
06:069 00:042 OCC: Using builtin text renderer with 1 scale
06:112 00:043 OCC: Install console control (728209C0/0/0), current - Success
06:154 00:041 OCC: Setup ASCII Output - Success
06:196 00:042 OC: Requested console mode is 0x0 (max: 0) from
06:239 00:042 OC: Requested not to use audio
06:281 00:042 OC: OcMiscLoadSystemReport...
06:324 00:042 OC: OcLoadAcpiSupport...
<...>

4. Then I decided to rebuild OpenCore due to the replacement of the video card and got the following log:

Code:

Building Configuration on model: MacPro5,1
Created build folder

- Adding OpenCore v0.8.0 DEBUG
- Adding config.plist for OpenCore
- Adding Lilu.kext 1.6.0
- Adding WhateverGreen.kext 1.5.8
- Adding RestrictEvents.kext 1.0.6
- Adding SMC-Spoof.kext 1.0.0
- Adding AppleMCEReporterDisabler.kext 1.0.0
- Adding CPUFriend.kext 1.2.5
- Adding AppleALC.kext 1.6.3
- Enabling SMC exemption patch
- Adding FeatureUnlock.kext 1.0.8
- Overriding ACPI SMC matching
- Adding ASPP-Override.kext 1.0.1
- Adding SurPlus Patch for Race Condition
- Adding NoAVXFSCompressionTypeZlib.kext 12.3.1
- Fixing PCIe Storage Controller (1) reporting
- Fixing PCIe Storage Controller (2) reporting
- Fixing PCIe Storage Controller (3) reporting
- Fixing PCIe Storage Controller (4) reporting
- Fixing PCIe Storage Controller (5) reporting
- No 3rd Party NVMe drives found
- Found Wireless Device 14E4:43BA
- Adding AirportBrcmFixup.kext 2.1.3
- Setting Wireless Card's Country Code: X0
- Found ARPT device at PciRoot(0x0)/Pci(0x1c,0x5)/Pci(0x0,0x0)
- Adding AppleGraphicsPowerManagement Override
- Adding AppleALC.kext 1.6.3
- Found dGPU (1): 1002:73FF
- Failed to find Device path for dGPU 1
- Adding Mac Pro, Xserve DRM patches
- Falling back to boot-args
- Adding OpenCanopy GUI
- Adding ExFatDxeLegacy.efi
- Adding USB 3.0 Controller Patch
- Adding XhciDxe.efi and UsbBusDxe.efi
- Enabling Verbose boot
- Enable Beta Lilu support
- Enabling DEBUG OpenCore
- Enabling ShowPicker
- Adding bootmgfw.efi BlessOverride
- Setting macOS Monterey Supported SMBIOS
- Using Model ID: MacPro7,1
- Using Board ID: Mac-27AD2F918AE68F61
- Using Minimal SMBIOS patching
- Setting Firmware Feature: 8c01c1403
- Cleaning up files


Your OpenCore EFI for MacPro5,1 has been built at:
    /var/folders/5p/f5brlw7x3rqb5shx9638wz4r0000gn/T/tmp5hmwx3sx/Build-Folder/OpenCore-Build

As you can see the rx6600xt is found, but

- Found dGPU (1): 1002:73FF
- Failed to find Device path for dGPU 1

It looks like OpenCore doesn't like something. At the same time, the card in macOS (after loading the drivers) works.

Basically, there is an issue with the resolutions on the MacVidCards firmware. The card probably receives 1024x768:1 from the monitor, forms 1024x768:1 and gives it to the monitor, but the monitor can't display it because the EFI/monitor/monitor firmware wants 1024x800:1 (I think so).

Further conversation with Marek is like this.

I write:

macvidcards-europe:

macvidcards-europe:

I write:

macvidcards-europe:

Something like this.

Now I'm looking for how to rigidly set the resolution through OCLP to 1920x1200:1 so that the OC BootPicker is visible. And, apparently, I will have to consider replacing the monitor.

Right, but this is not "every monitor on the planet" it is one of few Apple monitors. How many monitors Apple sells that they can't be all tested?

joevt · Aug 6, 2022

jsts said:
Now I'm looking for how to rigidly set the resolution through OCLP to 1920x1200:1 so that the OC BootPicker is visible. And, apparently, I will have to consider replacing the monitor.

I think OC BootPicker has option for setting the resolution to a different mode but it has to be a mode that is provided by the EFI driver.

Maybe EDID override in EFI? I don't know if that's possible or how to do it. Seems to me if the display has a valid EDID then you shouldn't need to override it. Can you provide your EDID? Or at least the product ID so we can find it elsewhere.

You didn't provide the entire OC log. I can't tell if the GOP is from the MacVidCard EFI or from OpenCore. Maybe you can ask Marek if the GPU has GOP or UGA or both. I think the point of getting GPU from MacVidCard is to get a GPU with UGA driver to use with old Mac Pros?

Does the OC log contain an EDID? It would be useful to know if the GPU is getting the EDID at least.

startergo · Aug 6, 2022

joevt said:
I think OC BootPicker has option for setting the resolution to a different mode but it has to be a mode that is provided by the EFI driver.

Maybe EDID override in EFI? I don't know if that's possible or how to do it. Seems to me if the display has a valid EDID then you shouldn't need to override it. Can you provide your EDID? Or at least the product ID so we can find it elsewhere.

You didn't provide the entire OC log. I can't tell if the GOP is from the MacVidCard EFI or from OpenCore. Maybe you can ask Marek if the GPU has GOP or UGA or both. I think the point of getting GPU from MacVidCard is to get a GPU with UGA driver to use with old Mac Pros?

Does the OC log contain an EDID? It would be useful to know if the GPU is getting the EDID at least.

Looking at this:

Code:

05:203 00:013 OCC: Current FB at 0x80000000 (0x300000), format 1, res 1024x768 scan 1024
05:216 00:013 OCC: Mode 0 - 1024x768:1

This must be the UGA portion injected by MVC? Cause the display does not provide such resolution.

startergo · Aug 6, 2022

Get the EDID along with other info with:

Code:

/System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/AGDCDiagnose -a > ~/Downloads/AGDCDiagnose.txt

netkas · Aug 6, 2022

startergo said:
Looking at this:

Code:

05:203 00:013 OCC: Current FB at 0x80000000 (0x300000), format 1, res 1024x768 scan 1024 05:216 00:013 OCC: Mode 0 - 1024x768:1

This must be the UGA portion injected by MVC? Cause the display does not provide such resolution.

mvc's efi sets highest available resolution ( aka mode 0). if all rx6600 can report with ACD, in efi, is 1024x768, then it will be choosed

jsts · Aug 6, 2022

This is full opencore log with gtx680:

Code:

00:000 00:000 OC: Starting OpenCore...
00:000 00:000 OC: Booter path - EFI\OC\OpenCore.efi
00:000 00:000 OCFS: Trying to locate filesystem on 75B3B798 74CF4618
00:000 00:000 OCFS: Filesystem DP - EFI\OC\OpenCore.efi
00:000 00:000 OC: Absolute booter path - EFI\OC\OpenCore.efi
00:000 00:000 OC: Storage root EFI\OC\OpenCore.efi
00:000 00:000 OCST: Missing vault data, ignoring...
00:000 00:000 OC: OcMiscEarlyInit...
00:000 00:000 OC: Loaded configuration of 33410 bytes
00:000 00:000 OC: Watchdog status is 1
00:032 00:032 OC: OpenCore DBG-080-2022-04-18 is loading in Optional mode (0/0)...
00:041 00:008 OC: Boot timestamp - 2022.08.04 18:31:02
00:050 00:008 OCCPU: MP services threads 24 (enabled 24) - Success
00:058 00:008 OCCPU: MP services Pkg 2 Cores 16 Threads 32 - Success
00:067 00:008 OCCPU: Found Intel(R) Xeon(R) CPU           X5690  @ 3.47GHz
00:078 00:010 OCCPU: Signature 206C2 Stepping 2 Model 2C Family 6 Type 0 ExtModel 2 ExtFamily 0 uCode 1F CPUID MAX (B/80000008)
00:087 00:009 OCCPU: EIST CFG Lock 0
00:099 00:011 OCCPU: Timer address is 408 from LPC
00:211 00:112 OCCPU: Intel TSC:  3457999558Hz,  3457MHz; FSB:   132999983Hz,   132MHz; MaxBusRatio: 26
00:222 00:011 OCCPU: Detected Apple Processor Type: 05 -> 0501
00:231 00:008 OCCPU: CPUFrequencyFromTSC  3457995369Hz  3457MHz
00:240 00:008 OCCPU: CPUFrequencyFromApple  3457999558Hz  3457MHz
00:251 00:011 OCCPU: CPUFrequency  3457999558Hz  3457MHz
00:260 00:008 OCCPU: FSBFrequency   132999983Hz   132MHz
00:270 00:009 OCCPU: Pkg 2 Cores 6 Threads 12
00:280 00:009 OC: OcLoadNvramSupport...
00:290 00:010 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found
00:301 00:010 OC: Not deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:OC_BID, matches add
00:310 00:009 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Version, matches add
00:321 00:010 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Model, matches add
00:331 00:010 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Settings, matches add
00:341 00:010 OC: Deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Spoofed-SN - Not Found
00:351 00:010 OC: Deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Spoofed-MLB - Not Found
00:361 00:010 OC: Deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:revcpu - Not Found
00:370 00:008 OC: Deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:revcpuname - Not Found
00:380 00:010 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success
00:392 00:011 OC: Deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - Success
00:406 00:014 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success
00:418 00:012 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:OC_BID - ignored, exists
00:430 00:011 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Model - ignored, exists
00:439 00:009 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Settings - ignored, exists
00:452 00:012 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Version - ignored, exists
00:467 00:015 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - Success
00:480 00:012 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - Success
00:489 00:009 OC: Current version is DBG-080-2022-04-18
00:498 00:008 OC: OcMiscMiddleInit...
00:507 00:008 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:boot-path = PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F,0x28,0x64000)/EFI\OC\OpenCore.efi - Success
00:516 00:009 OC: StorageHandle 75B3B798 with Full LauncherOption pointing to Default
00:525 00:008 OCB: Missing FW NVRAM, going on...
00:534 00:008 OCB: Have existing order of size 4 - Buffer Too Small
00:542 00:008 OCB: Have existing option at Boot0001, valid
00:554 00:011 OCB: Boot order has first option as the default option
00:573 00:018 OC: Launcher EFI\OC\OpenCore.efi signature is A853FE59
00:582 00:008 OC: OcLoadUefiSupport...
00:590 00:008 OCAU: OcAudioInstallProtocols (0, 0)
00:599 00:008 OCAU: 4B228577-6274-4A48-82AE-0713A1171987 protocol - Not Found
00:608 00:008 OCAU: C32332DF-FC56-4FE1-9358-BA0D529B24CD protocol - Success
00:617 00:008 OCAU: F4CB0B78-243B-11E7-A524-B8E8562CBAFA protocol - Not Found
00:625 00:008 OCAU: 3224B169-EC34-46D2-B779-E1B1687F525F protocol - Not Found
00:634 00:008 OC: Disabling audio in favour of firmware implementation
00:643 00:008 OCAE: Builtin installed
00:652 00:008 OC: Loading Apple Secure Boot with Disabled (level 0)
00:660 00:008 OCII: AIFTimerBoostInit Current timer is 2500
00:669 00:008 OCABC: ALRBL 0 RTDFRG 0 DEVMMIO 0 NOSU 0 NOVRWR 1 NOSB 0 FBSIG 1 NOHBMAP 0 SMSLIDE 0 WRUNPROT 0
00:678 00:009 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 0 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 0 APPLOS 0 RTPERMS 0 ARBAR -1
00:687 00:009 OCABC: Firmware has 25152976 free pages (478672 in lower 4 GB)
00:696 00:008 OCABC: Awaiting rendezvous with OpenRuntime r12
00:705 00:008 OC: RequestBootVarRouting 1
00:715 00:009 OCDM: Found 0x1000A UEFI version (368 bytes, rebuilding to 376)
00:724 00:009 OC: AVX enabled - 0
00:733 00:008 OC: Got 6 drivers
00:742 00:009 OC: Driver OpenRuntime.efi at 0 () is being loaded...
00:754 00:011 OCB: Arch filtering 0(40964)->74CCA018(40964) caps 4 - Success
00:764 00:009 OCABC: Got rendezvous with OpenRuntime r12
00:773 00:008 OCABC: MAT support is 0
00:785 00:011 OC: Driver OpenRuntime.efi at 0 is successfully loaded!
00:793 00:008 OC: Driver OpenCanopy.efi at 1 () is being loaded...
00:805 00:011 OCB: Arch filtering 0(163840)->74CAC018(163840) caps 4 - Success
00:816 00:010 OCUI: Registered custom GUI protocol
00:825 00:008 OC: Driver OpenCanopy.efi at 1 is successfully loaded!
00:834 00:008 OC: Driver ExFatDxeLegacy.efi at 2 () is being loaded...
00:844 00:010 OCB: Arch filtering 0(22976)->74CCF018(22976) caps 4 - Success
00:854 00:009 OC: Driver ExFatDxeLegacy.efi at 2 is successfully loaded!
00:863 00:008 OC: Driver ExFatDxeLegacy.efi at 2 needs connection.
00:873 00:009 OC: Driver XhciDxe.efi at 3 () is being loaded...
00:885 00:011 OCB: Arch filtering 0(29924)->74CC1018(29924) caps 4 - Success
00:894 00:009 OC: Driver XhciDxe.efi at 3 is successfully loaded!
00:903 00:008 OC: Driver XhciDxe.efi at 3 needs connection.
00:915 00:011 OC: Driver UsbBusDxe.efi at 4 () is being loaded...
00:928 00:012 OCB: Arch filtering 0(25540)->74CC2018(25540) caps 4 - Success
00:938 00:009 OC: Driver UsbBusDxe.efi at 4 is successfully loaded!
00:946 00:008 OC: Driver UsbBusDxe.efi at 4 needs connection.
00:955 00:008 OC: Driver OpenLinuxBoot.efi at 5 () is being loaded...
00:969 00:013 OCB: Arch filtering 0(122884)->74ADA018(122884) caps 4 - Success
00:981 00:011 OC: Driver OpenLinuxBoot.efi at 5 is successfully loaded!
00:990 00:008 OC: Connecting drivers...
04:666 03:676 OC: Connecting drivers done...
04:675 00:008 OC: Found 3 pointer devices - Success
04:684 00:008 OCJS: PartitionInfo is Not Found
04:693 00:008 OCJS: Cannot connect, already handled
04:704 00:011 OCJS: Got APFS super block for 7E189138-303B-9841-9CED-09816774A8F3
04:713 00:008 OCJS: Missing JumpStart for 7E189138-303B-9841-9CED-09816774A8F3
04:722 00:008 OCJS: Failed to read JumpStart for 7E189138-303B-9841-9CED-09816774A8F3 - Unsupported
04:733 00:011 OCJS: Got APFS super block for 7E189138-303B-9841-9CED-09816774A8F3
04:744 00:010 OCJS: Missing JumpStart for 7E189138-303B-9841-9CED-09816774A8F3
04:754 00:009 OCJS: Failed to read JumpStart for 7E189138-303B-9841-9CED-09816774A8F3 - Unsupported
04:765 00:011 OCJS: Got APFS super block for 7E189138-303B-9841-9CED-09816774A8F3
04:774 00:008 OCJS: Missing JumpStart for 7E189138-303B-9841-9CED-09816774A8F3
04:783 00:009 OCJS: Failed to read JumpStart for 7E189138-303B-9841-9CED-09816774A8F3 - Unsupported
04:796 00:012 OCC: GOP exists on ConsoleOutHandle and has 1 modes
04:808 00:011 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
04:818 00:010 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
04:830 00:011 OCC: Current FB at 0x80020000 (0x960000), format 1, res 1920x1200 scan 2048
04:839 00:008 OCC: Mode 0 - 1920x1200:1
04:848 00:008 OCC: Current mode matches desired mode 0
04:856 00:008 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started
04:865 00:008 OCC: Using builtin text renderer with 1 scale
04:877 00:012 OCC: Install console control (74A3A9C0/0/0), current - Success
04:887 00:009 OCC: Setup ASCII Output - Success
04:896 00:008 OC: Requested console mode is 0x0 (max: 0) from
04:904 00:008 OC: Requested not to use audio
04:913 00:008 OC: OcMiscLoadSystemReport...
04:925 00:011 OC: OcLoadAcpiSupport...
04:933 00:008 OCA: Found 9 ACPI tables
04:942 00:008 OCA: Detected table FACP (50434146) (OEM 003030656C707041) at 775AB000 of 244 bytes at index 0
04:951 00:009 OCA: Detected DSDT at 775A3000 of 16099 bytes at index 0
04:960 00:008 OCA: Detected table ECDT (54444345) (OEM 003030656C707041) at 775AD000 of 83 bytes at index 1
04:970 00:010 OCA: Detected table HPET (54455048) (OEM 003030656C707041) at 775AA000 of 56 bytes at index 2
04:980 00:009 OCA: Detected table APIC (43495041) (OEM 003030656C707041) at 775A8000 of 424 bytes at index 3
04:989 00:009 OCA: Detected table SSDT (54445353) (OEM 00004D5050757043) at 7758E000 of 85884 bytes at index 4
04:998 00:009 OCA: Detected table SSDT (54445353) (OEM 6963684161746153) at 7758D000 of 484 bytes at index 5
05:007 00:009 OCA: Detected table SSDT (54445353) (OEM 0000756164486F4E) at 77589000 of 1733 bytes at index 6
05:016 00:009 OCA: Detected table MCFG (4746434D) (OEM 003030656C707041) at 775A7000 of 60 bytes at index 7
05:026 00:009 OCA: Detected table DMAR (52414D44) (OEM 003030656C707041) at 77588000 of 104 bytes at index 8
05:035 00:009 OCA: FACS signature is 0 (0)
05:044 00:008 OCA: Exposing XSDT table table FACP (50434146) (OEM 003030656C707041) at 775AB000 of 244 bytes at index 0
05:053 00:009 OCA: Exposing XSDT table table ECDT (54444345) (OEM 003030656C707041) at 775AD000 of 83 bytes at index 1
05:063 00:010 OCA: Exposing XSDT table table HPET (54455048) (OEM 003030656C707041) at 775AA000 of 56 bytes at index 2
05:073 00:009 OCA: Exposing XSDT table table APIC (43495041) (OEM 003030656C707041) at 775A8000 of 424 bytes at index 3
05:083 00:010 OCA: Exposing XSDT table table SSDT (54445353) (OEM 00004D5050757043) at 7758E000 of 85884 bytes at index 4
05:092 00:009 OCA: Exposing XSDT table table SSDT (54445353) (OEM 6963684161746153) at 7758D000 of 484 bytes at index 5
05:102 00:009 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000756164486F4E) at 77589000 of 1733 bytes at index 6
05:112 00:010 OCA: Exposing XSDT table table MCFG (4746434D) (OEM 003030656C707041) at 775A7000 of 60 bytes at index 7
05:121 00:009 OCA: Exposing XSDT table table DMAR (52414D44) (OEM 003030656C707041) at 77588000 of 104 bytes at index 8
05:131 00:009 OCA: Exposing RSDT table table FACP (50434146) (OEM 003030656C707041) at 775AB000 of 244 bytes at index 0
05:140 00:009 OCA: Exposing RSDT table table ECDT (54444345) (OEM 003030656C707041) at 775AD000 of 83 bytes at index 1
05:152 00:012 OCA: Exposing RSDT table table HPET (54455048) (OEM 003030656C707041) at 775AA000 of 56 bytes at index 2
05:162 00:009 OCA: Exposing RSDT table table APIC (43495041) (OEM 003030656C707041) at 775A8000 of 424 bytes at index 3
05:171 00:009 OCA: Exposing RSDT table table SSDT (54445353) (OEM 00004D5050757043) at 7758E000 of 85884 bytes at index 4
05:182 00:011 OCA: Exposing RSDT table table SSDT (54445353) (OEM 6963684161746153) at 7758D000 of 484 bytes at index 5
05:193 00:010 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000756164486F4E) at 77589000 of 1733 bytes at index 6
05:202 00:009 OCA: Exposing RSDT table table MCFG (4746434D) (OEM 003030656C707041) at 775A7000 of 60 bytes at index 7
05:214 00:011 OCA: Exposing RSDT table table DMAR (52414D44) (OEM 003030656C707041) at 77588000 of 104 bytes at index 8
05:225 00:011 OC: OcLoadPlatformSupport...
05:236 00:010 OCSMB: SmbiosLookupHost failed to lookup SMBIOSv3 - Not Found
05:247 00:010 OCSMB: Found DMI Anchor 77469000 v2.4 Table Address 77466000 Length 2408
05:257 00:010 OCSMB: Current SMBIOS MacPro5,1 (Mac-F221BEC8 made by Apple Inc.)
05:266 00:008 OC: PlatformInfo auto 0 OEM SN 0 OEM UUID 0 OEM MLB 0 OEM ROM 0 - Success
05:275 00:009 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (13) - Success
05:287 00:012 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-rev (1) - Success
05:300 00:012 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success
05:309 00:009 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success
05:318 00:009 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success
05:327 00:009 OC: OcLoadDevPropsSupport...
05:339 00:011 OC: Setting devprop PciRoot(0x0)/Pci(0x1c,0x5)/Pci(0x0,0x0):brcmfx-country - Success
05:348 00:009 OC: Setting devprop PciRoot(0x0)/Pci(0x1f,0x2):built-in - Success
05:357 00:008 OC: Setting devprop PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0):agdpmod - Success
05:366 00:009 OC: Setting devprop PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0):rebuild-device-tree - Success
05:376 00:009 OC: Setting devprop PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0):built-in - Success
05:385 00:009 OC: Setting devprop PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0):built-in - Success
05:394 00:009 OC: Setting devprop PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0):built-in - Success
05:404 00:009 OC: Setting devprop PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0):built-in - Success
05:413 00:009 OC: OcMiscLateInit...
05:422 00:008 OC: Translated HibernateMode Auto to 3
05:430 00:008 OCB: boot-image is 0 bytes - Not Found
05:440 00:009 OCB: RTC hibernation is 0
05:450 00:009 OCB: NVRAM hibernation is 0 / Not Found / 0
05:460 00:009 OC: Hibernation activation - Not Found, hibernation wake - no
05:469 00:008 OC: Panic log does not exist
05:478 00:009 OC: OcLoadKernelSupport...
05:490 00:011 OC: All green, starting boot management...
05:502 00:011 OC: Handing off to external boot controller
05:511 00:008 OC: Ready for takeoff in 0 us
05:540 00:029 OCUI: Failed to load image (1/1) Resources\Image\Acidanthera\GoldenGate\Background.icns prefix:Acidanthera\GoldenGate icon:0 - Not Found
05:704 00:163 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\Apple.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
05:779 00:074 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtWindows.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
05:798 00:019 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\Other.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
05:825 00:027 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtTool.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
05:844 00:018 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\ResetNVRAM.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
05:872 00:028 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtShell.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
05:927 00:054 OCUI: Info->fontSize 10 Info->bitField 192 Info->charSet 0 Info->stretchH 100 Info->aa 1
05:943 00:016 OCUI: Info->paddingUp 0 Info->paddingRight 0 Info->paddingDown 0 Info->paddingLeft 0
05:958 00:014 OCUI: Info->spacingHoriz 1 Info->spacingVert 1 Info->outline 0 Info->fontName
05:976 00:017 OCB: Adding fs 75B3B798 (E:0|L:1|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F,0x28,0x64000)
05:991 00:015 OCB: Adding fs 75A61D18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)
06:013 00:021 OCB: Adding fs 75A61718 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C08280D835E2F489B9EFFB77B932D99)
06:036 00:022 OCB: Adding fs 75A61198 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,71962905DFD5F74D8FFD7E2B6E00B70E)
06:057 00:021 OCB: Adding fs 74B88C18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6295860103DA5D46A2A174476BD2DDA6)
06:079 00:021 OCB: Adding fs 74B88498 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,DEF6AD479AF21B40907D6210DF6A1BC1)
06:101 00:021 OCB: Adding fs 74B48F18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,934D4637CEF5F14C95C2BA3E8A4D8A20)
06:123 00:021 OCB: Adding fs 74AB8798 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,66521C5F-7F20-4A9A-990F-D485B989C16C,0x28,0x64000)
06:138 00:015 OCB: Adding fs 74AB8398 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,B388243A-F53C-4756-AE57-5CB05E179113,0x3B9A1288,0x40000)
06:155 00:016 OCB: Adding fs 74A83F98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,0818CB7D-BB9F-4AD9-82C4-C86B29D30C33,0x28,0x64000)
06:170 00:015 OCB: Adding fs 74A83B98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,780F4E31-79BB-4096-AD7C-C2F0636DD1F5,0x3B9A1288,0x40000)
06:186 00:015 OCB: Adding fs 74A5B798 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,DBB03E39-00F1-466A-AB3E-94C6E41AA7D4,0x28,0x64000)
06:201 00:015 OCB: Adding fs 74A5B398 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,8A17777C-8495-4BF9-8DC2-E855E76B8A1C,0x3B9A1288,0x40000)
06:217 00:015 OCB: Adding fs 73A2E018 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,35D4486E-BE28-4C61-8DBF-344BB3D5E946,0x28,0x64000)
06:232 00:015 OCB: Adding fs 73A26D98 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)
06:247 00:015 OCB: Adding fs 73A26B18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(3,GPT,D5E7D471-96CA-4FBF-AC1F-2D0D647FFBA1,0xC0201518,0x9D2C8E70)
06:263 00:015 OCB: Found 16 potentially bootable filesystems
06:279 00:016 OCB: Found 1 BootOrder entries with BootNext excluded
06:293 00:014 OCB: efi-boot-device-data - Not Found
06:307 00:014 OCB: efi-boot-next-data - Not Found
06:323 00:015 OCB: efi-backup-boot-device-data - Not Found
06:337 00:014 OCB: efi-apple-recovery-data - Not Found
06:351 00:014 OCB: Dumping BootOrder
06:365 00:014 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
06:390 00:025 OCB: Parsing predefined list...
06:406 00:016 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
06:429 00:022 OCB: Adding fs 2007C5F5 for 2 custom entries and nvram reset (aux hidden)
06:443 00:014 OCB: Building entry from Boot0080
06:457 00:014 OCB: Assuming DP is full-form or lacks suffix
06:472 00:014 OCB: Expanded DP - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
06:494 00:022 OCB: Expanded DP remainder - \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
06:508 00:014 OCB: Matched fs 75A61D18
06:524 00:015 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
06:547 00:023 OCB: Trying to get label from \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\.contentDetails
06:563 00:015 OCB: Trying to get label from \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\.disk_label.contentDetails
06:580 00:017 OCB: Trying to get flavour from \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\.contentFlavour
06:596 00:015 OCB: Trying to get Apple version from \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\SystemVersion.plist
06:615 00:019 OCB: Registering entry Macintosh HD [Apple12:Apple] (T:2|F:0|G:0|E:0|B:0) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
06:641 00:025 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)
06:662 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
06:677 00:014 OCBP: APFS Volume Info - 73534198 (131072, 71DDD508-BB0C-4C08-BE46-44D82A7D214A, 16)
06:692 00:014 OCBP: APFS Container Info - 73534698 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
06:709 00:017 OCBP: BlessedFileHEX (1/5 282) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 07 01 01 06 00 00 00 01 01 06 00 00 07 01 01 06 00 00 00 03 12 0A 00 00 00 00 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 60 D2
06:725 00:015 OCBP: BlessedFileHEX (2/5 282) - 97 3B 00 00 00 00 B2 69 DE 41 BF 8F D9 48 A7 4D D7 BE B8 9C E8 A0 02 02 04 03 24 00 F7 FC 74 BE 7C 0B F3 49 91 47 01 F4 04 2E 68 42 08 D5 DD 71 0C BB 08 4C BE 46 44 D8 2A 7D 21 4A 04 04 9A 00
06:745 00:019 OCBP: BlessedFileHEX (3/5 282) - 5C 00 30 00 44 00 32 00 38 00 30 00 38 00 32 00 43 00 2D 00 35 00 45 00 38 00 33 00 2D 00 34 00 38 00 32 00 46 00 2D 00 39 00 42 00 39 00 45 00 2D 00 46 00 46 00 42 00 37 00 37 00 42 00 39 00
06:761 00:015 OCBP: BlessedFileHEX (4/5 282) - 33 00 32 00 44 00 39 00 39 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00
06:777 00:015 OCBP: BlessedFileHEX (5/5 282) - 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
06:792 00:014 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
06:814 00:022 OCBP: Blessed file is valid
06:828 00:014 OCBP: 16 filesystems for APFS - Success
06:842 00:014 OCBP: APFS Volume Info - 73534618 (131072, 71DDD508-BB0C-4C08-BE46-44D82A7D214A, 16)
06:857 00:014 OCBP: APFS Container Info - 73534918 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
06:871 00:014 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 2 of 16 - 1
06:886 00:014 OCBP: Missing partition 71DDD508-BB0C-4C08-BE46-44D82A7D214A on preboot - Not Found
06:902 00:015 OCBP: No APFS booter 2 of 16 for 71DDD508-BB0C-4C08-BE46-44D82A7D214A - Not Found
06:917 00:015 OCBP: APFS Volume Info - 73534618 (131072, 0D28082C-5E83-482F-9B9E-FFB77B932D99, 64)
06:932 00:014 OCBP: APFS Container Info - 73534A98 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
06:947 00:015 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 3 of 16 - 1
06:965 00:017 OCBP: Found partition 0D28082C-5E83-482F-9B9E-FFB77B932D99 on preboot
06:983 00:017 OCBP: Want predefined list for APFS 16 at 0D28082C-5E83-482F-9B9E-FFB77B932D99
06:997 00:014 OCBP: Predefined 0D28082C-5E83-482F-9B9E-FFB77B932D99 \System\Library\CoreServices\boot.efi was found
07:015 00:017 OCBP: Found APFS booter 3 of 16 for 0D28082C-5E83-482F-9B9E-FFB77B932D99 (76DEF890)
07:030 00:014 OCBP: APFS Volume Info - 73534518 (131072, 05299671-D5DF-4DF7-8FFD-7E2B6E00B70E, 4)
07:044 00:014 OCBP: APFS Container Info - 73534A98 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:059 00:014 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 4 of 16 - 1
07:074 00:014 OCBP: Missing partition 05299671-D5DF-4DF7-8FFD-7E2B6E00B70E on preboot - Not Found
07:089 00:015 OCBP: No APFS booter 4 of 16 for 05299671-D5DF-4DF7-8FFD-7E2B6E00B70E - Not Found
07:105 00:015 OCBP: APFS Volume Info - 73534518 (131072, 01869562-DA03-465D-A2A1-74476BD2DDA6, 8)
07:120 00:014 OCBP: APFS Container Info - 73534498 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:134 00:014 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 5 of 16 - 1
07:149 00:014 OCBP: Missing partition 01869562-DA03-465D-A2A1-74476BD2DDA6 on preboot - Not Found
07:167 00:017 OCBP: No APFS booter 5 of 16 for 01869562-DA03-465D-A2A1-74476BD2DDA6 - Not Found
07:183 00:016 OCBP: APFS Volume Info - 73534518 (131072, 47ADF6DE-F29A-401B-907D-6210DF6A1BC1, 1)
07:198 00:014 OCBP: APFS Container Info - 73534218 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:212 00:014 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 6 of 16 - 1
07:227 00:014 OCBP: Missing partition 47ADF6DE-F29A-401B-907D-6210DF6A1BC1 on preboot - Not Found
07:242 00:014 OCBP: No APFS booter 6 of 16 for 47ADF6DE-F29A-401B-907D-6210DF6A1BC1 - Not Found
07:256 00:014 OCBP: APFS Volume Info - 73534518 (131072, 37464D93-F5CE-4CF1-95C2-BA3E8A4D8A20, 192)
07:271 00:014 OCBP: APFS Container Info - 73534798 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:286 00:014 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 7 of 16 - 1
07:300 00:014 OCBP: Missing partition 37464D93-F5CE-4CF1-95C2-BA3E8A4D8A20 on preboot - Not Found
07:315 00:014 OCBP: No APFS booter 7 of 16 for 37464D93-F5CE-4CF1-95C2-BA3E8A4D8A20 - Not Found
07:346 00:031 OCBP: APFS bless for 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1:<null string> is Success
07:361 00:014 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
07:384 00:023 OCB: Discarding already present DP
07:400 00:016 OCB: Processing blessed list
07:414 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F,0x28,0x64000)
07:430 00:015 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
07:444 00:014 OCBP: Blessed file is missing
07:458 00:014 OCBP: Blessed folder is missing
07:473 00:014 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi was found
07:488 00:015 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F,0x28,0x64000)/\System\Library\CoreServices\boot.efi
07:504 00:015 OCB: Discarding discovered OpenCore bootloader
07:520 00:016 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F
07:535 00:014 LNX: ScanLoaderEntries \ - Not Found
07:552 00:017 LNX: APFS - not scanning
07:566 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C08280D835E2F489B9EFFB77B932D99)
07:588 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
07:603 00:014 OCBP: APFS Volume Info - 73533C98 (131072, 0D28082C-5E83-482F-9B9E-FFB77B932D99, 64)
07:617 00:014 OCBP: APFS Container Info - 73533C18 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:632 00:014 LNX: APFS - not scanning
07:646 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,71962905DFD5F74D8FFD7E2B6E00B70E)
07:667 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
07:683 00:015 OCBP: APFS Volume Info - 73533E18 (131072, 05299671-D5DF-4DF7-8FFD-7E2B6E00B70E, 4)
07:699 00:015 OCBP: APFS Container Info - 73534718 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:714 00:015 LNX: APFS - not scanning
07:728 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6295860103DA5D46A2A174476BD2DDA6)
07:751 00:022 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
07:769 00:017 OCBP: APFS Volume Info - 73533D18 (131072, 01869562-DA03-465D-A2A1-74476BD2DDA6, 8)
07:786 00:017 OCBP: APFS Container Info - 73533C98 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:801 00:014 LNX: APFS - not scanning
07:817 00:016 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,DEF6AD479AF21B40907D6210DF6A1BC1)
07:839 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
07:856 00:017 OCBP: APFS Volume Info - 73533B98 (131072, 47ADF6DE-F29A-401B-907D-6210DF6A1BC1, 1)
07:872 00:015 OCBP: APFS Container Info - 73533E18 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:886 00:014 LNX: APFS - not scanning
07:900 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,934D4637CEF5F14C95C2BA3E8A4D8A20)
07:922 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
07:937 00:014 OCBP: APFS Volume Info - 73533B18 (131072, 37464D93-F5CE-4CF1-95C2-BA3E8A4D8A20, 192)
07:953 00:016 OCBP: APFS Container Info - 73533D18 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
07:970 00:016 LNX: APFS - not scanning
07:984 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,66521C5F-7F20-4A9A-990F-D485B989C16C,0x28,0x64000)
08:004 00:019 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:020 00:016 OCBP: Blessed file is missing
08:035 00:015 OCBP: Blessed folder is missing
08:050 00:015 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:066 00:015 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:081 00:014 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:101 00:020 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: 66521C5F-7F20-4A9A-990F-D485B989C16C
08:119 00:017 LNX: ScanLoaderEntries \ - Not Found
08:136 00:017 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,B388243A-F53C-4756-AE57-5CB05E179113,0x3B9A1288,0x40000)
08:153 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:170 00:017 OCBP: Blessed file is missing
08:185 00:014 OCBP: Blessed folder is missing
08:199 00:014 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:213 00:014 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:228 00:014 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:242 00:014 LNX: HFS - not scanning
08:257 00:015 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,0818CB7D-BB9F-4AD9-82C4-C86B29D30C33,0x28,0x64000)
08:278 00:020 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:295 00:016 OCBP: Blessed file is missing
08:309 00:014 OCBP: Blessed folder is missing
08:326 00:017 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:340 00:014 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:355 00:014 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:374 00:018 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: 0818CB7D-BB9F-4AD9-82C4-C86B29D30C33
08:388 00:014 LNX: ScanLoaderEntries \ - Not Found
08:403 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,780F4E31-79BB-4096-AD7C-C2F0636DD1F5,0x3B9A1288,0x40000)
08:418 00:015 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:433 00:014 OCBP: Blessed file is missing
08:447 00:014 OCBP: Blessed folder is missing
08:461 00:014 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:475 00:014 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:490 00:014 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:504 00:014 LNX: HFS - not scanning
08:518 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,DBB03E39-00F1-466A-AB3E-94C6E41AA7D4,0x28,0x64000)
08:538 00:019 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:555 00:016 OCBP: Blessed file is missing
08:569 00:014 OCBP: Blessed folder is missing
08:583 00:014 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:599 00:015 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:613 00:014 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:634 00:020 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: DBB03E39-00F1-466A-AB3E-94C6E41AA7D4
08:649 00:014 LNX: ScanLoaderEntries \ - Not Found
08:663 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,8A17777C-8495-4BF9-8DC2-E855E76B8A1C,0x3B9A1288,0x40000)
08:678 00:015 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:696 00:017 OCBP: Blessed file is missing
08:710 00:014 OCBP: Blessed folder is missing
08:724 00:014 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:739 00:014 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:753 00:014 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:768 00:014 LNX: HFS - not scanning
08:782 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,35D4486E-BE28-4C61-8DBF-344BB3D5E946,0x28,0x64000)
08:812 00:030 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:829 00:016 OCBP: Blessed file is missing
08:844 00:015 OCBP: Blessed folder is missing
08:860 00:016 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
08:875 00:014 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:889 00:014 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
08:911 00:021 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: 35D4486E-BE28-4C61-8DBF-344BB3D5E946
08:929 00:017 LNX: ScanLoaderEntries \ - Not Found
08:944 00:015 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)
08:960 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
09:017 00:056 OCBP: BlessedFileHEX (1/3 154) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 02 00 00 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 F0 D4 15 C0 00 00 00 00 D9 CA C4 68 DA 5E 0B 49 9F 03 44 2C
09:036 00:018 OCBP: BlessedFileHEX (2/3 154) - 5B 0A BE 10 02 02 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00
09:052 00:015 OCBP: BlessedFileHEX (3/3 154) - 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
09:067 00:014 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)/\System\Library\CoreServices\boot.efi
09:082 00:015 OCBP: Blessed file is valid
09:097 00:015 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)/\System\Library\CoreServices\boot.efi
09:113 00:015 OCB: Trying to get label from \System\Library\CoreServices\.contentDetails
09:132 00:018 OCB: Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails
09:167 00:035 OCB: Trying to get flavour from \System\Library\CoreServices\.contentFlavour
09:181 00:014 OCB: Trying to get Apple version from \System\Library\CoreServices\SystemVersion.plist
09:219 00:037 OCB: Registering entry Mojave RAID [Apple10_14:Apple] (T:2|F:0|G:0|E:0|B:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)/\System\Library\CoreServices\boot.efi
09:235 00:015 LNX: HFS - not scanning
09:249 00:014 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(3,GPT,D5E7D471-96CA-4FBF-AC1F-2D0D647FFBA1,0xC0201518,0x9D2C8E70)
09:265 00:016 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
09:282 00:016 OCBP: Blessed file is missing
09:298 00:016 OCBP: Blessed folder is missing
09:313 00:015 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
09:331 00:017 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
09:348 00:017 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
09:363 00:014 LNX: HFS - not scanning
09:380 00:017 OCB: Not adding hidden auxiliary entry BootKicker.efi (tool|B:0) -> BootKicker.efi
09:394 00:014 OCB: Not adding hidden auxiliary entry OpenShell.efi (tool|B:0) -> OpenShell.efi
09:410 00:015 OCB: Showing menu... (polling hotkeys)
09:424 00:014 OCHK: InitHotKeys
09:438 00:013 OCKM: Allocated key repeat context 73534C18 73533318 73533098
09:453 00:014 OCAE: Set screen resolution to 1920x1200 - Success
09:468 00:015 OCTY: Registered handler
09:482 00:014 OCAE: Set screen resolution to 1920x1200 - Success
09:496 00:014 OCUI: Console attributes: 0
09:505 00:008 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
09:516 00:011 OCB: Trying to get image from 0D28082C-5E83-482F-9B9E-FFB77B932D99\.VolumeIcon.icns
09:525 00:008 OCB: Trying to get image from .VolumeIcon.icns
09:533 00:008 OCB: OcGetBootEntryIcon - Macintosh HD in 0D28082C-5E83-482F-9B9E-FFB77B932D99\ (volume icon) - Not Found
09:542 00:008 OCUI: Trying flavour icon Resources\Image\Acidanthera\GoldenGate\Apple12.icns
09:562 00:020 OCUI: Using flavour icon, custom: 1
09:573 00:010 OCUI: Console attributes: 0
09:581 00:008 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
09:590 00:008 OCB: Trying to get image from .VolumeIcon.icns
09:600 00:010 OCB: OcGetBootEntryIcon - Mojave RAID in <null string> (volume icon) - Not Found
09:608 00:008 OCUI: Trying flavour icon Resources\Image\Acidanthera\GoldenGate\Apple10_14.icns
09:629 00:020 OCUI: Using flavour icon, custom: 1
14:666 05:037 OCHK: FreeHotKeys
14:681 00:014 OCTY: Unregistered handler
14:695 00:014 OCKM: Freeing key repeat context 73534C18 73533318 73533098
14:710 00:014 OCB: Should boot from 1. Macintosh HD (T:2|F:0|G:0|E:0|DEF:0)
14:730 00:020 OCB: Perform boot Macintosh HD to dp PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi (0/0)
14:744 00:013 OCSB: Secure boot is disabled, skipping
14:753 00:008 OCB: Arch filtering 72AEE018(723512)->72AEE018(723512) caps 4 - Success
14:762 00:009 OCB: Matching <>/0[0] args on type 2
14:772 00:009 OCABC: VMware Mac installed on 73514798 - Success
14:783 00:010 OCABC: Booter patch (Reroute HW_BID to OC_BID) replace count - 1
14:793 00:010 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
14:802 00:008 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
14:810 00:008 AAPL: #[EB|H:IS] 0
14:822 00:011 AAPL: #[EB|LOG:INIT] 2022-08-04T18:31:17
14:830 00:008 AAPL: #[EB|VERSION] <"boot.efi 540.120.3~6 (Official), built 2022-04-19T21:17:53-0700">
14:839 00:008 AAPL: #[EB|BUILD] <"BUILD-INFO[298]:{"DisplayName":"boot.efi","DisplayVersion":"540.120.3~6","RecordUuid":"E55E03A0-4166-4913-B8BA-A2B0C5A34EC3","BuildTime":"2022-04-19T21:17:53-0700","ProjectName":"efiboot","ProductName":"boot.efi","SourceVersion":"540.120.3","BuildVersion":"6","BuildConfiguration":"Release","BuildType":"Official"}">
14:848 00:009 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82
14:858 00:009 AAPL: #[EB|CFG:DEV] r5 0x0 0x0
14:866 00:008 AAPL: #[EB|H:IS] 0
14:876 00:009 AAPL: #[EB|WL:MODE] 0
14:886 00:010 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default
14:894 00:008 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default
14:904 00:009 AAPL: #[EB|CFG:ARG] console       0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default
14:913 00:009 AAPL: #[EB|CFG:ARG] serial        0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default
14:925 00:011 AAPL: #[EB|CFG:ARG] preoslog      0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default
14:933 00:008 AAPL: #[EB|CFG:ARG] timestamps    0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default
14:945 00:011 AAPL: #[EB|CFG:ARG] log-level     0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default
14:956 00:011 AAPL: #[EB|CFG:ARG] breakpoint    0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
14:965 00:008 AAPL: #[EB|CFG:ARG] kc-read-size  0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default
14:973 00:008 AAPL: #[EB|H:IS] 0
14:982 00:008 AAPL: #[EB|WL] 0 0 0x01 0x01   0 0x00
14:993 00:011 AAPL: #[EB|BRD:NV] Mac-BE088AF8C5EB4FA2
15:002 00:008 OCOS: OS set: <null> macOS 11.0
15:010 00:008 OCOS: OS set: Apple Inc. macOS 11.0
15:019 00:008 AAPL: #[EB|B:VAw]
15:031 00:012 AAPL: #[EB|B:IAw]
15:040 00:008 AAPL: #[EB|WL] 0 0 0x01 0x01   2 0x00
15:048 00:008 AAPL: #[EB|B:RRVAR] <0023dfdb7bb6>
15:057 00:008 AAPL: #[EB|B:MLBVAR] J590807P01LTB
15:065 00:008 AAPL: #[EB.BST.IDT|+]
15:085 00:020 AAPL: #[EB.BST.IDT|-]
15:094 00:008 AAPL: #[EB|WL] 0 0 0x01 0x01   3 0x00
15:102 00:008 AAPL: #[EB|WL] 0 0 0x01 0x01   4 0x00
15:112 00:009 AAPL: #[EB|BRD:NV] Mac-BE088AF8C5EB4FA2
15:121 00:009 AAPL: #[EB|WL] 0 0 0x01 0x01   5 0x00
15:130 00:008 AAPL: #[EB.H.CHK|BM] 0x0000000000000000
15:139 00:009 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
15:151 00:011 AAPL: #[EB|WL] 0 0 0x01 0x01  23 0x0E
15:162 00:011 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
15:171 00:008 AAPL: #[EB|WL] 0 0 0x01 0x01  24 0x0E
15:182 00:011 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
15:191 00:008 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
15:199 00:008 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
15:207 00:008 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
15:216 00:008 AAPL: #[EB|H:NOT]
15:226 00:010 AAPL: #[EB|SB:P] 0x0
15:235 00:009 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(7|0)/Pci(0|0)/Pci(7|0)/Pci(0|0)/SATA(0,0)/HD(Part2,Sig41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842)
15:244 00:008 AAPL: #[EB|LIMG:FP] \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
15:252 00:008 AAPL: #[EB|LIMG:OPT]
15:261 00:008 AAPL: #[EB.OPT.LXF|F] <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\com.apple.Boot.plist">
15:272 00:011 AAPL: #[EB.LD.LF|IN] 0 1 <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0">
15:281 00:008 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\com.apple.Boot.plist">
15:289 00:008 AAPL: #[EB.OPT.LXF|LF!] Err(0xE)
15:298 00:008 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist">
15:306 00:008 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0">
15:317 00:010 AAPL: #[EB|KF] <"">
15:325 00:008 AAPL: #[EB|MBA:CL] <"">
15:333 00:008 AAPL: #[EB|MBA:NV] <"keepsyms=1 debug=0x100 -v -lilubetaall ipc_control_port_options=0 -revasset">
15:342 00:008 AAPL: #[EB|MBA:KF] <"">
15:350 00:008 AAPL: #[EB|MBA:OUT] <"keepsyms=1 debug=0x100 -v -lilubetaall ipc_control_port_options=0 -revasset">
15:359 00:008 AAPL: #[EB|LOG:VERBOSE] 2022-08-04T18:31:18
15:367 00:008 AAPL: #[EB|OPT:BM] 0x80182
15:376 00:008 AAPL: #[EB.OPT.LXF|F] <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\PlatformSupport.plist">
15:384 00:008 AAPL: #[EB.LD.LF|IN] 0 1 <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0">
15:395 00:010 AAPL: #[EB|P:CPR] N
15:403 00:008 AAPL: #[EB|P:MPI] N
15:412 00:008 AAPL: #[EB|P:BPI] N
15:420 00:008 AAPL: #[EB|KMR] 203051008
15:429 00:008 AAPL: #[EB.CS.CSKSD|+]
15:438 00:009 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF
15:448 00:009 AAPL: #[EB|WL] 0 0 0x01 0x01   6 0x0E
15:456 00:008 AAPL: #[EB.CS.LFC|+]
15:465 00:009 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\Caches\\com.apple.corestorage\\EncryptedRoot.plist.wipekey"> <"0">
15:482 00:016 AAPL: #[EB.FS.AGSVH|PU] 0D28082C-5E83-482F-9B9E-FFB77B932D99
15:494 00:011 AAPL: #[EB.FS.AGSVH|!] Err(0xE) <- BS.LocHB 59D76AE4-37E3-55A7-B460-EF13D46E6020
15:502 00:008 AAPL: #[EB.G.CS|-?] Ok(0)
15:511 00:008 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1">
15:522 00:011 AAPL: #[EB.B.SBS|SZ] 723512
15:537 00:014 AAPL: #[EB|B:SHA] <de9d404f708d60914107eaac4ef175b020709b48>
15:547 00:009 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82
15:557 00:009 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV
15:568 00:011 AAPL: #[EB|WL:DT] 0x66ddf66b
15:577 00:009 AAPL: #[EB.LD.LKC|D] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc.development">
15:589 00:011 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.development">
15:600 00:011 AAPL: #[EB.LD.LKC|R.2] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc">
15:661 00:060 OC: Kext reservation size info 55D000 exe 1FE000
15:671 00:009 OC: Trying 64-bit XNU hook on boot\System\Library\KernelCollections\BootKernelExtensions.kc
15:751 00:080 OC: Result of 64-bit XNU hook on boot\System\Library\KernelCollections\BootKernelExtensions.kc (00000000) is Success
15:776 00:025 OCAK: Read kernel version 21.5.0 (210500)
15:787 00:010 OC: Kernel patcher skips kernel (SurPlus v1 - PART 1 of 2 - Patch read_erandom (inlined in _early_random)) patch at 1 due to version 200400 <= 210500 <= 210100
15:797 00:010 OC: Kernel patcher skips kernel (SurPlus v1 - PART 2 of 2 - Patch register_and_init_prng) patch at 2 due to version 200400 <= 210500 <= 210100
15:830 00:032 OCAK: 64-bit Reroute kern.hv_vmm_present patch (1) replace count - 1
15:842 00:012 OC: Kernel patcher result 3 for kernel (Reroute kern.hv_vmm_present patch (1)) - Success
15:874 00:032 OCAK: 64-bit Reroute kern.hv_vmm_present patch (2) replace count - 1
15:883 00:009 OC: Kernel patcher result 4 for kernel (Reroute kern.hv_vmm_present patch (2)) - Success
15:917 00:033 OCAK: 64-bit PanicKextDump replace count - 1
15:926 00:008 OCAK: Patch success kext dump
15:937 00:011 OCAK: Found jettisoning fileset
16:068 00:130 OCAK: Local relocs 689 on FFFFFF8004225000
16:077 00:009 OC: Prelinked injection Lilu.kext (Patching Engine) - Success
16:099 00:021 OCAK: Patching invalid size 2C000 with 1416000 for com.apple.iokit.IOPCIFamily
16:125 00:026 OCAK: Local relocs 5500 on FFFFFF8004253000
16:149 00:023 OC: Prelinked injection AppleALC.kext (AppleHDA Patching) - Success
16:165 00:016 OCAK: Local relocs 316 on FFFFFF80043D4000
16:176 00:010 OC: Prelinked injection RestrictEvents.kext (Process Blocker) - Success
16:194 00:017 OCAK: Local relocs 674 on FFFFFF80043E1000
16:204 00:010 OC: Prelinked injection AirportBrcmFixup.kext (Broadcom Wifi Patch) - Success
16:221 00:016 OCAK: Local relocs 315 on FFFFFF80043EF000
16:234 00:012 OC: Prelinked injection FeatureUnlock.kext (FeatureUnlock) - Success
16:246 00:012 OC: Prelinked injection ASPP-Override.kext (ACPI_SMC_PlatformPlugin Override) - Success
16:262 00:015 OCAK: Local relocs 312 on FFFFFF80043F9000
16:274 00:012 OC: Prelinked injection AutoPkgInstaller.kext (Chainload OpenCore-Patcher installation) - Success
16:290 00:015 OCAK: Local relocs 1088 on FFFFFF8004401000
16:301 00:010 OC: Prelinked injection NoAVXFSCompressionTypeZlib.kext (Work-around 12.4+ Zlib kernel panic) - Success
16:310 00:009 OC: Prelink size 70004736 kext offset 67915776 reserved 2088960
16:319 00:009 OCAK: KC TEXT is 65536 bytes with 63696 Mach-O headers need 680
16:364 00:044 OCAK: Patching invalid size 17F000 with D52000 for com.apple.filesystems.apfs
16:374 00:010 OC: Prelinked patcher result 0 for com.apple.filesystems.apfs (Force FileVault on Broken Seal) - Success
16:395 00:020 OC: Prelinked status - Success
16:429 00:033 AAPL: #[EB.LD.LKFS|-?] Ok(0)
16:438 00:008 AAPL: #[EB.LD.LKC|-?] Ok(0)
16:450 00:012 AAPL: #[EB|BST:REV1]
16:460 00:009 AAPL: #[EB|CSR:IN] 0x00000FFF
16:469 00:008 AAPL: #[EB|CSR:OUT] 0x00000FEF
16:478 00:008 AAPL: #[EB.BST.FBS|+]
16:487 00:009 AAPL: #[EB.BST.FBS|ADSZ] 0
16:496 00:008 AAPL: #[EB.BST.FBS|KSSZ] 0
16:516 00:019 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m
16:536 00:020 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash
16:559 00:022 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m">
16:579 00:020 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
16:603 00:023 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m"> <"0">
16:625 00:022 AAPL: #[EB.BST.FBS|RHPSZ] 229
16:645 00:019 AAPL: #[EB.BST.FBS|RHMSZ] 3627
16:667 00:021 AAPL: #[EB|LOG:DT] 2022-08-04T18:31:19
16:687 00:020 AAPL: #[EB|LOG:EXITBS:START] 2022-08-04T18:31:19

This is full opencore log with rx6600xt:

Code:

00:000 00:000 OC: Starting OpenCore...
00:000 00:000 OC: Booter path - EFI\OC\OpenCore.efi
00:000 00:000 OCFS: Trying to locate filesystem on 75B43998 7566C618
00:000 00:000 OCFS: Filesystem DP - EFI\OC\OpenCore.efi
00:000 00:000 OC: Absolute booter path - EFI\OC\OpenCore.efi
00:000 00:000 OC: Storage root EFI\OC\OpenCore.efi
00:000 00:000 OCST: Missing vault data, ignoring...
00:000 00:000 OC: OcMiscEarlyInit...
00:000 00:000 OC: Loaded configuration of 33413 bytes
00:000 00:000 OC: Watchdog status is 1
00:041 00:041 OC: OpenCore DBG-080-2022-04-18 is loading in Optional mode (0/0)...
00:053 00:011 OC: Boot timestamp - 2022.08.06 11:11:24
00:068 00:015 OCCPU: MP services threads 24 (enabled 24) - Success
00:081 00:012 OCCPU: MP services Pkg 2 Cores 16 Threads 32 - Success
00:096 00:015 OCCPU: Found Intel(R) Xeon(R) CPU           X5690  @ 3.47GHz
00:108 00:012 OCCPU: Signature 206C2 Stepping 2 Model 2C Family 6 Type 0 ExtModel 2 ExtFamily 0 uCode 1F CPUID MAX (B/80000008)
00:121 00:012 OCCPU: EIST CFG Lock 0
00:133 00:012 OCCPU: Timer address is 408 from LPC
00:246 00:112 OCCPU: Intel TSC:  3457999558Hz,  3457MHz; FSB:   132999983Hz,   132MHz; MaxBusRatio: 26
00:260 00:013 OCCPU: Detected Apple Processor Type: 05 -> 0501
00:275 00:015 OCCPU: CPUFrequencyFromTSC  3458000128Hz  3458MHz
00:288 00:012 OCCPU: CPUFrequencyFromApple  3457999558Hz  3457MHz
00:300 00:012 OCCPU: CPUFrequency  3457999558Hz  3457MHz
00:313 00:012 OCCPU: FSBFrequency   132999983Hz   132MHz
00:328 00:015 OCCPU: Pkg 2 Cores 6 Threads 12
00:341 00:012 OC: OcLoadNvramSupport...
00:353 00:012 OC: Deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Not Found
00:369 00:015 OC: Not deleting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:OC_BID, matches add
00:381 00:012 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Version, matches add
00:393 00:012 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Model, matches add
00:406 00:012 OC: Not deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Settings, matches add
00:418 00:012 OC: Deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Spoofed-SN - Not Found
00:434 00:015 OC: Deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Spoofed-MLB - Not Found
00:447 00:013 OC: Deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:revcpu - Not Found
00:460 00:012 OC: Deleting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:revcpuname - Not Found
00:472 00:012 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args, matches add
00:485 00:012 OC: Not deleting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config, matches add
00:501 00:016 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:DefaultBackgroundColor - Success
00:516 00:014 OC: Setting NVRAM 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:OC_BID - ignored, exists
00:528 00:012 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Model - ignored, exists
00:545 00:016 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Settings - ignored, exists
00:557 00:012 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:OCLP-Version - ignored, exists
00:570 00:012 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:boot-args - ignored, exists
00:582 00:012 OC: Setting NVRAM 7C436110-AB2A-4BBB-A880-FE41995C9F82:csr-active-config - ignored, exists
00:595 00:012 OC: Current version is DBG-080-2022-04-18
00:607 00:012 OC: OcMiscMiddleInit...
00:620 00:012 OC: Setting NVRAM 4D1FDA02-38C7-4A6A-9CC6-4BCCA8B30102:boot-path = PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F,0x28,0x64000)/EFI\OC\OpenCore.efi - Success
00:632 00:012 OC: StorageHandle 75B43998 with Full LauncherOption pointing to Default
00:645 00:012 OCB: Missing FW NVRAM, going on...
00:657 00:012 OCB: Have existing order of size 4 - Buffer Too Small
00:670 00:012 OCB: Have existing option at Boot0001, valid
00:682 00:012 OCB: Boot order has first option as the default option
00:706 00:024 OC: Launcher EFI\OC\OpenCore.efi signature is A853FE59
00:719 00:012 OC: OcLoadUefiSupport...
00:732 00:013 OCAU: OcAudioInstallProtocols (0, 0)
00:745 00:012 OCAU: 4B228577-6274-4A48-82AE-0713A1171987 protocol - Not Found
00:757 00:012 OCAU: C32332DF-FC56-4FE1-9358-BA0D529B24CD protocol - Success
00:770 00:012 OCAU: F4CB0B78-243B-11E7-A524-B8E8562CBAFA protocol - Not Found
00:784 00:014 OCAU: 3224B169-EC34-46D2-B779-E1B1687F525F protocol - Not Found
00:799 00:014 OC: Disabling audio in favour of firmware implementation
00:811 00:012 OCAE: Builtin installed
00:824 00:012 OC: Loading Apple Secure Boot with Disabled (level 0)
00:838 00:014 OCII: AIFTimerBoostInit Current timer is 2500
00:851 00:012 OCABC: ALRBL 0 RTDFRG 0 DEVMMIO 0 NOSU 0 NOVRWR 1 NOSB 0 FBSIG 1 NOHBMAP 0 SMSLIDE 0 WRUNPROT 0
00:863 00:012 OCABC: FEXITBS 0 PRMRG 0 CSLIDE 0 MSLIDE 0 PRSRV 0 RBMAP 0 VMAP 0 APPLOS 0 RTPERMS 0 ARBAR -1
00:876 00:012 OCABC: Firmware has 25155374 free pages (481070 in lower 4 GB)
00:891 00:015 OCABC: Awaiting rendezvous with OpenRuntime r12
00:904 00:012 OC: RequestBootVarRouting 1
00:916 00:012 OCDM: Found 0x1000A UEFI version (368 bytes, rebuilding to 376)
00:929 00:012 OC: AVX enabled - 0
00:943 00:014 OC: Got 6 drivers
00:957 00:013 OC: Driver OpenRuntime.efi at 0 () is being loaded...
00:974 00:017 OCB: Arch filtering 0(40964)->75644018(40964) caps 4 - Success
00:987 00:012 OCABC: Got rendezvous with OpenRuntime r12
00:999 00:012 OCABC: MAT support is 0
01:015 00:015 OC: Driver OpenRuntime.efi at 0 is successfully loaded!
01:027 00:012 OC: Driver OpenCanopy.efi at 1 () is being loaded...
01:045 00:017 OCB: Arch filtering 0(163840)->755ED018(163840) caps 4 - Success
01:058 00:012 OCUI: Registered custom GUI protocol
01:071 00:013 OC: Driver OpenCanopy.efi at 1 is successfully loaded!
01:084 00:012 OC: Driver ExFatDxeLegacy.efi at 2 () is being loaded...
01:101 00:017 OCB: Arch filtering 0(22976)->75649018(22976) caps 4 - Success
01:115 00:013 OC: Driver ExFatDxeLegacy.efi at 2 is successfully loaded!
01:130 00:015 OC: Driver ExFatDxeLegacy.efi at 2 needs connection.
01:143 00:012 OC: Driver XhciDxe.efi at 3 () is being loaded...
01:162 00:019 OCB: Arch filtering 0(29924)->7563B018(29924) caps 4 - Success
01:175 00:012 OC: Driver XhciDxe.efi at 3 is successfully loaded!
01:188 00:013 OC: Driver XhciDxe.efi at 3 needs connection.
01:201 00:012 OC: Driver UsbBusDxe.efi at 4 () is being loaded...
01:216 00:015 OCB: Arch filtering 0(25540)->7563C018(25540) caps 4 - Success
01:229 00:012 OC: Driver UsbBusDxe.efi at 4 is successfully loaded!
01:245 00:015 OC: Driver UsbBusDxe.efi at 4 needs connection.
01:257 00:012 OC: Driver OpenLinuxBoot.efi at 5 () is being loaded...
01:274 00:016 OCB: Arch filtering 0(122884)->755F7018(122884) caps 4 - Success
01:287 00:013 OC: Driver OpenLinuxBoot.efi at 5 is successfully loaded!
01:303 00:015 OC: Connecting drivers...
04:991 03:688 OC: Connecting drivers done...
05:003 00:012 OC: Found 3 pointer devices - Success
05:019 00:015 OCJS: PartitionInfo is Not Found
05:032 00:013 OCJS: Cannot connect, already handled
05:047 00:014 OCJS: Got APFS super block for 7E189138-303B-9841-9CED-09816774A8F3
05:059 00:012 OCJS: Missing JumpStart for 7E189138-303B-9841-9CED-09816774A8F3
05:072 00:012 OCJS: Failed to read JumpStart for 7E189138-303B-9841-9CED-09816774A8F3 - Unsupported
05:089 00:016 OCJS: Got APFS super block for 7E189138-303B-9841-9CED-09816774A8F3
05:101 00:012 OCJS: Missing JumpStart for 7E189138-303B-9841-9CED-09816774A8F3
05:113 00:012 OCJS: Failed to read JumpStart for 7E189138-303B-9841-9CED-09816774A8F3 - Unsupported
05:127 00:013 OCJS: Got APFS super block for 7E189138-303B-9841-9CED-09816774A8F3
05:139 00:012 OCJS: Missing JumpStart for 7E189138-303B-9841-9CED-09816774A8F3
05:152 00:012 OCJS: Failed to read JumpStart for 7E189138-303B-9841-9CED-09816774A8F3 - Unsupported
05:164 00:012 OCC: GOP exists on ConsoleOutHandle and has 1 modes
05:177 00:012 OC: Requested resolution is 0x0@0 (max: 1, force: 0) from Max
05:189 00:012 OCC: Requesting 0x0@0 (max: 1) resolution, curr 0, total 1
05:203 00:013 OCC: Current FB at 0x80000000 (0x300000), format 1, res 1024x768 scan 1024
05:216 00:013 OCC: Mode 0 - 1024x768:1
05:229 00:012 OCC: Current mode matches desired mode 0
05:241 00:012 OC: Changed resolution to 0x0@0 (max: 1, force: 0) from Max - Already started
05:255 00:013 OCC: Using builtin text renderer with 1 scale
05:267 00:012 OCC: Install console control (753AE9C0/0/0), current - Success
05:280 00:012 OCC: Setup ASCII Output - Success
05:293 00:013 OC: Requested console mode is 0x0 (max: 0) from
05:306 00:013 OC: Requested not to use audio
05:319 00:012 OC: OcMiscLoadSystemReport...
05:332 00:012 OC: OcLoadAcpiSupport...
05:345 00:012 OCA: Found 10 ACPI tables
05:359 00:013 OCA: Detected table FACP (50434146) (OEM 003030656C707041) at 775AB000 of 244 bytes at index 0
05:374 00:015 OCA: Detected DSDT at 775A3000 of 16099 bytes at index 0
05:387 00:013 OCA: Detected table ECDT (54444345) (OEM 003030656C707041) at 775AD000 of 83 bytes at index 1
05:401 00:014 OCA: Detected table HPET (54455048) (OEM 003030656C707041) at 775AA000 of 56 bytes at index 2
05:415 00:014 OCA: Detected table APIC (43495041) (OEM 003030656C707041) at 775A8000 of 424 bytes at index 3
05:432 00:016 OCA: Detected table SSDT (54445353) (OEM 00004D5050757043) at 7758E000 of 85884 bytes at index 4
05:446 00:014 OCA: Detected table SSDT (54445353) (OEM 6963684161746153) at 7758D000 of 484 bytes at index 5
05:460 00:014 OCA: Detected table SSDT (54445353) (OEM 0000756164486F4E) at 77589000 of 1733 bytes at index 6
05:474 00:014 OCA: Detected table MCFG (4746434D) (OEM 003030656C707041) at 775A7000 of 60 bytes at index 7
05:489 00:015 OCA: Detected table VFCT (54434656) (OEM 0000000000000000) at 7757E000 of 44676 bytes at index 8
05:504 00:015 OCA: Detected table DMAR (52414D44) (OEM 003030656C707041) at 7757D000 of 104 bytes at index 9
05:518 00:014 OCA: FACS signature is 0 (0)
05:531 00:012 OCA: Exposing XSDT table table FACP (50434146) (OEM 003030656C707041) at 775AB000 of 244 bytes at index 0
05:548 00:017 OCA: Exposing XSDT table table ECDT (54444345) (OEM 003030656C707041) at 775AD000 of 83 bytes at index 1
05:562 00:014 OCA: Exposing XSDT table table HPET (54455048) (OEM 003030656C707041) at 775AA000 of 56 bytes at index 2
05:577 00:014 OCA: Exposing XSDT table table APIC (43495041) (OEM 003030656C707041) at 775A8000 of 424 bytes at index 3
05:592 00:015 OCA: Exposing XSDT table table SSDT (54445353) (OEM 00004D5050757043) at 7758E000 of 85884 bytes at index 4
05:606 00:014 OCA: Exposing XSDT table table SSDT (54445353) (OEM 6963684161746153) at 7758D000 of 484 bytes at index 5
05:622 00:015 OCA: Exposing XSDT table table SSDT (54445353) (OEM 0000756164486F4E) at 77589000 of 1733 bytes at index 6
05:636 00:014 OCA: Exposing XSDT table table MCFG (4746434D) (OEM 003030656C707041) at 775A7000 of 60 bytes at index 7
05:651 00:015 OCA: Exposing XSDT table table VFCT (54434656) (OEM 0000000000000000) at 7757E000 of 44676 bytes at index 8
05:666 00:015 OCA: Exposing XSDT table table DMAR (52414D44) (OEM 003030656C707041) at 7757D000 of 104 bytes at index 9
05:685 00:018 OCA: Exposing RSDT table table FACP (50434146) (OEM 003030656C707041) at 775AB000 of 244 bytes at index 0
05:699 00:014 OCA: Exposing RSDT table table ECDT (54444345) (OEM 003030656C707041) at 775AD000 of 83 bytes at index 1
05:713 00:014 OCA: Exposing RSDT table table HPET (54455048) (OEM 003030656C707041) at 775AA000 of 56 bytes at index 2
05:729 00:016 OCA: Exposing RSDT table table APIC (43495041) (OEM 003030656C707041) at 775A8000 of 424 bytes at index 3
05:745 00:015 OCA: Exposing RSDT table table SSDT (54445353) (OEM 00004D5050757043) at 7758E000 of 85884 bytes at index 4
05:762 00:017 OCA: Exposing RSDT table table SSDT (54445353) (OEM 6963684161746153) at 7758D000 of 484 bytes at index 5
05:777 00:015 OCA: Exposing RSDT table table SSDT (54445353) (OEM 0000756164486F4E) at 77589000 of 1733 bytes at index 6
05:792 00:014 OCA: Exposing RSDT table table MCFG (4746434D) (OEM 003030656C707041) at 775A7000 of 60 bytes at index 7
05:809 00:017 OCA: Exposing RSDT table table VFCT (54434656) (OEM 0000000000000000) at 7757E000 of 44676 bytes at index 8
05:823 00:014 OCA: Exposing RSDT table table DMAR (52414D44) (OEM 003030656C707041) at 7757D000 of 104 bytes at index 9
05:841 00:018 OC: OcLoadPlatformSupport...
05:854 00:012 OCSMB: SmbiosLookupHost failed to lookup SMBIOSv3 - Not Found
05:869 00:014 OCSMB: Found DMI Anchor 77469000 v2.4 Table Address 77466000 Length 2408
05:883 00:013 OCSMB: Current SMBIOS MacPro5,1 (Mac-F221BEC8 made by Apple Inc.)
05:896 00:013 OC: PlatformInfo auto 0 OEM SN 0 OEM UUID 0 OEM MLB 0 OEM ROM 0 - Success
05:910 00:013 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-id (13) - Success
05:927 00:017 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:board-rev (1) - Success
05:941 00:013 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:StartupPowerEvents (8) - Success
05:962 00:021 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:InitialTSC (8) - Success
05:985 00:022 OCDH: Setting DataHub 64517CC8-6561-4051-B03C-5964B60F4C7A:FSBFrequency (8) - Success
06:009 00:024 OC: OcLoadDevPropsSupport...
06:030 00:020 OC: Setting devprop PciRoot(0x0)/Pci(0x1c,0x5)/Pci(0x0,0x0):brcmfx-country - Success
06:051 00:021 OC: Setting devprop PciRoot(0x0)/Pci(0x1f,0x2):built-in - Success
06:075 00:024 OC: Setting devprop PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0):agdpmod - Success
06:097 00:022 OC: Setting devprop PciRoot(0x0)/Pci(0x3,0x0)/Pci(0x0,0x0):rebuild-device-tree - Success
06:119 00:021 OC: Setting devprop PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0):built-in - Success
06:140 00:021 OC: Setting devprop PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0):built-in - Success
06:162 00:021 OC: Setting devprop PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0):built-in - Success
06:187 00:024 OC: Setting devprop PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0):built-in - Success
06:208 00:021 OC: OcMiscLateInit...
06:230 00:021 OC: Translated HibernateMode Auto to 3
06:251 00:021 OCB: boot-image is 0 bytes - Not Found
06:272 00:020 OCB: RTC hibernation is 0
06:294 00:022 OCB: NVRAM hibernation is 0 / Not Found / 0
06:315 00:020 OC: Hibernation activation - Not Found, hibernation wake - no
06:336 00:020 OC: Panic log does not exist
06:356 00:020 OC: OcLoadKernelSupport...
06:377 00:020 OC: All green, starting boot management...
06:397 00:020 OC: Handing off to external boot controller
06:418 00:020 OC: Ready for takeoff in 0 us
06:454 00:036 OCUI: Failed to load image (1/1) Resources\Image\Acidanthera\GoldenGate\Background.icns prefix:Acidanthera\GoldenGate icon:0 - Not Found
06:569 00:115 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\Apple.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
06:639 00:069 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtWindows.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
06:673 00:034 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\Other.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
06:713 00:040 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtTool.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
06:747 00:034 OCUI: Failed to load image (1/2) Resources\Image\Acidanthera\GoldenGate\ResetNVRAM.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
06:787 00:039 OCUI: Failed to load image (2/2) Resources\Image\Acidanthera\GoldenGate\ExtShell.icns prefix:Acidanthera\GoldenGate icon:1 - Not Found
06:849 00:062 OCUI: Info->fontSize 10 Info->bitField 192 Info->charSet 0 Info->stretchH 100 Info->aa 1
06:870 00:021 OCUI: Info->paddingUp 0 Info->paddingRight 0 Info->paddingDown 0 Info->paddingLeft 0
06:892 00:021 OCUI: Info->spacingHoriz 1 Info->spacingVert 1 Info->outline 0 Info->fontName
06:913 00:021 OCB: Adding fs 75B43998 (E:0|L:1|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F,0x28,0x64000)
06:944 00:030 OCB: Adding fs 75529E18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)
06:983 00:039 OCB: Adding fs 75529818 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C08280D835E2F489B9EFFB77B932D99)
07:023 00:039 OCB: Adding fs 75529298 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,71962905DFD5F74D8FFD7E2B6E00B70E)
07:062 00:039 OCB: Adding fs 754EFD18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6295860103DA5D46A2A174476BD2DDA6)
07:102 00:039 OCB: Adding fs 754EF598 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,DEF6AD479AF21B40907D6210DF6A1BC1)
07:141 00:039 OCB: Adding fs 754EF018 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,934D4637CEF5F14C95C2BA3E8A4D8A20)
07:181 00:039 OCB: Adding fs 75422018 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,66521C5F-7F20-4A9A-990F-D485B989C16C,0x28,0x64000)
07:213 00:032 OCB: Adding fs 75418C18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,B388243A-F53C-4756-AE57-5CB05E179113,0x3B9A1288,0x40000)
07:244 00:030 OCB: Adding fs 753F0818 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,0818CB7D-BB9F-4AD9-82C4-C86B29D30C33,0x28,0x64000)
07:275 00:030 OCB: Adding fs 753F0418 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,780F4E31-79BB-4096-AD7C-C2F0636DD1F5,0x3B9A1288,0x40000)
07:305 00:030 OCB: Adding fs 753EB018 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,DBB03E39-00F1-466A-AB3E-94C6E41AA7D4,0x28,0x64000)
07:339 00:033 OCB: Adding fs 74748C18 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,8A17777C-8495-4BF9-8DC2-E855E76B8A1C,0x3B9A1288,0x40000)
07:370 00:030 OCB: Adding fs 74092898 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,35D4486E-BE28-4C61-8DBF-344BB3D5E946,0x28,0x64000)
07:400 00:029 OCB: Adding fs 74092618 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)
07:430 00:030 OCB: Adding fs 74092398 (E:0|L:0|P:Success) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(3,GPT,D5E7D471-96CA-4FBF-AC1F-2D0D647FFBA1,0xC0201518,0x9D2C8E70)
07:460 00:030 OCB: Found 16 potentially bootable filesystems
07:481 00:021 OCB: Found 1 BootOrder entries with BootNext excluded
07:502 00:020 OCB: efi-boot-device-data - Not Found
07:523 00:020 OCB: efi-boot-next-data - Not Found
07:543 00:020 OCB: efi-backup-boot-device-data - Not Found
07:567 00:023 OCB: efi-apple-recovery-data - Not Found
07:588 00:020 OCB: Dumping BootOrder
07:608 00:020 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
07:648 00:040 OCB: Parsing predefined list...
07:670 00:021 OCB: 0 -> Boot0080 = PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
07:710 00:040 OCB: Adding fs 2007C5F5 for 2 custom entries and nvram reset (aux hidden)
07:732 00:022 OCB: Building entry from Boot0080
07:752 00:020 OCB: Assuming DP is full-form or lacks suffix
07:776 00:023 OCB: Expanded DP - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
07:817 00:040 OCB: Expanded DP remainder - \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
07:841 00:024 OCB: Matched fs 75529E18
07:862 00:020 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
07:903 00:041 OCB: Trying to get label from \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\.contentDetails
07:925 00:021 OCB: Trying to get label from \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\.disk_label.contentDetails
07:949 00:024 OCB: Trying to get flavour from \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\.contentFlavour
07:973 00:023 OCB: Trying to get Apple version from \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\SystemVersion.plist
07:999 00:026 OCB: Registering entry Macintosh HD [Apple12:Apple] (T:2|F:0|G:0|E:0|B:0) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
08:048 00:048 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)
08:087 00:039 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
08:109 00:022 OCBP: APFS Volume Info - 73BDE018 (131072, 71DDD508-BB0C-4C08-BE46-44D82A7D214A, 16)
08:134 00:024 OCBP: APFS Container Info - 73BDD718 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
08:155 00:021 OCBP: BlessedFileHEX (1/5 282) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 00 07 01 01 06 00 00 00 01 01 06 00 00 07 01 01 06 00 00 00 03 12 0A 00 00 00 00 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 60 D2
08:186 00:031 OCBP: BlessedFileHEX (2/5 282) - 97 3B 00 00 00 00 B2 69 DE 41 BF 8F D9 48 A7 4D D7 BE B8 9C E8 A0 02 02 04 03 24 00 F7 FC 74 BE 7C 0B F3 49 91 47 01 F4 04 2E 68 42 08 D5 DD 71 0C BB 08 4C BE 46 44 D8 2A 7D 21 4A 04 04 9A 00
08:220 00:034 OCBP: BlessedFileHEX (3/5 282) - 5C 00 30 00 44 00 32 00 38 00 30 00 38 00 32 00 43 00 2D 00 35 00 45 00 38 00 33 00 2D 00 34 00 38 00 32 00 46 00 2D 00 39 00 42 00 39 00 45 00 2D 00 46 00 46 00 42 00 37 00 37 00 42 00 39 00
08:252 00:032 OCBP: BlessedFileHEX (4/5 282) - 33 00 32 00 44 00 39 00 39 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00
08:283 00:031 OCBP: BlessedFileHEX (5/5 282) - 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
08:305 00:021 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
08:347 00:041 OCBP: Blessed file is valid
08:370 00:023 OCBP: 16 filesystems for APFS - Success
08:391 00:020 OCBP: APFS Volume Info - 73BDD998 (131072, 71DDD508-BB0C-4C08-BE46-44D82A7D214A, 16)
08:413 00:022 OCBP: APFS Container Info - 73B98E98 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
08:434 00:021 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 2 of 16 - 1
08:456 00:021 OCBP: Missing partition 71DDD508-BB0C-4C08-BE46-44D82A7D214A on preboot - Not Found
08:477 00:021 OCBP: No APFS booter 2 of 16 for 71DDD508-BB0C-4C08-BE46-44D82A7D214A - Not Found
08:499 00:021 OCBP: APFS Volume Info - 73B98F98 (131072, 0D28082C-5E83-482F-9B9E-FFB77B932D99, 64)
08:520 00:021 OCBP: APFS Container Info - 73B98E18 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
08:544 00:024 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 3 of 16 - 1
08:566 00:021 OCBP: Found partition 0D28082C-5E83-482F-9B9E-FFB77B932D99 on preboot
08:587 00:021 OCBP: Want predefined list for APFS 16 at 0D28082C-5E83-482F-9B9E-FFB77B932D99
08:611 00:023 OCBP: Predefined 0D28082C-5E83-482F-9B9E-FFB77B932D99 \System\Library\CoreServices\boot.efi was found
08:632 00:021 OCBP: Found APFS booter 3 of 16 for 0D28082C-5E83-482F-9B9E-FFB77B932D99 (76DEF800)
08:654 00:021 OCBP: APFS Volume Info - 7561EC98 (131072, 05299671-D5DF-4DF7-8FFD-7E2B6E00B70E, 4)
08:675 00:021 OCBP: APFS Container Info - 73B98D98 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
08:698 00:023 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 4 of 16 - 1
08:720 00:021 OCBP: Missing partition 05299671-D5DF-4DF7-8FFD-7E2B6E00B70E on preboot - Not Found
08:741 00:021 OCBP: No APFS booter 4 of 16 for 05299671-D5DF-4DF7-8FFD-7E2B6E00B70E - Not Found
08:763 00:021 OCBP: APFS Volume Info - 7561EC98 (131072, 01869562-DA03-465D-A2A1-74476BD2DDA6, 8)
08:784 00:021 OCBP: APFS Container Info - 73B98E98 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
08:805 00:021 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 5 of 16 - 1
08:827 00:021 OCBP: Missing partition 01869562-DA03-465D-A2A1-74476BD2DDA6 on preboot - Not Found
08:848 00:021 OCBP: No APFS booter 5 of 16 for 01869562-DA03-465D-A2A1-74476BD2DDA6 - Not Found
08:870 00:021 OCBP: APFS Volume Info - 7561EC98 (131072, 47ADF6DE-F29A-401B-907D-6210DF6A1BC1, 1)
08:891 00:021 OCBP: APFS Container Info - 73B98D18 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
08:912 00:021 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 6 of 16 - 1
08:934 00:021 OCBP: Missing partition 47ADF6DE-F29A-401B-907D-6210DF6A1BC1 on preboot - Not Found
08:957 00:022 OCBP: No APFS booter 6 of 16 for 47ADF6DE-F29A-401B-907D-6210DF6A1BC1 - Not Found
08:978 00:021 OCBP: APFS Volume Info - 7561EC98 (131072, 37464D93-F5CE-4CF1-95C2-BA3E8A4D8A20, 192)
08:999 00:021 OCBP: APFS Container Info - 73B98C98 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
09:022 00:022 OCBP: APFS match container 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 vs 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1 for 7 of 16 - 1
09:044 00:021 OCBP: Missing partition 37464D93-F5CE-4CF1-95C2-BA3E8A4D8A20 on preboot - Not Found
09:065 00:021 OCBP: No APFS booter 7 of 16 for 37464D93-F5CE-4CF1-95C2-BA3E8A4D8A20 - Not Found
09:101 00:035 OCBP: APFS bless for 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1:<null string> is Success
09:125 00:024 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
09:165 00:040 OCB: Discarding already present DP
09:186 00:020 OCB: Processing blessed list
09:206 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F,0x28,0x64000)
09:238 00:031 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
09:259 00:021 OCBP: Blessed file is missing
09:279 00:020 OCBP: Blessed folder is missing
09:302 00:022 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi was found
09:323 00:021 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F,0x28,0x64000)/\System\Library\CoreServices\boot.efi
09:359 00:036 OCB: Discarding discovered OpenCore bootloader
09:382 00:022 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: D0CD2BA3-3F30-4DDA-A9B5-6F5ABB47F79F
09:408 00:025 LNX: ScanLoaderEntries \ - Not Found
09:433 00:024 LNX: APFS - not scanning
09:454 00:021 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,2C08280D835E2F489B9EFFB77B932D99)
09:493 00:039 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
09:515 00:022 OCBP: APFS Volume Info - 73B98218 (131072, 0D28082C-5E83-482F-9B9E-FFB77B932D99, 64)
09:537 00:021 OCBP: APFS Container Info - 73B98198 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
09:561 00:024 LNX: APFS - not scanning
09:582 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,71962905DFD5F74D8FFD7E2B6E00B70E)
09:624 00:042 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
09:645 00:021 OCBP: APFS Volume Info - 73B98498 (131072, 05299671-D5DF-4DF7-8FFD-7E2B6E00B70E, 4)
09:667 00:022 OCBP: APFS Container Info - 73B98698 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
09:690 00:022 LNX: APFS - not scanning
09:710 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,6295860103DA5D46A2A174476BD2DDA6)
09:749 00:039 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
09:774 00:024 OCBP: APFS Volume Info - 73BDE018 (131072, 01869562-DA03-465D-A2A1-74476BD2DDA6, 8)
09:795 00:021 OCBP: APFS Container Info - 73B98218 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
09:816 00:021 LNX: APFS - not scanning
09:838 00:021 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,DEF6AD479AF21B40907D6210DF6A1BC1)
09:880 00:042 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
09:901 00:021 OCBP: APFS Volume Info - 73B98718 (131072, 47ADF6DE-F29A-401B-907D-6210DF6A1BC1, 1)
09:923 00:021 OCBP: APFS Container Info - 73B98498 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
09:947 00:024 LNX: APFS - not scanning
09:968 00:021 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,934D4637CEF5F14C95C2BA3E8A4D8A20)
10:007 00:039 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:029 00:021 OCBP: APFS Volume Info - 73B98398 (131072, 37464D93-F5CE-4CF1-95C2-BA3E8A4D8A20, 192)
10:050 00:021 OCBP: APFS Container Info - 73BDE018 (1, 219611BE-DE2B-4CE3-8FA1-E6A4C40DE0C1)
10:074 00:024 LNX: APFS - not scanning
10:095 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,66521C5F-7F20-4A9A-990F-D485B989C16C,0x28,0x64000)
10:129 00:034 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:154 00:024 OCBP: Blessed file is missing
10:176 00:022 OCBP: Blessed folder is missing
10:196 00:020 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
10:218 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:239 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
10:264 00:025 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: 66521C5F-7F20-4A9A-990F-D485B989C16C
10:286 00:021 LNX: ScanLoaderEntries \ - Not Found
10:306 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x4,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,B388243A-F53C-4756-AE57-5CB05E179113,0x3B9A1288,0x40000)
10:337 00:030 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:358 00:021 OCBP: Blessed file is missing
10:379 00:020 OCBP: Blessed folder is missing
10:400 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
10:421 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:443 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
10:464 00:021 LNX: HFS - not scanning
10:484 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,0818CB7D-BB9F-4AD9-82C4-C86B29D30C33,0x28,0x64000)
10:519 00:034 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:542 00:023 OCBP: Blessed file is missing
10:562 00:020 OCBP: Blessed folder is missing
10:583 00:020 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
10:605 00:022 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:626 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
10:652 00:025 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: 0818CB7D-BB9F-4AD9-82C4-C86B29D30C33
10:673 00:021 LNX: ScanLoaderEntries \ - Not Found
10:695 00:021 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x5,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,780F4E31-79BB-4096-AD7C-C2F0636DD1F5,0x3B9A1288,0x40000)
10:725 00:030 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:746 00:021 OCBP: Blessed file is missing
10:769 00:022 OCBP: Blessed folder is missing
10:791 00:022 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
10:813 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:834 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
10:858 00:024 LNX: HFS - not scanning
10:880 00:021 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(1,GPT,DBB03E39-00F1-466A-AB3E-94C6E41AA7D4,0x28,0x64000)
10:914 00:034 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
10:938 00:024 OCBP: Blessed file is missing
10:959 00:020 OCBP: Blessed folder is missing
10:980 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
11:001 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
11:023 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
11:049 00:026 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: DBB03E39-00F1-466A-AB3E-94C6E41AA7D4
11:074 00:024 LNX: ScanLoaderEntries \ - Not Found
11:094 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x6,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(3,GPT,8A17777C-8495-4BF9-8DC2-E855E76B8A1C,0x3B9A1288,0x40000)
11:125 00:030 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
11:146 00:021 OCBP: Blessed file is missing
11:167 00:021 OCBP: Blessed folder is missing
11:188 00:020 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
11:210 00:022 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
11:231 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
11:256 00:024 LNX: HFS - not scanning
11:276 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(1,GPT,35D4486E-BE28-4C61-8DBF-344BB3D5E946,0x28,0x64000)
11:324 00:048 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
11:347 00:023 OCBP: Blessed file is missing
11:369 00:021 OCBP: Blessed folder is missing
11:390 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
11:412 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
11:435 00:023 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
11:463 00:028 LNX: TypeGUID: C12A7328-F81F-11D2-BA4B-00A0C93EC93B (ESP) PARTUUID: 35D4486E-BE28-4C61-8DBF-344BB3D5E946
11:485 00:021 LNX: ScanLoaderEntries \ - Not Found
11:506 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)
11:536 00:030 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
11:596 00:059 OCBP: BlessedFileHEX (1/3 154) - 02 01 0C 00 D0 41 03 0A 00 00 00 00 01 01 06 00 02 1F 03 12 0A 00 02 00 00 00 00 00 04 01 2A 00 02 00 00 00 28 40 06 00 00 00 00 00 F0 D4 15 C0 00 00 00 00 D9 CA C4 68 DA 5E 0B 49 9F 03 44 2C
11:627 00:031 OCBP: BlessedFileHEX (2/3 154) - 5B 0A BE 10 02 02 04 04 50 00 5C 00 53 00 79 00 73 00 74 00 65 00 6D 00 5C 00 4C 00 69 00 62 00 72 00 61 00 72 00 79 00 5C 00 43 00 6F 00 72 00 65 00 53 00 65 00 72 00 76 00 69 00 63 00 65 00
11:662 00:035 OCBP: BlessedFileHEX (3/3 154) - 73 00 5C 00 62 00 6F 00 6F 00 74 00 2E 00 65 00 66 00 69 00 00 00 7F FF 04 00
11:687 00:024 OCBP: BlessedFileDP - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)/\System\Library\CoreServices\boot.efi
11:718 00:031 OCBP: Blessed file is valid
11:739 00:020 OCB: Adding entry type (T:2|F:0|G:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)/\System\Library\CoreServices\boot.efi
11:770 00:031 OCB: Trying to get label from \System\Library\CoreServices\.contentDetails
11:799 00:028 OCB: Trying to get label from \System\Library\CoreServices\.disk_label.contentDetails
11:845 00:046 OCB: Trying to get flavour from \System\Library\CoreServices\.contentFlavour
11:866 00:021 OCB: Trying to get Apple version from \System\Library\CoreServices\SystemVersion.plist
11:908 00:042 OCB: Registering entry Mojave RAID [Apple10_14:Apple] (T:2|F:0|G:0|E:0|B:0) - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(2,GPT,68C4CAD9-5EDA-490B-9F03-442C5B0ABE10,0x64028,0xC015D4F0)/\System\Library\CoreServices\boot.efi
11:940 00:031 LNX: HFS - not scanning
11:960 00:020 OCB: Adding bless entry on disk - PciRoot(0x0)/Pci(0x1F,0x2)/Sata(0x2,0x0,0x0)/HD(3,GPT,D5E7D471-96CA-4FBF-AC1F-2D0D647FFBA1,0xC0201518,0x9D2C8E70)
11:990 00:029 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
12:011 00:021 OCBP: Blessed file is missing
12:032 00:020 OCBP: Blessed folder is missing
12:053 00:021 OCBP: Predefined <nil> \System\Library\CoreServices\boot.efi is missing - Not Found
12:074 00:021 OCBP: Predefined <nil> \EFI\Microsoft\Boot\bootmgfw.efi is missing - Not Found
12:096 00:021 OCBP: Predefined <nil> \EFI\BOOT\BOOTX64.EFI is missing - Not Found
12:117 00:021 LNX: HFS - not scanning
12:139 00:022 OCB: Not adding hidden auxiliary entry BootKicker.efi (tool|B:0) -> BootKicker.efi
12:161 00:021 OCB: Not adding hidden auxiliary entry OpenShell.efi (tool|B:0) -> OpenShell.efi
12:182 00:021 OCB: Showing menu... (polling hotkeys)
12:202 00:020 OCHK: InitHotKeys
12:225 00:022 OCKM: Allocated key repeat context 73BDDA18 73B98798 73B7D698
12:246 00:020 OCAE: Set screen resolution to 1024x768 - Success
12:267 00:021 OCTY: Registered handler
12:288 00:020 OCAE: Set screen resolution to 1024x768 - Success
12:309 00:020 OCUI: Console attributes: 0
12:321 00:012 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
12:334 00:012 OCB: Trying to get image from 0D28082C-5E83-482F-9B9E-FFB77B932D99\.VolumeIcon.icns
12:348 00:014 OCB: Trying to get image from .VolumeIcon.icns
12:363 00:014 OCB: OcGetBootEntryIcon - Macintosh HD in 0D28082C-5E83-482F-9B9E-FFB77B932D99\ (volume icon) - Not Found
12:375 00:012 OCUI: Trying flavour icon Resources\Image\Acidanthera\GoldenGate\Apple12.icns
12:396 00:020 OCUI: Using flavour icon, custom: 1
12:409 00:013 OCUI: Console attributes: 0
12:423 00:013 OCUI: UseDiskLabel: 0, UseGenericLabel: 0
12:436 00:013 OCB: Trying to get image from .VolumeIcon.icns
12:450 00:013 OCB: OcGetBootEntryIcon - Mojave RAID in <null string> (volume icon) - Not Found
12:463 00:012 OCUI: Trying flavour icon Resources\Image\Acidanthera\GoldenGate\Apple10_14.icns
12:482 00:019 OCUI: Using flavour icon, custom: 1
17:526 05:044 OCHK: FreeHotKeys
17:551 00:024 OCTY: Unregistered handler
17:571 00:020 OCKM: Freeing key repeat context 73BDDA18 73B98798 73B7D698
17:592 00:020 OCB: Should boot from 1. Macintosh HD (T:2|F:0|G:0|E:0|DEF:0)
17:620 00:027 OCB: Perform boot Macintosh HD to dp PciRoot(0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Pci(0x7,0x0)/Pci(0x0,0x0)/Sata(0x0,0x0,0x0)/HD(2,GPT,41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0,0x64028,0x3B97D260)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,08D5DD710CBB084CBE4644D82A7D214A)/\0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi (0/0)
17:640 00:020 OCSB: Secure boot is disabled, skipping
17:654 00:014 OCB: Arch filtering 73717018(723512)->73717018(723512) caps 4 - Success
17:668 00:014 OCB: Matching <>/0[0] args on type 2
17:682 00:013 OCABC: VMware Mac installed on 73B7D298 - Success
17:696 00:014 OCABC: Booter patch (Reroute HW_BID to OC_BID) replace count - 1
17:712 00:015 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
17:727 00:014 AAPL: #[EB.H.IS|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
17:741 00:014 AAPL: #[EB|H:IS] 0
17:755 00:013 AAPL: #[EB|LOG:INIT] 2022-08-06T11:11:41
17:768 00:013 AAPL: #[EB|VERSION] <"boot.efi 540.120.3~6 (Official), built 2022-04-19T21:17:53-0700">
17:781 00:012 AAPL: #[EB|BUILD] <"BUILD-INFO[298]:{"DisplayName":"boot.efi","DisplayVersion":"540.120.3~6","RecordUuid":"E55E03A0-4166-4913-B8BA-A2B0C5A34EC3","BuildTime":"2022-04-19T21:17:53-0700","ProjectName":"efiboot","ProductName":"boot.efi","SourceVersion":"540.120.3","BuildVersion":"6","BuildConfiguration":"Release","BuildType":"Official"}">
17:794 00:013 AAPL: #[EB.CFG.DEV|!] Err(0xE) <- RT.GV booter-strict-xmlparser 7C436110-AB2A-4BBB-A880-FE41995C9F82
17:808 00:013 AAPL: #[EB|CFG:DEV] r5 0x0 0x0
17:824 00:015 AAPL: #[EB|H:IS] 0
17:836 00:012 AAPL: #[EB|WL:MODE] 0
17:852 00:015 AAPL: #[EB|CFG:ARG] boot-save-log 0x0000000000000002 (0x0000000000000002 < 0xFFFFFFFFFFFFFFFF) default
17:864 00:012 AAPL: #[EB|CFG:ARG] wake-save-log 0x0000000000000002 (0x0000000000000002 < 0x0000000000000002) default
17:878 00:013 AAPL: #[EB|CFG:ARG] console       0x0000000000000001 (0x0000000000000001 < 0x0000000000000001) default
17:890 00:012 AAPL: #[EB|CFG:ARG] serial        0x0000000000000001 (0x0000000000000001 < 0x0000000000000000) default
17:903 00:012 AAPL: #[EB|CFG:ARG] preoslog      0x0000000000000001 (0x0000000000000001 < 0xFFFFFFFFFFFFFFFF) default
17:917 00:014 AAPL: #[EB|CFG:ARG] timestamps    0x0000000000000000 (0x0000000000000000 < 0xFFFFFFFFFFFFFFFF) default
17:933 00:015 AAPL: #[EB|CFG:ARG] log-level     0x0000000000000001 (0x0000000000000001 & 0x0000000000000021) default
17:947 00:013 AAPL: #[EB|CFG:ARG] breakpoint    0x0000000000000000 (0x0000000000000000 & 0x0000000000000000) default
17:959 00:012 AAPL: #[EB|CFG:ARG] kc-read-size  0x0000000000100000 (0x0000000000100000 < 0xFFFFFFFFFFFFFFFF) default
17:974 00:014 AAPL: #[EB|H:IS] 0
17:989 00:015 AAPL: #[EB|WL] 0 0 0x01 0x01   0 0x00
18:002 00:012 AAPL: #[EB|BRD:NV] Mac-BE088AF8C5EB4FA2
18:014 00:012 OCOS: OS set: <null> macOS 11.0
18:030 00:015 OCOS: OS set: Apple Inc. macOS 11.0
18:043 00:013 AAPL: #[EB|B:VAw]
18:056 00:012 AAPL: #[EB|B:IAw]
18:068 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01   2 0x00
18:081 00:012 AAPL: #[EB|B:RRVAR] <0023dfdb7bb6>
18:097 00:015 AAPL: #[EB|B:MLBVAR] J590807P01LTB
18:109 00:012 AAPL: #[EB.BST.IDT|+]
18:136 00:026 AAPL: #[EB.BST.IDT|-]
18:148 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01   3 0x00
18:161 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01   4 0x00
18:176 00:014 AAPL: #[EB|BRD:NV] Mac-BE088AF8C5EB4FA2
18:188 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01   5 0x00
18:201 00:012 AAPL: #[EB.H.CHK|BM] 0x0000000000000000
18:213 00:012 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
18:226 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01  23 0x0E
18:238 00:012 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
18:251 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01  24 0x0E
18:263 00:012 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.GV boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
18:276 00:012 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-signature 7C436110-AB2A-4BBB-A880-FE41995C9F82
18:288 00:012 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image-key 7C436110-AB2A-4BBB-A880-FE41995C9F82
18:301 00:012 AAPL: #[EB.H.LV|!] Err(0xE) <- RT.SV- boot-image 7C436110-AB2A-4BBB-A880-FE41995C9F82
18:315 00:014 AAPL: #[EB|H:NOT]
18:328 00:012 AAPL: #[EB|SB:P] 0x0
18:340 00:012 AAPL: #[EB|LIMG:DP] Acpi(PNP0A03,0)/Pci(7|0)/Pci(0|0)/Pci(7|0)/Pci(0|0)/SATA(0,0)/HD(Part2,Sig41DE69B2-8FBF-48D9-A74D-D7BEB89CE8A0)/VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842)
18:353 00:012 AAPL: #[EB|LIMG:FP] \0D28082C-5E83-482F-9B9E-FFB77B932D99\System\Library\CoreServices\boot.efi
18:365 00:012 AAPL: #[EB|LIMG:OPT]
18:378 00:012 AAPL: #[EB.OPT.LXF|F] <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\com.apple.Boot.plist">
18:391 00:012 AAPL: #[EB.LD.LF|IN] 0 1 <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\com.apple.Boot.plist"> <"0">
18:403 00:012 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\com.apple.Boot.plist">
18:416 00:012 AAPL: #[EB.OPT.LXF|LF!] Err(0xE)
18:428 00:012 AAPL: #[EB.OPT.LXF|F] <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist">
18:441 00:012 AAPL: #[EB.LD.LF|IN] 0 1 <"Library\\Preferences\\SystemConfiguration\\com.apple.Boot.plist"> <"0">
18:457 00:016 AAPL: #[EB|KF] <"">
18:470 00:012 AAPL: #[EB|MBA:CL] <"">
18:482 00:012 AAPL: #[EB|MBA:NV] <"keepsyms=1 debug=0x100 -lilubetaall ipc_control_port_options=0 -revasset">
18:496 00:013 AAPL: #[EB|MBA:KF] <"">
18:508 00:012 AAPL: #[EB|MBA:OUT] <"keepsyms=1 debug=0x100 -lilubetaall ipc_control_port_options=0 -revasset">
18:521 00:012 AAPL: #[EB|OPT:BM] 0x80180
18:534 00:012 AAPL: #[EB.OPT.LXF|F] <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\PlatformSupport.plist">
18:549 00:015 AAPL: #[EB.LD.LF|IN] 0 1 <"\\0D28082C-5E83-482F-9B9E-FFB77B932D99\\System\\Library\\CoreServices\\PlatformSupport.plist"> <"0">
18:563 00:013 AAPL: #[EB|P:CPR] N
18:575 00:012 AAPL: #[EB|P:MPI] N
18:588 00:012 AAPL: #[EB|P:BPI] N
18:600 00:012 AAPL: #[EB|KMR] 203051008
18:614 00:013 AAPL: #[EB.CS.CSKSD|+]
18:626 00:012 AAPL: #[EB.CS.CSKSD|!] Err(0xE) <- RT.GV boot-info-payload 8D63D4FE-BD3C-4AAD-881D-86FD974BC1DF
18:639 00:012 AAPL: #[EB|WL] 0 0 0x01 0x01   6 0x0E
18:651 00:012 AAPL: #[EB.CS.LFC|+]
18:667 00:015 AAPL: #[EB.LD.LF|IN] 0 1 <"System\\Library\\Caches\\com.apple.corestorage\\EncryptedRoot.plist.wipekey"> <"0">
18:690 00:022 AAPL: #[EB.FS.AGSVH|PU] 0D28082C-5E83-482F-9B9E-FFB77B932D99
18:702 00:012 AAPL: #[EB.FS.AGSVH|!] Err(0xE) <- BS.LocHB 59D76AE4-37E3-55A7-B460-EF13D46E6020
18:715 00:012 AAPL: #[EB.G.CS|-?] Ok(0)
18:736 00:020 AAPL: #[EB.LD.LF|IN] 0 1 <"<null string>"> <"1">
18:751 00:014 AAPL: #[EB.B.SBS|SZ] 723512
18:770 00:019 AAPL: #[EB|B:SHA] <de9d404f708d60914107eaac4ef175b020709b48>
18:782 00:012 AAPL: #[EB.WL.PWLFNV|!] Err(0xE) <- RT.GV wake-failure 7C436110-AB2A-4BBB-A880-FE41995C9F82
18:798 00:015 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFNV
18:810 00:012 AAPL: #[EB.WL.PWLFRTC|NONE]
18:826 00:015 AAPL: #[EB.WL.DT|!] Err(0xE) <- EB.WL.PWLFRTC
18:838 00:012 AAPL: #[EB.LD.LKC|D] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc.development">
18:852 00:013 AAPL: #[EB.LD.OFS|OPEN!] Err(0xE) <"boot\\System\\Library\\KernelCollections\\BootKernelExtensions.kc.development">
18:864 00:012 AAPL: #[EB.LD.LKC|R.2] <"boot\System\Library\KernelCollections\BootKernelExtensions.kc">
18:924 00:059 OC: Kext reservation size info 55D000 exe 1FE000
18:936 00:012 OC: Trying 64-bit XNU hook on boot\System\Library\KernelCollections\BootKernelExtensions.kc
19:020 00:083 OC: Result of 64-bit XNU hook on boot\System\Library\KernelCollections\BootKernelExtensions.kc (00000000) is Success
19:045 00:025 OCAK: Read kernel version 21.5.0 (210500)
19:057 00:012 OC: Kernel patcher skips kernel (SurPlus v1 - PART 1 of 2 - Patch read_erandom (inlined in _early_random)) patch at 1 due to version 200400 <= 210500 <= 210100
19:071 00:013 OC: Kernel patcher skips kernel (SurPlus v1 - PART 2 of 2 - Patch register_and_init_prng) patch at 2 due to version 200400 <= 210500 <= 210100
19:110 00:039 OCAK: 64-bit Reroute kern.hv_vmm_present patch (1) replace count - 1
19:123 00:012 OC: Kernel patcher result 3 for kernel (Reroute kern.hv_vmm_present patch (1)) - Success
19:159 00:036 OCAK: 64-bit Reroute kern.hv_vmm_present patch (2) replace count - 1
19:175 00:015 OC: Kernel patcher result 4 for kernel (Reroute kern.hv_vmm_present patch (2)) - Success
19:213 00:038 OCAK: 64-bit PanicKextDump replace count - 1
19:226 00:012 OCAK: Patch success kext dump
19:241 00:015 OCAK: Found jettisoning fileset
19:373 00:132 OCAK: Local relocs 689 on FFFFFF8004225000
19:391 00:017 OC: Prelinked injection Lilu.kext (Patching Engine) - Success
19:415 00:024 OCAK: Patching invalid size 2C000 with 1416000 for com.apple.iokit.IOPCIFamily
19:445 00:029 OCAK: Local relocs 5500 on FFFFFF8004253000
19:472 00:027 OC: Prelinked injection AppleALC.kext (AppleHDA Patching) - Success
19:492 00:019 OCAK: Local relocs 316 on FFFFFF80043D4000
19:506 00:014 OC: Prelinked injection RestrictEvents.kext (Process Blocker) - Success
19:527 00:020 OCAK: Local relocs 674 on FFFFFF80043E1000
19:541 00:014 OC: Prelinked injection AirportBrcmFixup.kext (Broadcom Wifi Patch) - Success
19:561 00:020 OCAK: Local relocs 315 on FFFFFF80043EF000
19:574 00:013 OC: Prelinked injection FeatureUnlock.kext (FeatureUnlock) - Success
19:587 00:012 OC: Prelinked injection ASPP-Override.kext (ACPI_SMC_PlatformPlugin Override) - Success
19:606 00:019 OCAK: Local relocs 312 on FFFFFF80043F9000
19:620 00:014 OC: Prelinked injection AutoPkgInstaller.kext (Chainload OpenCore-Patcher installation) - Success
19:639 00:018 OCAK: Local relocs 1088 on FFFFFF8004401000
19:653 00:014 OC: Prelinked injection NoAVXFSCompressionTypeZlib.kext (Work-around 12.4+ Zlib kernel panic) - Success
19:666 00:012 OC: Prelink size 70004736 kext offset 67915776 reserved 2088960
19:678 00:012 OCAK: KC TEXT is 65536 bytes with 63696 Mach-O headers need 680
19:726 00:047 OCAK: Patching invalid size 17F000 with D52000 for com.apple.filesystems.apfs
19:739 00:012 OC: Prelinked patcher result 0 for com.apple.filesystems.apfs (Force FileVault on Broken Seal) - Success
19:763 00:024 OC: Prelinked status - Success
19:797 00:033 AAPL: #[EB.LD.LKFS|-?] Ok(0)
19:809 00:012 AAPL: #[EB.LD.LKC|-?] Ok(0)
19:822 00:013 AAPL: #[EB|BST:REV1]
19:835 00:012 AAPL: #[EB|CSR:IN] 0x00000802
19:847 00:012 AAPL: #[EB|CSR:OUT] 0x00000802
19:860 00:012 AAPL: #[EB.BST.FBS|+]
19:873 00:013 AAPL: #[EB.BST.FBS|ADSZ] 0
19:886 00:012 AAPL: #[EB.BST.FBS|KSSZ] 0
19:898 00:012 AAPL: #[EB|SB:SBGMFNS] x86legacyap.im4m
19:911 00:012 AAPL: #[EB|RH:PF] usr\standalone\OS.dmg.root_hash
19:924 00:013 AAPL: #[EB|RH:MF] <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m">
19:937 00:012 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash"> <"0">
19:952 00:015 AAPL: #[EB.LD.LF|IN] 0 1 <"usr\\standalone\\OS.dmg.root_hash.x86legacyap.im4m"> <"0">
19:967 00:014 AAPL: #[EB.BST.FBS|RHPSZ] 229
19:983 00:015 AAPL: #[EB.BST.FBS|RHMSZ] 3627
19:997 00:014 AAPL: #[EB|LOG:DT] 2022-08-06T11:11:44
20:010 00:012 AAPL: #[EB|LOG:EXITBS:START] 2022-08-06T11:11:44

startergo said:
Get the EDID along with other info with:

Code:

/System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/AGDCDiagnose -a > ~/Downloads/AGDCDiagnose.txt

% sudo /System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/AGDCDiagnose -a > ~/Downloads/AGDCDiagnose.txt

Password:

Assertion failed: (catcherFd >= 0), function setupOutputGuard, file AGDCDiagnose.c, line 1464.

zsh: abort      sudo  -a > ~/Downloads/AGDCDiagnose.txt

In AGDCDiagnose.txt only single line: AGDCDiagnose Version: 6.5.7 (AGDC node count: 4)

jsts · Aug 6, 2022

I don't know how useful this could be, but:

% ioreg -l -w0 -d0 -r -c AppleDisplay

Code:

+-o AppleDisplay  <class AppleDisplay, id 0x1000006fb, registered, matched, active, busy 0 (1 ms), retain 8>
    {
      "IOClass" = "AppleDisplay"
      "CFBundleIdentifier" = "com.apple.iokit.IOGraphicsFamily"
      "IOProviderClass" = "IODisplayConnect"
      "DisplayProductID" = 37430

      "IODisplayEDID" = <00ffffffffffff00061036920000010233120104a5342078266ea1a7554c9d250e5054000000d1000101010101010101010101010101283c80a070b023403020360006442100001a000000ff00324138353132395a304b300a20000000fc004c45442043696e656d610a20200000000000000000000000000000000000000155400102000000007e2401a500ffff031a1aa80100000000004000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000057>

      "IODisplayPrefsKeyOld" = "IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/GFX0@0/AMDRadeonX6000_AmdRadeonControllerNavi23/ATY,RadeonFramebuffer@0/display0/AppleDisplay-610-9236"

      "IODisplayPrefsKey" = "IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/IOU0@3/IOPP/PXS1@0/IOPP/pci-bridge@0/IOPP/GFX0@0-610-9236-e90313e6894d2d21"

      "IOProbeScore" = 2000

      "IOPowerManagement" = {"CapabilityFlags"=49152,"MaxPowerState"=3,"CurrentPowerState"=3}

      "IODisplayParameters" = {"pscn"={"min"=7500,"max"=10000,"value"=10000},"rgsc"={"min"=0,"max"=65536,"value"=65536},"bgsc"={"min"=0,"max"=65536,"value"=65536},"vblm"={"min"=0,"max"=196608,"value"=65536},"ownr"=4294968784,"ggsc"={"min"=0,"max"=65536,"value"=65536}}

      "IOMatchCategory" = "IODefaultMatchCategory"

      "IOPersonalityPublisher" = "com.apple.iokit.IOGraphicsFamily"

      "IODisplayConnectFlags" = <00000000>

      "CFBundleIdentifierKernel" = "com.apple.iokit.IOGraphicsFamily"

      "IODisplayAttributes" = {"IODisplayAttributes"=<676174760000000073676c6600000000726c6f63010000006364670080808000676c666400000000>}

      "DisplayVendorID" = 1552

      "DisplaySerialNumber" = 33619968

    }

joevt · Aug 6, 2022

jsts said:
This is full opencore log with gtx680:

This is full opencore log with rx6600xt:

I think there's more info you can get. Change DisplayLevel to 2147483714. Attach the logs as zipped archive.

jsts said:

Code:

% sudo /System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/AGDCDiagnose -a > ~/Downloads/AGDCDiagnose.txt

Password:

Assertion failed: (catcherFd >= 0), function setupOutputGuard, file AGDCDiagnose.c, line 1464.

zsh: abort      sudo  -a > ~/Downloads/AGDCDiagnose.txt

In AGDCDiagnose.txt only single line: AGDCDiagnose Version: 6.5.7 (AGDC node count: 4)

Try without sudo.
/System/Library/Extensions/AppleGraphicsControl.kext/Contents/MacOS/AGDCDiagnose -a > ~/Downloads/AGDCDiagnose.txt
Or try AllRez.

jsts said:

I don't know how useful this could be, but:

% ioreg -l -w0 -d0 -r -c AppleDisplay

Code:

      "IODisplayEDID" = <00ffffffffffff00061036920000010233120104a5342078266ea1a7554c9d250e5054000000d1000101010101010101010101010101283c80a070b023403020360006442100001a000000ff00324138353132395a304b300a20000000fc004c45442043696e656d610a20200000000000000000000000000000000000000155400102000000007e2401a500ffff031a1aa80100000000004000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000057>

That appears to be the real EDID of the display, but I would double check with the result from AGDCDiagnose or AllRez.

The EDID shows two modes, both are 1920x1200@60Hz.

Code:

  Standard Timings:
    DMT 0x45:  1920x1200   59.884600 Hz  16:10    74.556 kHz    193.250000 MHz
  Detailed Timing Descriptors:
    DTD 1:  1920x1200   59.950171 Hz   8:5     74.038 kHz    154.000000 MHz (518 mm x 324 mm)
                 Hfront   48 Hsync  32 Hback   80 Hpol P
                 Vfront    3 Vsync   6 Vback   26 Vpol N

The EDID only has two blocks. The second block is a Display Information Extension Block that I've usually only seen with Apple's DVI displays.

The display is single link DVI so any of the following connection types should work:
- HDMI
- DisplayPort dual mode (DP++) passive adaptor (to HDMI or DVI) (GPUs still support dual mode, right?)
- DisplayPort active adaptor (to HDMI or DVI)

Even with all the info, I don't know if there's a way to make the RX 6600 XT choose the correct resolution mode. If it has GOP then it can have EDID protocol which could tell us if it's reading the EDID correctly, but how would you get that info without being able to see Open Core boot screen? You would have to have both GPUs installed. Or setup PCIe serial card with console input and output redirected. Or modify Open Core log to show EDID protocol handles (this would be easiest). While I do have 1920x1200 displays, I don't have have the time to test this (and I don't have the same GPU - I have W5700 and RX580, both GOP only).

MP 1,1-5,1 Experience with MacVidCards Europe RX 6600 XT - no bootscreen

macrumors member

macrumors P6

macrumors member

macrumors 6502

Contributor

macrumors 603

macrumors member

macrumors 603

macrumors member

macrumors P6

macrumors 603

macrumors member

macrumors 603

macrumors 604

macrumors 603

macrumors 604

macrumors member

macrumors 603

macrumors 604

macrumors 603

macrumors 603

macrumors 65816

macrumors member

macrumors member

macrumors 604

Our Staff
