This card: https://www.amazon.com/dp/B0D47B2W75

Not true PXL but it's faking it somehow.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
VaZ said:
The logic is simple, he already invested into everything for a MP 5,1 so why not invest a little more to it on the cheap instead of a whole new machine? It doesn't have to be Squid brand, the quad pcie cards are cheap now and so are nvme blades.
PS - Catalina doesn't need OC.
Click to expand...
Catalina doesn't need Opencore on the 5,1? Seriously?

  • Like
Reactions: VaZ
mode11 said:
There comes a point though where it doesn’t make sense to continue investing in an old computer.
Click to expand...
You're not wrong, but this thing would really be ****ing right now if not for the video crash problem!!! And then I could get by with pretty mid spec new laptop. 1TB of storage would be plenty. I already have a USB2 card. I had one of those Thunderbolt cards for a while (Titan card or something...can't think of the name) but having to boot through windows to get it up and running was a bit much.

  • Like
Reactions: mode11
AppleDrank said:
This card: https://www.amazon.com/dp/B0D47B2W75

Not true PXL but it's faking it somehow.
Click to expand...

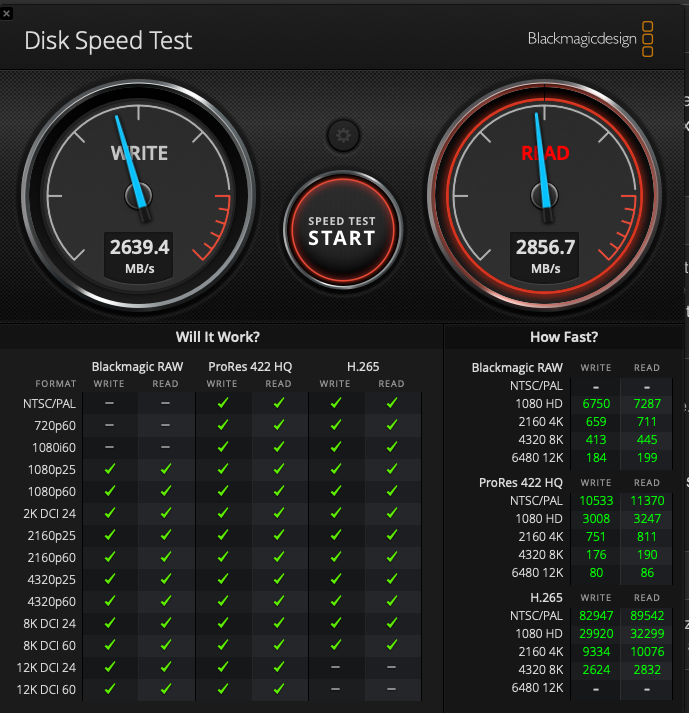

The Amazon page says it’s using a PLX 8747. It would have to be using something like that - your numbers would be impossible otherwise; there’s no way to ‘fake’ them. The reviews all seem positive, albeit with some grousing about fitting the heatsink.

The drive itself should be capable of 2-3x those speeds, but perhaps the card can only deliver that when using RAID arrangements.

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
mode11 said:
The drive itself should be capable of 2-3x those speeds, but perhaps the card can only deliver that when using RAID arrangements.
Click to expand...
The NVMe is PCIe gen 4 but the PCIe bridge of the PCIe card is only PCI gen 3.

You need a PCIe gen 4 bridge to get PCIe gen 4 speed from the NVMe in a PCIe gen 3 or gen 2 Mac.
for example, the HighPoint SSD7505 has a PEX88048 PCIe gen 4 bridge.
https://forums.macrumors.com/threads/pcie-ssds-nvme-ahci.2146725/post-29483973

Or like you said, a software RAID could be created to fill the bandwidth of the PCIe gen 2 slot from a single file system.

  • Like
Reactions: mode11
AppleDrank said:
Thx for the tip re Catalina, I'm not sure what it would buy me to upgrade though as Catalina is also unsupported.

Why does your signature sayyour computer is "Catalina-Sequoia."
Click to expand...
👍🏻 I just meant that's how Catalina can be installed if not with OCLP, but i strongly recommend you install Mojave on a spare drive and test your Quicklook there.
My signature means i have Catalina-to-Sequoia installed and running peachy smooth!

I tried installing Catalina with the Dosdude patch yesterday but I couldn't get it figured out. My video card doesn't have a bootscreen so I couldn't select the USB to boot off of 🙁

I did something interesting that maybe isolates the Preview = video crash problem. I can open the problem PDF in Preview and scroll around no problem as long as I put the monitor in 2560x720 first 🙁

VaZ said:
👍🏻 I just meant that's how Catalina can be installed if not with OCLP, but i strongly recommend you install Mojave on a spare drive and test your Quicklook there.
My signature means i have Catalina-to-Sequoia installed and running peachy smooth!
Click to expand...
I can't even find an RX 5700 XT to try 🙁

AFAIK, some of the most problematic PDFs are assembled from screenshots of text messages (lawyers love this) and so you can get really complicated PDFs. Sometimes the PDFs also require extreme zoom to read. With the multiple layers, scrolling around and zooming, I think it can wind up calling on the video card to render more pixels than the card can do. When you're zoomed in on a fraction of a page, the card is trying to render everything that would be possible to see if you had a very, very, large monitor. The script is multithreaded, and tests PDFs for the risk they pose, and if it finds one over the threshold you set (medium, and high risk, and the scores for each are configurable), and if it comes across one over the threshold, it creates a new rasterized version that includes appending _rstr.pdf, and renames the originals by appending _DANGER.


Attachments

  • Like
Reactions: VaZ
