Help with Kernel Panics Since Updating to 10.13.4

MacGarage

MacGarage

macrumors regular
Original poster
Jun 18, 2017
197
102
Ohio
It just may be a coincident but ever since updating to 10.13.4, I have been receiving a Kernel Panic.

It mostly happens when I place it to sleep.

I ran Tech Tool and Disk Warrior on items I could and all tested okay. I do have one back-up hard drive with bad sectors.

I did the normal resets without a change.

It is a 2010 MacPro with 2-3.46 GHz/64GB RAM, flashed AMD Radeon 7950, Sandisk Ultra II 960GB, 4 hard drives

The latest full report:
Anonymous UUID: AF64C102-BCDE-47D2-D6C0-4375DAAB7CA9

Thu Apr 5 17:00:01 2018

*** Panic Report ***
panic(cpu 10 caller 0xffffff7f98a944f6): "ino 8595065709 no extent covering dstream alloced_size 8417558528 (fsize 8417558528) pos/len 8417591296:0\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-748.57.19/nx/jobj.c:10680
Backtrace (CPU 10), Frame : Return Address
0xffffff874df4b330 : 0xffffff801766e166
0xffffff874df4b380 : 0xffffff8017796714
0xffffff874df4b3c0 : 0xffffff8017788a00
0xffffff874df4b440 : 0xffffff8017620180
0xffffff874df4b460 : 0xffffff801766dbdc
0xffffff874df4b590 : 0xffffff801766d99c
0xffffff874df4b5f0 : 0xffffff7f98a944f6
0xffffff874df4b7a0 : 0xffffff7f98a576ea
0xffffff874df4b8f0 : 0xffffff80178cc1c6
0xffffff874df4bd10 : 0xffffff80178cc08e
0xffffff874df4bd50 : 0xffffff80178b392e
0xffffff874df4bf40 : 0xffffff8017c04418
0xffffff874df4bfa0 : 0xffffff8017620966
Kernel Extensions in backtrace:
com.apple.filesystems.apfs(748.51)[4E26C92D-330B-33A8-8DA7-C1498DD86AB7]@0xffffff7f98a28000->0xffffff7f98b0dfff
dependency: com.apple.kec.corecrypto(1.0)[CA65BD09-4559-3507-A72B-733ED9110DF1]@0xffffff7f985b8000
dependency: com.apple.driver.AppleEffaceableStorage(1.0)[6B49B846-2852-3D7C-BD45-E70DC2684A8E]@0xffffff7f9898c000
dependency: com.apple.iokit.IOStorageFamily(2.1)[F27A8A2A-6662-3608-83BD-415037509E01]@0xffffff7f98097000

BSD process name corresponding to current thread: coresymbolicatio

Mac OS version:
17E199

Kernel version:
Darwin Kernel Version 17.5.0: Mon Mar 5 22:24:32 PST 2018; root:xnu-4570.51.1~1/RELEASE_X86_64
Kernel UUID: 1B55340B-0B14-3026-8A47-1E139DB63DA3
Kernel slide: 0x0000000017400000
Kernel text base: 0xffffff8017600000
__HIB text base: 0xffffff8017500000
System model name: MacPro5,1 (Mac-F221BEC8)
Root disk errors: "Failed to issue COM RESET after 3 attempts. Terminating."

System uptime in nanoseconds: 81823682822638
last loaded kext at 76337078139792: com.apple.driver.usb.cdc.acm 5.0.0 (addr 0xffffff7f9b246000, size 57344)
last unloaded kext at 76398477037812: com.apple.driver.AppleUSBMergeNub 900.4.1 (addr 0xffffff7f9b219000, size 12288)
loaded kexts:
com.parallels.virtualhid 1.0.3 3
com.parallels.virtualsound 1.0.36 36
at.obdev.nke.LittleSnitch 4740
com.apple.driver.AppleBluetoothMultitouch 92
com.apple.driver.AppleTyMCEDriver 1.0.3d2
com.apple.driver.AGPM 110.23.33
com.apple.filesystems.autofs 3.0
com.apple.driver.AppleUpstreamUserClient 3.6.5
com.apple.driver.AppleMCCSControl 1.5.4
com.apple.kext.AMDFramebuffer 1.6.6
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.kext.AMDRadeonX4000 1.6.6
com.apple.AGDCPluginDisplayMetrics 3.18.48
com.apple.driver.AppleHDA 281.51
com.apple.driver.AppleHV 1
com.apple.driver.AppleMikeyDriver 281.51
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.iokit.IOBluetoothSerialManager 6.0.5f3
com.apple.driver.pmtelemetry 1
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleLPC 3.1
com.apple.kext.AMD7000Controller 1.6.6
com.apple.driver.AudioAUUC 1.70
com.apple.driver.AppleOSXWatchdog 1
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.filesystems.apfs 748.51.0
com.apple.driver.AppleUSBDisplays 380
com.apple.filesystems.hfs.kext 407.50.6
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.BootCache 40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.iokit.SCSITaskUserClient 404.30.2
com.apple.driver.AppleFWOHCI 5.5.9
com.apple.driver.AirPort.Brcm4331 800.21.30
com.apple.driver.Intel82574LEthernet 2.7.2
com.apple.driver.AppleAHCIPort 329.50.2
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleACPIButtons 6.1
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 6.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 220.50.1
com.apple.nke.applicationfirewall 183
com.apple.security.TMSafetyNet 8
com.apple.security.quarantine 3
com.apple.driver.AppleIntelCPUPowerManagement 220.50.1
com.apple.driver.usb.cdc.ncm 5.0.0
com.apple.driver.usb.cdc 5.0.0
com.apple.driver.AppleHIDMouse 191
com.apple.driver.IOBluetoothHIDDriver 6.0.5f3
com.apple.driver.AppleMultitouchDriver 1404.4
com.apple.driver.AppleInputDeviceSupport 1404.3
com.apple.kext.triggers 1.0
com.apple.kext.AMDRadeonX4030HWLibs 1.0
com.apple.iokit.IOAcceleratorFamily2 378.18.1
com.apple.kext.AMDRadeonX4000HWServices 1.6.6
com.apple.iokit.IOAVBFamily 675.6
com.apple.plugin.IOgPTPPlugin 675.12
com.apple.iokit.IOEthernetAVBController 1.1.0
com.apple.driver.DspFuncLib 281.51
com.apple.kext.OSvKernDSPLib 526
com.apple.iokit.IONDRVSupport 519.15
com.apple.driver.AppleSSE 1.0
com.apple.iokit.IOSurface 211.12
com.apple.iokit.IOSerialFamily 11
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.AppleGPUWrangler 3.18.48
com.apple.driver.AppleHDAController 281.51
com.apple.iokit.IOHDAFamily 281.51
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.kext.AMDSupport 1.6.6
com.apple.AppleGraphicsDeviceControl 3.18.48
com.apple.iokit.IOGraphicsFamily 519.15
com.apple.iokit.IOFireWireIP 2.2.9
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.driver.AppleHIDKeyboard 205
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.5f3
com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.5f3
com.apple.iokit.IOBluetoothHostControllerTransport 6.0.5f3
com.apple.iokit.IOBluetoothFamily 6.0.5f3
com.apple.iokit.IOAHCIBlockStorage 301.40.2
com.apple.driver.usb.IOUSBHostHIDDevice 1.2
com.apple.driver.AppleUSBAudio 312.6
com.apple.iokit.IOAudioFamily 206.5
com.apple.vecLib.kext 1.2.0
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
com.apple.driver.usb.AppleUSBHub 1.2
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOSCSIMultimediaCommandsDevice 404.30.2
com.apple.iokit.IOBDStorageFamily 1.8
com.apple.iokit.IODVDStorageFamily 1.8
com.apple.iokit.IOCDStorageFamily 1.8
com.apple.iokit.IOAHCISerialATAPI 267.50.1
com.apple.iokit.IOFireWireFamily 4.7.0
com.apple.iokit.IO80211Family 1200.12.2
com.apple.driver.corecapture 1.0.4
com.apple.driver.usb.AppleUSBEHCIPCI 1.2
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBUHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCI 1.2
com.apple.driver.usb.AppleUSBEHCI 1.2
com.apple.driver.usb.AppleUSBXHCIPCI 1.2
com.apple.driver.usb.AppleUSBXHCI 1.2
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.1
com.apple.driver.AppleUSBHostMergeProperties 1.2
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.iokit.IOSMBusFamily 1.1
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.DiskImages 480.50.10
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleEffaceableStorage 1.0
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleUSBTDM 439.50.6
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.iokit.IOUSBMassStorageDriver 140.50.3
com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2
com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2
com.apple.iokit.IOStorageFamily 2.1
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.2
com.apple.driver.usb.AppleUSBCommon 1.0
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.AppleSEPManager 1.0.1
com.apple.driver.IOSlaveProcessor 1
com.apple.iokit.IOReportFamily 31
com.apple.iokit.IOTimeSyncFamily 675.12
com.apple.iokit.IONetworkingFamily 3.4
com.apple.driver.AppleACPIPlatform 6.1
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0

EOF
Model: MacPro5,1, BootROM MP51.0084.B00, 12 processors, 6-Core Intel Xeon, 3.46 GHz, 64 GB, SMC 1.39f11
Graphics: AMD Radeon HD 7950, AMD Radeon HD 7950, PCIe
Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 2, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 4, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 5, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 6, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 7, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 8, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.102.30)
Bluetooth: Version 6.0.5f3, 3 services, 27 devices, 1 incoming serial ports
Network Service: Ethernet 1, Ethernet, en0
Network Service: iPhone 5, Ethernet, en10
Network Service: iPad, Ethernet, en11
PCI Card: PXS2, USB eXtensible Host Controller, Slot-2
PCI Card: AMD Radeon HD 7950, Display Controller, Slot-1
PCI Card: AMD Radeon HD 7950, ATY,HamachiParent, Slot-1
PCI Card: PXS4, USB eXtensible Host Controller, Slot-4
PCI Card: pci1b21,625, AHCI Controller, Slot-3
Serial ATA Device: HL-DT-ST DVD-RW GH61N
Serial ATA Device: WDC WD1001FALS-41Y6A1, 1 TB
Serial ATA Device: ST2000DM001-1ER164, 2 TB
Serial ATA Device: ST2000DM006-2DM164, 2 TB
Serial ATA Device: Hitachi HUS724030ALE641, 3 TB
Serial ATA Device: SanDisk Ultra II 960GB, 960.2 GB
USB Device: USB 3.0 Bus
USB Device: Back-UPS ES 550 FW:840.B2.D USB FW:B2
USB Device: USB 3.0 Bus
USB Device: USB3.0 Hub
USB Device: Back-UPS RS 1500 LCD FW:839.H7 .D USB FW:H7
USB Device: USB3.0 Hub
USB Device: iPhone
USB Device: EyeTV Hybrid
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: Bose USB Audio
USB Device: USB Bus
USB Device: USB 2.0 Bus
USB Device: iPad
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: Keyboard Hub
USB Device: Apple Keyboard
USB Device: USB2.0 Hub
USB Device: Apple Watch Magnetic Charging Cable
USB Device: USB2.0 Hub
USB Device: Broadcom Bluetooth 3.0 Device
USB Device: Apple Cinema HD Display
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:

Okay...did download and tried the combo updater. It did not ask me to update my firmware...I did do that when first installed 10.13.

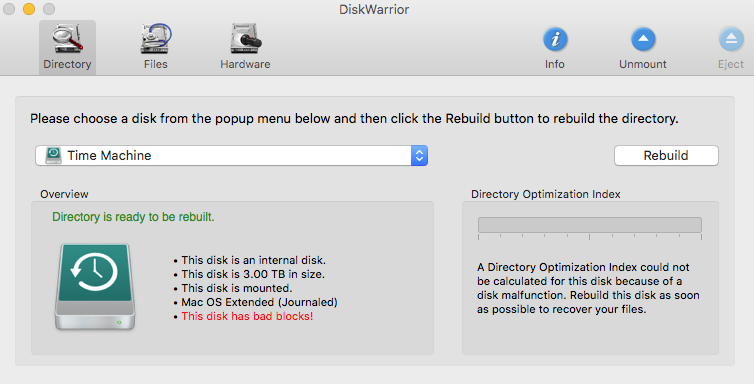

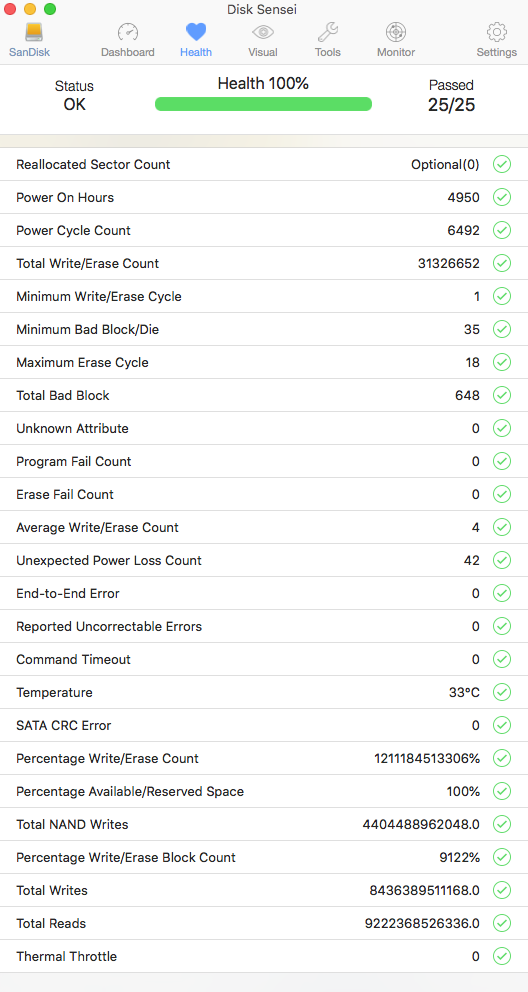

Here are my reports on the one hard drive...it is for my Time Machine. I do have another drive ordered.

I went ahead and pulled the drive out while waiting for the replacement so will see what happens in the meantime.

I have some USB items unplugged as well. I do have a USB Bluetooth dongle to avoid the 2010 cMP issue...never had any issues before though with it.




Last edited:
The Combo updater is NOT a reinstall of your macOS system. It can rebuild what it is capable of providing, and can fix a variety of errors, tuning up your system in some ways, but it is not the same as a system reinstall.
The OTHER test you can do is to remove the time machine backup drive, and try using your system for a day or two.
Do you get other kernel crashes, even with that time machine drive out of the system?

  • Like
Reactions: bsbeamer
With the bad hard drive out...still received the error. I am noticing the apfs error.

Anonymous UUID: AF64C102-BCDE-47D2-D6C0-4375DAAB7CA9

Sat Apr 7 07:28:53 2018

*** Panic Report ***
panic(cpu 20 caller 0xffffff7f92a944f6): "ino 8595065709 no extent covering dstream alloced_size 9071788032 (fsize 9071788032) pos/len 9071951872:0\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-748.57.19/nx/jobj.c:10680
Backtrace (CPU 20), Frame : Return Address
0xffffffa74da53330 : 0xffffff801166e166
0xffffffa74da53380 : 0xffffff8011796714
0xffffffa74da533c0 : 0xffffff8011788a00
0xffffffa74da53440 : 0xffffff8011620180
0xffffffa74da53460 : 0xffffff801166dbdc
0xffffffa74da53590 : 0xffffff801166d99c
0xffffffa74da535f0 : 0xffffff7f92a944f6
0xffffffa74da537a0 : 0xffffff7f92a576ea
0xffffffa74da538f0 : 0xffffff80118cc1c6
0xffffffa74da53d10 : 0xffffff80118cc08e
0xffffffa74da53d50 : 0xffffff80118b392e
0xffffffa74da53f40 : 0xffffff8011c04418
0xffffffa74da53fa0 : 0xffffff8011620966
Kernel Extensions in backtrace:
com.apple.filesystems.apfs(748.51)[4E26C92D-330B-33A8-8DA7-C1498DD86AB7]@0xffffff7f92a28000->0xffffff7f92b0dfff
dependency: com.apple.kec.corecrypto(1.0)[CA65BD09-4559-3507-A72B-733ED9110DF1]@0xffffff7f925b8000
dependency: com.apple.driver.AppleEffaceableStorage(1.0)[6B49B846-2852-3D7C-BD45-E70DC2684A8E]@0xffffff7f9298c000
dependency: com.apple.iokit.IOStorageFamily(2.1)[F27A8A2A-6662-3608-83BD-415037509E01]@0xffffff7f92097000

BSD process name corresponding to current thread: coresymbolicatio

Mac OS version:
17E199

Kernel version:
Darwin Kernel Version 17.5.0: Mon Mar 5 22:24:32 PST 2018; root:xnu-4570.51.1~1/RELEASE_X86_64
Kernel UUID: 1B55340B-0B14-3026-8A47-1E139DB63DA3
Kernel slide: 0x0000000011400000
Kernel text base: 0xffffff8011600000
__HIB text base: 0xffffff8011500000
System model name: MacPro5,1 (Mac-F221BEC8)
Root disk errors: "Failed to issue COM RESET after 3 attempts. Terminating."

System uptime in nanoseconds: 49208651149106
last loaded kext at 12448868070287: com.apple.driver.usb.cdc.acm 5.0.0 (addr 0xffffff7f95230000, size 57344)
last unloaded kext at 365192402200: com.apple.driver.AppleUSBMergeNub 900.4.1 (addr 0xffffff7f935c5000, size 12288)
loaded kexts:

My SanDisk checks okay with all tools:


My new hard drive to replace my failed Time Machine drive came today.

While installing it, I did unseat and resinstall the cards, the Sandisk too, to make sure all is okay...also cleaned the thing out (pet hair, etc.!).

Time Machine is running its first back up.

Prior to updating to 10.13.4, I did have issues with it crashing from wake. This issue just started after updating to 10.13.4.

Yes, the Sandisk is my boot drive.

It is in slot 3.

It has been there for well over a year though.

Had another today while it was sleeping...it does seem to happen after prolong sleep (during the day while away):

Anonymous UUID: AF64C102-BCDE-47D2-D6C0-4375DAAB7CA9

Tue Apr 10 12:08:45 2018

*** Panic Report ***
panic(cpu 4 caller 0xffffff7f836944f6): "ino 8595065709 no extent covering dstream alloced_size 9123528704 (fsize 9123528704) pos/len 9123692544:0\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-748.57.19/nx/jobj.c:10680
Backtrace (CPU 4), Frame : Return Address
0xffffffa73ea33330 : 0xffffff800226e166
0xffffffa73ea33380 : 0xffffff8002396714
0xffffffa73ea333c0 : 0xffffff8002388a00
0xffffffa73ea33440 : 0xffffff8002220180
0xffffffa73ea33460 : 0xffffff800226dbdc
0xffffffa73ea33590 : 0xffffff800226d99c
0xffffffa73ea335f0 : 0xffffff7f836944f6
0xffffffa73ea337a0 : 0xffffff7f836576ea
0xffffffa73ea338f0 : 0xffffff80024cc1c6
0xffffffa73ea33d10 : 0xffffff80024cc08e
0xffffffa73ea33d50 : 0xffffff80024b392e
0xffffffa73ea33f40 : 0xffffff8002804418
0xffffffa73ea33fa0 : 0xffffff8002220966
Kernel Extensions in backtrace:
com.apple.filesystems.apfs(748.51)[4E26C92D-330B-33A8-8DA7-C1498DD86AB7]@0xffffff7f83628000->0xffffff7f8370dfff
dependency: com.apple.kec.corecrypto(1.0)[CA65BD09-4559-3507-A72B-733ED9110DF1]@0xffffff7f831b8000
dependency: com.apple.driver.AppleEffaceableStorage(1.0)[6B49B846-2852-3D7C-BD45-E70DC2684A8E]@0xffffff7f8358c000
dependency: com.apple.iokit.IOStorageFamily(2.1)[F27A8A2A-6662-3608-83BD-415037509E01]@0xffffff7f82c97000

BSD process name corresponding to current thread: coresymbolicatio

Mac OS version:
17E199

Kernel version:
Darwin Kernel Version 17.5.0: Mon Mar 5 22:24:32 PST 2018; root:xnu-4570.51.1~1/RELEASE_X86_64
Kernel UUID: 1B55340B-0B14-3026-8A47-1E139DB63DA3
Kernel slide: 0x0000000002000000
Kernel text base: 0xffffff8002200000
__HIB text base: 0xffffff8002100000
System model name: MacPro5,1 (Mac-F221BEC8)
Root disk errors: "Fai



EOF
Model: MacPro5,1, BootROM MP51.0084.B00, 12 processors, 6-Core Intel Xeon, 3.46 GHz, 64 GB, SMC 1.39f11
Graphics: AMD Radeon HD 7950, AMD Radeon HD 7950, PCIe
Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 2, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 4, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 5, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 6, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 7, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 8, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.102.30)
Bluetooth: Version 6.0.5f3, 3 services, 27 devices, 1 incoming serial ports
Network Service: Ethernet 1, Ethernet, en0
PCI Card: PXS2, USB eXtensible Host Controller, Slot-2
PCI Card: AMD Radeon HD 7950, Display Controller, Slot-1
PCI Card: AMD Radeon HD 7950, ATY,HamachiParent, Slot-1
PCI Card: pci1b21,625, AHCI Controller, Slot-3
PCI Card: PXS4, USB eXtensible Host Controller, Slot-4
Serial ATA Device: HL-DT-ST DVD-RW GH61N
Serial ATA Device: WDC WD1001FALS-41Y6A1, 1 TB
Serial ATA Device: ST2000DM001-1ER164, 2 TB
Serial ATA Device: ST2000DM006-2DM164, 2 TB
Serial ATA Device: ST3000DM008-2DM166, 3 TB
Serial ATA Device: SanDisk Ultra II 960GB, 960.2 GB
USB Device: USB 3.0 Bus
USB Device: Back-UPS ES 550 FW:840.B2.D USB FW:B2
USB Device: USB 3.0 Bus
USB Device: USB3.0 Hub
USB Device: Back-UPS RS 1500 LCD FW:839.H7 .D USB FW:H7
USB Device: USB3.0 Hub
USB Device: EyeTV Hybrid
USB Device: USB 2.0 Bus
USB Device: iPad
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: Keyboard Hub
USB Device: Apple Keyboard
USB Device: USB2.0 Hub
USB Device: Apple Watch Magnetic Charging Cable
USB Device: USB2.0 Hub
USB Device: Broadcom Bluetooth 3.0 Device
USB Device: Apple Cinema HD Display
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: Bose USB Audio
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:

h9826790 said:
Also, may be you should download the 10.13.4 full installer to update your cMP's firmware, just in case that fix some strange APFS issue.
Click to expand...
Do this and report back.
Download the FULL INSTALLER from the App Store, NOT the Combo updater, and update your cMP firmware.
Don’t worry, it won’t force you to reinstall the OS. Just update the firmware and quit the installer when done.

Squuiid said:
Do this and report back.
Download the FULL INSTALLER from the App Store, NOT the Combo updater, and update your cMP firmware.
Don’t worry, it won’t force you to reinstall the OS. Just update the firmware and quit the installer when done.
Click to expand...

Okay...tried and it only wants to install the OS...any way to find or force a firmware update?

Yes, I downloaded from the store...just finished running it.

My current firmware:
Boot ROM Version: MP51.0084.B00

I have a flashed AMD Radeon 7950

I do have a drive with 10.12 on it and will try that and see what happens..

Okay...I finally got the Firmware updated. I had to use a disk with 10.12 on it in order to download the needed version with the firmware.

I am now at:
Boot ROM Version: MP51.0085.B00

I noticed my panics seem to be apfs related...does this firmware address that?

is your drive APFS or HFS+?

likely simple fix: clone to HFS+ drive and replace in system (carbon copy cloner)

My start-up SSD with the panics is APFS. If this continues, can the SSD be reformated to HFS+?

I do have a clone of the drive but it is on a standard drive (slower and HFS+).

MacGarage said:
My start-up SSD with the panics is APFS. If this continues, can the SSD be reformated to HFS+?

I do have a clone of the drive but it is on a standard drive (slower and HFS+).
Click to expand...

Yes, you can of course re-format the SSD back to HFS+, just make sure you format the "drive" not the "partition" in Disk Utility.

If you have a clone already. Then boot to the clone, format the SSD, and clone it back. The whole process should be very straight forward.

  • Like
Reactions: Éric 69 and Dr. Stealth
I was starting to think my problem was fixed after updating the firmware...unfortunately, woke up with the kernel panic.

It seems like it only happens when I have it sleeping.

Is it worth trying to reformat the SSD?

Sun Apr 15 23:04:10 2018

*** Panic Report ***
panic(cpu 7 caller 0xffffff7f87e944f6): "ino 8601623146 no extent covering dstream alloced_size 730038272 (fsize 730038272) pos/len 730202112:0\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/apfs/apfs-748.57.19/nx/jobj.c:10680
Backtrace (CPU 7), Frame : Return Address
0xffffff873e35b330 : 0xffffff8006a6e166
0xffffff873e35b380 : 0xffffff8006b96714
0xffffff873e35b3c0 : 0xffffff8006b88a00
0xffffff873e35b440 : 0xffffff8006a20180
0xffffff873e35b460 : 0xffffff8006a6dbdc
0xffffff873e35b590 : 0xffffff8006a6d99c
0xffffff873e35b5f0 : 0xffffff7f87e944f6
0xffffff873e35b7a0 : 0xffffff7f87e576ea
0xffffff873e35b8f0 : 0xffffff8006ccc1c6
0xffffff873e35bd10 : 0xffffff8006ccc08e
0xffffff873e35bd50 : 0xffffff8006cb392e
0xffffff873e35bf40 : 0xffffff8007004418
0xffffff873e35bfa0 : 0xffffff8006a20966
Kernel Extensions in backtrace:
com.apple.filesystems.apfs(748.51)[4E26C92D-330B-33A8-8DA7-C1498DD86AB7]@0xffffff7f87e28000->0xffffff7f87f0dfff
dependency: com.apple.kec.corecrypto(1.0)[CA65BD09-4559-3507-A72B-733ED9110DF1]@0xffffff7f879b8000
dependency: com.apple.driver.AppleEffaceableStorage(1.0)[6B49B846-2852-3D7C-BD45-E70DC2684A8E]@0xffffff7f87d8c000
dependency: com.apple.iokit.IOStorageFamily(2.1)[F27A8A2A-6662-3608-83BD-415037509E01]@0xffffff7f87497000

BSD process name corresponding to current thread: coresymbolicatio

Mac OS version:
17E199

Kernel version:
Darwin Kernel Version 17.5.0: Mon Mar 5 22:24:32 PST 2018; root:xnu-4570.51.1~1/RELEASE_X86_64
Kernel UUID: 1B55340B-0B14-3026-8A47-1E139DB63DA3
Kernel slide: 0x0000000006800000
Kernel text base: 0xffffff8006a00000
__HIB text base: 0xffffff8006900000
System model name: MacPro5,1 (Mac-F221BEC8)
Root disk errors: "Failed to issue COM RESET after 3 attempts. Terminating."

System uptime in nanoseconds: 200543123501050
last loaded kext at 199200542673914: com.apple.driver.usb.cdc 5.0.0 (addr 0xffffff7f8a60a000, size 28672)
last unloaded kext at 194680352594965: com.apple.driver.usb.cdc 5.0.0 (addr 0xffffff7f8a60d000, size 28672)
loaded kexts:
com.parallels.virtualhid 1.0.3 3
com.parallels.virtualsound 1.0.36 36
at.obdev.nke.LittleSnitch 4740
com.apple.driver.AppleBluetoothMultitouch 92
com.apple.driver.AppleTyMCEDriver 1.0.3d2
com.apple.driver.AGPM 110.23.33
com.apple.filesystems.autofs 3.0
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.driver.AppleUpstreamUserClient 3.6.5
com.apple.driver.AppleMCCSControl 1.5.4
com.apple.kext.AMDFramebuffer 1.6.6
com.apple.kext.AMDRadeonX4000 1.6.6
com.apple.AGDCPluginDisplayMetrics 3.18.48
com.apple.driver.AppleHDA 281.51
com.apple.driver.AppleHV 1
com.apple.driver.AppleMikeyDriver 281.51
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.iokit.IOBluetoothSerialManager 6.0.5f3
com.apple.driver.pmtelemetry 1
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleLPC 3.1
com.apple.kext.AMD7000Controller 1.6.6
com.apple.driver.AppleOSXWatchdog 1
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.AudioAUUC 1.70
com.apple.filesystems.apfs 748.51.0
com.apple.driver.AppleUSBDisplays 380
com.apple.filesystems.hfs.kext 407.50.6
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.BootCache 40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.iokit.SCSITaskUserClient 404.30.2
com.apple.driver.AppleFWOHCI 5.5.9
com.apple.driver.AirPort.Brcm4331 800.21.30
com.apple.driver.Intel82574LEthernet 2.7.2
com.apple.driver.AppleAHCIPort 329.50.2
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleACPIButtons 6.1
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 6.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 220.50.1
com.apple.nke.applicationfirewall 183
com.apple.security.TMSafetyNet 8
com.apple.security.quarantine 3
com.apple.driver.AppleIntelCPUPowerManagement 220.50.1
com.apple.driver.usb.cdc 5.0.0
com.apple.driver.IOBluetoothHIDDriver 6.0.5f3
com.apple.driver.AppleMultitouchDriver 1404.4
com.apple.driver.AppleInputDeviceSupport 1404.3
com.apple.kext.triggers 1.0
com.apple.kext.AMDRadeonX4030HWLibs 1.0
com.apple.iokit.IOAcceleratorFamily2 378.18.1
com.apple.kext.AMDRadeonX4000HWServices 1.6.6
com.apple.iokit.IOAVBFamily 675.6
com.apple.plugin.IOgPTPPlugin 675.12
com.apple.iokit.IOEthernetAVBController 1.1.0
com.apple.driver.DspFuncLib 281.51
com.apple.kext.OSvKernDSPLib 526
com.apple.driver.AppleSSE 1.0
com.apple.iokit.IOSurface 211.12
com.apple.iokit.IOSerialFamily 11
com.apple.iokit.IONDRVSupport 519.15
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.AppleGPUWrangler 3.18.48
com.apple.driver.AppleHDAController 281.51
com.apple.iokit.IOHDAFamily 281.51
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.kext.AMDSupport 1.6.6
com.apple.AppleGraphicsDeviceControl 3.18.48
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.iokit.IOGraphicsFamily 519.15
com.apple.iokit.IOFireWireIP 2.2.9
com.apple.driver.AppleHIDKeyboard 205
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.5f3
com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.5f3
com.apple.iokit.IOBluetoothHostControllerTransport 6.0.5f3
com.apple.iokit.IOBluetoothFamily 6.0.5f3
com.apple.iokit.IOAHCIBlockStorage 301.40.2
com.apple.driver.usb.IOUSBHostHIDDevice 1.2
com.apple.driver.AppleUSBAudio 312.6
com.apple.iokit.IOAudioFamily 206.5
com.apple.vecLib.kext 1.2.0
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
com.apple.driver.usb.AppleUSBHub 1.2
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOSCSIMultimediaCommandsDevice 404.30.2
com.apple.iokit.IOBDStorageFamily 1.8
com.apple.iokit.IODVDStorageFamily 1.8
com.apple.iokit.IOCDStorageFamily 1.8
com.apple.iokit.IOAHCISerialATAPI 267.50.1
com.apple.iokit.IOFireWireFamily 4.7.0
com.apple.iokit.IO80211Family 1200.12.2
com.apple.driver.corecapture 1.0.4
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBEHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCI 1.2
com.apple.driver.usb.AppleUSBEHCI 1.2
com.apple.driver.usb.AppleUSBXHCIPCI 1.2
com.apple.driver.usb.AppleUSBXHCI 1.2
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.1
com.apple.driver.AppleUSBHostMergeProperties 1.2
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.iokit.IOSMBusFamily 1.1
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.DiskImages 480.50.10
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleEffaceableStorage 1.0
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleUSBTDM 439.50.6
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.iokit.IOUSBMassStorageDriver 140.50.3
com.apple.iokit.IOSCSIBlockCommandsDevice 404.30.2
com.apple.iokit.IOSCSIArchitectureModelFamily 404.30.2
com.apple.iokit.IOStorageFamily 2.1
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.2
com.apple.driver.usb.AppleUSBCommon 1.0
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.AppleSEPManager 1.0.1
com.apple.driver.IOSlaveProcessor 1
com.apple.iokit.IOReportFamily 31
com.apple.iokit.IOTimeSyncFamily 675.12
com.apple.iokit.IONetworkingFamily 3.4
com.apple.driver.AppleACPIPlatform 6.1
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0

EOF
Model: MacPro5,1, BootROM MP51.0085.B00, 12 processors, 6-Core Intel Xeon, 3.46 GHz, 64 GB, SMC 1.39f11
Graphics: AMD Radeon HD 7950, AMD Radeon HD 7950, PCIe
Memory Module: DIMM 1, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 2, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 3, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 4, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 5, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 6, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 7, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
Memory Module: DIMM 8, 8 GB, DDR3 ECC, 1333 MHz, 0x80CE, 0x4D33393342314B37304348442D4348392020
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x8E), Broadcom BCM43xx 1.0 (5.106.98.102.30)
Bluetooth: Version 6.0.5f3, 3 services, 27 devices, 1 incoming serial ports
Network Service: Ethernet 1, Ethernet, en0
PCI Card: PXS2, USB eXtensible Host Controller, Slot-2
PCI Card: AMD Radeon HD 7950, Display Controller, Slot-1
PCI Card: AMD Radeon HD 7950, ATY,HamachiParent, Slot-1
PCI Card: pci1b21,625, AHCI Controller, Slot-3
PCI Card: PXS4, USB eXtensible Host Controller, Slot-4
Serial ATA Device: HL-DT-ST DVD-RW GH61N
Serial ATA Device: WDC WD1001FALS-41Y6A1, 1 TB
Serial ATA Device: ST2000DM001-1ER164, 2 TB
Serial ATA Device: ST2000DM006-2DM164, 2 TB
Serial ATA Device: ST3000DM008-2DM166, 3 TB
Serial ATA Device: SanDisk Ultra II 960GB, 960.2 GB
USB Device: USB 3.0 Bus
USB Device: Back-UPS ES 550 FW:840.B2.D USB FW:B2
USB Device: USB 3.0 Bus
USB Device: USB3.0 Hub
USB Device: Back-UPS RS 1500 LCD FW:839.H7 .D USB FW:H7
USB Device: USB3.0 Hub
USB Device: EyeTV Hybrid
USB Device: USB 2.0 Bus
USB Device: USB 2.0 Bus
USB Device: Hub
USB Device: Keyboard Hub
USB Device: Apple Keyboard
USB Device: USB2.0 Hub
USB Device: Apple Watch Magnetic Charging Cable
USB Device: USB2.0 Hub
USB Device: Broadcom Bluetooth 3.0 Device
USB Device: Apple Cinema HD Display
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: Bose USB Audio
USB Device: USB Bus
USB Device: USB Bus
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:

Last edited:
If you can, clone drive APFS system drive to HFS+ formatted drive and replace. Carbon Copy Cloner can do this really easily. Should be pretty quick and easy to figure out if that is the cause or if it's something else.

Notice "Bose USB Audio" in your list. What port is this connected to? A built-in port, or a PCIe port? I've noticed some issues with legacy USB/FW audio devices recently. If there are firmware updates for your Bose device, you may want to take a look at updating. May be completely unrelated, but disconnecting for a few days could help troubleshoot or eliminate.

  • Like
Reactions: Éric 69
You seem to have two separate UPS attached. (ES 550, and RS 1500) Is that correct?
Maybe I am interpreting that wrong.

Thanks...do use CCC and will try the reformat.

I have an older Bose Companion 5 connected to the factory USB port in the back...will look for updates as I did purchase it new back in 2008.

Yes, two UPS's connected...I use Slim Battery Monitor to check on them...I have one UPS for my Airport and router and the other for my computer.

You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
Back
