High Sierra on cMP (4,1 flashed to 5,1)

LightBulbFun

LightBulbFun

macrumors 68030
Original poster
Nov 17, 2013
2,901
3,199
London UK
Hey :) Just figured id make a quick post showing High Sierra on the cMP and a couple things i noticed about it

first one is cMP did not see a APFS drive as bootable when i tried to install High Sierra to it but HFS+ worked fine

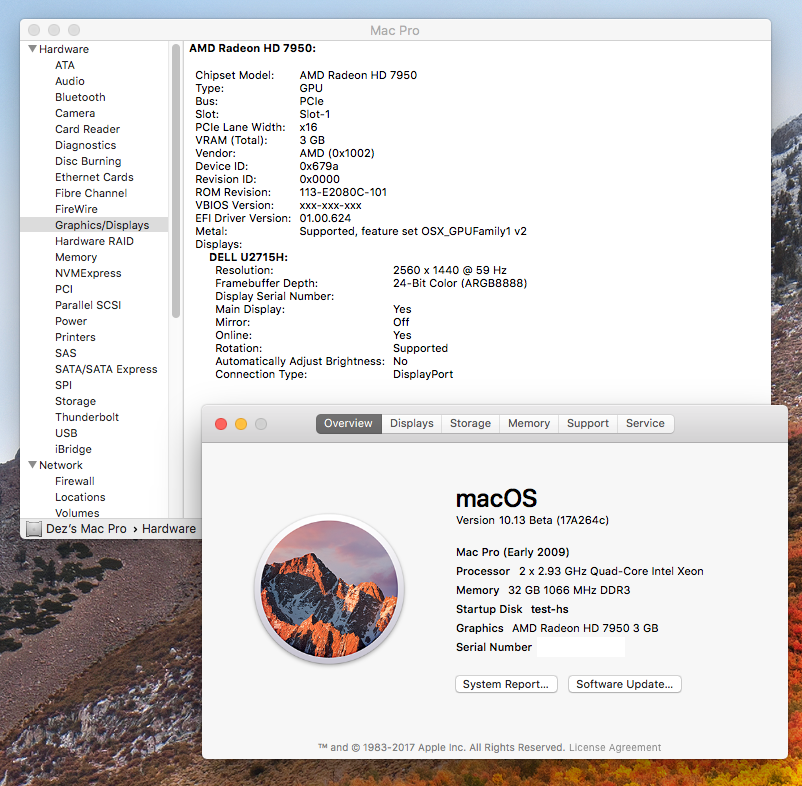

second thing I noticed is a couple new/changed text fields to do with the GPU

1 is that VRAM is now reported in GBs instead of MBs (surprised it took them this long)

2 there is now a new "VBIOS" field thats currently blank on my Machine (it would be interesting to see what this reports on other macs, it looks a lot like AMDs BIOS version string format) and the metal field has changed :)

quick look in the extensions folder shows

no sign of Maxwell/pascal nvidia drivers sadly
few new intel and AMD drivers tho it seems :) ill update this thread if i come across anything else if it has not been documented by then
Screen Shot 2017-06-05 at 14.58.25.png

  • Like
Reactions: Synchro3 and owbp
while checking the logs I did see mention of a kind of helper/booter partition but evidently its not doing its Job LOL (or its for something else)


@Fl0r!an and @netkas might wanna check out the new AMD drivers in High Sierra :)

I did a clean install on a ssd from my mac mini late 2012. It works with APFS.
But when connecting the ssd into the cMP, it kernel panics and reboots.

No problem with mac mini.

Last edited:
  • Like
Reactions: Synchro3
indeed @mikeboss the release note for High Sierra say "APFS support for Mid 2012 Mac Pro will be included in an upcoming seed." curiosely it dosent mention the Mid 2010 Mac Pro but i suspect thats it a simple oversight

I do have to say that i noticed most macs upgrading to High Sierra have been getting boot rom updates and from what I can tell those updates are to do with APFS and booting it... so it might mean for the first time in 7 years the 5,1 could be getting a boot rom update :) (I wish apple would tell you more about the boot rom updates)

Considering a normal NVME Drive wont work in any machine running OS X without patching of the NVME kext i doubt that would happen. but it would be nice :) (granted I dont know if the drive thing has changed with High Sierra)

Boot rom update would mean end of road for us with 4,1 flashed to 5,1.

Unless netkas updates his patcher...

pigsyn said:
Could you link that ?
Click to expand...
The release notes are behind the login page for the Developer download. I'm sure you can search and find them elsewhere, but that sort of thing can't be linked here.

fabriciom said:
Boot rom update would mean end of road for us with 4,1 flashed to 5,1.

Unless netkas updates his patcher...
Click to expand...

im not sure that would be the case

because the Mac Pro 4,1 and 5,1 share the exact same BoardID of Mac-F221BEC8

I believe its one of if not the only 2 Macs to share the same BoardID. because of this there is no real way to tell a Flashed 4,1 apart from a Real 5,1 without looking at the serial number or the SMC version but those are things that are subject to change where as

the Model ID and Board ID are meant to be static things hence why Apple only uses those during compatibility checks when it comes to say software updates/installers. (a Prime example of this is how MacOS Sierra and High Sierra will install just fine on a 4,1 thats been flashed to a 5,1)

so if there is a future BootROM update for the 5,1 Id expect it to install just fine on a 4,1 Flashed to 5,1 Mac Pro unless apple Specifically looks at the Serial number and or the SMC version. (or if they have some other unknown trick up there sleeve LOL)

Prince134 said:
I should post it here:

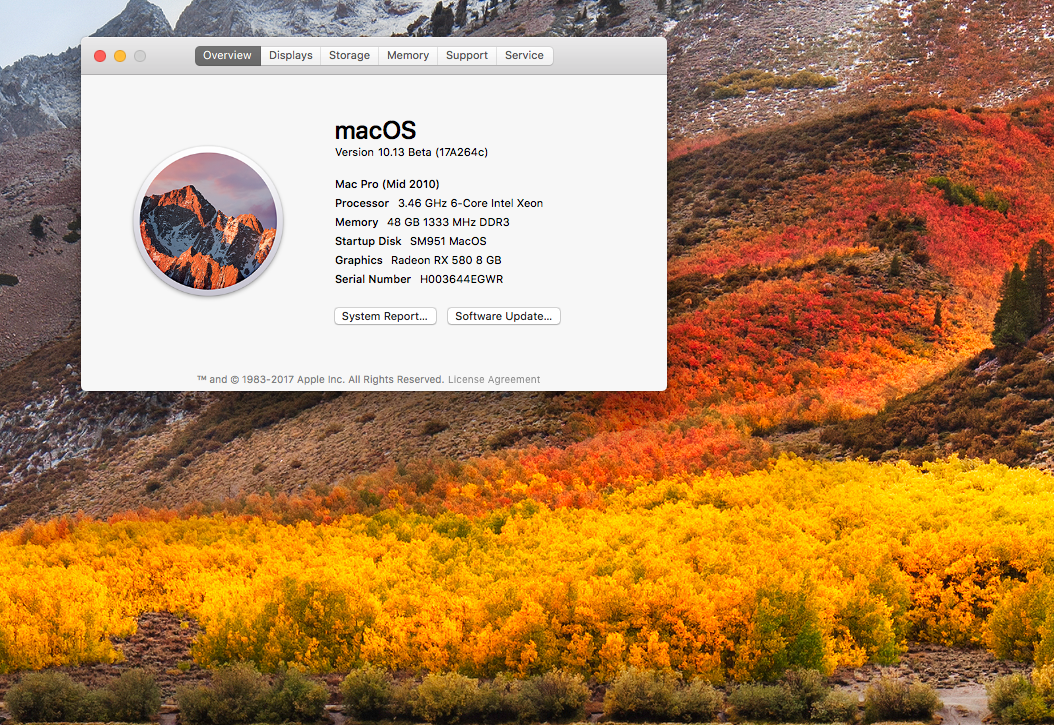

RX580 natively works in Mac Pro 5.1. Running BruceX test at 16 seconds.
View attachment 703281
Click to expand...

did it show up with that Name OOB? even on eGPU in High Sierra you get the generic R9 xxx name...


SoyCapitanSoyCapitan said:
On compatible motherboards
Click to expand...

to be bootable yeah your going to need firmware support, but the drives will still work in OS X even if theres no firmware support, they just wont be bootable, the OP in that thread is using his in a 4,1-5,1 LOL (a good example of this is a AHCI PCIe Blade in a PCIe PowerMac G5 they work fine in Leopard but wont boot in the G5 because OpenFirmware lack any AHCI drivers)

  • Like
Reactions: SoyCapitanSoyCapitan
Prince134 said:

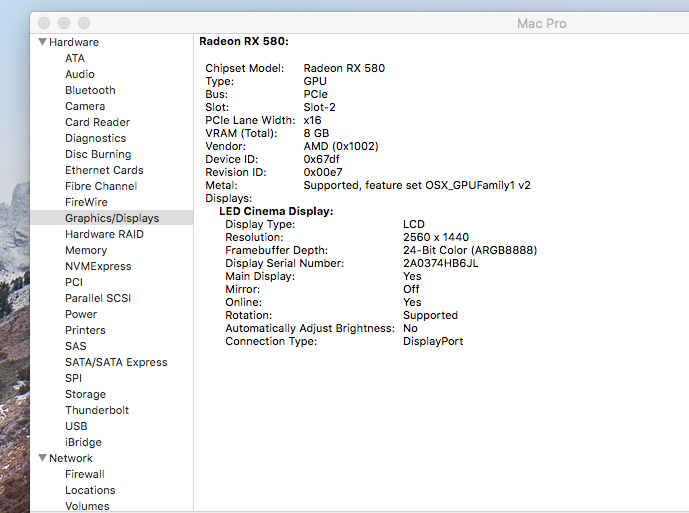

What name? Like this:?

View attachment 703322
Click to expand...

Wow, you have answered a question that was on my mind, thanks.
Which make 580 are you using, how many power connectors does it use and do you get boot screens.

I am wondering also whether this will enable a 5.1 Mac Pro to run a HTC Vive, as that is the recommended spec'd iMac graphics card.
