iMac stuck on loading bar at 100%

[Emuroom]

Hi All,

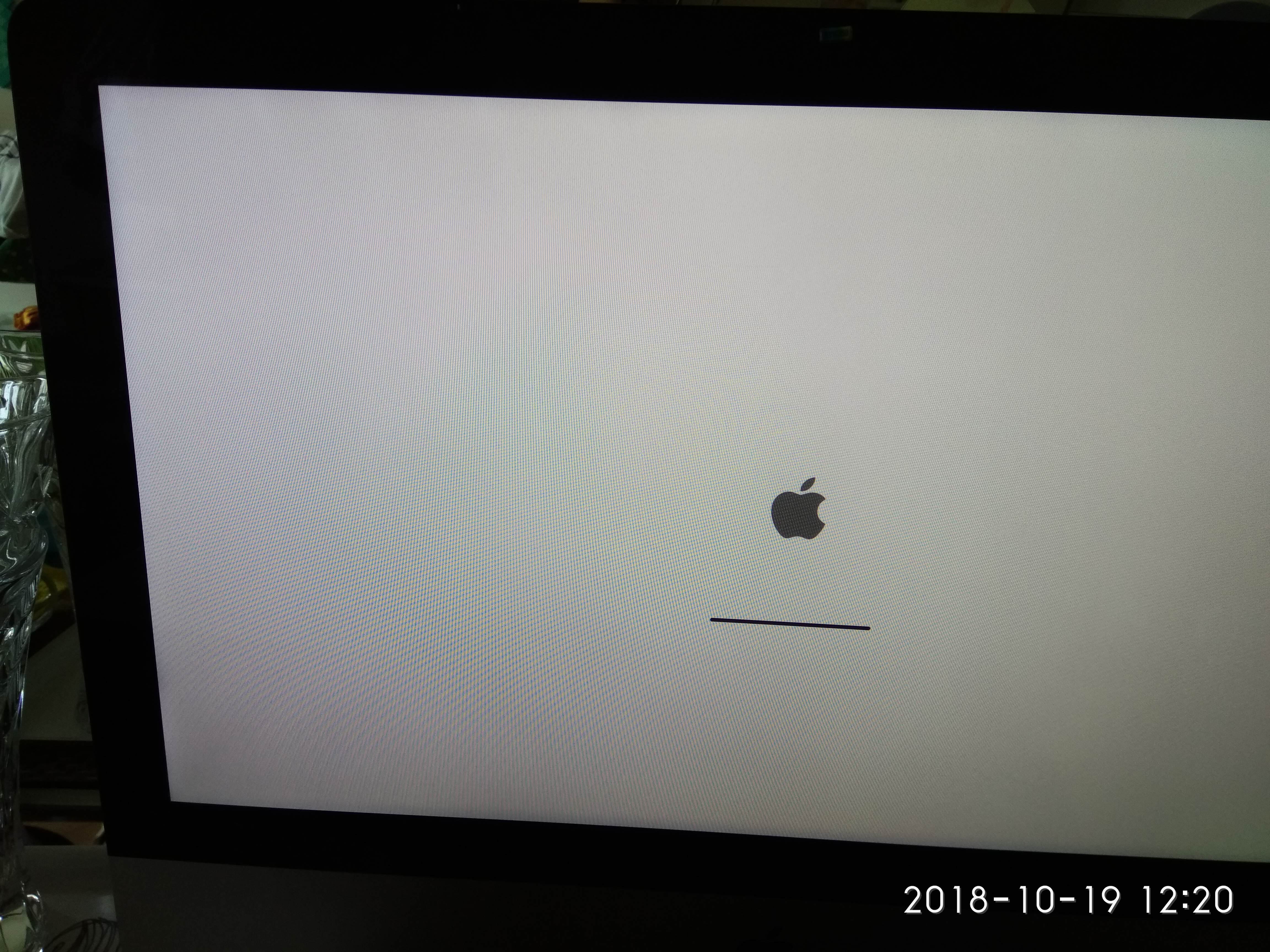

My iMac (2011 mid ) high serria stuck in Apple loading bar in 100% progress. It cannot log into login menu.

I did :
1. Cannot enter recovery and cannot enter disk utility by cmd+r
2. Can enter internet recovery but also stuck after download from internet completed.
3. Reset SMC
4. RESET PRAM...cmd+option+p+r .
5. CREATE USB BOOTABLE DRIVE AND PRESS (OPTION KEY ) TO SELECT USB DRIVE but stuck in Apple loading bar again.


Then, I use cmd+v to verbose mode and see the log with screenshot provided.

Friends, what can I further do ?

Thanks....



[mikehalloran]

HHD or SSD?

Have you ever changed the NV RAM battery? Technically, Intel Macs do not have PRAM



[Emuroom]

HHD or SSD?

It is SSD.

Have you ever changed the NV RAM battery? Technically, Intel Macs do not have PRAM

NO CHANGED. May I know why ?



[mikehalloran]

A bad battery can cause all sorts of problems. A missing battery is actually better—your settings aren’t saved but won’t cause the problems a bad battery can. If you know how to do it, get a CR2032 and pop it in.

Do I think it’s the real problem? No but it could be. I’ve seen this before.

Other possibilities include bad RAM. Pull 2 sticks. If that doesn’t do it, replace them and pull the other 2. You might get lucky.

Otherwise, 2011 27” iMacs can often be found in the $200–500 range on eBay.



[Emuroom]

A bad battery can cause all sorts of problems. A missing battery is actually better—your settings aren’t saved but won’t cause the problems a bad battery can. If you know how to do it, get a CR2032 and pop it in.

Do I think it’s the real problem? No but it could be. I’ve seen this before.

Other possibilities include bad RAM. Pull 2 sticks. If that doesn’t do it, replace them and pull the other 2. You might get lucky.

Otherwise, 2011 27” iMacs can often be found in the $200–500 range on eBay.

Thanks...more info...

The verbose screen log was changed after reset multiple reboot.



[Fishrrman]

My advice:

For the moment, forget about installing onto the internal drive.

Instead, get either an external drive or an external USB flashdrive 32gb (or larger).

Use Disk Utility to format it to Mac OS extended with journaling enabled.

Now, open the OS installer, "aim at" at the EXTERNAL drive, and see if the installer will install a copy of the OS -there-, instead.

Does this work?



[Emuroom]

My advice:

For the moment, forget about installing onto the internal drive.

Instead, get either an external drive or an external USB flashdrive 32gb (or larger).

Use Disk Utility to format it to Mac OS extended with journaling enabled.

Now, open the OS installer, "aim at" at the EXTERNAL drive, and see if the installer will install a copy of the OS -there-, instead.

Does this work?

I am not able to enter cmd-r recovery mode..
It just hold in Apple loading bar as well...



[mikehalloran]

I am not able to enter cmd-r recovery mode..
It just hold in Apple loading bar as well...

What country do you live?



[Emuroom]

What country do you live?

I am in Hong Kong..

Beside, I tried to use back the original HDD and it had the same problem..



[Emuroom]

A bad battery can cause all sorts of problems. A missing battery is actually better—your settings aren’t saved but won’t cause the problems a bad battery can. If you know how to do it, get a CR2032 and pop it in.

Do I think it’s the real problem? No but it could be. I’ve seen this before.

Other possibilities include bad RAM. Pull 2 sticks. If that doesn’t do it, replace them and pull the other 2. You might get lucky.

Otherwise, 2011 27” iMacs can often be found in the $200–500 range on eBay.

I think it's not the battery problem because i can enter the single-mode (cmd+s) and check the system date. it's correct.[see screenshot]...



[_Kiki_]

can be problem with dying gpu



[Emuroom]

can be problem with dying gpu

I want to do system hardware test , May I know any tool with bootable USB. ??

I tried Apple AHT but it will stop on invalid HDD section As I replaced SSD.



[Fishrrman]

OP:
Re-read my advice to you in reply 6 above.



[Emuroom]

OP:
Re-read my advice to you in reply 6 above.

yes, i tried it already but not able to enter Disk utility [via cmd+r]..



[_Kiki_]

I want to do system hardware test , May I know any tool with bootable USB. ??

I tried Apple AHT but it will stop on invalid HDD section As I replaced SSD.

try Ubuntu live



[Emuroom]

try Ubuntu live

Yes,. I did it. but it failed in the GUI screen..
[doublepost=1540216604][/doublepost]Hi All,

It's very strange.. I tried install windows 10 to replace all MacOS partition. Its works..!

However, I retry to boot into MacOS Recovery mode (cmd+r) but still stuck on the progress bar ..

What's my problem.... is it hardware or software problem ???



[_Kiki_]

I told you GPU, common problem in this model



[Emuroom]

I told you GPU, common problem in this model

Oh.. it will be costly to replace it...
