Hello,

Recently upgraded my Mac Pro. If you are interested in what all took place you can see my prior post.

As of now, I have done everything but OpenCore. The only thing not working as expected is Bluetooth. Running 10.14.6.

I used the following parts:
Mini-PCIe to BCM94360CD Adapter Version 3.0 (the version that has a two pin plug for USB power)
Apple BCM94360CD Card (AC Wi-Fi + BT 4.0)
4-Pin male to male plug (the same plug used in the Bluetooth power cable)
Male to Female U.Fl Extension Cable

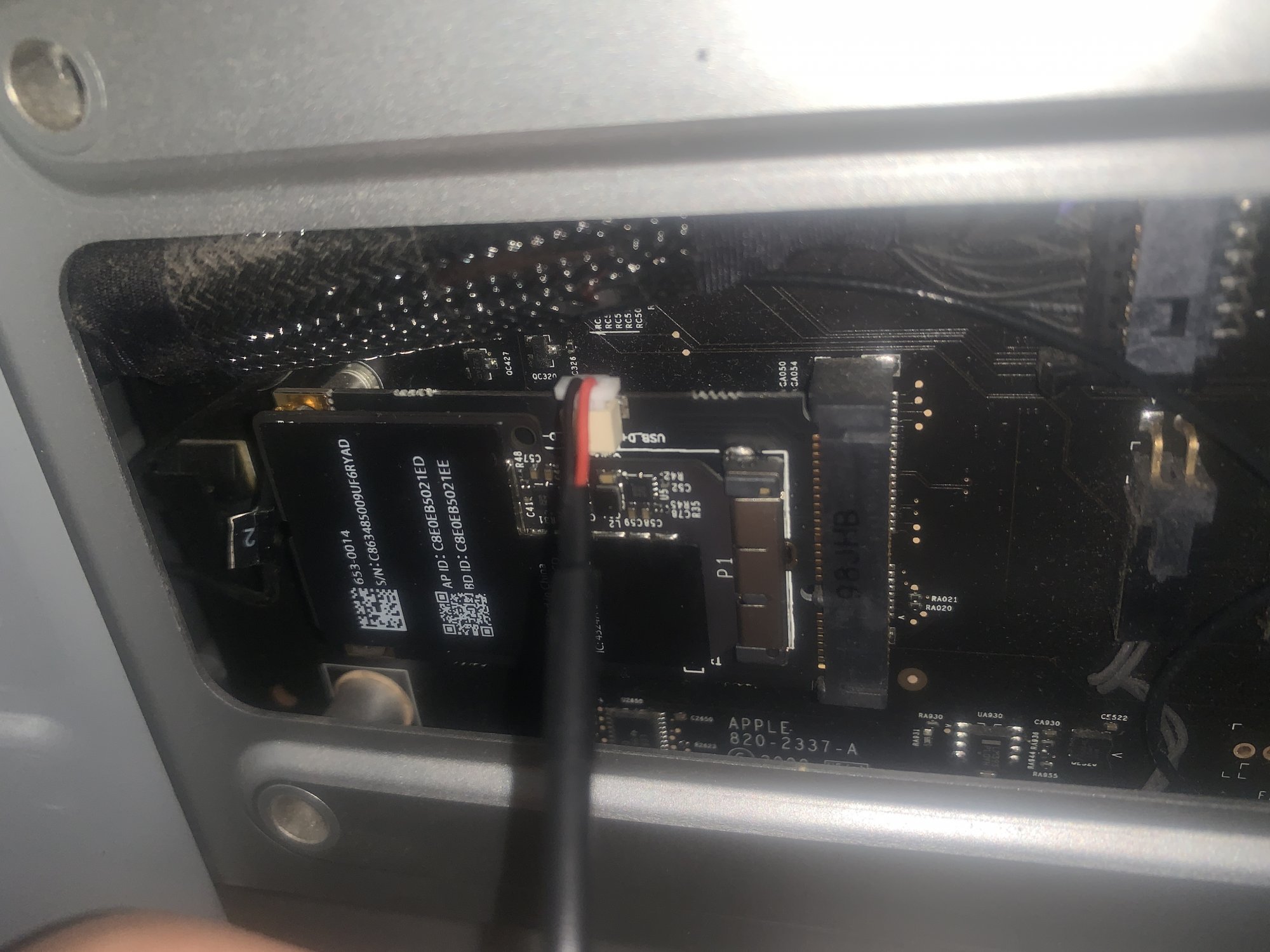

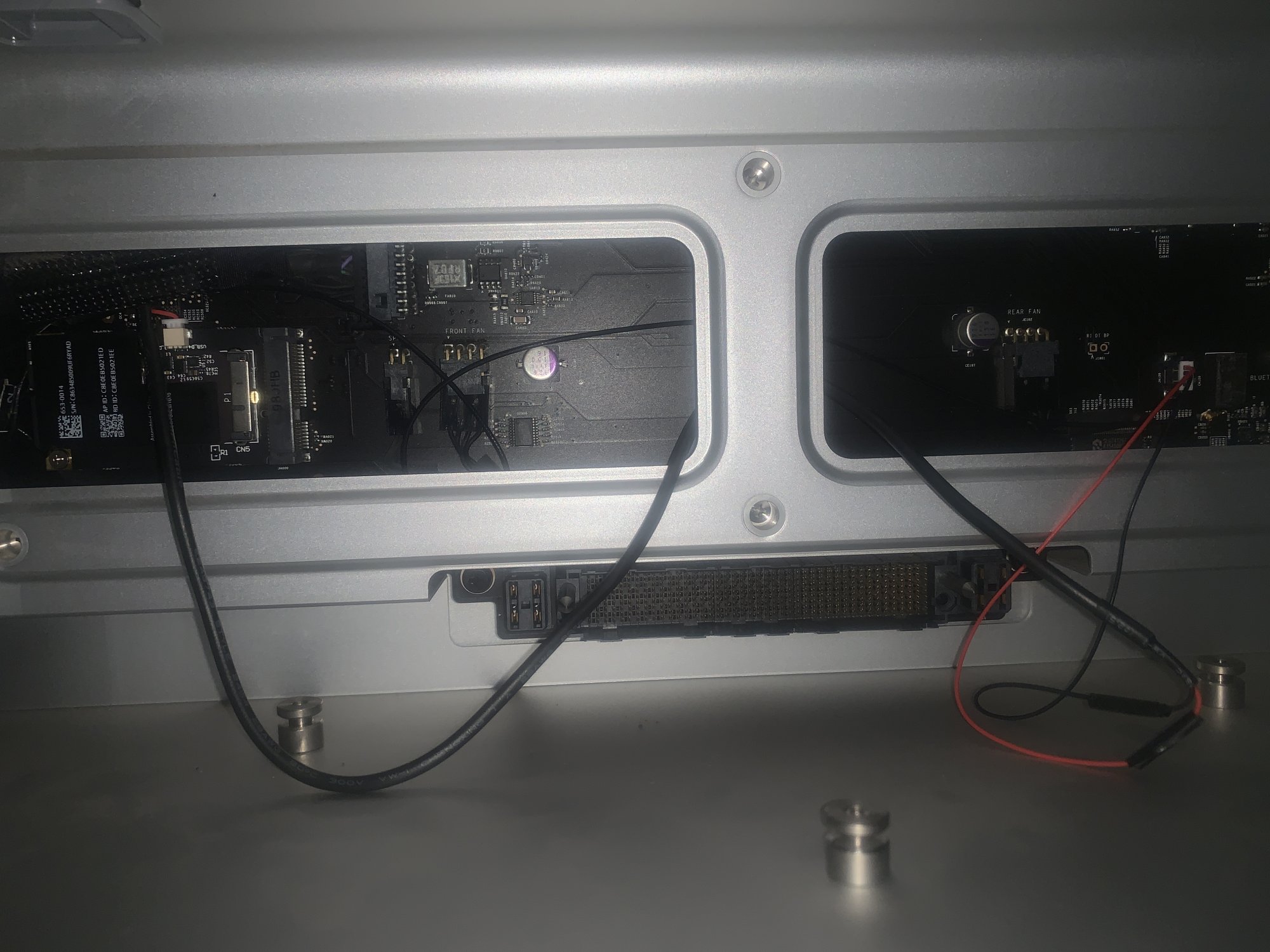

I put the Apple Card in the adapter, attached the two stock antenna cables to the card, then connected the extension cable to the bluetooth antenna cable.

Next I removed the unnecessary 2 cables from the 4-pin cable, and spliced it to the power cable included with the adapter card. Taped over the connections. (Still need to remove the gold keys in the connectors)

Bluetooth does not work, did I hook this up wrong? (Wi-Fi works)





tsialex

Contributor
Jun 13, 2016
13,463
13,616

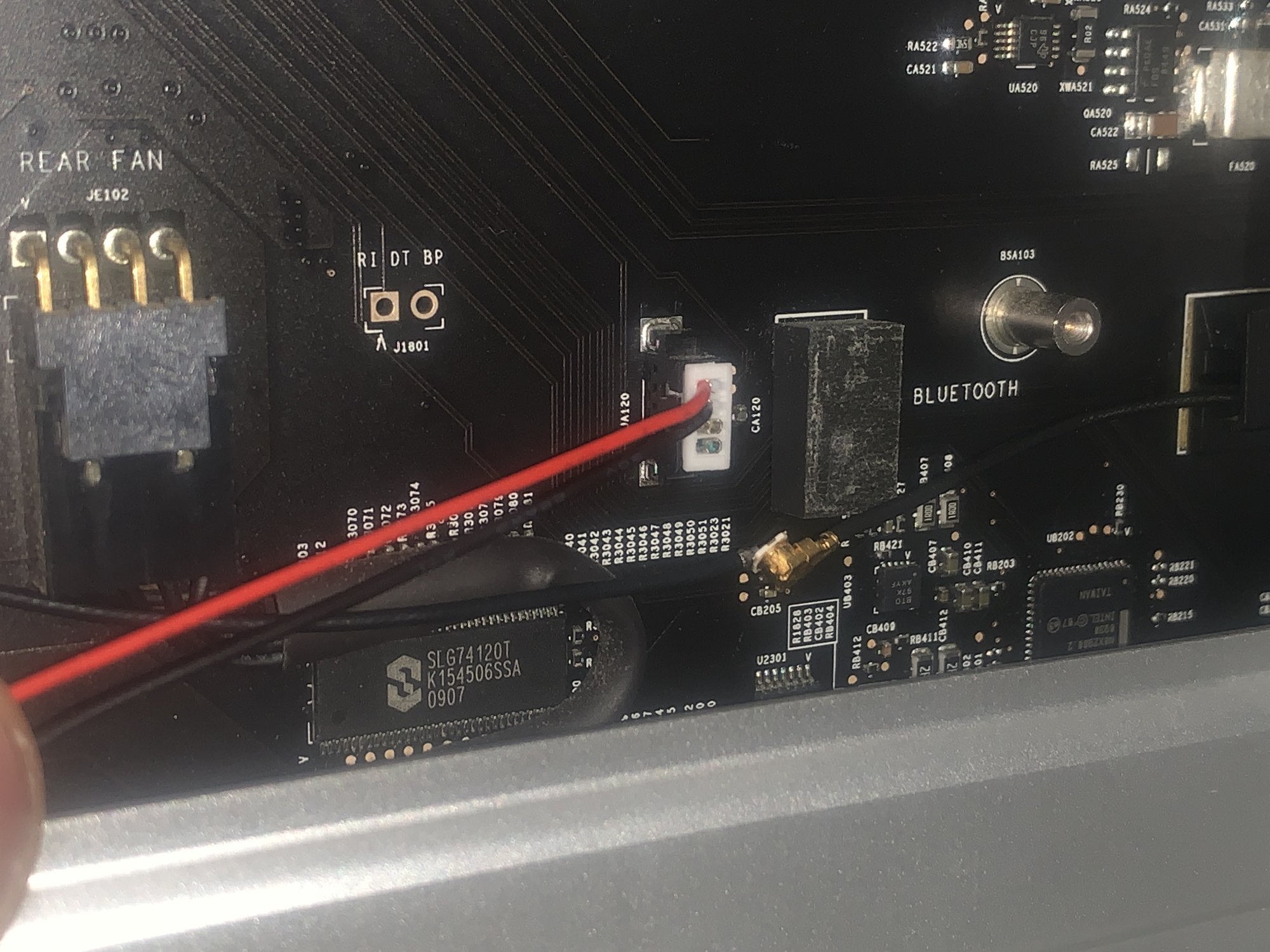

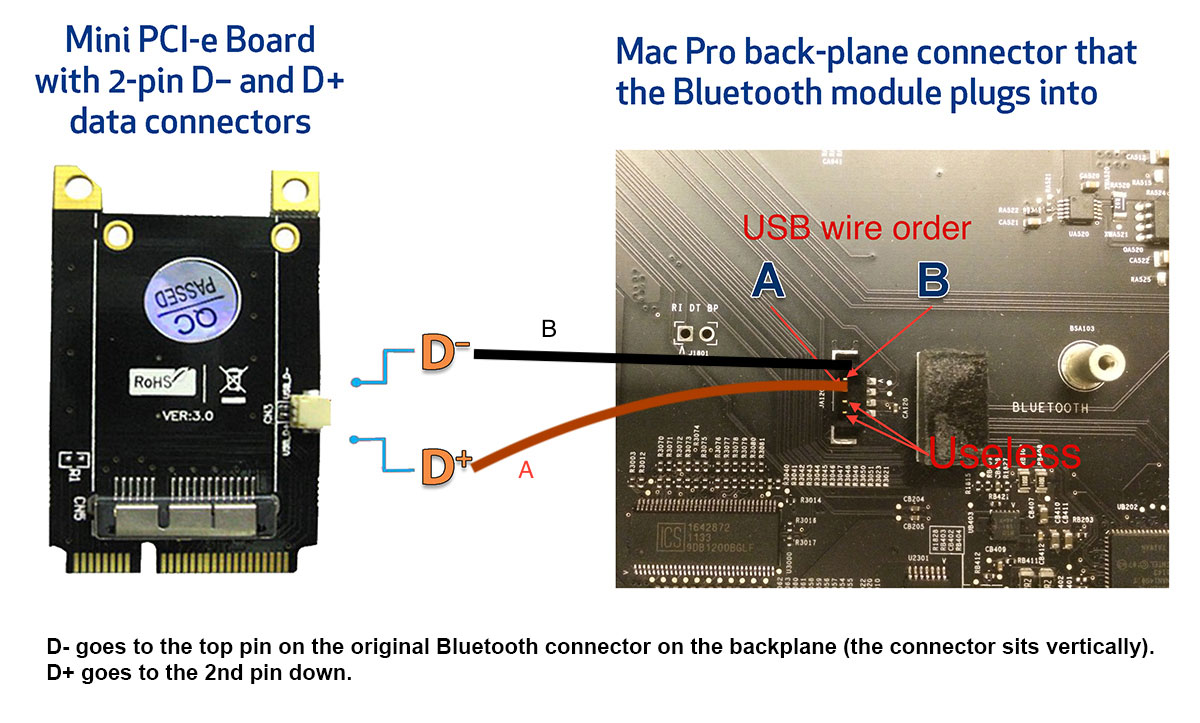

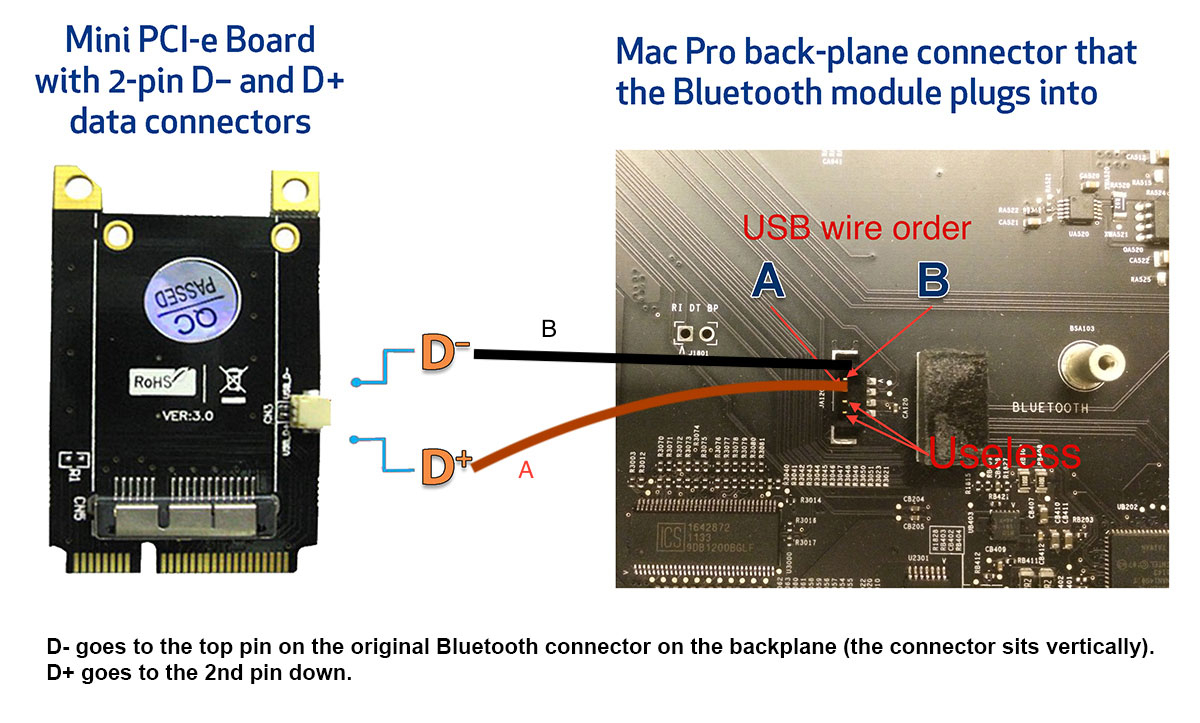

On the Mac Pro backplane Bluetooth USB connector, this is the pin-out of the JST male connector that you need to use is:

Pin 1 is D-
Pin 2 is D+
Pin 3 is NC (VCC)
Pin 4 is NC (GND)

NC = not connected

From your picture, I think that you did the inverse and probably burned the BT portion of your AirPort Extreme card.

Last edited:

KingCornWallis

macrumors member
Original poster
Nov 7, 2018
85
18
United States
On the Mac Pro backplane Bluetooth USB connector, this is the pin-out of the JST male connector that you need to use is:

Pin 1 is D-
Pin 2 is D+
Pin 3 is NC
Pin 4 is NC

From your picture, I think that you did the inverse and probably burned the BT portion of your AirPort Extreme card.
It looks like you may be right.

So now I have switched the cables, no harm in trying before I buy a new card.

So I have 2 versions of macOS, 10.13.6 (SATA SSD in SATA Slot I) and 10.14.6 (NVMe via PCIe Adapter in PCIe Slot 2).

After switching the cables Bluetooth registers and works in 10.13.6 but doesn't appear in 10.14.6.

Any idea why this might be?


tsialex

Contributor
Jun 13, 2016
13,463
13,616
It looks like you may be right.

So now I have switched the cables, no harm in trying before I buy a new card.

So I have 2 versions of macOS, 10.13.6 (SATA SSD in SATA Slot I) and 10.14.6 (NVMe via PCIe Adapter in PCIe Slot 2).

After switching the cables Bluetooth registers and works in 10.13.6 but doesn't appear in 10.14.6.

Any idea why this might be?
Try a 4-times continuously NVRAM reset, press the CMD-Option-P-R keys and only let go after the fifth chime.

Now check if BT controller is present with Mojave SystemInformation report.

  • Like
Reactions: paul_bace

KingCornWallis

macrumors member
Original poster
Nov 7, 2018
85
18
United States
Try a 4-times continuously NVRAM reset, press the CMD-Option-P-R keys and only let go after the fifth chime.

Now check if BT controller is present with Mojave SystemInformation report.
That did the trick, thanks!

...but why did it do the trick? Why 4 times?


maxman69

macrumors newbie
Jun 2, 2013
4
2
Hi
Hello,

Recently upgraded my Mac Pro. If you are interested in what all took place you can see my prior post.

As of now, I have done everything but OpenCore. The only thing not working as expected is Bluetooth. Running 10.14.6.

I used the following parts:
Mini-PCIe to BCM94360CD Adapter Version 3.0 (the version that has a two pin plug for USB power)
Apple BCM94360CD Card (AC Wi-Fi + BT 4.0)
4-Pin male to male plug (the same plug used in the Bluetooth power cable)
Male to Female U.Fl Extension Cable

I put the Apple Card in the adapter, attached the two stock antenna cables to the card, then connected the extension cable to the bluetooth antenna cable.

Next I removed the unnecessary 2 cables from the 4-pin cable, and spliced it to the power cable included with the adapter card. Taped over the connections. (Still need to remove the gold keys in the connectors)

Bluetooth does not work, did I hook this up wrong? (Wi-Fi works)

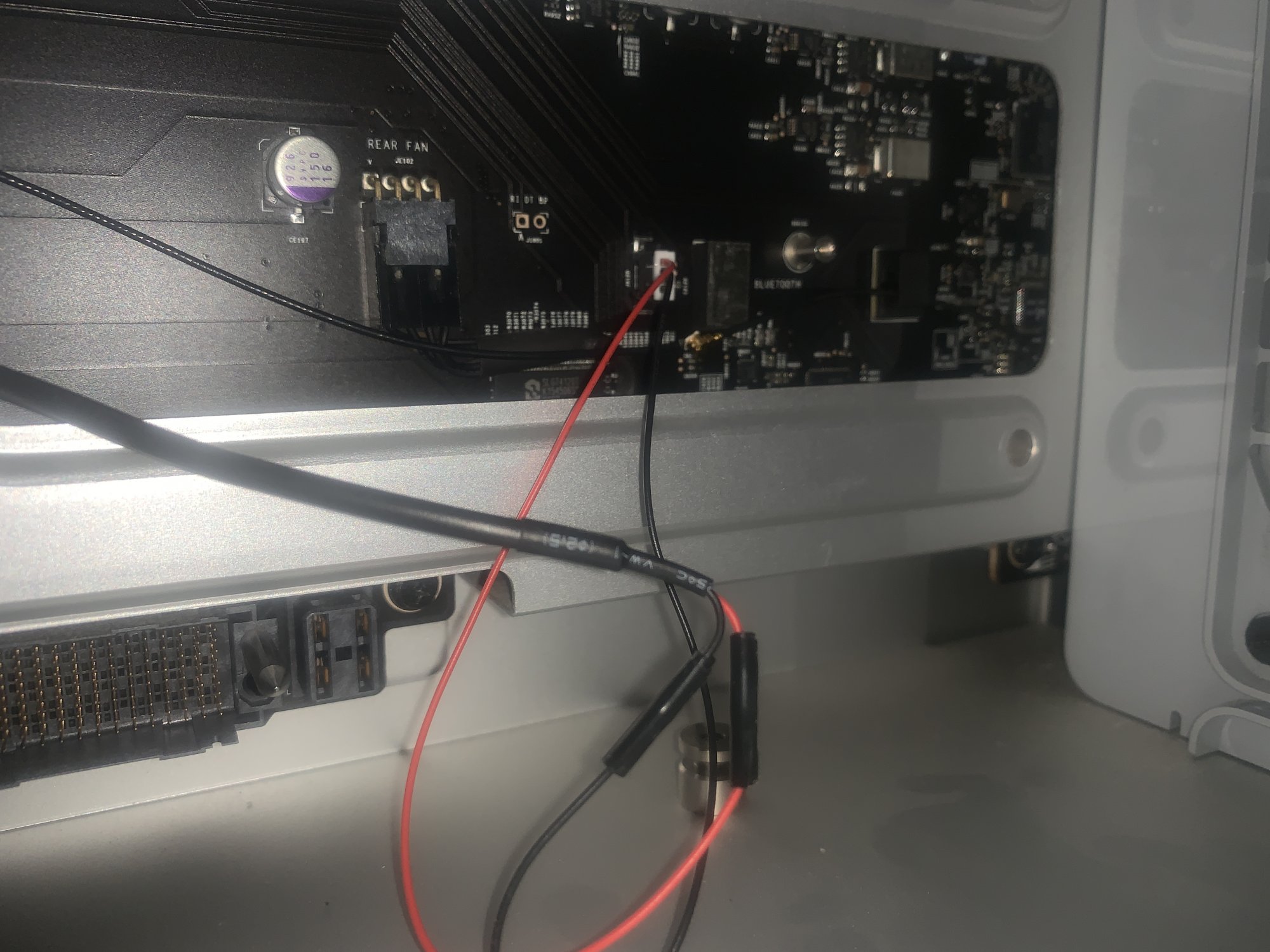

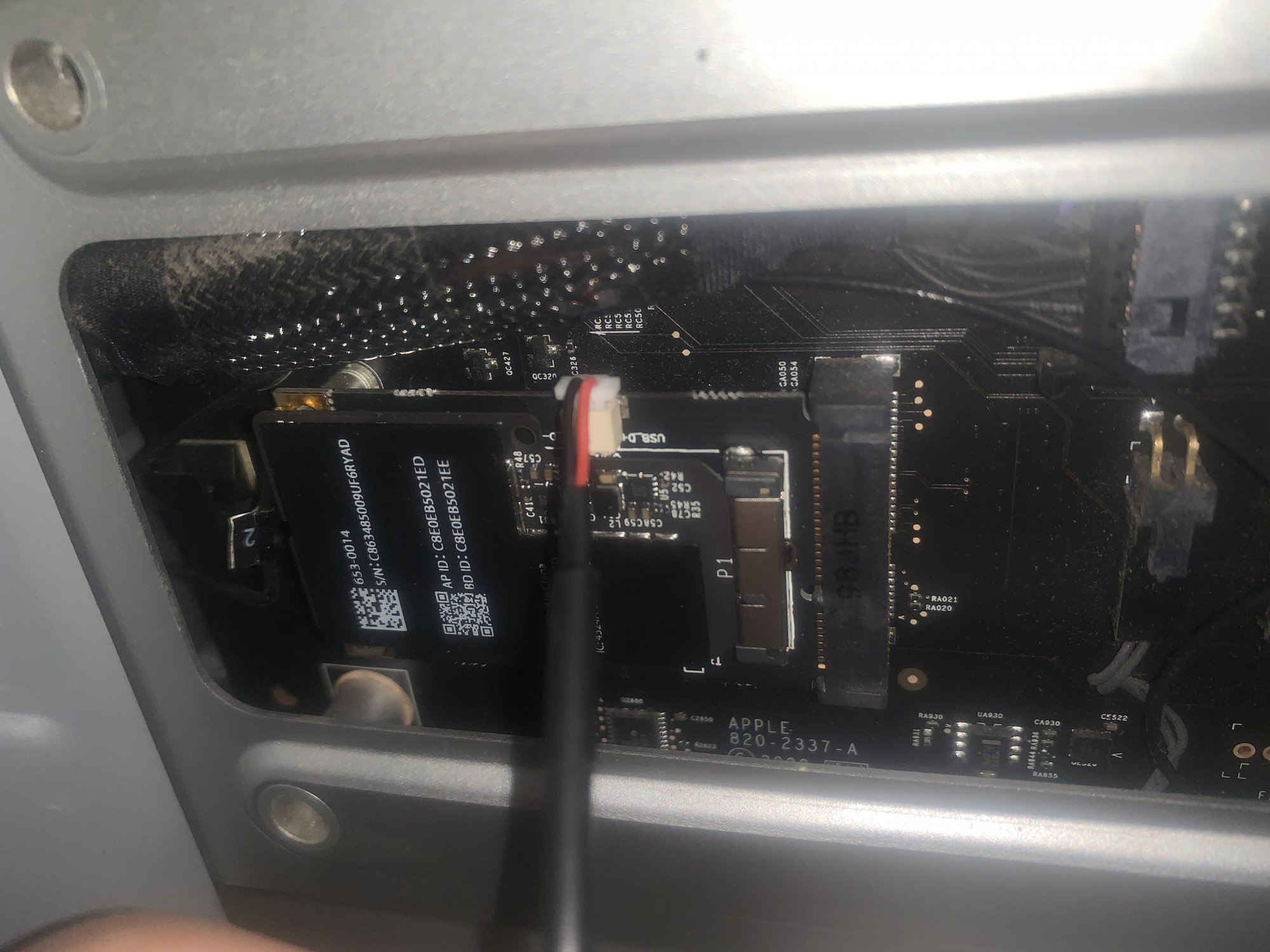

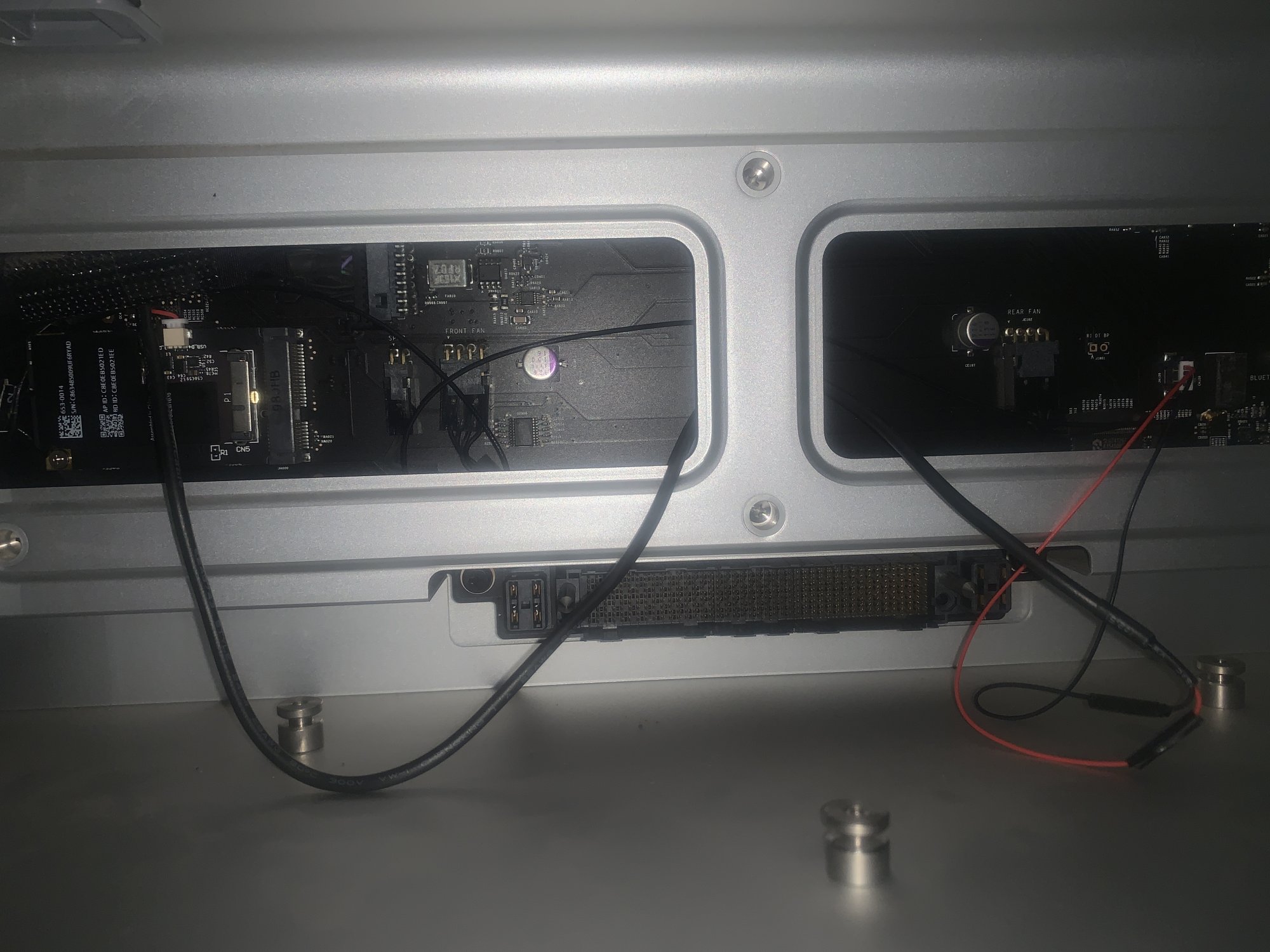

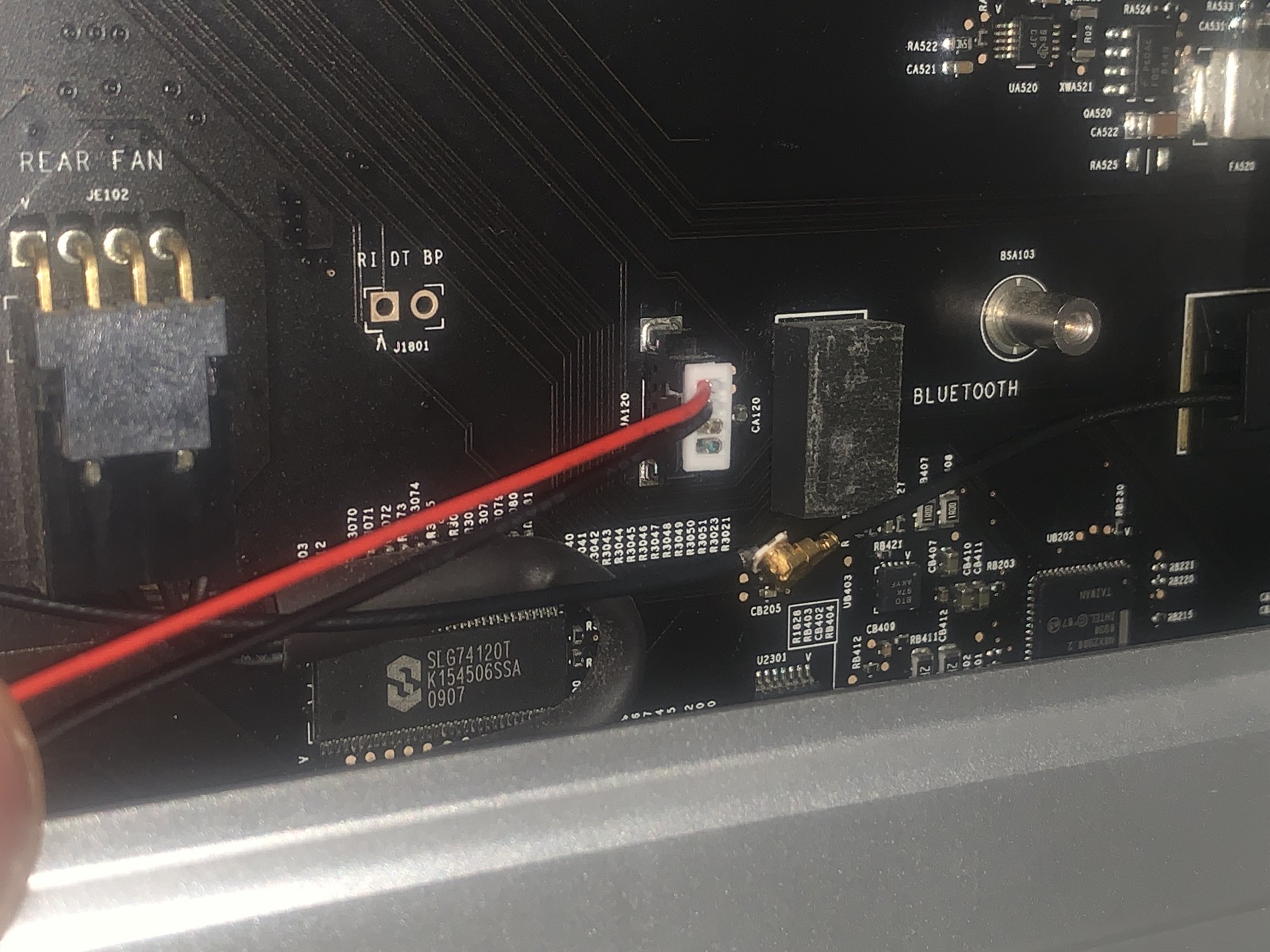

View attachment 1738803
View attachment 1738804
View attachment 1738805 View attachment 1738806

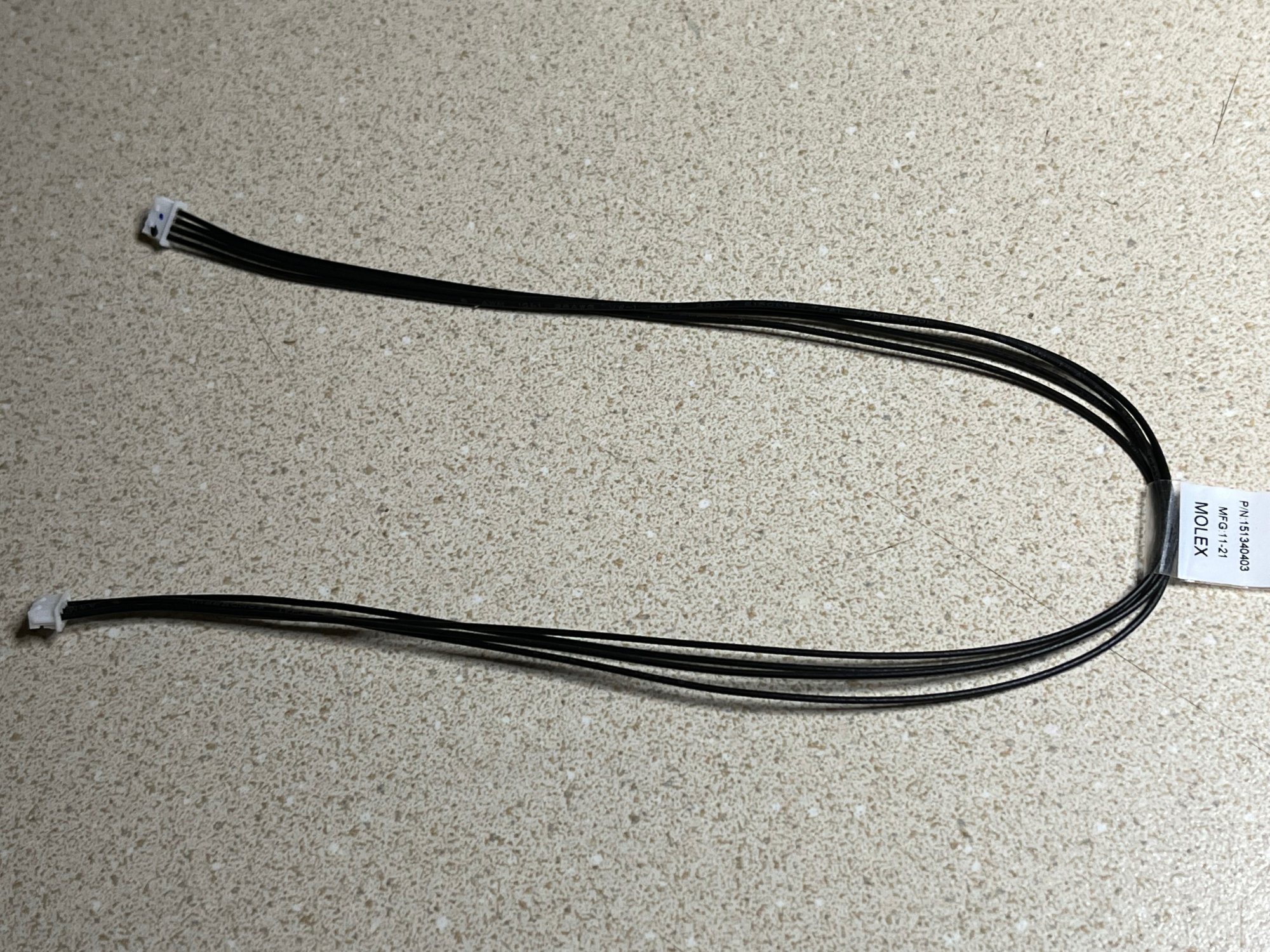

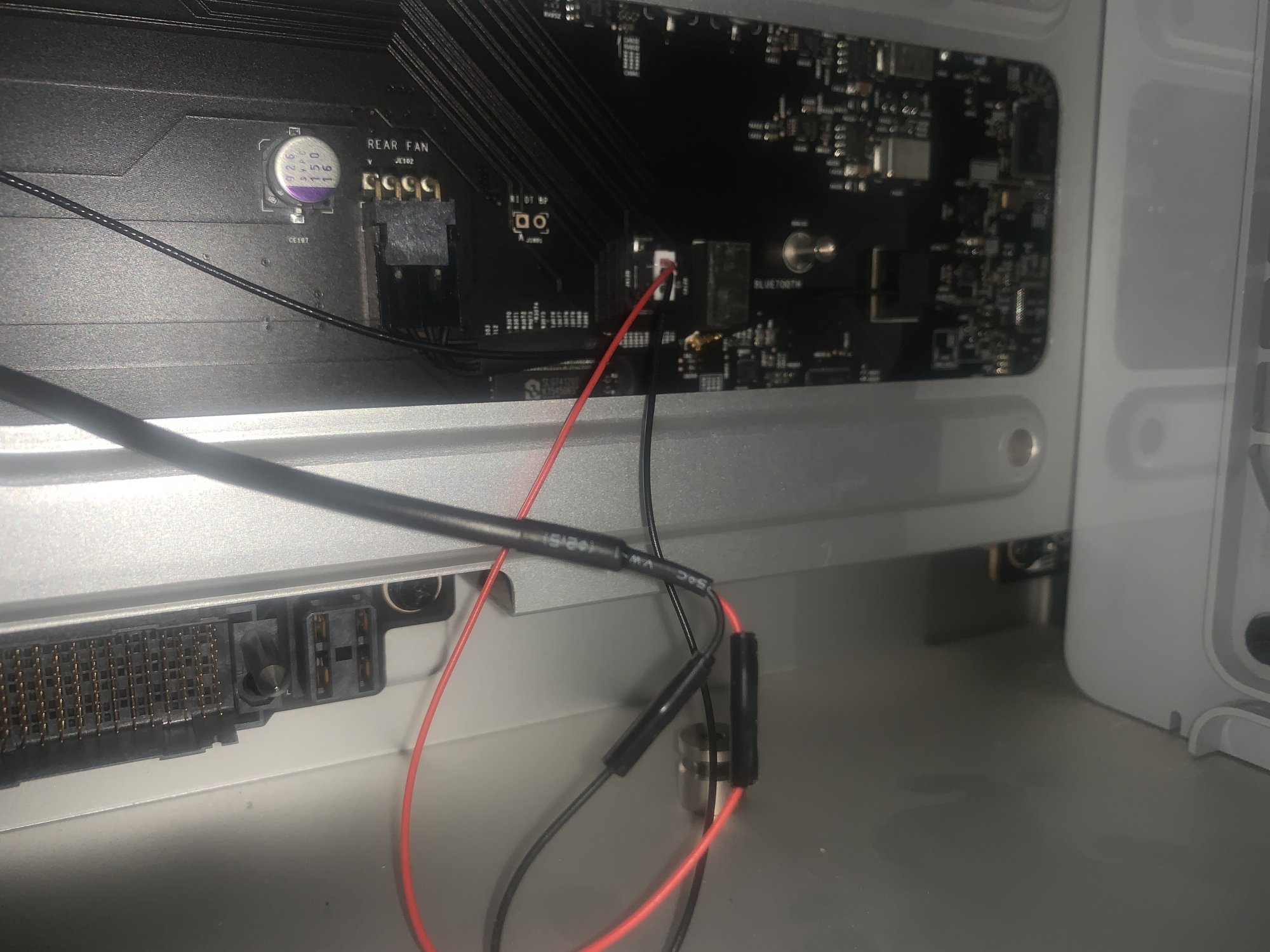

Hi there. I have been searching for days and days for a link to or part number for this 4 pin connector in the final image. Can you help? Please and thank you?

  • Like
Reactions: kitcostantino

Valdaquendë

macrumors regular
Nov 7, 2018
113
48
Oregon, USA
MaxMan69 (and others) - Unfortunately, there is a maze of conflicting opinions about the backplane's header and the housing most suitable (the incorrect JST GH is most often named). And cables on the internet are often inadequately described, lacking in length and rainbow-colored. I wanted a BlueTooth data cable that would fit perfectly and look as perfect as possible.

After an absurd amount of research (which, in the end, involved obtaining and comparing the design drawings for several connectors), I was able to determine that the BlueTooth header on the backplanes of classic 4,1 and 5,1 Mac Pros is a Molex PicoBlade 4-circuit, 1.25mm pitch header. If you are upgrading to a BCM94360CD or similar WiFi/BT card on your cMP, a perfect cable (black wires, 12" long with the appropriate PicoBlade connector) can be obtained from Digi-Key (Part # WM15259-ND) for about $3.61 as of this writing. The Molex part number for this cable is: 0151340403

The two non-essential (V- and V+) wires can be removed and the remaining (data) wires soldered to the adapter, resulting in perfect functionality and an appearance that is as close to immaculate as it is possible to get. Below is a photo of the stock cable; I used black fingernail polish to (very carefully) paint the housing for that perfect appearance.



Mariner19

macrumors newbie
Jun 8, 2019
25
4
South Carolina, USA

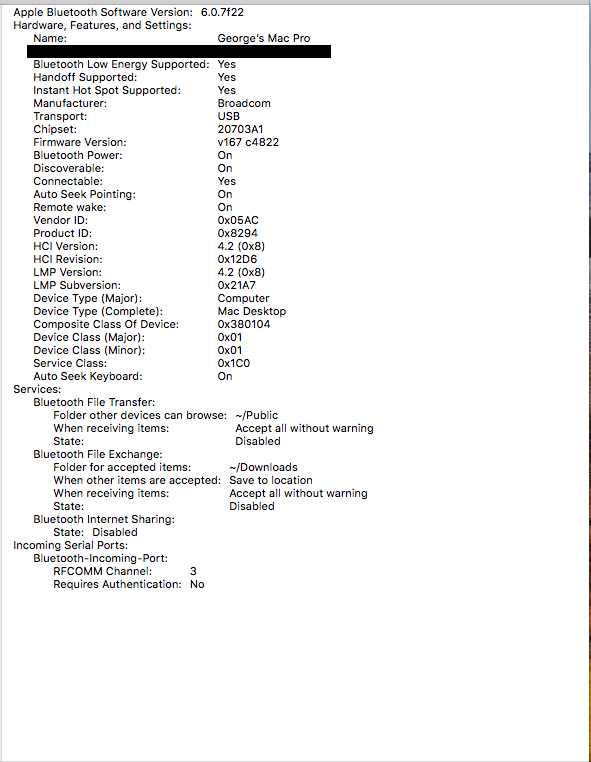

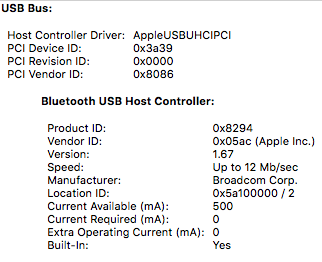

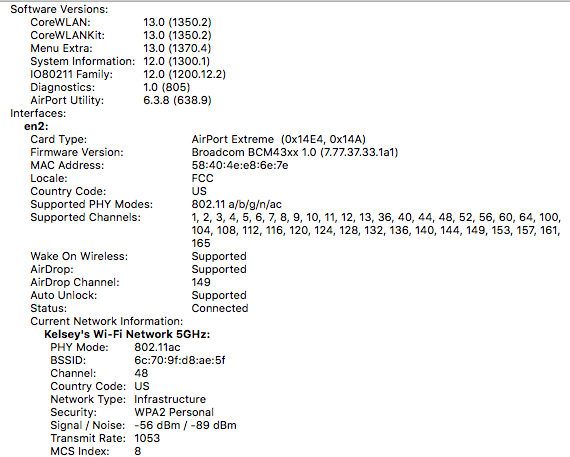

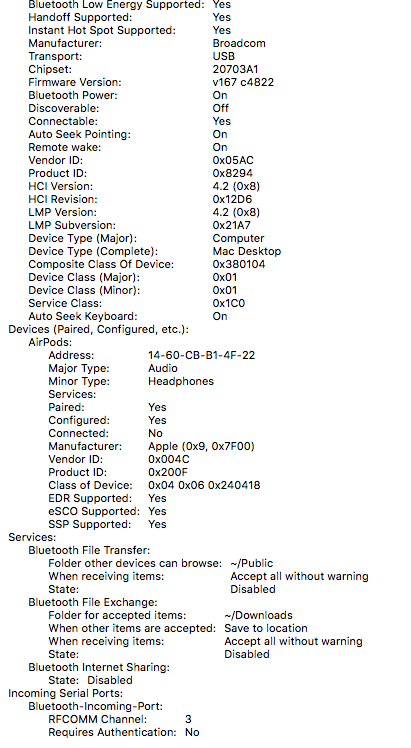

I am also having the same issue. Upgraded WiFi / Bluetooth card to version 4.2. WiFi works great, Bluetooth is a no go. The antennas are mounted in proper order.Wifi#2-j2, BT-j3,#2-j1, #3-j0. I have used 3 different bluetooth antennas, cleared / debugged, reset bluetooth. I tried the NVRAM reset as advised by tsialex but I only get 1 chime instead of the 5 chimes he describes. Mac Pro 5,1 early 2012, OS High Sierra ( updated before install ), Logitec MX Keys for Mac using usb. I have included some attached files. Thank you to tsialex for his past advise.


Attachments

  • Screen Shot 2022-01-19 at 10.16.58 PM.png
    Screen Shot 2022-01-19 at 10.16.58 PM.png
    86.4 KB · Views: 215
  • Screen Shot 2022-01-19 at 10.18.24 PM.png
    Screen Shot 2022-01-19 at 10.18.24 PM.png
    78.3 KB · Views: 208
  • Screen Shot 2022-01-25 at 1.08.44 PM.png
    Screen Shot 2022-01-25 at 1.08.44 PM.png
    33.3 KB · Views: 196
  • Screen Shot 2022-01-25 at 1.28.09 PM.png
    Screen Shot 2022-01-25 at 1.28.09 PM.png
    111.2 KB · Views: 215

tsialex

Contributor
Jun 13, 2016
13,463
13,616
I am also having the same issue. Upgraded WiFi / Bluetooth card to version 4.2. WiFi works great, Bluetooth is a no go. The antennas are mounted in proper order.Wifi#2-j2, BT-j3,#2-j1, #3-j0. I have used 3 different bluetooth antennas, cleared / debugged, reset bluetooth. I tried the NVRAM reset as advised by tsialex but I only get 1 chime instead of the 5 chimes he describes. Mac Pro 5,1 early 2012, OS High Sierra ( updated before install ), Logitec MX Keys for Mac using usb. I have included some attached files. Thank you to tsialex for his past advise.
Several Microsoft and Logitech keyboards don't work for multiple/continuous NVRAM resets, do you have another KB to try?

Btw, did you dumped your BootROM and checked if you NVRAM is still healthy? The bluetoothActiveControllerInfo and bluetoothInternalControllerInfo NVRAM variables store all the BT configuration parameters and a NVRAM with failed garbage collection will affect your BT controller.


AndyDrewSon

macrumors newbie
May 26, 2022
3
0
US
On the Mac Pro backplane Bluetooth USB connector, this is the pin-out of the JST male connector that you need to use is:

Pin 1 is D-
Pin 2 is D+
Pin 3 is NC
Pin 4 is NC

From your picture, I think that you did the inverse and probably burned the BT portion of your AirPort Extreme card.
Could you possibly tell me what Pin 3 & 4 are actually for?

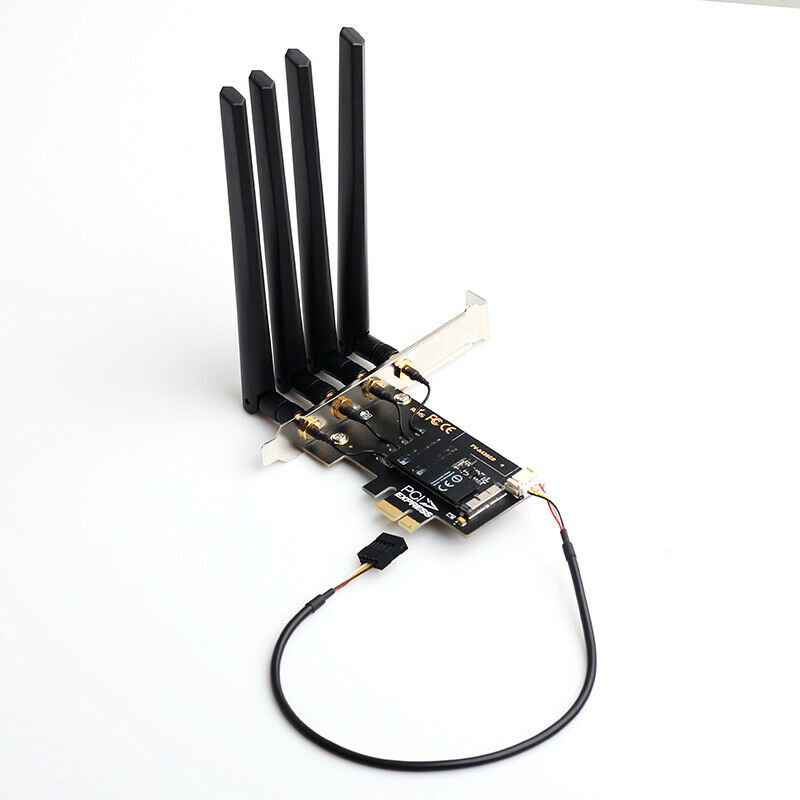

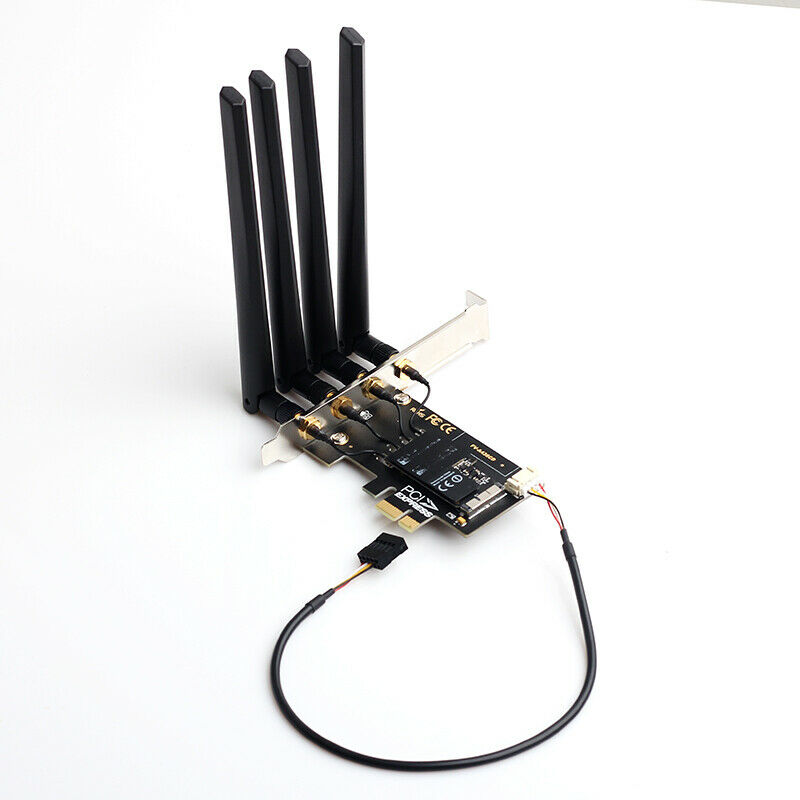

I have a BT cable coming off of my new Wifi/BT card that has all 4 wires. I would like to hook it into the original BT socket.
I believe the 4 wires are: VCC, Data-, Data+, & GND.
I need to know which pin to hook VCC to & which Pin to hook GND to.
Thank you!


Attachments

  • s-l1600h.jpg
    42.7 KB · Views: 171

tsialex

Contributor
Jun 13, 2016
13,463
13,616
Could you possibly tell me what Pin 3 & 4 are actually for?
I have a BT cable coming off of my new Wifi/BT card that has all 4 wires. I would like to hook it into the original BT socket.
I believe the 4 wires are: VCC, Data-, Data+, & GND.
I need to know which pin to hook VCC to & which Pin to hook GND to.
Thank you!

Pin 1 is D-
Pin 2 is D+
Pin 3 is NC (VCC)
Pin 4 is NC (GND)

NC = not connected


AndyDrewSon

macrumors newbie
May 26, 2022
3
0
US
Pin 1 is D-
Pin 2 is D+
Pin 3 is NC (VCC)
Pin 4 is NC (GND)

NC = not connected
Thank you for your reply! I'm trying to make sure I understand you 100%:

Should I leave the VCC & GND unconnected, even though my cable has all 4 wires?
Should I Just cut them off and use only the Data-/+ wires?
Or do I need to connect all 4?

Any idea why mine would have come with all 4 wires if only the 2 are needed when most other people's cards only came with 2 wires, to begin with?

Thank you very much!


tomillo

macrumors newbie
Aug 23, 2022
4
0

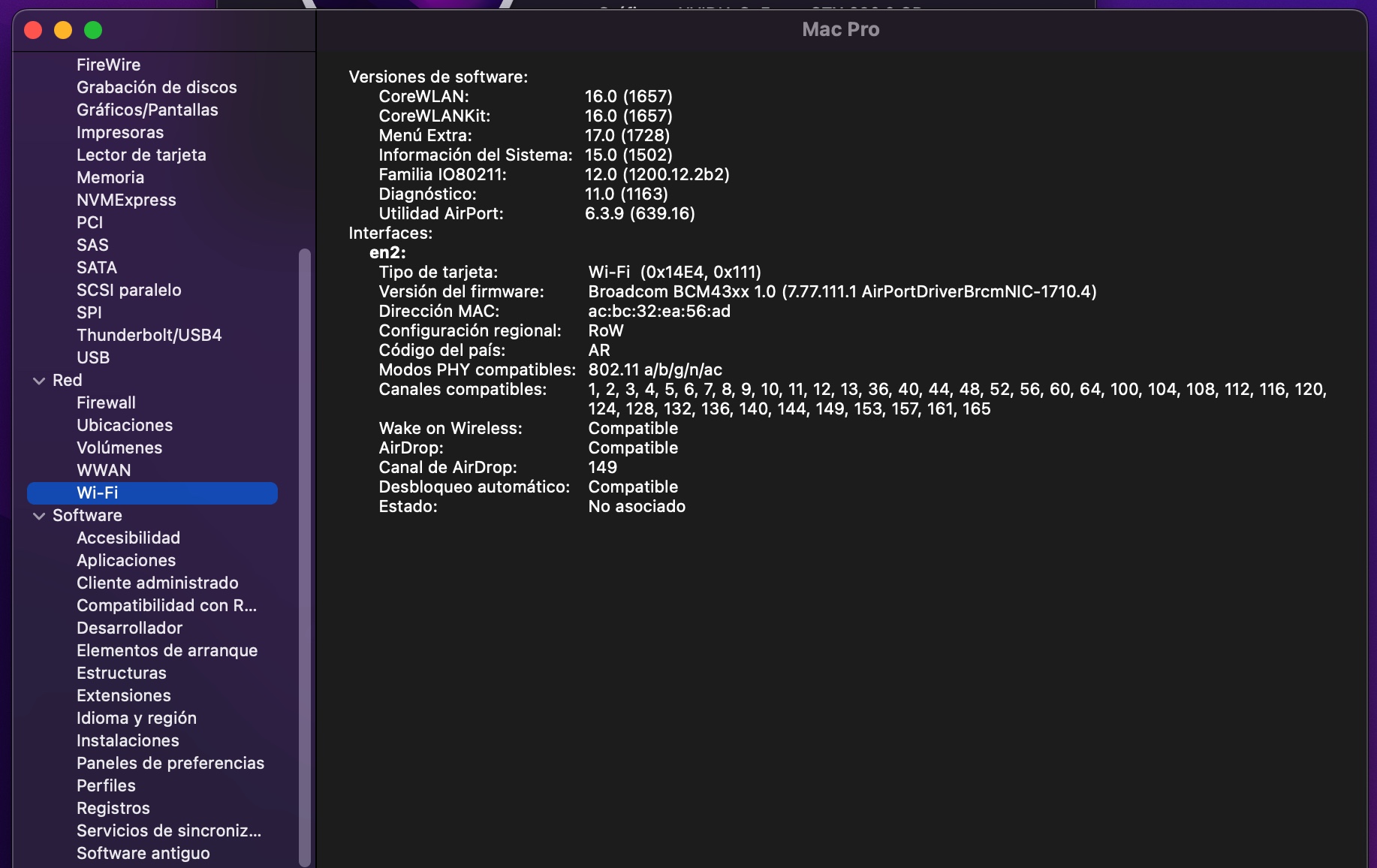

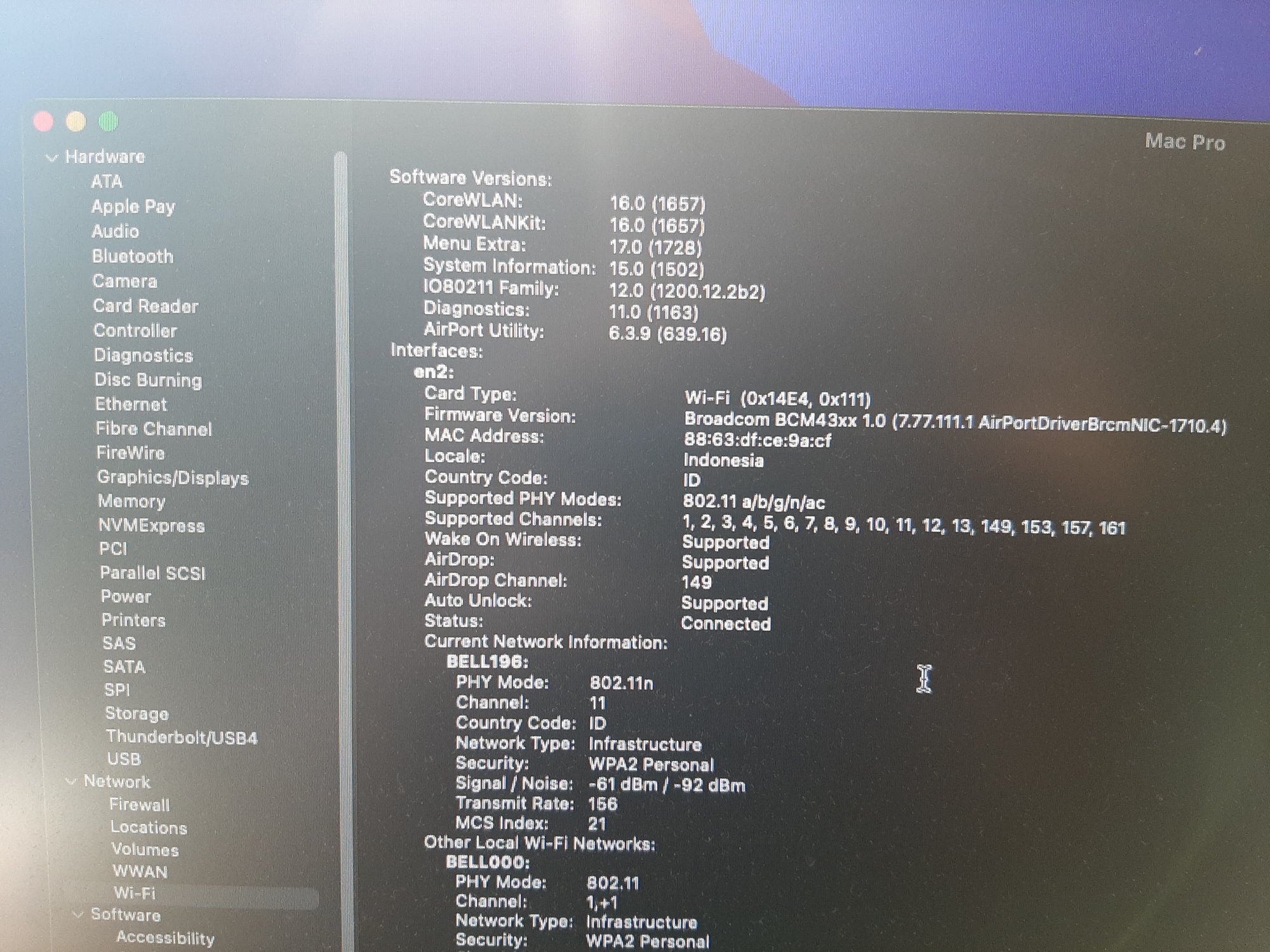

Hello, I have a similar problem. The bluetooth works correctly for me, but the wifi does not list any network. I have tried to connect the wifi antennas in different positions, I also did 4-times continuously NVRAM reset but still not working. Attached below the wifi report system. Any idea to fix it?


Attachments

  • Imagen 23-8-22 a las 21.24.jpg
    Imagen 23-8-22 a las 21.24.jpg
    303.9 KB · Views: 177

MacHosehead

macrumors member
May 21, 2022
83
54
Hello, I have a similar problem. The bluetooth works correctly for me, but the wifi does not list any network. I have tried to connect the wifi antennas in different positions, I also did 4-times continuously NVRAM reset but still not working. Attached below the wifi report system. Any idea to fix it?
The only time I have seen this behavior is in my MacPro3,1. I put an Apple wifi/bt card with an adapter to a regular PCIe slot and it said it was "not associated". I changed the adapter and moved the card to the mini-PCIe slot where everything worked. The system really wanted it in that slot.


tomillo

macrumors newbie
Aug 23, 2022
4
0
The only time I have seen this behavior is in my MacPro3,1. I put an Apple wifi/bt card with an adapter to a regular PCIe slot and it said it was "not associated". I changed the adapter and moved the card to the mini-PCIe slot where everything worked. The system really wanted it in that slot.
That's weird, but in my case is connected in the mini-PCIe slot right? Airdrop is working fine but i'm not sure if is BT or WIFI.


tomillo

macrumors newbie
Aug 23, 2022
4
0
Hello, I have a similar problem. The bluetooth works correctly for me, but the wifi does not list any network. I have tried to connect the wifi antennas in different positions, I also did 4-times continuously NVRAM reset but still not working. Attached below the wifi report system. Any idea to fix it?
Ok guys, now is working! What I did was:
  1. Revert Root Patches in OpenCore
  2. Reboot
  3. Install Root Patch in OC
  4. Reboot
  5. Voilá
Easy. Thanks for info!


paul_bace

macrumors member
May 10, 2021
61
14
Toronto
Try a 4-times continuously NVRAM reset, press the CMD-Option-P-R keys and only let go after the fifth chime.

Now check if BT controller is present with Mojave SystemInformation report.
Just spent 2 hours effing with mine before I found this...And it worked. Thank you. *facepalm*


motiontrack

macrumors newbie
Jan 18, 2023
15
1

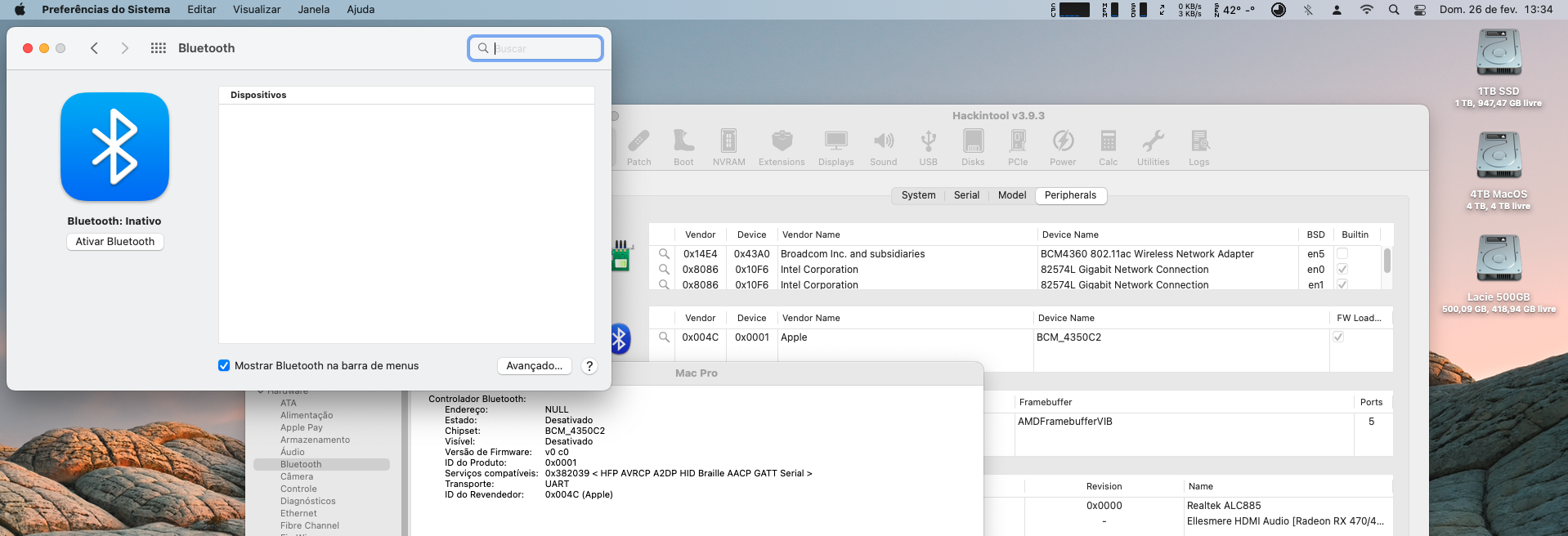

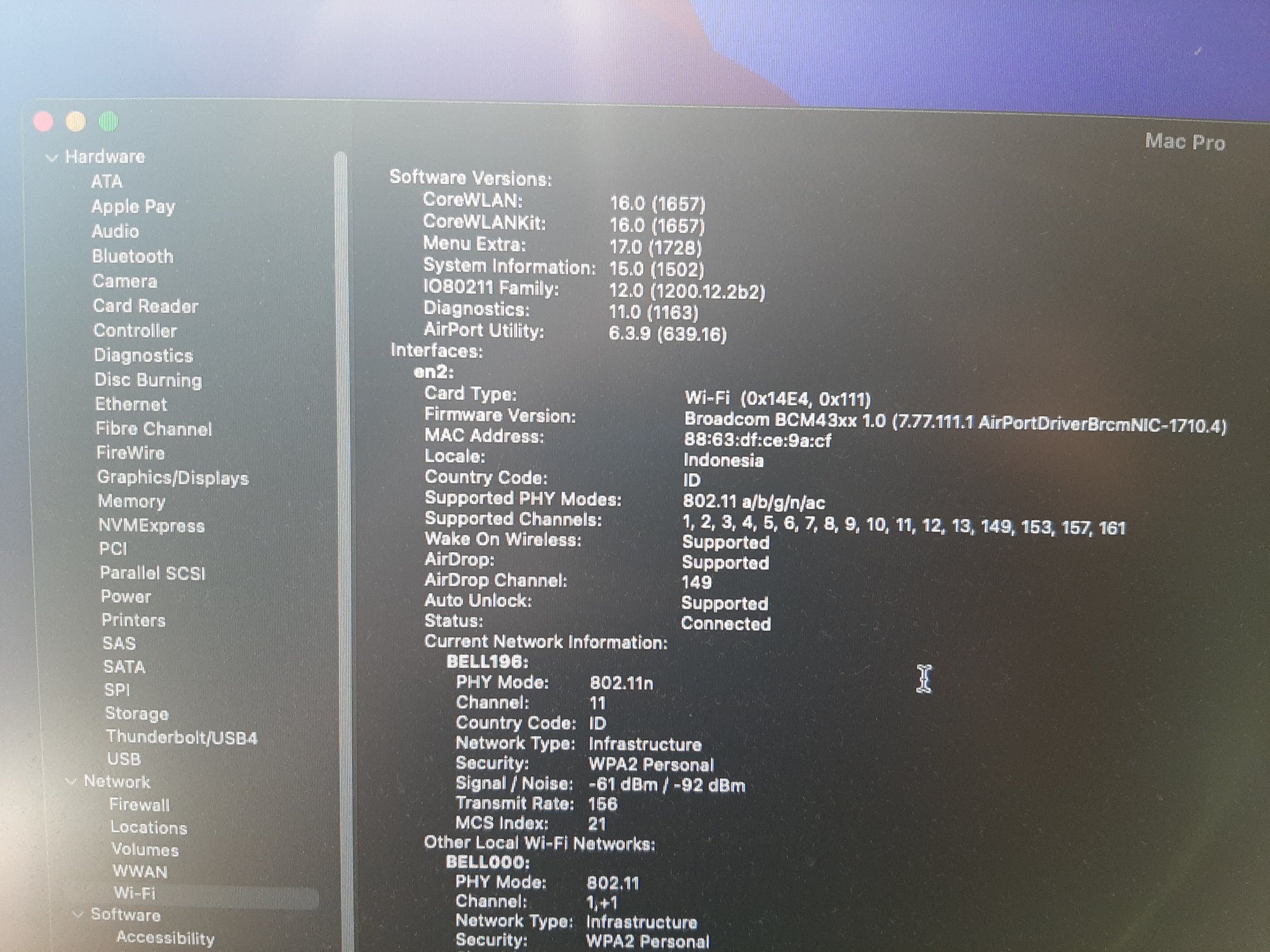

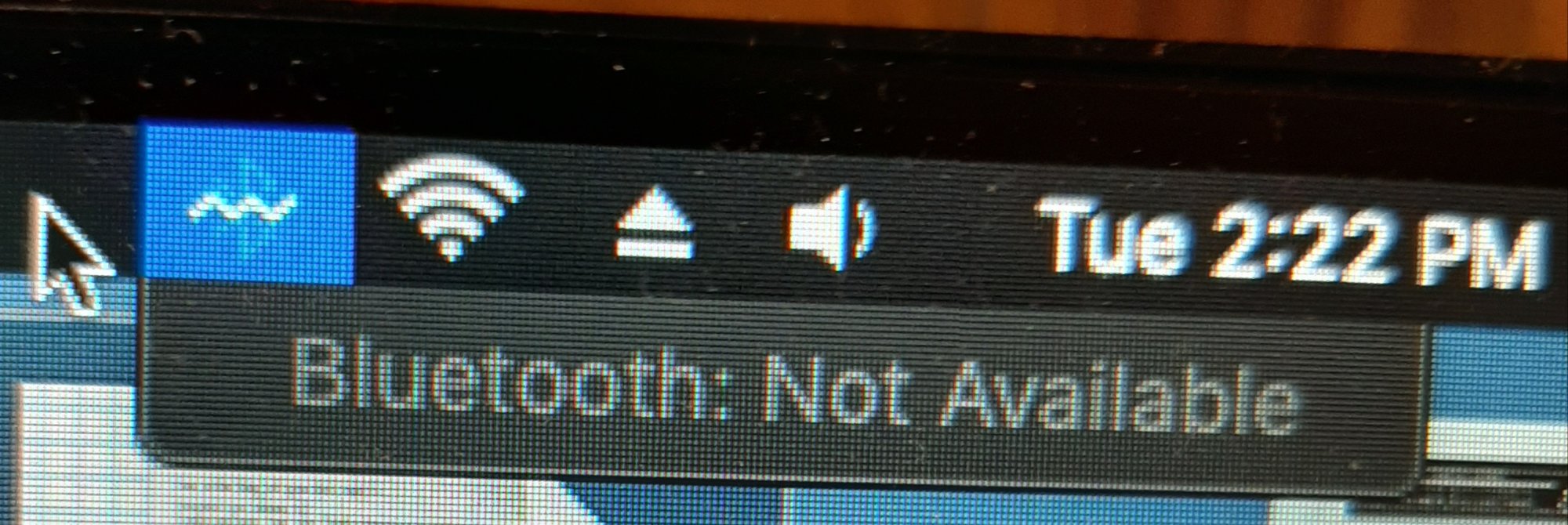

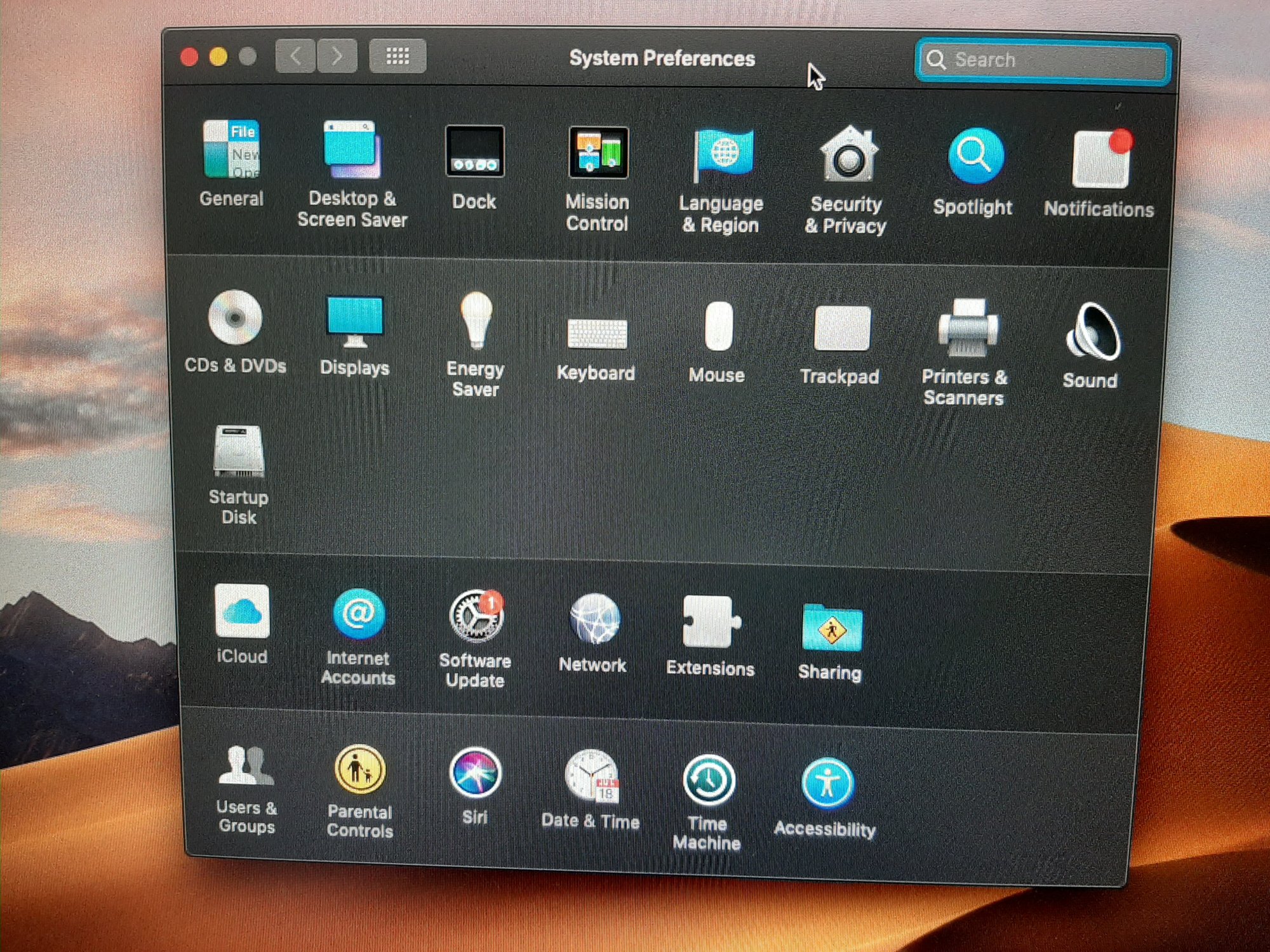

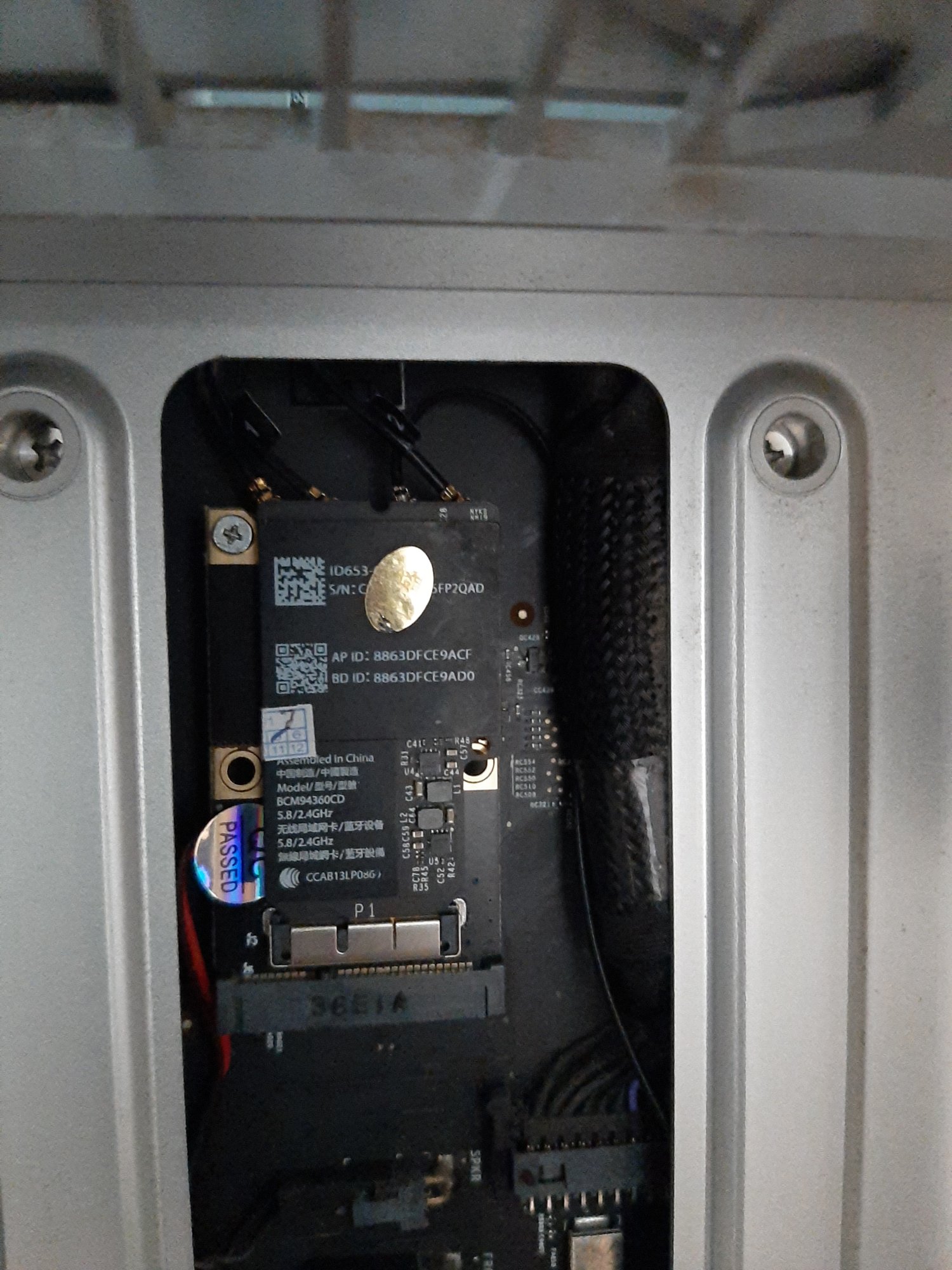

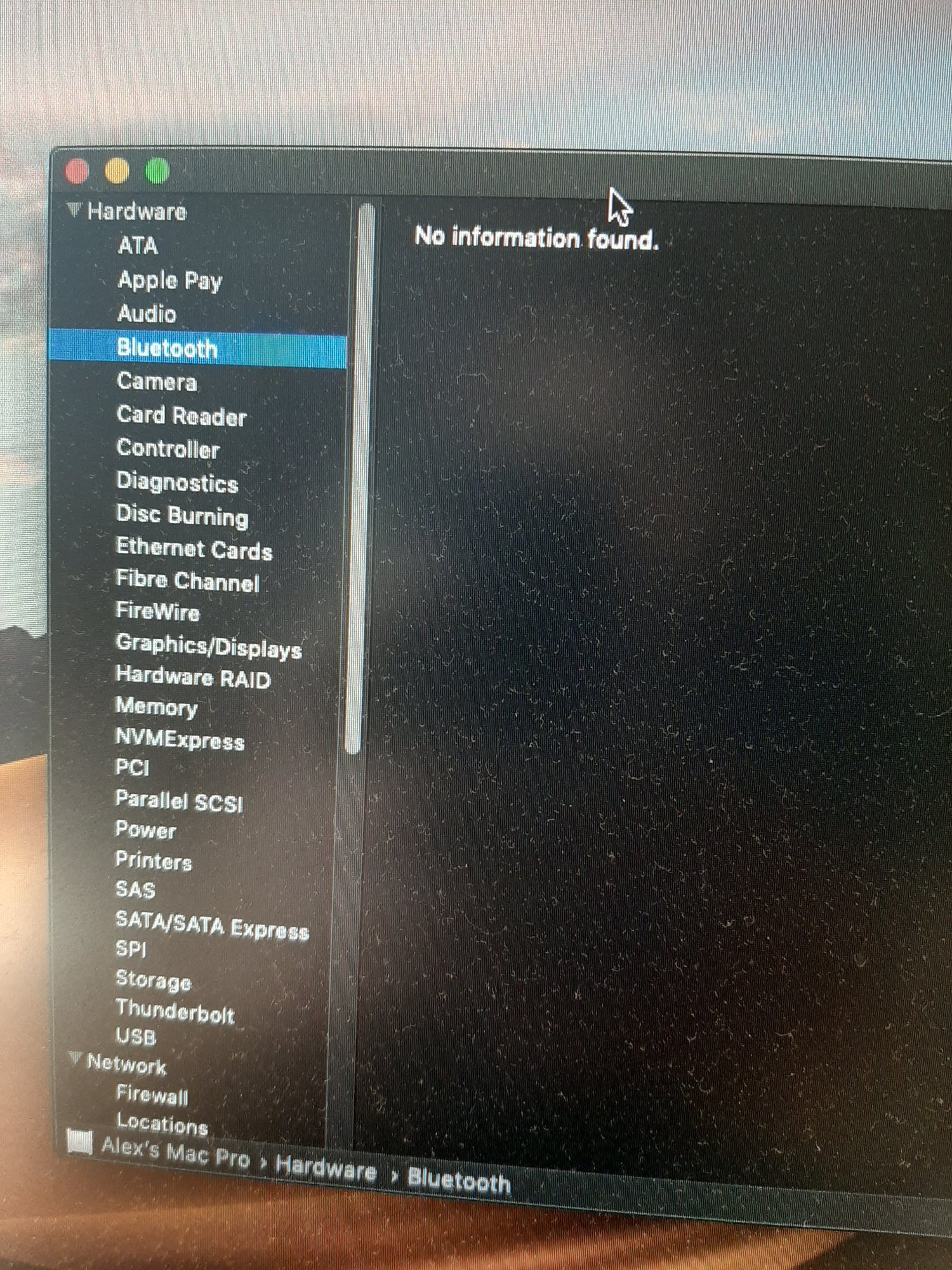

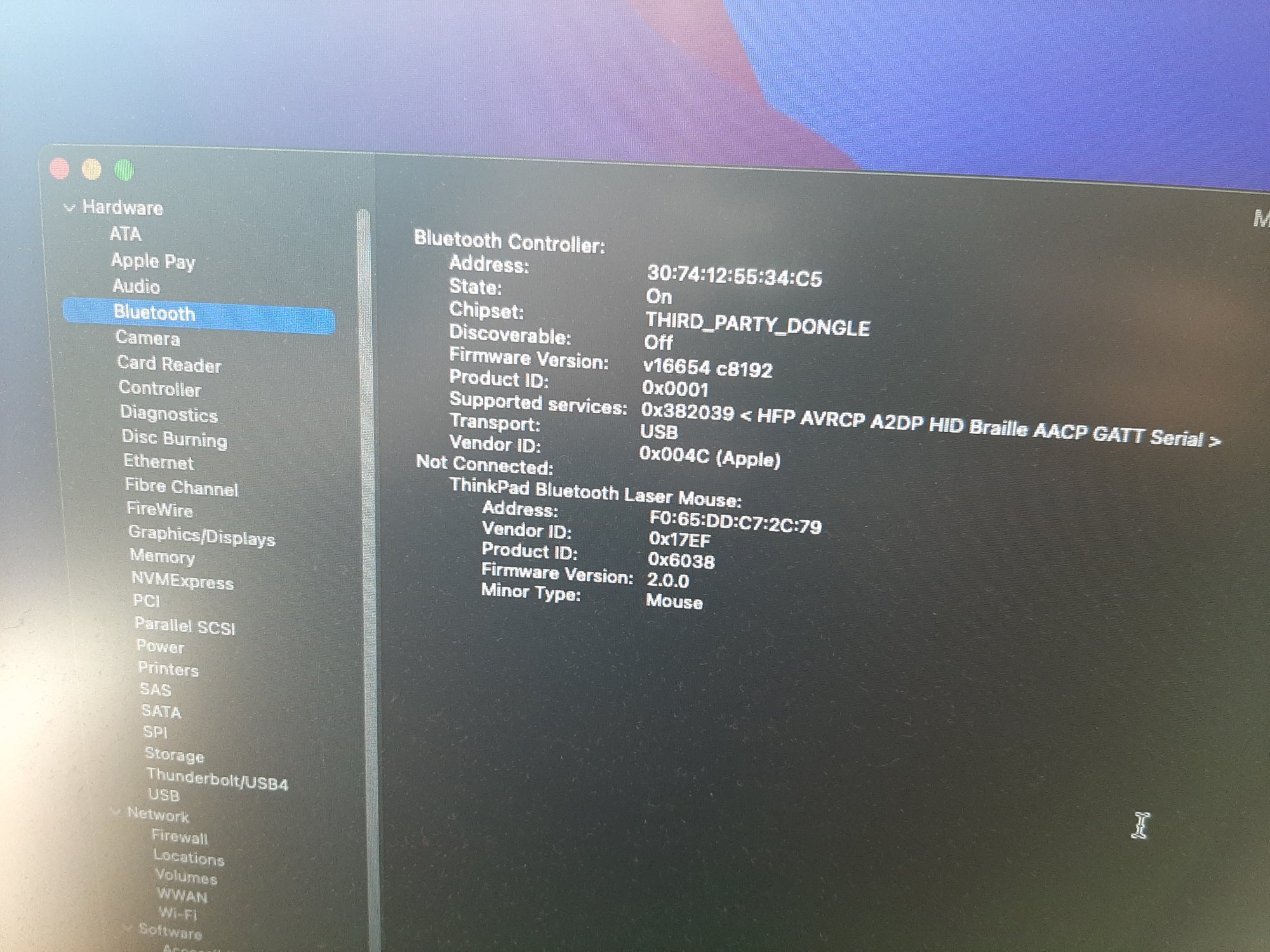

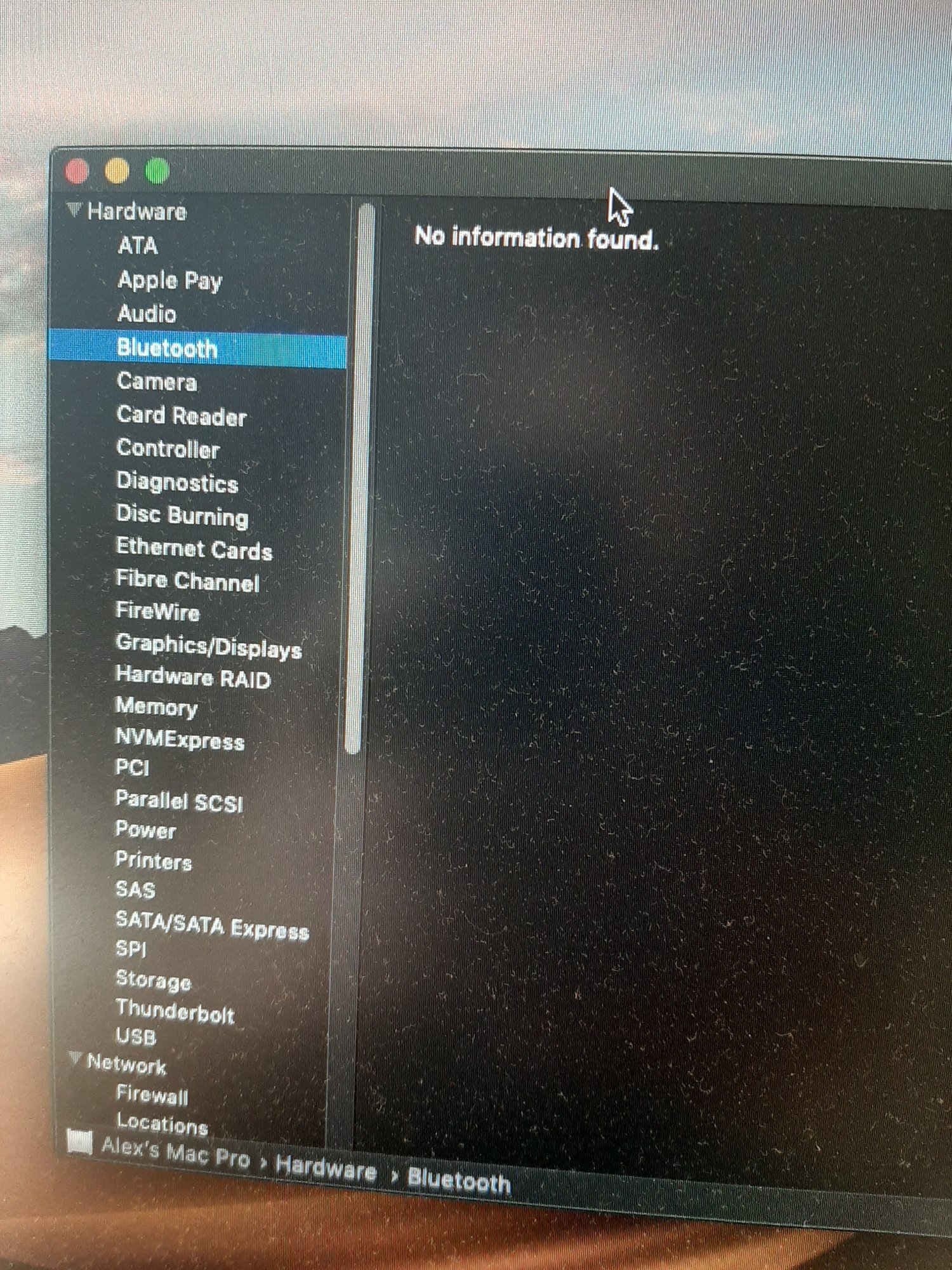

Hi, I just upgraded my cMP 5,1 wifi/BT to the BCM94360CD combo card. I've been able to get both BT and Wifi working on OS Monterey, but Bluetooth shows as unavailable on my Mojave drive. I've tried 4X pram/nvram reset, SMC reset, deleting plist, but no sucess for Mojave. I also clean installed Mojave but BT didnt even show at all. I plugged a BT dongle and BT did show up in that instance, but I'd rather use what i installed. Can anyone help please. Attached reference pics of the mojave situation vs Monterey (via martin lo oc 0.8.8) Thank you


Attachments

  • 20230308_094856.jpg
    795.7 KB · Views: 147
  • 20230307_142251.jpg
    254 KB · Views: 121
  • 20230307_150802.jpg
    490.5 KB · Views: 131
  • 20230307_150719.jpg
    500 KB · Views: 141
  • 20230307_150356.jpg
    720.1 KB · Views: 152
  • 20230309_101947.jpg
    434.4 KB · Views: 152
