Lysak

macrumors newbie
Original poster
Feb 13, 2016
10
0

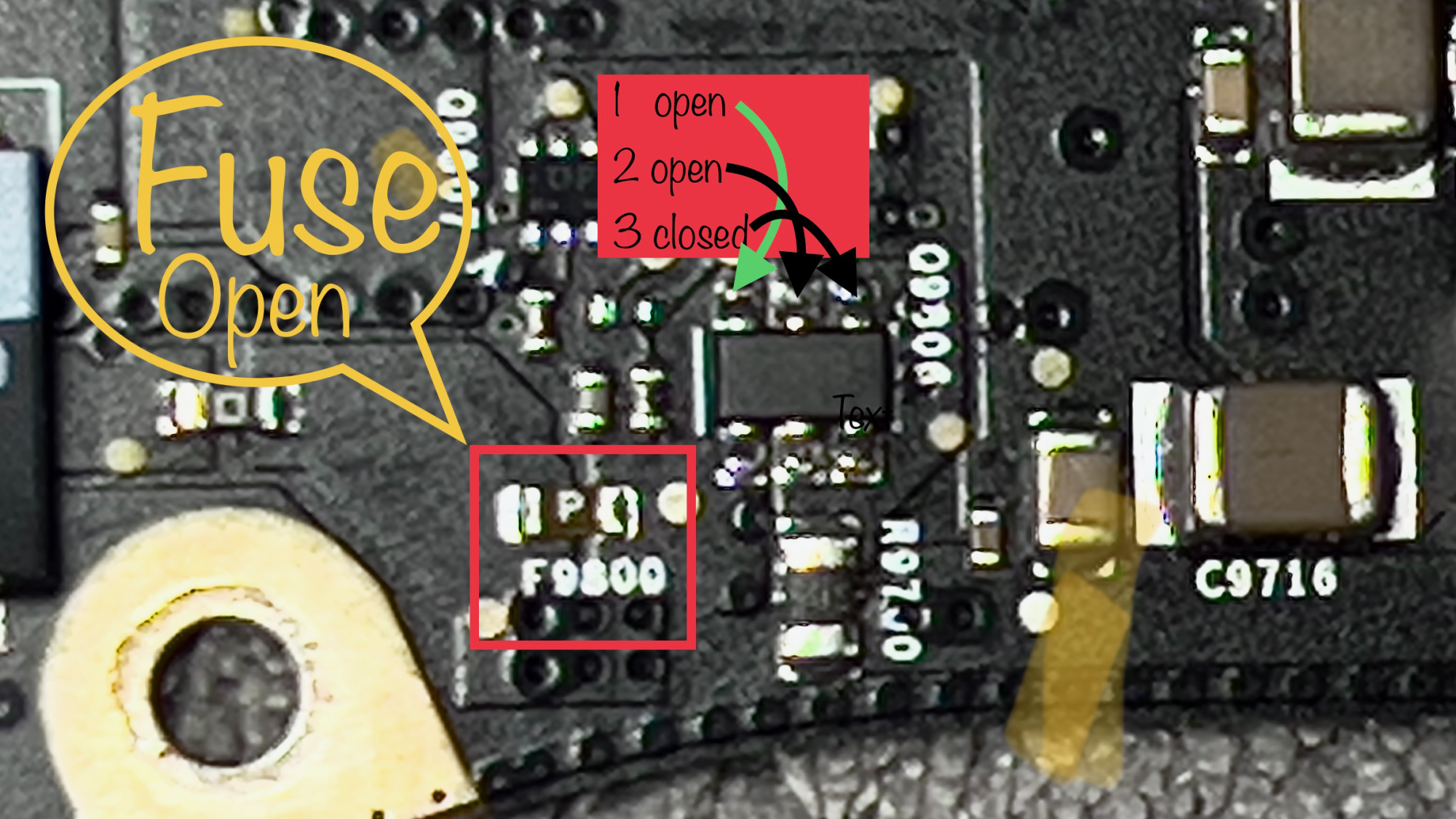

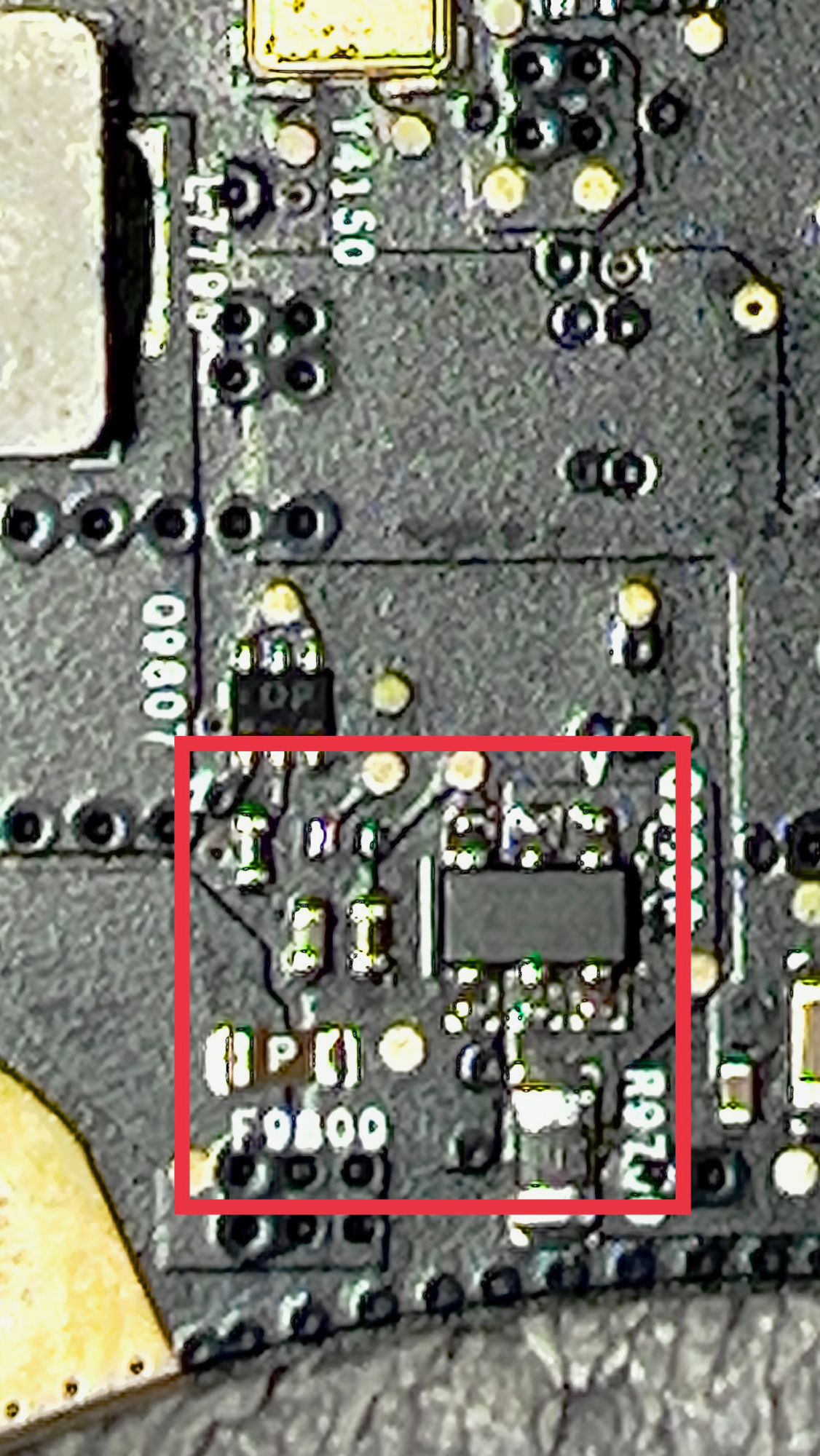

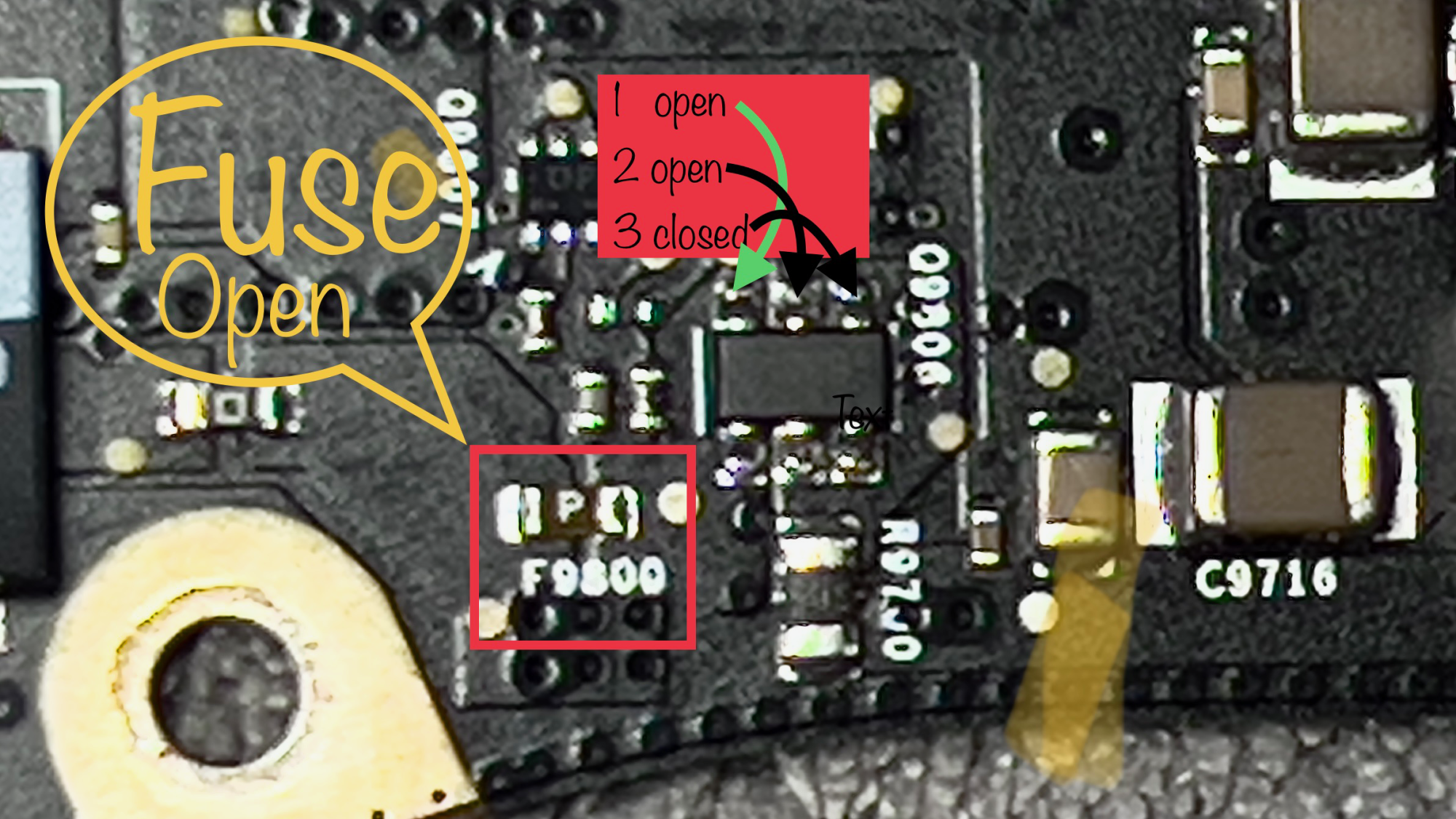

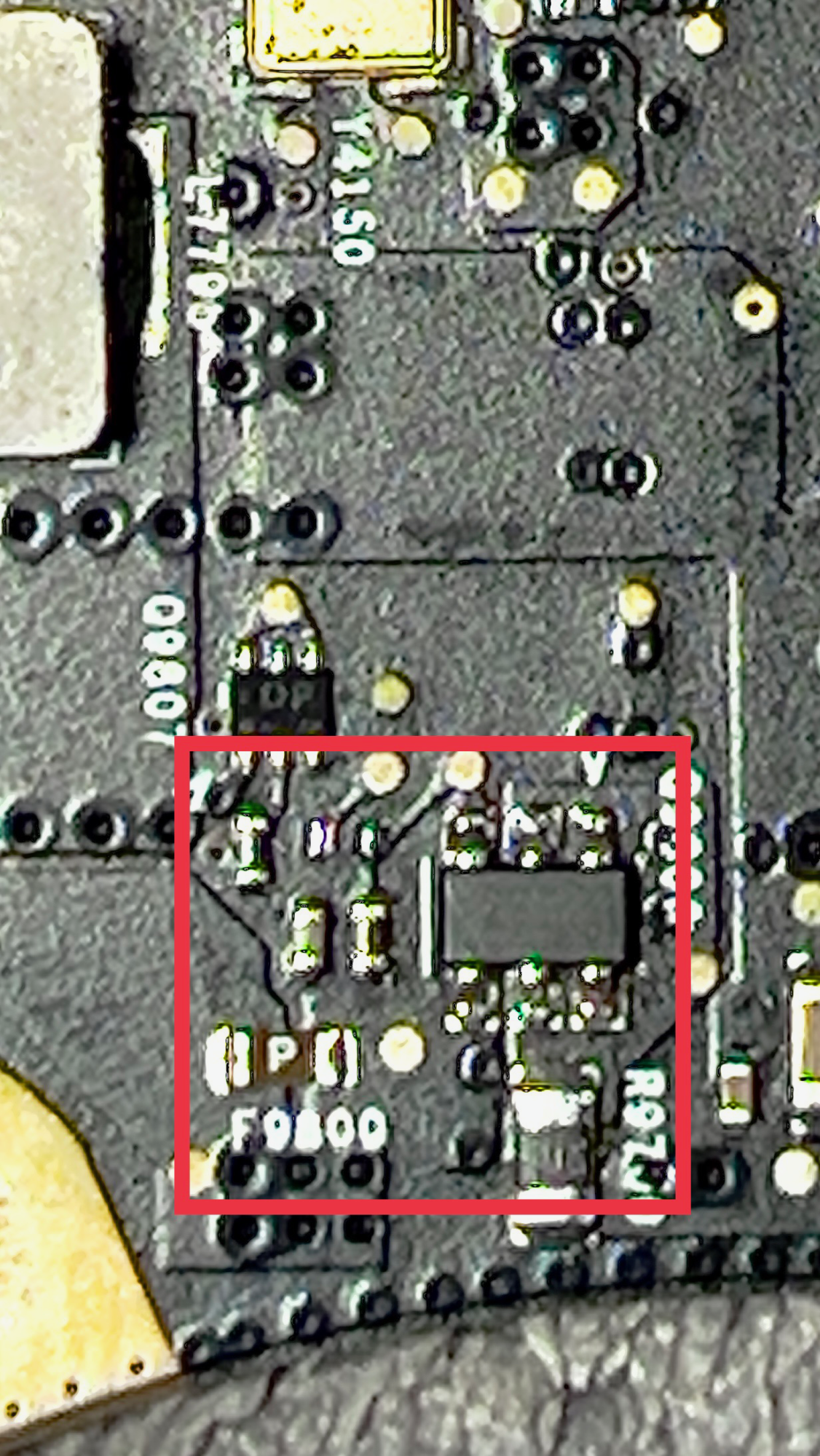

Hey, this thread is an updated version. My previous thread had stated issues about many things but I have corrected most of them. Last of the issues are that there is no backlight but shows the desktop when light is flashed through the apple. I did find the fuse F9800 and found it to be faulty and ordered up a bunch of them. 2nd issue is why did it blow?

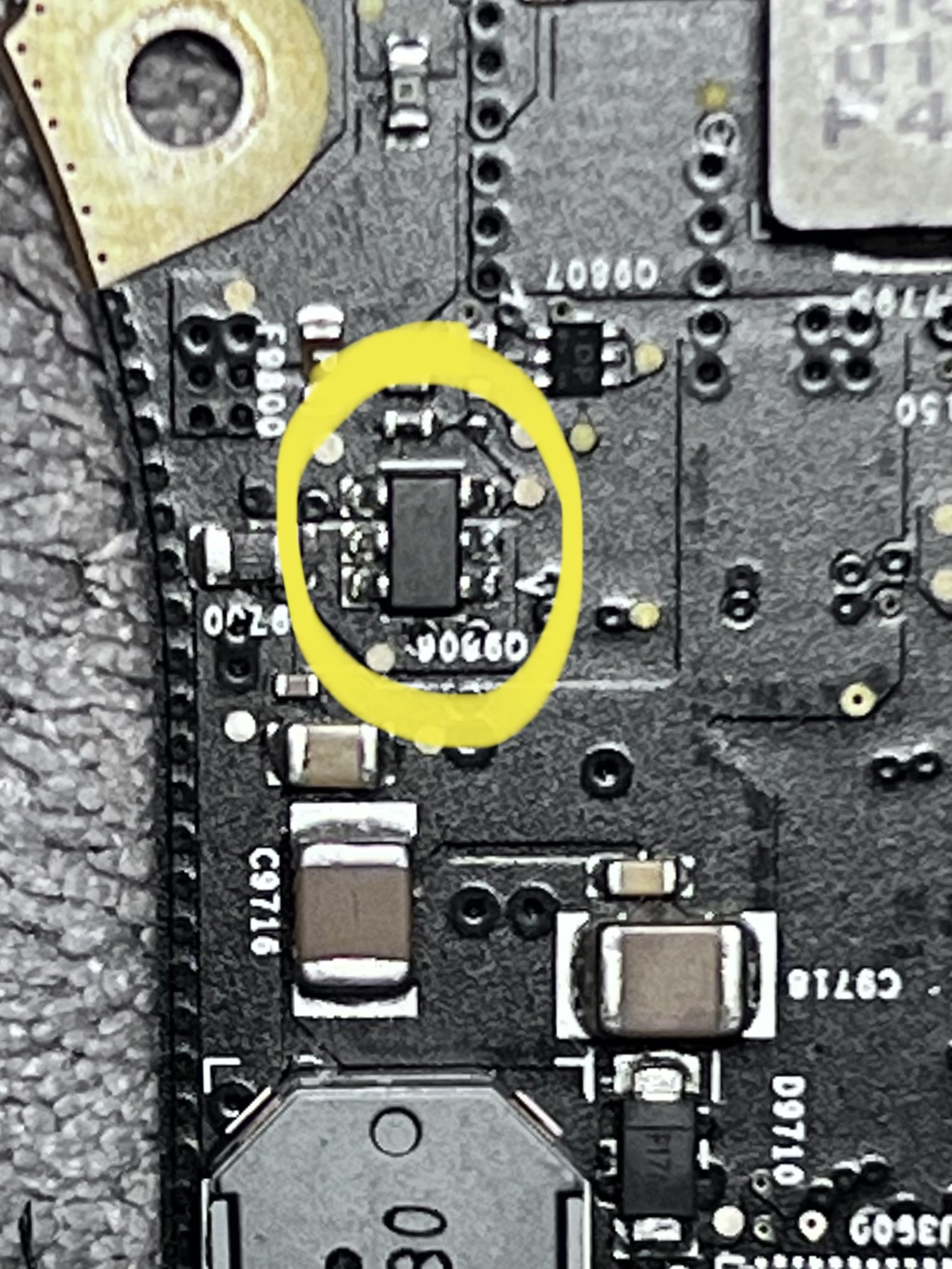

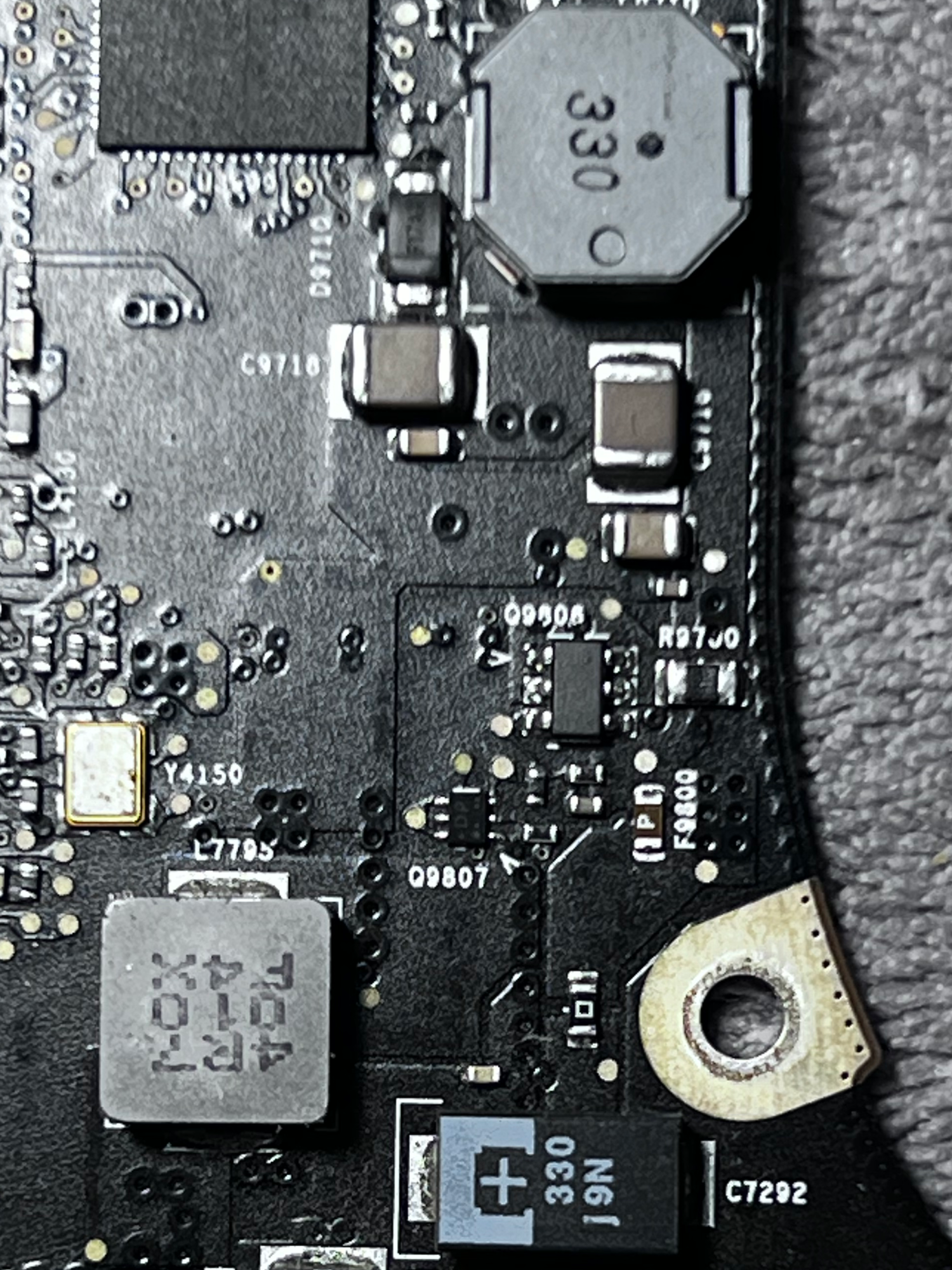

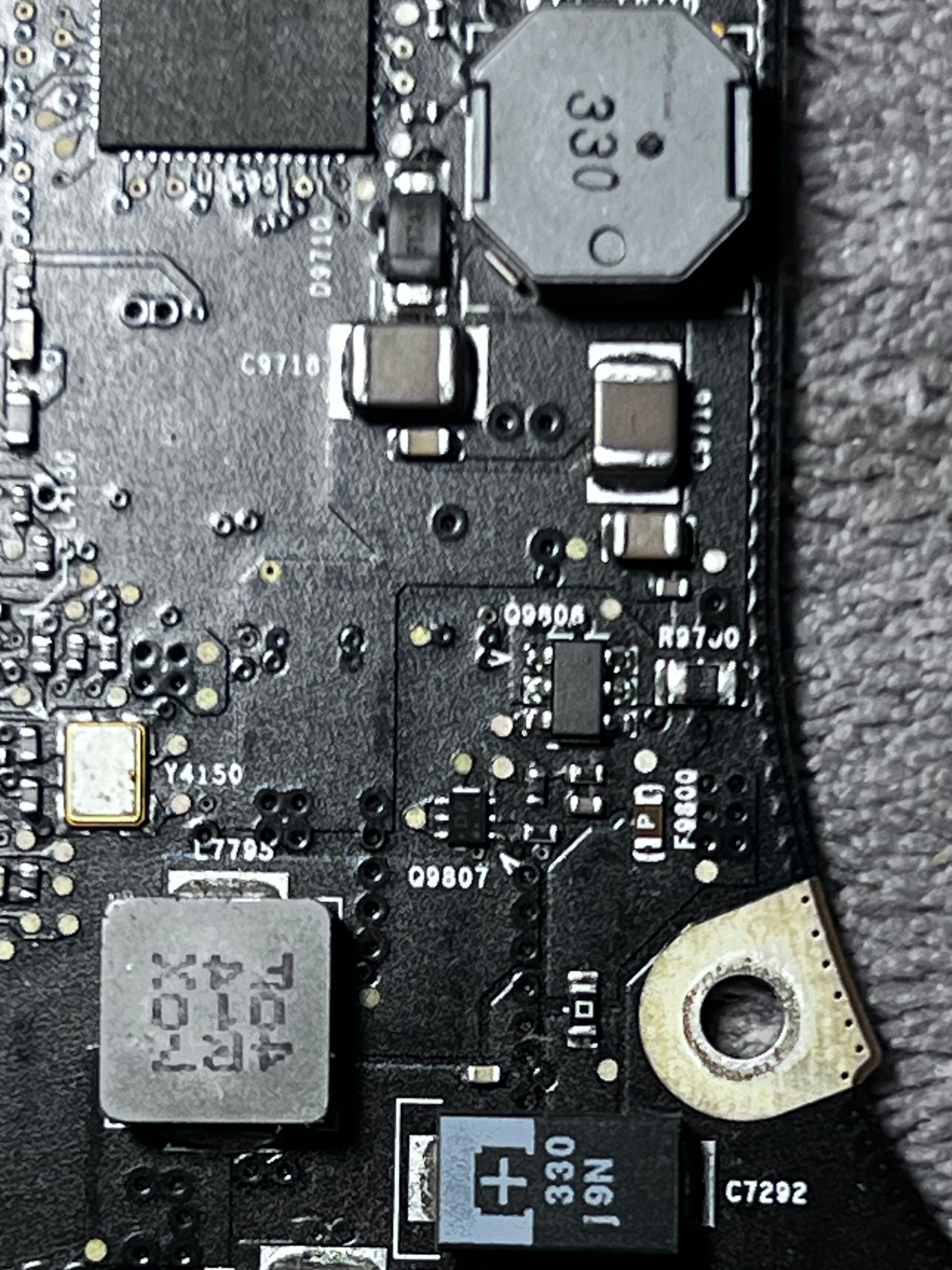

I took the board into a circuit repair shop and the ol fella there said that the FAT chip was done and needs to be replaced. Its ID is 09806. My problem is where to find one and how, anybody have insights on this? (photos attached)

IMG_1854.png FAT chip 09806.jpg IMG_1844.png IMG_1855.png
