NEED HELP - 13 Mini restarting randomly SMC PANIC - BSC failure

[zyd]

Hi,

my Iphone13 Mini restarts every three minutes. The error log shows a SMC BSC error of type 0x1000, which should be a damaged proximity flex cable. Disconnecting the cable should in theory fix this problem (or not?). However, the problem continues to exist even after disconnecting it. Should I still replace the cable or is there another problem?

To eliminate the possibility of a software problem, I then tried to reset my Phone in DFU mode via iTunes with no success as it still restarts during the reset process. Now it is also stuck in DFU mode and I can't get out of it unless i resolve this issue.

I would really appreciate the help!



[Harbin ebiz]

Hi, my iPhone 14 has the same issue. Can you please tell how you resolved it ?

This link says possible three reasons : charge port , battery , and power button ribbon . Sounds like I have to try battery and ribbon coz I changed charge port and not working.

iPhone reboots after 3 minutes if I go into unlock screen - iPhone 11 Pro

Hi, Recently I was using my iPhone to take some pictures during a rainy day when it suddenly shut down and started to go into a boot loop. It eventually managed to boot, and long story made short, the situation is now as follows: (1) If I leave the iPhone as it is when it boots, i.e., without...

www.ifixit.com



[Harbin ebiz]

This post says 0x4000 array is battery .

Troubleshooting iPhone Reboot Problems

TROUBLESHOOTING IPHONE REBOOT: How to Fix an iPhone that Restarts Every Three Minutes Why does my phone keep restarting? My phone will only stay on for three mi

www.ipadrehab.com



[zyd]

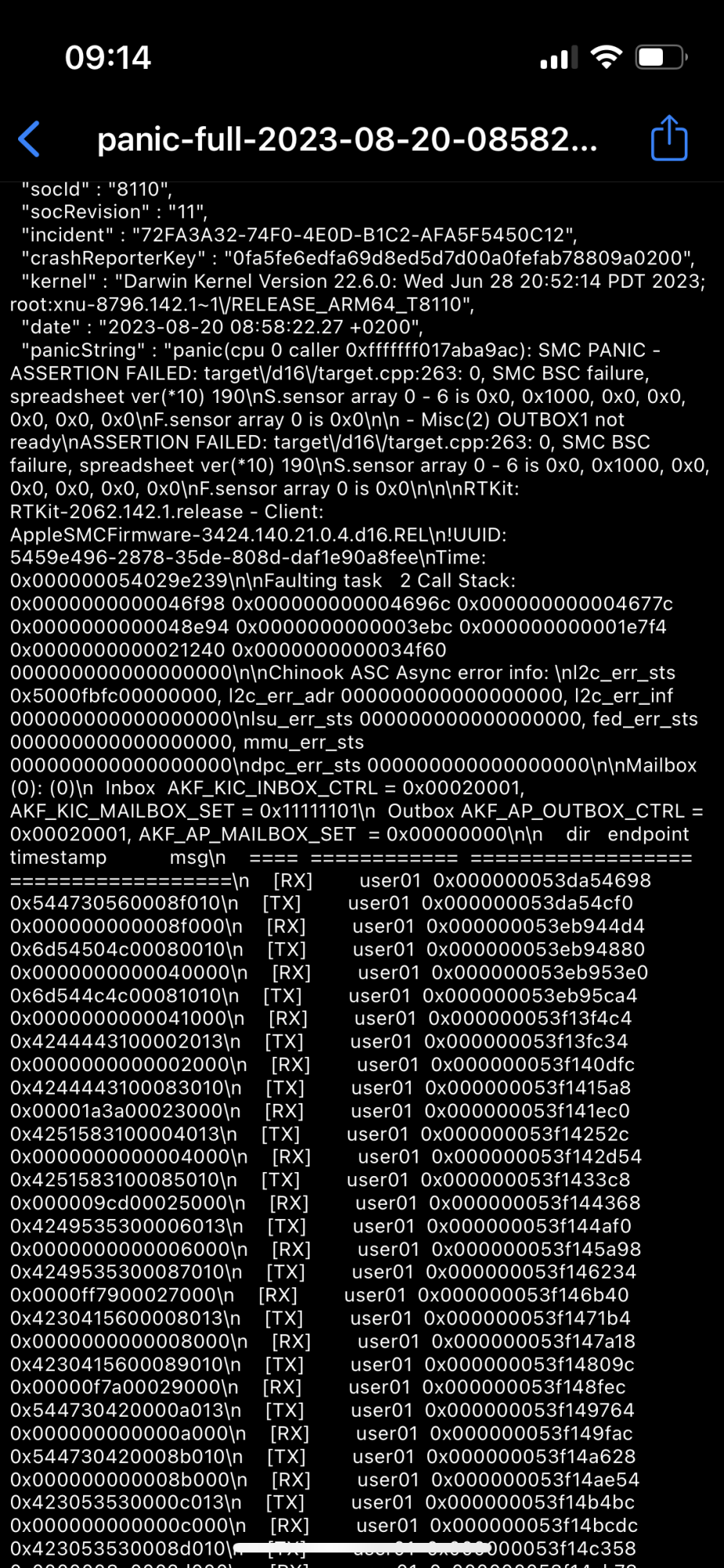

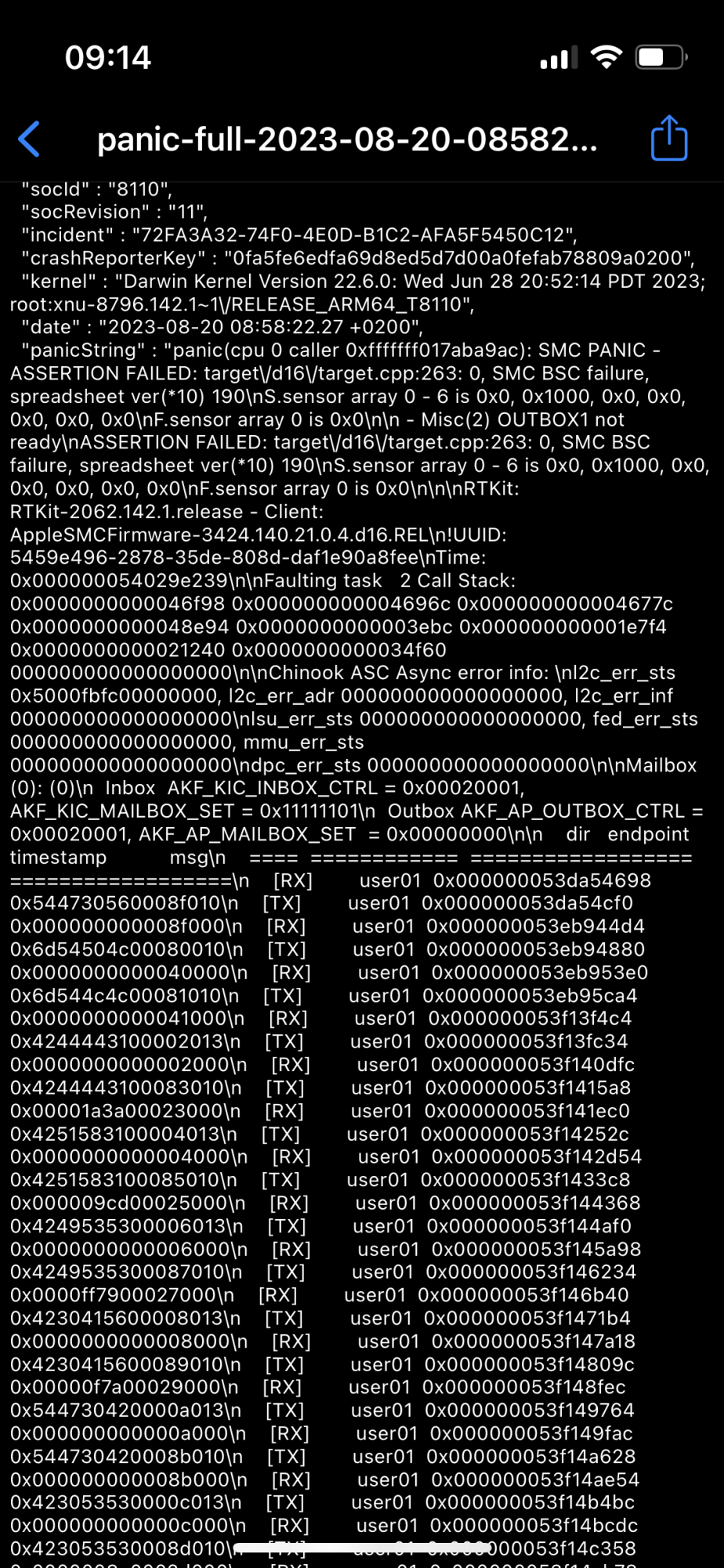

hey, can you send a screenshot of your panic log? my issue was a SMC BSC error of type 0x1000, which meant that the proximity flex cable was damaged and needed replacement.
