New cores (A15)
- Thread starter cmaier
- Start date
- Sort by reaction score
Yeah, there is no way of fitting HDMI onto the current chassis without severely compromising the structural integrity of the metal around the port. The would need to add at least several millimeters.
For Intel PL1 & PL2 are the better numbers to look at. AMD doesn't really have an equivalent metric.
The regulation on the FAA/TSA website doesn’t give specific detail: single rechargable Lithium batteries (including ones in devices) are limited to 100Wh ratings, and must be taken onboard inside the cabin. Spare batteries are permitted (2 per person) up to 160Wh, but they must be stored with the contacts covered to prevent discharge.
TSA agents are given final authority on any call required on if an item is/isn’t permitted, and note that because of that, the regulation must remain fairly simple. Trying to get some average person to understand a regulatory loophole is probably not a great thing to try.
The risk of “asking for forgiveness” when it comes to regulations like these is that the customers pay the price when the regulatory body decides that the loophole wasn’t a good one, and forces the company to scramble when it fails. As much as I’m not a fan of the TSA security theatre, I also don’t think it’s a great idea to “find loopholes” in a regulation that’s enforced by folks with limited training.
MagSafe is an entirely proprietary connection. It is as thick as Apple designs it to be. There is zero reason why Apple would need to make the new MagSafe compatible with the old 'L' and 'T' adapters. They could just make it wider and thinner if there is a z-height issue and even less 3rd parties would have alternative solutions at launch.
HDMI comes in four different connectors. Type C ('mini' ) would work at least for 4K like screens.
USB Type C 2.6mm high
HDMI Type C 2.4mm high
HDMI Type A 4.45mm high
the socket needs a bit more clearance, but not a huge problem .
If Apple flattens out the outer edges that will help (and will add a bit of weight... the rounding is minute weight trimming) .
The MBP 16" is 16.2mm high. Even if split that in half between base and lid that is 8.1mm . A 40/60 split would make the base 9.72mm.
4.45mm is only 55% of that 8.1mm measure. That is enough for an outer rim.
At least on the 16" it shouldn't be a problem if Apple just leaves the height alone.
The 14" is 15.6mm. So 50% is 7.8mm and 60% is 9.36mm.
Tighter fit for a HDMI Type A but could just do a Type C if it was a problem.
The M1 MBP 13" is 20. The Intel MBP 13" is about 10 hours.
There is little chance Apple can double the P cores and G cores and the SoC is going to consume equal power than the current M1 is doing. Similar issue with the mini LED screen that is bigger ( i.e. bigger area ... larger power consumption).
The objective to the "M1X" version is likely to incrementally beat or match 10 ; not 20 hours.
P.S. the mBP 16" has somewhat similar issues if quadrupled the number of G cores. Get some reduction with combining CPU + dGPU into a single SoC , but also spending more ( more, brighter backlight , etc. ). That would be a bigger increment but probably short of the M1 systems.
Funny how Apple has no problem making the lid with the screen "wafer" thin and user has to actually pull on that to lift the screen while putting zero weight on the outer edge of the laptop to insert a cable.
There already are several mm there is Apple doesn't thin out the MBP chassis even more. Incrementally better support to use the edge of the MBP as a step ladder if square off the edges if some folks want to use the edge as a lever.
So 70% more perf cpu than M1
jesus
400gb/s memory bandwidth and 64 gb ram
4x gpu perf than M1 gpu
Jesus
jesus
400gb/s memory bandwidth and 64 gb ram
4x gpu perf than M1 gpu
Jesus
Does anyone know if there is a difference between the single core processing speed of M1Pro vs Max? That is my key consideration!
Shouldn't be, no. Looks like the key thing here is memory bandwidth/size, GPU size, and number of displays it can drive.
The Pros and Maxxes both sports huge increases in memory bandwidth and also are using either LPDDR5 or LPDDR5X. So that can affect things as can the new SSDs with double the speed.

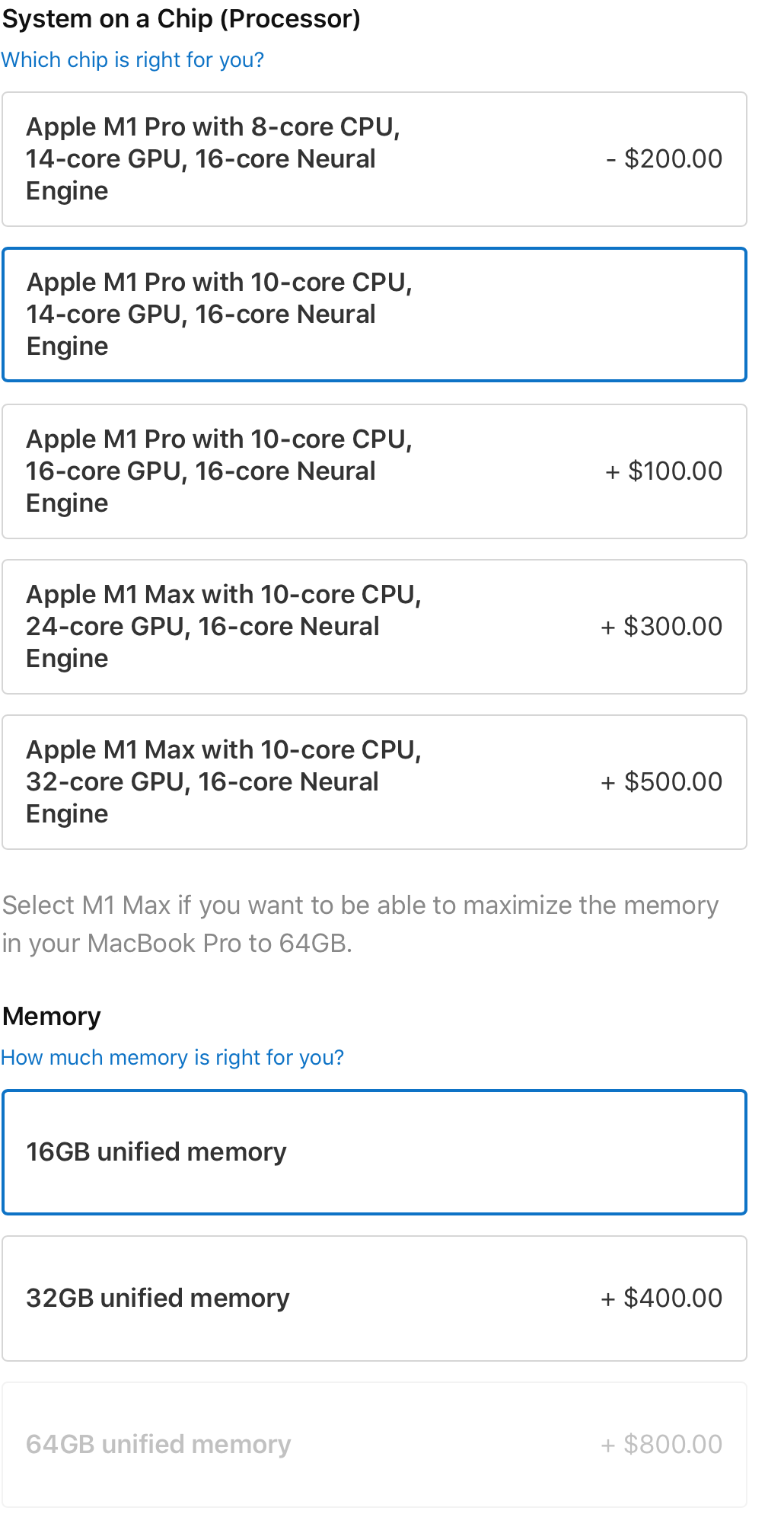

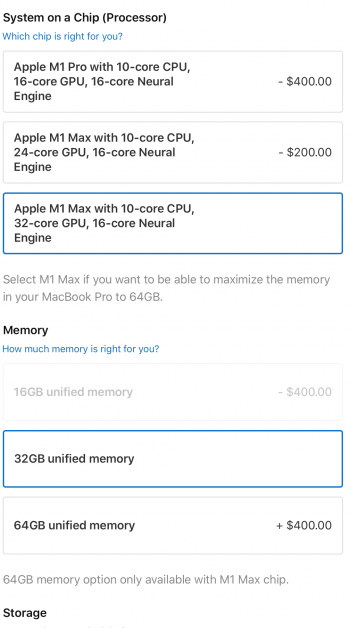

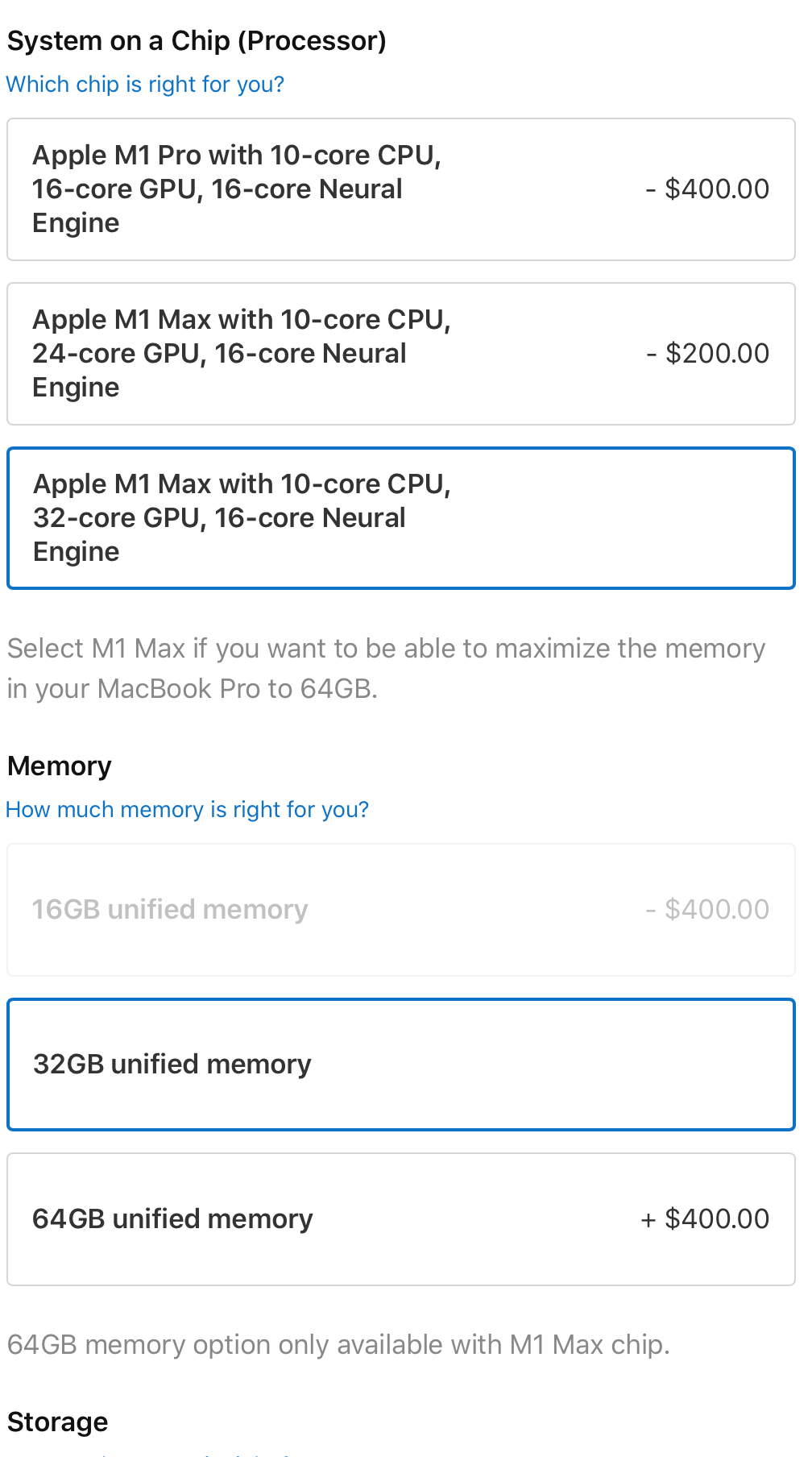

The configuration automatically switches from 16 GB to 32 GB and adds to the total. So you go from $2499 to $3099 (+ $600) by clicking on just "Apple M1 Max with 10-core CPU, 24-core GPU, 16-core Neural Engine" (+ $200).
I am a bit disappointed that it’s still Firestorm/Icestorm, but the M1 Max came as a big surprise. A 512-bit RAM interface in a 2kg laptop, this is very much insane. I mean, they are not cheap, but you can’t buy a machine like that anywhere else, no matter how much money you throw at it.
The x86 land is now years behind…
How did you determine that the cores are still M1 and not Avalanche and Blizzard?
By cache size. Avalanche has an increased L2 size (not only the SLC).
