Yes. It definitely has to be a dual-link DVI one.
Correct.
This is only necessary if the GPU only has DP and the monitor only has dual-link DVI. @OP - you don't need one of these!
Last edited:
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP 1,1-5,1 New Viewsonic VP2768
- Thread starter 1970mgbgt
- Start date
- Sort by reaction score
No. The Asus PA278QV monitor you linked to has both dual-link DVI and DP. So does your 5770. Either of these connections will technically do 2560x1440 just fine. No expensive adapter is necessary.
Yes! You have to use that specific Apple adapter with the 5770. A lot of people found that out a few years back. There are plenty of them on eBay although they are over priced as they use to sell for under $30 back when users were upgrading their graphic cards to run Mojave and no one was buying them then.
If you scroll down the eBay listings you see someone doing an auction for $7.99 but no takers. I’d offer them something like $20 and see if they bite. These adapters are pretty much obsolete except for the few who are still using a 5770, and very few users still are.
I’ve still have both of mine and I would just give you one if there was a way to ship it to you using a prepaid return padded envelope.
Can you explain why that is the case?
You only need that to go from a GPU that has DP to a monitor that has dual-link DVI. If both have either DP or DL-DVI, it is/should not be needed.
Last edited:
I’ve still have both of mine and I would just give you one if there was a way to ship it to you using a prepaid return padded envelope.
Thanks for the offer. That's very kind.
Yes, specs are with those ports, but the monitor is backordered everywhere. I wonder if they are just Christmas-ed out or if the models are about to change again.
Do you think it would be worth it to try another copy of the Viewsonic I tried before, in hopes that another one might work, or is that just foolish? Could not make the first one work with the MacPro, but maybe I didn't know enough about cables at that point. I was just trying to use the included DP-to-mini DP cable, as previously discussed.
This one?

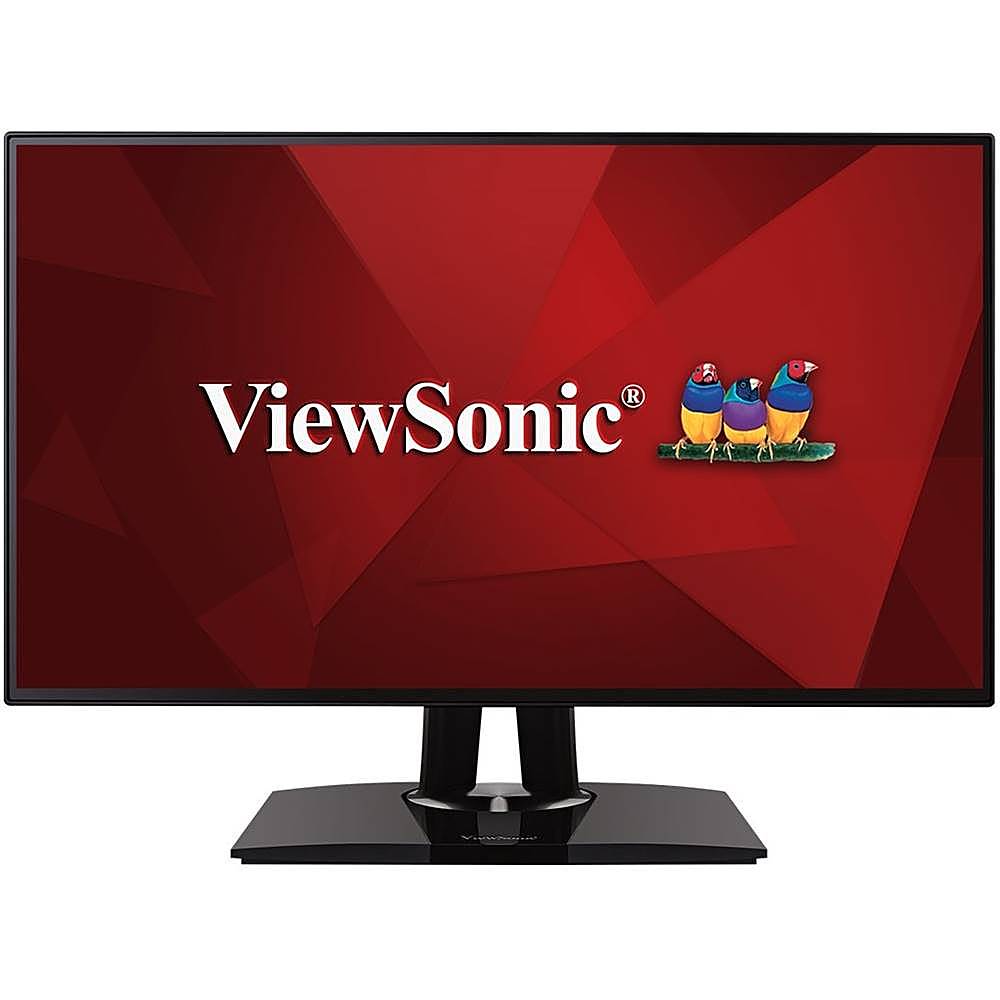

Best Buy: ViewSonic VP2768 27" IPS LED QHD Monitor (DisplayPort, Mini DisplayPort, HDMI, USB) Black VP2768
Shop ViewSonic VP2768 27" IPS LED QHD Monitor (DisplayPort, Mini DisplayPort, HDMI, USB) Black at Best Buy. Find low everyday prices and buy online for delivery or in-store pick-up. Price Match Guarantee.
Got to say I'm kind of gun shy about doing it.
Last edited:
I'd probably try a monitor that also has dual-link DVI, to have another option in case DP fails to work again.
If using that Viewsonic, the only way to hook it up to your Mac Pro and get full resolution is via DP... or this exact adapter that goes from the 5770's DVI to the Viewsonic's DP.

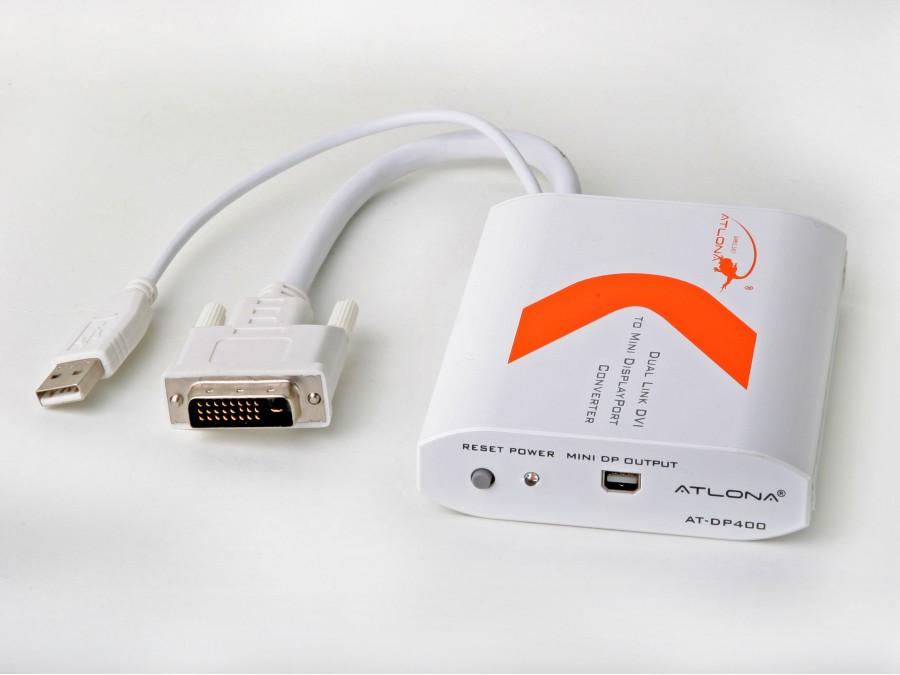

AT-DP400 ***Discontinued*** - Atlona® AV Solutions – Commercial & Education
• • • Discontinued • • • The Atlona AT-DP400 is a DVI to Mini DisplayPort converter designed to convert every Mac or PC computer's with a dual link DVI output to a digital signal over a Mini DisplayPort connector. The AT-DP400 is specifically designed to work with iMac 27" which can support...
atlona.com
Apple's adapter will not work!
I found one of the ASUS ProArt Display PA278QV Professional Monitor - 27-inch. It only comes with an HDMI cable and a USB cable. What cable should I order to best connect it? Do you think a dual-link DVI-to-dual-link DVI? Or would a MiniDP to MiniDP be better?I'd probably try a monitor that also has dual-link DVI, to have another option in case DP fails to work again.
If using that Viewsonic, the only way to hook it up to your Mac Pro and get full resolution is via DP... or this exact adapter that goes from the 5770's DVI to the Viewsonic's DP.
AT-DP400 ***Discontinued*** - Atlona® AV Solutions – Commercial & Education
• • • Discontinued • • • The Atlona AT-DP400 is a DVI to Mini DisplayPort converter designed to convert every Mac or PC computer's with a dual link DVI output to a digital signal over a Mini DisplayPort connector. The AT-DP400 is specifically designed to work with iMac 27" which can support...
Apple's adapter will not work!
Thanks. I'll bear that in mind. This has been a bit of a stretch figuring this out.
Did you have to do that with the monitor hooked up to a different machine, or could you do it while plugged into your MP?
Ok, I've checked one more time monitor menu when there is no signal input and I can't go to the menu.
I have another computer over HDMI plug into monitor and thats the way why I can go to he menu.
You can try start MP with old monitor and plug DP from new monitor when system is loaded.
Last edited:
On my Dell monitor, I can only do it in the menu when something's being displayed. If the monitor fails to display anything because of the DP 1.2 setting, it's "press several keys in a specific order without any visual feedback" time.
Hi,
Thanks so much for your help with the monitor. I found an Asus ProArt 27" with DL-DVI and it's working great.
Can I ask another question about installing A SSD adapter card with a 2.5" drive on it in the PCIe slot that's supposed to have x16 lanes? The bottom two slots have that bandwidth. One houses the GPU, and I installed the adapter card (OWC here: https://eshop.macsales.com/item/OWC/SSDACL6G.S/) with a WD 2TB 2.5" drive on it in the other fast lane, but it's running just barely faster than the old platters.
Am I missing something here? I don't expect it to run as fast as an SSD blade, but the System Profiler is showing it as only running at x2. That doesn't seem right. Any ideas what I'm doing wrong?
Thanks again.
