MBP 1,1-10,2 Permanently Disable 2011 15"/17" MacBook Pro Dedicated GPU - gMux IC Bypass

[Mandated]

Maybe someone should post all alternative spots for all pads....
Just my 2 cents...

Hello, I too had the TCK pad tear on a 15", could you point out where you found the alternate ?

thanks all



[16v]

I dont know...



[Mandated]

it sounded like you found an alternate TCK on a previous post.....sorry if I'm mistaken



[WilYawn]

it sounded like you found an alternate TCK on a previous post.....sorry if I'm mistaken

Right side of R2113 when looking at the logic board from the rear is TCK.

http://v2.pxl.se/i/0DX.jpg



[Mandated]

Thanks WilYawn, I really appreciate it...I'll try to keep you posted on this



[777dudez]

Does anyone here can explain me after the flashing is done do we have to remove the solder wires? Or leave it as it is and if we have to desolder it how to desolder I am new to doing soldering/unsoldering



[dosdude1]

Does anyone here can explain me after the flashing is done do we have to remove the solder wires? Or leave it as it is and if we have to desolder it how to desolder I am new to doing soldering/unsoldering

For flashing DeMux, the wires are only needed to flash the gMux IC. Once flashed, the wires can be desoldered, as they are no longer needed.



[777dudez]

For flashing DeMux, the wires are only needed to flash the gMux IC. Once flashed, the wires can be desoldered, as they are no longer needed.

OK thanks



[Mandated]

Thanks again, I managed to fry U7940 on this board....parts ordered



[777dudez]

After the flashing is done is Bootcamp (Window) possible to be installled? I wanted to do a dual boot on my macbook pro 2011 17" using Mac OS and Bootcamp (Window). Thanks



[Mandated]

After the flashing is done is Bootcamp (Window) possible to be installled? I wanted to do a dual boot on my macbook pro 2011 17" using Mac OS and Bootcamp (Window). Thanks

I don't see any reason why not.....



[lenselijer]

Did you test it?
It won't work because bootcamp will not boot in BIOS mode
I tried UEFI mode, but this causes a bsod all the time.



[777dudez]

Did you test it?
It won't work because bootcamp will not boot in BIOS mode
I tried UEFI mode, but this causes a bsod all the time.

I haven't test it yet. If we use UEFI mode will it work but I know that using UEFI mode will cause something with the audio issue that Audio wont be working right?



[gokukidjr]

Hello everyone!!

I have successfully disable the AMD on macbook pro 2011 17 8,3 but now I have another when I use the macbook the temperature reaches around 80C degree the computer automatically shut itself down does anyone here have faced this issue before?

Thanks



[dosdude1]

Hello everyone!!

I have successfully disable the AMD on macbook pro 2011 17 8,3 but now I have another when I use the macbook the temperature reaches around 80C degree the computer automatically shut itself down does anyone here have faced this issue before?

Thanks

You may want to check your thermal paste/heatsink/fans.



[gokukidjr]

You may want to check your thermal paste/heatsink/fans.

I have checked and reapply the thermal paste and I am not sure is it possible to Disable the SIP? I try to disable SIP but what happen was after the login screen when I typed my password and enter the computer automatically shut itself so is there a way to Disable the SIP? I wanted to connect this device with an external GPU (Akitio Node + AMD RX580 ).

Thanks



[gokukidjr]

You may want to check your thermal paste/heatsink/fans.

So I was able to successfully run the EGPU into this macbook pro 2011 and disable the SIP I dont really understand what was the real issue but if my macbook did something that need to restart after the restart while logging in it will always shut down itself but this was solved by waiting around 30minutes later for it to cool down or whatever and it works. But currently EGPU works on the Macos.



[J2G]

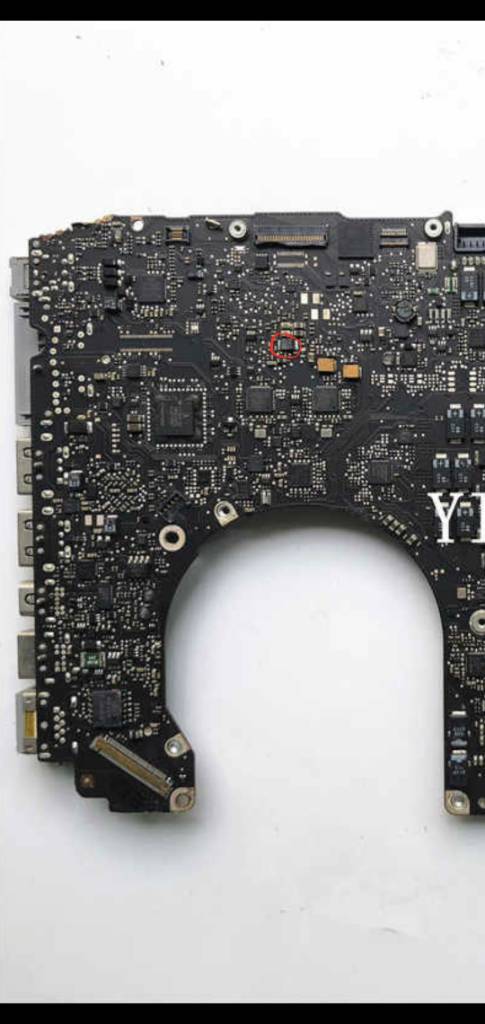

Hi can someone point me to where the L2406 is on a 820-2915B board or have a picture would be even better, The flash keeps failing even tho soldering is good I'm using windows 10 pro latest update would that be the issue or is it ok to flash with Win 10 ?



[Analias]

Here ya go.



[J2G]

Here ya go. View attachment 889949

Cheers..



[J2G]

Hi I'm looking for a alternate TCK point on a 820-2915B board if anyone has a pic please I hit off the TCK wire with all the messing about trying to flash it and pulled the pad off gurrr



[Analias]

I can get it for you later today when I get home from work, if somebody doesn't get in first that is. Or you can just google for the board view file.



[J2G]

Its ok Analias I found the board view file for my board and located the JTAG_ISP_TCK on it I also located on my board under the scope so ill give it a go I have attached two pics with the location marked on both for anyone else that might need it.



[Analias]

Cheers..

So did you get a successful flash?



[J2G]

So did you get a successful flash?

I soldered to that point all good there but still wouldn't flash tried everything just one of those stubborn boards, I ended up banging it on the ACHI IR and brought it back to life temp fix I know but it will pull the guy out of a hole for a bit.
I was talking to dosdude an he was kind enough to refund nice guy 👍 if I get another for repairs I'll try again I'd like to see this up and running.
