interesting how you can barely see any of the dots in your hair.

i wonder what it would look like on a person with very dark skin.

  • Like
Reactions: ardo111

Diorama

macrumors 6502a
Oct 6, 2017
925
1,738
Outdoor infrared light distribution is even and uniform, not intensely focused. The output of the dot projector's infrared may be very low, but chronic exposure to precisely focused infrared "dots" over extended period of time (assuming a few years) x ~80 times a day, added to that the flood illuminator's IR light flashes (in low light), no body knows the cascading effects it may cause.

Yeah my cousin had a Kinect and he died of face cancer from gaming too much.

  • Like
Reactions: ardo111

SBruv

macrumors 6502a
Sep 25, 2008
647
321
Yeah my cousin had a Kinect and he died of face cancer from gaming too much.

Y’all can joke about it all you like, but the fact remains, this is a focused laser hitting your eyes multiple times a day - it’s absolutely not the same thing as ambient IR. There are several studies into this kind of thing that are worth looking at before presenting off-the-top-of-your-head opinion as ‘fact’.


alFR

macrumors 68030
Aug 10, 2006
2,834
1,070
Y’all can joke about it all you like, but the fact remains, this is a focused laser hitting your eyes multiple times a day - it’s absolutely not the same thing as ambient IR. There are several studies into this kind of thing that are worth looking at before presenting off-the-top-of-your-head opinion as ‘fact’.
Got a link to any peer-reviewed scientific study saying that IR lasers of the intensity used in Face ID cause retinal damage?


BarracksSi

Suspended
Jul 14, 2015
3,902
2,664
interesting how you can barely see any of the dots in your hair.
Scattering, non-reflective hair, just like real hair.

i wonder what it would look like on a person with very dark skin.
Probably pretty similar. Hoping for another sample (now that the OP knows how to make it happen).


SBruv

macrumors 6502a
Sep 25, 2008
647
321
Got a link to any peer-reviewed scientific study saying that IR lasers of the intensity used in Face ID cause retinal damage?

I can’t. There isn’t one. Get me a link to the study that says they don’t.

Why so close-minded about it?

  • Like
Reactions: AintDutchNotMuch

serialiphoneuser

macrumors regular
Sep 21, 2016
215
397
I wonder if the Dot-Projector jacks up IR output in bright outdoor conditions to differentiate from outdoor IR from sun? It must be doing something to tell those dots apart.

  • Like
Reactions: hank moody

danilko1

macrumors 65816
Jun 21, 2010
1,087
366
Since this is the dot IR projection available via API to 3rd party apps, I think FACE ID would be a lot more detailed with finer dots. The quality of the image would be higher.

Unlike Touch ID, Face ID can be monitored closely and reverse engineered. A little worried about it's long term security.

  • Like
Reactions: hank moody

Daranx

macrumors regular
Sep 16, 2016
218
72
London
I was a bit surprised to see that there isn’t actually a pattern to the dots, it seems more randomly scattered than how it appeared in the promo shots/videos where it looked like a diagonal matrix.

I wonder if that “randomness” varies from device to device and affects how accurate it is

  • Like
Reactions: hank moody

Jmoc916

macrumors member
Oct 20, 2016
36
14
CA*
Hi! First post on the forum.

I'm a photographer by trade and got my iPhone X today.

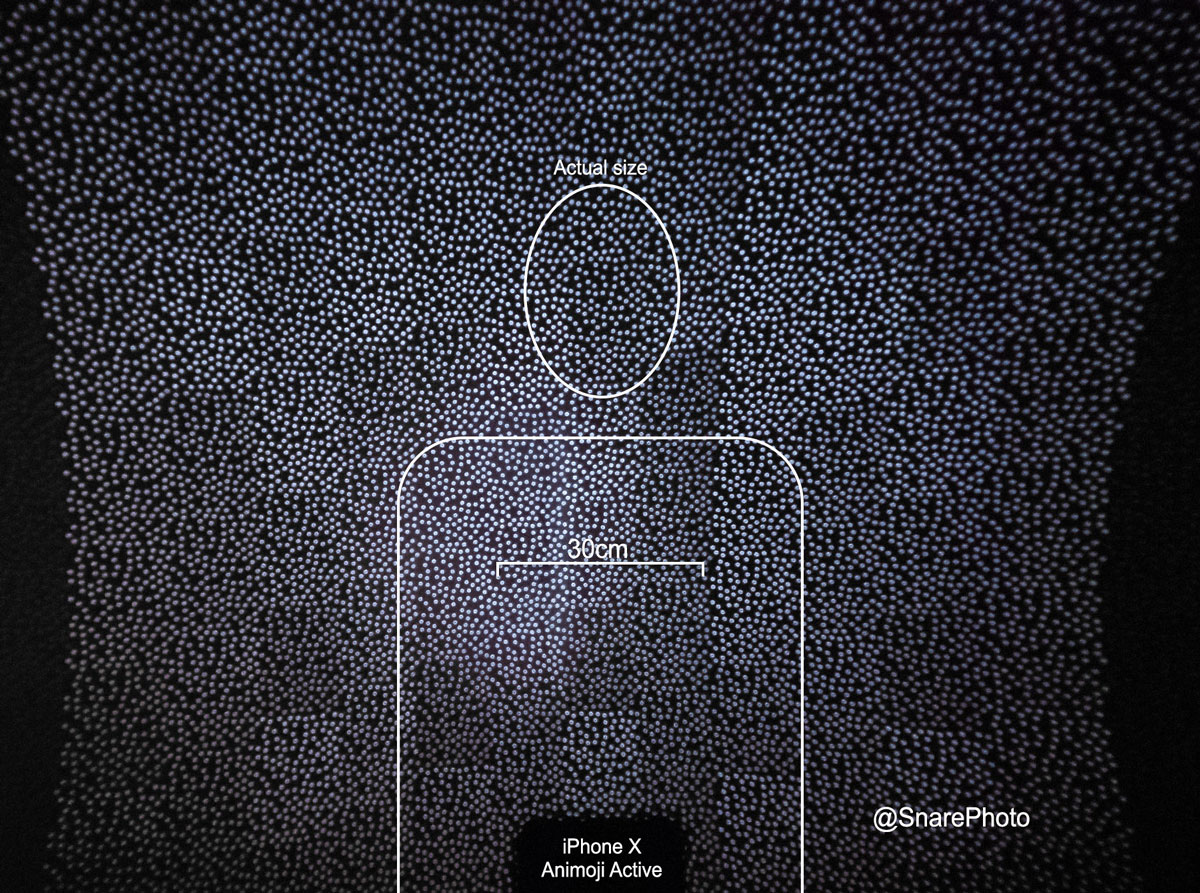

I used a 720nm infrared camera and my iPhone X 256GB (using Animoji to ensure continuous read of Face ID dot matrix projection) to capture the image on the right. The image on the left is just an iPhone X selfie for reference. :)

It really shows the layout, size and accuracy of the dots... I thought it was impressive!

Hope you enjoy!

View attachment 731829


This is awesome. Thanks for sharing

  • Like
Reactions: ardo111

rawlus

macrumors 6502
Mar 3, 2009
308
159
Boston
great and interesting post.

maybe those who want to discuss risks of IR dots can open a different thread on that topic and not muck up this fascinating thread.


virginblue4

macrumors 68020
Apr 15, 2012
2,027
700
United Kingdom
Very interesting thread, thank you.

Although I have to wonder, in all of Apples marketing, they consistently say ‘30,000 dots are projected’. This looks nowhere close to that number!


rawlus

macrumors 6502
Mar 3, 2009
308
159
Boston
unless there are quite a bit more dots outside the close cropping of the frame in the photo provided. or there are dots not picked up during the shutter open/close.

  • Like
Reactions: BarracksSi

AbSoluTc

macrumors 603
Sep 21, 2008
5,279
4,213
Question is does this really effect long term health as some he pointed out?

I’d be more concerned with inhaling car fumes on your commute to work or the gas fumes as you refill the car. Don’t have a car and live in a city? Even more concerning.


ardo111

macrumors member
Original poster
Apr 21, 2008
31
123
Calgary, AB
Guess who's back!

Okay. To address a bunch of comments:
  1. I'm stoked you guys like it! Glad to share!
  2. Health.. eyes.. who knows. We aren't gonna find a definitive answer in this thread.
  3. I don't know any black people that live nearby, but I do know that IR light reflects the same off skin, walls, clothing.... what we know as "colour" doesn't actually matter for IR light. Red, green, blue.. it doesn't matter. This is a different wavelength and behaves differently as a result. My guess is that dark-skinned individuals would appear the same.
  4. I calculated the width of the field of projection at about 1.5m at roughly 1m distance. This makes the Field of View (FOV) of the dot matrix projector 73.74º.
  5. This means at regular Face ID distance (50cm we'll say? that's probably high) the projected width of the Dot Matrix is about 75cm. Expect less the closer you move to the sensors.
  6. Random? Who said random? These are (now very clearly) patterned squares! Each with a differing intensity apparently. I would field that it's one patterned substrate duplicated through some sort of rectilinear (straight and gridded, rather than spherical) bug's-eye sort of lens.
Lastly, a little about this photo:
  • Camera on tripod, I used a known object to measure width on the wall.
  • I stood in the photo and traced my body and face size.
  • I then held the phone approx. 1m from the wall, roughly where it would be were I standing in front of the wall and holding my phone in front of my face.
  • The projection seen here is the width on the wall (roughly 20cm further from the phone than your face is during use) so the projected size on your body is not *quite* this big. That said, this is pretty big. And explains why you can be somewhat beside your phone when it's laying on a table and it will still unlock. :)


boltjames

macrumors 601
May 2, 2010
4,876
2,852
The projection seen here is the width on the wall (roughly 20cm further from the phone than your face is during use) so the projected size on your body is not *quite* this big. That said, this is pretty big. And explains why you can be somewhat beside your phone when it's laying on a table and it will still unlock.

How did you get this out of the Secure Enclave? I'm telling Apple.


ardo111

macrumors member
Original poster
Apr 21, 2008
31
123
Calgary, AB
How did you get this out of the Secure Enclave? I'm telling Apple.

The Secure Enclave? Oh that's where I live.

I wonder what the significance of the asymmetrical alignment of the dots is, if significant at all for Face ID.
Their precise location has to be known in order to calculate their relative distance to the camera. If you don't know where something is supposed to be, you can't tell if it's moved. Same concept.

Additionally I presume the camera is trained to detect big shadow spots that would arise from large 3D objects (like my head and hair) and record them as a large change in depth. Right? The camera won't always be able to see all of the dots, and if it doesn't, it needs to extrapolate why and include that in its depth map.
