Post your network diagrams and pics!

[DoFoT9]

oh god thats sad lol!!!

once i wire up my house i shall post a piccy or 2

well.. i guess i should keep my word!

Hardware
Internet: 20mbps download/1mbps upload

Router: Time Capsule 1TB. this machine is currently broken (dont get me started), we are running off the old dome Airport 802.11g - luckily there are enough ports for the gigabit switch!

Switch: a linksys business SLM2008 8 port router.

Printers: a HP Photosmart (via ethernet) and a Brother laser printer (via USB when the TC is working).

Computers
iBook G4: dad's 1.25GHz iBook G4. 1.5GB RAM, 160GB HDD.

iMac G3: original iMac G3 233MHz, 128MB RAM, 80GB HDD.

MBP CD 2.16GHz: my original CD MBP, 2GB RAM, 500GB HDD. also has a 500GB HDD->LaCie DVD burner->500GB+1TB drive connected via FW400 + 1TB USB HDD + 250GB LaCie USB HDD for myself storage

iMac 2.8GHz: late 2007 model 4GB RAM, 750GB HDD

Hackintosh/PC E4500 & 3GHz: 2GB, 8500GT hackintosh running 10.5.3 (too lazy). 500GB HDD + 40GB HDD for OSX.

and thats it

my GF often brings her penryn 2.4GHz MBP, and i am waiting for the quad core iMacs to become available. that will be a nice addition



[SanderH]

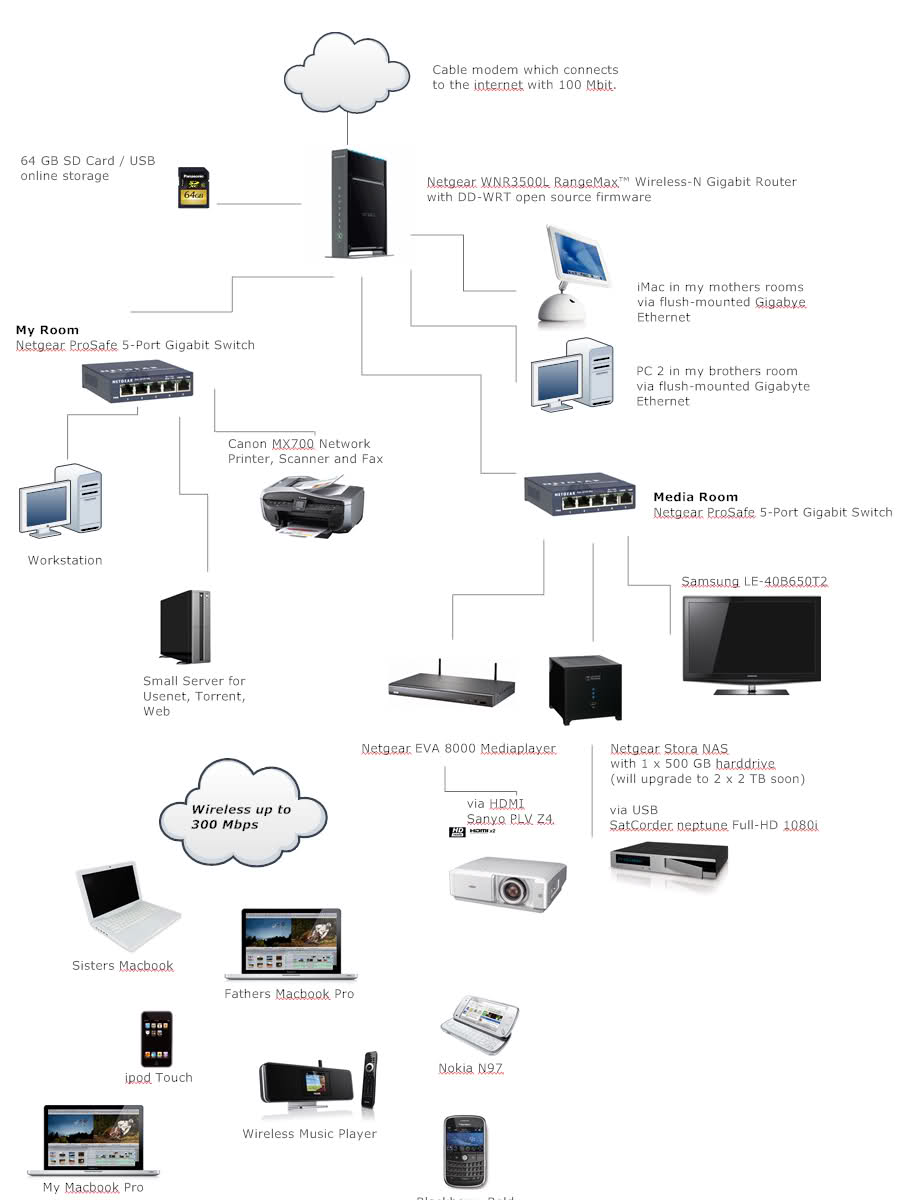

Quickly made mine this morning.

And yes, I might have been inspired by someone else's diagram ^^.



[arthursiew]

At home



[rgarjr]

some nice LAN diagrams there guys, keep 'em coming.



[Zaap]

Wasn't there another newer thread of this? Anyway, once again:



[DoFoT9]

Wasn't there another newer thread of this? Anyway, once again:

loving it! wish i had all my storage localised and had my TVs connected to hackintoshes



[dmmcintyre3]

No black lines mean mostly wifi is used. PB gets connected to some of those "cable to desk" or "cable to bed"
Here is mine:



[macabyte]

Home Networking

This is how i've setup our home network and it works well for me.



[partyBoy]

wasnt there another thread like this oooh well....heres mine..i made this with text edit



[KatmanDu]

Thread necro!

Home setup:

Work setup:



[phishindsn]

OK I thought I would join. Didn't really write the speeds down. Sorry can't post my work diagrams here...they are way better looking then this attempt.



[giltnerj0]

Home network diagram

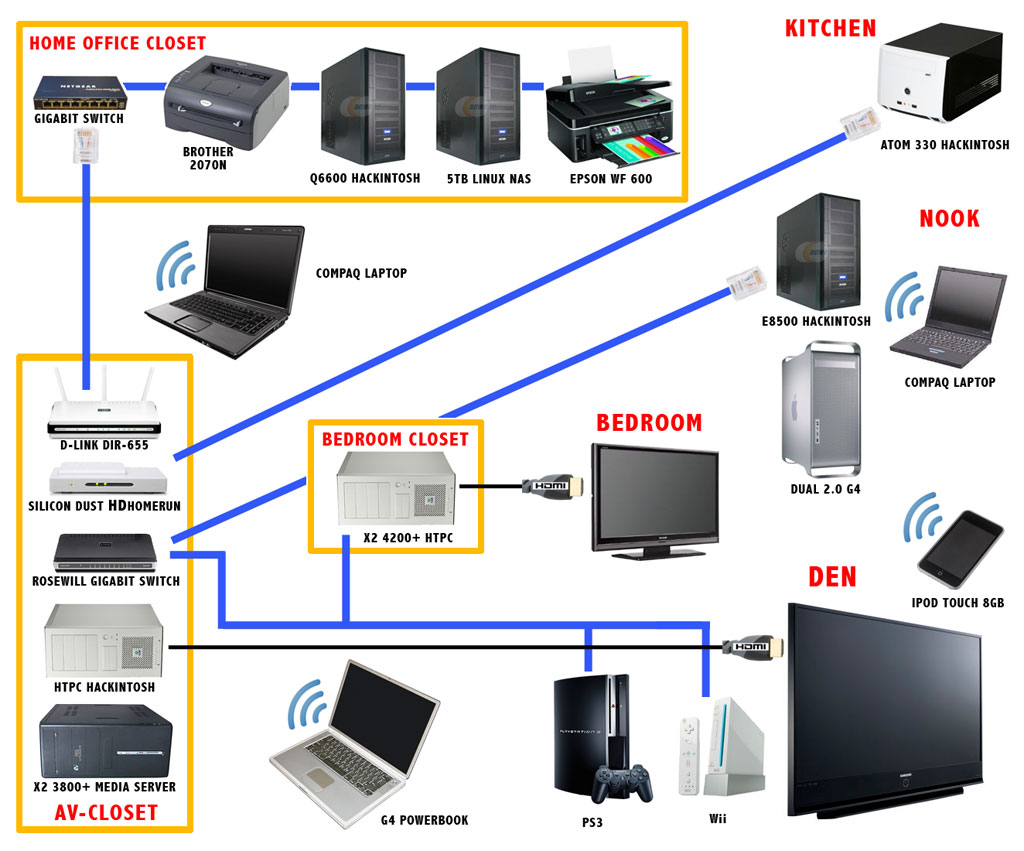

Brushed up the home network diagram the other day...



[Nuttydev]

Got bored so decided to do mine, everything in my house is wireless.

The Macbook Pro, iPhone, Xbox, PS3 and TV are mine and the rest are my families. And yes, my TV has wireless for some reason



[trekkie604]

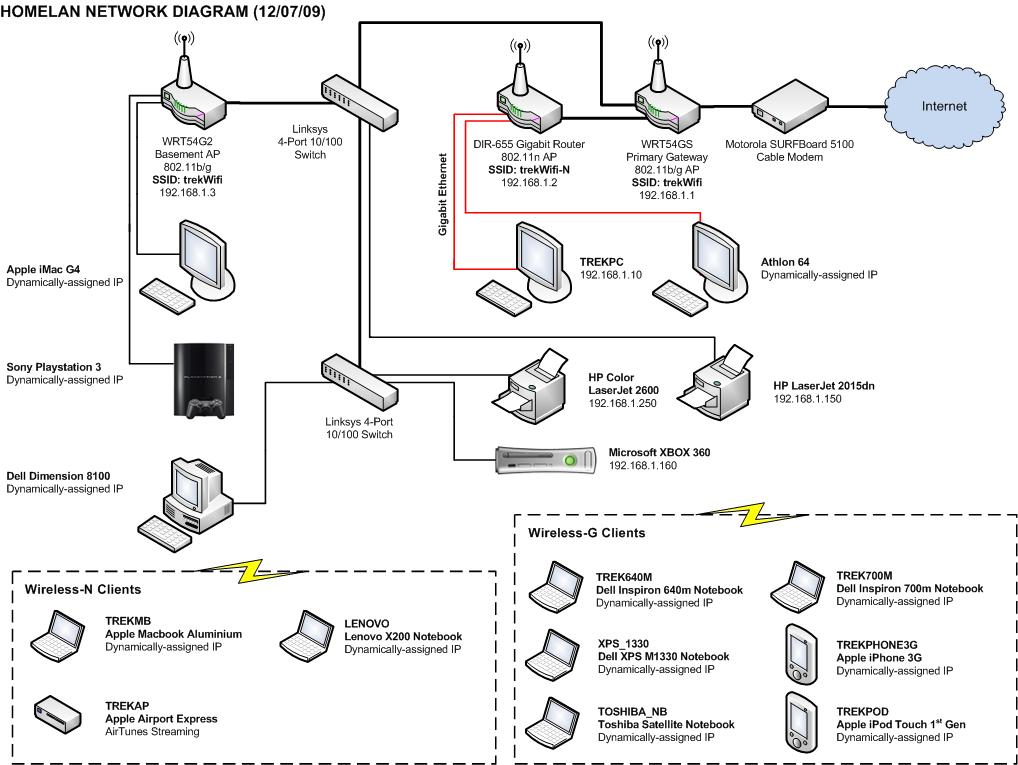

Current...



[DoFoT9]

Brushed up the home network diagram the other day...

obsession with the letter "x" much?

nice setups everybody!!



[noton]

My network at home:



[GroundLoop]

Mine's pretty simple actually...



[Sethable]

this thread not good enough ?
Show us your network



[GroundLoop]

this thread not good enough ?
Show us your network

If you think about it though....this thread was started first. So, shouldn't you have posted to this thread instead of starting a new one of your own?



[Sethable]

smart ass

Mine was more popular though..



[S.B.G]

Wow, I'm surprised no one has posted anything here in four years.

Here is my network setup, drawn up in Visio 2013 Professional.
(Click for larger view and zooming)



[fhall1]

Newer stuff started getting posted here for some reason:
https://forums.macrumors.com/threads/533758/
