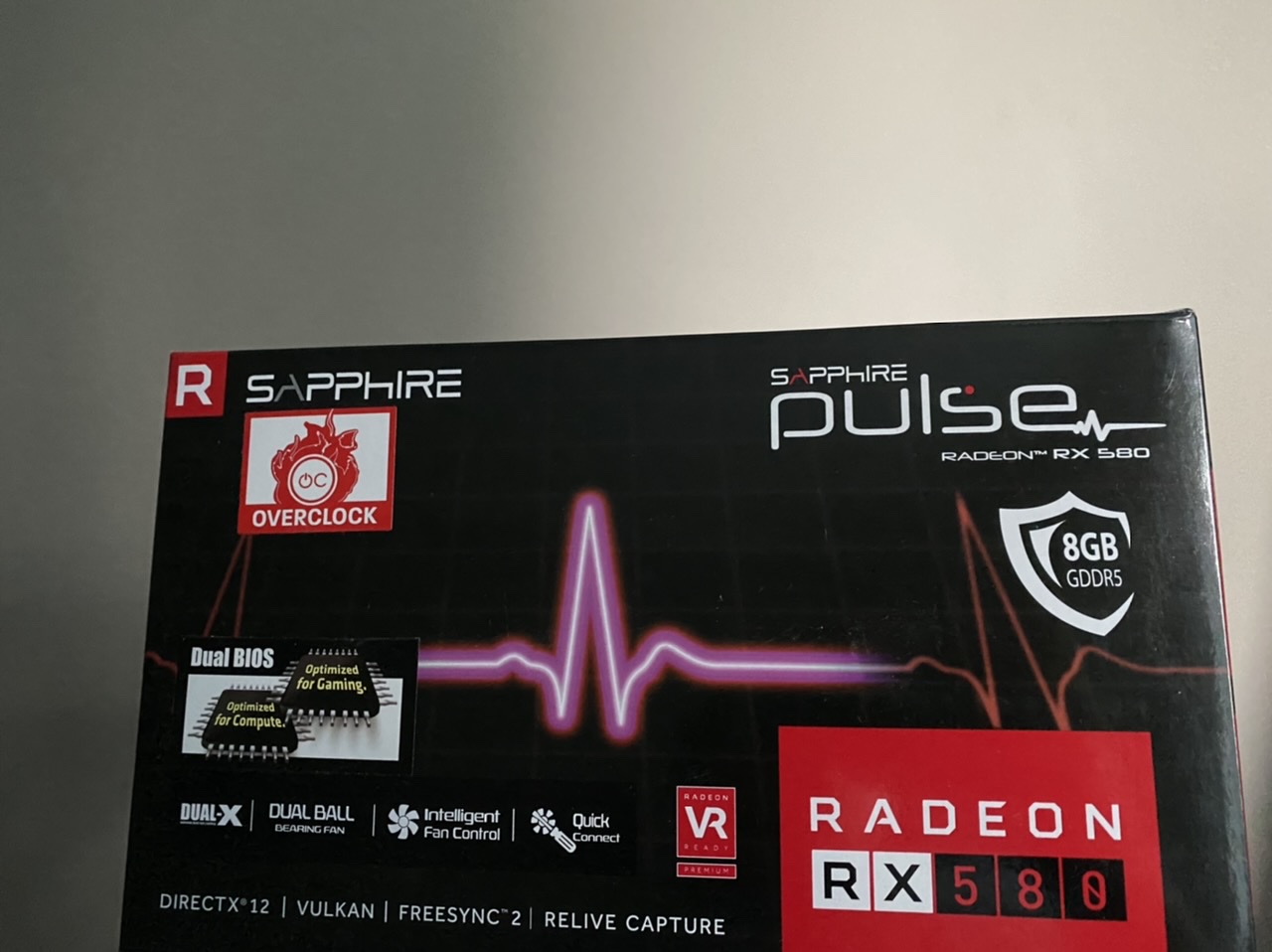

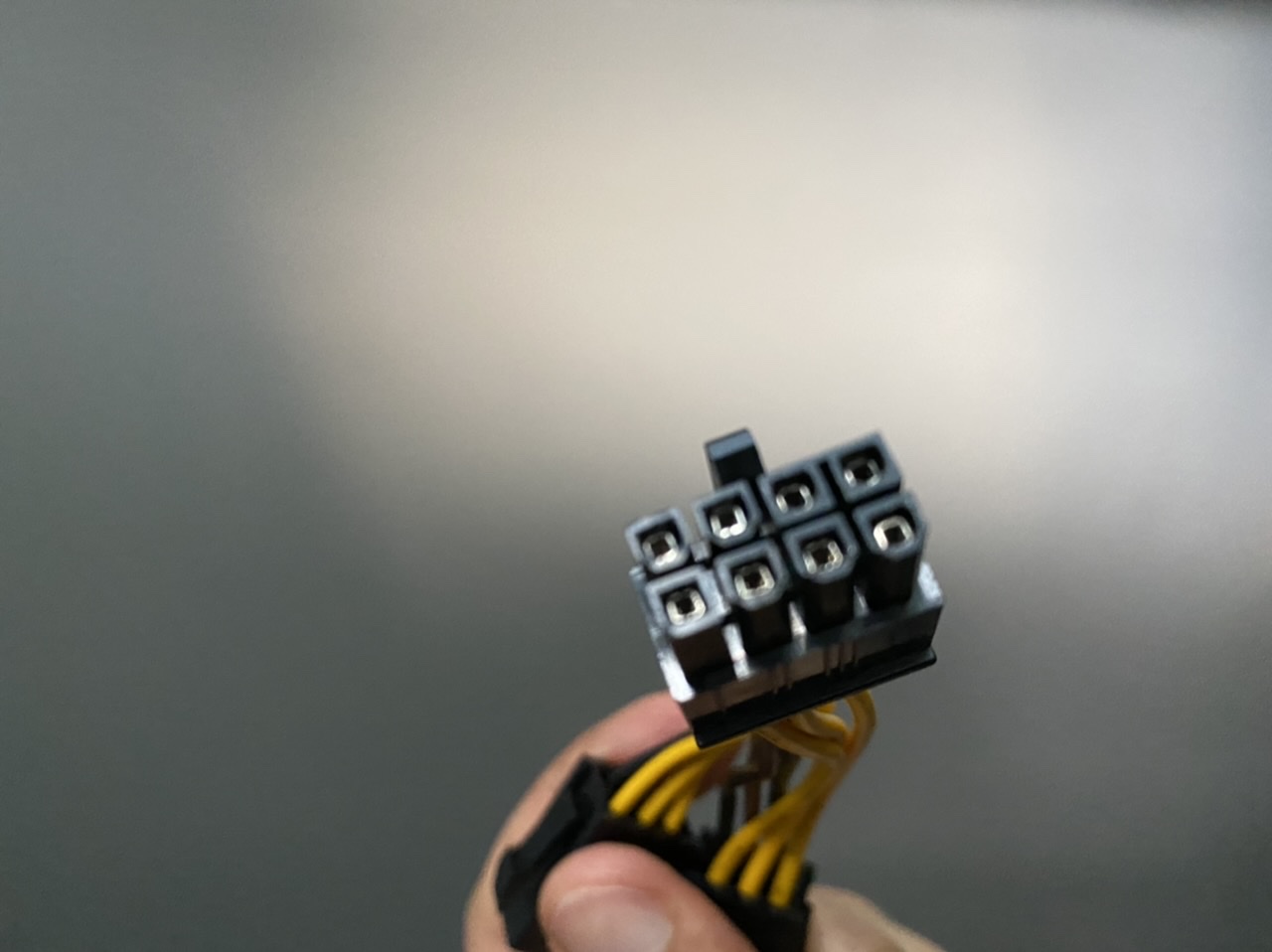

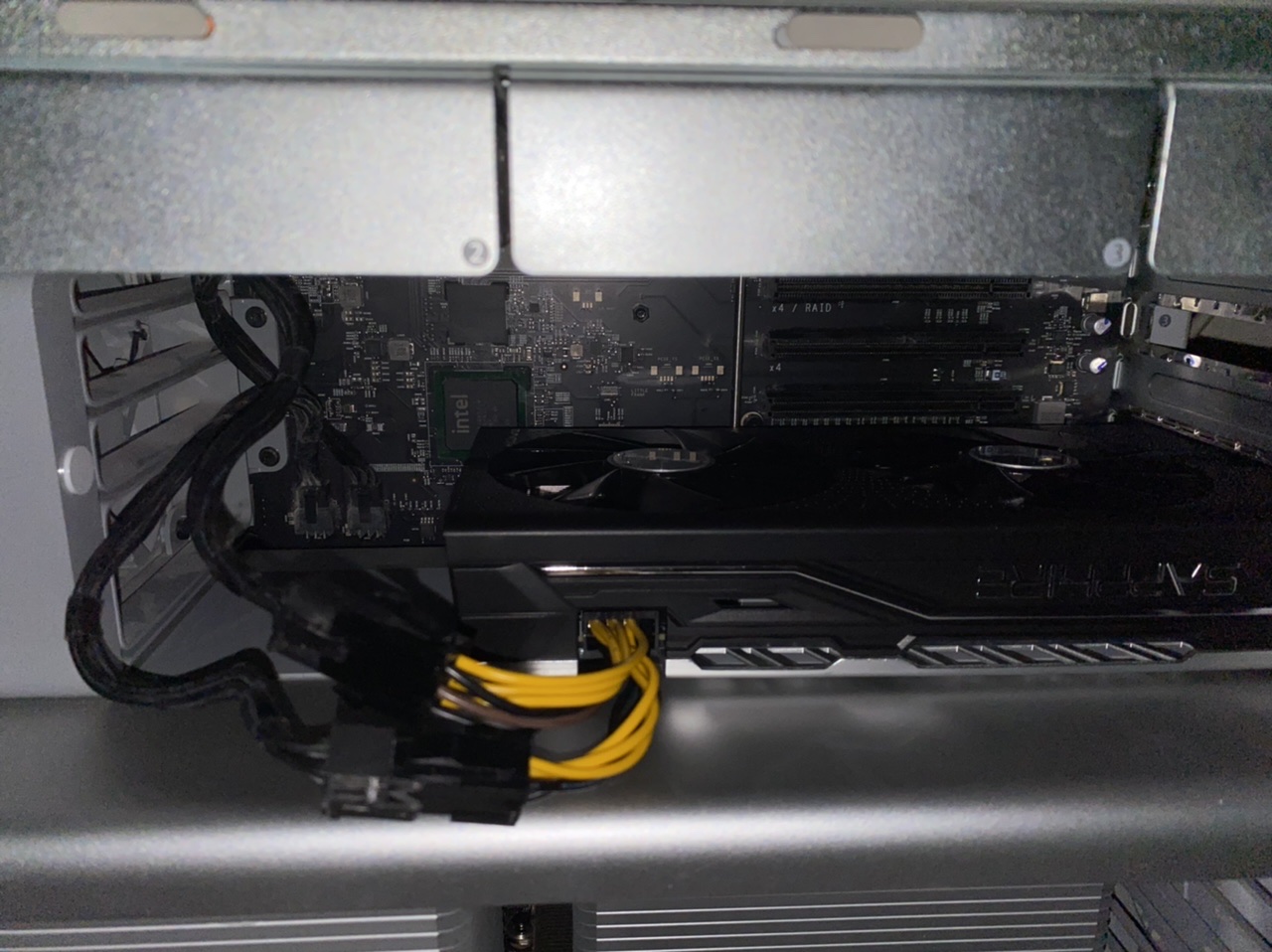

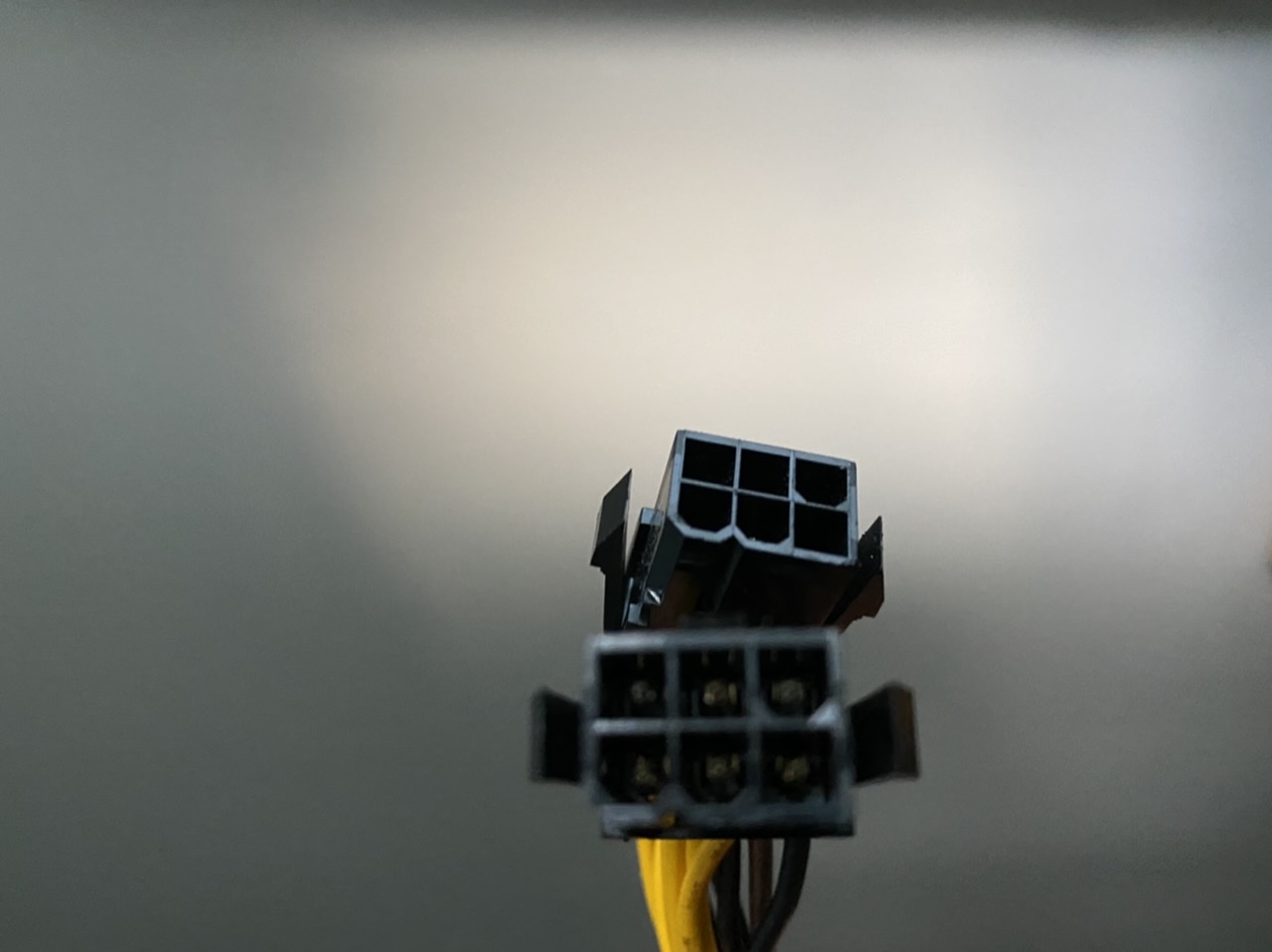

I have a Mac Pro 5.1 2010 currently running macOS El Capitan 10.11.6 and I wanted to update the GPU and after I checked Apple’s recommendations for GPU upgrades I just bought a Sapphire Radeon RX 580. So I removed the two old GPUs (ATI and Nvidia) and plugged in the two 6pin into an 8pin adaptor as shown below and put the new Sapphire as shown in the below photos. But seems that it’s not working as I tried multiple screens but they are not detecting any signal. Is it a macOS EL Capitan problem and do I need to update to Sierra or High Sierra first Before being able to use it?
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
MP 1,1-5,1 Sapphire Radeon RX 580 on Mac Pro 5.1
- Thread starter Fcis
- Start date
-
- Tags
- gpu graphics card radeon
- Sort by reaction score
RX580 requires 10.13.6 minimum. But I had the best experience with 10.14 Mojave. You will not have a boot screen. The screen will come alive at the login screen or desktop if you have disabled login.
A standard 2x 6mini to 8pin cable worked for me to power it.
** MAC OSX 10.12.6 is the minimum - thanks IndioX
A standard 2x 6mini to 8pin cable worked for me to power it.
** MAC OSX 10.12.6 is the minimum - thanks IndioX
Last edited:
you are wrong - support for polaris cards starts with 10.12.6
but you are right with mojave
bootscreen (or bootpicker) comes with opencore ; -)
If after installing Sierra or HS, I still doesn't work , I guess its the wrong adapter cable.
Last edited:
fcis
You definitely DON'T need the Pixlas mod to power the Sapphire RX 580.

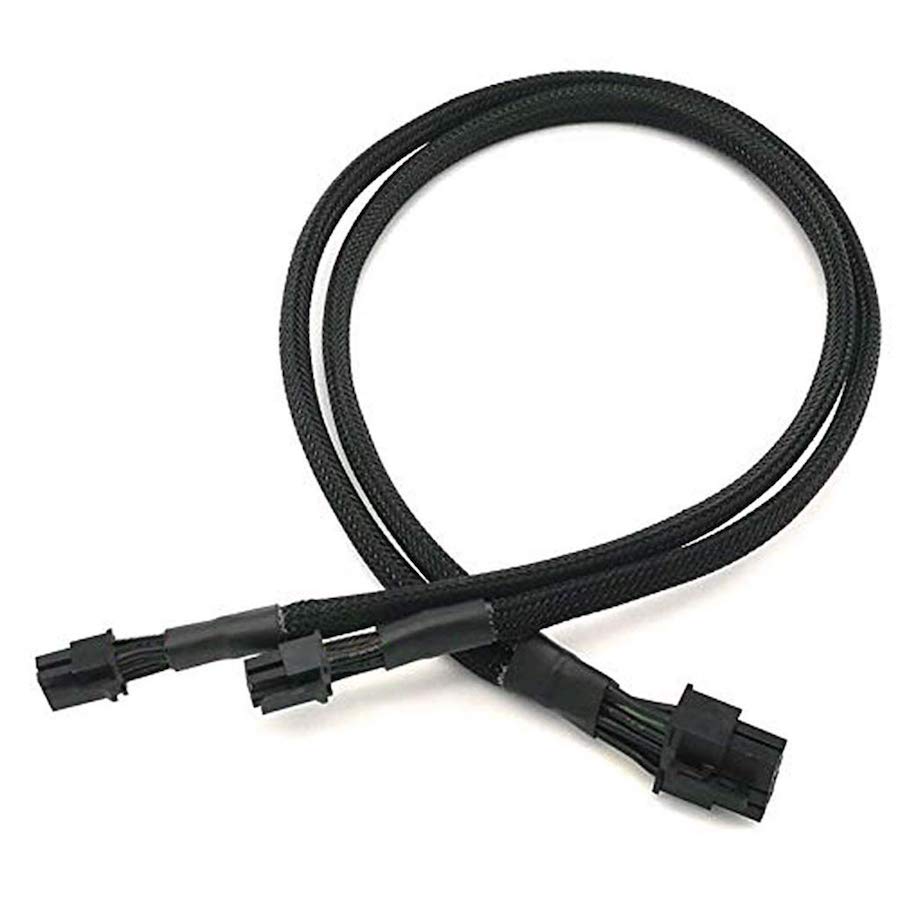

You could try just powering it with the TWO x Mini 6pin to ONE by 8 pin.
My MSI Armor RX 580 8gb works fine with this cable.
Amazon https://www.amazon.com/Express-Video-Power-Adapter-Compatible/dp/B082ZD28VR
You definitely DON'T need the Pixlas mod to power the Sapphire RX 580.

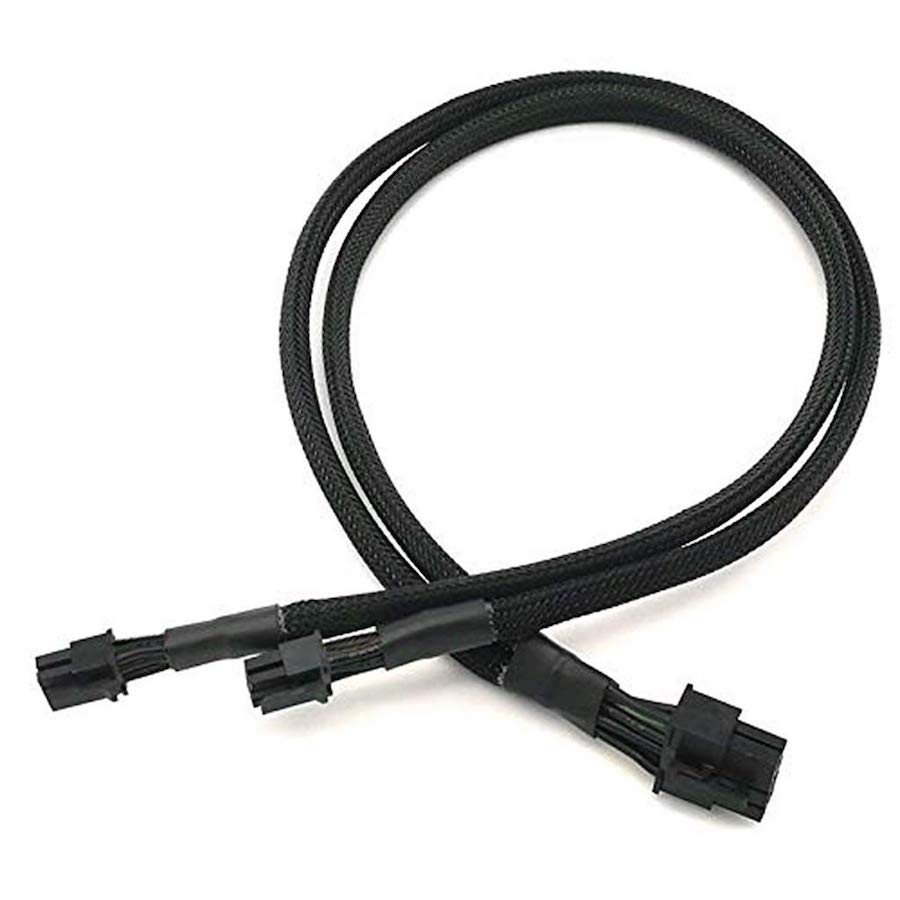

You could try just powering it with the TWO x Mini 6pin to ONE by 8 pin.
My MSI Armor RX 580 8gb works fine with this cable.
Amazon https://www.amazon.com/Express-Video-Power-Adapter-Compatible/dp/B082ZD28VR
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
It looks like 2x Pixlas in the picture, I thought that too.
But I think the cables are connected to the mini 6pin.
Okay, just to understand:

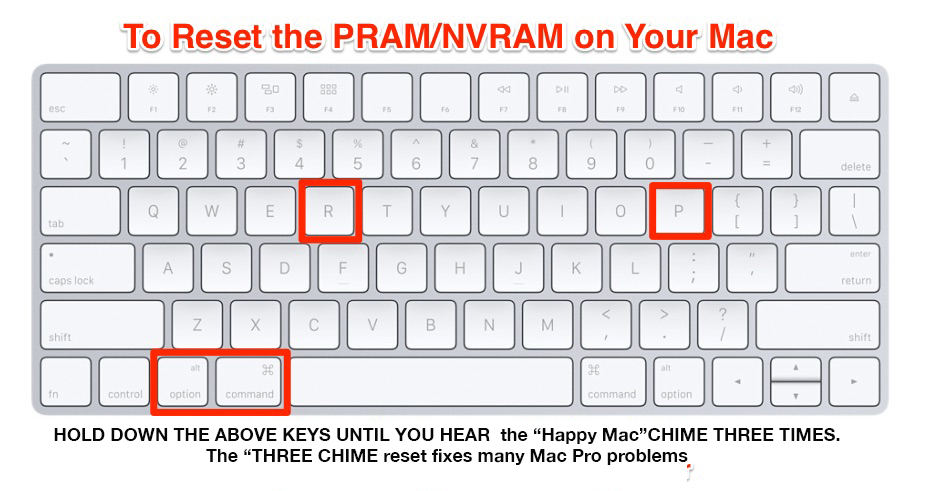

1- If all cables are correct, and if I do the NVRAM reset, should this GPU work normal on my current macOS El Capitan?
2- You mean that I am using the wrong cable? If so, I have searched from where here in Sweden I can get two mini-6pin to 1 8pin but I cannot find it, could you advise me if it has another name I can look for or search with it? Thank you
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
1-as has been said: you need to install Sierra or High Sierra first ( with one "old" GPU installed). This card will not work in El Capitan.
2-the link @MIKX sent doesn't work (here), but it's the correct cable .
For Europe look here:
2-the link @MIKX sent doesn't work (here), but it's the correct cable .
For Europe look here:
COMeap Dual Mini 6 Pin to 8 Pin PCI Express Video Card Power Adapter Cable for Mac Pro Tower/Power Mac G5 15-inch(38cm)
COMeap Dual Mini 6 Pin to 8 Pin PCI Express Video Card Power Adapter Cable for Mac Pro Tower/Power Mac G5 15-inch(38cm)
www.amazon.com
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
Amazon
[automerge]1592985602[/automerge]
Also, I " think " that the RX 580 8gb drivers did not appear until Mojave - I have never checked this. You should check it.
So . . .you might need Mojave 10.14.6 ( full 6.05gb installer ) AND the Dual Mini 6 pin to ONE 8 pin cable to get your RX 580 8gb up and running.
[automerge]1592985846[/automerge]
fcis
Just Google this ..
" amazon.com Dual Mini 6 pin to 8 pin Mac Pro "
Dual Mini 6 Pin to 8 Pin PCI Express Video Card Power Adapter Cable
Features: Dual Mini 6 Pin to 8 Pin PCI-e cable is to connect a PCIe video graphics card with 8 pin port to Mac motherboard with mini 6 pin port; Specification: Cable Length: 15-inches/(38cm) ; Connector 1: standard GPU 8 Pin male ; Connector 2 : 2x mini 6 pin male ( not standard 6 pin male); Gaug...
www.amazon.com
Also, I " think " that the RX 580 8gb drivers did not appear until Mojave - I have never checked this. You should check it.
So . . .you might need Mojave 10.14.6 ( full 6.05gb installer ) AND the Dual Mini 6 pin to ONE 8 pin cable to get your RX 580 8gb up and running.
[automerge]1592985846[/automerge]
fcis
I live in Japan so Firefox . . or. . Amazon often changes my search results to a Japanese site or some other.1-as has been said: you need to install Sierra or High Sierra first ( with one "old" GPU installed). This card will not work in El Capitan.
2-the link @MIKX sent doesn't work (here), but it's the correct cable .
For Europe look here:
COMeap Dual Mini 6 Pin to 8 Pin PCI Express Video Card Power Adapter Cable for Mac Pro Tower/Power Mac G5 15-inch(38cm)
COMeap Dual Mini 6 Pin to 8 Pin PCI Express Video Card Power Adapter Cable for Mac Pro Tower/Power Mac G5 15-inch(38cm)www.amazon.com
Just Google this ..
" amazon.com Dual Mini 6 pin to 8 pin Mac Pro "
Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
[automerge]1592986171[/automerge]
Here it shows some nicely colored bed sheets
I sleep on a Futon here . . . . . 😇 . . . . no bed sheets . . .
ILS - Cable Splitter 18AWG Dual Mini 6 Pin PCI-e Stecker auf 8 Pin Stecker Y PCI E Stromkabel für Mac Pro
1. Farbe: Schwarz + Blau 2. Kabel: 18AWG 3 Anschluss A: Dual Mini 6 Pin männlich 4 Anschluss B: 8 Pin männlich 5 Geeignet für: Stromkabel für Mac Pro 6 Grafikkarte Länge: 30 cm. Eigenschaften: 1. ...
www.amazon.de
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
ILS - Cable Splitter 18AWG Dual Mini 6 Pin PCI-e Stecker auf 8 Pin Stecker Y PCI E Stromkabel für Mac Pro
1. Farbe: Schwarz + Blau 2. Kabel: 18AWG 3 Anschluss A: Dual Mini 6 Pin männlich 4 Anschluss B: 8 Pin männlich 5 Geeignet für: Stromkabel für Mac Pro 6 Grafikkarte Länge: 30 cm. Eigenschaften: 1. ...www.amazon.de
Will those work also?
iHaospace Dual Mini 6 Pin to 8 Pin PCI-e Y Splitter Power Adapter Cable for Mac Pro Video Card Power Cable 30 cm
Ils 16AWG Dual Mini 6 Pin to 8 Pin PCI-e FOR MAC PRO GTX1080 Video Card Power Cable
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
How hard is it to start Google and search for the following .. .?
"Dual mini 6pin to single 8 pin PCIe Mac Pro" ?

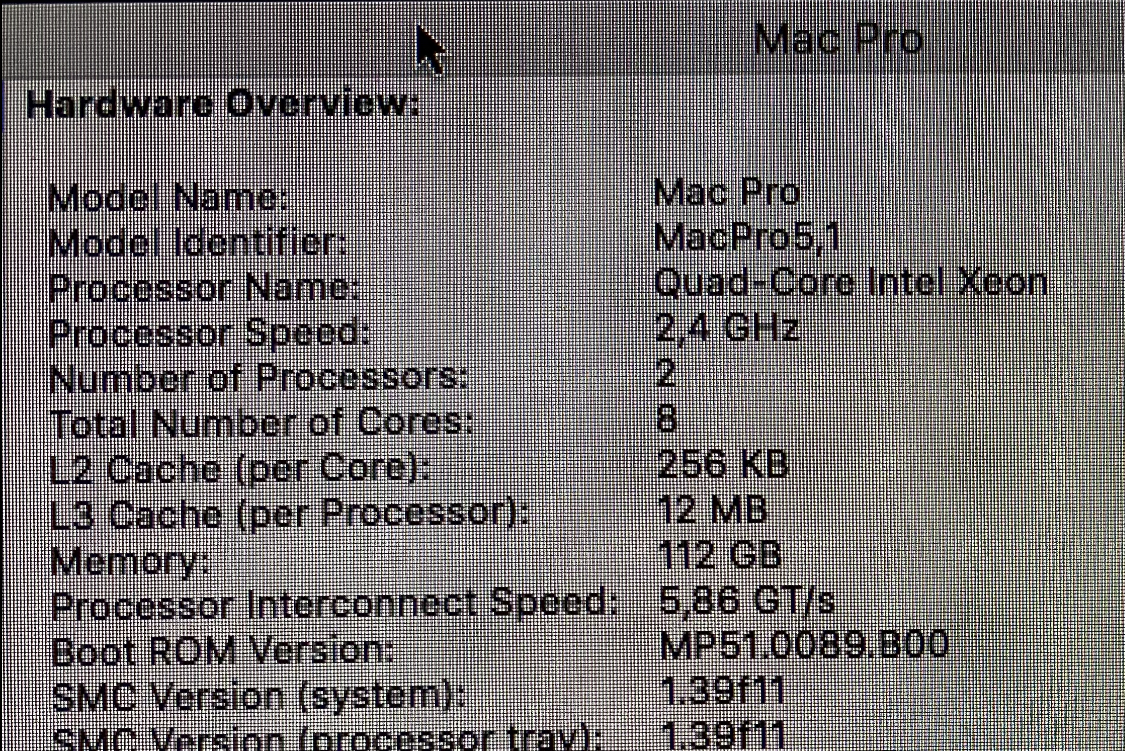

To the OP - If all connections with your cables are good, your cabling looks OK. But, as others have said, you need to run a later OS to get the drivers for the card. It also would be a good idea to update your boot ROM to 140.0.0.0.0. there are instructions on this site for the install.
Lou
Lou
On a 5,1, OS 10.12.6 is the minimum OS for RX580 support. It will show in About this Mac as a more generic GPU, but it works. I've done this very install on a friends cMP. He wants to stay on 10.12 for FCP7 support.
RX580 support gets better through 10.14.6. That's what I run on my cMP with RX580.
Updating to 10.14 is recommended, though you may have your reasons for not doing so. In any event, upgrading to 10.14.6 will also update your BootROM to 144. There are several benefits to this, including enabling full speed on slot 1, which presumably is where your GPU will live. You can update the BootRom without updating the OS.
For a great majority of people, updating is straightforward especially if they read through the sticky at the top of the forum.
RX580 support gets better through 10.14.6. That's what I run on my cMP with RX580.
Updating to 10.14 is recommended, though you may have your reasons for not doing so. In any event, upgrading to 10.14.6 will also update your BootROM to 144. There are several benefits to this, including enabling full speed on slot 1, which presumably is where your GPU will live. You can update the BootRom without updating the OS.
For a great majority of people, updating is straightforward especially if they read through the sticky at the top of the forum.
Hello all, I have a mid 2012 5,1 running Mojave OS 10.14.6 and Sapphire Radeon RX 580 for 26 months. Installation of everything was easy and relatively automatic. No drivers to install and Apple Support made all the installs to OS 10.14. One month out of 2yr warranty my mac started powering of without any warning. Just "click" and dead like I pulled the power cord out. Allowing it to "rest" for a few hours with the power cord actually unplugged would return it to normal service for 5min to 5 hours, unpredictable. No gaming or video editing...heaviest work GPU gets is youtube "how to" videos which have not been interrupted or reduced the fps at all. A fan speed app to increase cooling made no difference. It's bee this way since Aug/2021. No better no worse. When it clicks of, I move all the cable to the rear of the Backup mac, a 2006 5,i. I backup my work on a thumb drive and install on the 2006 mac and go on. Problem acts like a loose part moving with temperature but I'd like to hear some other thoughts on it...like mabe the GPU is overclocked or something less than a new card. Thanks for reading all this.
