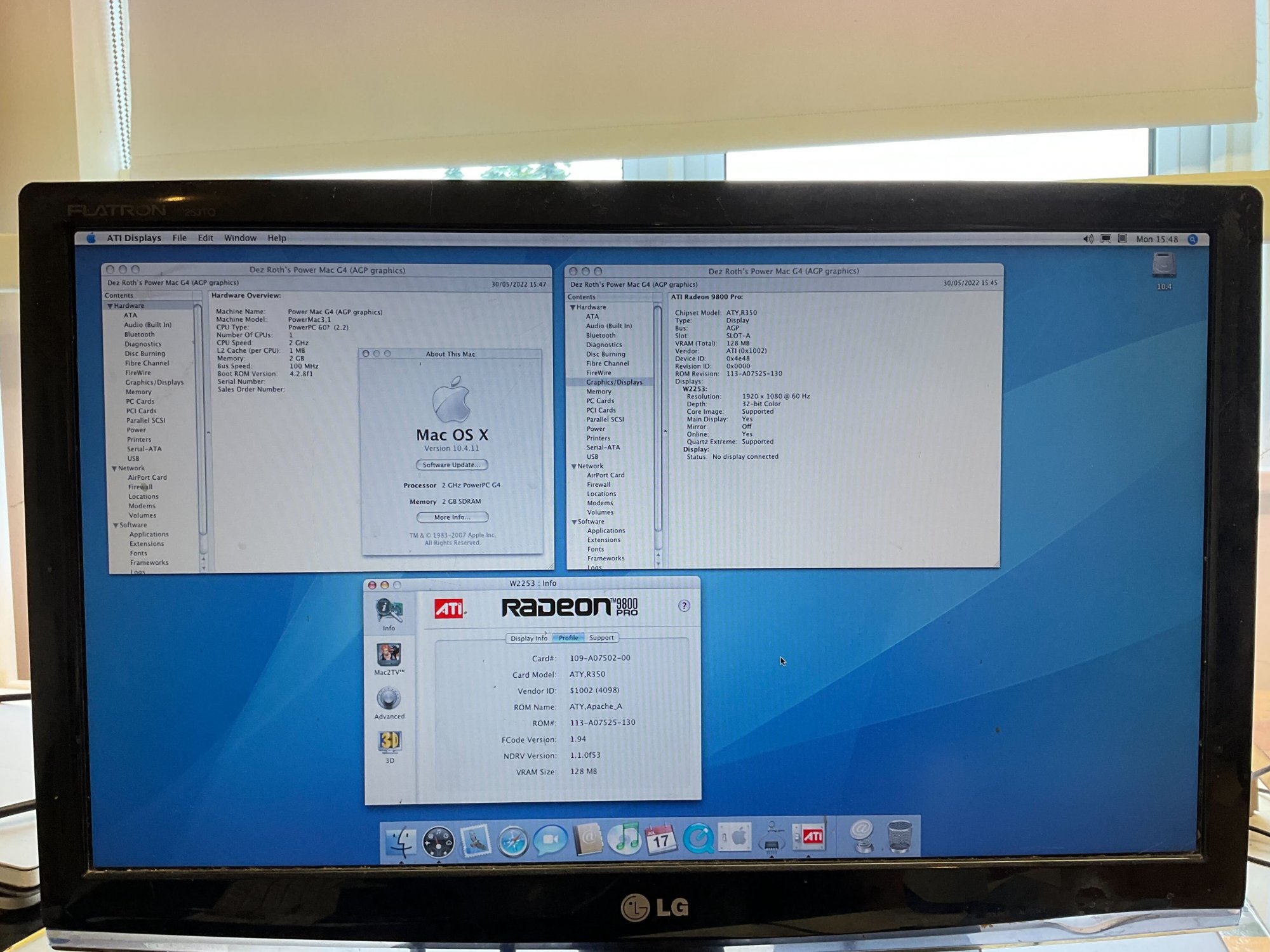

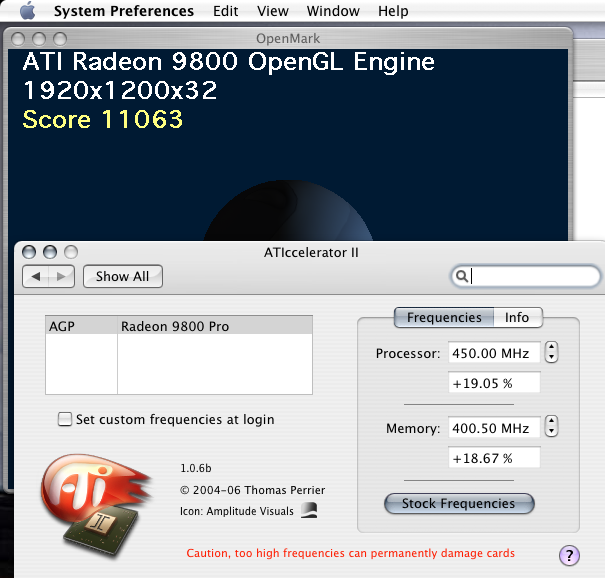

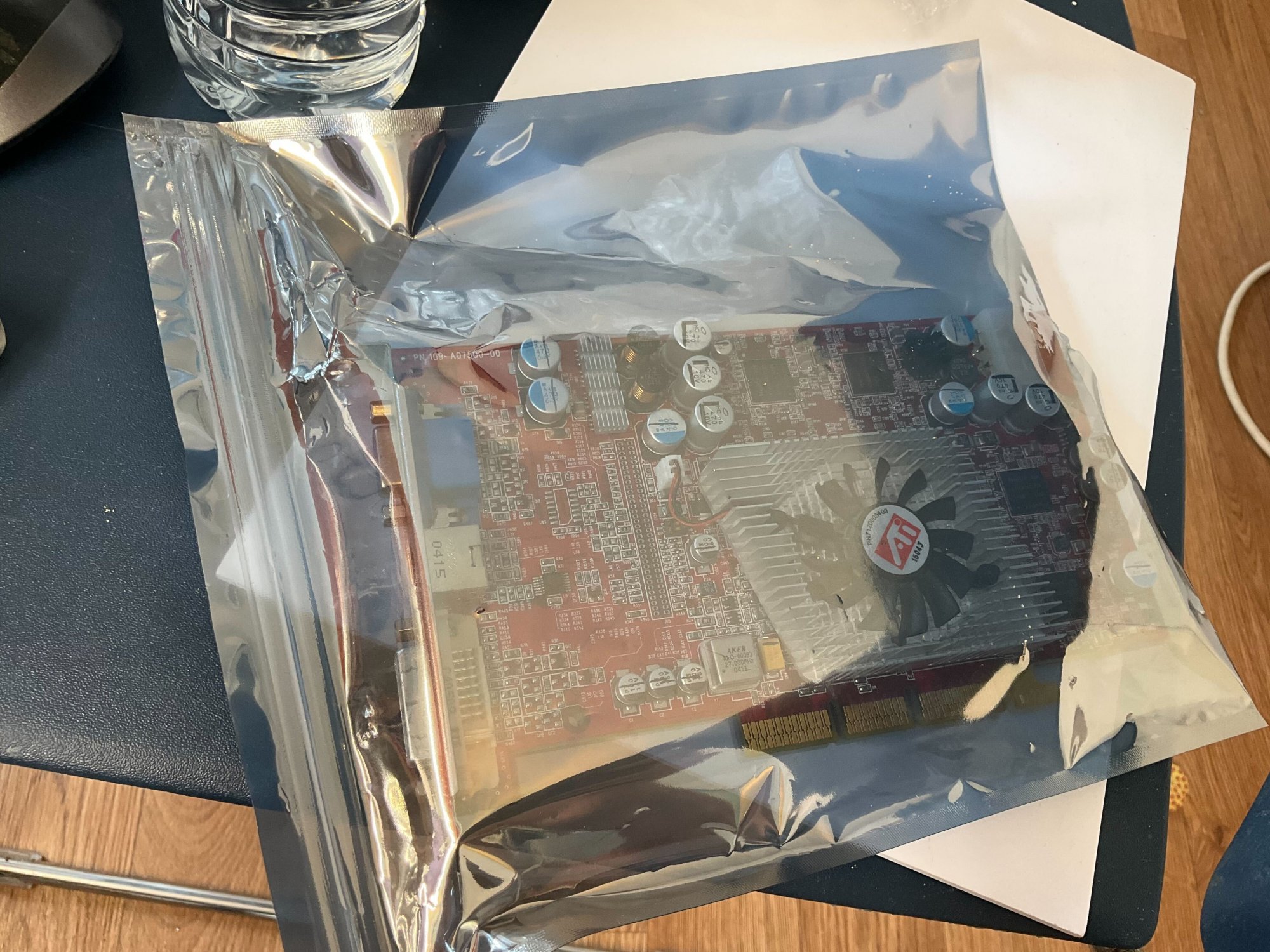

, well this is actually the 3rd 9800 Pro my Sawtooth has had in my ownership of that machine LOL, first one died as is all too common with 9800's, and the other was sent to @bunnspecial many moons ago, where it fitting lives in another sawtooth so I am pleased to have another one for it finally given the Sawtooth was my first PPC Mac (and 2nd Mac overall) its nice to be able to treat it to the best upgrades
Not quite! 😁
its a bit of both, in that, the stock 9800 Pro cooler is pretty awful, so the GPU cooks itself that way, and I know also the memory can also die
thats always been an interesting card for me although I dont think I have ever seen another for sale sadly
and the fact that your special 6800 XT does work in an Sawtooth shows that the NV40 Core DOES have 3.3V AGP signalling support at least... (if you ignore the massive bottleneck that would be going via PCI rather then AGP)

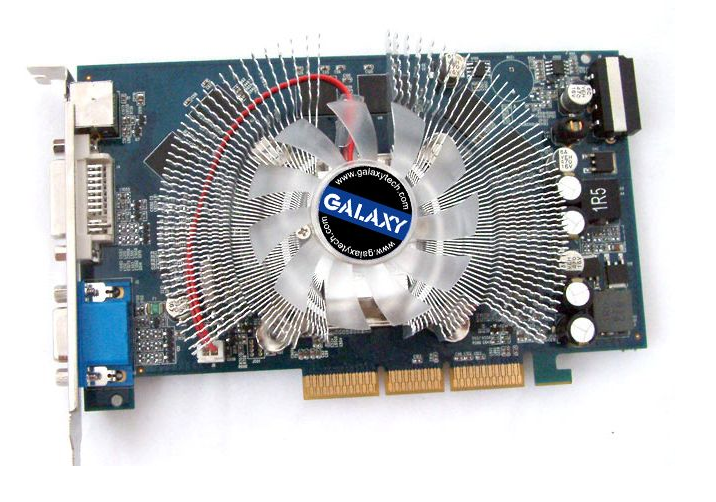

They seem to be available on the eastern European market, Russia and Poland. But most i could google, a 128 MB variant. But mine is 256.
Isn't the 6200 NV40 too?
Yes, sure this could be dremeled out! What is a Quadro 4000 comparable to in performance?

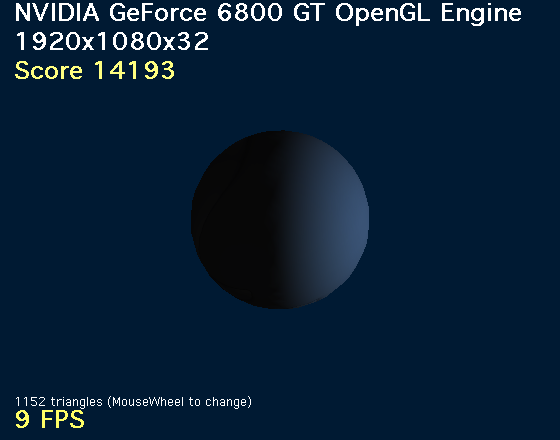

According to Wikipedia, the FX 4000 is comparable to a 6800 GT, but it has a slightly higher core clock (375 vs 350 MHz).
The FX 4000 had better be. You need two dual-link DVI outputs to run "Big Bertha" at 48 Hz.and the fun thing about that card is it is a Dual Dual Link DVI Card IIRC
Not so sure about that!You need two dual-link DVI outputs to run "Big Bertha" at 48 Hz.
[B]localhost / #[/B] R600_DEBUG=nir DISPLAY=:0 glmark2 --fullscreen
=======================================================
glmark2 2021.12
=======================================================
OpenGL Information
GL_VENDOR: X.Org
GL_RENDERER: AMD CEDAR (DRM 2.50.0 / 6.0.0-g1501278bb7ba)
GL_VERSION: 3.2 (Compatibility Profile) Mesa 22.2.2
Surface Config: buf=32 r=8 g=8 b=8 a=8 depth=24 stencil=0
Surface Size: 1920x1080 fullscreen
=======================================================
[build] use-vbo=false: FPS: 405 FrameTime: 2.469 ms
[build] use-vbo=true: FPS: 586 FrameTime: 1.706 ms
[texture] texture-filter=nearest: FPS: 483 FrameTime: 2.070 ms
[texture] texture-filter=linear: FPS: 482 FrameTime: 2.075 ms
[texture] texture-filter=mipmap: FPS: 491 FrameTime: 2.037 ms
[shading] shading=gouraud: FPS: 463 FrameTime: 2.160 ms
[shading] shading=blinn-phong-inf: FPS: 463 FrameTime: 2.160 ms
[shading] shading=phong: FPS: 416 FrameTime: 2.404 ms
[shading] shading=cel: FPS: 405 FrameTime: 2.469 ms
[bump] bump-render=high-poly: FPS: 390 FrameTime: 2.564 ms
[bump] bump-render=normals: FPS: 545 FrameTime: 1.835 ms
[bump] bump-render=height: FPS: 524 FrameTime: 1.908 ms
[effect2d] kernel=0,1,0;1,-4,1;0,1,0;: FPS: 266 FrameTime: 3.759 ms
[effect2d] kernel=1,1,1,1,1;1,1,1,1,1;1,1,1,1,1;: FPS: 133 FrameTime: 7.519 ms
[pulsar] light=false:quads=5:texture=false: FPS: 333 FrameTime: 3.003 ms
[desktop] blur-radius=5:effect=blur:passes=1:separable=true:windows=4: FPS: 81 FrameTime: 12.346 ms
[desktop] effect=shadow:windows=4: FPS: 103 FrameTime: 9.709 ms
[buffer] columns=200:interleave=false:update-dispersion=0.9:update-fraction=0.5:update-method=map: FPS: 41 FrameTime: 24.390 ms
[buffer] columns=200:interleave=false:update-dispersion=0.9:update-fraction=0.5:update-method=subdata: FPS: 49 FrameTime: 20.408 ms
[buffer] columns=200:interleave=true:update-dispersion=0.9:update-fraction=0.5:update-method=map: FPS: 86 FrameTime: 11.628 ms
[ideas] speed=duration: FPS: 347 FrameTime: 2.882 ms
[jellyfish] <default>: FPS: 144 FrameTime: 6.944 ms
[terrain] <default>: FPS: 20 FrameTime: 50.000 ms
[shadow] <default>: FPS: 93 FrameTime: 10.753 ms
[refract] <default>: FPS: 21 FrameTime: 47.619 ms
[conditionals] fragment-steps=0:vertex-steps=0: FPS: 462 FrameTime: 2.165 ms
[conditionals] fragment-steps=5:vertex-steps=0: FPS: 369 FrameTime: 2.710 ms
[conditionals] fragment-steps=0:vertex-steps=5: FPS: 462 FrameTime: 2.165 ms
[function] fragment-complexity=low:fragment-steps=5: FPS: 428 FrameTime: 2.336 ms
[function] fragment-complexity=medium:fragment-steps=5: FPS: 289 FrameTime: 3.460 ms
[loop] fragment-loop=false:fragment-steps=5:vertex-steps=5: FPS: 425 FrameTime: 2.353 ms
[loop] fragment-steps=5:fragment-uniform=false:vertex-steps=5: FPS: 425 FrameTime: 2.353 ms
[loop] fragment-steps=5:fragment-uniform=true:vertex-steps=5: FPS: 190 FrameTime: 5.263 ms
=======================================================
glmark2 Score: 315
=======================================================
Yes, sad in a way it had to end there. Would have been nice to see i. e. a 8800 or even a GTX680 in a Quad...
Performance ain’t everything —DisplayPort 1.2 with support for 4K60 would have been cool as well

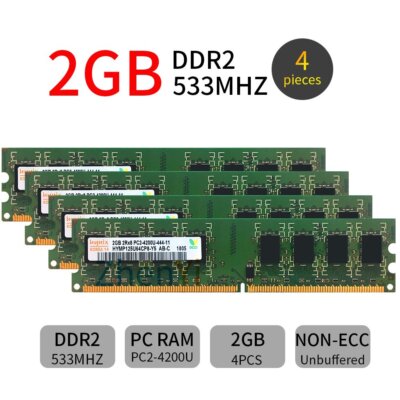

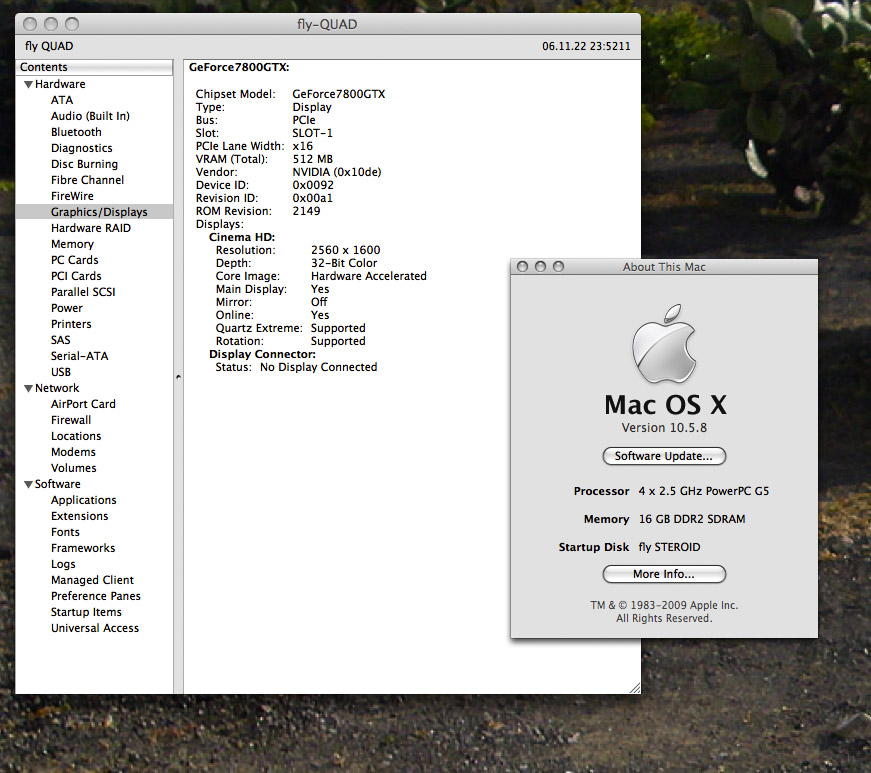

These are the ones I put in my Quad, 16GB of bliss!
