MP 7,1 W6800x Duo benchmarks vs Vega ii duo, 2x w5700x, 2x 6900xt

[rondocap]

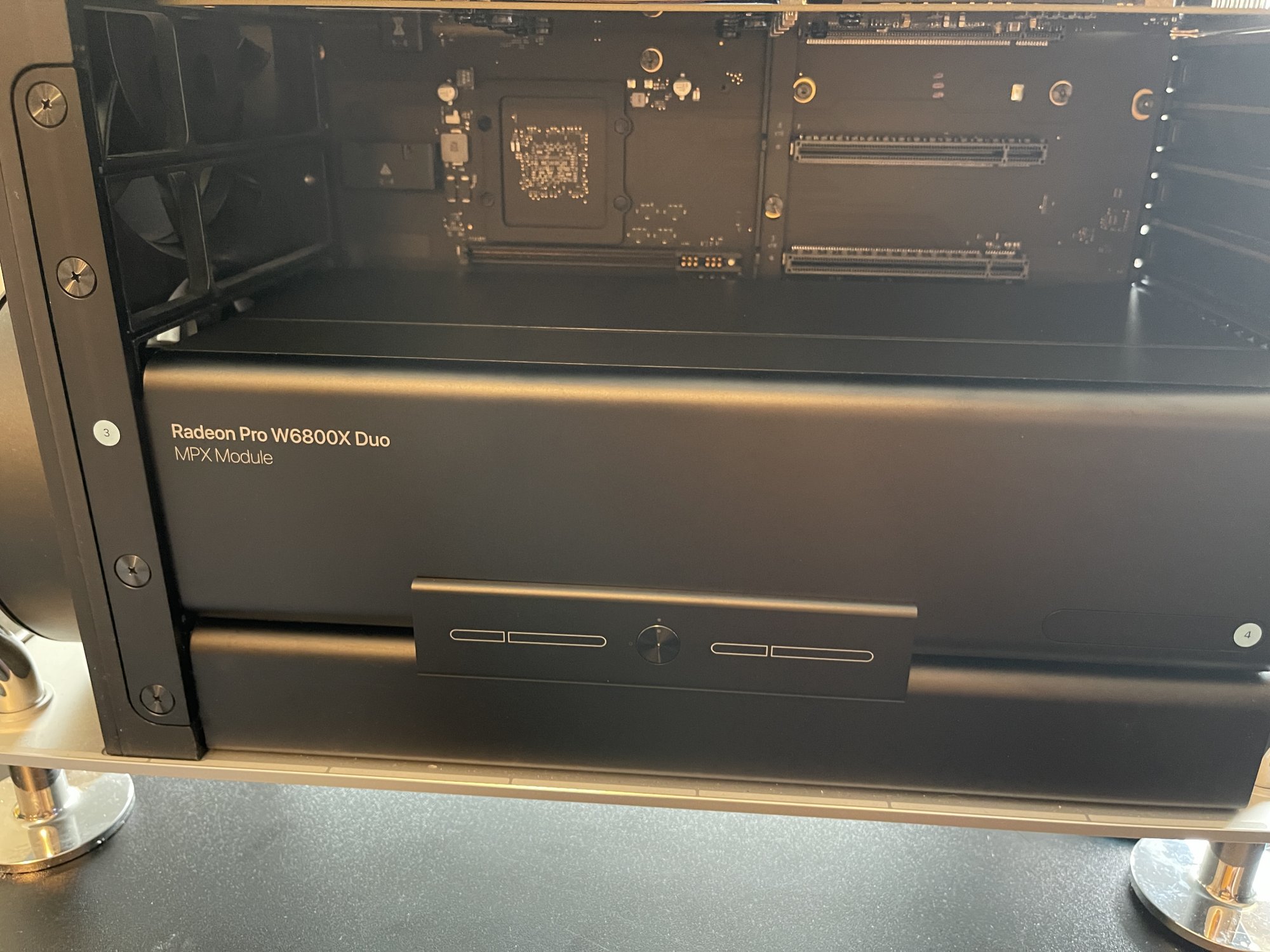

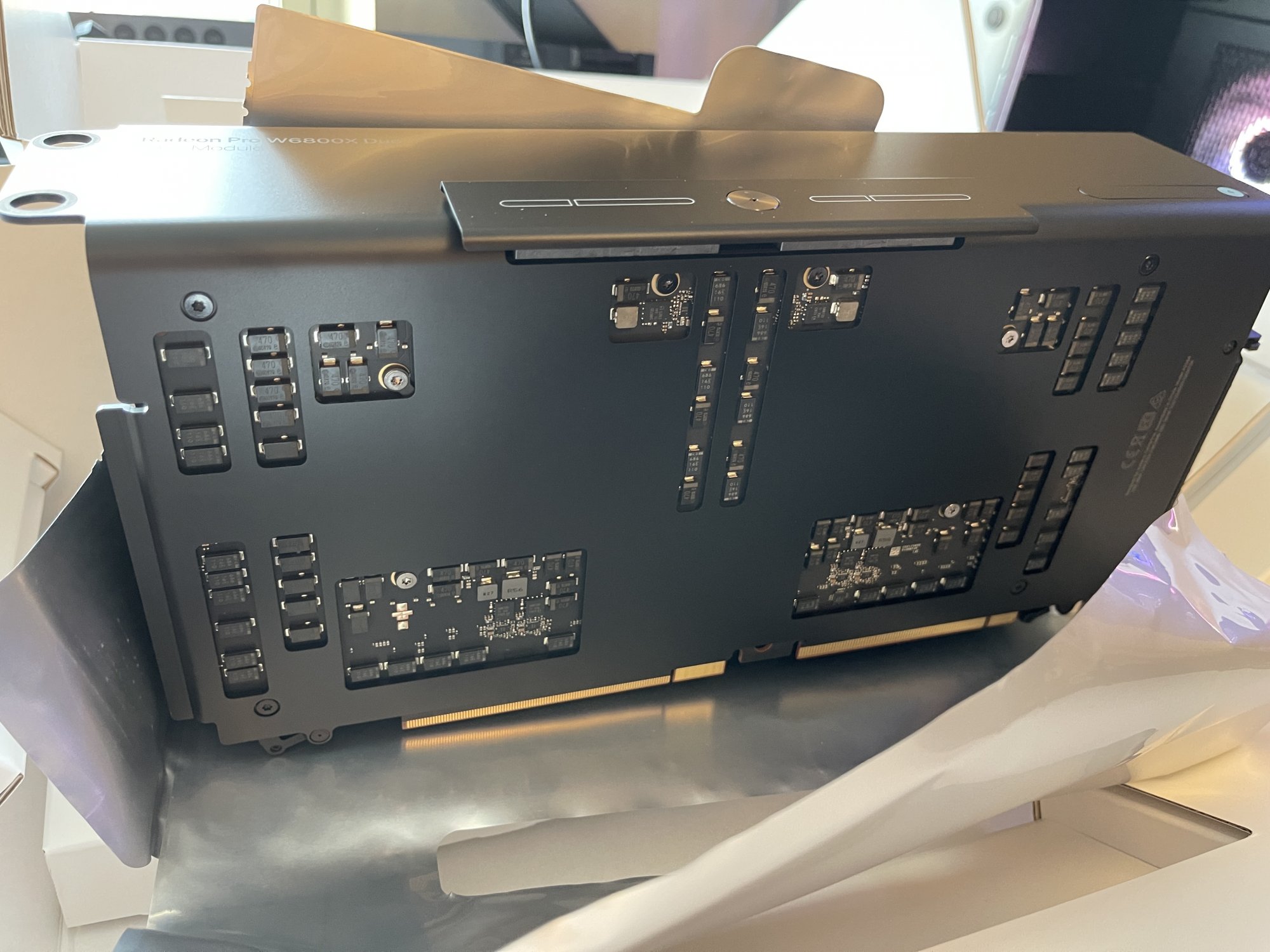

Received the w6800x Duo today, ran some tests vs other gpus I had benchmarked. 28 core Mac Pro, 96gb ram

geekbench 5 metal: 144,910
hash rate for those interested: 58 mh/s each, around 600 watt total system draw, 175w-200w each gpu

Will benchmark more as well, if anyone has a specific request let me know

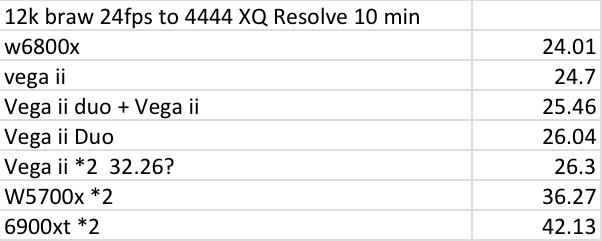

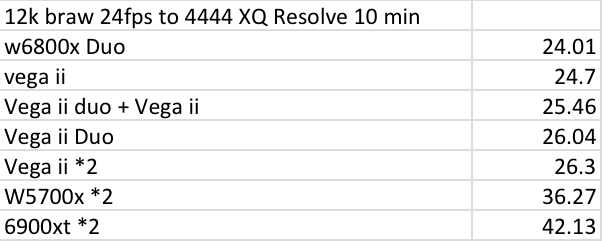

vram limitation explains the 6900 xt and w5700x in 12k most likely

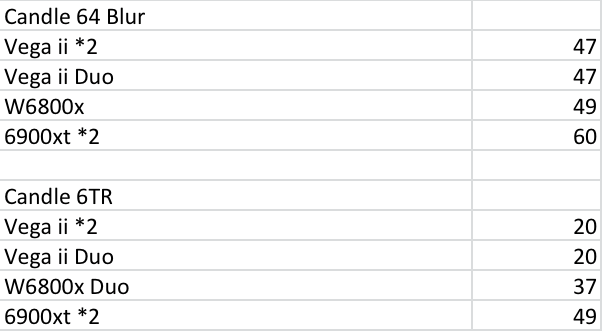

candle FPS benchmark in a resolve :



[elfamosisimoJON]

Can you make a test to see if for some reason Apple or AMD added HEVC 10bit 422 video decoders on these?

R5 footage or similar.



[rondocap]

Can you make a test to see if for some reason Apple or AMD added HEVC 10bit 422 video decoders on these?

R5 footage or similar.

Same results as before, only the M1 Macs and Intel 11th gen have these unfortunately



[kwansheungchi]

Would love to see single W6800X benchmark in Resolve too, does Resolve give option to use one core only?



[rondocap]

Would love to see single W6800X benchmark in Resolve too, does Resolve give option to use one core only?

It does, I will do these too



[strangerthanlight]

Wondering if anyone has received the W6900X MPX yet? How does a single more expensive W6900x compare to the W6800x duo?



[kwansheungchi]

Great, thanks!



[rondocap]

Wondering if anyone has received the W6900X MPX yet? How does a single more expensive W6900x compare to the W6800x duo?

I am curious too - I do have a 6900 XT, so far the W6800x Duo is faster than a single 6900xt where multi gpu Is used such as Resolve or FCP. By a fairly big margin too - the single W6800x is already not a massive gap from the W6900x, So a Duo is certainly faster as 2 vs 1.

I am assuming also the w6900x will be faster than a 6900 XT in some tasks due to more Vram, but it may also be slightly slower in others due to the decreased clock speed



[randy85]

Your GPU habit is everyone else's gain. Thank you for doing these!



[rondocap]

Your GPU habit is everyone else's gain. Thank you for doing these!

Definitely, I love it! If anyone has any specific test they want me to do, let me know. Like a workflow or video file you're used to on your own system, and if you want to see how it does with the new GPUs.



[avkills]

Thank you rondocap!



[rondocap]

Rocket benchmark test, similar to the candle test:

Middle Test, UHD Pro res

W6800x Duo
09 Blur: 59 fps
18 Blur: 51 fps
30 Blur: 31 fps
66 Blur: 15 fps

1 TNR: 59 fps
2 TNR: 39 fps
4 TNR: 20 fps
6 TNR: 14 fps

To compare to the dual W5700x:

2x W5700X

09 Blur: 59 fps
18 Blur: 30 fps
30 Blur: 19 fps
66 Blur: 9 fps

1 TNR: 51 fps
2 TNR: 26 fps
4 TNR: 14 fps
6 TNR: 10 fps



[Storiestold]

Awesome! I'm expecting my W6800X Duo on Friday. I can't wait. Thanks for these tests. Anxious to see some more.



[avkills]

My delivery says the 18th-20th (W6800X Duo as well). Starting to get happy feet waiting.



[rondocap]

Awesome! I'm expecting my W6800X Duo on Friday. I can't wait. Thanks for these tests. Anxious to see some more.

If you guys have any other test ideas let me know - I am also getting a 2nd duo, so I will test 4 GPUs as well.



[jasonmvp]

If you guys have any other test ideas let me know - I am also getting a 2nd duo, so I will test 4 GPUs as well.

If you're so inclined:

VT Hardware h.264 Encoders: How Many Does Your Mac Pro Have?

Hey gang - Reference this thread as to the basis of my ask. I'm trying to understand how many Videotoolbox h.264 hardware encoders that MacOS is presenting to the user. On my Mac Pro, I see two. On my Macbook Pro (2018 w/Radeon GPU), I only see one. Forum user casperes1996 took the C program...

forums.macrumors.com

I'd love to see how many hardware h.264 encoders your system reports with that Duo in. I'm assuming it's three.



[avkills]

If you guys have any other test ideas let me know - I am also getting a 2nd duo, so I will test 4 GPUs as well.

Wonder if there is enough power (and room) to install a 5th Retail W6800 above the 2 MPX modules....lol.



[Storiestold]

If you guys have any other test ideas let me know - I am also getting a 2nd duo, so I will test 4 GPUs as well.

Have you run a Geekbench Metal score on the W6800X Duo yet?



[rondocap]

Have you run a Geekbench Metal score on the W6800X Duo yet?

Yeah got around 144,000



[Storiestold]

Excellent. I'm upgrading from a W5700X so the gains will be impressive.



[IanK MacPro]

Again, would just like to reiterate what has already been stated above by others, thank you so much for taking the time to do this, it's incredibly useful! Would love to see some Redshift Benchmark results for these if possible?



[rondocap]

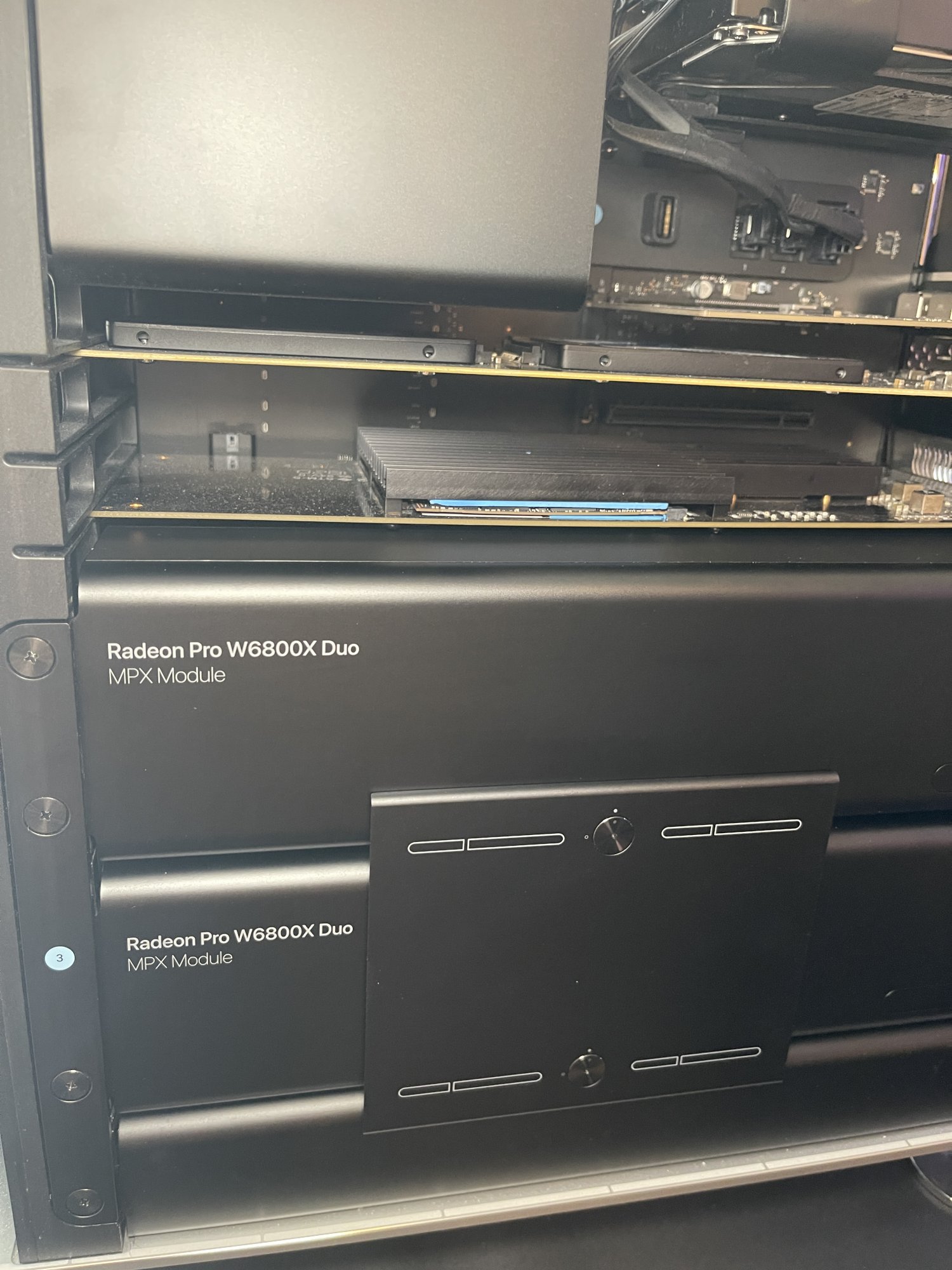

Unleash the kraken! Here are two w6800x Duos for a total of 4 GPUs



[avkills]

rondocap how are you getting these things so fast!



[Storiestold]

rondocap how are you getting these things so fast!

Yeah! You're on top of it!



[rondocap]

Again, would just like to reiterate what has already been stated above by others, thank you so much for taking the time to do this, it's incredibly useful! Would love to see some Redshift Benchmark results for these if possible?

Do you have some instructions or a specific benchmark I can run? I am not too familiar with Redshift, but I did run Octane benchmarks.

The 4 GPUs got 4 seconds in the Chess test
