The link pretty clearly says the die size for those RAM chips is 16GB each. Doesn't that mean they can get up to 32GB on board in the SoC package?
Thinness doesn’t matter for this purpose, but cooling sure does. That’s why my “invention” relied on diamond interposers to spread heat. In any event, i’m sure if they did it that it;’s side-by-side. This is old technology (the CPU I designed and built in the 1990s and which is referred to in that dissertation did that.). We just used to call them “multi-chip modules,” but now everyone has their own fancy names for these things.I could be misinterpreting but if you read the quoted link
The Packaging of Apple’s A12X is… Weird | Siliconica
sst.semiconductor-digest.com
it implies the DRAM packages are 16GB dies so Apple could already do 32GB "on-board" at least as far as their SoC packaging is concerned, as far back as 2018. Don't forget they've likely been working on the Mac SoCs for longer than everyone is assuming.
I'm guessing they are side by side for thinness and cooling purposes. Might not be an issue in a Mac but not necessarily worth the gains to build two different packages.
The article is stating they are 16 Gbit RAM packages. It's common for DRAM package density to be described in bits rather than bytes.The link pretty clearly says the die size for those RAM chips is 16GB each. Doesn't that mean they can get up to 32GB on board in the SoC package?
I’ve seen some discussion of this but I wanted to ask. Wikipedia seems to indicate that SoC “almost always includes” system memory.
The article is stating they are 16 Gbit RAM packages. It's common for DRAM package density to be described in bits rather than bytes.
The article is stating they are 16 Gbit RAM packages. It's common for DRAM package density to be described in bits rather than bytes.
So these 16 Gbit packages are 2 Gbyte of LPDDR4 DRAM. 2 packages adjacent to the A12X SoC equates to 4 GByte of RAM. The 6 GB iPad Pro models would then have 24 Gbit DRAM packages for 3 GB x 2 packages for 6 GBytes of RAM.
Since there are 8 GByte LPDDR4X packages available, it's not a stretch to say that all Apple did for the DTK was replace the 3 Gbyte DRAM packages, they would be adjacent to the SoC as shown in the article, with 2 8-GByte DRAM packages for a total of 16 Gbyte, and then called it a day for the DTK, other than adding HDMI, USB and Ethernet controllers.

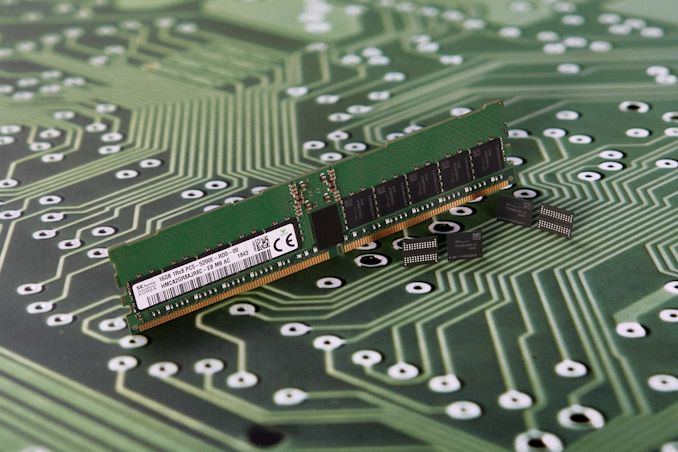

For the real Mac Apple Silicon, LPDDR5 16 GByte packages are either in production or sampling right now, an A12X/Z like SoC package design with 2 DRAM packages can have up to 32 GByte of RAM.
Want more? Add 2 more LPDDR5 packages adjacent to the SoC on the other side and 64 Gbyte is possible. Want even more? there are 4 sides to a chip. Or, Apple can use a variety of DRAM stacking techniques. Eg, a 2 layer wafer fan-out stacking consisting of 4 stacks means 8 16-Gbyte LPDRR5 packages gets them 128 GByte of RAM, with the SoC package maybe being 2x as large as the A12Z package.
The link pretty clearly says the die size for those RAM chips is 16GB each.
Doesn't that mean they can get up to 32GB on board in the SoC package?
It does not say 16GB each. It says that Apple is using 16Gb chips. Small b ( bits not bytes ). There is a huge difference.
