802.11ac and BT 4.2 are here for unibody MBPs and A1342 MB!

trifero

trifero

macrumors 68030
May 21, 2009
2,932
2,751
George Colgrove said:
I purchased the Intriguing Industries adapter and their recommended card for best performance off Amazon - total price of about $60. It took some work to fit the card in place. I modified the instructions a little in how to gut the bracket. I wanted to keep the card attached to the speaker. I used a M.2 mounting screw and stud to keep the card in place at the other end. Since the Bluetooth antenna is no longer needed and the fit was tight, I removed the Bluetooth antenna. I worked the camera cable and the longer wifi cable (J0) under the wifi card. I was able to tuck the J1 and J2 cables in the cavity in the corner. In the picture attached you can see the old and new setups. The new card was recognized. I now have ac wifi and watch unlock. This was a fun project. More pics of the work are available if interested.

www.intriguingindustries.co.uk

12+ 6 Adapter Kit v2 for MacBook Pro, MacBook, and Mac Mini - intriguing industries

Will upgrade you MacBook Pro, MacBook Air or Mac Mini up to 802.11ac 1300Mbps and BT 4.2 using a 12+6 WiFI card.
www.intriguingindustries.co.uk www.intriguingindustries.co.uk
Click to expand...
Products from Intriguing Industries are simple best of then best. They are increasing his catalogue frecuently. They sell other very usefull stuff. Take a look.

  • Like
Reactions: George Colgrove
G

George Colgrove

macrumors member
Apr 6, 2020
69
60
George Colgrove said:
I have two mid-2012 13 inch MBP’s.

One is a i5 with 8GB memory.
One is a i7 with 16GB memory.

Both have SSD close in performance.

I recently upgraded the Wi-Fi card to a Broadcom BCM943602CS Wi-Fi-AC and BT 4.0 card.

The card is fully functional.

But where I can get up to 18Mb/s on the i5 with the original Airport card, the i7 gives me only 9 to 10 Mb/s.

I did a PVRAM and SMC reset as well as ran the post-install patching for OCLP 0.4.5 with Monterey after the install.

Is there something I may have missed?
Click to expand...
I think the problem was with my home wifi router. I have three kids, myself and my wife with computers and wireless devices (iPhones and iPads) plus we have two Apple TVs. In reading about overworked routers, at times one can pick up a slow channel.

Last night I turned on the upgraded MacBook and got speeds over 500 Mbps. Downloading the same large file from Apple got consistent speeds over 16 Mb/s. This is very likely the limits of my ISP. On my other devices with ac wifi cards, I rarely get too far over 500 Mbps in speed checks. So all is good.

  • Like
Reactions: jrumball
The_Croupier

The_Croupier

macrumors 6502
Oct 11, 2018
419
284

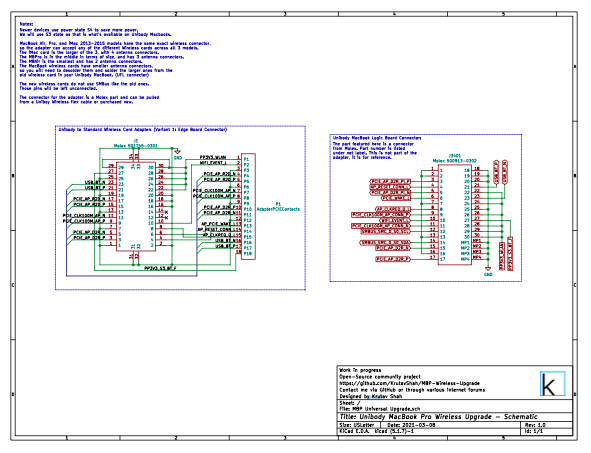

Attachments

  • MBP Universal Upgrade.pdf
    89 KB · Views: 156
  • Screen Shot 2022-08-21 at 10.08.59 pm.png
    Screen Shot 2022-08-21 at 10.08.59 pm.png
    108.4 KB · Views: 162
Last edited:
Edgecrusherr

Edgecrusherr

macrumors 6502
Jan 21, 2006
397
529
Been using this for a long time. It really extended the life of my 17” 2011. Finally getting ready to sell the computer lol.

trifero

trifero

macrumors 68030
May 21, 2009
2,932
2,751
troop231 said:
I think the final cost, since it includes the wireless card, is yet to be determined. The best thing to lower cost is to get a group buy so I can buy all the components in bulk. I don't think a Kickstarter is necessary, but maybe if I add a poll that would help determine the interest?

I'm designing it to work in the A1286 and also definitely want to do the 2011-2012 Mac mini. It technically should work on the white MacBooks as well, but I'm not sure if people would want to invest money into those machines?
Click to expand...
I´m in!

V

Vintschger

macrumors newbie
Jun 11, 2023
2
0
I have an MBP early 2011 (A1278) with a newly installed Ventura (OpenCore patcher 0.6.5) and have now changed the WLAN/BT card (BCM94331PCIEBT4CAX). Unfortunately BT doesn't work anymore. Tried everything but unfortunately had no success. Can someone help me with my problem?

M

mikehalloran

macrumors 68020
Oct 14, 2018
2,239
666
The Sillie Con Valley
Vintschger said:
I have an MBP early 2011 (A1278) with a newly installed Ventura (OpenCore patcher 0.6.5) and have now changed the WLAN/BT card (BCM94331PCIEBT4CAX). Unfortunately BT doesn't work anymore. Tried everything but unfortunately had no success. Can someone help me with my problem?
Click to expand...
The original card is $40 on Amazon. If that doesn't work, you can return it.
WiFi carg 2010–2012 MBP


Otherwise, you can't use APFS Snapshots to roll back Ventura—only the apps. A full Time Machine restore works, however.

B

bobnugget

macrumors 6502
Nov 15, 2006
419
194
England
Vintschger said:
I have this card and I think the problem is with the patched Ventura and the card works fine ...
Click to expand...
Re-run OCLP again - it’ll detect the changed card and re patch it. I think it patches for the hardware you have installed. It did this on one of my 2012s when I upgraded to ac as I had no WiFi after adding the card.

  • Like
Reactions: joecodes
B

BuzzyBumblebee

macrumors newbie
Jun 15, 2023
28
7
troop231 said:
Yep, right here: https://subtle.design/products/80211ac/
Click to expand...
1. After the installation, is the subwoofer only held in place with tape?

2. Do you know if this card can be used with Linux*? Looking forward at Apple's long term support and even with OCLP I am thinking I might eventually have to use Linux on this machine (OCLP Ventura was pretty buggy and annoying on my MBP 9,2).

3. Fantastic engineering work designing this, thank you for this labor of love!

* Edit: To pre-empt quoting the official support statement on the product page, yes I saw that official support is for only the Mac OSs that are able to run natively on the machines. I am asking about non-official support because many if not most people in this forum are reporting success with unsupported configurations (OCLP MacOS, Windows) but I haven't seen anyone report success or failure on Linux.

Last edited:
T

troop231

macrumors 603
Original poster
Jan 20, 2010
5,826
560
BuzzyBumblebee said:
1. After the installation, is the subwoofer only held in place with tape?

2. Do you know if this card can be used with Linux*? Looking forward at Apple's long term support and even with OCLP I am thinking I might eventually have to use Linux on this machine (OCLP Ventura was pretty buggy and annoying on my MBP 9,2).

3. Fantastic engineering work designing this, thank you for this labor of love!

* Edit: To pre-empt quoting the official support statement on the product page, yes I saw that official support is for only the Mac OSs that are able to run natively on the machines. I am asking about non-official support because many if not most people in this forum are reporting success with unsupported configurations (OCLP MacOS, Windows) but I haven't seen anyone report success or failure on Linux.
Click to expand...
Thank you for the kind words! :) The subwoofer can be mounted how you choose, such as 3M double sided transfer tape which is very strong compared to just plain Scotch tape.

There are some customers that have used it on Linux for sure, although I'm not sure if they were able to achieve the full 1300Mbps data rate possible and what drivers are needed.

  • Like
Reactions: BuzzyBumblebee, trifero and joecodes
rusavv

rusavv

macrumors newbie
Jun 22, 2021
21
45

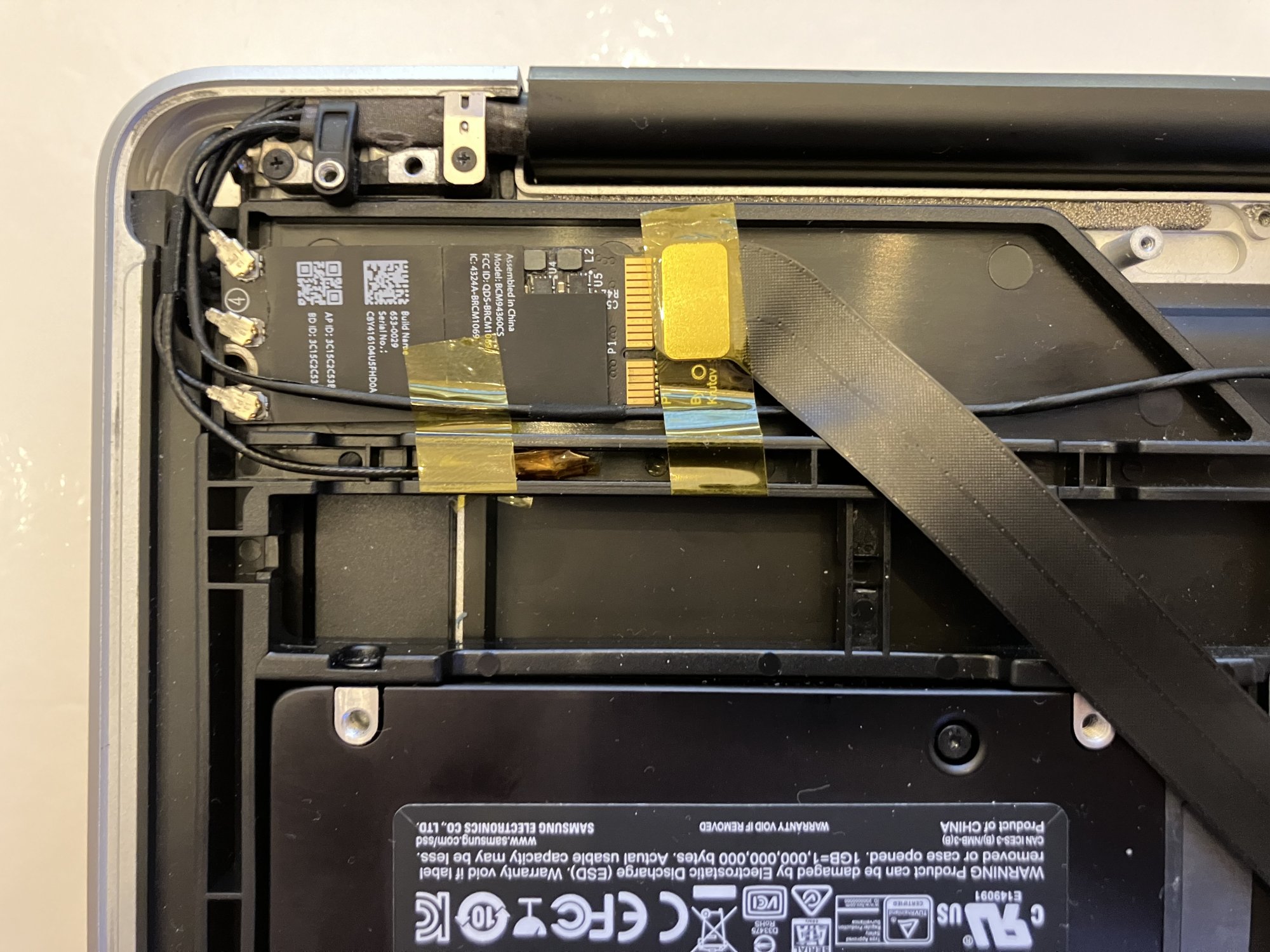

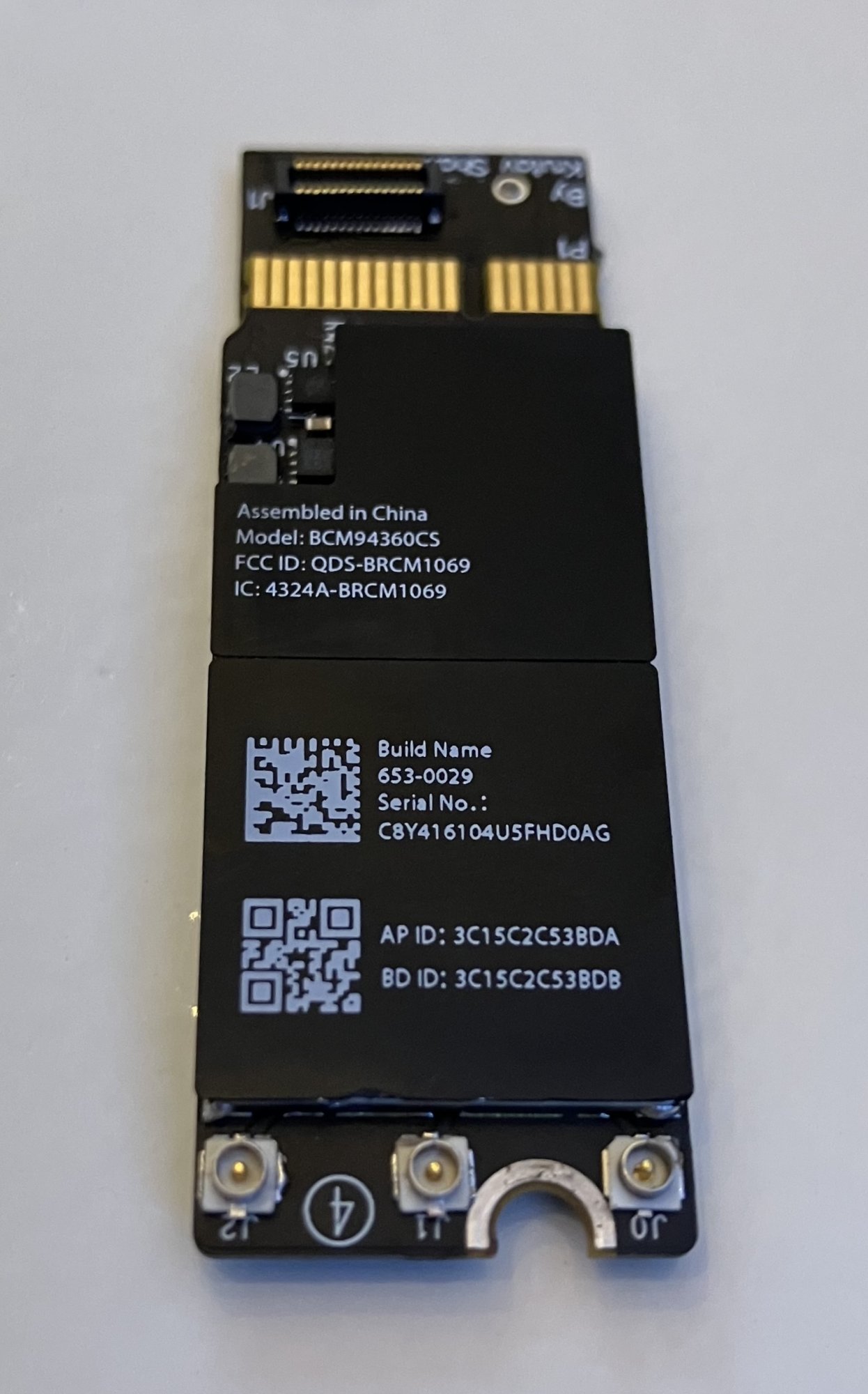

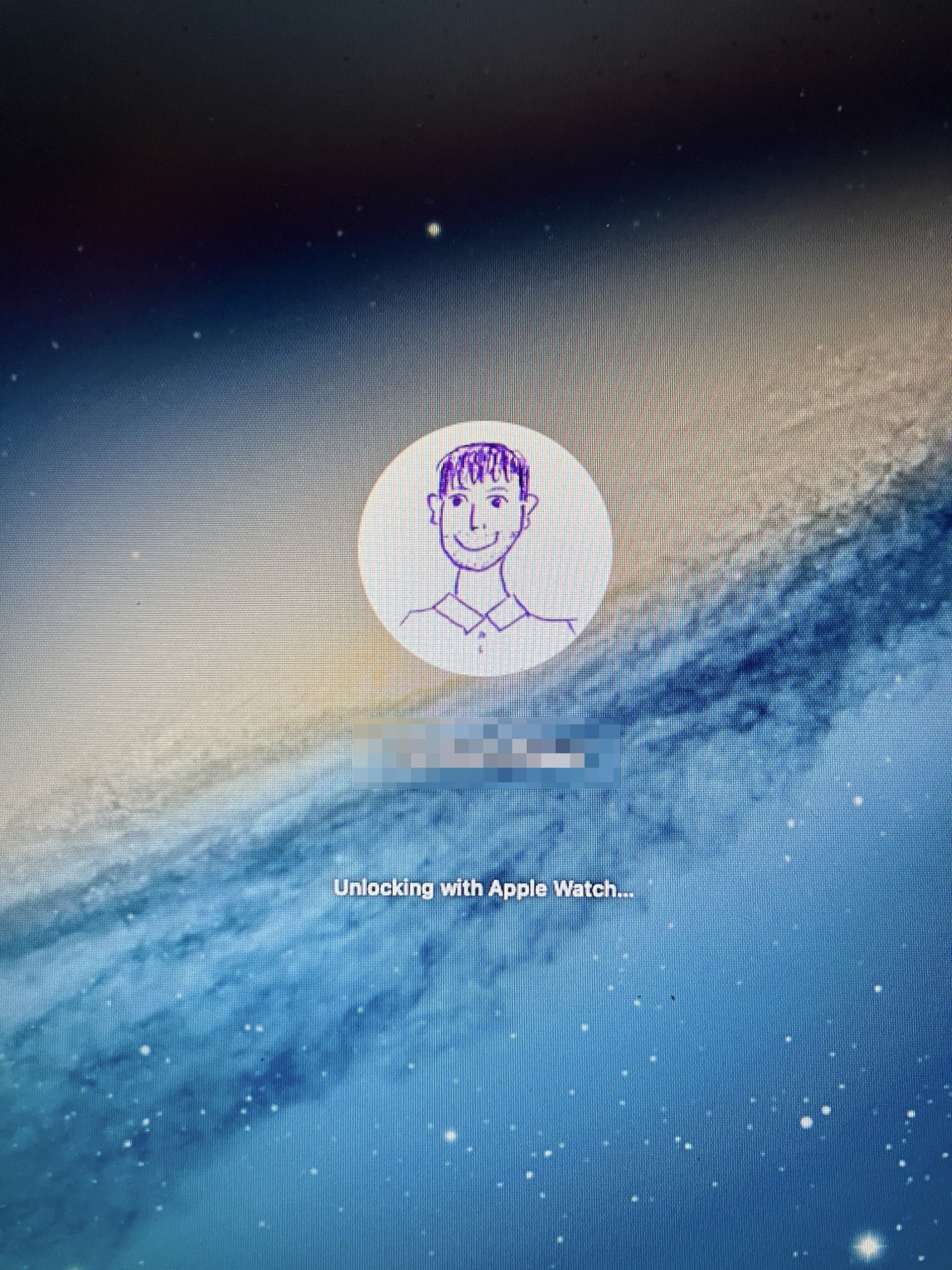

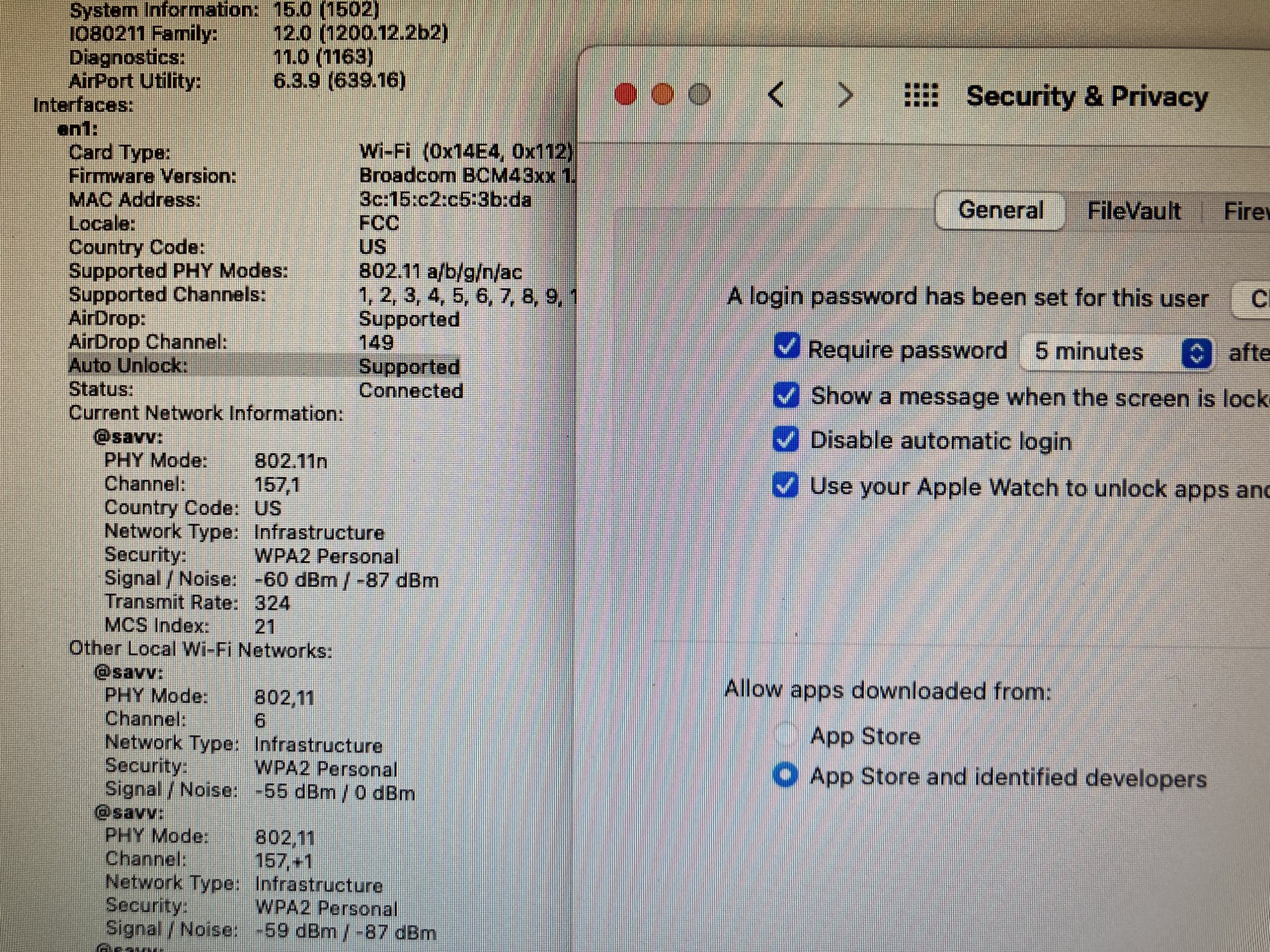

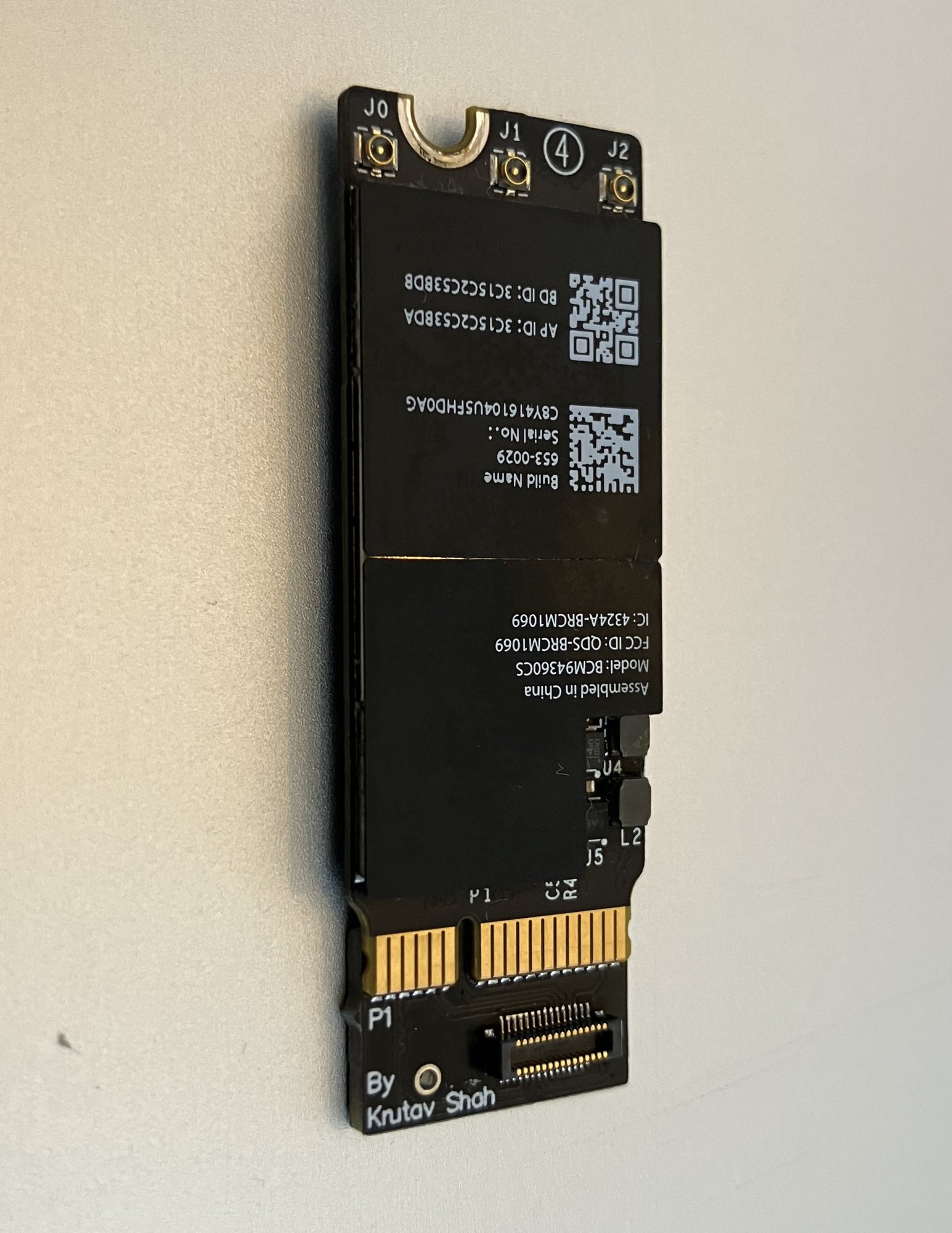

I've just upgraded my Mid 2012 MacBook Pro to newer AirPort card. Thanks to @Krutav and his awesome open source project, I've ordered a PCB and Molex connector and soldered it altogether to connect to my laptop. Now it has a much faster Wi-Fi and even working Auto Unlock feature! The only thing I've need is to change antenna connectors so it can fit older and bigger ones.
Thanks again, Krutav!


Attachments

  • IMG_9167.jpeg
    788.7 KB · Views: 114
  • IMG_9160.jpeg
    241.8 KB · Views: 102
  • IMG_9143.jpeg
    422.3 KB · Views: 106
  • IMG_9166.jpeg
    1.2 MB · Views: 113
  • IMG_9164.jpeg
    442.4 KB · Views: 112
  • Like
Reactions: Misseeee
W

watcher00090

macrumors newbie
Aug 5, 2023
18
2
@troop231 I have a 2010 13" A1278 unibody macbook pro where AirDrop wont work at all, and I would love to be able to get that fixed.
