MP All Models AMD Radeon RX 6800 XT / 6900 XT for macOS?

[LEOMODE]

I've also noticed that whenever it wakes up from sleep, it doesn't wake up fast and unless I had no issues it will either 1) screen will freeze and I have to manually turn on the monitor to wake the OS up, and 2) when 1) happens the Mac OS was crashed and it was either restarted or will throw a crash error for me to submit to Apple.

Has anyone encountered the issue with non-Apple AMD cards? I have a reference AMD 6900XT.



[flowrider]

^^^^Have noticed no such behavior with my Gigabyte RX6800XT.

Lou



[LEOMODE]

^^^^Have noticed no such behavior with my Gigabyte RX6800XT.

Lou

Thanks for the information. It is indeed very strange. It doesn't happen all the time it seems like but randomly.



[LEOMODE]

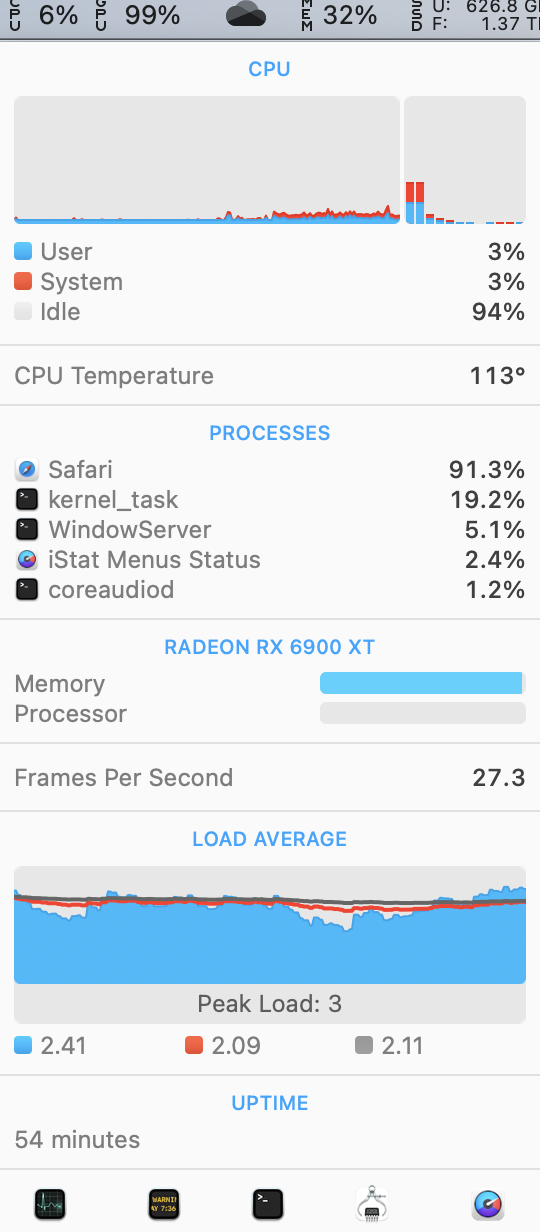

Also, do you guys see GPU memory taxing at 100% even at idle? Is this normal for non-Apple GPU? I don't recall seeing it like this with other cards (Mac Edition GTX1080, W5700X and Radeon 5870) I wonder why this is happening. I also have RTX3090 installed together.

Update: it looks like it's an unfixable issue by istats. https://bjango.com/help/istatmenus5/knownissues/



[LEOMODE]

I've also noticed that whenever it wakes up from sleep, it doesn't wake up fast and unless I had no issues it will either 1) screen will freeze and I have to manually turn on the monitor to wake the OS up, and 2) when 1) happens the Mac OS was crashed and it was either restarted or will throw a crash error for me to submit to Apple.

Has anyone encountered the issue with non-Apple AMD cards? I have a reference AMD 6900XT.

Yup so this is what I got for the problem report:

panic(cpu 2 caller 0xffffff7fa2743aa1): "[9:0:0][PPLIB] Failed Power Play Resume. Shutting back down.
"@/System/Volumes/Data/SWE/macOS/BuildRoots/38cf1d983f/Library/Caches/com.apple.xbs/Sources/GPUDriversAMD/GPUDriversAMD-4.6.20/Common/IONDRV/ATI/AMDUniversalFramebuffer/AMDUniversalFramebuffer/Controller/Controllers/AmdRadeonController.cpp:1812



[flowrider]

Also, do you guys see GPU memory taxing at 100% even at idle? Is this normal for non-Apple GPU? I don't recall seeing it like this with other cards (Mac Edition GTX1080, W5700X and Radeon 5870) I wonder why this is happening. I also have RTX3090 installed together.

Update: it looks like it's an unfixable issue by istats. https://bjango.com/help/istatmenus5/knownissues/

Again - Not the case for me:



BTW - I'm on V6.60

Lou



[h9826790]

Also, do you guys see GPU memory taxing at 100% even at idle? Is this normal for non-Apple GPU? I don't recall seeing it like this with other cards (Mac Edition GTX1080, W5700X and Radeon 5870) I wonder why this is happening. I also have RTX3090 installed together.

Update: it looks like it's an unfixable issue by istats. https://bjango.com/help/istatmenus5/knownissues/

Use HiDPI resolution can greatly increase the VRAM consumption, I use 3840x1080 HiDPI, which can even saturate my Radeon VII’s 16GB VRAM.

If you are using any HiDPI resolution, you may temporary select that back to the normal x1 resolution (e.g. your monitor’s native resolution), and see if the VRAM usage still stay high.

If you believe that’s iStat issue, you can grab the VRAM usage from terminal.



[LEOMODE]

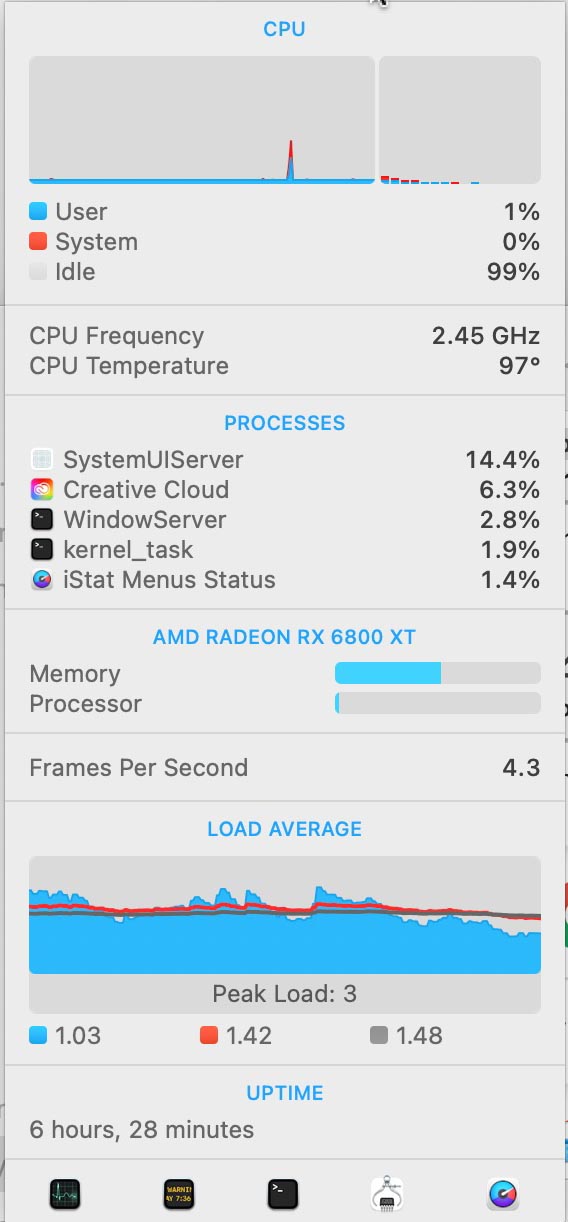

Again - Not the case for me:

View attachment 1863572

BTW - I'm on V6.60

Lou

Now it has greatly reduced to 50~60% after closing out all the apps. I guess it was a temporary thing.

Use HiDPI resolution can greatly increase the VRAM consumption, I use 3840x1080 HiDPI, which can even saturate my Radeon VII’s 16GB VRAM.

If you are using any HiDPI resolution, you may temporary select that back to the normal x1 resolution (e.g. your monitor’s native resolution), and see if the VRAM usage still stay high.

If you believe that’s iStat issue, you can grab the VRAM usage from terminal.

I have 3 triple monitors and I can't even do 144hz, only capped at 95hz with the latest Mac OS update (using DisplayPort). And right now after closing all the apps, now it's at around 50~60%. After putting them back to default now I see 6~15% so I guess you're right. I'm still baffled at why I no longer can't do 144hz without any issue, in addition to this sleep-wake crash that I'm constantly getting in the above post. I've never had this issue before with Mac Edition GTX680 before.

Is there any way to make 'Default for display' a 144hz, and any way to not have this crashing after waking up from sleep or lock screen?



[LEOMODE]

On the Windows 10 side, I had a driver update as of Oct 8 which I installed about 4-5 days ago, and ever since I updated the driver, for some reason on both Windows/Mac OS I haven't had any crashes. However, I have been using an HDMI port instead of the USB-C port as I read it somewhere that the USB-C port was reserved for virtual reality specifically and not necessarily for external monitors. All in all, I'm glad that it's not haunting me anymore. But DSC is still not working on Mac OS properly (not outputting 144hz instead only showing 95hz on DisplayPort, and only 60hz instead of 120hz on HDMI 2.1 port). Outputs 144hz and 120hz properly on Windows 10 Boot Camp.

EDIT: Ok never mind, it looks like Mac OS is still the same. I was wondering how installing a driver on the Windows side would help Mac OS, but there goes my guess.



[LEOMODE]

Updated to Monterey, still same 95hz only. Hoping that kernel crash no longer happens when waking up from sleep....Will update it here.



[LEOMODE]

Just FYI, I obtained Samsung 28" 4k 144hz monitor S28G70 and noticed the following vs my currently owned LG GP950 (27" 4k 144hz HDMI 2.1version):

*The screen is 1" bigger and I can definitely notice the difference.
*Unlike LG GP950, it doesn't have an OSD FPS counter. For me this is huge (even LG GN950 didn't have one).
*On Mac OS, it only supports up to 60hz on HiDPi mode at 1920x1080 (retina mode), unlike 95hz on LG GP950. You can set it up to 144hz on non-HiDPi mode though, which is also different from LG GP950.
*On Mac OS,
*On Windows 10, Samsung can output 4k 144hz on HDMI 2.1. Not sure how this is possible...I thought HDMI 2.1 only has up to 120hz (as my LG GP950 can only do up to 4k 120hz on Windows 10).
*For some reason, I cannot adjust the graphics setting on Samsung. At default settings or something that is controllable, LG seems to be more flexible in settings.
*Also, while Samsung has a PIP mode it doesn't work when I connected my Mac Pro using DP1.4 port and Xbox Series X on HDMI 2.1. Only HDMI 2.1 was visible.

Overall, while I appreciate a similar price point vs the LG counterpart and 1" bigger real estate, I will stick with LG GP950. It looks like Samsung is a bit buggy for some reason and in terms of picture quality, I favor slightly more on the LG.



[joevt]

I thought HDMI 2.1 only has up to 120hz

The refresh rate limit depends on the bandwidth of the connection, the bits per pixel, and the number of pixels per frame.

HDMI 2.1 can do up to 48 Gbps (12 Gbps 4 lanes) but it uses 16b/18b encoding so the data is 42.67 Gbps. It might use FEC which will drop that by another 3%.
Some HDMI 2.1 displays may be limited to 10 or 8 or 6 Gbps per lane.

4K 120Hz uses a pixel clock of 1188 MHz (HDMI timing). At 30 bpp, that would be 35.6 Gbps.

Chroma sub sampling can be used to reduce color info while keeping luminance info (fine for black and white text but makes coloured text blurry). 4:2:2 can reduce 30 bpp to 20 bpp. 4:2:0 can reduce 30 bpp to 15 bpp.

DSC is a visually lossless compression method that can compress 36 bpp down to 12 bpp (or even 8 bpp but I haven't seen that get used by Apple). At 12 bpp, 4K 120Hz only requires 14.25 Gbps. So you could increase the refresh rate. 4K 240 Hz is 2332 MHz (using CVT-RB timing) and requires 28 Gbps.

Chroma sub sampling and DSC can be combined to allow for even more pixels per second.



[ElBoBo]

Navi 23 Support (6600 XT) came in the 12.1 Dev Beta today. Source: Apple Seeds First Beta of macOS Monterey 12.1 to Developers



[ElBoBo]

Yup so this is what I got for the problem report:

panic(cpu 2 caller 0xffffff7fa2743aa1): "[9:0:0][PPLIB] Failed Power Play Resume. Shutting back down.
"@/System/Volumes/Data/SWE/macOS/BuildRoots/38cf1d983f/Library/Caches/com.apple.xbs/Sources/GPUDriversAMD/GPUDriversAMD-4.6.20/Common/IONDRV/ATI/AMDUniversalFramebuffer/AMDUniversalFramebuffer/Controller/Controllers/AmdRadeonController.cpp:1812

That's a known issue with MacOS Monterey which I presume you're on since this bug doesn't exist in Big Sur.



[kvic]

Navi 23 Support (6600 XT) came in the 12.1 Dev Beta today. Source: Apple Seeds First Beta of macOS Monterey 12.1 to Developers

THIS is a very interesting development..lol



[kazuko003]

I used 2019MACPRO, I replaced the 6900XT graphics card by myself, used the Warcraft HDMI2.1 cable, the TV is Sony 9000 H, the interface is connected to the fourth port, and VVR is turned on, but the maximum refresh rate in the system settings is only 60 Hz. , The system is Apple's latest 12.1 version. . .



[joevt]

I used 2019MACPRO, I replaced the 6900XT graphics card by myself, used the Warcraft HDMI2.1 cable, the TV is Sony 9000 H, the interface is connected to the fourth port, and VVR is turned on, but the maximum refresh rate in the system settings is only 60 Hz. , The system is Apple's latest 12.1 version. . .

Do you mean you installed a 6900XT into a 2019 Mac Pro?
What's a Warcraft HDMI2.1 cable?
Maybe VRR only works from DisplayPort?
I don't think Apple's AMD RDNA2 series drivers support the HDMI 2.1 port at greater than HDMI 2.0 speeds?



[kazuko003]

Do you mean you installed a 6900XT into a 2019 Mac Pro?
What's a Warcraft HDMI2.1 cable?
Maybe VRR only works from DisplayPort?
I don't think Apple's AMD RDNA2 series drivers support the HDMI 2.1 port at greater than HDMI 2.0 speeds?

World of Warcraft is a kind of cable name, I am using a monitor connected to the HDMI2.1 interface of AMD6900XT



[LEOMODE]

That's a known issue with MacOS Monterey which I presume you're on since this bug doesn't exist in Big Sur.

No unfortunately the problem existed for me from Big Sur, and occasionally still occurs in Monterey.



[SDAVE]

I have the 6900XT in a MacPro7,1 28 core with 192GB RAM and I get this Kernel Panic ocassionally.

Does anyone know if it's related to the GPU or memory? I ram Memtest and didn't find issues yet.

*** Panic Report *** Panic(CPU 7, time 3881371009646): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0

RAX: 0x0000000005000000, RBX: 0xffffff8012cc6800, RCX: 0x00000000251b6000, RDX: 0x000000000000ffff RSP: 0xffffff83b9563b00, RBP: 0xffffff83b9563b50, RSI: 0x0000000000000ff8, RDI: 0xffffff8012cc6800 R8: 0xfffffffffffffff8, R9: 0x0000000000000000, R10: 0xffffff806bd61e88, R11: 0x0000000000000000 R12: 0x0010000000000000, R13: 0xffffff8012cc6800, R14: 0xffffff835c7c5000, R15: 0x0000000000000004 RFL: 0x0000000000000246, RIP: 0xffffff80124d1002, CS: 0x0000000000000008, SS: 0x0000000000000010 Backtrace (CPU 7), Frame : Return Address 0xffffff83b89bcf70 : 0xffffff80124dae6a 0xffffff83b89bcfd0 : 0xffffff801235bced 0xffffff83b9563b50 : 0xffffff80124ba45a 0xffffff83b9563c70 : 0xffffff8012440ca5 0xffffff83b9563d40 : 0xffffff80123baf4f 0xffffff83b9563db0 : 0xffffff801293d48a 0xffffff83b9563e00 : 0xffffff80129226ab 0xffffff83b9563e20 : 0xffffff80128979b3 0xffffff83b9563e90 : 0xffffff801289763d 0xffffff83b9563f00 : 0xffffff801289c154 0xffffff83b9563f40 : 0xffffff80129b9cbd 0xffffff83b9563fa0 : 0xffffff801235c306



[flowrider]

^^^^I can tell you when I was running an RX5700XT I would crash (panic) at least once and sometimes more times per day. I chalked it up to poor drivers. Since I switched to an RX6800XT I have never had a crash?

I have 16 core with 96GB RAM.

Lou



[SDAVE]

^^^^I can tell you when I was running an RX5700XT I would crash (panic) at least once and sometimes more times per day. I chalked it up to poor drivers. Since I switched to an RX6800XT I have never had a crash?

I have 16 core with 96GB RAM.

Lou

Thanks for the info!

Well I have the 6900XT and have those KPs.

Did you get NMIPI KPs?

I am thinking I will try another slot for the 6900XT and maybe swap out my RAM. Might be a bad RAM module. It really sucks that this is a Pro machine and I get constant freezes. Classic Apple



[flowrider]

^^^^Mine is in slot one. Don't know what NMIPI means❓

Lou



[SDAVE]

Here's a full crashlog if anyone can help (It's a Kernel Panic) while using the GPU, for example in Photoshop (OpenCL disabled, only Metal enabled)

Panic(CPU 0, time 337320226243): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0

RAX: 0x00000000000002d5, RBX: 0x00000000000000ab, RCX: 0x000000000000009f, RDX: 0xffffff800e2c7500

RSP: 0xffffffa2d5325d10, RBP: 0xffffffa2d5325d50, RSI: 0x000000d29567ee5c, RDI: 0xffffff800e2c7500

R8:  0xffffffa2d0a20228, R9:  0x0000000000000001, R10: 0x0000000000ffff01, R11: 0xffffffa2d09c58d0

R12: 0xffffff87c456b000, R13: 0x0000000000000000, R14: 0x0000000000000000, R15: 0xffffff800e2c7500

RFL: 0x0000000000000083, RIP: 0xffffff800d4a386e, CS:  0x0000000000000008, SS:  0x0000000000000000

Backtrace (CPU 0), Frame : Return Address

0xffffffa2d5325bc0 : 0xffffff800d5c476b

0xffffffa2d5325c10 : 0xffffff800d431d39

0xffffffa2d5325d50 : 0xffffff800d4ae8a3

0xffffffa2d5325e10 : 0xffffff800d4ae2f2

0xffffffa2d5325e50 : 0xffffff800d4ae1bc

0xffffffa2d5325e80 : 0xffffff800d4dcf4f

0xffffffa2d5325f40 : 0xffffff800d5b0813

0xffffffa2d5325f80 : 0xffffff800d5c4869

0xffffffa2d5325fd0 : 0xffffff800d431bdd



Process name corresponding to current thread: Adobe Photoshop 2021

Boot args: chunklist-security-epoch=0 -chunklist-no-rev2-dev



Mac OS version:

20G224



Kernel version:

Darwin Kernel Version 20.6.0: Tue Oct 12 18:33:42 PDT 2021; root:xnu-7195.141.8~1/RELEASE_X86_64

Kernel UUID: ABC69550-60C2-34FE-B307-C24A8C39309C

KernelCache slide: 0x000000000d200000

KernelCache base:  0xffffff800d400000

Kernel slide:      0x000000000d210000

Kernel text base:  0xffffff800d410000

__HIB  text base: 0xffffff800d300000

System model name: MacPro7,1 (Mac-27AD2F918AE68F61)

System shutdown begun: NO

Hibernation exit count: 0



System uptime in nanoseconds: 337320259932

Last Sleep:           absolute           base_tsc          base_nano

  Uptime  : 0x0000004e89dab4e4

  Sleep   : 0x0000000000000000 0x0000000000000000 0x0000000000000000

  Wake    : 0x0000000000000000 0x0000000eba704bb0 0x0000000000000000

last started kext at 62083322861: @filesystems.smbfs    3.6.1 (addr 0xffffff7fa8d46000, size 491520)

loaded kexts:

com.intel.driver.EnergyDriver    3.7.0

@filesystems.smbfs    3.6.1

>!ATopCaseHIDEventDriver    4050.1

>!APlatformEnabler    2.7.0d0

>AGPM    122.1

>X86PlatformShim    1.0.0

@fileutil    20.036.15

@filesystems.autofs    3.0

@fsplaceholder    1.14.0

>AudioAUUC    1.70

>!AUpstreamUserClient    3.6.8

>!AMCCSControl    1.14

@filesystems.ntfs    3.14.3

@kext.AMDRadeonX6000    4.0.6

@kext.AMDRadeonServiceManager    4.0.6

>!AGraphicsDevicePolicy    6.3.5

@AGDCPluginDisplayMetrics    6.3.5

>pmtelemetry    1

|IOUserEthernet    1.0.1

>usb.!UUserHCI    1

|IO!BSerialManager    8.0.5d7

@Dont_Steal_Mac_OS_X    7.0.0

>!AHV    1

>!A!IMCEReporter    115

>!ADiskImages2    1

>BridgeAudioCommunication    140.4

>!AAVEBridge    6.1

>ACPI_SMC_PlatformPlugin    1.0.0

>!A!IPCHPMC    2.0.1

>!AFIVRDriver    4.1.0

>!AThunderboltIP    4.0.3

>!AGFXHDA    100.1.433

>!ABridgeAudio!C    140.4

>!A!ISlowAdaptiveClocking    4.0.0

@!AEthernetAquantiaAqtionFirmware    1.0.36

>usb.!UHostBillboardDevice    1.0

|SCSITaskUserClient    436.140.1

>BCMWLANFirmware4378.Hashstore    1

>BCMWLANFirmware4377.Hashstore    1

>BCMWLANFirmware4364.Hashstore    1

>BCMWLANFirmware4355.Hashstore    1

>!AFileSystemDriver    3.0.1

@filesystems.tmpfs    1

@filesystems.hfs.kext    556.100.11

@BootCache    40

@!AFSCompression.!AFSCompressionTypeZlib    1.0.0

@!AFSCompression.!AFSCompressionTypeDataless    1.0.0d1

>!ABCMWLANBusInterfacePCIeMac    1

@filesystems.apfs    1677.141.2

>!AAHCIPort    346.100.2

@private.KextAudit    1.0

>!AACPIButtons    6.1

>!ASMBIOS    2.1

>!AACPIEC    6.1

>!AAPIC    1.7

@!ASystemPolicy    2.0.0

@nke.applicationfirewall    311

|IOKitRegistryCompatibility    1

|EndpointSecurity    1

>!AHIDKeyboard    224

>!AMultitouchDriver    4440.3

>!AInputDeviceSupport    4400.35

>!AHS!BDriver    4050.1

>IO!BHIDDriver    8.0.5d7

@kext.triggers    1.0

|IO!BHost!CUARTTransport    8.0.5d7

|IO!BHost!CTransport    8.0.5d7

>!ASMBus!C    1.0.18d1

|IOAccelerator!F2    442.9

@kext.AMDRadeonX6800HWLibs    1.0

@kext.AMDRadeonX6000HWServices    4.0.6

>!AGraphicsControl    6.3.5

|IOAVB!F    940.4

|IOEthernetAVB!C    1.1.0

@kext.AMDRadeonX6000Framebuffer    4.0.6

>driverkit.serial    6.0.0

>IOPlatformPluginLegacy    1.0.0

@!AGPUWrangler    6.3.5

>!ASMBusPCI    1.0.14d1

>X86PlatformPlugin    1.0.0

>IOPlatformPlugin!F    6.0.0d8

>usb.cdc.acm    5.0.0

>usb.serial    6.0.0

@kext.AMDSupport    4.0.6

@!AGraphicsDeviceControl    6.3.5

|IONDRVSupport    585.2

>!A16X50Serial    3.2

@plugin.IOgPTPPlugin    985.2

>!AHDA!C    283.15

|IOHDA!F    283.15

|IOGraphics!F    585.2

>!UAudio    405.39

|IOAudio!F    300.6.1

@vecLib.kext    1.2.0

|IOSlowAdaptiveClocking!F    1.0.0

>!AThunderboltEDMSink    5.0.3

>!AThunderboltDPOutAdapter    8.1.4

>usb.IOUSBHostHIDDevice    1.2

>usb.cdc.ecm    5.0.0

>usb.cdc.ncm    5.0.0

>usb.!UHub    1.2

>usb.cdc    5.0.0

>usb.networking    5.0.0

>usb.!UHostCompositeDevice    1.2

>!AThunderboltPCIDownAdapter    4.1.1

>!AThunderboltDPInAdapter    8.1.4

>!AThunderboltDPAdapter!F    8.1.4

>!AHPM    3.4.4

>!A!ILpssI2C!C    3.0.60

>!A!ILpssDmac    3.0.60

>!ABSDKextStarter    3

|IOSurface    290.8.1

@filesystems.hfs.encodings.kext    1

>!AEthernetAquantiaAqtion    1.0.64

>!ABCMWLANCoreMac    1.0.0

|IOSerial!F    11

|IO80211!FV2    1200.12.2b1

|IOSkywalk!F    1

>mDNSOffloadUserClient    1.0.1b8

>IOImageLoader    1.0.0

>corecapture    1.0.4

>!AThunderboltNHI    7.2.8

|IOThunderbolt!F    9.3.2

>!AXsanScheme    3

>usb.!UVHCIBCE    1.2

>usb.!UVHCICommonBCE    1.0

>usb.!UVHCI    1.2

>usb.!UVHCICommon    1.0

>!AEffaceableNOR    1.0

>usb.!UHostPacketFilter    1.0

|IOUSB!F    900.4.2

|IOBufferCopy!C    1.1.0

|IOBufferCopyEngine!F    1

|IOAHCIBlock!S    332

|IONVMe!F    2.1.0

>!A!ILpssI2C    3.0.60

|IOAHCI!F    294.100.1

>usb.!UXHCIPCI    1.2

>usb.!UXHCI    1.2

>!A!ILpssGspi    3.0.60

>!AEFINVRAM    2.1

>!AEFIRuntime    2.1

>!ASMCRTC    1.0

|IOSMBus!F    1.1

|IOHID!F    2.0.0

$!AImage4    3.0.0

|IOTimeSync!F    985.2

|IONetworking!F    3.4

>DiskImages    493.0.0

|IO!B!F    8.0.5d7

|IOReport!F    47

|IO!BPacketLogger    8.0.5d7

$quarantine    4

$sandbox    300.0

@kext.!AMatch    1.0.0d1

|CoreAnalytics!F    1

>!ASSE    1.0

>!AKeyStore    2

>!UTDM    511.141.1

|IOUSBMass!SDriver    184.140.2

|IOSCSIBlockCommandsDevice    436.140.1

|IO!S!F    2.1

|IOSCSIArchitectureModel!F    436.140.1

>!AMobileFileIntegrity    1.0.5

@kext.CoreTrust    1

>!AFDEKeyStore    28.30

>!AEffaceable!S    1.0

>!ACredentialManager    1.0

>KernelRelayHost    1

|IOUSBHost!F    1.2

>!UHostMergeProperties    1.2

>usb.!UCommon    1.0

>!ABusPower!C    1.0

>!ASEPManager    1.0.1

>IOSlaveProcessor    1

>!AACPIPlatform    6.1

>!ASMC    3.1.9

|IOPCI!F    2.9

|IOACPI!F    1.4

>watchdog    1

@kec.pthread    1

@kec.corecrypto    11.1

@kec.Libm    1

mp_kdp_enter() timed-out on cpu 36, NMI-ing

Panic(CPU 14, time 337820438655): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0

RAX: 0x0000000000000024, RBX: 0xffffffa2f6f9bbd0, RCX: 0x000000000000000e, RDX: 0x0000000000000000

RSP: 0xffffffa2f6f9bac0, RBP: 0xffffffa2f6f9bb00, RSI: 0x0000000000000003, RDI: 0x0000000000000006

R8:  0xffffff87baa45b20, R9:  0xffffff800d48ca7d, R10: 0x0000000000000000, R11: 0xffffffa2f6f9bbc0

R12: 0xffffffa2f6f9bbd0, R13: 0x0000000000000046, R14: 0xffffffa2f6f9bbd0, R15: 0x0000000000000006

RFL: 0x0000000000000086, RIP: 0xffffff800d48cebd, CS:  0x0000000000000008, SS:  0x0000000000000010

Backtrace (CPU 14), Frame : Return Address

0xffffffa2f5d10f80 : 0xffffff800d5c476b

0xffffffa2f5d10fd0 : 0xffffff800d431bdd

0xffffffa2f6f9bb00 : 0xffffff800d5d49d3

0xffffffa2f6f9bb40 : 0xffffff800d5c4fca

0xffffffa2f6f9bb90 : 0xffffff800d431a2f

0xffffffa2f6f9bbb0 : 0xffffff800d48ca7d

0xffffffa2f6f9bcd0 : 0xffffff800d48cd73

0xffffffa2f6f9bd40 : 0xffffff800dc9d8fa

0xffffffa2f6f9bdb0 : 0xffffff800d4a39a6

0xffffffa2f6f9be20 : 0xffffff800d4b07c7

0xffffffa2f6f9be80 : 0xffffff800d4b05b6

0xffffffa2f6f9bed0 : 0xffffff800d4bd22e

0xffffffa2f6f9bee0 : 0xffffff800d4bd2b4

0xffffffa2f6f9bef0 : 0xffffff800d5a909d

0xffffffa2f6f9bfa0 : 0xffffff800d432216



Process name corresponding to current thread: Adobe Photoshop 2021

Panic(CPU 24, time 337820459805): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0

RAX: 0x0000000000000024, RBX: 0xffffffa2d546bbd0, RCX: 0x0000000000000018, RDX: 0x0000000000000000

RSP: 0xffffffa2d546bac0, RBP: 0xffffffa2d546bb00, RSI: 0x0000000000000003, RDI: 0x0000000000000006

R8:  0xffffff87c4cd0280, R9:  0xffffff800d48ca7d, R10: 0x0000000000000000, R11: 0xffffffa2d546bbc0

R12: 0xffffffa2d546bbd0, R13: 0x0000000000000046, R14: 0xffffffa2d546bbd0, R15: 0x0000000000000006

RFL: 0x0000000000000086, RIP: 0xffffff800d48cebd, CS:  0x0000000000000008, SS:  0x0000000000000010

Backtrace (CPU 24), Frame : Return Address

0xffffffa2f5d24f80 : 0xffffff800d5c476b

0xffffffa2f5d24fd0 : 0xffffff800d431bdd

0xffffffa2d546bb00 : 0xffffff800d5d49d3

0xffffffa2d546bb40 : 0xffffff800d5c4fca

0xffffffa2d546bb90 : 0xffffff800d431a2f

0xffffffa2d546bbb0 : 0xffffff800d48ca7d

0xffffffa2d546bcd0 : 0xffffff800d48cd73

0xffffffa2d546bd40 : 0xffffff800dc9d8fa

0xffffffa2d546bdb0 : 0xffffff800d4a39a6

0xffffffa2d546be20 : 0xffffff800d4b07c7

0xffffffa2d546be80 : 0xffffff800d4b05b6

0xffffffa2d546bed0 : 0xffffff800d4bd22e

0xffffffa2d546bee0 : 0xffffff800d4bd2b4

0xffffffa2d546bef0 : 0xffffff800d5a909d

0xffffffa2d546bfa0 : 0xffffff800d432216



Process name corresponding to current thread: Adobe Photoshop 2021

Panic(CPU 5, time 337820440756): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0

RAX: 0x0000000000000024, RBX: 0xffffffc353943c90, RCX: 0x0000000000000005, RDX: 0x0000000000000000

RSP: 0xffffffc353943b80, RBP: 0xffffffc353943bc0, RSI: 0x0000000000000003, RDI: 0x0000000000000006

R8:  0xffffff87b76c3c60, R9:  0xffffff800d48ca7d, R10: 0x0000000000000000, R11: 0xffffffc353943c80

R12: 0xffffffc353943c90, R13: 0x0000000000000046, R14: 0xffffffc353943c90, R15: 0x0000000000000006

RFL: 0x0000000000000086, RIP: 0xffffff800d48cebd, CS:  0x0000000000000008, SS:  0x0000000000000010

Backtrace (CPU 5), Frame : Return Address

0xffffffa2f5d6cf80 : 0xffffff800d5c476b

0xffffffa2f5d6cfd0 : 0xffffff800d431bdd

0xffffffc353943bc0 : 0xffffff800d5d49d3

0xffffffc353943c00 : 0xffffff800d5c4fca

0xffffffc353943c50 : 0xffffff800d431a2f

0xffffffc353943c70 : 0xffffff800d48ca7d

0xffffffc353943d90 : 0xffffff800d48cd73

0xffffffc353943e00 : 0xffffff800dc9d8fa

0xffffffc353943e70 : 0xffffff800d4a39a6

0xffffffc353943ee0 : 0xffffff800d4b07c7

0xffffffc353943f40 : 0xffffff800d4b57c0

0xffffffc353943f80 : 0xffffff800d4b58b8

0xffffffc353943fa0 : 0xffffff800d43113e



Process name corresponding to current thread: kernel_task

Panic(CPU 16, time 337820443973): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0

RAX: 0x0000000000000024, RBX: 0xffffffa30ad5ba90, RCX: 0x0000000000000010, RDX: 0x0000000000000000

RSP: 0xffffffa30ad5b980, RBP: 0xffffffa30ad5b9c0, RSI: 0x0000000000000003, RDI: 0x0000000000000006

R8:  0xffffff87bde80280, R9:  0xffffff800d48ca7d, R10: 0x0000000000000000, R11: 0xffffffa30ad5ba80

R12: 0xffffffa30ad5ba90, R13: 0x0000000000000046, R14: 0xffffffa30ad5ba90, R15: 0x0000000000000006

RFL: 0x0000000000000086, RIP: 0xffffff800d48cebd, CS:  0x0000000000000008, SS:  0x0000000000000010

Backtrace (CPU 16), Frame : Return Address

0xffffffa2f5d14f80 : 0xffffff800d5c476b

0xffffffa2f5d14fd0 : 0xffffff800d431bdd

0xffffffa30ad5b9c0 : 0xffffff800d5d49d3

0xffffffa30ad5ba00 : 0xffffff800d5c4fca

0xffffffa30ad5ba50 : 0xffffff800d431a2f

0xffffffa30ad5ba70 : 0xffffff800d48ca7d

0xffffffa30ad5bb90 : 0xffffff800d48cd73

0xffffffa30ad5bc00 : 0xffffff800dc9d8fa

0xffffffa30ad5bc70 : 0xffffff800d4a39a6

0xffffffa30ad5bce0 : 0xffffff800d4ae8a3

0xffffffa30ad5bda0 : 0xffffff800d4b2582

0xffffffa30ad5be10 : 0xffffff800d4b2148

0xffffffa30ad5be80 : 0xffffff800d4b05cf

0xffffffa30ad5bed0 : 0xffffff800d4bd22e

0xffffffa30ad5bee0 : 0xffffff800d4bd2b4

0xffffffa30ad5bef0 : 0xffffff800d5a909d

0xffffffa30ad5bfa0 : 0xffffff800d432216



Process name corresponding to current thread: Adobe Photoshop 2021

Panic(CPU 6, time 337820440559): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0

RAX: 0x0000000000000024, RBX: 0xffffffc359b63bd0, RCX: 0x0000000000000006, RDX: 0x0000000000000000

RSP: 0xffffffc359b63ac0, RBP: 0xffffffc359b63b00, RSI: 0x0000000000000003, RDI: 0x0000000000000006

R8:  0xffffff87bef9cda0, R9:  0xffffff800d48ca7d, R10: 0x0000000000000000, R11: 0xffffffc359b63bc0

R12: 0xffffffc359b63bd0, R13: 0x0000000000000046, R14: 0xffffffc359b63bd0, R15: 0x0000000000000006

RFL: 0x0000000000000086, RIP: 0xffffff800d48cebd, CS:  0x0000000000000008, SS:  0x0000000000000010

Backtrace (CPU 6), Frame : Return Address

0xffffffa2f5d00f80 : 0xffffff800d5c476b

0xffffffa2f5d00fd0 : 0xffffff800d431bdd

0xffffffc359b63b00 : 0xffffff800d5d49d3

0xffffffc359b63b40 : 0xffffff800d5c4fca

0xffffffc359b63b90 : 0xffffff800d431a2f

0xffffffc359b63bb0 : 0xffffff800d48ca7d

0xffffffc359b63cd0 : 0xffffff800d48cd73

0xffffffc359b63d40 : 0xffffff800dc9d8fa

0xffffffc359b63db0 : 0xffffff800d4a39a6

0xffffffc359b63e20 : 0xffffff800d4b07c7

0xffffffc359b63e80 : 0xffffff800d4b05b6

0xffffffc359b63ed0 : 0xffffff800d4bd22e

0xffffffc359b63ee0 : 0xffffff800d4bd2b4

0xffffffc359b63ef0 : 0xffffff800d5a909d

0xffffffc359b63fa0 : 0xffffff800d432216



Process name corresponding to current thread: Adobe Photoshop 2021

Panic(CPU 55, time 337820470110): NMIPI for unresponsive processor: TLB flush timeout, TLB state:0x0

RAX: 0x0000000000000024, RBX: 0xffffffc35ac83a90, RCX: 0x0000000000000037, RDX: 0x0000000000000000

RSP: 0xffffffc35ac83980, RBP: 0xffffffc35ac839c0, RSI: 0x0000000000000003, RDI: 0x0000000000000006

R8:  0xffffff87c561a140, R9:  0xffffff800d48ca7d, R10: 0x0000000000000000, R11: 0xffffffc35ac83a80

R12: 0xffffffc35ac83a90, R13: 0x0000000000000046, R14: 0xffffffc35ac83a90, R15: 0x0000000000000006

RFL: 0x0000000000000086, RIP: 0xffffff800d48cebd, CS:  0x0000000000000008, SS:  0x0000000000000010

Backtrace (CPU 55), Frame : Return Address

0xffffffa2f5dd0f80 : 0xffffff800d5c476b

0xffffffa2f5dd0fd0 : 0xffffff800d431bdd

0xffffffc35ac839c0 : 0xffffff800d5d49d3

0xffffffc35ac83a00 : 0xffffff800d5c4fca

0xffffffc35ac83a50 : 0xffffff800d431a2f

0xffffffc35ac83a70 : 0xffffff800d48ca7d

0xffffffc35ac83b90 : 0xffffff800d48cd73

0xffffffc35ac83c00 : 0xffffff800dc9d8fa

0xffffffc35ac83c70 : 0xffffff800d4a39a6

0xffffffc35ac83ce0 : 0xffffff800d4ae8a3

0xffffffc35ac83da0 : 0xffffff800d4b2582

0xffffffc35ac83e10 : 0xffffff800d4b2148

0xffffffc35ac83e80 : 0xffffff800d4b05cf

0xffffffc35ac83ed0 : 0xffffff800d4bd22e

0xffffffc35ac83ee0 : 0xffffff800d4bd2b4

0xffffffc35ac83ef0 : 0xffffff800d5a909d

0xffffffc35ac83fa0 : 0xffffff800d432216



Process name corresponding to current thread: Adobe Photoshop 2021

mp_kdp_enter() NMI pending on cpus: 0 1 2 3 4 7 8 9 10 11 12 13 18 19 20 21 22 23 26 27 28 30 31 32 33 34 35 37 38 39 40 41 42 43 44 46 47 48 49 50 51 52 53 54

mp_kdp_enter() timed-out during locked wait after NMI;expected 56 acks but received 13 after 19637428 loops in 1246874999 ticks

panic(cpu 36 caller 0xffffff800d59de91): "IPI timeout, unresponsive CPU bitmap: 0x1, NMIPI acks: 0x0, now: 0x1, deadline: 337320224255, pre-NMIPI time: 0x4e89da2731, current: 0x4e89db409a, global: 1"@/System/Volumes/Data/SWE/macOS/BuildRoots/220e8a1b79/Library/Caches/com.apple.xbs/Sources/xnu/xnu-7195.141.8/osfmk/x86_64/pmap.c:2905

Backtrace (CPU 36), Frame : Return Address

0xffffffc35998b350 : 0xffffff800d48d25d

0xffffffc35998b3a0 : 0xffffff800d5d49d3

0xffffffc35998b3e0 : 0xffffff800d5c4fca

0xffffffc35998b430 : 0xffffff800d431a2f

0xffffffc35998b450 : 0xffffff800d48ca7d

0xffffffc35998b570 : 0xffffff800d48cd73

0xffffffc35998b5e0 : 0xffffff800dc9d8fa

0xffffffc35998b650 : 0xffffff800d59de91

0xffffffc35998b710 : 0xffffff800d5a3f6c

0xffffffc35998b7f0 : 0xffffff800d5a4d56

0xffffffc35998b850 : 0xffffff800d532f05

0xffffffc35998b9a0 : 0xffffff800d532853

0xffffffc35998b9d0 : 0xffffff800d52bf61

0xffffffc35998ba00 : 0xffffff800d49cf08

0xffffffc35998ba50 : 0xffffff800d49cd61

0xffffffc35998bab0 : 0xffffff800d49d890

0xffffffc35998bad0 : 0xffffff801064b89a

0xffffffc35998baf0 : 0xffffff8010636118

0xffffffc35998bbd0 : 0xffffff800d754ef4

0xffffffc35998bc60 : 0xffffff800d73c42f

0xffffffc35998bd60 : 0xffffff800d73be7c

0xffffffc35998bf40 : 0xffffff800db3fd2e

0xffffffc35998bfa0 : 0xffffff800d4321f6

      Kernel Extensions in backtrace:

         com.apple.filesystems.apfs(1677.141.2)[A2E36135-081F-3EE7-9F8A-53103C506BE8]@0xffffff80105ab000->0xffffff801071afff

            dependency: com.apple.driver.AppleEFINVRAM(2.1)[511FC3DC-D63F-3993-9C5C-613AF51D837C]@0xffffff800e8fe000->0xffffff800e907fff

            dependency: com.apple.driver.AppleEffaceableStorage(1.0)[7AC5E118-B326-3E46-980F-4706B9C5ABF0]@0xffffff800e911000->0xffffff800e916fff

            dependency: com.apple.iokit.CoreAnalyticsFamily(1)[3040B1E0-7488-35C7-9DB9-ED6C9EF965E7]@0xffffff800ed6d000->0xffffff800ed73fff

            dependency: com.apple.iokit.IOStorageFamily(2.1)[AEB16297-5950-3E23-84C4-2E9928878BA1]@0xffffff801006e000->0xffffff801007ffff

            dependency: com.apple.kec.corecrypto(11.1)[379F0025-A70B-3A5D-A92F-3C557D6E4E68]@0xffffff8010748000->0xffffff80107d9fff

            dependency: com.apple.security.AppleImage4(3.0.0)[7B75FFFD-E85A-3686-8D37-27B84E4DFE6D]@0xffffff800e97d000->0xffffff800e98dfff



Process name corresponding to current thread: mds



[blazerunner]

Navi 23 Support (6600 XT) came in the 12.1 Dev Beta today. Source: Apple Seeds First Beta of macOS Monterey 12.1 to Developers

WTF, how did Apple manage to get support for the 6600 XT before the 6700 XT?
