In principle I agree. However, there is also that extraordinary claims require extraordinary evidence, and the claims of the authors are quite extraordinary.
The authors used the SHOC benchmark suite. This benchmark was developed mostly before 2015, and the last minor updates predate the release of the M1. It seems safe to say the benchmark was not developed with Apple Silicon in mind.
There is a recent issue report on the SHOC Git: MaxFlops reports crazy numbers for Apple M1 - "...suggest that my M1 Air laptop is the second most powerful supercomputer in Europe...". As per one of the benchmark authors, the likely reason is that the compiler for the M1 optimizes away "useless" work, thus sidestepping the purpose of the benchmark, and the benchmark would have to be updated to prevent this from happening.
Going by this I feel the burden of proof is on the authors. If you want to demonstrate that a laptop is orders of magnitude faster than supercomputers and even the manufacturer's own claims, you need to bring more than an unsuitable benchmark.
Both 64-bit floats and 64-bit atomics are unsupported. The M2 may (unconfirmed) have one obscure non-returning UInt64 max just to run Nanite. Not the full set required for e.g. cl_khr_int64_base_atomics. I've been heavily investing time into predicting the performance of emulated 64-bit floats. It stands at 1:70 for FP64 and 1:40 for FP59. The reduced precision version solves the same problem as FP64: FP32 is not good for highly precise scientific numbers. Many apps like OpenMM do most stuff in FP32 and sum important values in FP64. Mixed precision use cases are what the lack of hardware FP64 kills off.
Regarding 64-bit atomics emulation, I have a real-world P.O.C. where it's 5x slower than 32-bit. Not bad and aligns perfectly with theory. My intent was to accelerate INQ, a scientific software library for GPUs, on M1. It was entirely FP64 and had some atomic addition. Turns out, the CPU is much more powerful at FP64 than I realized! <400 GFLOPS vector (multi-core) and <700 GFLOPS matrix (single-core). Same as RTX 3090's FP64.
To port existing software libraries, we need more than just preprocessor macros. Many libraries, such as INQ, rely on single-source APIs. CUDA, HIP, and SYCL are examples, and improve developer productivity for compute. Dual-source APIs like OpenCL, Metal, and DirectX never caught on. I'm working on a Metal backend for hipSYCL, so the Apple GPU can actually be viable for scientific computing. Many scientific libraries use SYCL (single-source) in addition to HIP/CUDA, or are easily portable with Intel SYCLomatic. There is no such thing as Metal-omatic, which may be impossible because Metal is dual-source.
Another issue is something called "Unified Shared Memory" (USM) in CUDA/OpenCL 2.0/SYCL 2020. The idea that the CPU and GPU can read from the same memory address, you'd think Apple allows that. After all, it's perfect for the Unified Memory Architecture. No. The Apple GPU is designed for graphics and TensorFlow, not GPGPU.
USM is supported on Nvidia, AMD, and Intel's drivers for their discrete GPUs. It's accomplished by hardware-accelerated "address translation service" which maps CPU pointers to GPU pointers. Another hardware feature automatically migrates data between the CPU and GPU over PCIe. USM boosts developer productivity and makes massive C++ code bases easily portable from CPU to GPU. Luckily, that can also be emulated with good performance on M1.
Is the Metal IR specification publicly available?
Is it a hardware or software limitation?
Weird, since Metal docs mention atomic_ulong - a 64-bit atomic type. Is that a typo or mistake on Apples side?
Does this take into account FMA optimizations as described in this paper: http://andrewthall.org/papers/df64_qf128.pdf
No it’s not, but compiled Metal files are just LLVM byte code. There is a library for converting Metal AIR to SPIR-V: https://github.com/darlinghq/indium
The GPU has its own TLB and binds memory at a different virtual address. Unified address space is tricky - you need to ensure that same address ranges are available for both devices. From what I understand, CUDA does this by reserving a huge area of VM addresses and allocating data from that range. But this is much trickier for Apple, where you can bind any client-allocated memory page to the GPU. To do this correctly you’d need to use the same page tables between the CPU and the GPU, leaking GPU state to the application etc.
I wouldn’t be surprised if Apple implements this in the future, but it will need substantial work on hardware, software and kernel level.
I can imagine that a library that translates Metal AIR to SPIR-V might be useful for playing on Android with iOS binaries, but how can it be useful for compiling SYCL code into Metal AIR?
Does Vulkan/DirectX/WebGPU have Unified Shared Memory? Is it only possible on single-source APIs?
By the way, how is the development of WebGPU going?
I did consider that approach, but it's inexact and not IEEE-compliant. I tried to GPU-accelerate a physics simulation once, but the double-single approach had trouble splitting a single. Perfect emulation requires manipulating the mantissa as integers. FP59 is faster because the integer mantissa can be 48-bit aligned.
I have a working P.O.C. that uses this approach. It allocates a giant chunk of VM and maps it to GPU. You translate addresses simply through integer addition. With compiler tricks, you can even pre-convert some pointers before sending them to GPU.
I've been exploring a lot of design approaches for SYCL, involving LLVM IR, SPIR-V dialects, AIR and MSL. The eventual approach was to structurize the LLVM IR, then -> Vulkan SPIR-V -> MSL using SPIRV-Cross. I'll have to modify SPIRV-Cross to add more compute instructions.
None of the graphics APIs have Unified Shared Memory.
How can SYCL be used on Nvidia GPUs?
Bringing Nvidia® and AMD support to oneAPI
Developers can write SYCL™ code and use oneAPI to target Nvidia* and AMD* GPUs with free binary plugins Today is a milestone for me as Codeplay®...
How can Julia be used on Apple GPUs?
Last edited:
How can Julia be used on Apple GPUs?
That library uses Metal directly.
I actually found a post of Philip's on the Unreal Forums where he mentions that those functions only work with metal family 8 aka A15+ / M2, while the M1 is only family 7.
And since Philip is here I'd like to say incredible work!
Just M2 (maybe), and not A15. I got an unconfirmed private message where someone said Apple engineers told them. Perhaps this is like the M1, which has some differences from A14. For example, M1 supports BC compression and MetalFX upscaling. A14 does not.
Apple's A16 was originally going to be another GPU architecture, supporting power-efficient ray tracing (Apple 9?). I wonder whether they would have supported MetalFX and Nanite on it, without their setback. Or they would limit those features to M-series, to emphasize that Macs are for gaming.
That's a shame. Out of curiosity I tried your test program on my iPhone 14 Pro I can confirm that A16 also gets the same "Compiler failed with XPC_ERROR_CONNECTION_INTERRUPTED"
Unfortunately I don't have an M2 to test on.
I re-read Apples docs and indeed they say that 64 bit atomics are only supported for min and max and only for “hardware as specified in the Metal feature table”. Of course, no mention of that in the tables. Typical Apple documentation quality…
Yeah. I tried everything from offline compilation of the shader to every possible permutation of setting up a kernel - hoping that some random combo might work, but nope, all you get is a shader compiler crash when setting the pipeline state.
Only Apple knows what the deal is with these two weird functions I guess.
When making these comparisons - are the latest versions and compatible versions of components installed? Java (Zulu), Numpy, Numba configured to use the Apple Accelerate frameworks etc. There is a beta of MatLab that is semi-optimised for Apple M1 / M2.
Last edited:
Some time ago I read that some libraries had problems with Apple Accelerate frameworks because they were based on an old version of BLAS/LAPLACK. Have those problems been solved?
Not sure, but any OS is supposed to come with an optimized BLAS library. Accelerate is optimized for the AMX, with 10x the compute power compared to SIMD NEON in a single-core process. If libraries aren't using it, they're killing CPU performance. It seemed that PyTorch wasn't using Accelerate (rather, OpenBLAS) for quite a while - not well clarified which they were using.
Hello theorist9,

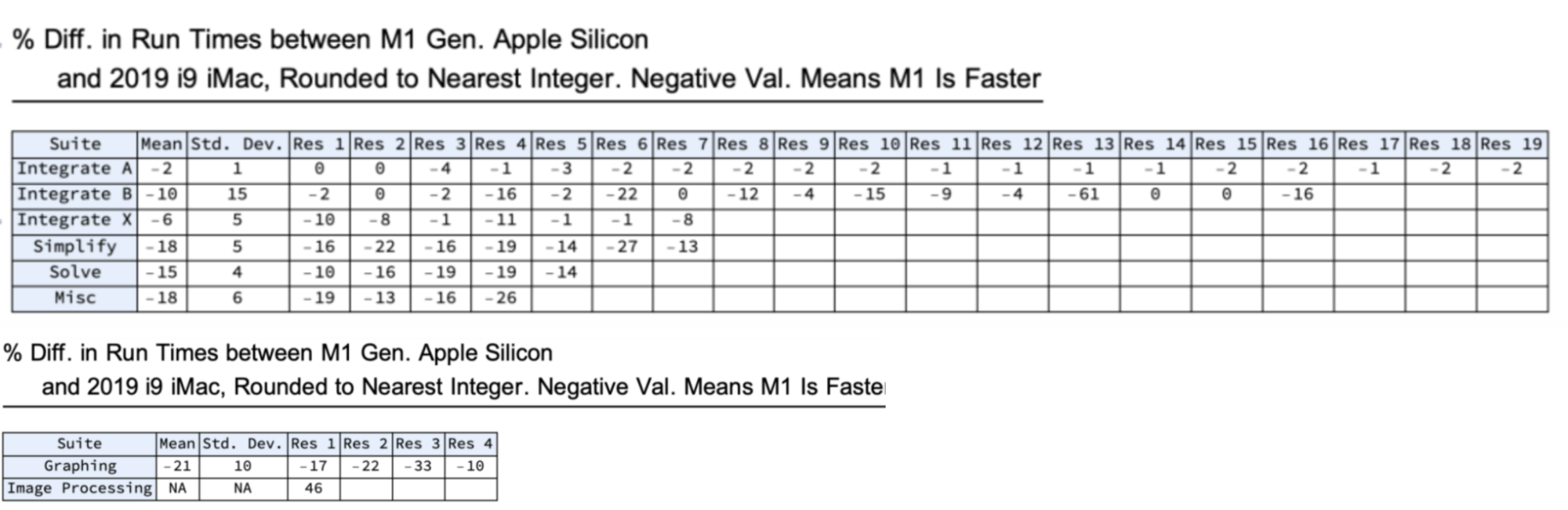

Thank you for running your suite of Mathematica benchmarks on Mathematica 13.0.1.
Would it be possible to rerun your benchmarks on the most recent version of Mathematica (v.13.2) and report back your findings? According to the Wolfram Research release notes (for v. 13.2), "extensive" optimizations were made to increase the efficiency of many Mathematica capabilities.
All the best,
richmlow
Hi richmlow. I'd be happy to rerun them on my i9 iMac, but I'll need to contact those who did the comparison runs for me on their M1 Max's, and I'm not sure if they still have Mathematica running on their machines (at least one, and possibly both, downloaded the 7-day trial version to run the test). I'd offer to send my benchmark tests to you to run, but it doesn't appear you have an M1.
