I should be able to help with that I also have gt120 mac edition...I mucked about in the efi shell with those commands too, trying to get 8GT/s working on my Qemu virtual machine for High Sierra with the RX580, no love for me either, tho Mojave PB's macOS runtime drivers enable it
I'd be really interested in the results of the "drivers" command from an EFI Shell with the GTX 960 installed, it maybe some time before I get my hands on another nVidia card with a GOP firmware on it.
I posted a EFI Shell and some basic instructions on how to bless/boot and use it.
At this time, no one has reported any nVidia card as working with GOP enabled boot loaders in a Mac Pro, so two cards are required for testing, one with a Apple compatible UGA EFI ROM, and an nVidia PC Card with GOP.
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
Resolved Boot menus for graphics output protocol.(AMD only)see page 13
- Thread starter DearthnVader
- Start date
- Sort by reaction score
What Mac Pro do you have, and FW version?
I just tested USB Boot from the R9 280x, and it worked just fine, however it took around two minutes from boot chime to GOP screen, let me pull my EFI card and see if it still boots to the gop screen......
Also, FV2 is now working via this version of rEFInd and GOP screen, before it would just reboot the system if I selected my FV2 enable boot drive. However I only get one menu entry for that macOS drive.
EDIT: Tested it with the R9 280x as the only card in the system, it took a little while, but It worked.
If you have a EFI card handy too, we'll need to see if your GOP driver is loading as valid for the OEM ROM.
Also, FYI, F2 in rEFInd lets you select safe mode, verbose mode, and single user mode.
[doublepost=1534928560][/doublepost]I'm just spit balling, but it really looks like refind doesn't like one of your discs. Maybe you have a very large drive, or this version of rEFInd doesn't care for apfs.
Did I include the apfs.efi?
[doublepost=1534928777][/doublepost]Also refind_GOPx64.efi was built from the wrong code, and it doesn't work at all, no boot for me on my 3,1.
And there is no need to test your modded ROM, 100% sure that's an INVALID driver.
[doublepost=1534929520][/doublepost]Found an odd thing, if I boot my FV2 drive from a Mac EFI UGA card in rEFInd, the system just reboots, but if I select it with a GOP card I get the FV2 EFI screen and I can enter my password and boot.
Last edited:
May be, there are 6 hard drives installed at this moment.
And yes, apfs.efi is included.
BTW @h9826790 it's ass early o'clock in US Eastern time, you got my while I'm still having my coffee. I get up around 4am, so I can get more hacking done before noon than most people do all day.
[doublepost=1534932273][/doublepost]@h9826790, you may have better luck with Clover, I'll just need to load the EmuGOPDxe.efi from Next Loader into the drivers64UEFI folder of Clover.

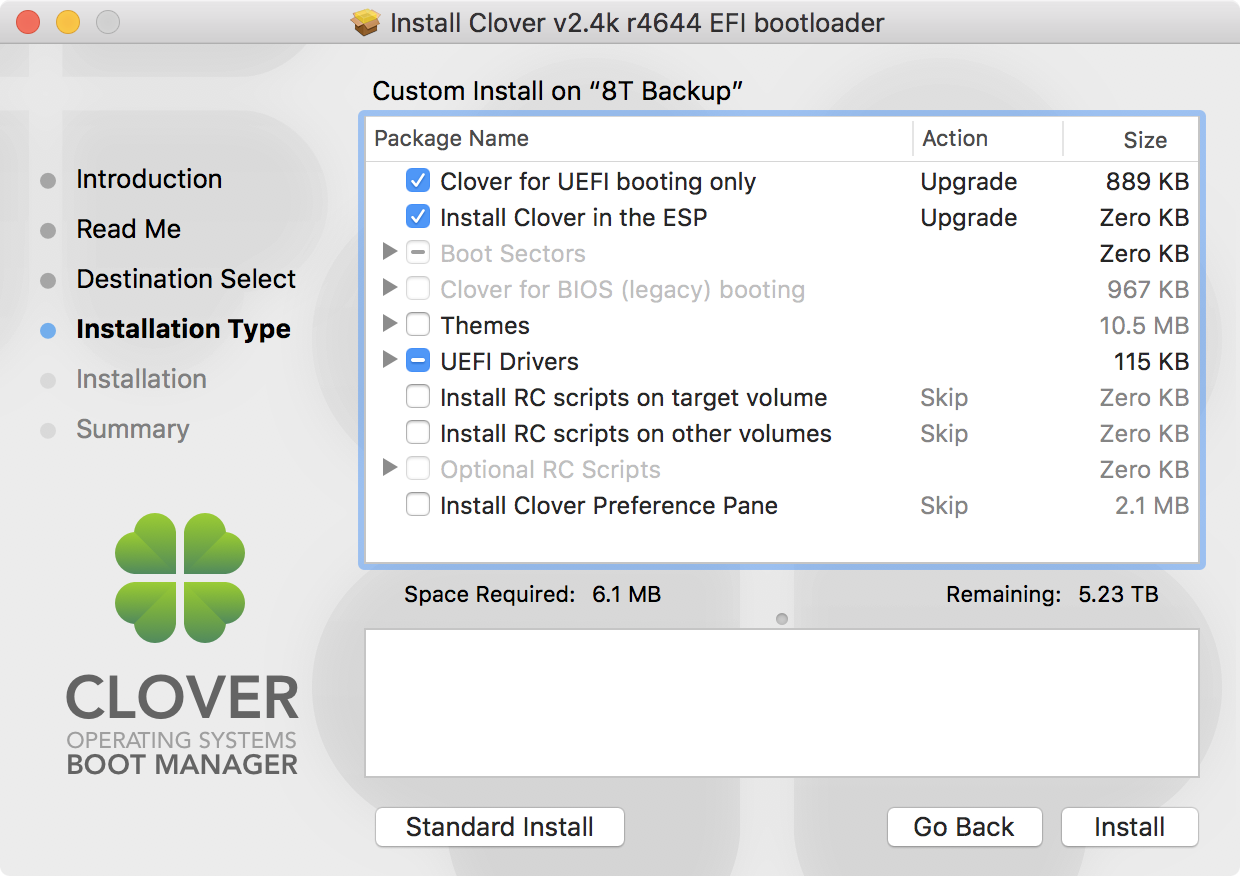

Install for UEFI booting Only, and bless Clover much the same way we do rEFInd.
https://drive.google.com/open?id=1I95drJgWZMeJe6OPm_MPwT6PfIE8bqDp
[doublepost=1534932273][/doublepost]@h9826790, you may have better luck with Clover, I'll just need to load the EmuGOPDxe.efi from Next Loader into the drivers64UEFI folder of Clover.
Install for UEFI booting Only, and bless Clover much the same way we do rEFInd.
https://drive.google.com/open?id=1I95drJgWZMeJe6OPm_MPwT6PfIE8bqDp
Last edited:
BTW @h9826790 it's ass early o'clock in US Eastern time, you got my while I'm still having my coffee. I get up around 4am, so I can get more hacking done before noon than most people do all day.
[doublepost=1534932273][/doublepost]@h9826790, you may have better luck with Clover, I'll just need to load the EmuGOPDxe.efi from Next Loader into the drivers64UEFI folder of Clover.
Install for UEFI booting Only, and bless Clover much the same way we do rEFInd.
https://drive.google.com/open?id=1I95drJgWZMeJe6OPm_MPwT6PfIE8bqDp
OK, just the latest build Clover?
[doublepost=1534935167][/doublepost]Tested with Clover_v2.4k_r4644 (UEFI mode, no other customisation make during installation)

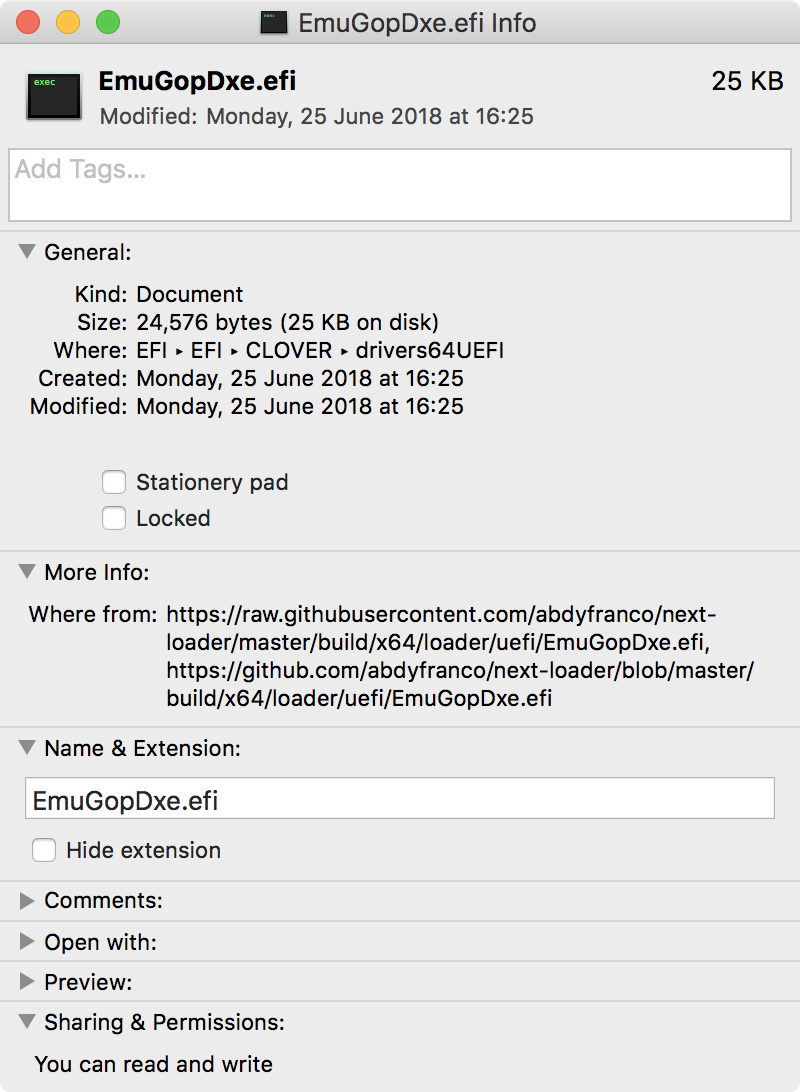

Installed on the same internal 8TB bootable HDD. EmuGOPDxe.efi copied to the drivers64UEFI folder
Bless the CLOVERX64.efi
Code:
sudo bless --mount /Volumes/EFI --setBoot -nextonly --file /Volumes/EFI/efi/CLOVER/CLOVERX64.efiBlack screen only for around 3 min, Caps lock key working. So I press Enter to continue the boot (end up it default pre-select my current macOS).
My cMP is definitely booted via Clover. It ident as 2012 Mac Pro but not 2009, Serial Number is a fake one.
And the PCIe info messed up as usual.
[doublepost=1534935967][/doublepost]Have to take my kids for dinner now. Anyway, thanks for the effort, will be your beta tester again later.
Last edited:
Will this work for iMac? Especially with GTX 780M card? It kinda has an UEFI BIOS
It should, but it's going to be hard to debug if it doesn't. Testing really requires two cards, one with Mac UGA EFI, and one with GOP.

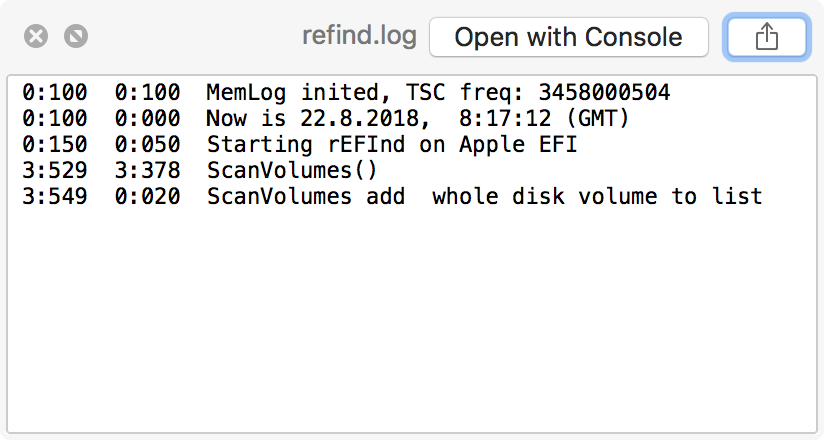

I'd be interested in the resulting refind.log and or Clover boot.log
[doublepost=1534947090][/doublepost]
Thanks for the feedback, I tested the same version of Clover with the R9 280x and it works just fine.
Next we'll have to know that the GOP driver is loaded and Valid. So it's going to require two cards, one with Mac UGA efi.
Also, the Clover Pre-boot log can be save to efi\clover\misc by pressing F2.....
Code:
0:100 0:100 MemLog inited, TSC freq: 3191999141
0:100 0:000 CPU was calibrated with ACPI PM Timer
0:100 0:000
0:100 0:000 Now is 22.8.2018, 14:26:41 (GMT)
0:100 0:000 Starting Clover revision: 4644 on Apple EFI
0:100 0:000 Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.13.6 | XCODE: 9.4.1]
0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\HD(1,GPT,894935C8-83DE-4208-BCF7-BF8584B930FB,0x28,0x64000) @7E6AFB98
0:100 0:000 SelfDirPath = \efi\clover
0:100 0:000 === [ Get Smbios ] ========================================
0:100 0:000 Type 16 Index = 0
0:100 0:000 Total Memory Slots Count = 8
0:100 0:000 Type 17 Index = 0
0:100 0:000 SmbiosTable.Type17->Speed = 667MHz
0:100 0:000 SmbiosTable.Type17->Size = 1024MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM Riser B DIMM 1
0:100 0:000 SmbiosTable.Type17->Vendor = 0x80AD
0:100 0:000 SmbiosTable.Type17->SerialNumber = 0x75211306
0:100 0:000 SmbiosTable.Type17->PartNumber = 0x48594D5035313241373243503844332D5335
0:100 0:000 Type 17 Index = 1
0:100 0:000 SmbiosTable.Type17->Speed = 667MHz
0:100 0:000 SmbiosTable.Type17->Size = 1024MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM Riser B DIMM 2
0:100 0:000 SmbiosTable.Type17->Vendor = 0x80CE
0:100 0:000 SmbiosTable.Type17->SerialNumber = 0x261CA5A7
0:100 0:000 SmbiosTable.Type17->PartNumber = 0x4D3339355432393533455A342D4345363520
0:100 0:000 Type 17 Index = 2
0:100 0:000 SmbiosTable.Type17->Speed = 667MHz
0:100 0:000 SmbiosTable.Type17->Size = 1024MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM Riser A DIMM 1
0:100 0:000 SmbiosTable.Type17->Vendor = 0x80AD
0:100 0:000 SmbiosTable.Type17->SerialNumber = 0x75211702
0:100 0:000 SmbiosTable.Type17->PartNumber = 0x48594D5035313241373243503844332D5335
0:100 0:000 Type 17 Index = 3
0:100 0:000 SmbiosTable.Type17->Speed = 667MHz
0:100 0:000 SmbiosTable.Type17->Size = 1024MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM Riser A DIMM 2
0:100 0:000 SmbiosTable.Type17->Vendor = 0x80CE
0:100 0:000 SmbiosTable.Type17->SerialNumber = 0x241B3252
0:100 0:000 SmbiosTable.Type17->PartNumber = 0x4D3339355432393533455A342D4345363520
0:100 0:000 Type 17 Index = 4
0:100 0:000 SmbiosTable.Type17->Speed = 667MHz
0:100 0:000 SmbiosTable.Type17->Size = 1024MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM Riser B DIMM 3
0:100 0:000 SmbiosTable.Type17->Vendor = 0x80CE
0:100 0:000 SmbiosTable.Type17->SerialNumber = 0x251A3634
0:100 0:000 SmbiosTable.Type17->PartNumber = 0x4D3339355432393533455A342D4345363520
0:100 0:000 Type 17 Index = 5
0:100 0:000 SmbiosTable.Type17->Speed = 667MHz
0:100 0:000 SmbiosTable.Type17->Size = 1024MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM Riser B DIMM 4
0:100 0:000 SmbiosTable.Type17->Vendor = 0x80CE
0:100 0:000 SmbiosTable.Type17->SerialNumber = 0x251A3716
0:100 0:000 SmbiosTable.Type17->PartNumber = 0x4D3339355432393533455A342D4345363520
0:100 0:000 Type 17 Index = 6
0:100 0:000 SmbiosTable.Type17->Speed = 667MHz
0:100 0:000 SmbiosTable.Type17->Size = 1024MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM Riser A DIMM 3
0:100 0:000 SmbiosTable.Type17->Vendor = 0x80CE
0:100 0:000 SmbiosTable.Type17->SerialNumber = 0x241B2FFF
0:100 0:000 SmbiosTable.Type17->PartNumber = 0x4D3339355432393533455A342D4345363520
0:100 0:000 Type 17 Index = 7
0:100 0:000 SmbiosTable.Type17->Speed = 667MHz
0:100 0:000 SmbiosTable.Type17->Size = 1024MB
0:100 0:000 SmbiosTable.Type17->Bank/Device = DIMM Riser A DIMM 4
0:100 0:000 SmbiosTable.Type17->Vendor = 0x80CE
0:100 0:000 SmbiosTable.Type17->SerialNumber = 0x241B2F59
0:100 0:000 SmbiosTable.Type17->PartNumber = 0x4D3339355432393533455A342D4345363520
0:100 0:000 Boot status=0
0:100 0:000 Running on: 'MacPro3,1' with board 'Mac-F42C88C8'
0:100 0:000 === [ GetCPUProperties ] ==================================
0:100 0:000 CPU Vendor = 756E6547 Model=10676
0:100 0:000 The CPU supported SSE4.1
0:100 0:000 BrandString = Intel(R) Xeon(R) CPU X5482 @ 3.20GHz
0:100 0:000 got cores from CPUID_1 = 4
0:100 0:000 The CPU not supported turbo
0:100 0:000 MSR dumps:
0:100 0:000 @0x00CD=806
0:100 0:000 @0x0198=822082206000822
0:100 0:000 FSBFrequency = 400 MHz, DMI FSBFrequency = 400 MHz, Corrected FSBFrequency = 400 MHz
0:100 0:000 MaxDiv/MinDiv: 8.0/6
0:100 0:000 Turbo: 9/0/0/0
0:100 0:000 Features: 0xBFEBFBFF
0:100 0:000 Threads: 4
0:100 0:000 Cores: 4
0:100 0:000 FSB: 400 MHz
0:100 0:000 CPU: 3200 MHz
0:100 0:000 TSC: 3200 MHz
0:100 0:000 PIS: 1600 MHz
0:100 0:000 ExternalClock: 400 MHz
0:100 0:000 === [ GetDevices ] ========================================
0:100 0:000 PCI (00|00:00.00) : 8086 4003 class=060000
0:100 0:000 PCI (00|00:01.00) : 8086 4021 class=060400
0:100 0:000 PCI (00|01:00.00) : 1002 679A class=030000
0:100 0:000 - GFX: Model=AMD Radeon HD 7950/8950/R9 280 (ATI/AMD)
0:100 0:000 PCI (00|01:00.01) : 1002 AAA0 class=040300
0:100 0:000 - HDMI Audio:
0:100 0:000 PCI (00|00:05.00) : 8086 4025 class=060400
0:100 0:000 PCI (00|02:00.00) : 1002 9440 class=030000
0:100 0:000 - GFX: Model=ATI Radeon HD 4870 (ATI/AMD)
0:100 0:000 PCI (00|00:09.00) : 8086 4029 class=060400
0:100 0:000 PCI (00|03:00.00) : 8086 3500 class=060400
0:100 0:000 PCI (00|04:00.00) : 8086 3510 class=060400
0:100 0:000 PCI (00|04:01.00) : 8086 3514 class=060400
0:100 0:000 PCI (00|04:02.00) : 8086 3518 class=060400
0:100 0:000 PCI (00|07:00.00) : 8086 1096 class=020000
0:100 0:000 - LAN: 0 Vendor=Intel
0:100 0:000 PCI (00|07:00.01) : 8086 1096 class=020000
0:100 0:000 - LAN: 1 Vendor=Intel
0:101 0:000 PCI (00|03:00.03) : 8086 350C class=060400
0:101 0:000 PCI (00|00:0F.00) : 8086 402F class=088000
0:101 0:000 PCI (00|00:10.00) : 8086 4030 class=060000
0:101 0:000 PCI (00|00:10.01) : 8086 4030 class=060000
0:101 0:000 PCI (00|00:10.02) : 8086 4030 class=060000
0:101 0:000 PCI (00|00:10.03) : 8086 4030 class=060000
0:101 0:000 PCI (00|00:10.04) : 8086 4030 class=060000
0:101 0:000 PCI (00|00:11.00) : 8086 4031 class=060000
0:101 0:000 PCI (00|00:15.00) : 8086 4035 class=060000
0:101 0:000 PCI (00|00:15.01) : 8086 4035 class=060000
0:101 0:000 PCI (00|00:16.00) : 8086 4036 class=060000
0:101 0:000 PCI (00|00:16.01) : 8086 4036 class=060000
0:101 0:000 PCI (00|00:1B.00) : 8086 269A class=040300
0:101 0:000 PCI (00|00:1C.00) : 8086 2690 class=060400
0:101 0:000 PCI (00|00:1C.01) : 8086 2692 class=060400
0:101 0:000 PCI (00|00:1C.02) : 8086 2694 class=060400
0:101 0:000 PCI (00|0B:00.00) : 104C 823E class=060400
0:101 0:000 PCI (00|0C:00.00) : 104C 823F class=0C0010
0:101 0:000 PCI (00|00:1C.03) : 8086 2696 class=060400
0:101 0:000 PCI (00|00:1D.00) : 8086 2688 class=0C0300
0:101 0:000 PCI (00|00:1D.01) : 8086 2689 class=0C0300
0:101 0:000 PCI (00|00:1D.02) : 8086 268A class=0C0300
0:101 0:000 PCI (00|00:1D.03) : 8086 268B class=0C0300
0:101 0:000 PCI (00|00:1D.07) : 8086 268C class=0C0320
0:101 0:000 PCI (00|00:1E.00) : 8086 244E class=060401
0:101 0:000 PCI (00|00:1F.00) : 8086 2670 class=060100
0:101 0:000 PCI (00|00:1F.01) : 8086 269E class=01018F
0:101 0:000 PCI (00|00:1F.02) : 8086 2681 class=010601
0:101 0:000 PCI (00|00:1F.03) : 8086 269B class=0C0500
0:101 0:000 === [ GetDefaultSettings ] ================================
0:101 0:000 Clover load options size = 64 bytes
0:238 0:137 EFI\CLOVER\e.plist not loaded with name from LoadOptions: Not Found
0:384 0:145 EFI\CLOVER\config.plist loaded: Success
0:385 0:001 === [ GetListOfThemes ] ===================================
0:385 0:000 - [00]: embedded
0:385 0:000 - [00]: random
0:453 0:068 === [ Found config plists ] ===============================
0:453 0:000 - config.plist
0:457 0:003 === [ GetEarlyUserSettings ] ==============================
0:457 0:000 timeout set to 5
0:457 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:457 0:000 Default theme: embedded
0:457 0:000 === [ LoadDrivers ] =======================================
0:525 0:068 Loading OsxAptioFix2Drv-64.efi status=Success
0:526 0:000 Loading EmuGopDxe.efi status=Success
0:594 0:068 - driver needs connecting
0:595 0:000 1 drivers needs connecting ...
0:595 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success
0:595 0:000 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
0:787 0:192 === [ InitScreen ] ========================================
0:787 0:000 SetScreenResolution: 1280x1024 - setting Mode 0
0:836 0:049 Video mode change to mode #0: Success
0:836 0:000 Console modes reported: 2, available modes:
0:836 0:000 - [01]: 80x25 (current mode)
0:836 0:000 - [02]: 170x40
0:836 0:000 SetScreenResolution: 1280x1024 - already set
0:836 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\HD(1,GPT,894935C8-83DE-4208-BCF7-BF8584B930FB,0x28,0x64000)
0:837 0:000 Using embedded font: Success
0:838 0:000 === [ GetMacAddress ] =====================================
0:838 0:000 MAC address of LAN #0= 00:23:32:2F:AA:04:
0:838 0:000 MAC address of LAN #1= 00:23:32:2F:AA:05:
0:838 0:000 === [ ScanSPD ] ===========================================
0:838 0:000 SMBus device : 8086 269B class=0C0500 status=Success
0:838 0:000 SMBus CmdReg: 0x1
0:838 0:000 Scanning SMBus [8086:269B], mmio: 0x0, ioport: 0x4000, hostc: 0x1
0:838 0:000 Slots to scan [8]...
0:844 0:006 === [ GetAcpiTablesList ] =================================
0:845 0:001 Get Acpi Tables List from RSDT:
0:845 0:000 - [00]: FACP Apple00 len=244
0:845 0:000 - [01]: ECDT Apple00 len=83
0:845 0:000 - [02]: HPET Apple00 len=56
0:845 0:000 - [03]: APIC Apple00 len=188
0:845 0:000 - [04]: MCFG Apple00 len=60
0:845 0:000 - [05]: SSDT Cpu0Cst len=326
0:845 0:000 - [06]: SSDT Cpu0Ist len=843
0:845 0:000 - [07]: SSDT Cpu1Cst len=71
0:845 0:000 - [08]: SSDT Cpu1Ist len=823
0:845 0:000 - [09]: SSDT Cpu2Cst len=71
0:845 0:000 - [10]: SSDT Cpu2Ist len=823
0:845 0:000 - [11]: SSDT Cpu3Cst len=71
0:845 0:000 - [12]: SSDT Cpu3Ist len=823
0:845 0:000 - [13]: SSDT Cpu4Cst len=71
0:845 0:000 - [14]: SSDT Cpu4Ist len=823
0:845 0:000 - [15]: SSDT Cpu5Cst len=71
0:845 0:000 - [16]: SSDT Cpu5Ist len=823
0:845 0:000 - [17]: SSDT Cpu6Cst len=71
0:845 0:000 - [18]: SSDT Cpu6Ist len=823
0:845 0:000 - [19]: SSDT Cpu7Cst len=71
0:845 0:000 - [20]: SSDT Cpu7Ist len=823
0:845 0:000 - [21]: SSDT CpuPm len=61
0:845 0:000 - [22]: SSDT SataAhci len=358
0:845 0:000 - [23]: SSDT Pci8844 len=1214
0:845 0:000 - [24]: DMAR Apple00 len=136
0:845 0:000 - [25]: VFCT Apple00 len=65668
0:845 0:000 Calibrated TSC Frequency = 3191999141 = 3191MHz
0:845 0:000 === [ GetUserSettings ] ===================================
0:845 0:000 USB FixOwnership: no
0:845 0:000 - final DSDT Fix mask=00000000
0:845 0:000 Devices to rename 1
0:845 0:000 PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
0:845 0:000 Using ProductName from config: MacPro3,1
0:845 0:000 Found same BiosVersion in clover and config
0:845 0:000 BiosVersion: MP31.88Z.006C.B05.0802291410
0:845 0:000 BiosReleaseDate: 02/29/08
0:845 0:000 Using FirmwareFeatures from config: 0xE907F537
0:845 0:000 Using FirmwareFeaturesMask from config: 0xFFFFFFFF
0:845 0:000 Board-ID set from config as Mac-F42C88C8
0:845 0:000 BoardType: 0xB
0:845 0:000 ChassisType: 0x2
0:845 0:000 Converted CustomUUID DC588378-4A30-5188-9273-468152D6A08E
0:846 0:000 === [ Found DSDT tables ] =================================
0:846 0:000 === [ ScanVolumes ] =======================================
0:846 0:000 Found 20 volumes with blockIO
0:846 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
0:847 0:001 Result of bootcode detection: bootable unknown (legacy)
0:847 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,MBR,0x1E7639ED,0x2,0x2542EAAE)
0:848 0:001 Result of bootcode detection: bootable unknown (legacy)
0:848 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)
0:850 0:001 Result of bootcode detection: bootable Linux (grub,linux)
0:850 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(1,GPT,92D866C8-F699-45B9-8BB8-E0E83334786E,0x800,0x800)
0:851 0:001 Result of bootcode detection: bootable unknown (legacy)
0:851 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(2,GPT,297D7EE4-7F79-42C5-9746-AEF664573D43,0x1000,0x7370B000)
0:852 0:001 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\HD(3,GPT,C435194E-8BD2-4D90-BFE9-2147892F2B45,0x7370C000,0xFFA800)
0:853 0:001 - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)
0:854 0:001 - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(1,GPT,34180FFC-4B55-4A25-9B94-3E81D9A42175,0x28,0x64000)
0:855 0:001 Result of bootcode detection: bootable unknown (legacy)
0:856 0:001 - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(2,GPT,CA576796-940C-4186-9F0D-03E3B93E3FB0,0x64028,0x126AD38)
0:865 0:009 - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(3,GPT,717AA61E-D596-407D-A878-ED0F03A4A305,0x130ED60,0x38F41388)
0:866 0:001 Result of bootcode detection: bootable unknown (legacy)
0:866 0:000 - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(4,GPT,930D1307-3A50-4C50-A641-7695668020E3,0x3A2500E8,0x135F20)
0:867 0:001 - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)
0:868 0:001 - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)\HD(1,GPT,7B05D7A5-1874-48DB-B053-644BB7BEA711,0x800,0x3A385800)
0:870 0:001 Result of bootcode detection: bootable Windows (vista,win)
0:870 0:000 - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\VenMedia(2B0585EB-D8B8-49A9-8B8C-E21B01AEF2B7)
0:871 0:001 Result of bootcode detection: bootable unknown (legacy)
0:872 0:001 - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)\VenMedia(2B0585EB-D8B8-49A9-8B8C-E21B01AEF2B7)
0:873 0:001 Result of bootcode detection: bootable Linux (grub,linux)
0:874 0:001 - [15]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)
0:880 0:006 USB volume
0:880 0:000 - [16]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\HD(1,GPT,894935C8-83DE-4208-BCF7-BF8584B930FB,0x28,0x64000)
0:887 0:007 Result of bootcode detection: bootable unknown (legacy)
0:887 0:000 USB volume
0:887 0:000 This is SelfVolume !!
0:887 0:000 - [17]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\HD(2,GPT,E2D10E1C-F3B7-423B-9469-3E541BAEABBE,0x64028,0xDE4D30)
0:894 0:006 USB volume
0:894 0:000 - [18]: Volume: PciRoot(0x0)\Pci(0x1F,0x1)\Ata(0x0)
0:894 0:000 Found optical drive
0:894 0:000 - [19]: Volume: PciRoot(0x0)\Pci(0x1F,0x1)\Ata(0x0)
0:894 0:000 Found optical drive
0:894 0:000 === [ InitTheme ] =========================================
0:894 0:000 using embedded theme
0:895 0:000 Using embedded font: Success
0:895 0:000 Chosen embedded theme
0:898 0:003 found boot-args in NVRAM:, size=1
0:902 0:003 after NVRAM boot-args=
0:902 0:000 === [ Dump SMC keys from NVRAM ] ==========================
0:902 0:000 found AppleSMC protocol
1:538 0:635 === [ ScanLoader ] ========================================
1:538 0:000 - [01]: 'NEXT'
1:541 0:003 AddLoaderEntry for Volume Name=NEXT
1:541 0:000 skipped because entry is hidden
1:541 0:000 - [07]: 'EFI'
1:649 0:107 AddLoaderEntry for Volume Name=EFI
2:183 0:534 AddLoaderEntry for Volume Name=EFI
2:183 0:000 skipped because entry is hidden
2:183 0:000 - [08]: 'None'
2:185 0:001 - [10]: 'Recovery HD'
2:210 0:025 AddLoaderEntry for Volume Name=Recovery HD
2:212 0:001 Check if volume Is Hibernated:
2:212 0:000 Check sleep image 'by signature':
2:212 0:000 using default sleep image name = \private\var\vm\sleepimage
2:212 0:000 sleepimage not found -> Not Found
2:212 0:000 hibernated: no - sign
2:214 0:002 AddLoaderEntry for Volume Name=Recovery HD
2:222 0:007 - [13]: 'Unknown HD'
2:223 0:000 - [14]: 'Unknown HD'
2:223 0:000 - [16]: 'EFI'
2:226 0:002 AddLoaderEntry for Volume Name=EFI
2:226 0:000 skipped because entry is hidden
2:226 0:000 - [17]: 'USB'
2:228 0:001 Scanning legacy ...
2:228 0:000 2: 'Whole Disc Boot' (grub,linux) hidden
2:228 0:000 12: 'Legacy HD1' (vista,win) add legacy
2:228 0:000 added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
2:228 0:000 14: 'Unknown HD' (grub,linux) add legacy
2:229 0:000 added 'Boot Linux from Unknown HD' OSType=0 Icon=grub,linux
2:229 0:000 === [ AddCustomTool ] =====================================
2:297 0:068 found tool \EFI\CLOVER\tools\Shell64U.efi
2:297 0:000 Checking EFI partition Volume 7 for Clover
2:313 0:015 Checking EFI partition Volume 16 for Clover
2:313 0:000 Found Clover
2:314 0:000 === [ GetEfiBootDeviceFromNvram ] =========================
2:329 0:014 - efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(4,GPT,930D1307-3A50-4C50-A641-7695668020E3,0x3A2500E8,0x135F20)
2:329 0:000 - Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(4,GPT,930D1307-3A50-4C50-A641-7695668020E3,0x3A2500E8,0x135F20)'
2:329 0:000 - LoaderPath: '<null string>'
2:329 0:000 - Guid = 930D1307-3A50-4C50-A641-7695668020E3
2:329 0:000 === [ FindStartupDiskVolume ] =============================
2:329 0:000 - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(4,GPT,930D1307-3A50-4C50-A641-7695668020E3,0x3A2500E8,0x135F20)
2:329 0:000 - searching for that partition
2:329 0:000 - found entry 1. 'Boot macOS FileVault from Recovery HD', Volume 'Recovery HD'
2:329 0:000 Boot redirected to Entry 1. 'Boot macOS FileVault from Recovery HD'
2:329 0:000 DefaultIndex=1 and MainMenu.EntryCount=11
2:356 0:027 GUI readySnip:
Code:
0:787 0:192 === [ InitScreen ] ========================================
0:787 0:000 SetScreenResolution: 1280x1024 - setting Mode 0
0:836 0:049 Video mode change to mode #0: Success
0:836 0:000 Console modes reported: 2, available modes:
0:836 0:000 - [01]: 80x25 (current mode)
0:836 0:000 - [02]: 170x40
0:836 0:000 SetScreenResolution: 1280x1024 - already set
0:836 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\HD(1,GPT,894935C8-83DE-4208-BCF7-BF8584B930FB,0x28,0x64000)
0:837 0:000 Using embedded font: SuccessThat should work, just bless the Clover Shell, and boot to it with the GT120 and the RX580 installed.
Find a mapped file system, I like to use one of my msdos EFI file systems.
One of mine is mapped to fs1:
Code:
fs1:
drivers
drivers > drivers.txtUpload the resulting drivers.txt.
Last edited:
Here is the pre-boot log
Code:
0:100 0:100 MemLog inited, TSC freq: 3457999830
0:100 0:000 CPU was calibrated with ACPI PM Timer
0:100 0:000
0:100 0:000 Now is 22.8.2018, 15:21:54 (GMT)
0:100 0:000 Starting Clover revision: 4644 on Apple EFI
0:100 0:000 Build with: [Args: -D NO_GRUB_DRIVERS_EMBEDDED -t XCODE8 | -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.13.6 | XCODE: 9.4.1]
0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(1,GPT,512E9338-97FA-49A2-9EFC-07DE40B22916,0x28,0x64000) @7CEF0398
0:100 0:000 SelfDirPath = \EFI\CLOVER
0:101 0:001 === [ Get Smbios ] ========================================
0:119 0:018 Type 16 Index = 0
0:119 0:000 Total Memory Slots Count = 4
0:119 0:000 Type 17 Index = 0
0:119 0:000 SmbiosTable.Type17->Speed = 1333MHz
0:119 0:000 SmbiosTable.Type17->Size = 16384MB
0:119 0:000 SmbiosTable.Type17->Bank/Device = DIMM 1
0:119 0:000 SmbiosTable.Type17->Vendor = 0x802C
0:119 0:000 SmbiosTable.Type17->SerialNumber = 0x1391B95D
0:119 0:000 SmbiosTable.Type17->PartNumber = 0x33364B534632473732505A2D314734453120
0:119 0:000 Type 17 Index = 1
0:119 0:000 SmbiosTable.Type17->Speed = 1333MHz
0:119 0:000 SmbiosTable.Type17->Size = 16384MB
0:119 0:000 SmbiosTable.Type17->Bank/Device = DIMM 2
0:119 0:000 SmbiosTable.Type17->Vendor = 0x802C
0:119 0:000 SmbiosTable.Type17->SerialNumber = 0x1291B95D
0:119 0:000 SmbiosTable.Type17->PartNumber = 0x33364B534632473732505A2D314734453120
0:119 0:000 Type 17 Index = 2
0:119 0:000 SmbiosTable.Type17->Speed = 1333MHz
0:119 0:000 SmbiosTable.Type17->Size = 16384MB
0:119 0:000 SmbiosTable.Type17->Bank/Device = DIMM 3
0:119 0:000 SmbiosTable.Type17->Vendor = 0x802C
0:119 0:000 SmbiosTable.Type17->SerialNumber = 0x1191B95D
0:119 0:000 SmbiosTable.Type17->PartNumber = 0x33364B534632473732505A2D314734453120
0:119 0:000 Type 17 Index = 3
0:119 0:000 Ignoring insane frequency value 0MHz
0:119 0:000 SmbiosTable.Type17->Speed = 0MHz
0:119 0:000 SmbiosTable.Type17->Size = 0MB
0:119 0:000 SmbiosTable.Type17->Bank/Device = DIMM 4
0:119 0:000 SmbiosTable.Type17->Vendor = <null string>
0:119 0:000 SmbiosTable.Type17->SerialNumber = <null string>
0:119 0:000 SmbiosTable.Type17->PartNumber = <null string>
0:119 0:000 Boot status=0
0:119 0:000 Running on: 'MacPro5,1' with board 'Mac-F221BEC8'
0:119 0:000 === [ GetCPUProperties ] ==================================
0:119 0:000 CPU Vendor = 756E6547 Model=206C2
0:119 0:000 The CPU supported SSE4.1
0:119 0:000 BrandString = Intel(R) Xeon(R) CPU W3690 @ 3.47GHz
0:119 0:000 The CPU supported turbo
0:119 0:000 non-usable FLEX_RATIO = 13F00
0:119 0:000 FSBFrequency = 134 MHz, DMI FSBFrequency = 133 MHz, Corrected FSBFrequency = 133 MHz
0:119 0:000 MaxDiv/MinDiv: 26.0/12
0:119 0:000 Turbo: 27/27/28/28
0:119 0:000 Features: 0xBFEBFBFF
0:119 0:000 Threads: 12
0:119 0:000 Cores: 6
0:119 0:000 FSB: 133 MHz
0:119 0:000 CPU: 3460 MHz
0:119 0:000 TSC: 3460 MHz
0:119 0:000 PIS: 533 MHz
0:119 0:000 ExternalClock: 133 MHz
0:119 0:000 === [ GetDevices ] ========================================
0:119 0:000 PCI (00|00:00.00) : 8086 3405 class=060000
0:119 0:000 PCI (00|00:01.00) : 8086 3408 class=060400
0:119 0:000 PCI (00|01:00.00) : 111D 8061 class=060400
0:119 0:000 PCI (00|02:02.00) : 111D 8061 class=060400
0:119 0:000 PCI (00|03:00.00) : 10DE 0640 class=030000
0:119 0:000 - GFX: Model=Apple GeForce 9500 GT family 96 (Nvidia)
0:119 0:000 PCI (00|02:04.00) : 111D 8061 class=060400
0:119 0:000 PCI (00|04:00.00) : 1B4B 9182 class=010601
0:119 0:000 PCI (00|00:03.00) : 8086 340A class=060400
0:119 0:000 PCI (00|05:00.00) : 1002 67DF class=030000
0:119 0:000 - GFX: Model=AMD Radeon RX 480 (ATI/AMD)
0:119 0:000 PCI (00|05:00.01) : 1002 AAF0 class=040300
0:119 0:000 - HDMI Audio:
0:119 0:000 PCI (00|00:07.00) : 8086 340E class=060400
0:119 0:000 PCI (00|06:00.00) : 1B73 1100 class=0C0330
0:119 0:000 PCI (00|00:0D.00) : 8086 343A class=060000
0:119 0:000 PCI (00|00:0D.01) : 8086 343B class=060000
0:119 0:000 PCI (00|00:0D.02) : 8086 343C class=060000
0:119 0:000 PCI (00|00:0D.03) : 8086 343D class=060000
0:119 0:000 PCI (00|00:0D.04) : 8086 3418 class=060000
0:119 0:000 PCI (00|00:0D.05) : 8086 3419 class=060000
0:119 0:000 PCI (00|00:0D.06) : 8086 341A class=060000
0:119 0:000 PCI (00|00:0D.07) : 8086 341B class=060000
0:119 0:000 PCI (00|00:0E.00) : 8086 341C class=060000
0:119 0:000 PCI (00|00:0E.01) : 8086 341D class=060000
0:119 0:000 PCI (00|00:0E.02) : 8086 341E class=060000
0:119 0:000 PCI (00|00:0E.03) : 8086 341F class=060000
0:119 0:000 PCI (00|00:0E.04) : 8086 3439 class=060000
0:119 0:000 PCI (00|00:0F.00) : 8086 3424 class=110100
0:119 0:000 PCI (00|00:10.00) : 8086 3425 class=080000
0:119 0:000 PCI (00|00:10.01) : 8086 3426 class=080000
0:119 0:000 PCI (00|00:11.00) : 8086 3427 class=080000
0:119 0:000 PCI (00|00:11.01) : 8086 3428 class=080000
0:119 0:000 PCI (00|00:14.00) : 8086 342E class=080000
0:119 0:000 PCI (00|00:14.01) : 8086 3422 class=080000
0:119 0:000 PCI (00|00:14.02) : 8086 3423 class=080000
0:119 0:000 PCI (00|00:14.03) : 8086 3438 class=080000
0:119 0:000 PCI (00|00:15.00) : 8086 342F class=080020
0:119 0:000 PCI (00|00:16.00) : 8086 3430 class=088000
0:119 0:000 PCI (00|00:16.01) : 8086 3431 class=088000
0:119 0:000 PCI (00|00:16.02) : 8086 3432 class=088000
0:119 0:000 PCI (00|00:16.03) : 8086 3433 class=088000
0:119 0:000 PCI (00|00:16.04) : 8086 3429 class=088000
0:119 0:000 PCI (00|00:16.05) : 8086 342A class=088000
0:119 0:000 PCI (00|00:16.06) : 8086 342B class=088000
0:119 0:000 PCI (00|00:16.07) : 8086 342C class=088000
0:119 0:000 PCI (00|00:1A.00) : 8086 3A37 class=0C0300
0:119 0:000 PCI (00|00:1A.01) : 8086 3A38 class=0C0300
0:119 0:000 PCI (00|00:1A.02) : 8086 3A39 class=0C0300
0:120 0:000 PCI (00|00:1A.07) : 8086 3A3C class=0C0320
0:120 0:000 PCI (00|00:1B.00) : 8086 3A3E class=040300
0:120 0:000 PCI (00|00:1C.00) : 8086 3A40 class=060400
0:120 0:000 PCI (00|00:1C.01) : 8086 3A42 class=060400
0:120 0:000 PCI (00|00:1C.02) : 8086 3A44 class=060400
0:120 0:000 PCI (00|09:00.00) : 8086 10F6 class=020000
0:120 0:000 - LAN: 0 Vendor=Intel
0:120 0:000 PCI (00|00:1C.03) : 8086 3A46 class=060400
0:120 0:000 PCI (00|0A:00.00) : 8086 10F6 class=020000
0:120 0:000 - LAN: 1 Vendor=Intel
0:120 0:000 PCI (00|00:1C.04) : 8086 3A48 class=060400
0:120 0:000 PCI (00|0B:00.00) : 104C 823E class=060400
0:120 0:000 PCI (00|0C:00.00) : 104C 823F class=0C0010
0:120 0:000 PCI (00|00:1C.05) : 8086 3A4A class=060400
0:120 0:000 PCI (00|0D:00.00) : 14E4 43BA class=028000
0:120 0:000 - WIFI: Vendor=Broadcom
0:120 0:000 PCI (00|00:1D.00) : 8086 3A34 class=0C0300
0:120 0:000 PCI (00|00:1D.01) : 8086 3A35 class=0C0300
0:120 0:000 PCI (00|00:1D.02) : 8086 3A36 class=0C0300
0:120 0:000 PCI (00|00:1D.07) : 8086 3A3A class=0C0320
0:120 0:000 PCI (00|00:1E.00) : 8086 244E class=060401
0:120 0:000 PCI (00|00:1F.00) : 8086 3A18 class=060100
0:120 0:000 PCI (00|00:1F.02) : 8086 3A22 class=010601
0:120 0:000 PCI (00|00:1F.03) : 8086 3A30 class=0C0500
0:120 0:000 PCI (00|00:1F.05) : 8086 3A26 class=010185
0:120 0:000 === [ GetDefaultSettings ] ================================
0:120 0:000 Clover load options size = 0 bytes
0:135 0:015 EFI\CLOVER\config.plist loaded: Success
0:187 0:051 === [ GetListOfThemes ] ===================================
0:187 0:000 - [00]: embedded
0:187 0:000 - [00]: random
0:187 0:000 === [ Found config plists ] ===============================
0:187 0:000 - config.plist
0:187 0:000 === [ GetEarlyUserSettings ] ==============================
0:187 0:000 timeout set to 5
0:187 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:187 0:000 Default theme: embedded
0:187 0:000 === [ LoadDrivers ] =======================================
0:187 0:000 Loading AppleImageCodec-64.efi status=Success
0:196 0:009 Loading AppleKeyAggregator-64.efi status=Success
0:197 0:000 Loading AppleUITheme-64.efi status=Success
0:197 0:000 Loading DataHubDxe-64.efi status=Success
0:202 0:005 Loading FirmwareVolume-64.efi status=Success
0:203 0:001 Loading FSInject-64.efi status=Success
0:205 0:001 Loading SMCHelper-64.efi status=Success
0:205 0:000 Loading VBoxHfs-64.efi status=Success
0:207 0:002 Loading EmuGopDxe.efi status=Success
0:208 0:001 - driver needs connecting
0:208 0:000 1 drivers needs connecting ...
0:208 0:000 PlatformDriverOverrideProtocol not found. Installing ... Success
0:208 0:000 Searching for invalid DiskIo BY_DRIVER connects:
0:210 0:001 - Handle 7CEEB018 with DiskIo, is Partition, no Fs, BY_DRIVER Agent: 7C5C2F18, Disconnect: Success
0:926 0:716 === [ InitScreen ] ========================================
0:926 0:000 SetScreenResolution: 1280x1024 - already set
0:926 0:000 Console modes reported: 3, available modes:
0:926 0:000 - [01]: 80x25 (current mode)
0:926 0:000 - [02]: 80x50
0:926 0:000 - [03]: 160x53
0:926 0:000 reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(1,GPT,512E9338-97FA-49A2-9EFC-07DE40B22916,0x28,0x64000)
0:927 0:000 Using embedded font: Success
0:929 0:001 === [ GetMacAddress ] =====================================
0:929 0:000 MAC address of LAN #0= 00:25:00:F0:49:47:
0:929 0:000 MAC address of LAN #1= 00:25:00:F0:47:BC:
0:929 0:000 === [ ScanSPD ] ===========================================
0:929 0:000 SMBus device : 8086 3A30 class=0C0500 status=Success
0:929 0:000 SMBus CmdReg: 0x1
0:929 0:000 Scanning SMBus [8086:3A30], mmio: 0xA3E24004, ioport: 0x6000, hostc: 0x1
0:929 0:000 Slots to scan [8]...
0:931 0:001 === [ GetAcpiTablesList ] =================================
0:982 0:051 Get Acpi Tables List from RSDT:
0:982 0:000 - [00]: FACP Apple00 len=244
0:982 0:000 - [01]: ECDT Apple00 len=83
0:982 0:000 - [02]: HPET Apple00 len=56
0:982 0:000 - [03]: APIC Apple00 len=424
0:982 0:000 - [04]: SSDT CpuPPM len=85884
0:982 0:000 - [05]: SSDT SataAhci len=484
0:982 0:000 - [06]: SSDT NoHdau len=1733
0:982 0:000 - [07]: MCFG Apple00 len=60
0:982 0:000 - [08]: VFCT len=59524
0:982 0:000 - [09]: DMAR Apple00 len=104
0:982 0:000 Calibrated TSC Frequency = 3457999830 = 3457MHz
0:983 0:000 === [ GetUserSettings ] ===================================
0:983 0:000 USB FixOwnership: yes
0:983 0:000 Dropping 3 tables:
0:983 0:000 - [00]: Drop table signature="DMAR" (52414D44)
0:983 0:000 - set table: 52414D44, 0 to drop: yes
0:983 0:000 - [01]: Drop table signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
0:983 0:000 - set table: 54445353, 6D50757043 to drop: no
0:983 0:000 - [02]: Drop table signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
0:983 0:000 - set table: 54445353, 74734930757043 to drop: no
0:983 0:000 - final DSDT Fix mask=3FE7B1D5
0:983 0:000 PatchesDSDT: 5 requested
0:983 0:000 - [00]: (Add _SUN property for GIGE) lenToFind: 18, lenToReplace: 25, Target Bridge: <null string>
0:983 0:000 patch disabled at config
0:983 0:000 - [01]: (Rename GFX0 to IGPU) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
0:983 0:000 - [02]: (Rename HDEF to AZAL) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
0:983 0:000 patch disabled at config
0:983 0:000 - [03]: (Rename oem _DSM to ZDSM) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
0:983 0:000 - [04]: (Rename HECI to IMEI) lenToFind: 4, lenToReplace: 4, Target Bridge: <null string>
0:983 0:000 Devices to rename 1
0:983 0:000 PXSX:RP01:PCI0:#_SB:->will be renamed to ARPT
0:983 0:000 Using ProductName from clover: MacPro5,1
0:983 0:000 BiosVersion: not set, Using BiosVersion from clover
0:983 0:000 BiosVersion: MP51.88Z.0089.B00.1806081708
0:983 0:000 BiosReleaseDate: 06/08/18
0:983 0:000 Using FirmwareFeatures from clover: 0xE80FE137
0:983 0:000 Using FirmwareFeaturesMask from clover: 0xFF1FFF3F
0:983 0:000 PlatformFeature will not set in SMBIOS
0:983 0:000 QPI: use Table 132
0:984 0:000 === [ Found DSDT tables ] =================================
0:984 0:000 === [ ScanVolumes ] =======================================
0:984 0:000 Found 26 volumes with blockIO
0:984 0:000 - [00]: Volume: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)\Pci(0x4,0x0)\Pci(0x0,0x0)\Sata(0x1,0x0,0x0)
0:985 0:000 - [01]: Volume: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)\Pci(0x4,0x0)\Pci(0x0,0x0)\Sata(0x1,0x0,0x0)\HD(1,GPT,B4DDED47-9678-4C1B-98C1-EB1BAFE382FE,0x28,0x64000)
0:985 0:000 Result of bootcode detection: bootable unknown (legacy)
0:985 0:000 - [02]: Volume: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)\Pci(0x4,0x0)\Pci(0x0,0x0)\Sata(0x1,0x0,0x0)\HD(2,GPT,936D114F-2687-409C-B5AA-CD0F5D7A59F6,0x64028,0xE8C2E940)
0:985 0:000 - [03]: Volume: PciRoot(0x0)\Pci(0x1,0x0)\Pci(0x0,0x0)\Pci(0x4,0x0)\Pci(0x0,0x0)\Sata(0x1,0x0,0x0)\HD(3,GPT,4A159CFA-D418-41EA-809D-F91D7BA59794,0xE8C92968,0x135F20)
0:985 0:000 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)
0:986 0:001 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(1,GPT,5DD6F590-1BD4-45D5-BEBC-816447C2BAB1,0x800,0xF9800)
0:987 0:001 Result of bootcode detection: bootable Windows (vista,win)
0:987 0:000 - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(2,GPT,920E7AD4-E9CB-492E-9F4A-D2B7B76E3E6A,0xFA000,0x32000)
0:988 0:001 Result of bootcode detection: bootable Windows (vista,win)
0:988 0:000 - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(3,GPT,B9CFF5A9-1940-4411-A9C6-EF0B3C22CFAE,0x12C000,0x8000)
0:989 0:001 - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x0,0x0,0x0)\HD(4,GPT,6481074F-30BE-4F2A-BF12-6A2A0EE4DBEC,0x134000,0xDE60800)
0:991 0:001 Result of bootcode detection: bootable Windows (vista,win)
0:991 0:000 - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)
0:992 0:001 - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(1,GPT,512E9338-97FA-49A2-9EFC-07DE40B22916,0x28,0x64000)
0:993 0:001 Result of bootcode detection: bootable unknown (legacy)
0:993 0:000 This is SelfVolume !!
0:993 0:000 - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(2,GPT,68A2032B-BA8A-4F60-A7F9-6A1CB536AB5E,0x64028,0x3A376EA60)
1:007 0:014 - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)
1:008 0:001 - [13]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)\HD(1,GPT,94A30B0F-53FF-4ABB-A264-9B79FB08575F,0x28,0x64000)
1:009 0:001 Result of bootcode detection: bootable unknown (legacy)
1:009 0:000 - [14]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)\HD(2,GPT,3141202F-7DA8-423E-82A0-1CFB80626061,0x64028,0x746A2D60)
1:010 0:001 Result of bootcode detection: bootable unknown (legacy)
1:010 0:000 - [15]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0x0,0x0)
1:011 0:001 - [16]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0x0,0x0)\HD(1,GPT,07B9C1B0-75CF-42A6-8A53-6252F8D898B6,0x28,0x64000)
1:013 0:001 Result of bootcode detection: bootable unknown (legacy)
1:013 0:000 - [17]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0x0,0x0)\HD(2,GPT,BCFD26ED-DA90-4912-A803-D6E0DC89F5E6,0x64028,0x1D1B67E60)
1:014 0:001 - [18]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)
1:015 0:001 Result of bootcode detection: bootable unknown (legacy)
1:015 0:000 - [19]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(1,GPT,B8122F64-E51C-49E0-8A86-F8FB172D7ACC,0x28,0x64000)
1:016 0:001 Result of bootcode detection: bootable unknown (legacy)
1:016 0:000 - [20]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x5,0x0,0x0)\HD(2,GPT,FCB7FA41-5321-43E1-BD45-FDA40B9B8329,0x64028,0x2BA96B460)
1:017 0:001 Result of bootcode detection: bootable unknown (legacy)
1:017 0:000 - [21]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0x0,0x0)
1:017 0:000 Found optical drive
1:017 0:000 - [22]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)\HD(2,GPT,3141202F-7DA8-423E-82A0-1CFB80626061,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,E22D0936090C3D4B85A84687C5C2E823)
1:017 0:000 - [23]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)\HD(2,GPT,3141202F-7DA8-423E-82A0-1CFB80626061,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,D2475F7D01FC8E35A6504D97940E698C)
1:017 0:000 - [24]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)\HD(2,GPT,3141202F-7DA8-423E-82A0-1CFB80626061,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,7C72E657DDBEA640A2EA3EDFF2DEE4AF)
1:017 0:000 - [25]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0x0,0x0)\HD(2,GPT,3141202F-7DA8-423E-82A0-1CFB80626061,0x64028,0x746A2D60)\VenMedia(BE74FCF7-0B7C-49F3-9147-01F4042E6842,845902FA201A794C80411DC1BFF46BEA)
1:017 0:000 === [ InitTheme ] =========================================
1:017 0:000 using embedded theme
1:018 0:000 Using embedded font: Success
1:018 0:000 Chosen embedded theme
1:018 0:000 found boot-args in NVRAM:debug=0x144, size=12
1:018 0:000 ...found arg:debug=0x144
1:018 0:000 ...adding arg:debug=0x144
1:018 0:000 after NVRAM boot-args= debug=0x144
1:018 0:000 === [ Dump SMC keys from NVRAM ] ==========================
1:018 0:000 found AppleSMC protocol
1:018 0:000 === [ ScanLoader ] ========================================
1:018 0:000 - [01]: 'EFI'
1:019 0:000 - [02]: 'Mac Pro SSD'
1:020 0:001 AddLoaderEntry for Volume Name=Mac Pro SSD
1:021 0:000 Check if volume Is Hibernated:
1:021 0:000 Check sleep image 'by signature':
1:024 0:002 read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
1:024 0:000 using default sleep image name = \private\var\vm\sleepimage
1:024 0:000 sleepimage not found -> Not Found
1:024 0:000 hibernated: no - sign
1:026 0:001 - [03]: 'Recovery HD'
1:026 0:000 AddLoaderEntry for Volume Name=Recovery HD
1:028 0:001 - [06]: 'EFI'
1:034 0:005 AddLoaderEntry for Volume Name=EFI
1:036 0:002 AddLoaderEntry for Volume Name=EFI
1:036 0:000 skipped because entry is hidden
1:036 0:000 - [10]: 'EFI'
1:038 0:002 AddLoaderEntry for Volume Name=EFI
1:038 0:000 skipped because entry is hidden
1:038 0:000 - [11]: '8T Backup'
1:069 0:030 AddLoaderEntry for Volume Name=8T Backup
1:092 0:022 Check if volume Is Hibernated:
1:092 0:000 Check sleep image 'by signature':
1:177 0:084 read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
1:177 0:000 using default sleep image name = \private\var\vm\sleepimage
1:212 0:034 sleepimage not found -> Not Found
1:212 0:000 hibernated: no - sign
1:213 0:001 - [13]: 'EFI'
1:215 0:001 - [16]: 'EFI'
1:216 0:001 - [17]: '4T Family'
1:235 0:018 AddLoaderEntry for Volume Name=4T Family
1:267 0:031 - [19]: 'EFI'
1:269 0:002 - [20]: '6T Data'
1:270 0:001 - [22]: 'Preboot'
1:277 0:007 AddLoaderEntry for Volume Name=Preboot
1:294 0:016 Check if volume Is Hibernated:
1:294 0:000 Check sleep image 'by signature':
1:295 0:000 using default sleep image name = \private\var\vm\sleepimage
1:295 0:000 sleepimage not found -> Not Found
1:295 0:000 hibernated: no - sign
1:299 0:004 AddLoaderEntry for Volume Name=Preboot
1:322 0:023 - [23]: 'Mojave'
1:619 0:296 AddLoaderEntry for Volume Name=Mojave
1:689 0:070 Check if volume Is Hibernated:
1:689 0:000 Check sleep image 'by signature':
1:834 0:145 read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
1:834 0:000 using default sleep image name = \private\var\vm\sleepimage
1:898 0:063 sleepimage not found -> Not Found
1:898 0:000 hibernated: no - sign
1:920 0:021 - [24]: 'Recovery'
1:931 0:011 AddLoaderEntry for Volume Name=Recovery
1:957 0:025 - [25]: 'VM'
1:957 0:000 Scanning legacy ...
1:957 0:000 5: 'Legacy HD1' (vista,win) add legacy
1:957 0:000 added 'Boot Windows from Legacy HD1' OSType=2 Icon=vista,win
1:957 0:000 6: 'EFI' (vista,win) add legacy
1:957 0:000 added 'Boot Windows from EFI' OSType=2 Icon=vista,win
1:957 0:000 8: 'Legacy HD4' (vista,win) add legacy
1:957 0:000 added 'Boot Windows from Legacy HD4' OSType=2 Icon=vista,win
1:957 0:000 === [ AddCustomTool ] =====================================
1:958 0:000 found tool \EFI\CLOVER\tools\Shell64U.efi
1:958 0:000 Checking EFI partition Volume 1 for Clover
1:958 0:000 Checking EFI partition Volume 6 for Clover
1:958 0:000 Checking EFI partition Volume 10 for Clover
1:958 0:000 Found Clover
1:959 0:001 === [ GetEfiBootDeviceFromNvram ] =========================
1:959 0:000 - efi-boot-device-data: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(1,GPT,512E9338-97FA-49A2-9EFC-07DE40B22916,0x28,0x64000)\EFI\CLOVER\CLOVERX64.efii
1:959 0:000 - Volume: 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(1,GPT,512E9338-97FA-49A2-9EFC-07DE40B22916,0x28,0x64000)'
1:959 0:000 - LoaderPath: '\EFI\CLOVER\CLOVERX64.efi'
1:959 0:000 - Guid = 512E9338-97FA-49A2-9EFC-07DE40B22916
1:959 0:000 === [ FindStartupDiskVolume ] =============================
1:959 0:000 - Volume: partition = PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0x0,0x0)\HD(1,GPT,512E9338-97FA-49A2-9EFC-07DE40B22916,0x28,0x64000)
1:959 0:000 - searching for that partition and loader '\EFI\CLOVER\CLOVERX64.efi'
1:959 0:000 - [!] not found
1:959 0:000 - searching again, but comparing Media dev path nodes
1:959 0:000 - [!] not found
1:959 0:000 - searching for that partition
1:959 0:000 - [!] not found
1:959 0:000 - searching again, but comparing Media dev path nodes
1:959 0:000 - [!] not found
1:959 0:000 Default boot entry not found
1:959 0:000 DefaultIndex=-1 and MainMenu.EntryCount=18
1:959 0:000 SetScreenResolution: 1280x1024 - already set
2:161 0:201 GUI ready
Code:
T D
D Y C I
R P F A
V VERSION E G G #D #C DRIVER NAME IMAGE NAME
== ======== = = = == == =================================== ===================
47 00000001 D - - 1 - ICH Serial ATA Controller Initializ BB65942B-521F-4EC3
97 00000010 D - - 1 - PCI AHCI Driver 95AF7E4D-C45D-47FF
98 00000010 D - - 1 - PCI ATA/ATAPI Bus Driver 69FD8E47-A161-4550
9B 00000010 B - - 1 68 PCI Bus Driver 93B80004-9FB3-11D4
9D 00000010 ? - - - - ISA Bus Driver 240612B5-A063-11D4
9E 00000010 ? - - - - ISA Serial Driver 93B80003-9FB3-11D4
A0 0000000A D - - 2 - Simple Network Protocol Driver A2F436EA-A127-4EF8
A1 00000010 D - - 4 - Apple Net Load File Driver A3F436EA-A127-4EF8
A2 00000010 D - - 2 - Apple NetServices Protocol Driver 7A5CFD97-8F27-458A
A4 03050300 B X X 2 2 Intel(R) PRO/1000 3.5.03 EFI-x6 A1F436EA-A127-4EF8
A5 00000011 D - - 2 - USB EHCI Driver BDFE430E-8F2A-4DB0
A7 00000010 D - - 6 - Usb Uhci Driver 2FB92EFA-2EE0-4BAE
A8 00000011 B - - 8 9 USB Bus Driver 240612B7-A063-11D4
A9 00000010 ? - - - - Usb Bot Mass Storage Driver B40612B9-A063-11D4
AA 00000010 ? - - - - Usb Cbi0 Mass Storage Driver A3527D16-E6CC-42F5
AB 00000010 ? - - - - <UNKNOWN> B40612B2-A063-11D4
AC 00000010 ? - - - - Generic USB Mass Storage Driver A5C6D68B-E78A-4426
AD 00000010 D - - 2 - Usb Keyboard Driver 2D2E62CF-9ECF-43B7
AE 00000010 D - - 1 - Usb Mouse Driver 2D2E62AA-9ECF-43B7
AF 00000010 D - - 1 - Apple HID Interface Driver 07B37006-9302-408E
B1 00000010 ? - - - - APFS Jump Start Driver CFFB32F4-C2A8-48BB
B2 00000010 D - - 5 - HFS File System Driver 4CF484CD-135F-4FDC
B8 00000010 D - - 1 - Platform Console Management Driver 51CCF399-4FDF-4E55
B9 00000010 D - - 2 - Platform Console Management Driver 51CCF399-4FDF-4E55
BA 00000010 B - - 2 2 Console Splitter Driver 408EDCEC-CF6D-477C
BB 00000010 B - - 1 1 Console Splitter Driver 408EDCEC-CF6D-477C
BC 00000010 B - - 1 1 Console Splitter Driver 408EDCEC-CF6D-477C
BD 00000010 ? - - - - Console Splitter Driver 408EDCEC-CF6D-477C
C1 00000010 D - - 1 - UGA Console Driver CCCB0C28-4B24-11D5
C2 00000010 ? - - - - Serial Terminal Driver 9E863906-A40F-4875
C3 00000010 D - - 22 - Generic Disk I/O Driver CA261A26-7718-4B9B
C4 00000010 D - - 6 - FAT File System Driver 5058F21C-BC34-11D4
C5 00000010 B - - 6 15 Partition Driver 43B93232-AFBE-11D4
D8 02084201 ? X X - - ASiX USB ethernet driver D81D1706-BE6F-4734
D9 00000010 D - - 1 - FireWire Ohci Driver 0412A7A1-C050-42C2
DB 00000010 ? - - - - FireWire Device Driver 6074610C-93C6-4A50
DC 00000010 D - - 1 - <UNKNOWN> BCCAD460-4F7D-4E51
ED 00000010 D - - 1 - AGP Driver 8A107CC5-DCDA-4FB7
F5 00000D3A B - - 1 5 NVIDIA GPU Driver
F6 00000D3A ? - - - - NVIDIA GPU Driver
F7 00000010 D - - 1 - PCI AHCI Driver
F8 00014100 B - - 1 1 AMD GOP X64 Release Driver Rev.1.65
164 000E6C30 B - - 5 4 APFSYour GOP driver is linked, loaded, and valid.
It's odd that it doesn't work, try and invoke the refind.efi from the shell with both cards installed, and let me know the last few lines of the output you'll see in the shell.
My refind folder in on fs1:
Code:
fs1:
efi/refind/refind.efiMSDOS file systems are not case sensitive.
Sorry, no way to pipe the refind output to a file on this one.
Also, make sure you have a display connected to each card.
Last edited:
Yeah, I saw that line as well. So, obvious GOP driver is loaded.
Anyway, here you are.
Ok, I'll have to look at the rEFInd source code and see if I can find our breakpoint, may take a few days.
If the driver was not valid, you would see:
Code:
F8 00014100 ? - - - - AMD GOP X64 INVALID Driver Rev.1.65To get the device handle, type devices, and page up until you find your device, sometimes the back buffer of the shell is not long enough to hold the entire list, so devices > devices.txt, edit devices.txt.
Once you know the device handle in hex on the left you can disconnect or connect drivers.

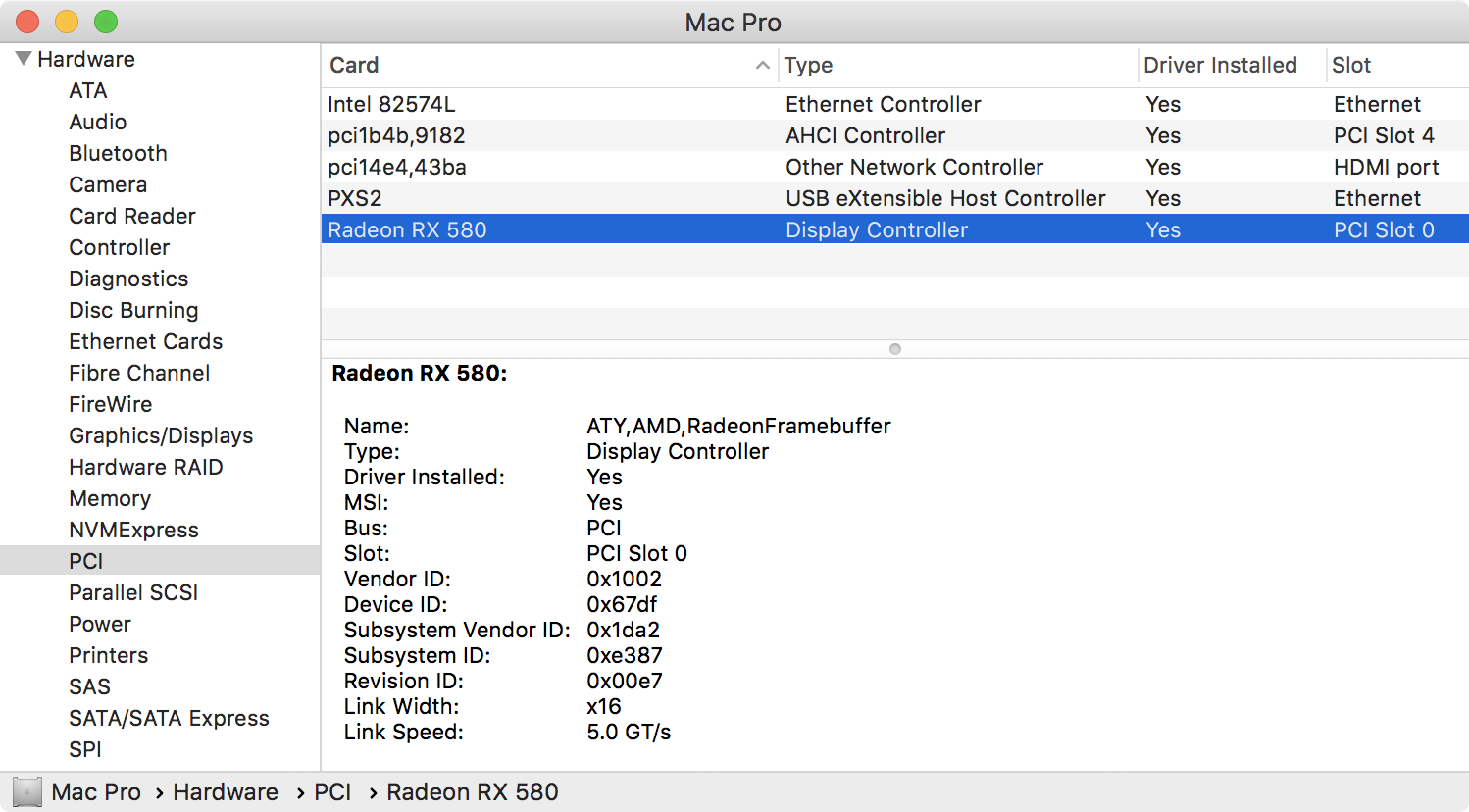

For me, my RX580 gets mapped to device handle DA.
So to release all loaded drivers for that device:
Code:
disconnect DAAnd to connect a specific driver to that device, and I'll use your driver handle of F8.
Code:
connect DA F8Just wanted to let people know that, it won't help us here, as your driver is already properly loaded and something to do with the 5,1's firmware is not acting correct for our GOP init code in both rEFInd and Clover, but at this point I have no idea what that is.
Last edited:
Thanks for all the explanation! Really appreciate that.
In fact, can achieve that on a 3,1 is already a huge achievement and very meaningful for the whole community.
Understand that you don't have the 5,1, super hard to test and debug. I really don't want to you buy a 5,1 just for this. It doesn't make any sense. I can do all the test for you if required. If we can't figure it out, doesn't really matter, both you and me learn a lot already, and have some fun time
Please take a rest. If you have any new idea, I am always here to do the test for you (until my cMP die).

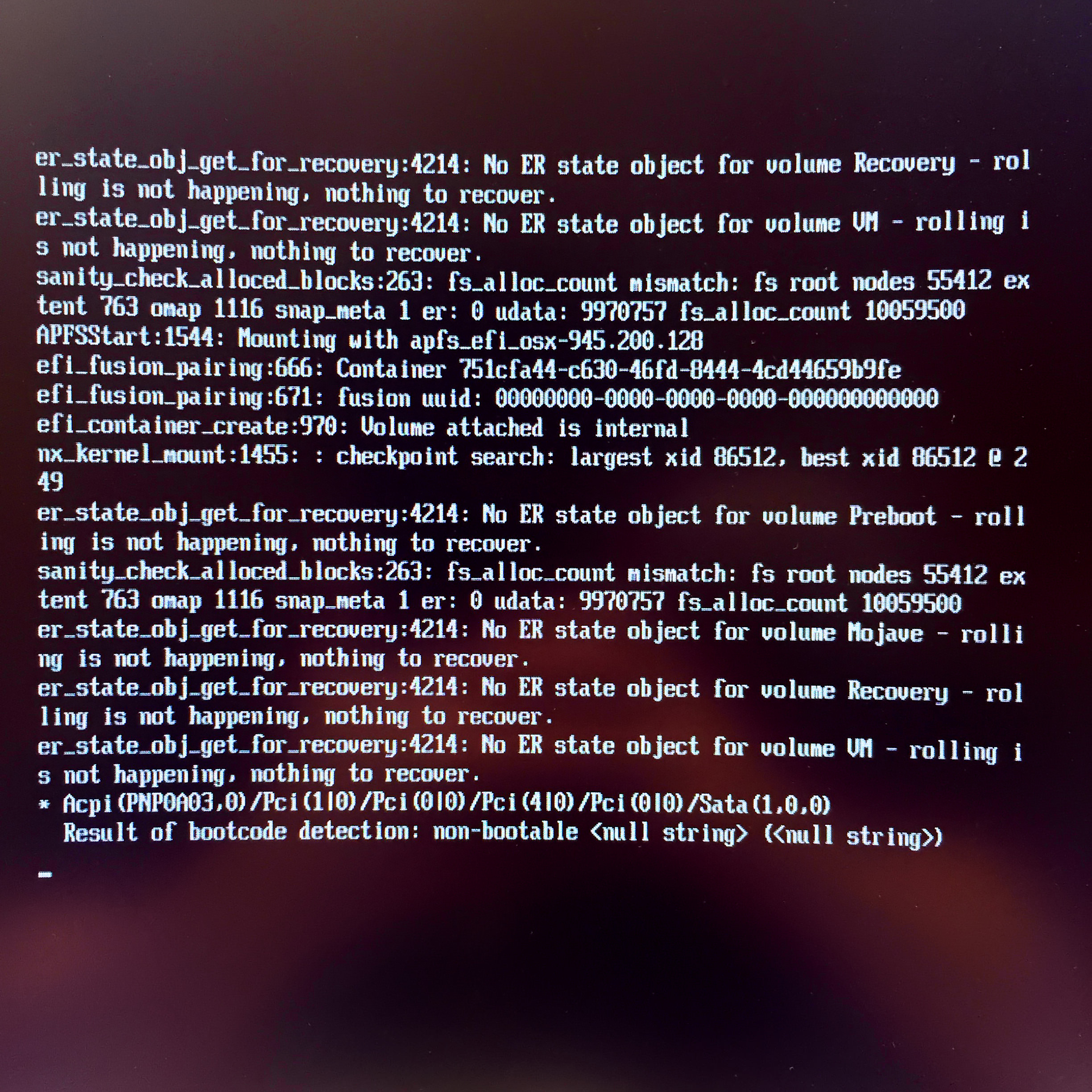

We are breaking here:
You don't happen to have any disc that start with "W" or "L" or maybe they mean windows, but I have windows 10 installed and I don't break there, so maybe it's the next thing breaking?
Also REFINDR.efi should be the debug version of the same code, and if you invoke it from a shell it may give us more output.
EDIT seems they mean Linux or Windows, it maybe helpful to pull any Linux or Windows drives, tho I have both installed and I have no trouble running the same version of REFIND.efi you are using.
It maybe a bug in some Mac's firmware, but not others, I'll have a look at the legacy.c and is if anything jumps out at me.
Code:
// NOTE: If you add an operating system with a name that starts with 'W' or 'L', you
// need to fix AddLegacyEntry in refind/legacy.c.
#if REFIT_DEBUG > 0
Print(L" Result of bootcode detection: %s %s (%s)\n",
Volume->HasBootCode ? L"bootable" : L"non-bootable",
Volume->OSName, Volume->OSIconName);
#endif
// dummy FAT boot sector (created by OS X's newfs_msdos)
if (FindMem(Buffer, 512, "Non-system disk", 15) >= 0)
Volume->HasBootCode = FALSE;
// dummy FAT boot sector (created by Linux's mkdosfs)
if (FindMem(Buffer, 512, "This is not a bootable disk", 27) >= 0)
Volume->HasBootCode = FALSE;
// dummy FAT boot sector (created by Windows)
if (FindMem(Buffer, 512, "Press any key to restart", 24) >= 0)
Volume->HasBootCode = FALSE;
// check for MBR partition table
if (*((UINT16 *)(Buffer + 510)) == 0xaa55) {
MbrTable = (MBR_PARTITION_INFO *)(Buffer + 446);
for (i = 0; i < 4; i++)
if (MbrTable[i].StartLBA && MbrTable[i].Size)
MbrTableFound = TRUE;
for (i = 0; i < 4; i++)
if (MbrTable[i].Flags != 0x00 && MbrTable[i].Flags != 0x80)
MbrTableFound = FALSE;
if (MbrTableFound) {
Volume->MbrPartitionTable = AllocatePool(4 * 16);
CopyMem(Volume->MbrPartitionTable, MbrTable, 4 * 16);
}
}
} else {You don't happen to have any disc that start with "W" or "L" or maybe they mean windows, but I have windows 10 installed and I don't break there, so maybe it's the next thing breaking?
Also REFINDR.efi should be the debug version of the same code, and if you invoke it from a shell it may give us more output.
EDIT seems they mean Linux or Windows, it maybe helpful to pull any Linux or Windows drives, tho I have both installed and I have no trouble running the same version of REFIND.efi you are using.
It maybe a bug in some Mac's firmware, but not others, I'll have a look at the legacy.c and is if anything jumps out at me.
Last edited:
I so rarely use any version of Windows that I installed Win 7 & Win 8,1 on their own spinner HDDs.
Booting works from the EFI boot menu - they show up but take about a minute or so to load . .first I always get a black screen with a blinking cursor ( normal ) ( be patient ) .. then they boot to the respective Win desktop.
I think having Win on the same hard drive/ssd on a cMP is problematic.
Booting works from the EFI boot menu - they show up but take about a minute or so to load . .first I always get a black screen with a blinking cursor ( normal ) ( be patient ) .. then they boot to the respective Win desktop.
I think having Win on the same hard drive/ssd on a cMP is problematic.
Wel in CSM mode you have a hybrid GPT/MBR that is only supposed to support 4 partitions:
1. EFI
2. macOS
3. macOS Recovery
4. Microsoft Recovery
5. Microsoft Basic Data
See the trouble there?
MBR boot sectors partition table only supports 4.
At one time I had a hybrid disk with 14 partitions, until Clover complained and refused to properly install the NVRAM rc scripts, and I converted it back to pure GPT.
Pure GPT disks still have a reserved legacy 512k boot sector and most bios based systems boot from them just fine if you write a legacy boot loader to them.
May I know if REFINDR.efi need the Original RX580 ROM to work? Or to get the proper result for debug?
Because I am now also working on another thread about how to mod the RX580's clock, voltage, and part number, etc. If this is only for rEFInd startup troubleshoot, then I can just install the GT120 to capture the result, and no need to flash the RX580 with the original ROM.
I got the same reply, asking for a sysdiagnose... Seems like an automated response. I'm not sure anyone is reading the bug reports...
That's one of the standard reply, but I don't think it's automated.
Otherwise, why some of my bug report doesn't have that reply? In fact, occasionally, I revive similar reply but with completely different wording. So, it seems they can copy from the template, or write the reply on their own.
[doublepost=1535017177][/doublepost]
Absolutely NOT pointless.
Please join the test!
OP did the whole thing on his 3,1. If you can get good screen on your 3,1 with the Vega, that means his work is 100% working at least on all other 3,1.
Then the problem may be on my own setup, or the 4,1 / 5,1 firmware.
You won't get a screen on the RX580, but we aren't getting to that point anyway, it's hanging while trying to scan your HD's, so it really won't matter if you don't want to flash the OEM bios back at this point.
It would be very helpful. Please by all means.
