Only one of the ACD's at a time will display.
Is it always the one connected to the OWC’s miniDisplayPort? If you switch displays and dual-link DVI adapters, do both displays work individually via the OWC’s miniDP? Neither of the two works via the OWC’s USB-C, right?

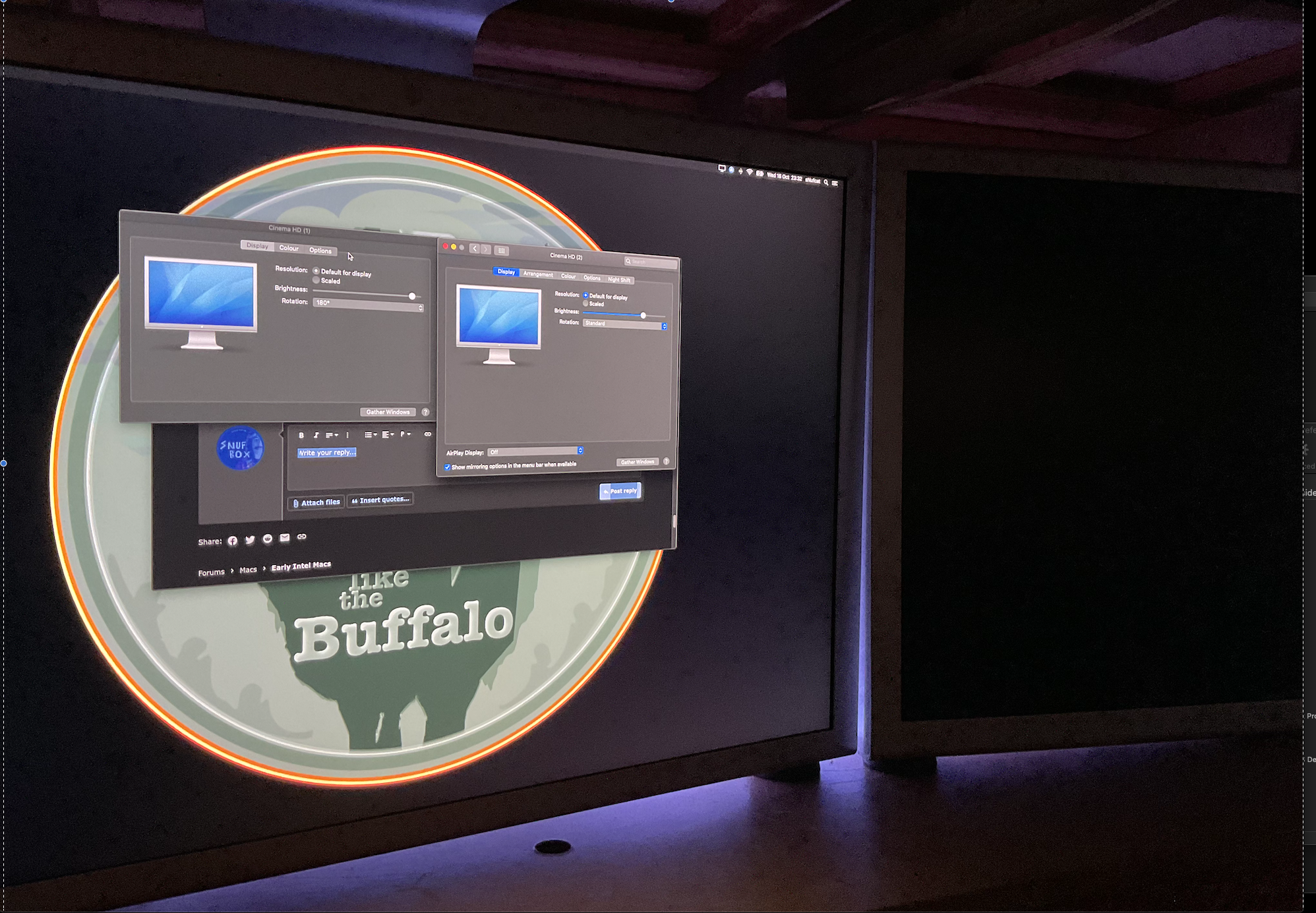

This is how it's looking at the moment.
Both displays are detected. Click on Scaled for the display that is black and try going through the options.

Apple confirms here that your MBP can drive two Thunderbolt Displays. Your setup is similar (two DP sinks from a single TB port), albeit using one TB3 controller instead of two daisy-chained TB1 controllers. What version of macOS are you running?

You could try the following: MBP > OWC TB3 dock > Wavlink TB3 dock (i.e. daisy-chaining the TB3 docks). Connect one ACD to the OWC using its miniDisplayPort. Connect the other to the Wavlink using one of its DisplayPorts.

When I have it open It only detects the ACD connected to the mini display port and the MBP display
That's interesting. The Intel HD Graphics 4000 can drive three displays.

Last edited:

1 Ⲭ𑀩ꓭꓞꓵꓠऽ

macrumors member
Original poster
May 12, 2024
51
3
Is it always the one connected to the OWC’s miniDisplayPort? If you switch displays and dual-link DVI adapters, do both displays work individually via the OWC’s miniDP? Neither of the two works via the OWC’s USB-C, right?

Yes it's always the one connected to the OWC's miniDisplayPort. Yes and Yes to the next two questions.


Both displays are detected. Click on Scaled for the display that is black and try going through the options.

Tried this but had no effect.


What version of macOS are you running?

Catalina 10.15.7


You could try the following: MBP > OWC TB3 dock > Wavlink TB3 dock (i.e. daisy-chaining the TB3 docks). Connect one ACD to the OWC using its miniDisplayPort. Connect the other to the Wavlink using one of its DisplayPorts.

Kinda didn't want to be using both as I need to sell one of them.


1 Ⲭ𑀩ꓭꓞꓵꓠऽ

macrumors member
Original poster
May 12, 2024
51
3
Is it always the one connected to the OWC’s miniDisplayPort? If you switch displays and dual-link DVI adapters, do both displays work individually via the OWC’s miniDP? Neither of the two works via the OWC’s USB-C, right?


Both displays are detected. Click on Scaled for the display that is black and try going through the options.

Apple confirms here that your MBP can drive two Thunderbolt Displays. Your setup is similar (two DP sinks from a single TB port), albeit using one TB3 controller instead of two daisy-chained TB1 controllers. What version of macOS are you running?

You could try the following: MBP > OWC TB3 dock > Wavlink TB3 dock (i.e. daisy-chaining the TB3 docks). Connect one ACD to the OWC using its miniDisplayPort. Connect the other to the Wavlink using one of its DisplayPorts.


That's interesting. The Intel HD Graphics 4000 can drive three displays.
You could try the following: MBP > OWC TB3 dock > Wavlink TB3 dock (i.e. daisy-chaining the TB3 docks). Connect one ACD to the OWC using its miniDisplayPort. Connect the other to the Wavlink using one of its DisplayPorts.

But I will give it a try though


1 Ⲭ𑀩ꓭꓞꓵꓠऽ

macrumors member
Original poster
May 12, 2024
51
3

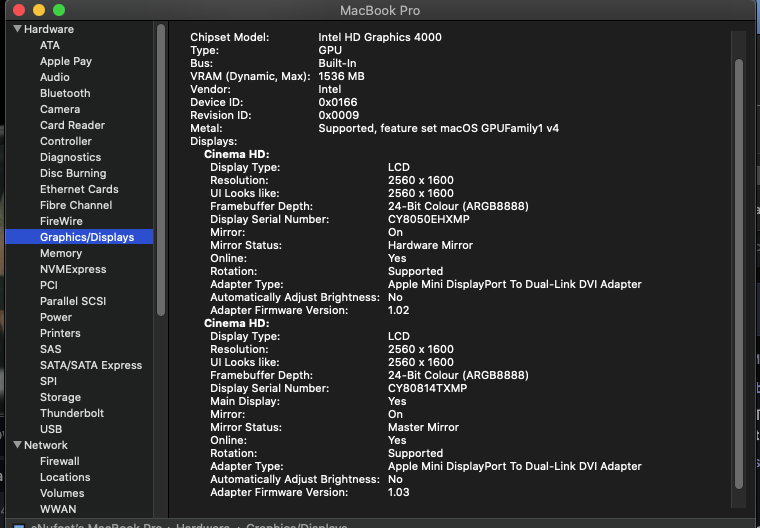

Don't know if this helps or not
Screen Shot 2024-10-19 at 3.26.15 am.png


Amethyst1

macrumors G3
Oct 28, 2015
9,829
12,246
Sorry, what info am I dumping into a text file? I opened your link but I have no idea what or how to use it.
Once you have downloaded AllRez and extracted the archive, open Terminal using Spotlight. Drag the AllRez executable (it has a black icon) from the For 10.9 - 13 folder into Terminal (but don't press Enter yet!), add a space and type > AllRez_output.txt. Press Enter now. Attach the AllRez_output.txt file this generates (it will be in your user folder) to a post.

Kinda didn't want to be using both as I need to sell one of them.
This is just a test if two daisy-chained Thunderbolt controllers make a difference.

Also, when i select "Mirror Displays" in System Preferences > Displays, the main desktop will be displayed.
Can you elaborate? What happens if you turn mirroring off?

Don't know if this helps or not
It shows that both displays are detected and driven by the HD 4000, so two DisplayPort streams are there and extracted (provided) by the Thunderbolt dock. So far so good.

Last edited:

1 Ⲭ𑀩ꓭꓞꓵꓠऽ

macrumors member
Original poster
May 12, 2024
51
3
Can you elaborate? What happens if you turn mirroring off?

When mirroring is off, the ACD (2) desktop is displayed and ACD (1) is black


1 Ⲭ𑀩ꓭꓞꓵꓠऽ

macrumors member
Original poster
May 12, 2024
51
3
Could it be the USB-C to Mini DisplayPort adapter that i have the second ACD connected to isn't working properly?

I also tried it through both of the Thunderbolt ports on the OWC dock but it made no difference


Amethyst1

macrumors G3
Oct 28, 2015
9,829
12,246
When mirroring is off, the ACD (2) desktop is displayed and ACD (1) is black
And when it’s on, both work and display the same image? Or what’s happening then?

Sorry to be dragging you through all of this. Thank you for all of your help...and patience 🙏
No problem.

Could it be the USB-C to Mini DisplayPort adapter that i have the second ACD connected to isn't working properly?
It’s possible. Daisy-chaining the two TB3 docks doesn’t require that adapter.

Last edited:

1 Ⲭ𑀩ꓭꓞꓵꓠऽ

macrumors member
Original poster
May 12, 2024
51
3
And when it’s on, both work and display the same image? Or what’s happening then?

No, just the ACD that is connected to the mini displayport of the OWC display works but it's the desktop image from my built-in display

I'll try daisy-chaining the two TB3 docks now

  • Like
Reactions: Amethyst1

joevt

macrumors 604
Jun 21, 2012
6,971
4,262
I checked your EDIDs from #41 . Both Cinema displays are the same model made within 3 weeks of each other so they should be interchangeable. If one doesn't work, you can make it work by disconnecting the other that does work?
They both support HDCP so there should be no problem with that.

AllRez_output.txt

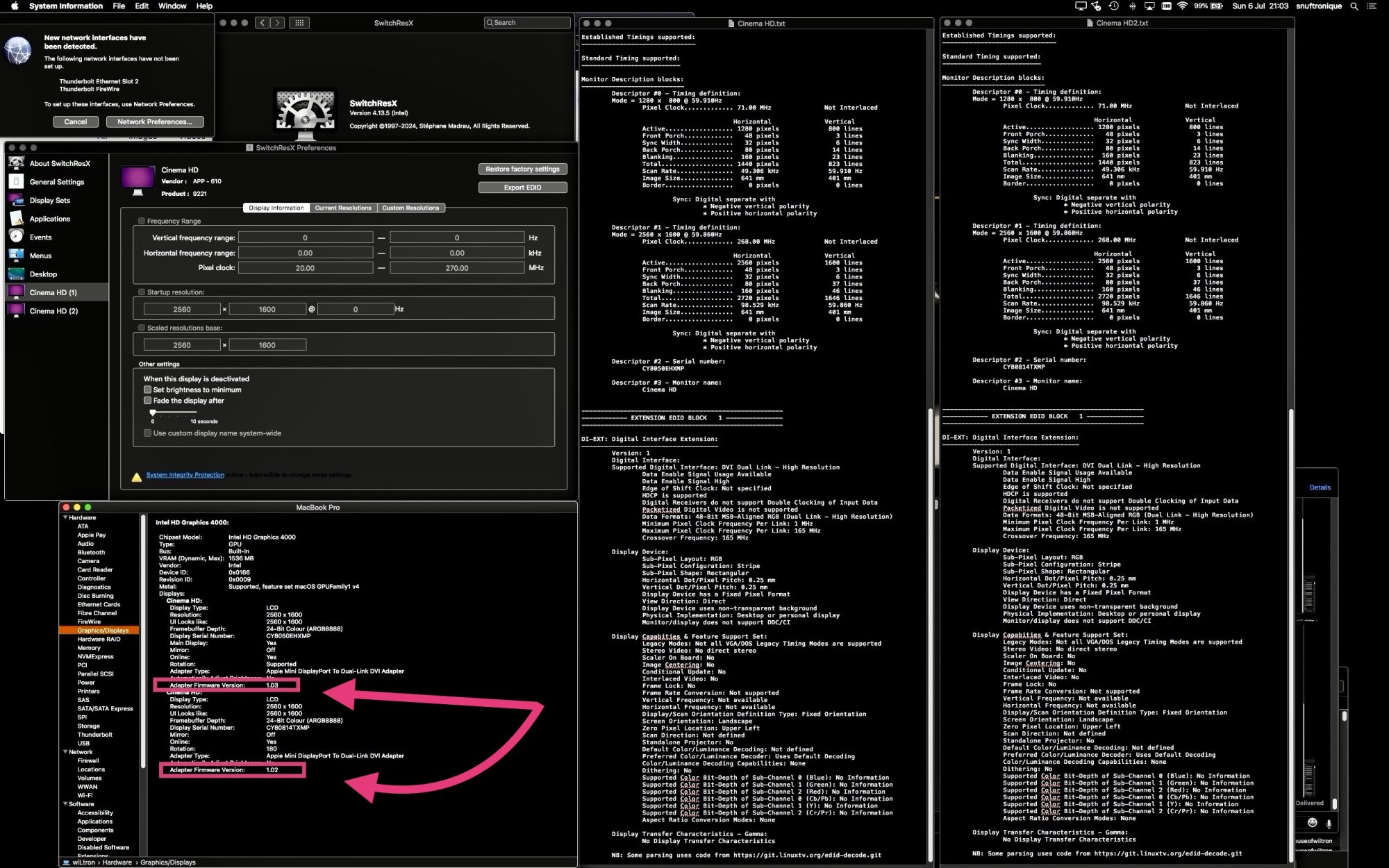

The AllRez output shows only one Apple Cinema Display connected. The first display is the 1280x800 built-in display. What does Graphics/Displays show in System Information.app?

Where's the AllRez output for the setup that Graphics/Displays showed at #59 ? Can you do the same setup without hardware mirroring?

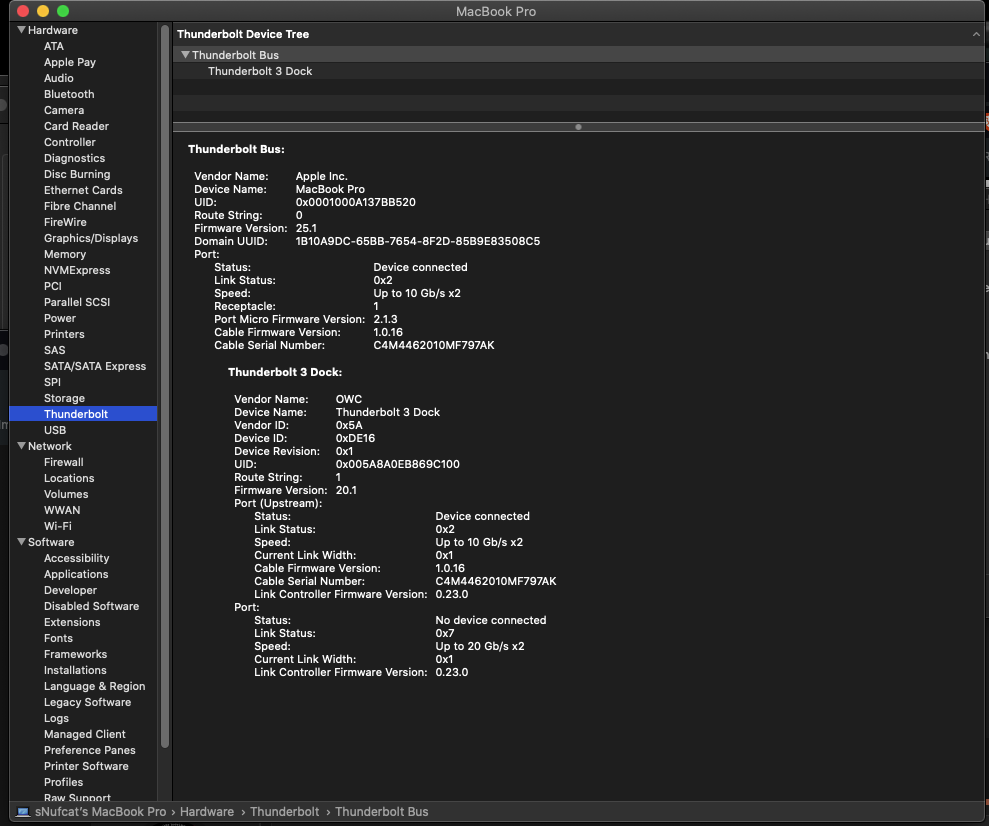

Does this all look okay? I have both ACD's connected to the OWC TB3 dock
It looks like the Thunderbolt 3 dock is connected correctly. Thunderbolt 1 max connection is 10 Gb/s x2 with x1 link width.
Each display will use a separate x1 Thunderbolt channel, 6.5 Gbps each since each channel allows only 10 Gb/s.

What CPU does your MacBook Pro (13-inch, Mid 2012) have?
  • 2.5GHz dual-core Intel Core i5 processor (Turbo Boost up to 3.1GHz) with 3MB L3 cache
  • 2.9GHz dual-core Intel Core i7 processor (Turbo Boost up to 3.6GHz) with 4MB L3 cache
Maybe they have different graphics capabilities?

  • Like
Reactions: Amethyst1
