MBP 1,1-10,2 GPU Kernel Panic in mid-2010; what's the best fix?

groverb said:
Over the past several months I've been getting kernel panics due to the graphics card, resulting in my mid-2010 MBP crashing. It's been getting progressively worse, something several times a day. (I missed the recall/repair program by a week because the d*cks at Apple never notified me that such a program existed, and the Apple service rep wouldn't make an exception).

So, what can I do to stop this? I think I read somewhere that the dGPU can be disabled, but there is so much information out there that I don't want to try 20 different things before something works.

Here is the KP info:
*** Panic Report ***
panic(cpu 2 caller 0xffffff7f9386dbdb): "GPU Panic: [<None>] 5 3 7f 0 0 0 0 3 : NVRM[0/1:0:0]: Read Error 0x0061002c: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0xd2000000 0xffffff812c90b000 0x0a5480a2, D0, P2/4\n"@/SourceCache/AppleGraphicsControl/AppleGraphicsControl-3.10.22/src/AppleMuxControl/kext/GPUPanic.cpp:127
Click to expand...

Like you my beloved MBPro, mid 2010, began panicking only recently. It became unusable essentially. Also, like you, I knew nothing about the recall program and Apple would not grant an exception. After about six months of backwards and forwards and being passed through many hands Apple agreed to refund the cost of a new logic board I had installed in 2014 when it failed. The replacement logic board had the same fault but was within the recall period. So Apple paid me $1200.

I bought a new iMac and downgraded the MBPro to the original Snow Leopard (10.6). Since then it's been steady as a rock. Whatever was in subsequent releases was obviously driving the GPU too hard. Apple could fix that with a patch, perhaps, and make a lot of loyal users very happy. I saw threads where someone was trying to get a petition or something together. there would be many 1000's of users affected by this bug. Apple isn't Apple anymore though so the chance of that happening are slim,.

Good luck finding a cure although I can recommend the downgrade. Snow Leopard is a fine OS (IMHO)

Pete

JonesB0y said:
Like you my beloved MBPro, mid 2010, began panicking only recently. It became unusable essentially. Also, like you, I knew nothing about the recall program and Apple would not grant an exception. After about six months of backwards and forwards and being passed through many hands Apple agreed to refund the cost of a new logic board I had installed in 2014 when it failed. The replacement logic board had the same fault but was within the recall period. So Apple paid me $1200.

I bought a new iMac and downgraded the MBPro to the original Snow Leopard (10.6). Since then it's been steady as a rock. Whatever was in subsequent releases was obviously driving the GPU too hard. Apple could fix that with a patch, perhaps, and make a lot of loyal users very happy. I saw threads where someone was trying to get a petition or something together. there would be many 1000's of users affected by this bug. Apple isn't Apple anymore though so the chance of that happening are slim,.

Good luck finding a cure although I can recommend the downgrade. Snow Leopard is a fine OS (IMHO)

Pete
Click to expand...


Thank you for your story Pete :)
Well there's 2 great fixes in this thread, so if you do wish to upgrade the OS- the kext fix works.

Happy you received $1200.

They (Apple) owe everyone in this thread the Retail price they paid for this piece of 2010 scam~

Hi @fabioroberto , I'm wondering is there any Kext for 10.7.5 available? I'm using Lion and found there's not 10.7.5 kext here. Thanks!

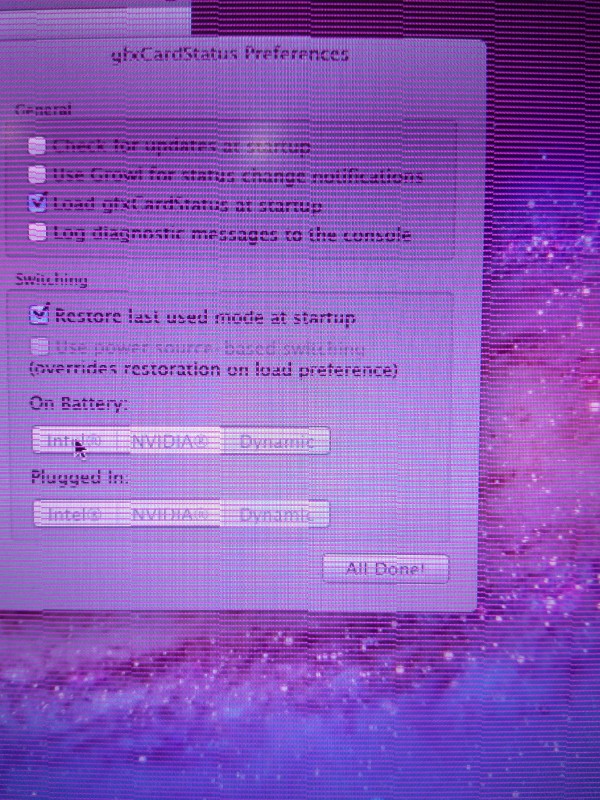

P. S: tried gfxcardstatus, but it only let me select "dynamic" as pic shown. Can you tell from the distortion, is my integrated chip broken already? BTW mine is 15" early 2011, Model No. A1286.


ChrisKra said:
Contact me if you need the address of the repair shop in Shanghai.
Click to expand...

Hi Ka, I'm not around China, yet I can travel to Shanghai for the issue since there's no one here can do the job. Can you let me know how to reach the fixer? Thanks!

Last edited:
ittlerpg said:
Hi @fabioroberto ,
Hi Ka, I'm not around China, yet I can travel to Shanghai for the issue since there's no one here can do the job. Can you let me know how to reach the fixer? Thanks!
Click to expand...

Hey there are actually plenty of repair shops in shanghai. If you go to XuJiaHui take metro exit No 9 and make a left turn. Your find yourself in front of a building full of phones and computers. on second floor on the far end left corridor booth 240, there is the guy who fixed it for me.


good luck!

therionchu said:
I've replaced the C9560 with this one:


The length of this MLCC is almost identical with original cap.
I can directly replace it without scrapping the Logic board.


After replacing the cap, no GPU panic and reboots happen anymore~~!!
It also passed the Cinebench test and exported screen to TV without crashing.
I suppose my macbook to be fixed completely. :D
All the information in this thread is very useful. Thanks everyone~~
Click to expand...

Just bought a used MBP mid 2010 with the intention of fixing this issue if it arose... was aware before purchasing. Did you install the new capacitor with a standard pencil style soldering iron or did you use the hot air flow station type used in the video? Thanks in advance!

stewy said:
Just bought a used MBP mid 2010 with the intention of fixing this issue if it arose... was aware before purchasing. Did you install the new capacitor with a standard pencil style soldering iron or did you use the hot air flow station type used in the video? Thanks in advance!
Click to expand...
therionchu said:
I've replaced the C9560 with this one:


The length of this MLCC is almost identical with original cap.
I can directly replace it without scrapping the Logic board.


After replacing the cap, no GPU panic and reboots happen anymore~~!!
It also passed the Cinebench test and exported screen to TV without crashing.
I suppose my macbook to be fixed completely. :D
All the information in this thread is very useful. Thanks everyone~~
Click to expand...

Can you post the part number and where you got it from please? Did you replace yourself? This definitely looks promising.

Expand the image and you will see the details.

It is from the supplier: Digi-Key
Digi-Key part number: 587-3976-1-ND
Item manufacturer's part number: PMK325AC6337MM-T
Description: 30µF ±20% 2.5V Ceramic Capacitor X6S 1210 (3225 Metric)
That is a Taiyo Yuden PMK325AC6337MM-T capacitor.

I presume that you are from the UK, from your profile pic, so I will post the UK Digi-Key link:

https://www.digikey.co.uk/products/en?keywords= 587-3976-1-ND

Good luck!

Last edited:
ViShVa said:
Expand the image and you will see the details.

It is from the supplier: Digi-Key
Digi-Key part number: 587-3976-1-ND
Item manufacturer's part number: PMK325AC6337MM-T
Description: 30µF ±20% 2.5V Ceramic Capacitor X6S 1210 (3225 Metric)
That is a Taiyo Yuden PMK325AC6337MM-T capacitor.

I presume that you are from the UK, from your profile pic, so I will post the UK Digi-Key link:

https://www.digikey.co.uk/products/en?keywords= 587-3976-1-ND

Good luck!
Click to expand...

Thanks! My MBP is working fine since the downgrade to original OS (Snow Leaopard) but I'm thinking I will do this if it's a fix. Yeah from the UK but living in New Zealand..

I replaced the cap with "MURATA - GRM32EC80E337ME05L".

So far so good, Cinebench has run several times without any problems. Also, using an external display works.

I used a 25w soldering iron with a sharp tip and. It did feel like I had to heat for a long time before I was able to remove the original cap.

If anyone in Sweden has a hard time finding the cap at a reasonable price I would recommend www.microkit.se where you can order stuff from Farnell, RS or Elfa in one order and low shipping cost, 49:-.

Big thanks to everyone providing helpful information in this thread!

Hello guys I am on Yosemite and I have replaced the capacitor with this one: Taiyo Yuden PMK325AC6337MM-T https://www.digikey.com/products/en?keywords=587-3976-1-ND. The laptop passes the Cinebench test but when I try to open downloads from the dock several times (it makes a short animation before open) it crashes again! I made SMC reset and PRAM reset but nothing! I am dissapointed and now I am trying with the kext fix but it cannot be loaded, I tried as a root user to copy the kext, fixxed the permissions using disk utility but it wont get loaded.. what I am missing? can you help? I spent 80euros for the capacitor replacement but without any luck :S

george4mx said:
Also in the Console app I search for gfx0 but no results come up......
Click to expand...


Sorry to hear your issue George~ but that could happen for a number of reasons- but hardware-wise...

Usually if it was poorly soldered or if the solder was contaminated or oxidized this can occur. Lots of flux and a clean isopropyl alcohol clean is essential.

  • Like
Reactions: fabioroberto
george4mx said:
Hello guys I am on Yosemite and I have replaced the capacitor with this one: Taiyo Yuden PMK325AC6337MM-T https://www.digikey.com/products/en?keywords=587-3976-1-ND. The laptop passes the Cinebench test but when I try to open downloads from the dock several times (it makes a short animation before open) it crashes again! I made SMC reset and PRAM reset but nothing! I am dissapointed and now I am trying with the kext fix but it cannot be loaded, I tried as a root user to copy the kext, fixxed the permissions using disk utility but it wont get loaded.. what I am missing? can you help? I spent 80euros for the capacitor replacement but without any luck :S
Click to expand...
The Cinebench GPU test finished successfuly, with fps around 15-16?
If yes, probably the problem is your OSX.
Consider reinstall the OSX again and test it.

  • Like
Reactions: AndromedaM31
Can anyone here hook me up with the original discs that came with this model? Ideally just a disc image I can download and burn... I just installed the capacitor and I'm itching to try out the hardware test to confirm that I did indeed fix the problem (I'm currently using the machine and it's going well so far).

I bought the machine via an online auction and it did not come with the original discs... I can provide proof of purchase if you'd like. (I did not steal it :)
[doublepost=1492124190][/doublepost]
JonesB0y said:
Can you post the part number and where you got it from please? Did you replace yourself? This definitely looks promising.
Click to expand...

This is what I ordered...

https://www.digikey.com/product-detail/en/Taiyo-Yuden/PMK325AC6337MM-T/587-3976-1-ND/4950530

Just finished putting the macbook back together a half hour ago. So far so good... make sure you read the manual on how to disassemble everything. The soldering went relatively easy with a standard pen style soldering iron... just make sure you have one with a really fine tip. I think mine is a 30W. I also used some desolder braid to remove the excess solder after I had the old capacitor removed... I think this made things easier.

stewy said:
Can anyone here hook me up with the original discs that came with this model? Ideally just a disc image I can download and burn... I just installed the capacitor and I'm itching to try out the hardware test to confirm that I did indeed fix the problem (I'm currently using the machine and it's going well so far).
Click to expand...

I had the same issue trying to get a hold of the installation disc when I had to do a reinstall years ago- but I may have an image on one of my hdds I think, so I'll check for you :)

  • Like
Reactions: fabioroberto
AndromedaM31 said:
I had the same issue trying to get a hold of the installation disc when I had to do a reinstall years ago- but I may have an image on one of my hdds I think, so I'll check for you :)
Click to expand...

Damn... just got this in a report... after replacing the cap... :(

*** Panic Report ***
panic(cpu 2 caller 0xffffff7f853f980b): "GPU Panic: mux-regs 5 3 7f 0 0 0 severity 3 switch-state 0 EG power-state 0 3D 0 HDA 0 : \n"@/Library/Caches/com.apple.xbs/Sources/AppleGraphicsControl/AppleGraphicsControl-3.14.41/src/AppleMuxControl/kext/GPUPanic.cpp:143

Another update... just redid the fix again... it goes a lot faster the second time... I bought 3 capacitors so I had a couple of spares. It's possible I may not have cleaned up the flux well enough the first time. Made sure the clean the area well. I just ran cinebench 4 times in a row and it completed successfully each time between 15 and 16 fps. Hopefully this is a final fix this time... I hope it's not some secondary component near the capacitor that's getting heated up and starts working.

Last edited:
Just to Confirm I recently gota MacBook Pro 2010 i7 2.66 as a trade and it has the kernel panic everytime the graphics would switch to NVidia it would black screen and restart so I bought this cap to replace it with
http://ru.mouser.com/search/ProductDetail.aspx?R=0virtualkey0virtualkey2TPE330MAFB
I can Confirm that this cap works great as a replacement for the c9560 cap that failed causeing the gpu to loose power and panic.
A Very Easy fix for me atleast took me about 10 mins. I just ripd off the old cap with a needle nose plyer and solderd in the new cap very easy. used some great solder with flux and fired right up.

Great to see this old 7 year old MacBook up and running again free of kernel panics.

Last edited:
  • Like
Reactions: fabioroberto
fabioroberto said:
The Cinebench GPU test finished successfuly, with fps around 15-16?
If yes, probably the problem is your OSX.
Consider reinstall the OSX again and test it.
Click to expand...

Cinebench test finished successfuly with fps 12.68.. The second time I repeated the process with cinebench it crashed.. I passed yosemite over snow leopard, I didn't do a fresh install, I don't know if this could result any problems.. The only solution I have right now is to use gfxcardstatus 1.8.1, only with that way it doesn't crash. I have a lot of plugins for ableton so for me to make a clean install and install all the plugins again it take a whole day and I am not in the mood to do this right now.. Maybe in the future I ll try it.. I think I am ok with gfxcardstatus at the moment.. I dont know why this is happening after replacement of the capacitor, the guy that did the job is a profesional, why its happening this?
[doublepost=1492902489][/doublepost]panic report states the following:
*** Panic Report ***
panic(cpu 2 caller 0xffffff7f981bac0b): "GPU Panic: [<None>] 5 3 7f 0 0 0 0 3 : NVRM[0/1:0:0]: Read Error 0x00000100: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0xd2000000 0xffffff8131120000 0x0a5480a2, D0, P3/4\n"@/SourceCache/AppleGraphicsControl/AppleGraphicsControl-3.10.25.1/src/AppleMuxControl/kext/GPUPanic.cpp:127
Backtrace (CPU 2), Frame : Return Address
0xffffff811feab560 : 0xffffff8015328e01
0xffffff811feab5e0 : 0xffffff7f981bac0b
0xffffff811feab6c0 : 0xffffff7f9638e31c
0xffffff811feab780 : 0xffffff7f964595e8
0xffffff811feab7c0 : 0xffffff7f96459653
0xffffff811feab840 : 0xffffff7f966dd7b6
0xffffff811feab9a0 : 0xffffff7f9647d325
0xffffff811feab9c0 : 0xffffff7f96395086
0xffffff811feaba70 : 0xffffff7f96392a08
0xffffff811feabc70 : 0xffffff7f96394ca8
0xffffff811feabd60 : 0xffffff7f977f8925
0xffffff811feabdc0 : 0xffffff7f977f55ef
0xffffff811feabe40 : 0xffffff7f977df95a
0xffffff811feabe70 : 0xffffff7f9779b182
0xffffff811feabe90 : 0xffffff7f9779c4cf
0xffffff811feabed0 : 0xffffff7f977990df
0xffffff811feabef0 : 0xffffff80158d3bbd
0xffffff811feabf40 : 0xffffff80158d1a2d
0xffffff811feabf80 : 0xffffff80158d1b26
0xffffff811feabfb0 : 0xffffff801540f867
Kernel Extensions in backtrace:
com.apple.driver.AppleMuxControl(3.10.25b1)[1E15AD73-2FB6-335D-B85F-FFE5DF701B61]@0xffffff7f981ac000->0xffffff7f981bffff
dependency: com.apple.driver.AppleGraphicsControl(3.10.25b1)[D04ACEEC-F410-399A-8DCF-5443ADB72788]@0xffffff7f981a4000
dependency: com.apple.iokit.IOACPIFamily(1.4)[70E2B65E-A91A-3522-A1A0-79FD63EABB4C]@0xffffff7f96207000
dependency: com.apple.iokit.IOPCIFamily(2.9)[2B00C2EC-8F87-3028-9CD8-D25EA3610E16]@0xffffff7f95b59000
dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[8922721D-5517-3883-BD3A-57422D0244A0]@0xffffff7f962e6000
dependency: com.apple.driver.AppleBacklightExpert(1.1.0)[65E3187E-949B-36E9-BA33-1B13ABB0581A]@0xffffff7f981a7000
com.apple.nvidia.classic.NVDAResmanTesla(10.0)[4DF3EC7A-6211-3906-9331-4BF94A54F60A]@0xffffff7f9633d000->0xffffff7f965a9fff
dependency: com.apple.iokit.IOPCIFamily(2.9)[2B00C2EC-8F87-3028-9CD8-D25EA3610E16]@0xffffff7f95b59000
dependency: com.apple.iokit.IONDRVSupport(2.4.1)[7372D580-6DDE-3457-B043-49B8447FC9D2]@0xffffff7f9632d000
dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[8922721D-5517-3883-BD3A-57422D0244A0]@0xffffff7f962e6000
com.apple.GeForceTesla(10.0)[8CA56B01-FA91-3F50-8BAC-D6244A41F863]@0xffffff7f97792000->0xffffff7f9785ffff
dependency: com.apple.iokit.IOPCIFamily(2.9)[2B00C2EC-8F87-3028-9CD8-D25EA3610E16]@0xffffff7f95b59000
dependency: com.apple.iokit.IONDRVSupport(2.4.1)[7372D580-6DDE-3457-B043-49B8447FC9D2]@0xffffff7f9632d000
dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[8922721D-5517-3883-BD3A-57422D0244A0]@0xffffff7f962e6000
dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.0)[4DF3EC7A-6211-3906-9331-4BF94A54F60A]@0xffffff7f9633d000
com.apple.nvidia.classic.NVDANV50HalTesla(10.0)[DFDCE4A0-7573-3119-A37D-C92EC5394888]@0xffffff7f965b5000->0xffffff7f96862fff
dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.0)[4DF3EC7A-6211-3906-9331-4BF94A54F60A]@0xffffff7f9633d000
dependency: com.apple.iokit.IOPCIFamily(2.9)[2B00C2EC-8F87-3028-9CD8-D25EA3610E16]@0xffffff7f95b59000

BSD process name corresponding to current thread: kernel_task

Mac OS version:
14F2315

Kernel version:
Darwin Kernel Version 14.5.0: Fri Feb 17 10:33:20 PST 2017; root:xnu-2782.50.9.1.1~1/RELEASE_X86_64
Kernel UUID: 7BF2F11D-8063-35A4-9FCF-597FF553DFD6
Kernel slide: 0x0000000015000000
Kernel text base: 0xffffff8015200000
__HIB text base: 0xffffff8015100000
System model name: MacBookPro6,2 (Mac-F22586C8)

System uptime in nanoseconds: 1272549498011
last loaded kext at 101835933307: com.motu.driver.FireWireAudio 1.6 71459 (addr 0xffffff7f95e86000, size 909312)
last unloaded kext at 326309312656: com.apple.driver.AppleUSBUHCI 656.4.1 (addr 0xffffff7f9699e000, size 65536)
loaded kexts:
com.motu.driver.FireWireAudio 1.6 71459
com.paceap.kext.pacesupport.snowleopard 5.8
com.paragon-software.filesystems.ntfs 288.2.14
at.obdev.nke.LittleSnitch 4718
com.apple.driver.AppleHWSensor 1.9.5d0
com.apple.filesystems.msdosfs 1.10
com.apple.driver.AudioAUUC 1.70
com.apple.filesystems.autofs 3.0
com.apple.driver.AppleOSXWatchdog 1
com.apple.iokit.IOBluetoothSerialManager 4.3.6f4
com.apple.driver.AppleMikeyHIDDriver 124
com.apple.driver.AppleMikeyDriver 272.18.3
com.apple.driver.AppleUpstreamUserClient 3.6.1
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.driver.AppleHDA 272.18.3
com.apple.GeForceTesla 10.0.0
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleHWAccess 1
com.apple.driver.AppleIntelHDGraphics 10.0.0
com.apple.driver.AppleHV 1
com.apple.driver.AppleSMCPDRC 1.0.0
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.AppleIntelHDGraphicsFB 10.0.0
com.apple.driver.AppleMuxControl 3.10.25b1
com.apple.driver.AppleMCCSControl 1.2.12
com.apple.driver.AppleSMCLMU 2.0.7d0
com.apple.driver.AppleLPC 1.7.3
com.apple.driver.SMCMotionSensor 3.0.4d1
com.apple.driver.AppleUSBTCButtons 240.2
com.apple.driver.AppleUSBTCKeyboard 240.2
com.apple.driver.AppleUSBCardReader 3.5.5
com.apple.driver.AppleIRController 327.5
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.BootCache 36
com.apple.iokit.SCSITaskUserClient 3.7.5
com.apple.driver.XsanFilter 404
com.apple.iokit.IOAHCIBlockStorage 2.7.1
com.apple.driver.AppleUSBHub 705.4.2
com.apple.driver.AirPort.Brcm4331 800.20.24
com.apple.driver.AppleAHCIPort 3.1.2
com.apple.driver.AppleFWOHCI 5.5.2
com.apple.iokit.AppleBCM5701Ethernet 10.1.3
com.apple.driver.AppleUSBEHCI 705.4.14
com.apple.driver.AppleSmartBatteryManager 161.0.0
com.apple.driver.AppleACPIButtons 3.1
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 3.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 218.0.0
com.apple.nke.applicationfirewall 161
com.apple.security.quarantine 3
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 218.0.0
com.apple.kext.triggers 1.0
com.apple.iokit.IOSerialFamily 11
com.apple.driver.DspFuncLib 272.18.3
com.apple.kext.OSvKernDSPLib 1.15
com.apple.iokit.IOSurface 97.4
com.apple.nvidia.classic.NVDANV50HalTesla 10.0.0
com.apple.nvidia.classic.NVDAResmanTesla 10.0.0
com.apple.iokit.IOBluetoothFamily 4.3.6f4
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.iokit.IOUSBUserClient 705.4.0
com.apple.iokit.IOFireWireIP 2.2.6
com.apple.driver.AppleSMBusPCI 1.0.12d1
com.apple.driver.AppleGraphicsControl 3.10.25b1
com.apple.driver.AppleBacklightExpert 1.1.0
com.apple.iokit.IONDRVSupport 2.4.1
com.apple.driver.AppleSMBusController 1.0.13d1
com.apple.driver.AppleHDAController 272.18.3
com.apple.iokit.IOHDAFamily 272.18.3
com.apple.iokit.IOAudioFamily 203.3
com.apple.vecLib.kext 1.2.0
com.apple.iokit.IOGraphicsFamily 2.4.1
com.apple.driver.IOPlatformPluginFamily 5.9.1d7
com.apple.driver.AppleSMC 3.1.9
com.apple.driver.AppleUSBMultitouch 245.2
com.apple.iokit.IOSCSIBlockCommandsDevice 3.7.5
com.apple.iokit.IOUSBMassStorageClass 3.7.2
com.apple.iokit.IOUSBHIDDriver 705.4.0
com.apple.driver.AppleUSBMergeNub 705.4.0
com.apple.driver.AppleUSBComposite 705.4.9
com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.7.5
com.apple.iokit.IOBDStorageFamily 1.7
com.apple.iokit.IODVDStorageFamily 1.7.1
com.apple.iokit.IOCDStorageFamily 1.7.1
com.apple.iokit.IOAHCISerialATAPI 2.6.1
com.apple.iokit.IOSCSIArchitectureModelFamily 3.7.5
com.apple.iokit.IOAHCIFamily 2.7.5
com.apple.iokit.IO80211Family 730.60
com.apple.iokit.IOFireWireFamily 4.5.8
com.apple.iokit.IOEthernetAVBController 1.0.3b3
com.apple.driver.mDNSOffloadUserClient 1.0.1b8
com.apple.iokit.IONetworkingFamily 3.2
com.apple.iokit.IOUSBFamily 720.4.4
com.apple.driver.AppleEFINVRAM 2.0
com.apple.driver.AppleEFIRuntime 2.0
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.iokit.IOSMBusFamily 1.1
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.DiskImages 398
com.apple.iokit.IOStorageFamily 2.0
com.apple.iokit.IOReportFamily 31
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleACPIPlatform 3.1
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0
Model: MacBookPro6,2, BootROM MBP61.0057.B11, 2 processors, Intel Core i5, 2.53 GHz, 8 GB, SMC 1.58f16
Graphics: Intel HD Graphics, Intel HD Graphics, Built-In
Graphics: NVIDIA GeForce GT 330M, NVIDIA GeForce GT 330M, PCIe, 256 MB
Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1067 MHz, 0x859B, 0x435434473353313036374D2E4D3136464D44
Memory Module: BANK 1/DIMM0, 4 GB, DDR3, 1067 MHz, 0x859B, 0x435434473353313036374D2E4D3136464D44
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x93), Broadcom BCM43xx 1.0 (5.106.98.100.24)
Network Service: AirPort, AirPort, en1
Serial ATA Device: ST750LX003-1AC154, 750.16 GB
Serial ATA Device: MATSHITADVD-R UJ-898
USB Device: Hub
USB Device: Apple Internal Keyboard / Trackpad
USB Device: Internal Memory Card Reader
USB Device: Hub
USB Device: UltraLite mk3
USB Device: IR Receiver
USB Device: Built-in iSight
Thunderbolt Bus:

maybe
george4mx said:
Cinebench test finished successfuly with fps 12.68.. The second time I repeated the process with cinebench it crashed.. I passed yosemite over snow leopard, I didn't do a fresh install, I don't know if this could result any problems.. The only solution I have right now is to use gfxcardstatus 1.8.1, only with that way it doesn't crash. I have a lot of plugins for ableton so for me to make a clean install and install all the plugins again it take a whole day and I am not in the mood to do this right now.. Maybe in the future I ll try it.. I think I am ok with gfxcardstatus at the moment.. I dont know why this is happening after replacement of the capacitor, the guy that did the job is a profesional, why its happening this?
Click to expand...

Maybe the guy used a faulty cap or a used one. i recommend buying the one i previously mentions in the post above. but yea its a problem with the cap maybe the guy you took it to used a used one or he just heated it up. it shouldn't be crashing i recommend buying one and fixing it urself and get some good solder and flux make sure its on there tight
http://ru.mouser.com/search/ProductDetail.aspx?R=0virtualkey0virtualkey2TPE330MAFB
thats the one i used on my MBP 2010 15 i7 2.66 w 8gb ram and make sure you get hwsensor make sure your cpu or gpu isn't overheating causing the restart or crash when i pu the map back together i used thermal grizzly its great paste i just ran cinibench 5 times in a row and no crash cores getup to about 80-85 c and the gpu gets about 70-75c those are normal temps its good to open it up and do it urself you save alot of $$ too. good for experience if you ever need to do it again.

george4mx said:
Cinebench test finished successfuly with fps 12.68.. The second time I repeated the process with cinebench it crashed.. I passed yosemite over snow leopard, I didn't do a fresh install, I don't know if this could result any problems.. The only solution I have right now is to use gfxcardstatus 1.8.1, only with that way it doesn't crash. I have a lot of plugins for ableton so for me to make a clean install and install all the plugins again it take a whole day and I am not in the mood to do this right now.. Maybe in the future I ll try it.. I think I am ok with gfxcardstatus at the moment.. I dont know why this is happening after replacement of the capacitor, the guy that did the job is a profesional, why its happening this?
[doublepost=1492902489][/doublepost]panic report states the following:
*** Panic Report ***
panic(cpu 2 caller 0xffffff7f981bac0b): "GPU Panic: [<None>] 5 3 7f 0 0 0 0 3 : NVRM[0/1:0:0]: Read Error 0x00000100: CFG 0xffffffff 0xffffffff 0xffffffff, BAR0 0xd2000000 0xffffff8131120000 0x0a5480a2, D0, P3/4\n"@/SourceCache/AppleGraphicsControl/AppleGraphicsControl-3.10.25.1/src/AppleMuxControl/kext/GPUPanic.cpp:127
Backtrace (CPU 2), Frame : Return Address
0xffffff811feab560 : 0xffffff8015328e01
0xffffff811feab5e0 : 0xffffff7f981bac0b
0xffffff811feab6c0 : 0xffffff7f9638e31c
0xffffff811feab780 : 0xffffff7f964595e8
0xffffff811feab7c0 : 0xffffff7f96459653
0xffffff811feab840 : 0xffffff7f966dd7b6
0xffffff811feab9a0 : 0xffffff7f9647d325
0xffffff811feab9c0 : 0xffffff7f96395086
0xffffff811feaba70 : 0xffffff7f96392a08
0xffffff811feabc70 : 0xffffff7f96394ca8
0xffffff811feabd60 : 0xffffff7f977f8925
0xffffff811feabdc0 : 0xffffff7f977f55ef
0xffffff811feabe40 : 0xffffff7f977df95a
0xffffff811feabe70 : 0xffffff7f9779b182
0xffffff811feabe90 : 0xffffff7f9779c4cf
0xffffff811feabed0 : 0xffffff7f977990df
0xffffff811feabef0 : 0xffffff80158d3bbd
0xffffff811feabf40 : 0xffffff80158d1a2d
0xffffff811feabf80 : 0xffffff80158d1b26
0xffffff811feabfb0 : 0xffffff801540f867
Kernel Extensions in backtrace:
com.apple.driver.AppleMuxControl(3.10.25b1)[1E15AD73-2FB6-335D-B85F-FFE5DF701B61]@0xffffff7f981ac000->0xffffff7f981bffff
dependency: com.apple.driver.AppleGraphicsControl(3.10.25b1)[D04ACEEC-F410-399A-8DCF-5443ADB72788]@0xffffff7f981a4000
dependency: com.apple.iokit.IOACPIFamily(1.4)[70E2B65E-A91A-3522-A1A0-79FD63EABB4C]@0xffffff7f96207000
dependency: com.apple.iokit.IOPCIFamily(2.9)[2B00C2EC-8F87-3028-9CD8-D25EA3610E16]@0xffffff7f95b59000
dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[8922721D-5517-3883-BD3A-57422D0244A0]@0xffffff7f962e6000
dependency: com.apple.driver.AppleBacklightExpert(1.1.0)[65E3187E-949B-36E9-BA33-1B13ABB0581A]@0xffffff7f981a7000
com.apple.nvidia.classic.NVDAResmanTesla(10.0)[4DF3EC7A-6211-3906-9331-4BF94A54F60A]@0xffffff7f9633d000->0xffffff7f965a9fff
dependency: com.apple.iokit.IOPCIFamily(2.9)[2B00C2EC-8F87-3028-9CD8-D25EA3610E16]@0xffffff7f95b59000
dependency: com.apple.iokit.IONDRVSupport(2.4.1)[7372D580-6DDE-3457-B043-49B8447FC9D2]@0xffffff7f9632d000
dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[8922721D-5517-3883-BD3A-57422D0244A0]@0xffffff7f962e6000
com.apple.GeForceTesla(10.0)[8CA56B01-FA91-3F50-8BAC-D6244A41F863]@0xffffff7f97792000->0xffffff7f9785ffff
dependency: com.apple.iokit.IOPCIFamily(2.9)[2B00C2EC-8F87-3028-9CD8-D25EA3610E16]@0xffffff7f95b59000
dependency: com.apple.iokit.IONDRVSupport(2.4.1)[7372D580-6DDE-3457-B043-49B8447FC9D2]@0xffffff7f9632d000
dependency: com.apple.iokit.IOGraphicsFamily(2.4.1)[8922721D-5517-3883-BD3A-57422D0244A0]@0xffffff7f962e6000
dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.0)[4DF3EC7A-6211-3906-9331-4BF94A54F60A]@0xffffff7f9633d000
com.apple.nvidia.classic.NVDANV50HalTesla(10.0)[DFDCE4A0-7573-3119-A37D-C92EC5394888]@0xffffff7f965b5000->0xffffff7f96862fff
dependency: com.apple.nvidia.classic.NVDAResmanTesla(10.0.0)[4DF3EC7A-6211-3906-9331-4BF94A54F60A]@0xffffff7f9633d000
dependency: com.apple.iokit.IOPCIFamily(2.9)[2B00C2EC-8F87-3028-9CD8-D25EA3610E16]@0xffffff7f95b59000

BSD process name corresponding to current thread: kernel_task

Mac OS version:
14F2315

Kernel version:
Darwin Kernel Version 14.5.0: Fri Feb 17 10:33:20 PST 2017; root:xnu-2782.50.9.1.1~1/RELEASE_X86_64
Kernel UUID: 7BF2F11D-8063-35A4-9FCF-597FF553DFD6
Kernel slide: 0x0000000015000000
Kernel text base: 0xffffff8015200000
__HIB text base: 0xffffff8015100000
System model name: MacBookPro6,2 (Mac-F22586C8)

System uptime in nanoseconds: 1272549498011
last loaded kext at 101835933307: com.motu.driver.FireWireAudio 1.6 71459 (addr 0xffffff7f95e86000, size 909312)
last unloaded kext at 326309312656: com.apple.driver.AppleUSBUHCI 656.4.1 (addr 0xffffff7f9699e000, size 65536)
loaded kexts:
com.motu.driver.FireWireAudio 1.6 71459
com.paceap.kext.pacesupport.snowleopard 5.8
com.paragon-software.filesystems.ntfs 288.2.14
at.obdev.nke.LittleSnitch 4718
com.apple.driver.AppleHWSensor 1.9.5d0
com.apple.filesystems.msdosfs 1.10
com.apple.driver.AudioAUUC 1.70
com.apple.filesystems.autofs 3.0
com.apple.driver.AppleOSXWatchdog 1
com.apple.iokit.IOBluetoothSerialManager 4.3.6f4
com.apple.driver.AppleMikeyHIDDriver 124
com.apple.driver.AppleMikeyDriver 272.18.3
com.apple.driver.AppleUpstreamUserClient 3.6.1
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.driver.AppleHDA 272.18.3
com.apple.GeForceTesla 10.0.0
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.driver.AppleHWAccess 1
com.apple.driver.AppleIntelHDGraphics 10.0.0
com.apple.driver.AppleHV 1
com.apple.driver.AppleSMCPDRC 1.0.0
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.AppleIntelHDGraphicsFB 10.0.0
com.apple.driver.AppleMuxControl 3.10.25b1
com.apple.driver.AppleMCCSControl 1.2.12
com.apple.driver.AppleSMCLMU 2.0.7d0
com.apple.driver.AppleLPC 1.7.3
com.apple.driver.SMCMotionSensor 3.0.4d1
com.apple.driver.AppleUSBTCButtons 240.2
com.apple.driver.AppleUSBTCKeyboard 240.2
com.apple.driver.AppleUSBCardReader 3.5.5
com.apple.driver.AppleIRController 327.5
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.BootCache 36
com.apple.iokit.SCSITaskUserClient 3.7.5
com.apple.driver.XsanFilter 404
com.apple.iokit.IOAHCIBlockStorage 2.7.1
com.apple.driver.AppleUSBHub 705.4.2
com.apple.driver.AirPort.Brcm4331 800.20.24
com.apple.driver.AppleAHCIPort 3.1.2
com.apple.driver.AppleFWOHCI 5.5.2
com.apple.iokit.AppleBCM5701Ethernet 10.1.3
com.apple.driver.AppleUSBEHCI 705.4.14
com.apple.driver.AppleSmartBatteryManager 161.0.0
com.apple.driver.AppleACPIButtons 3.1
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 3.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 218.0.0
com.apple.nke.applicationfirewall 161
com.apple.security.quarantine 3
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 218.0.0
com.apple.kext.triggers 1.0
com.apple.iokit.IOSerialFamily 11
com.apple.driver.DspFuncLib 272.18.3
com.apple.kext.OSvKernDSPLib 1.15
com.apple.iokit.IOSurface 97.4
com.apple.nvidia.classic.NVDANV50HalTesla 10.0.0
com.apple.nvidia.classic.NVDAResmanTesla 10.0.0
com.apple.iokit.IOBluetoothFamily 4.3.6f4
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.iokit.IOUSBUserClient 705.4.0
com.apple.iokit.IOFireWireIP 2.2.6
com.apple.driver.AppleSMBusPCI 1.0.12d1
com.apple.driver.AppleGraphicsControl 3.10.25b1
com.apple.driver.AppleBacklightExpert 1.1.0
com.apple.iokit.IONDRVSupport 2.4.1
com.apple.driver.AppleSMBusController 1.0.13d1
com.apple.driver.AppleHDAController 272.18.3
com.apple.iokit.IOHDAFamily 272.18.3
com.apple.iokit.IOAudioFamily 203.3
com.apple.vecLib.kext 1.2.0
com.apple.iokit.IOGraphicsFamily 2.4.1
com.apple.driver.IOPlatformPluginFamily 5.9.1d7
com.apple.driver.AppleSMC 3.1.9
com.apple.driver.AppleUSBMultitouch 245.2
com.apple.iokit.IOSCSIBlockCommandsDevice 3.7.5
com.apple.iokit.IOUSBMassStorageClass 3.7.2
com.apple.iokit.IOUSBHIDDriver 705.4.0
com.apple.driver.AppleUSBMergeNub 705.4.0
com.apple.driver.AppleUSBComposite 705.4.9
com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.7.5
com.apple.iokit.IOBDStorageFamily 1.7
com.apple.iokit.IODVDStorageFamily 1.7.1
com.apple.iokit.IOCDStorageFamily 1.7.1
com.apple.iokit.IOAHCISerialATAPI 2.6.1
com.apple.iokit.IOSCSIArchitectureModelFamily 3.7.5
com.apple.iokit.IOAHCIFamily 2.7.5
com.apple.iokit.IO80211Family 730.60
com.apple.iokit.IOFireWireFamily 4.5.8
com.apple.iokit.IOEthernetAVBController 1.0.3b3
com.apple.driver.mDNSOffloadUserClient 1.0.1b8
com.apple.iokit.IONetworkingFamily 3.2
com.apple.iokit.IOUSBFamily 720.4.4
com.apple.driver.AppleEFINVRAM 2.0
com.apple.driver.AppleEFIRuntime 2.0
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.iokit.IOSMBusFamily 1.1
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.DiskImages 398
com.apple.iokit.IOStorageFamily 2.0
com.apple.iokit.IOReportFamily 31
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleACPIPlatform 3.1
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0
Model: MacBookPro6,2, BootROM MBP61.0057.B11, 2 processors, Intel Core i5, 2.53 GHz, 8 GB, SMC 1.58f16
Graphics: Intel HD Graphics, Intel HD Graphics, Built-In
Graphics: NVIDIA GeForce GT 330M, NVIDIA GeForce GT 330M, PCIe, 256 MB
Memory Module: BANK 0/DIMM0, 4 GB, DDR3, 1067 MHz, 0x859B, 0x435434473353313036374D2E4D3136464D44
Memory Module: BANK 1/DIMM0, 4 GB, DDR3, 1067 MHz, 0x859B, 0x435434473353313036374D2E4D3136464D44
AirPort: spairport_wireless_card_type_airport_extreme (0x14E4, 0x93), Broadcom BCM43xx 1.0 (5.106.98.100.24)
Network Service: AirPort, AirPort, en1
Serial ATA Device: ST750LX003-1AC154, 750.16 GB
Serial ATA Device: MATSHITADVD-R UJ-898
USB Device: Hub
USB Device: Apple Internal Keyboard / Trackpad
USB Device: Internal Memory Card Reader
USB Device: Hub
USB Device: UltraLite mk3
USB Device: IR Receiver
USB Device: Built-in iSight
Thunderbolt Bus:
Click to expand...
Probably this capacitor is faulty. Buy a new one, and preferably the not tantalum.

You must log in or register to reply here.
Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
Top Bottom
Back
