IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
The GPU fails. It still can display image for light task. But when the driver is loaded, the heat kicks in and cause some kinds of failure.
I have 2 dead GPU with the exact same symptom like yours. Apple logo, 2/3 progress bar, then got stuck forever.
After replacing it with a working GPU, the machine booted normally to desktop.
ok, what is a GPU? can I change that? how much does it cost?


IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
The GPU fails. It still can display image for light task. But when the driver is loaded, the heat kicks in and cause some kinds of failure.
I have 2 dead GPU with the exact same symptom like yours. Apple logo, 2/3 progress bar, then got stuck forever.
After replacing it with a working GPU, the machine booted normally to desktop.
ok thanks... What is a GPU (graphic card of some sort)? can I replace that? How much about? Is there a part number for those so I know what to look for?

Silly question, I looked online quickly and saw something called heat sensor for the GPU. How do I know it's the GPU and not the heat sensor on the GPU. If that makes sense. Sorry newbie here, pretty handy but anything with chips is not my strong point. I can follow instructions so I think I can change that if it's reasonable.

Thanks again for your info, greatly appreciated!


Macky-Mac

macrumors 68040
May 18, 2004
3,708
2,800
a suggestion for something to consider before you proceed with trying to find and replace the GPU.

Remove the new HD you installed in the ailing iMac, put it in an external enclosure (cheap from Amazon for example) and then connect it to one of the other iMacs you have access to. Then format the new drive using that other computer.

Then download the installer for the version of Mac OS you want. Use that installer to install the OS on to the new drive while it's still connected as an external drive. (you could also clone a copy from the functioning Mac).

Then after you have the OS on the new HD, go thru the process of booting the "other" computer from the external new HD to make sure it works, then use the new HD as an external to to try to boot the ailing iMac.

If it works, then reinstall the new HD back into the ailing iMac to see what happens.

Last edited:

IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
a suggestion for something to consider before you proceed with trying to find and replace the GPU.

Remove the new HD you installed in the ailing iMac, put it in an external enclosure (cheap from Amazon for example) and then connect it to one of the other iMacs you have access to. Then format the new external drive using that other computer.

Then download the installer for the version of Mac OS you want. Use that installer to install the OS onto the external drive (you could also clone a copy from the functioning Mac).

Then after you have the OS on the new HD, go thru the process of booting the "other" computer from the external new HD, then use the new HD as an external to boot the ailing iMac.

If it's worked, then reinstall the new HD back into the ailing iMac to see what happens.
ok, just a question.... because it's a lot of work and getting the extra part.

Thinking ahead... it seems that if I can't boot from a flash drive OR my os 10.9 install cd OR the Online recovery system from Apple... I shouldn't be able to booth from the external HD either? I might be wrong but isn't it the same thing?

I know that the external HHD with all my data on it would be a functionning HDD and a FLASH BOOT is just that to boot and format the HDD. But it would seem that if it can't boot a little flash how is a HDD will load? Hope I am making sense. Thanks


Macky-Mac

macrumors 68040
May 18, 2004
3,708
2,800
ok, just a question.... because it's a lot of work and getting the extra part.

Thinking ahead... it seems that if I can't boot from a flash drive OR my os 10.9 install cd OR the Online recovery system from Apple... I shouldn't be able to booth from the external HD either? I might be wrong but isn't it the same thing?

I know that the external HHD with all my data on it would be a functionning HDD and a FLASH BOOT is just that to boot and format the HDD. But it would seem that if it can't boot a little flash how is a HDD will load? Hope I am making sense. Thanks

I suggested it because a friend with a similar problem to yours had success using the route I described. The enclosure he bought was around $15......but don't try it if you think it's too much work.

The CD drive might have failed on its own, completely without anything to do with your current problem. There could be various reasons why the ailing iMac isn't reading the flash drive......at this point, nobody knows.

You were inquiring about moving on to GPU purchases and installation, so I assumed you were prepared to spend a little more time and money anyway.......but again, I can understand if you're frustrated and prepared to stop fussing with it yourself.......so just ignore my suggestion

Still, if you continue on trying to fix your problem, I hope you're successful!


IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
I suggested it because a friend with a similar problem to yours had success using the route I described. The enclosure he bought was around $15......but don't try it if you think it's too much work.

Was just asking so I understand what I am doing and why. Trying to learn.

The CD drive might have failed on its own, completely without anything to do with your current problem. There could be various reasons why the ailing iMac isn't reading the flash drive......at this point, nobody knows.
Let go crazy and think the CD drive is bad, there is a crazy reason a flash drive wouldn't load and how do we explain that trying to recover from the internet on apple also doesn't work? Those are 3 different ways that are not working and also all do the same...

Apple logo, progress bar, 2/3 of the way done... screen just goes grey

I don't want to ignore anything said by anyone. Trust me I don't know enough to dismiss anything. But, I do like to ask questions before I do anything so I know why and what we are trying to figure out. My husband without a computer for 2 days and he's making me crazy...LOL

So, I do want to fix it in any way possible as long as it's financially reasonable. I asked about GPU changes because I found some for $40-$100 on ebay but I have no idea how to know which one I need. For $40 if it's a sure fix I am willing to do it.

I greatly appreciate your time and input and was not trying to dismiss you in any way. My dad always said to ask questions until I understand what we are doing. It has served me right for years and that is all I was doing.

Thanks again!



You were inquiring about moving on to GPU purchases and installation, so I assumed you were prepared to spend a little more time and money anyway.......but again, I can understand if you're frustrated and prepared to stop fussing with it yourself.......so just ignore my suggestion

Still, if you continue on trying to fix your problem, I hope you're successful!


Nguyen Duc Hieu

macrumors 68040
Jul 5, 2020
3,020
1,006
Ho Chi Minh City, Vietnam
ok, what is a GPU? can I change that? how much does it cost?

1. GPU = Graphic Processing Unit.
2. Yes, you can change that, if you are comfortable with opening your iMac and work inside. There are several Youtube videos giving instruction on how to do. Ifixit also have a full article with photos on this.
3. "How much does it cost" is depend on the seller and the time. Check the link below for one I found at this moment on ebay.

4. Similar to yours, it will definitely fail again very soon.


Macky-Mac

macrumors 68040
May 18, 2004
3,708
2,800
...Let go crazy and think the CD drive is bad, there is a crazy reason a flash drive wouldn't load and how do we explain that trying to recover from the internet on apple also doesn't work?

you were certain you'd made the bootable installer flash drive correctly, but it only worked on one of your other iMacs after you tried making it a second time.....maybe it's not working on the ailing iMac because you failed to install the HD correctly.

if the HD wasn't installed properly, then you wouldn't be able to use internet recovery to install the OS on it either.

Maybe when you were installing the new HD you accidentally messed up the CD drive somehow.

You installed the new HD, and then afterwards three things didn't work even though they should have worked......coincidence?

Last edited:

Fishrrman

macrumors Penryn
Feb 20, 2009
29,279
13,379
I'm gonna say it again:
GPU failure (very common in 2011 Macs).

NOT WORTH FIXING any more.
Take whatever [more] money you're going to spend on it... and... find a replacement.
(not much more to say)

  • Like
Reactions: Hombre53

IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
you were certain you'd made the bootable installer flash drive correctly,
Well, I followed the instructions. I didn't know to use GUID and I was afraid to boot on the flash from my good computer in case it could hurt something. Now I know how to do it. We can't all know everything. I know when to ask for help.



but it only worked on one of your other iMacs after you tried making it a second time.....maybe it's not working on the ailing iMac because you failed to install the HD correctly.
Humm...

remove 2 screws, disconnect 2 wires... This is not rocket science. I am nowhere near the cd drive. I have opened computers before. I am gentle, I have small hands so I can disconnect wires without pulling on others. We can eliminate the "tried to install a HDD with a jack hammer theory" lol



if the HD wasn't installed properly, then you wouldn't be able to use internet recovery to install the OS on it either.

Maybe when you were installing the new HD you accidentally messed up the CD drive somehow.

You installed the new HD, and then afterwards three things didn't work even though they should have worked......coincidence?
Your logic, I would have had to install the HDD with a hammer, while I was in there pry the CD drive with a screw driver for fun and then for good measures I would have to use some pliers on my 4 USB PORT oh and lets not forget maybe my airport card to stop the internet install from working. I think I will go with the GPU failure. Thanks






IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
1. GPU = Graphic Processing Unit.
2. Yes, you can change that, if you are comfortable with opening your iMac and work inside. There are several Youtube videos giving instruction on how to do. Ifixit also have a full article with photos on this.
3. "How much does it cost" is depend on the seller and the time. Check the link below for one I found at this moment on ebay.

4. Similar to yours, it will definitely fail again very soon.

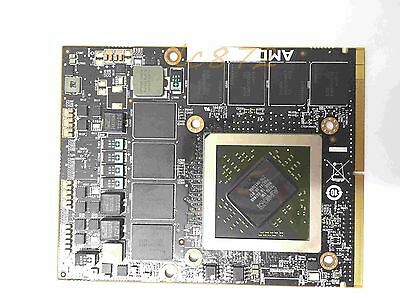

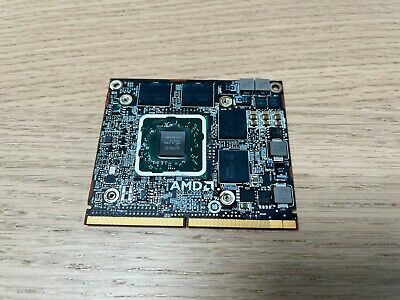

Thanks, but this says 21.5" imac and I have a 27". I found someone selling one cheap and he checked with my serial number that it is compatible.

The only thing is thay seem to come in 500mb and 1gb ram on those GPU, does it make a difference much? Husband doesn't play video games. He does email, poker, youtube and search the net....


Hombre53

macrumors regular
Feb 27, 2018
246
263
I'm gonna say it again:
GPU failure (very common in 2011 Macs).

NOT WORTH FIXING any more.
Take whatever [more] money you're going to spend on it... and... find a replacement.
(not much more to say)
Take this advice and run with it.


IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
Take this advice and run with it.
I found from a friend of a friend one for $40 so I'll take a shot and hope it works and gives me a little time to save for a new one. Thanks everyone for all the great info and advice. I wish getting a new one was in the budget. Not sure what to feel about the new imacs at 24" now, just so much to think about. Thansk again!


Hombre53

macrumors regular
Feb 27, 2018
246
263
I found from a friend of a friend one for $40 so I'll take a shot and hope it works and gives me a little time to save for a new one. Thanks everyone for all the great info and advice. I wish getting a new one was in the budget. Not sure what to feel about the new imacs at 24" now, just so much to think about. Thansk again!
Have you taken an iMac apart? Ifixit.com has instructions on how to do it, but it is much more involved (GPU) than swapping out memory. I'd save the $40 bucks and call it a day, personally. Good luck with your efforts!


IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
Have you taken an iMac apart? Ifixit.com has instructions on how to do it, but it is much more involved (GPU) than swapping out memory. I'd save the $40 bucks and call it a day, personally. Good luck with your efforts!
I just received the chip. I am opening the imac tonight but ran into 2 issues.

1- I have to look for the instructions that remove the entire motherboard on a mid 2011 27" imac because the screws on this model are on the other side... great, but Iknow I can handle that with instructions. Hope iFixit has that.

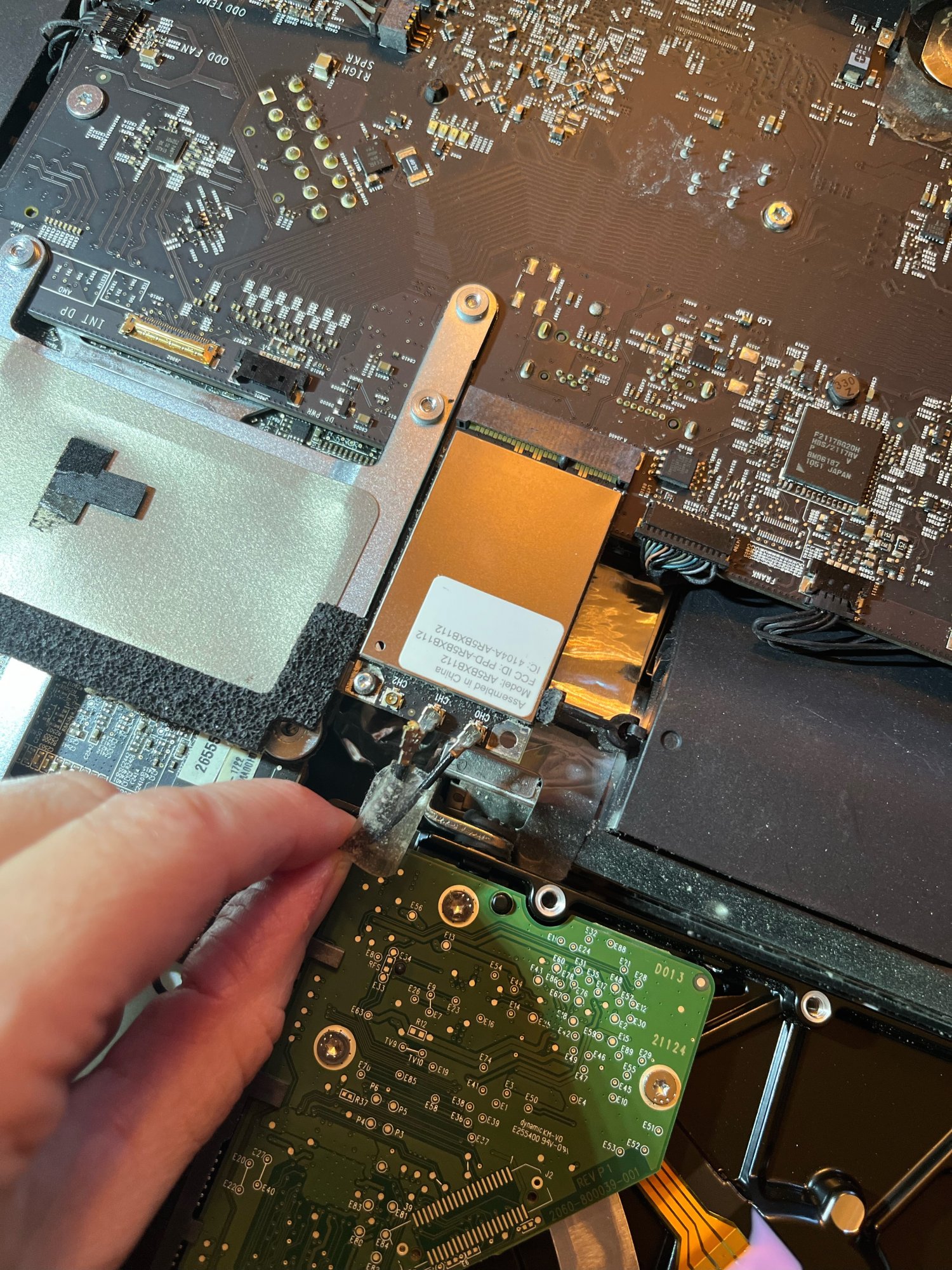

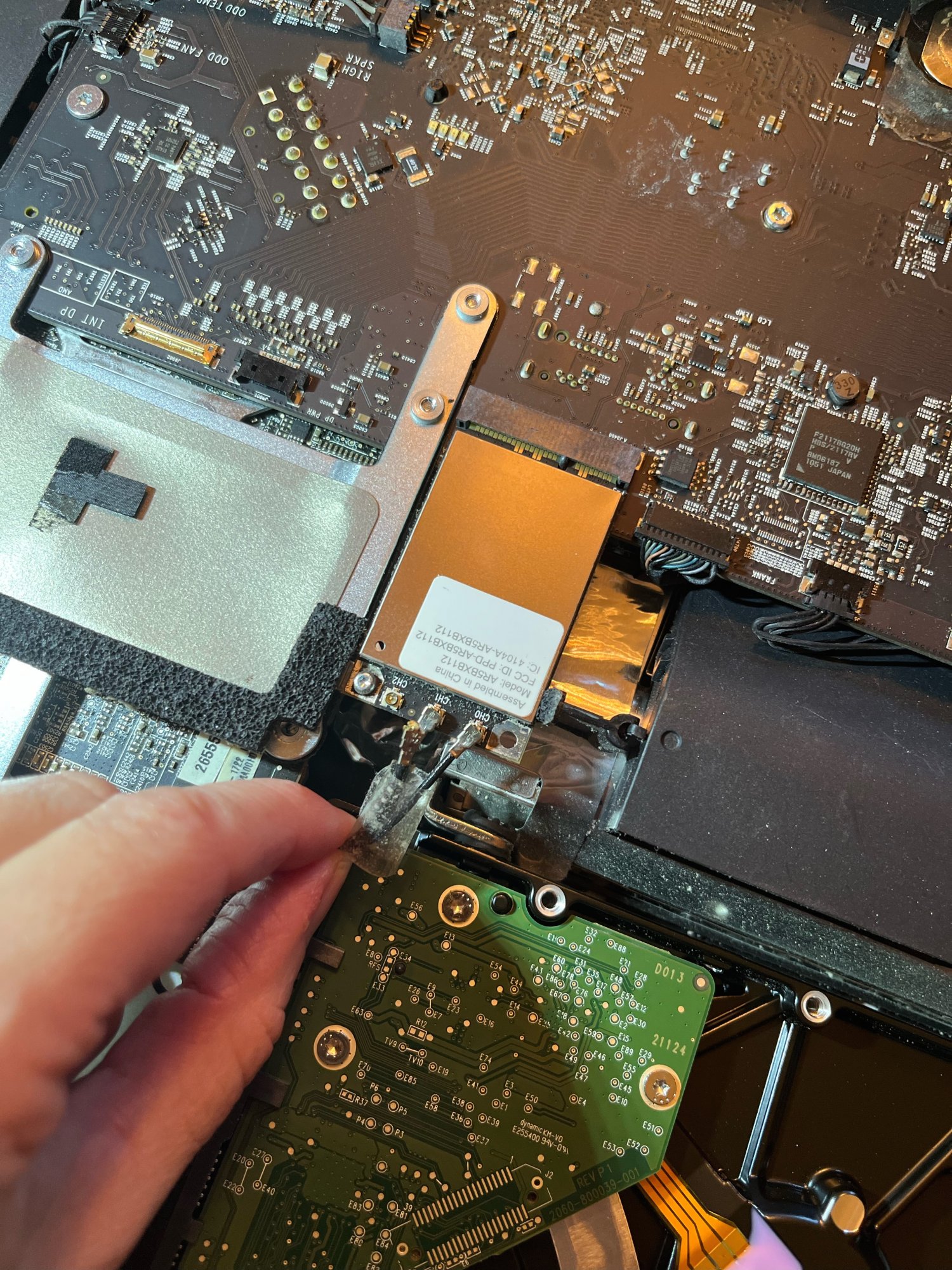

2- (SEE PHOTO) I saw a loose wire in there. No idea if it's supposed to be lose or not and what it does.
CH0 & CH1 have a wire attached to it. The lose wire looks like maybe it was for CH2?? Maybe not?? Could that be the cause of my problems all along??


I'll just move ahead for now looking for instructions on removing the motherboard and the GPU but will wait until I hear on this wire situation.


Attachments

  • IMG_4366.jpg
    734.2 KB · Views: 78
Last edited:

DeltaMac

macrumors G5
Jul 30, 2003
13,767
4,591
Delaware
CH2 is the antenna lead for the left Airport antenna (one of the Wifi antennas.) There is also a right antenna, which connects to the CH0.
I think it is unlikely that a disconnected wifi antenna (1 of 2) would cause your boot issues.

You can search for iMac_27_mid11.pdf -- which is Apple's service manual. That can give you a different look at replacing parts.


IMYB

macrumors member
Original poster
Mar 20, 2022
46
1

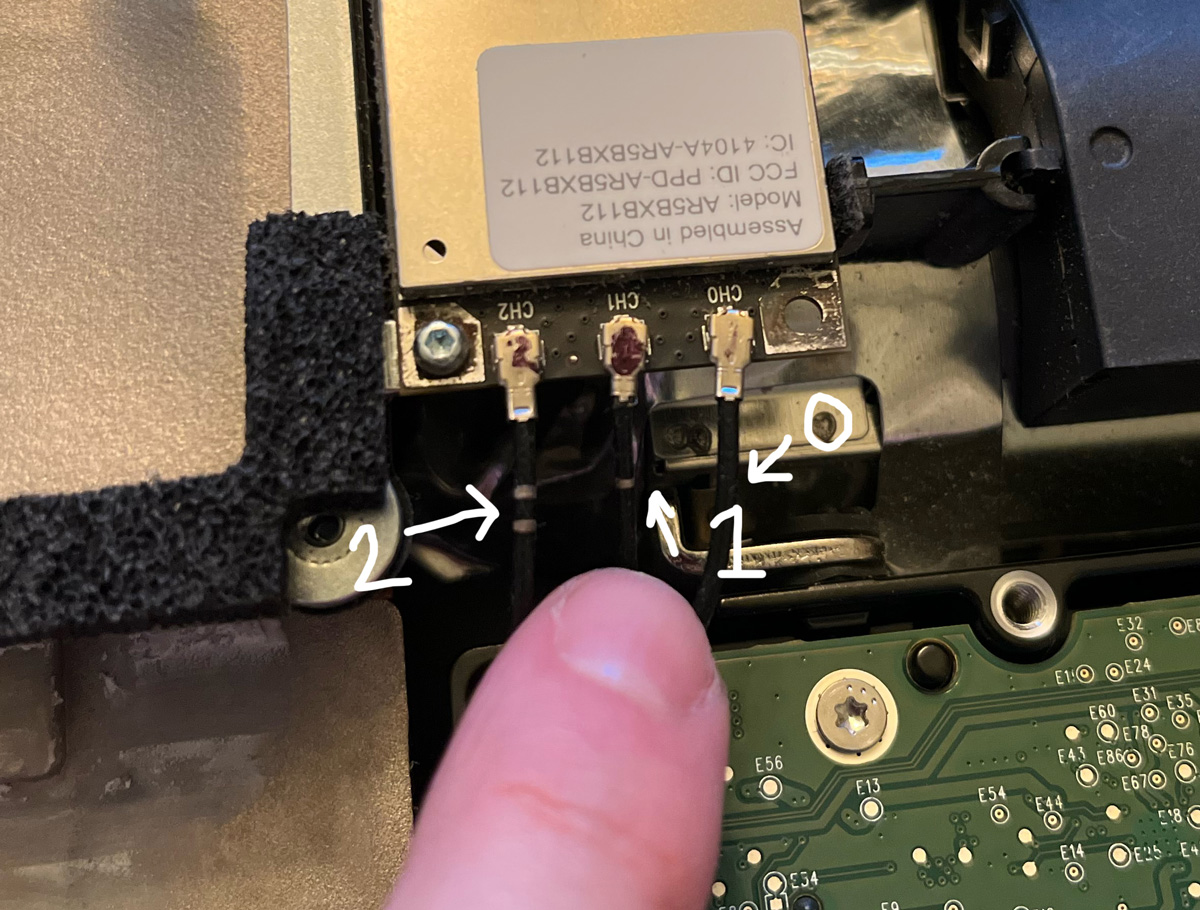

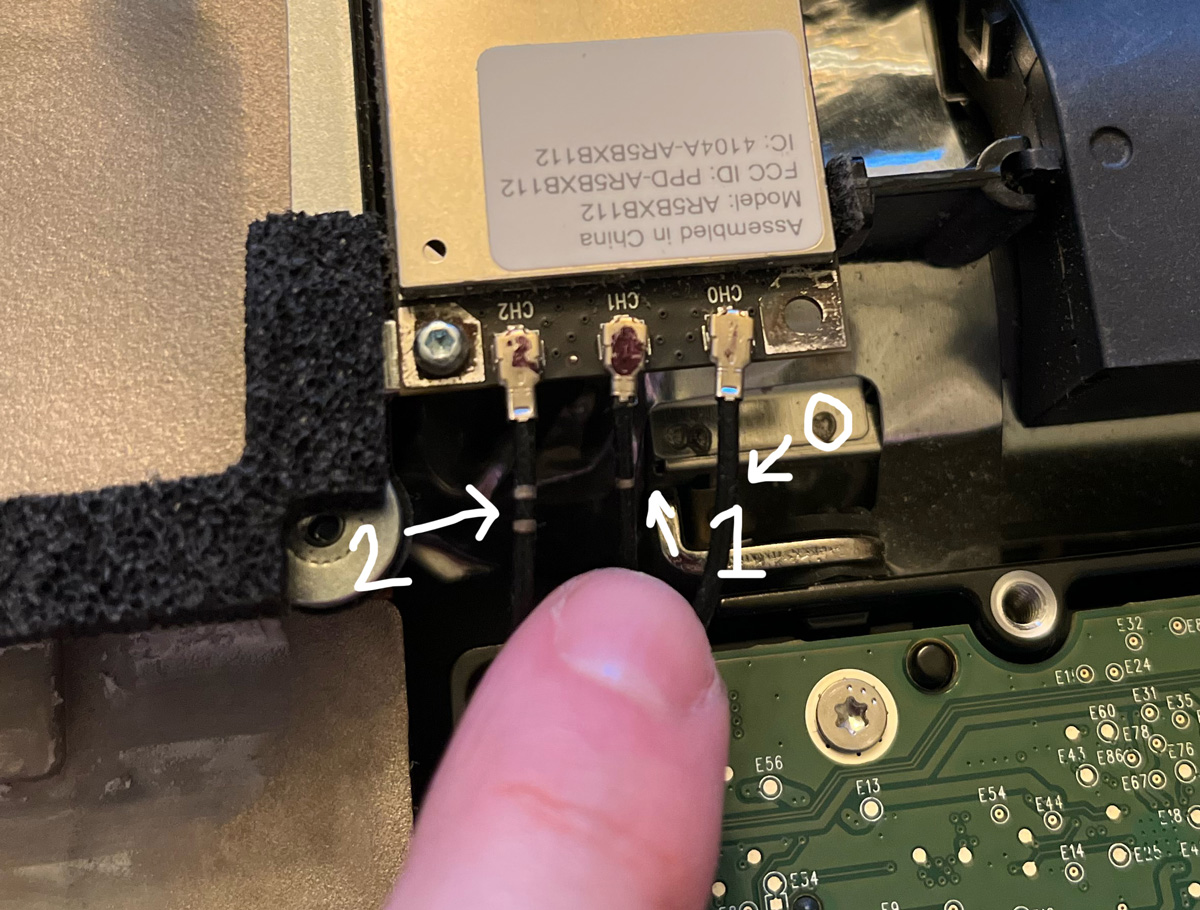

CH2 is the antenna lead for the left Airport antenna (one of the Wifi antennas.) There is also a right antenna, which connects to the CH0.
I think it is unlikely that a disconnected wifi antenna (1 of 2) would cause your boot issues.

You can search for iMac_27_mid11.pdf -- which is Apple's service manual. That can give you a different look at replacing parts.
Thanks for the PDF information. was very helpful!

When taking the motherboard the instructions didn't say anything about those 3 connectors CH0, CH1 & CH2 so they all got disconnected. I noticed on the wires one that had NO LINE, one had 1 LINE and the other 2 LINES. I hope I am correct to assume they indicate where to plug them back??

I took the time to take all the other wires to make sure I plugged them back properly but those didn't get marked


Attachments

  • IMG_4380.jpg
    365 KB · Views: 69

IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
UPDATE...

Ok, changed the GPU, YES, plugged all the wires back, made sure they were all clicked in properly.

The computer starts... I hear the chime...

but screen stays completely black, not even a flicker of life... any ideas?

thanks


macbookm1airlover

macrumors member
Jul 9, 2021
88
72

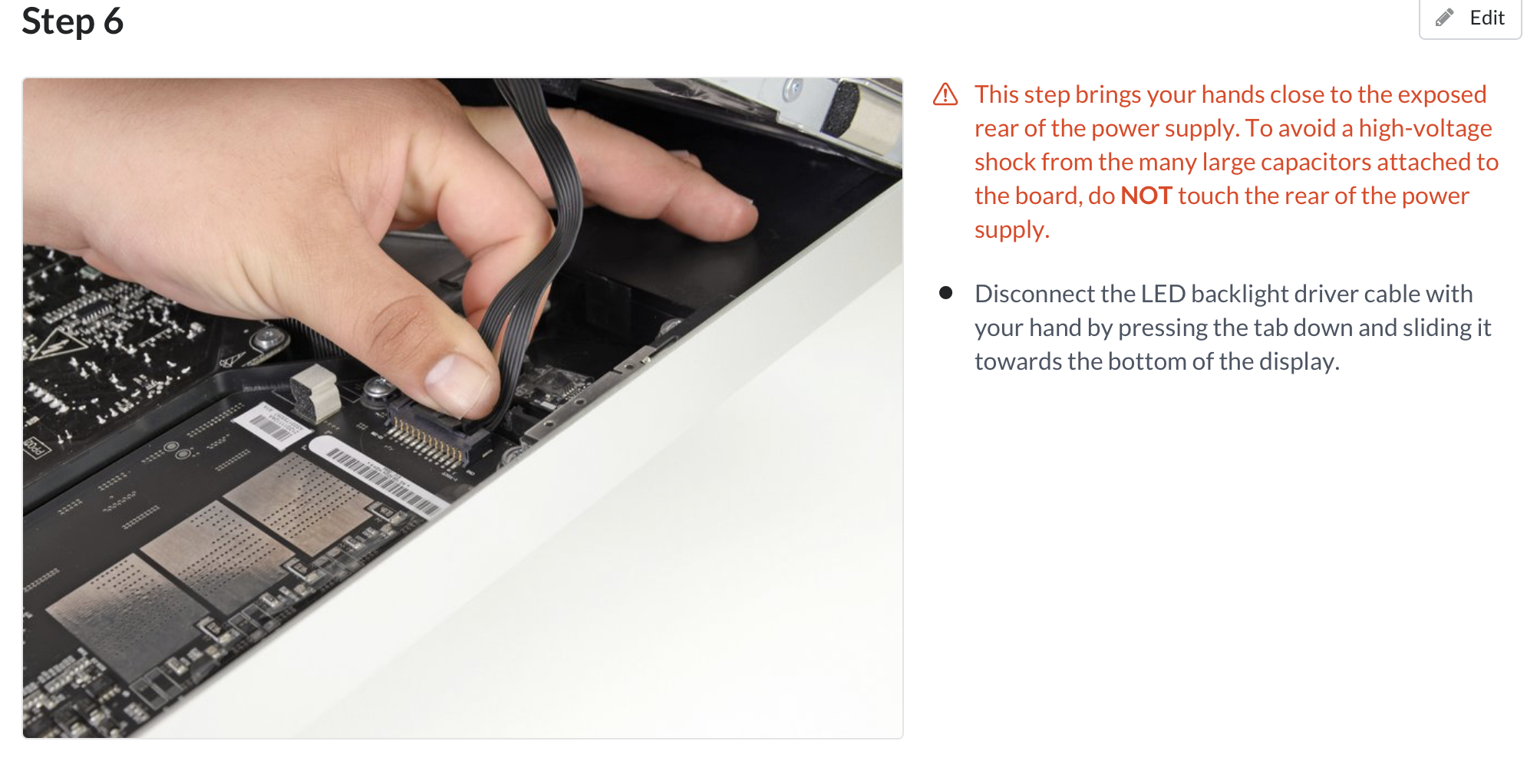

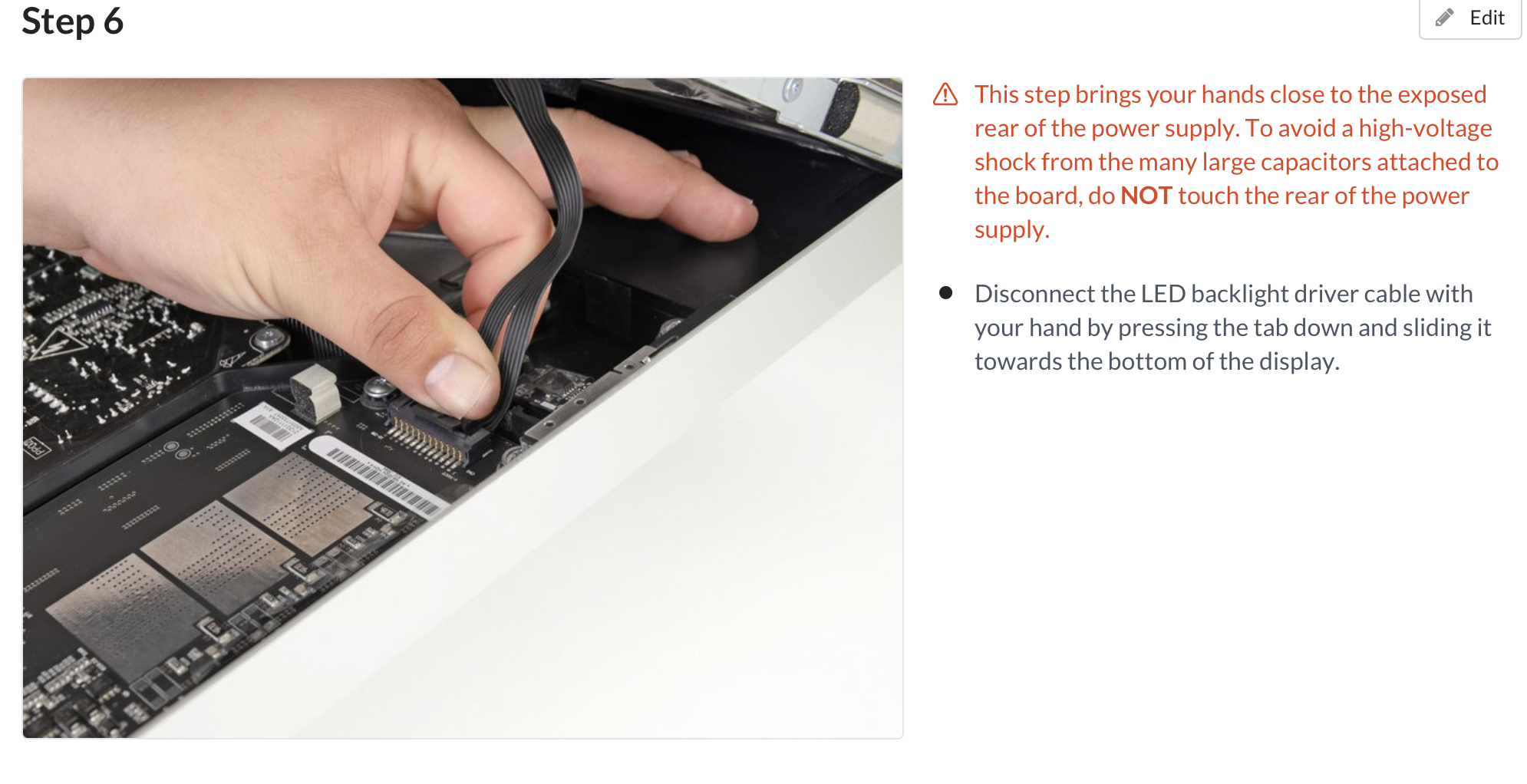

Screen Shot 2022-03-29 at 8.14.40 PM.png
Just got done reading this thread to get informed on what's happening! Great work thus far...

It's good that you heard the boot chime, that positive. I know you checked the wires, BUT more than likely, the LCD backlight wire was not plugged back into the logic board. I've done that many times even when I swore the cables were put back when I repaired iMacs :)


Nguyen Duc Hieu

macrumors 68040
Jul 5, 2020
3,020
1,006
Ho Chi Minh City, Vietnam
UPDATE...

Ok, changed the GPU, YES, plugged all the wires back, made sure they were all clicked in properly.

The computer starts... I hear the chime...

but screen stays completely black, not even a flicker of life... any ideas?

thanks

Do this when your iMac lay down face up on a table:
Remove all the screws that bolt the LCD panel to the aluminum frame.
Lift up the LCD panel a little bit and peek inside to check whether all the cables from it had been connected to the parts below.
Reseat the cables.
Power it up again to see if this can fix.


DeltaMac

macrumors G5
Jul 30, 2003
13,767
4,591
Delaware
There's 4 LEDs on the front of the logic board that can help a lot with what is going on with the video.
Can help you decide if the problem is the power supply, the LCD, or the logic board/graphics card.
You have to be able to see the LEDs, however. That Apple service manual that I suggested shows how to view the LEDs, and what each LED indicates.


IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
View attachment 1983355 Just got done reading this thread to get informed on what's happening! Great work thus far...

It's good that you heard the boot chime, that positive. I know you checked the wires, BUT more than likely, the LCD backlight wire was not plugged back into the logic board. I've done that many times even when I swore the cables were put back when I repaired iMacs :)

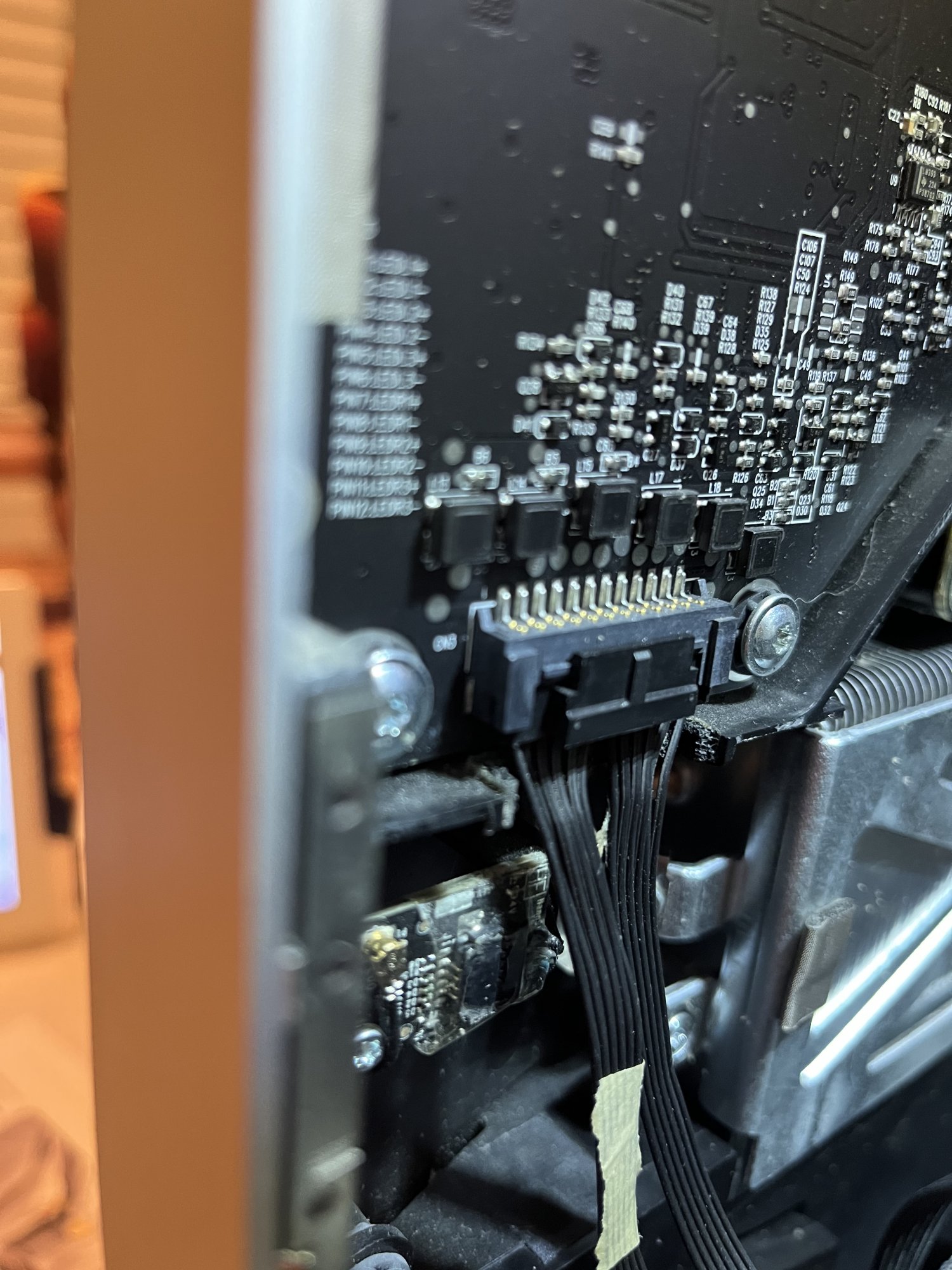

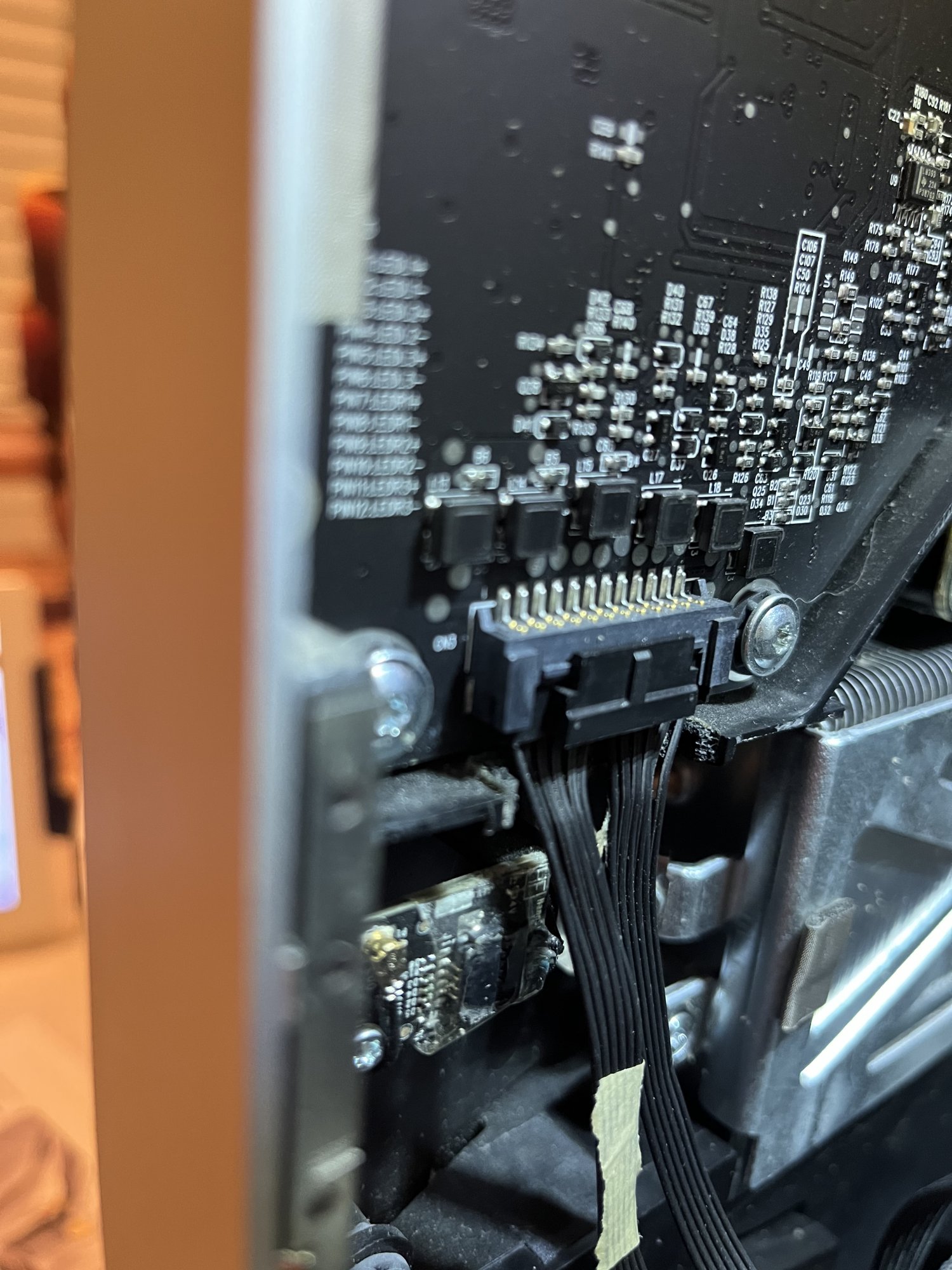

I was so hoping you were right. But, I opened the screen again... an no, it's tight and clicked in there. I heard the click (see picture). I unplugged it and did it again just to make sure.

The chime happened but still black screen. The only good thing that happened is the OS 10.9 CD I had stuck in there came out...lol

I touched the keys on the keyboard (it's plugged in keyboard and mouse so I know it's communicating with the computer) to see if I would hear a WARNING NOISE when you click the wrong thing but didn't hear anything.

So frustrating. Thanks for the help and idea


Attachments

  • IMG_4381.jpeg
    409.1 KB · Views: 73

IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
Do this when your iMac lay down face up on a table:
Remove all the screws that bolt the LCD panel to the aluminum frame.
Lift up the LCD panel a little bit and peek inside to check whether all the cables from it had been connected to the parts below.
Reseat the cables.
Power it up again to see if this can fix.
I opened it, reconnected all the4 wires that attached it to the computer and no luck


IMYB

macrumors member
Original poster
Mar 20, 2022
46
1
There's 4 LEDs on the front of the logic board that can help a lot with what is going on with the video.
Can help you decide if the problem is the power supply, the LCD, or the logic board/graphics card.
You have to be able to see the LEDs, however. That Apple service manual that I suggested shows how to view the LEDs, and what each LED indicates.
humm, lost me... LOL
Not sure how to find that, can you send me the page # on the PDF manual you sent? Thanks!
