#include <Wire.h>
#include <SoftwareWire.h>
byte data = -1;
int counter = 0 ;
int monitorAddress = 0x46;
int settingParallelogram = 0x0f;
int settingKeystone = 0x0b;
int settingRotation = 0x12;
int settingPincushion = 0x0c;
int verticalPositionSetting = 0x09;
const int verticalPositionValues[19] = {
// Low to High
0x7e, 0x7c, 0x79, 0x75, 0x70, 0x6a, 0x63, 0x5b, 0x52, 0x49, 0x40, 0x37, 0x2e, 0x25, 0x1c, 0x13, 0x0a, 0x01, 0x00
};
int verticalPositionValueIndex = 9;
int contrastSetting = 0x00;
const int contrastValues[73] = {
// Low to High
0xb5, 0xb6, 0xb7, 0xb8, 0xb9, 0xba, 0xbb, 0xbc, 0xbd, 0xbe, 0xbf, 0xc0, 0xc1, 0xc2, 0xc3, 0xc4, 0xc5, 0xc6, 0xc7,
0xc8, 0xc9, 0xca, 0xcb, 0xcc, 0xcd, 0xce, 0xcf, 0xd0, 0xd1, 0xd2, 0xd3, 0xd4, 0xd5, 0xd6, 0xd7, 0xd8, 0xd9, 0xda,
0xdb, 0xdc, 0xdd, 0xde, 0xdf, 0xe0, 0xe1, 0xe2, 0xe3, 0xe4, 0xe5, 0xe6, 0xe7, 0xe8, 0xe9, 0xea, 0xeb, 0xec, 0xed,
0xee, 0xef, 0xf0, 0xf1, 0xf2, 0xf3, 0xf4, 0xf5, 0xf6, 0xf7, 0xf8, 0xf9, 0xfa, 0xfc, 0xfd, 0xff
};
int contrastValueIndex = 72;
int horizontalPositionSetting = 0x07;
const int horizontalPositionValues[19] = {
0xfe, 0xfc, 0xf9, 0xf5, 0xf0, 0xea, 0xe3, 0xdb, 0xd2, 0xc9, 0xc0, 0xb7, 0xae, 0xa5, 0x9c, 0x93, 0x8a, 0x81, 0x80
};
int horizontalPositionValueIndex = 11;
int heightSetting = 0x08;
const int heightValues[19] = {
// short to tall
0x81, 0x83, 0x10, 0x8a, 0x8f, 0x95, 0x9c, 0xa4, 0xad, 0xb6, 0xbf, 0xc8, 0x1a, 0xda, 0xe3, 0xec, 0xf5, 0xfe, 0xff
};
int heightValueIndex = 14;
int widthSetting = 0x0d;
const int widthValues[19] = {
// thinnest to thickest
0x7e, 0x7c, 0x79, 0x75, 0x70, 0x6a, 0x63, 0x5b, 0x52, 0x49, 0x40, 0x37, 0x2e, 0x25, 0x1c, 0x13, 0x0a, 0x01, 0x00
};
int widthValueIndex = 12;
int brightnessSetting = 0x11;
int brightnessValues[10] = {
// Dim to Bright
0x01, 0x02, 0x03, 0x04, 0x05, 0x06, 0x07, 0x08, 0x09, 0x0a
};
int brightnessValueIndex = 9;

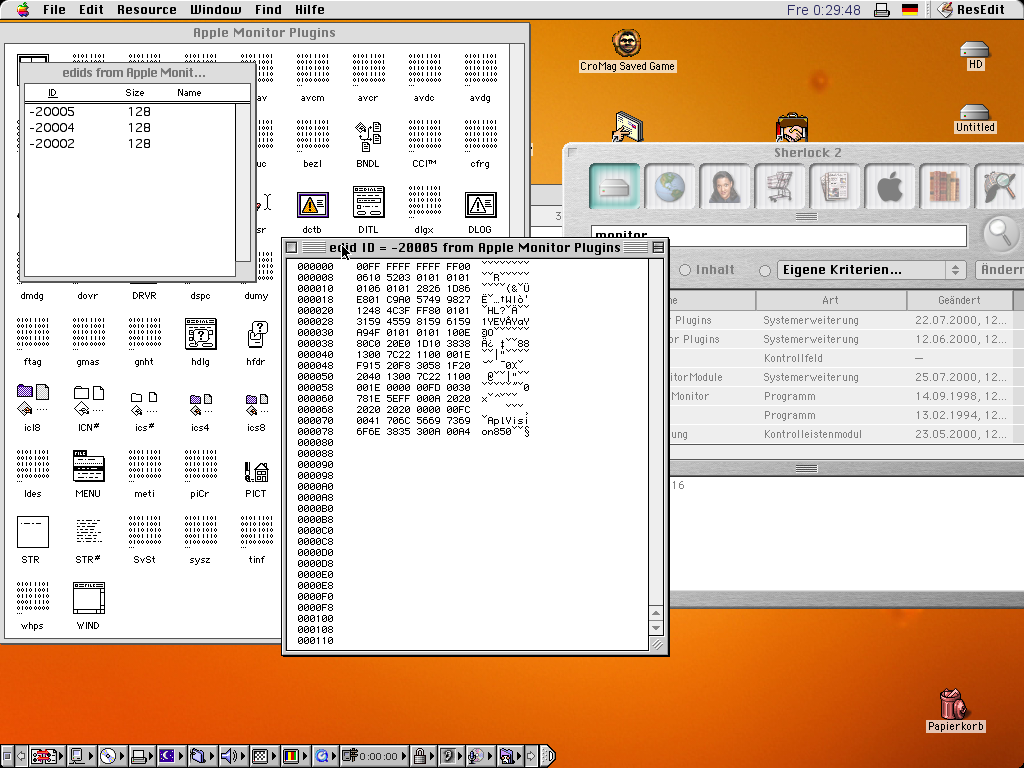

const byte edid[128] =
{
0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x00, 0x06, 0x10, 0x74, 0x61,
0xed, 0x5f, 0x84, 0x00, 0x06, 0x1e, 0x01, 0x03, 0x6d, 0x1a, 0x14, 0x78,
0xea, 0x5e, 0xc0, 0xa4, 0x59, 0x4a, 0x98, 0x25, 0x20, 0x50, 0x54, 0x00,
0x00, 0x00, 0x61, 0x4f, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0x01,
0x01, 0x01, 0x01, 0x01, 0x01, 0x01, 0xc3, 0x1e, 0x00, 0x30, 0x41, 0x00,
0x34, 0x30, 0x14, 0x60, 0xd3, 0x00, 0x0a, 0xc8, 0x10, 0x00, 0x00, 0x1e,
0x5f, 0x18, 0x20, 0xf0, 0x30, 0x58, 0x2c, 0x20, 0x15, 0x50, 0x93, 0x00,
0xd0, 0x9c, 0x00, 0x00, 0x00, 0x18, 0x7d, 0x13, 0x80, 0xc0, 0x20, 0xe0,
0x22, 0x10, 0x11, 0x40, 0x13, 0x00, 0xa6, 0x7d, 0x00, 0x00, 0x00, 0x18,
0x00, 0x00, 0x00, 0xfd, 0x00, 0x3b, 0x3d, 0x3a, 0x3d, 0x08, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x19
};
//The init sequence is sent on a software i2c bus.
// sda is on 4 and scl is on 5
SoftwareWire softWire(4, 5);
void setup() {
Serial.begin(9600);
initIvadBoard();
Wire.begin(0x50);
Wire.onRequest(requestEvent);
Wire.onReceive(receiveData);
}
void requestEvent() {
Wire.write(edid, 128);
}
void receiveData(int byteCount) {
while (Wire.available()) {
data = Wire.read();
}
}
void loop() {
handleSerial();
}
void handleSerial() {
/*
* a = move left
* s = move right
* w = move up
* z = move down
*
* d = skinnier
* f = fatter
* r = taller
* c = shorter
*
* g = contrast down
* h = contrast up
*
* j = brightness down
* k = brightness up
*
*
*/
while(Serial.available() > 0) {
char incoming = Serial.read();
switch(incoming) {
case 'a':
moveLeft();
break;
case 's':
moveRight();
break;
case 'w':
moveUp();
break;
case 'z':
moveDown();
break;
case 'd':
decreaseWidth();
break;
case 'f':
increaseWidth();
break;
case 'r':
increaseHeight();
break;
case 'c':
decreaseHeight();
break;
case 'g':
decreaseContrast();
break;
case 'h':
increaseContrast();
break;
case 'j':
decreaseBrightness();
break;
case 'k':
increaseBrightness();
break;
}
}
}
void writeToIvad(int address, int message) {
softWire.beginTransmission(address);
softWire.write(message);
softWire.endTransmission();
}
void writeToIvad(int address, int message1, int message2) {
softWire.beginTransmission(address);
softWire.write(message1);
softWire.write(message2);
softWire.endTransmission();
}
void readFromIvad(int address, int bytes) {
char buf[bytes + 1];
int bytesRead = 0;
softWire.requestFrom(address, bytes);
while (softWire.available())
{
char c = softWire.read();
buf[bytesRead++] = c;
}
buf[bytesRead] = '\0';
}
void initIvadBoard() {
// removed for brevity
}
void moveLeft() {
horizontalPositionValueIndex--;
setHorizontalPosition();
}
void moveRight() {
horizontalPositionValueIndex++;
setHorizontalPosition();
}
void moveUp() {
verticalPositionValueIndex++;
setVerticalPosition();
}
void moveDown() {
verticalPositionValueIndex--;
setVerticalPosition();
}
void increaseWidth() {
widthValueIndex++;
setWidth();
}
void decreaseWidth() {
widthValueIndex--;
setWidth();
}
void increaseHeight() {
heightValueIndex++;
setHeight();
}
void decreaseHeight() {
heightValueIndex--;
setHeight();
}
void decreaseContrast() {
contrastValueIndex--;
setContrast();
}
void increaseContrast() {
contrastValueIndex++;
setContrast();
}
void decreaseBrightness() {
brightnessValueIndex--;
setBrightness();
}
void increaseBrightness() {
brightnessValueIndex++;
setBrightness();
}
void setVerticalPosition(int value) {
writeToIvad(monitorAddress, verticalPositionSetting, value);
}
void setVerticalPosition() {
limitIndex(verticalPositionValueIndex, sizeof(verticalPositionValues));
int value = verticalPositionValues[verticalPositionValueIndex];
setVerticalPosition(value);
}
void setHorizontalPosition(int value) {
writeToIvad(monitorAddress, horizontalPositionSetting, value);
}
void setHorizontalPosition() {
limitIndex(horizontalPositionValueIndex, sizeof(horizontalPositionValues));
int value = horizontalPositionValues[horizontalPositionValueIndex];
setHorizontalPosition(value);
}
void setHeight(int value) {
writeToIvad(monitorAddress, heightSetting, value);
}
void setHeight() {
limitIndex(heightValueIndex, sizeof(heightValues));
int value = heightValues[heightValueIndex];
setHeight(value);
}
void setWidth(int value) {
writeToIvad(monitorAddress, widthSetting, value);
}
void setWidth() {
limitIndex(widthValueIndex, sizeof(widthValues));
int value = widthValues[widthValueIndex];
setWidth(value);
}
void setContrast(int value) {
writeToIvad(monitorAddress, contrastSetting, value);
}
void setContrast() {
limitIndex(contrastValueIndex, sizeof(contrastValues));
int value = contrastValues[contrastValueIndex];
setContrast(value);
}
void setBrightness(int value) {
writeToIvad(monitorAddress, brightnessSetting, value);
writeToIvad(monitorAddress, brightnessSetting, value);
}
void setBrightness() {
limitIndex(brightnessValueIndex, sizeof(brightnessValues));
int value = brightnessValues[brightnessValueIndex];
setBrightness(value);
}
void limitIndex(int &index, int array_size) {
int maximum = ((array_size / sizeof(int)) - 1);
if(index < 0) index = 0;
if(index > maximum) index = maximum;
}
void setParallelogram(int value) {
/*
* Left
* 0xfe
* 0xfd
* 0xfb
* 0xf8
* 0xf4
* 0xef
* 0xe9
* 0xe2
* 0xda
* 0xd1
* 0xc8
* 0xbf
* 0xb6
* 0xad
* 0xa4
* 0x9b
* 0x92
* 0x89
* 0x80
* Right
*/
writeToIvad(monitorAddress, settingParallelogram, value);
}
void setKeystone(int value) {
/*
* Thin top
* 0x81
* 0x83
* 0x86
* 0x8a
* 0x8f
* 0x95
* 0x9c
* 0xa4
* 0xad
* 0xb6
* 0xbf
* 0xc8
* 0xd1
* 0xda
* 0xe3
* 0xec
* 0xf5
* 0xfe
* 0xff
* Thin Bottom
*/
writeToIvad(monitorAddress, settingKeystone, value);
}
void setRotation(int value) {
/*
* Left
* 0x7e
* 0x7c
* 0x79
* 0x75
* 0x70
* 0x8d
* 0x63
* 0x5b
* 0x52
* 0x49
* 0x40
* 0x37
* 0x2e
* 0x25
* 0x1c
* 0x13
* 0x0a
* 0x01
* 0x00
* Right
*/
writeToIvad(monitorAddress, settingRotation, value);
}
void setPincushion(int value) {
/*
* Concave
* 0x81
* 0x83
* 0x86
* 0x8a
* 0x8f
* 0x95
* 0x9c
* 0xa4
* 0xad
* 0xb6
* 0xbf
* 0xc8
* 0xd1
* 0xda
* 0xe3
* 0xec
* 0xf5
* 0xfe
* 0xff
* Convex
*/
writeToIvad(monitorAddress, settingPincushion, value);
}
