Kingston HyperX Predator on Mac Pro 5.1

[Upgrader]

Yup OOtB

Cheers.

.



[jhall1jax]

Resurrecting an older thread - I recently obtained a cMP on a trade, and was wondering how you guys' HyperX SSDs were doing. Are you glad you bought it, versus just using a regular SSD on the SATA2 bus? There appear to just be a few places stocking new ones and I'm contemplating either a 480GB for $300 or a 960GB for $500.

Thanks



[itdk92]

Doing great here. But it's still the kind of upgrade a very few people need.

So make sure you have upgraded all the rest before you even think about this one
In other words, it has a limited ROI for most people.



[toomanydatsuns]

I just had to RMA mine - worked for 5 months, then died overnight. Quick and easy process, but I haven't had to RMA an SSD in years. I could be just one of the unlucky few. New one is working fine.



[jhall1jax]

Doing great here. But it's still the kind of upgrade a very few people need.

So make sure you have upgraded all the rest before you even think about this one
In other words, it has a limited ROI for most people.

I hear you - thanks. I do understand that the difference between a HDD and a SATA SSD is greater for most people than between SATA SSD to PCIE SSD.

Jason
[doublepost=1489719756][/doublepost]

I just had to RMA mine - worked for 5 months, then died overnight. Quick and easy process, but I haven't had to RMA an SSD in years. I could be just one of the unlucky few. New one is working fine.

Ugh - bad luck! Hope the new one works out better.



[OrZ88]

Hi to everyone.
Due the rising prices of the sm951 AHCI versions, I think this one it's the best way. Just bought it.

Some of you make a partition to boot windows and mac from the same device?



[Bollockser]

I just scored a 2.26 8-core 2009 Mac Pro, first one ever yay!
I'd like to partition it dual-boot with one of these..sounds like this will work, no??



[h9826790]

I just scored a 2.26 8-core 2009 Mac Pro, first one ever yay!
I'd like to partition it dual-boot with one of these..sounds like this will work, no??

Possible, but won't be easy. Install Windows on the PCIe SSD is hard enough on the cMP because the PCIe SSD is considered an external drive. Making partition for Windows further increase the chance of screwing up the MacOS partition.



[Upgrader]

Hi,

My OWC Accelsior E2 boot drive just died. Is the Kingston SSD still my only option if I want to get another PCIe SSD? Could I just get a cheap Samsung EVO 950 as an SSD boot drive whilst the warranty situation plays out on the E2?

Cheers.



[h9826790]

Hi,

My OWC Accelsior E2 boot drive just died. Is the Kingston SSD still my only option if I want to get another PCIe SSD? Could I just get a cheap Samsung EVO 950 as an SSD boot drive whilst the warranty situation plays out on the E2?

Cheers.

XP941, SM951, HyperX Predator are all good. But I think only the last one is easy to buy with reasonable price and come with warranty.

950 Evo is NVMe SSD, not AHCI, which mean not bootable in cMP. In fact, it doesn't even work without any help from 3rd party driver at this moment.

Anyway, better stay away from OWC. Their product often over price but below standard.



[Upgrader]

Ah, so even the samsung SATA 950 pro SSD wouldn't be bootable? My colleague has several of them mounted in his 5,1. They work fine but he's not booting from them.



[h9826790]

Ah, so even the samsung SATA 950 pro SSD wouldn't be bootable? My colleague has several of them mounted in his 5,1. They work fine but he's not booting from them.

No, unless you know how to white a custom firmware to the 5,1 by yourself。



[Upgrader]

No, unless you know how to white a custom firmware to the 5,1 by yourself。

thanks for the info. So the Kingston drive looks like the most (and only) available PCIe SSD here in the U.K. It's a shame the cheaper SATA SSD's need that hack.



[h9826790]

thanks for the info. So the Kingston drive looks like the most (and only) available PCIe SSD here in the U.K. It's a shame the cheaper SATA SSD's need that hack.

I think you mean NVMe SSD. SATA SSD are bootable on cMP.



[pastrychef]

NVMe support is rumored to be coming with High Sierra...



[William_si]

That does not help cMP users - this is only for using the drives in OS; booting from NVMe requires an EFI update which Apple will certainly not do for these.



[Upgrader]

NVMe support is rumored to be coming with High Sierra...

And this support will happen for the cMP? Great news if so.
[doublepost=1498199485][/doublepost]

I think you mean NVMe SSD. SATA SSD are bootable on cMP.

Confused now.

I asked above: "Ah, so even the samsung SATA 950 pro SSD wouldn't be bootable" to which you replied it wouldn't be. I think we've misunderstood each other. You're saying the SATA 950 pro SSD 2.5" drives that slot into the drive bays of the cMP with an adaptor ARE bootable? Thanks.



[h9826790]

That does not help cMP users - this is only for using the drives in OS; booting from NVMe requires an EFI update which Apple will certainly not do for these.

It's hard to tell, because it seems that they need to upgrade the 5,1's firmware for APFS support. No one knows if that will include the NVMe support.
[doublepost=1498200081][/doublepost]

And this support will happen for the cMP? Great news if so.
[doublepost=1498199485][/doublepost]
Confused now.

I asked above: "Ah, so even the samsung SATA 950 pro SSD wouldn't be bootable" to which you replied it wouldn't be. I think we've misunderstood each other. You're saying the SATA 950 pro SSD 2.5" drives that slot into the drive bays of the cMP with an adaptor ARE bootable? Thanks.

There is NO 2.5" SATA 950 Pro, all 950 Pro are NVMe. Since I assume you were asking 950 Pro, but not any other SSD. So, my answer was focus on 950 Pro, and the conclusion is not bootable.



[Upgrader]

It's hard to tell, because it seems that they need to upgrade the 5,1's firmware for APFS support. No one knows if that will include the NVMe support.
[doublepost=1498200081][/doublepost]

There is NO 2.5" SATA 950 Pro, all 950 Pro are NVMe. Since I assume you were asking 950 Pro, but not any other SSD. So, my answer was focus on 950 Pro, and the conclusion is not bootable.

Ah dude, apologies for the confusion! I was talking about the 850 Pro and /or Evo: http://tinyurl.com/y92b7bpu not the 950. My fault. I assume that the 850 is bootable?



[h9826790]

Ah dude, apologies for the confusion! I was talking about the 850 Pro and /or Evo: http://tinyurl.com/y92b7bpu not the 950. My fault. I assume that the 850 is bootable?

Yes, the 2.5" SATA 850 (including Pro and Evo) are all bootable.



[Upgrader]

Cool, thanks!



[donzo93]

Hello everyone! Just bought an used cMP 5.1 mid 2010. This is the configuration:

I changed the Ram (8 gb udimm to skhynix 32 gb rdimm) and the CPU (xeon w3690). I also bought a Kingston Hyperx Predator 240 gb PCIe SSD that I installed in the Mac with this adaptor: https://www.ebay.com/itm/PCIe-M-2-N...e=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

I'm able to boot from the disk and it gets recognized by the computer but the speedtest shows unexpected results:

This is the r/w speed using PCIe slot 2. Using slots 3 or 4 results in even worse r/w speeds in the like of 180/190 MB/s. The toshiba hdd in the same mac scores 115 MB/s. What could be wrong? The only thing I've installed are OS updates and blackmagic disk speed test. Could it be the adapter card? Or the SSD is Faulty? System report says tha the SSD has a 1x link... is this normal?



[h9826790]

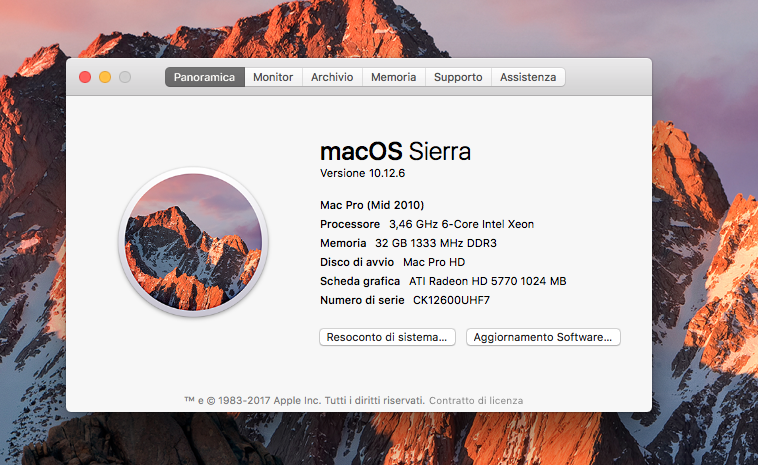

Hello everyone! Just bought an used cMP 5.1 mid 2010. This is the configuration:
View attachment 745539

I changed the Ram (8 gb udimm to skhynix 32 gb rdimm) and the CPU (xeon w3690). I also bought a Kingston Hyperx Predator 240 gb PCIe SSD that I installed in the Mac with this adaptor: https://www.ebay.com/itm/PCIe-M-2-NGFF-SSD-Adapter-Karte-for-Apple-Mac-Pro-2006-2012-Samsung-SM951-PCI/162641884709?ssPageName=STRK:MEBIDX:IT&_trksid=p2057872.m2749.l2649

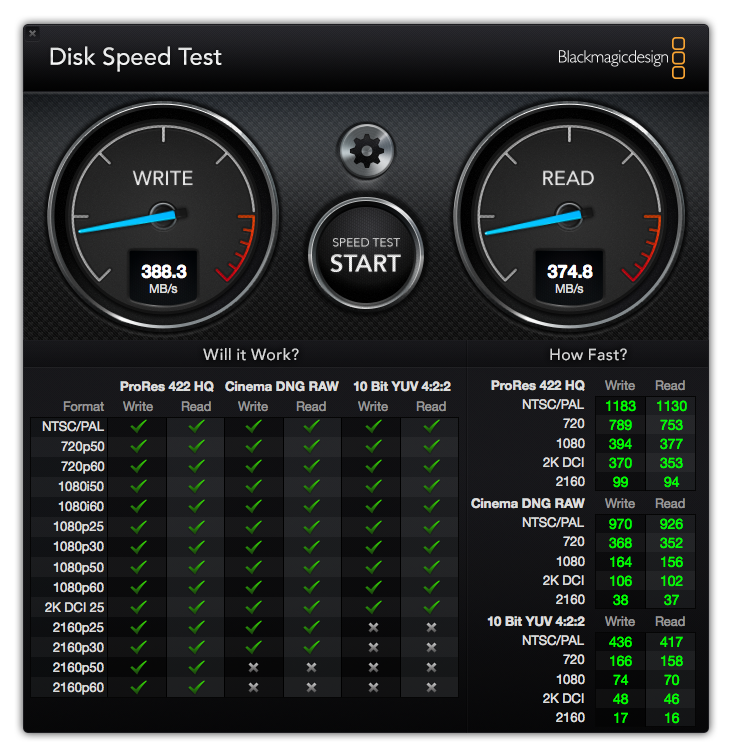

I'm able to boot from the disk and it gets recognized by the computer but the speedtest shows unexpected results:

View attachment 745540

This is the r/w speed using PCIe slot 2. Using slots 3 or 4 results in even worse r/w speeds in the like of 180/190 MB/s. The toshiba hdd in the same mac scores 115 MB/s. What could be wrong? The only thing I've installed are OS updates and blackmagic disk speed test. Could it be the adapter card? Or the SSD is Faulty? System report says tha the SSD has a 1x link... is this normal?

View attachment 745541

It's indeed the PCIe 2.0 x1 limited the speed at that level.

If the speed further cut into half if you put that in slot 3/4, may be it's negotiate at 2.5GT/s x1, but not 5.0GT/s.

It's really hard to tell which part is wrong without proper test. However, I personally will guess it's the adaptor.

Since you tried slot 3/4 already. Therefore, seems reseat the card won't help. But did you try to reseat the SSD? May be poor contact between the SSD and the adaptor? The screw too tight? too loose?

TBH, for HyperX Predator, it's much better to buy the option that come with the PCIe card (adaptor).



[donzo93]

It's indeed the PCIe 2.0 x1 limited the speed at that level.

If the speed further cut into half if you put that in slot 3/4, may be it's negotiate at 2.5GT/s x1, but not 5.0GT/s.

It's really hard to tell which part is wrong without proper test. However, I personally will guess it's the adaptor.

Since you tried slot 3/4 already. Therefore, seems reseat the card won't help. But did you try to reseat the SSD? May be poor contact between the SSD and the adaptor? The screw too tight? too loose?

TBH, for HyperX Predator, it's much better to buy the option that come with the PCIe card (adaptor).

Thanks, I'll try to reseat it and see if it does change something. Unfortunately I bought the ssd alone without the adapter and now i don't think I can find the adapter only Can you suggest a good m2 to pcie adapter?



[h9826790]

Seems quite a few members use this one and have good result.

https://www.amazon.com/Lycom-DT-120-PCIe-Adapter-Support/dp/B00MYCQP38

https://forums.macrumors.com/thread...he-09-mac-pro-bootable-ngff-pcie-ssd.1685821/
