Resolved Mac Pro Heatsink, northbridge rivet, loud fan

[avro707]

These are suitable ones:

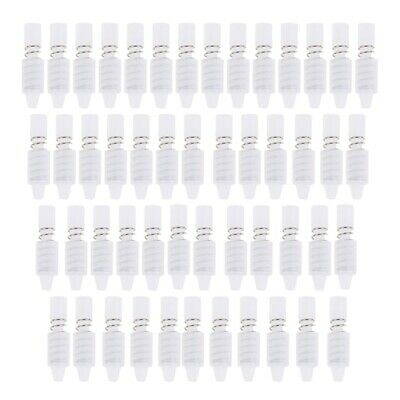

50Pcs PC Heatsink Cooling Fan Sp Rivet Fastener Push Pin Mounting Screw M6D3 | eBay

Find many great new & used options and get the best deals for 50Pcs PC Heatsink Cooling Fan Sp Rivet Fastener Push Pin Mounting Screw M6D3 at the best online prices at eBay!

www.ebay.com.au

What I did was modify them a bit and use the existing OEM springs. I also put a small washer at the top so the original spring couldn’t come off (diameter at the top slightly less). The springs that come with these replacement spring clips are not as strong so the NB heat sink can move easily. The original spring is better.

The little plastic shroud around the middle of it can be cut away. The top bit needs to be trimmed shorter as well so it fits under the CPU heatsink.

Use Arctic Silver 5. Doing this and also modify the fan speed settings on Macs Fan Control keeps the NB temperature around 64°C and fan noise is reasonably low on my MP5,1 which is maxxed out in the specifications.



[ReallyLongLogin]

Thanks for your guidance @KeesMacPro and @avro707 . That's cleared things up for me!



[kmax3991]

So....

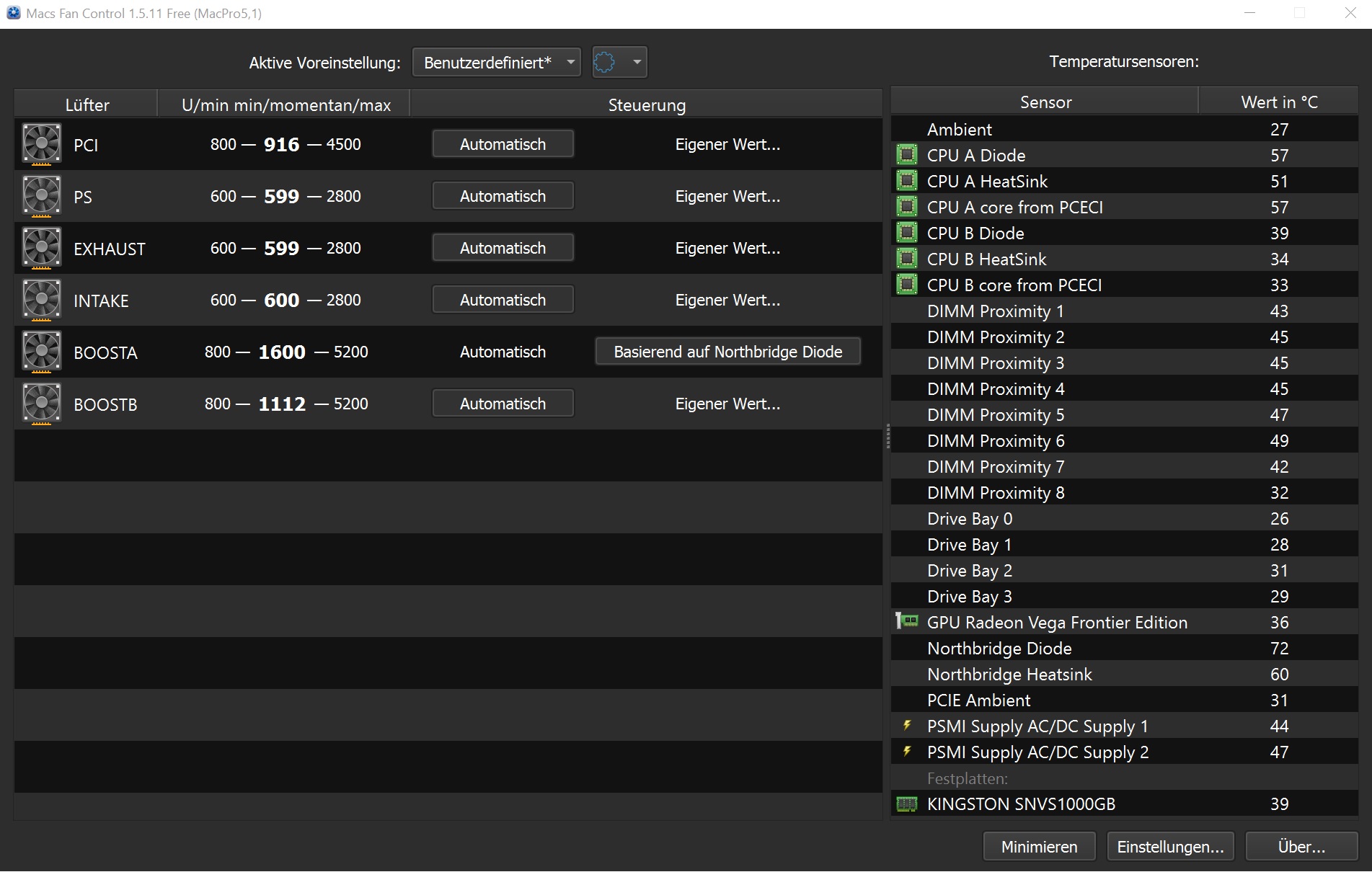

I did all the "repasting", CPUs and Northbridge, but it runs still quite high. Furtunately I have no probs with system stability (in Win at least) but the temperature of the NB Diode still goes up to over 70 degrees Celcius (see picture)
I used the same paste and method on the CPUs and the NB-Chip, so if something was wrong with it, it would show in the CPU temps I think.
I also had the springs of the NB-heatspreader replaced.
What else could be the problem with that?

Greets
kmax
