dmpstore in UEFI Shell. FirmwareFeatures and FirmwareFeaturesMask are not non-volatile (NV) so you won't see them in nvram.
Code:
Variable RT+BS '4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeaturesMask' DataSize = 4
00000000: FF 3F 00 C0 *.?..*
Variable RT+BS '4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeatures' DataSize = 4
00000000: 03 14 00 C0 *....*
Thx for confirming it, I did not thought looking the dmpstore. This is an easy way to see which entries/variables are stored inside the NVRAM volume or not.
Also in UEFI Shell is the
The bytes here match the
These were taken from November 2020 on my MacPro3,1 before OpenCore.
smbios -a command.
Code:
=========================================================
Type=128, Handle=0x13F
Dump Structure as:
Index=63,Length=0x5A,Addr=0x7F67FA14
00000000: 80 58 3F 01 03 00 00 00-03 14 00 C0 FF 3F 00 C0 *.X?..........?..*
00000010: 01 02 03 00 00 00 00 00-00 00 FC FF FF FF FF FF *................*
00000020: 00 00 E0 FF FF FF F7 FF-00 00 F9 FF FF FF FB FF *................*
00000030: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*
00000040: 00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00 *................*
00000050: 00 00 00 00 00 00 00 00-00 00 *..........*
Structure Type:Undefined Value
Format part Len : 88
Structure Handle: 319
Structure Type undefined!dmpstore values.These were taken from November 2020 on my MacPro3,1 before OpenCore.
Last edited:
I suppose we can expect the same on a real MP51 (would be nice to confirm). If so, then the diffference @cdf observed would be down to MP41->MP51 cross flashing.
I think I have read @tsialex mention that the cross flashing is not a total/complete thing. Therefore, if MP41 orignally has 0xC0001403, similar to MP31, this artefact could have been left behind.
Other interesting thing would be to see whether older MP51 firmware give different flags/masks to recent ones ... thinking about Bits 19/18 (APFS).
Last edited:
Cross-flashing is a real mess. Talking just about the NVRAM volume, depending on the original MacPro4,1 BootROM version, the NVRAM volume behaves differently. Early-2009 Mac Pros that had up to B04 from factory have just one working VSS store (yep, I did not believe when I first saw it and checked/rechecked multiple times with dumps from several early-2009 Mac Pros) and the FTW store works exactly like MacPro3,1, while B07/B08 behave like a real MacPro5,1 and no logs are saved inside the FTW store at all.
When @cdf wrote about that, I've found other inconsistencies besides the FirmwareFeatures. Seems I have to install each BootROM version and check the evolution of FirmwareFeatures from the NVRAM and SMBIOS - I've started to do that back then, but got sidetracked with other more urgent issues.
Last edited:
I need help with my mac pro 2012. it had RX570 installed. I was updating it from High Sierra to Mojave, it said it had to upgrade the firmware, I forgot if I had pressed and holden the power button to enter firmware flash mode. It was restarted and booted into Mojava installation page, and it looked like it was installing successfully, then it was showing about 27 minutes remaining, but it never finished. It didn't boot after a restart during the Mojava installation.
At beginning, I thought it was the RAM or Graphics card issue, but it was still not bootable after I swapped them all.
Then I made a firmware recovery cd, it didn't help.
I have a ch341a programmer, heat gun, soldering Iron. I read a part of this thread and found that I should flash the MP51.fd from Mojava's installation dmg, the SPI on my backboard was MX25L3205D, I bought two MX25L2306E, then I flashed the firmware to the chip, I still could not hear the chime.
can anyone help?
At beginning, I thought it was the RAM or Graphics card issue, but it was still not bootable after I swapped them all.
Then I made a firmware recovery cd, it didn't help.
I have a ch341a programmer, heat gun, soldering Iron. I read a part of this thread and found that I should flash the MP51.fd from Mojava's installation dmg, the SPI on my backboard was MX25L3205D, I bought two MX25L2306E, then I flashed the firmware to the chip, I still could not hear the chime.
can anyone help?
When installing Mojave, you brick when it's flashing the current BootROM version, right when it asks you to enter Firmware programming Mode, not after it rebooted and started to do the install.
While it's possible that your SPI flash was failing already and the flurry of NVRAM updates for the Mojave installation was the killing blow, it's not a common failure mode and I will be surprised if it's the cause. You can dump the original SPI and send me to see if it's the case.
Usually EFI_DONE remains off when pressing the DIAG button if it's a brick.
Could be a PSU failure, a disk that shorted itself, the backplane south bridge or the CPU tray northbridge that failed. Lot's of thing to check, too many things could have happened.
A bricked backplane will work again with MP51.fd flashed to the correct replacement SPI flash.
If you have access to a MATT card, you can check if you did something wrong flashing MP51.fd or replacing the SPI chip.
Thanks Alex,
the EFI done is green. I will check the PSU later today.
I am not sure if this was what I dumped from the CH341A.
the EFI done is green. I will check the PSU later today.
I am not sure if this was what I dumped from the CH341A.
Last edited:
PSU, GPU, any SATA or PCIe cards, check literally everything. Just a week or so ago someone here had a SSD that failed/short-circuited and he thought that his Mac Pro bricked.
I'm gonna ask moderation to move these messages to the BootROM thread, this one is not really the correct thread for this.

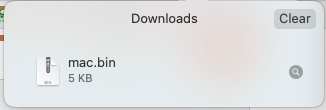

Never post a BootROM dump publicly - there are lot's of private information stored there. This is not a BootROM dump, since it's just 5KB, a BootROM image dump should be exactly 4MB (4.194.304 bytes).
BootROMs can be compressed a lot, to ~1,7MB, not 5KB.
Double check the zip you uploaded, send it by PM.Attachments
my bad, it is 5kb that means I dumped it after I wiped it.
I am updating my second mac pro (2009), I am afraid I will brick this one as well..
I am updating my second mac pro (2009), I am afraid I will brick this one as well..
A BootROM reconstruction service will get you 144.0.0.0.0 and a pristine image, just to you know.
Thanks, Alex, I know that, but the first thing is I need to get the bricked mac running. I will try to flash MP51.fd and see if it can back to live.
Last edited:

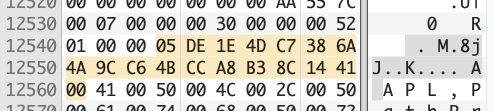

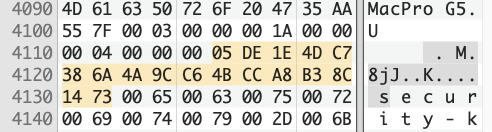

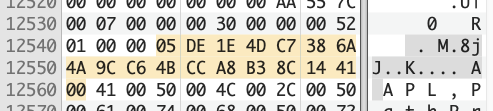

I guess these two, found in a nvram.vol of a MP2012
Code:
4D 1E DE 05 - 38 C7 - 4A 6A - 9C C6 - 4B CC A8 B3 8C 14
is
05 ED 1E 4D - C7 38 - 6A 4A - 9C C6 - 4B CC A8 B3 8C 14if someone wants to help to decode:
Code:
4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeatures %03D%0c%c0
4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeaturesMask ?%ff%1f%ff
Last edited:
Since you have a real 5,1, would it be possible to boot without OC and post the output of
nvram -x 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeaturesand
nvram -x 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeaturesMaskas well as the two lines
FirmwareFeatures: ...
FirmwareFeaturesMask: ...
listed in the output of dmidecode?
It’s not a that, it’s a generated value. See @joevt confirming what I was thinking with the dmpstore.
can give dmidecode output without OC as I run Mavericks atm, machine never seen OC, rebuilt firmware:
FirmwareFeatures: 0xC00C0403
FirmwareFeaturesMask: 0xFF1FFF3F
as I run some long term tests in Mavericks I can give xml output of the FirmwareFeatures tomorrow. (Mavericks nvram cli command does not list xml of given vars)
Last edited:
Interesting. Not only is bit 14 (USB 2.0 firmware support) missing here, but so is bit 12 (tamper resistant boot). It will be interesting to see the value of the corresponding NVRAM variables.
Yeah. Seems Apple is completely all over the place on this.
Starting to think it will need querying vanilla firmware to be 100% certain of what's going on.
Checked and not added
Last edited:

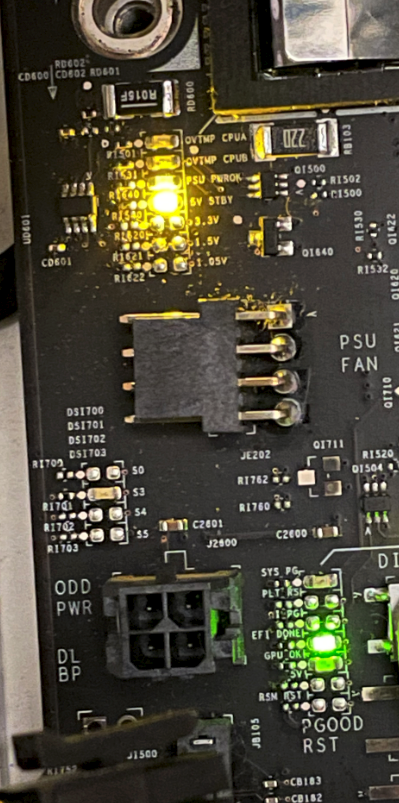

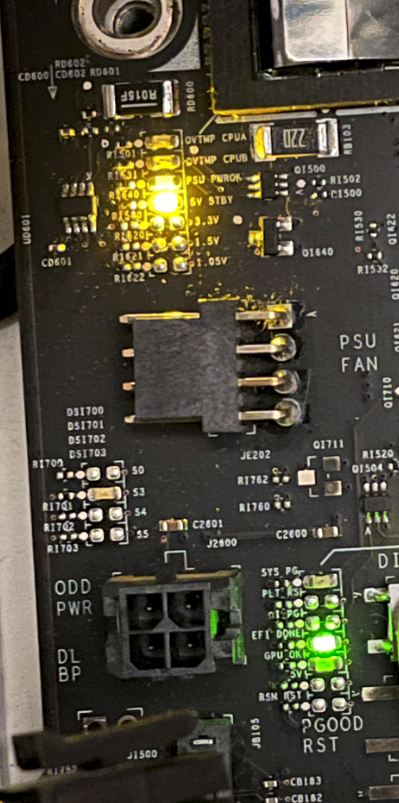

EFI_DONE LED being on literally means that the EFI was loaded successfully by the SEC (BootBlock/X86 ResetVector -> SEC -> EFI -> POST).
EFI_DONE doesn't mean that your Mac Pro is completing POST. For example, a corrupt NVRAM volume makes your Mac Pro un-bootable and the EFI_DONE LED is perfectly lit. Also, the problem could be elsewhere on the hardware.
Last edited:
Mac Pro Server mid-2010, running El Capitan (nvram -x don't work yet):
Code:
ElCap:~ tsialex$ ./dmidecode |grep FirmwareFeatures
FirmwareFeatures: 0xC00C1403
FirmwareFeaturesMask: 0xFF1FFF3F
ElCap:~ tsialex$ nvram -x 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeatures
4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeatures %17T%0c%c0
ElCap:~ tsialex$ nvram -x 4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeaturesMask
4D1EDE05-38C7-4A6A-9CC6-4BCCA8B38C14:FirmwareFeaturesMask ?%ff%1f%ff
