Show us your network

[pointandclick]

I guess I'll post mine to atone for littering the thread with comments.

This was just thrown together.
The I need to get the file server running again, and the Xbox is downstairs w/o a connection at the moment.
I haven't got my gig switch back from my friend either, so it's currently the second netgear wireless router I use at school with disabled DHCP.



[0098386]

Well it wouldn't work so well for me. We've got a router (Netgear something or other, it's got like 6 internal aerials to be good or something), an iMac and regular home built PC in one room. iMac and PowerBook in my room. 360 in my bros room, Wii in the upstairs living room. Oh and another laptop.

3 DS's, 2 PSP's and iPod Touch 16gb floating around the house. *ouch* one just flew into my head.

Picture done after all.



[whistla13]

LOL .. Nice network diagram



[Gray-Wolf]

Mine is simple. DSL into a westell modem, into a Apple Express. A lazer printer tied into the Express so my macBook can get wireless internet and wireless print. Thats it



[Sethable]

I love how people have been making animations showing their networks.

I was expecting pictures either way good work everyone haha



[pointandclick]

Well it wouldn't work so well for me. We've got a router (Netgear something or other, it's got like 6 internal aerials to be good or something), an iMac and regular home built PC in one room. iMac and PowerBook in my room. 360 in my bros room, Wii in the upstairs living room. Oh and another laptop.

3 DS's, 2 PSP's and iPod Touch 16gb floating around the house. *ouch* one just flew into my head.

Picture done after all.

Nice I think you win lol

It's hard to take a picture of the network if you have machines in different locations and multiple routers/switches. I could take a pic of where most of my stuff is, but it's a mess.



[bc008]

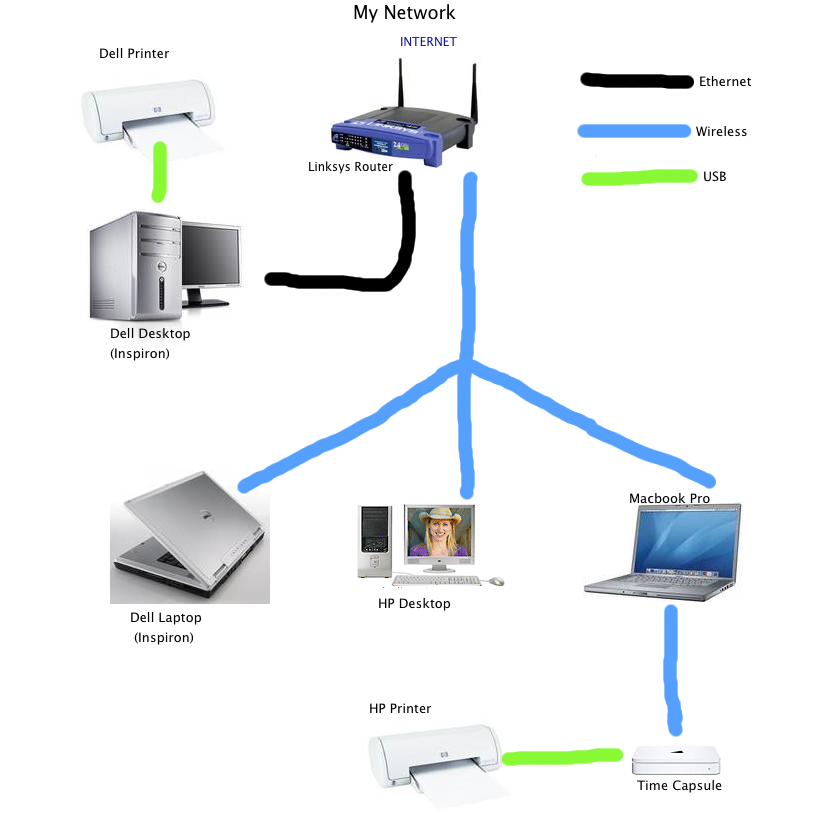

whoa! talk about a crash course in seashore.. i was a noob but now i learned about a revolutionary new thing.. "layers"

edit: this isnt including things like my ipod or wii..



[0098386]

whoa! talk about a crash course in seashore.. i was a noob but now i learned about a revolutionary new thing.. "layers"

edit: this isnt including things like my ipod or wii..

I'm let down. I'm let down because I don't see a drawing of you looking over your network and feeling accomplished.



[rogersmj]

I love how people have been making animations showing their networks.

I was expecting pictures either way good work everyone haha

Yeah, well, like pointandclick said, home networks aren't usually very photogenic. Taking actual *pictures* of my network equipment would just be sticking the camera into corners under desks and the backs of closets and you *might* get a glimpse of a switch through all the wires

I used to have a rack, complete with 24-port 2U switch and a 6U server case, but I ditched that long ago because it took up too much room.



[jodelli]

Somewhere among those flashing lights is a Netgear Ethernet switch hardwired into a D link wireless g router in another room. Two G4s, two P4s, and the beginnings of an Intel core 2, although the processor hasn't been settled on yet.



[Renderz]

Some of these setup are crazy. I presume you folks have families right and you're not trying to setup the Internet 2.0?



[garybUK]

I have:

Virgin Media 20mbps Cable ---> Modem ---> FreeBSD (Celeron 900, 768mb Ram)
O2 16mbps ADSL ---------> DSL Modem --> (Smart Routing on FreeBSD 6.3)

x2 HP ML110 G5 Xeon Servers each with 4TB HDD and 4gb RAM one running Windows 2003 Server and one running FreeBSD 7.0

x3 AMD XP 2400+, 2GB RAM Computers running XP Pro SP2
x1 Intel Quad Core, 4gb RAM, Computer running Vista Ultimate SP1
x1 Apple Powermac G5 Dual 1.8 OSX 10.5
x1 Macbook Pro 10.5, x1 Powerbook 10.5, x1 Macbook 10.5 + x2 HP Business Laptops running XP PRO SP2

x1 PS3, x1 Wii, x2 iPod Touch, x3 Nokia N95's
x2 Airport Express, x3 Netgear Business Wifi Access Points

I have a Buffalo Bridge between mine and my mates house, he has a laptop and a PC running off my internet connections

Torrents go over O2 and Web Browsing/Gaming go over my Cable connection.

One of the laptops is a work laptop i use to work from home over business VPN.



[edesignuk]

^ What in gods name do you do with all that at home????

Jealous



[garybUK]

^ What in gods name do you do with all that at home????

Jealous

it's geek pr0n



[tr0jan]



[fiveagain]

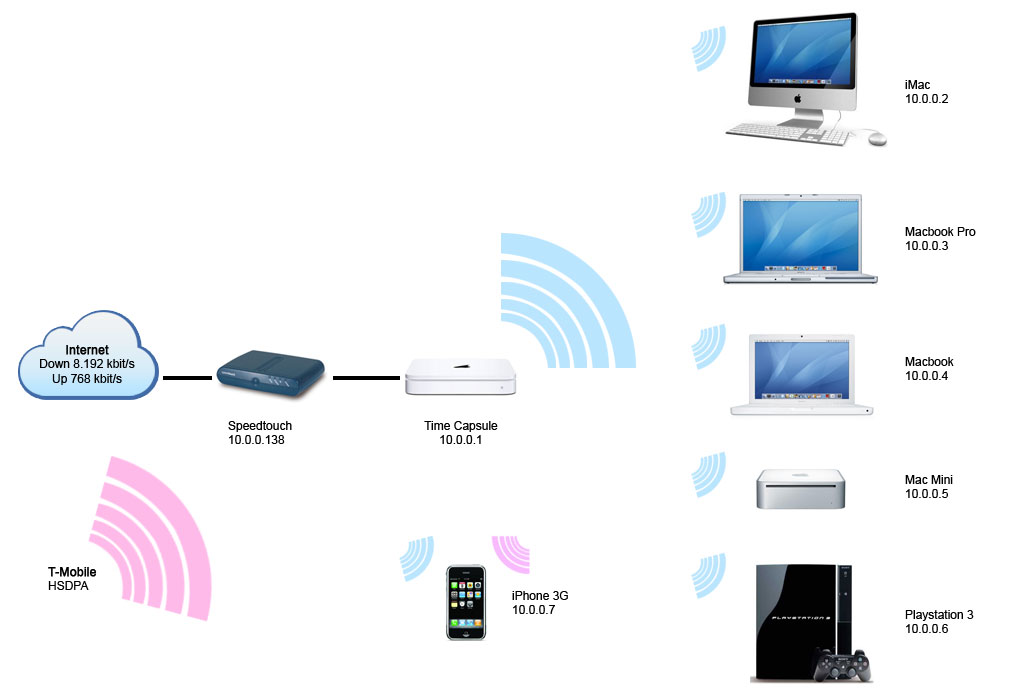

8.192kbps down? eeek.



[tr0jan]

8.192kbps down? eeek.

8.192 kbps = 8 mbits

not 8,192



[4409723]

8.192kbps down? eeek.

In continental Europe the ',' and '.' are swapped with the way America does it.

Eight thousand = 8.000
Eight point two = 8,2



[balofagus]

In continental Europe the ',' and '.' are swapped with the way America does it.

Eight thousand = 8.000
Eight point two = 8,2

Do you really say "8,2 = eight point two"? Because commas don't really look like points. I can just see school children marking enormous commas as "points on a graph". Haha! Must be something that just seems normal when your taught it that way, but personally, I would laugh.



[4409723]

Do you really say "8,2 = eight point two"? Because commas don't really look like points. I can just see school children marking enormous commas as "points on a graph". Haha! Must be something that just seems normal when your taught it that way, but personally, I would laugh.

In the UK we do it the same as America and most of Canada (do the French Canadians copy the French?).

The left hand side was how America/Canada/We(UK) would say it and the right was how the continental Europeans would write it. I see how that was confusing now!

Edit: Not sure if this is common usage in Canada but continental Europe is France, Germany, etc.



[balofagus]

I think one of us is confused... probably me. Haha

I got the Left = Canada/US/UK Saying and right = Continental Europe Writing. But I was wondering if Continental Europeans say eight point two when they write 8,2?

It's just that I thought point was always a dot, wouldn't kids get confused when a point on a graph or a line is a dot, but a decimal point is actually a comma? Lol, I pretty much made way more out of it than was necessary.

Edit: Oh, and I don't think I've ever actually heard anyone say "Continental Europe" before, but I did understand it. More often its "The UK" and "Europe", like your not actual Europeans. Haha!



[4409723]

I think one of us is confused... probably me. Haha

I got the Left = Canada/US/UK Saying and right = Continental Europe Writing. But I was wondering if Continental Europeans say eight point two when they write 8,2?

It's just that I thought point was always a dot, wouldn't kids get confused when a point on a graph or a line is a dot, but a decimal point is actually a comma? Lol, I pretty much made way more out of it than was necessary.

Edit: Oh, and I don't think I've ever actually heard anyone say "Continental Europe" before, but I did understand it. More often its "The UK" and "Europe", like your not actual Europeans. Haha!

Just searched and they say "point" for '.' and "virgule" for ','.



[balofagus]

So, just to finish this divergent conversation I want a clarification on a little dialogue.

Teacher:
What is ten divided by 4?

My Answer:
two point five

Little German Boy's Answer:
two virgule five

Is that how it would go down? And I thought a virgule was another word for a slash

/

not a comma

,

I'm glad I didn't move to Europe halfway through my schooling .



[4409723]

So, just to finish this divergent conversation I want a clarification on a little dialogue.



Is that how it would go down? And I thought a virgule was another word for a slash not a comma I'm glad I didn't move to Europe halfway through my schooling .

I was talking about the French, not sure about the Germans: here's an example!

http://french.about.com/library/begin/bl-numbers28.htm



[balofagus]

Well, that was fun, and sorry to this thread. Apparently French Canadians use the "virgule" too. I knew they put the dollar sign on the other end of prices, but the comma I've never noticed before...

This was also very useful. Apparently the comma, period (full-stop), and even interpunct debate has caused some heated discussions.

Sorry again, back to Network pics/diagrams.
