Show us your network

[pjarvi]

I drew mine with Paint.



Slight modification, i've currently got a government broadband test router hooked up between the Comcast modem and the TimeCapsule, but everything else is hooked up as shown. I prefer to hard wire as much stuff as possible and only use wireless where necessary.



[bluap84]

Thanks. I used Adobe Illustrator.

where you get the icons from? They just png's from the web?



[*sundek*]

my home network...



[Perrumpo]

where you get the icons from? They just png's from the web?

Yup, just google image search. Thankfully it's not hard to find pictures of electronics with a white background.



[Tomorrow]

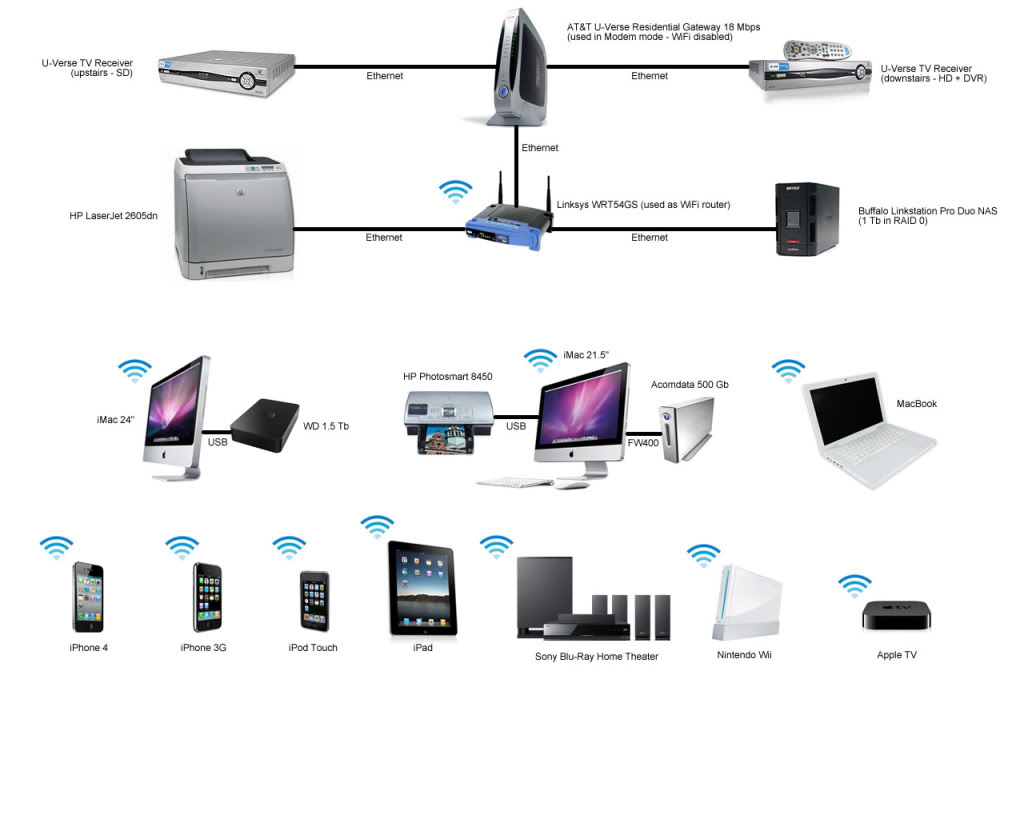

I'll play.

All our wireless devices were overloading the Residential Gateway, so we brought the old (like 7-8 years!) Linksys router back into service, and it still runs flawlessly.



[tobylee703]

my home network...

[/URL][/QUOTE]

How do you connect you NAD?



[*sundek*]

with that cable:



[master00]



[b-rad g]

Simple home network........



[mrgreeneyes]

Here's the most recent diagram of my home network, which is just me and my wife now:

http://rogersmj.com/images/network/rogersmjnet-2007-12-20.jpg

That iMac's been replaced by a hackintosh, but I just haven't updated the diagram...still has the same IP, everything else is the same.

Back in college, it was a little more complicated (this was for 4 guys in one apartment):

http://rogersmj.com/images/network/3xmkNET-2006-05-21.jpg

how did you get the images of all the devices?

How do you connect you NAD?

how did you get the images of you devices?



[Nilscollection]

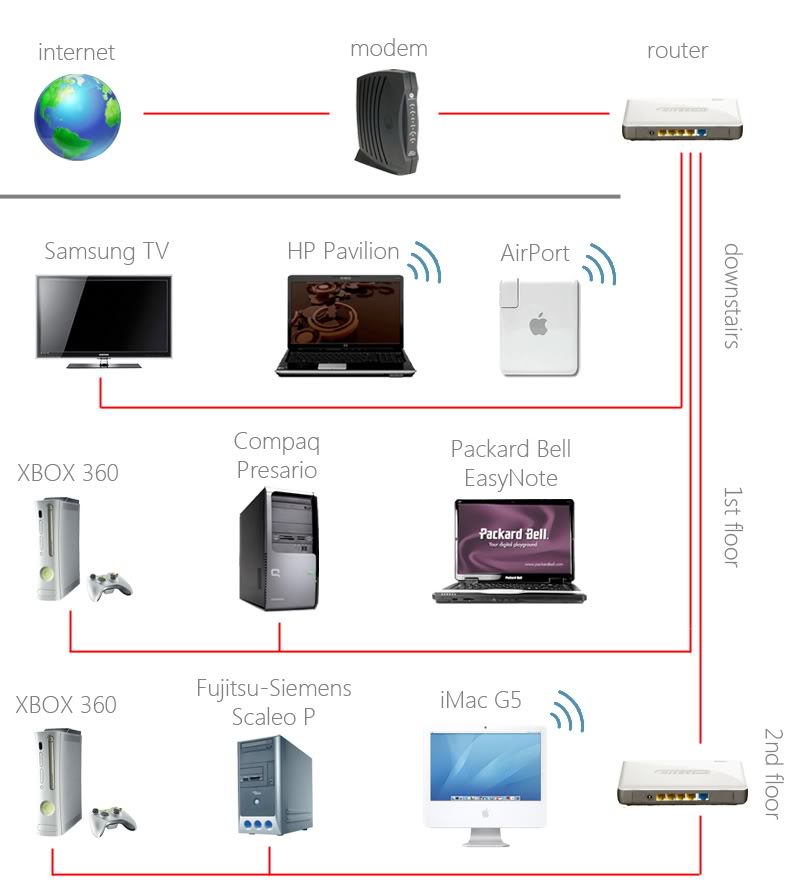

This is our network. I didn't put the cell phones in it, because it'd be too messy, but this is a basic view of our network.

Our network consists out of Windows-machines only (my iMac and the AirPort Express excluded) but well... I don't mind, actually. It all works, so...



[kppolich]

did a little updating this past week, figured I would update the thread.

old:

new:



[RonDMC]

Loving this thread keep them coming, heres mine:



too much crap for just one person but I have an addiction. I will sell the Transformer soon and maybe the Macbook pro and buy a new Macbook Air 11 and the new Sony Vaio Z.



[0000757]

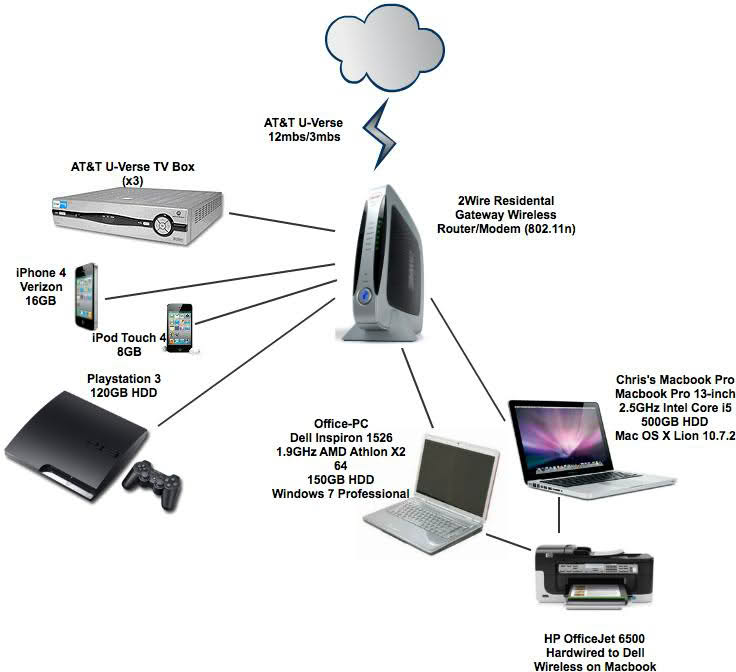

Everything in my house is wireless except The 3 TV boxes (duh) and the Printer (connected to the Windows PC, it's wireless on my Mac, as it states)



[Josh125]

My fairly straight forward network.



[David085]

My Ubee Modem/Router Wi-Fi Network Setup



[Mr_Brightside_@]

I don't have a fancy graphic, but mine goes:
Modem-->Express-->WAN
-->Printer
-->AirTunes
And connected to the network we have two phones, two laptops and an iMac! Nothing too extreme.



[DouchGod]

My network consists of:

DrayTek Vigor 120 - DSL modem ----> Pfsense box ----> Untangled Running in Bridged mode -----> 16 port gigabit hub ----> then to numerous computers and wireless access points.

When building this security was paramount.

Now i don't have to worry to much about what the computer illiterate morons in my house are up to. I just need to get a nice rack one day to mount it all in, i've just got towers dumped around the house at the moment.

I also need to source myself a new ISP my current one used to offer excellent service now it's really poor and around 3-7pm everyday it's pretty mush unbearable.



[hobbyrennfahrer]

My little Network at my new flat…



[Perrumpo]



[ModestMoo]



[shayn]

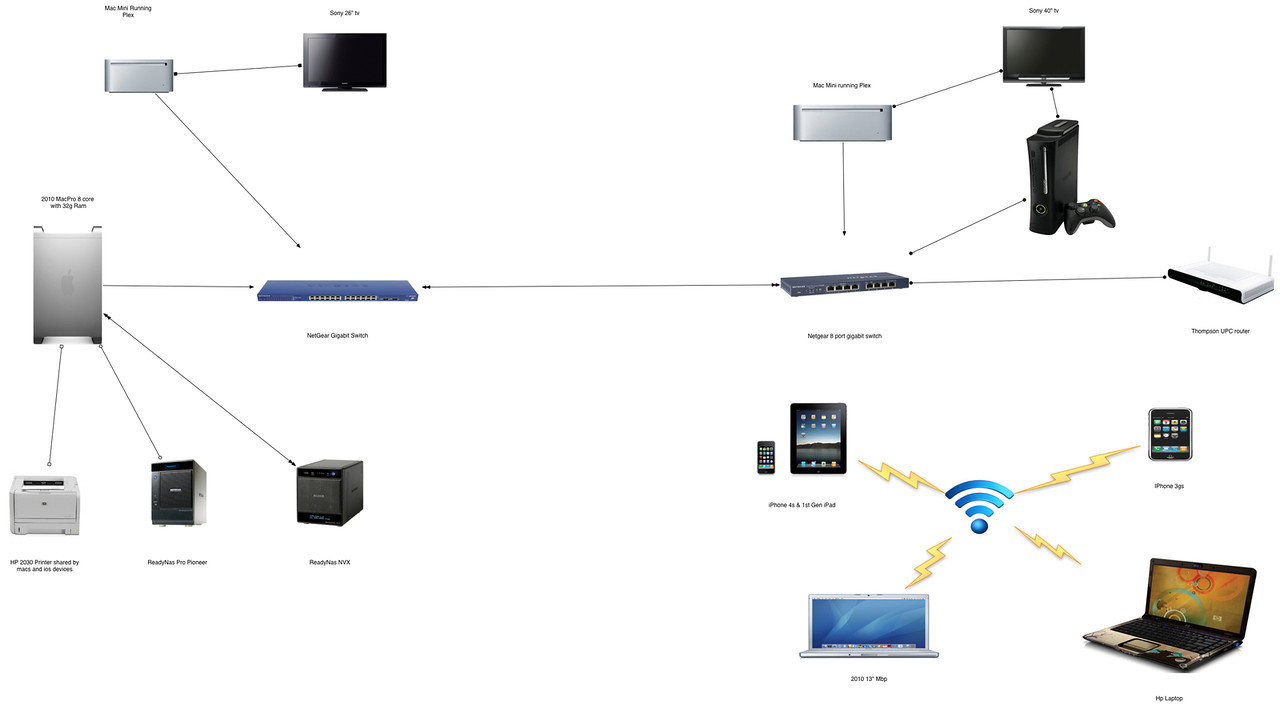

My network: Sitting room has mac mini, running plex, xbox 360 and Sony tv connected by 8 port switch.

Office has MacPro with 2 x readynas, printer, mac mini (plex) to tv. All wired with cat 6 cable.

Mbp, 2 x iphones, iPad and hp laptop connected by wireless.



[hobbyrennfahrer]


My little Network at my new flat…

little update



[STidrvr]

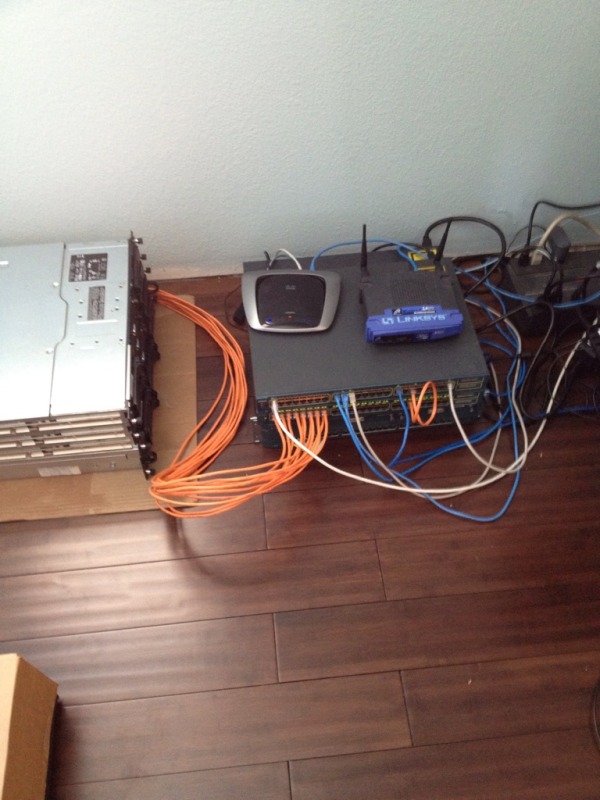

Just got my servers and switches. Nasty quick setup to get OS's installed.



[BreakGuy]

Here's mine:
