Upgrading 2013-2015 Macbook Pro SSD to M.2 NVMe
- Thread starter maxthackray
- WikiPost WikiPost
- Start date
- Sort by reaction score
- Status
Interesting. I wonder if the 2015 bootrom, in addition to the NVMe Hibernate support, also has power management fixes?
I have read through the whole forum and finally decided to take the plunge and upgrade by SSD in MBPr 13" Late 2013. Since I am india couldn't get the Sintech Adapter. Got one from Aliexpress. I used the Adapater and it detects my SSD when i tried to boot from my time machine. I am planning going to restore my time machine back up to this new drive or should I install a fresh mojave to this drive and then restore from time machine
SSD I have - WD BLACK (500 GB) NVME SSD (wds500g2xoc)
Adapter - https://www.aliexpress.com/item/32873039055.html
Most of the time my Mac is connect to the charger. I don't use standby much on battery. Also, i want to know which command to give for this setting in terminal. Also please explain me other modes of Hibernate i can use. Also any other changes I have to make after restoring from my time machine. I am currently using 256 GB Apple ssd in my mac.
Sorry for posting this as i know this information is available in the various posts but they are scattered.
SSD I have - WD BLACK (500 GB) NVME SSD (wds500g2xoc)
Adapter - https://www.aliexpress.com/item/32873039055.html
Most of the time my Mac is connect to the charger. I don't use standby much on battery. Also, i want to know which command to give for this setting in terminal. Also please explain me other modes of Hibernate i can use. Also any other changes I have to make after restoring from my time machine. I am currently using 256 GB Apple ssd in my mac.
Sorry for posting this as i know this information is available in the various posts but they are scattered.
I purchased a cheap no-name adapter ($2.34 USD with free shipping to Canada) from eBay and lexar NM 600 240 GB (https://www.canadacomputers.com/product_info.php?cPath=179_1296&item_id=139194) to use in an early 2015 13" Air. This combination works perfectly with a fresh install and a restore from a TM backup. SSD is recognized as x4 drive and allowed a bootrom update to happen when I upgraded from High Sierra to Mojave.
This adapter is slightly bigger than the small, black Sintech; therefore, I had to fiddle a bit with positioning to get the drive screw inserted.
This adapter is slightly bigger than the small, black Sintech; therefore, I had to fiddle a bit with positioning to get the drive screw inserted.
Attachments
Anyone experience crashes lately?
I got two this morning, haven't had any in a year since installing the drive.
There was the Safari update waiting to be installed while these happened. I've installed it since then and all is well so far.
I got two this morning, haven't had any in a year since installing the drive.
There was the Safari update waiting to be installed while these happened. I've installed it since then and all is well so far.
The Evo Plus is now compatible due to the upgrade according to this post. Can anyone confirm?
MacBook Pro11,5 2.8 2015
10.14.6
Sabrent 1TB NVMe fitted: https://www.amazon.co.uk/gp/product/B07MTQTNVR/
Sintech NGFF M.2 PCIe adapter fitted: https://www.amazon.co.uk/gp/product/B01CWWAENG

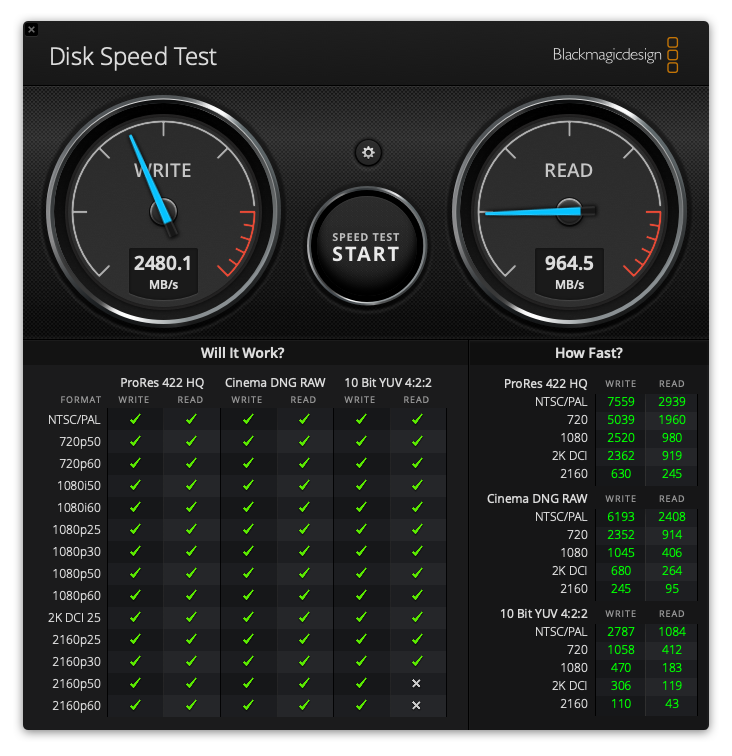

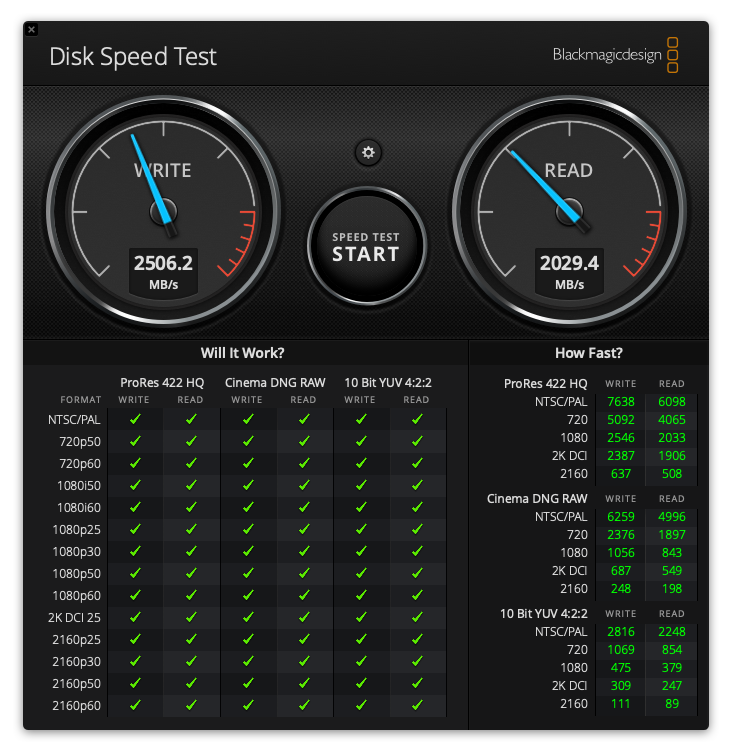

Black Magic reports originally around 2500 write / 2000 read.
After maybe 2/3 additional runs, write speed will maintain (or at least build to it's high), but the read speed will drop off a cliff.
I'm sure it's been covered in one of the 200 pages here, but would someone be kind enough to clarify why?
10.14.6
Sabrent 1TB NVMe fitted: https://www.amazon.co.uk/gp/product/B07MTQTNVR/
Sintech NGFF M.2 PCIe adapter fitted: https://www.amazon.co.uk/gp/product/B01CWWAENG
Black Magic reports originally around 2500 write / 2000 read.
After maybe 2/3 additional runs, write speed will maintain (or at least build to it's high), but the read speed will drop off a cliff.
I'm sure it's been covered in one of the 200 pages here, but would someone be kind enough to clarify why?
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I’ve used Sabrent rocket 1TB and I don’t have that issue, I’ve read that before But I might be wrong, believe it has to do filled cache, have you tried using 1GB file test or try using AmorphousDiskMark see if you get same issues.
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
This is what I suspected, cache being full (using the 5GB file size) - With the 1GB file test size no issues - so I suspect that's the cause
Hello,
Has anyone put a 2 TB Sabrent (or any other double sided SSD) in their MacBook Pro ? I'd like to know if the Sintech adapter I've chosen will fit with the Sabrent.
Here's the adapter link : http://eshop.sintech.cn/ngff-m2-pcie-ssd-card-as-2013-2014-2015-macbook-ssd-p-1229.html
Has anyone put a 2 TB Sabrent (or any other double sided SSD) in their MacBook Pro ? I'd like to know if the Sintech adapter I've chosen will fit with the Sabrent.
Here's the adapter link : http://eshop.sintech.cn/ngff-m2-pcie-ssd-card-as-2013-2014-2015-macbook-ssd-p-1229.html
¿Will for example 4TB nvme ssd work our machines in the future?
PS: My Macbook pro 15" 2015 updated with 1TB Sabrent Rocket + long black sintech adapter still working perfectly. No issues at all, its been 4 months already since the upgrade..
PS: My Macbook pro 15" 2015 updated with 1TB Sabrent Rocket + long black sintech adapter still working perfectly. No issues at all, its been 4 months already since the upgrade..
Hey everyone this is my first post to the forums. I was going to post about the 7.5 wireless charging limitation posted earlier on the main site but found in the forums what I wanted to ask. (i'll make that my second post to say thanks)
Then I found this thread and thought what the heck maybe time to get a bigger drive and from it seems way better performance.
Still early reading the full forum posts but wondering if I should hold off worrying about the hibernation thing for the catalina upgrade and obviously doing the upgrade in the first place considering we're so close to release?
Also which 2Tb drives would be best? In the past I've been partial to crucial and samsung ssds but their ones seem limited to 1Tb.
The 2tb sabrent
seems great.
Are there better ones?
Also I see PCIe 4.0 version sabrent one too would that be compatible or worth paying the extra for?
Oh one other question anyone buy a caddy for the original drive? Any good suggestions, I know OWC has but living in the UK not sure I can get them easily here?
Thanks.
I'll start posting way more and stop being an observer.
Then I found this thread and thought what the heck maybe time to get a bigger drive and from it seems way better performance.
Still early reading the full forum posts but wondering if I should hold off worrying about the hibernation thing for the catalina upgrade and obviously doing the upgrade in the first place considering we're so close to release?
Also which 2Tb drives would be best? In the past I've been partial to crucial and samsung ssds but their ones seem limited to 1Tb.
The 2tb sabrent
Sabrent 2TB Rocket NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive (SB-ROCKET-2TB)
Sabrent 2TB Rocket NVMe PCIe M.2 2280 Internal SSD High Performance Solid State Drive (SB-ROCKET-2TB)
www.amazon.co.uk
seems great.
Are there better ones?
Also I see PCIe 4.0 version sabrent one too would that be compatible or worth paying the extra for?
Oh one other question anyone buy a caddy for the original drive? Any good suggestions, I know OWC has but living in the UK not sure I can get them easily here?
Thanks.
I'll start posting way more and stop being an observer.
Last edited:
As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I've got a mid-2015 MBP Retina 15" and I've ordered the Sintech adapter in the first post plus a Sabrent 1TB drive. There's nothing wrong with my current original Apple 256GB drive but I work with app development and could use the extra space. It is a work rig however and I just wanted to shoot the question here to see if the setup I've ordered is solid and stable? I'd definitely prefer that to it being fast. I got the Sabrent drive based on recommendations here and other places but am curious if anyone has problems with the setup in a mid-2015 machine?
Great thread and glad to see that it's finally possible to update the ssd on these devices
Great thread and glad to see that it's finally possible to update the ssd on these devices
on 2015 there isn't any problems except as all NVMe drives: higher speeds means higher battery usage.I've got a mid-2015 MBP Retina 15" and I've ordered the Sintech adapter in the first post plus a Sabrent 1TB drive. There's nothing wrong with my current original Apple 256GB drive but I work with app development and could use the extra space. It is a work rig however and I just wanted to shoot the question here to see if the setup I've ordered is solid and stable? I'd definitely prefer that to it being fast. I got the Sabrent drive based on recommendations here and other places but am curious if anyone has problems with the setup in a mid-2015 machine?
Great thread and glad to see that it's finally possible to update the ssd on these devices
Been trying to comb through the thread but haven't really read anything. I have a 2015 mbp 15' using the sintech short adapter and a 512gb sabrent rocket. Getting random kernel panics but usually after opening laptop the next day. Did a fresh install of mojave but still getting random panics. Wondering if anyone else has had similar issues and how they solved?
thanks!
*** Panic Report ***
panic(cpu 0 caller 0xffffff7f8cddeb30): nvme: "Fatal error occurred. CSTS=0xffffffff US[1]=0x0 US[0]=0x2d VID/DID=0x50121987
. FW Revision=ECFM12.2\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-387.270.1/IONVMeController.cpp:5334
Backtrace (CPU 0), Frame : Return Address
0xffffff921e1e3a10 : 0xffffff800afae6ed
0xffffff921e1e3a60 : 0xffffff800b0ea185
0xffffff921e1e3aa0 : 0xffffff800b0db8ba
0xffffff921e1e3b10 : 0xffffff800af5bb40
0xffffff921e1e3b30 : 0xffffff800afae107
0xffffff921e1e3c50 : 0xffffff800afadf53
0xffffff921e1e3cc0 : 0xffffff7f8cddeb30
0xffffff921e1e3e20 : 0xffffff800b65f387
0xffffff921e1e3e90 : 0xffffff800b65f2a9
0xffffff921e1e3ec0 : 0xffffff800afed885
0xffffff921e1e3f40 : 0xffffff800afed425
0xffffff921e1e3fa0 : 0xffffff800af5b0ce
Kernel Extensions in backtrace:
com.apple.iokit.IONVMeFamily(2.1)[A67B3600-6FE3-3037-AC41-8C2D353B6250]@0xffffff7f8cdd1000->0xffffff7f8ce10fff
dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[1D716047-7F62-3FFA-8C01-26C166B3739A]@0xffffff7f8bd22000
dependency: com.apple.iokit.IOPCIFamily(2.9)[BFDEB8D4-50FE-3DDB-87B7-F6A504393830]@0xffffff7f8b895000
dependency: com.apple.driver.AppleEFINVRAM(2.1)[B83F29B8-24AC-303B-BBBA-CF332168FDE6]@0xffffff7f8bef8000
dependency: com.apple.iokit.IOStorageFamily(2.1)[71BB22B0-3075-35A1-B04E-FBAC574DA80D]@0xffffff7f8bb83000
dependency: com.apple.iokit.IOReportFamily(47)[0BC9F93B-456A-3D97-BE4C-69DCBB5E8A3C]@0xffffff7f8c2c0000
BSD process name corresponding to current thread: kernel_task
Mac OS version:
18G103
thanks!
*** Panic Report ***
panic(cpu 0 caller 0xffffff7f8cddeb30): nvme: "Fatal error occurred. CSTS=0xffffffff US[1]=0x0 US[0]=0x2d VID/DID=0x50121987
. FW Revision=ECFM12.2\n"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/IONVMeFamily/IONVMeFamily-387.270.1/IONVMeController.cpp:5334
Backtrace (CPU 0), Frame : Return Address
0xffffff921e1e3a10 : 0xffffff800afae6ed
0xffffff921e1e3a60 : 0xffffff800b0ea185
0xffffff921e1e3aa0 : 0xffffff800b0db8ba
0xffffff921e1e3b10 : 0xffffff800af5bb40
0xffffff921e1e3b30 : 0xffffff800afae107
0xffffff921e1e3c50 : 0xffffff800afadf53
0xffffff921e1e3cc0 : 0xffffff7f8cddeb30
0xffffff921e1e3e20 : 0xffffff800b65f387
0xffffff921e1e3e90 : 0xffffff800b65f2a9
0xffffff921e1e3ec0 : 0xffffff800afed885
0xffffff921e1e3f40 : 0xffffff800afed425
0xffffff921e1e3fa0 : 0xffffff800af5b0ce
Kernel Extensions in backtrace:
com.apple.iokit.IONVMeFamily(2.1)[A67B3600-6FE3-3037-AC41-8C2D353B6250]@0xffffff7f8cdd1000->0xffffff7f8ce10fff
dependency: com.apple.driver.AppleMobileFileIntegrity(1.0.5)[1D716047-7F62-3FFA-8C01-26C166B3739A]@0xffffff7f8bd22000
dependency: com.apple.iokit.IOPCIFamily(2.9)[BFDEB8D4-50FE-3DDB-87B7-F6A504393830]@0xffffff7f8b895000
dependency: com.apple.driver.AppleEFINVRAM(2.1)[B83F29B8-24AC-303B-BBBA-CF332168FDE6]@0xffffff7f8bef8000
dependency: com.apple.iokit.IOStorageFamily(2.1)[71BB22B0-3075-35A1-B04E-FBAC574DA80D]@0xffffff7f8bb83000
dependency: com.apple.iokit.IOReportFamily(47)[0BC9F93B-456A-3D97-BE4C-69DCBB5E8A3C]@0xffffff7f8c2c0000
BSD process name corresponding to current thread: kernel_task
Mac OS version:
18G103
Have you tried reseating the adapter and drive? Does the adapter need to have kapton tape applied?
2015 MBP support hibenation with NVMe drives, check if you have the latest bootroom,I'm not sure if this is hibernate kernel panic related but post your hibernate settings.
sudo pmset -g
Last edited:
While I have had very positive experiences upgrading my 13" Late 2013 MBP to an nvme 1TB Adata SX8200,
I have had a very frustrating time upgrading my 13" early 2015 with 2TB Sabrent Rocket nvme SSDs.
Right out of the gates, kernel panics every time it would sleep.
Ran hot.
Tried a new short Sintech adapter. taped it.
Tried a new long Sintech adapter.
The kernel panics just kept getting worse.
Moved the drive and adapter, to the Late 2013 MPB and the problems followed the drive.
And the drive got worse and worse to the point where it would KP if you looked sideways at it.
Ergo the drive is faulty.
So I ordered a second 2TB Sabrent Rocket.
Initially: problem solved - 3 days of bliss free operation -- no kernel panics, no sleep or hibernation issues!
Seemed to run cooler too
Was about to post about it...
And the drive died. Non responsive, does not show up for love or money.
Dead.
So now I have a 2TB Adata SX8200 Pro inbound.
I hope "that the third time is the charm", and that by bad luck I just encountered two bad Sabrent drives.
I have had a very frustrating time upgrading my 13" early 2015 with 2TB Sabrent Rocket nvme SSDs.
Right out of the gates, kernel panics every time it would sleep.
Ran hot.
Tried a new short Sintech adapter. taped it.
Tried a new long Sintech adapter.
The kernel panics just kept getting worse.
Moved the drive and adapter, to the Late 2013 MPB and the problems followed the drive.
And the drive got worse and worse to the point where it would KP if you looked sideways at it.
Ergo the drive is faulty.
So I ordered a second 2TB Sabrent Rocket.
Initially: problem solved - 3 days of bliss free operation -- no kernel panics, no sleep or hibernation issues!
Seemed to run cooler too
Was about to post about it...
And the drive died. Non responsive, does not show up for love or money.
Dead.
So now I have a 2TB Adata SX8200 Pro inbound.
I hope "that the third time is the charm", and that by bad luck I just encountered two bad Sabrent drives.
Looks like i dont have any tape. Ill apply and test it some more.
Bootrom version is 189.0.0.0.0
Power settings below:
Currently in use:
lidwake 1
autopoweroff 1
standbydelayhigh 86400
autopoweroffdelay 28800
standbydelaylow 10800
standby 1
proximitywake 0
ttyskeepawake 1
hibernatemode 3
powernap 0
gpuswitch 2
hibernatefile /var/vm/sleepimage
highstandbythreshold 50
displaysleep 2
sleep 1 (sleep prevented by AddressBookSourceSync, sharingd)
halfdim 1
acwake 0
tcpkeepalive 1
disksleep 10
Very worrying information as I've got an incoming Sabrent drive. Hopefully the Adata will solve it for you for good!
13" Macbook Pro Retina early 2015 + long black Sintech + Adata SX8200 Pro 2TB
Interestingly, unlike my SX8200 1TB (non pro) in my 13" MBP Late 2013 which shows up as "Apple SSD Controller",
the 2TB Pro shows up as generic
Given the failure of the two Sabrent 2TB drives, I feel like I should be stress testing this somehow.
Interestingly, unlike my SX8200 1TB (non pro) in my 13" MBP Late 2013 which shows up as "Apple SSD Controller",
the 2TB Pro shows up as generic
Given the failure of the two Sabrent 2TB drives, I feel like I should be stress testing this somehow.

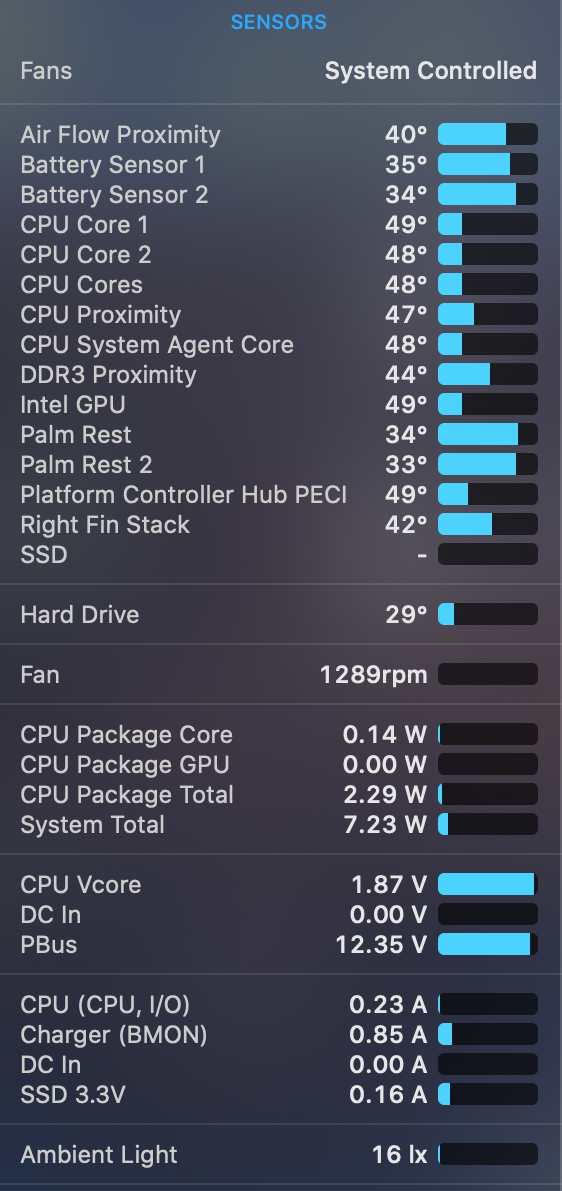

Same problem here, I have Macbook Pro 15 Mid 2015 with Sabrent 512Gb SSD and I've got 3 hours of basic work on macbook. My boot rom is 192.0.0.0.0. Is there any solution for this ? Is there any better SSD with lower power consumption than sabrent ?

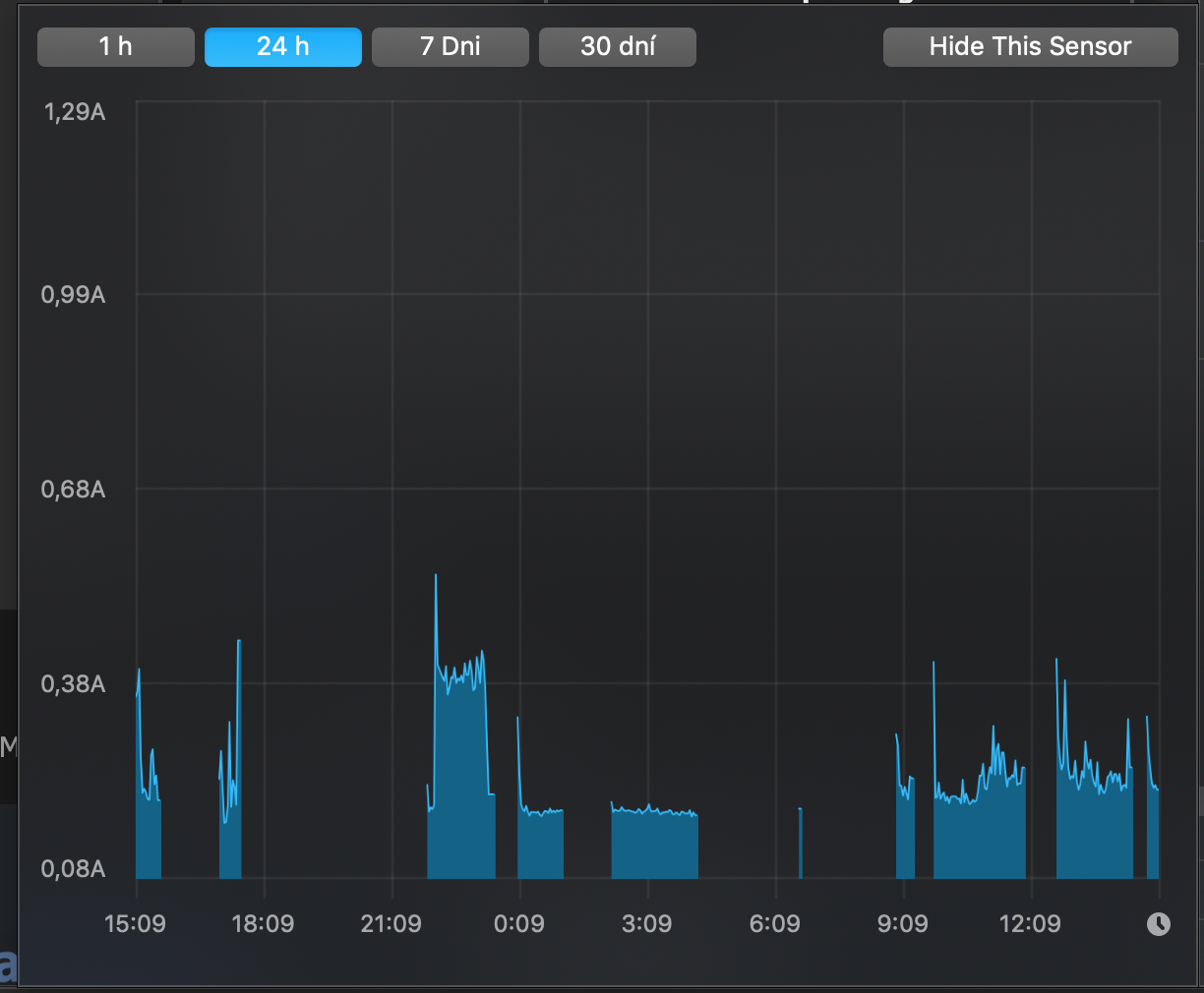

This is power consumption of my ssd it's basically between 200 and 550 mA.
Hi,
I hope someone of you can help me. I bought two new nvme SSDs (model: MICRON 2200 NVMe 1024GB SSD | M.2 2280 Gen3 X4)
These SSDs should be compatible with my two Macbook Pros according to the seller.
i tested the two SSDs in two different macbook pros (each 2014 | A1398 | latest MAC OS Mojave | Boot-ROM-Version: 156.0.0.0.0 | SMC-Version (System): 2.18f15). Unfortunately both SSDs don't work. The macbooks restarts in a continuous loop. During the boot process there is always a kernel panic.
If the new SSD is installed, I also can't boot from an installation Usb Stick, because the computer crashes with a kernel panic.
I have tried different things and researched at google. I would describe myself as an advanced mac/pc user, but couldn't find a solution.
Therefore I would be very happy if you could offer me a solution.
Best regards,
Colin
I hope someone of you can help me. I bought two new nvme SSDs (model: MICRON 2200 NVMe 1024GB SSD | M.2 2280 Gen3 X4)
These SSDs should be compatible with my two Macbook Pros according to the seller.
i tested the two SSDs in two different macbook pros (each 2014 | A1398 | latest MAC OS Mojave | Boot-ROM-Version: 156.0.0.0.0 | SMC-Version (System): 2.18f15). Unfortunately both SSDs don't work. The macbooks restarts in a continuous loop. During the boot process there is always a kernel panic.
If the new SSD is installed, I also can't boot from an installation Usb Stick, because the computer crashes with a kernel panic.
I have tried different things and researched at google. I would describe myself as an advanced mac/pc user, but couldn't find a solution.
Therefore I would be very happy if you could offer me a solution.
Best regards,
Colin
Hi, I have a Mid-2014 13" Macbook Pro running MacOS Mojave Ver.10-14.6 on it.
I am planning to upgrade the SSD on this machine with a Sintech NGFF M.2 PCIe SSD Card WITH A CRUCIAL P1 1TB 3D NAND NVMe PCIe M.2 SSD (CT1000P1SSD8).
Where can I find an easy step-by-step guide to assist me in this upgrade.
And, for anyone who has done this before - what precautions do I need to take before, during & after this upgrade ?
Thanks in advance for your help.
I am planning to upgrade the SSD on this machine with a Sintech NGFF M.2 PCIe SSD Card WITH A CRUCIAL P1 1TB 3D NAND NVMe PCIe M.2 SSD (CT1000P1SSD8).
Where can I find an easy step-by-step guide to assist me in this upgrade.
And, for anyone who has done this before - what precautions do I need to take before, during & after this upgrade ?
Thanks in advance for your help.
I think that Sabrent rocket has almost the lowest power consumption available. About your power consumption, you might want to check elsewhere.
Been eyeing to switch from sabrent rocket myself. My 970 Pro (I wanted speed at the time) is consuming 0.3A minimum, 0.66A average, and 1.6A at load. Thats translate into 1.5W idle to about 4W at load. vs Sabrent's 0.5W idle 1.4W load.
Also, I get about 4-5 hours out of my rMBP 2015 15" (DG). my BootROM version is 195.0.0.0 (from Catalina Beta FW update). (I force it to update using /usr/libexec/efiupdater)
Last edited:
